PTZ 10X оптический зум HD камера видеоконференции вещание для встреч прямая трансляция церковное обучение youtube skype

Series No.

   Description

 Optical

Zoom

 Model:ZMK310U3

Full HD USB PTZ Camera
1/2.8" 1080p60 Exmor CMOS
H.265/ H.264
USB3.0, HDMI, RS232C/ RS485
12X/ 20X/ 3X optical zoom
Effective Pixels:2.1MP 16:9
Pan: 0-340°  Tilt :0°~120°
IR Remote, A-IN
SNR: >50dB

10X

12X

20X

Horizontal Resolution

1080p 60fps

 Optical zoom

(310U3)10X

(312U3) 12X

(320U3) 20X

 Focal length

f=5mm~50mm

f=4.7~56mm

f=4.7~94mm

 Horizontal Angle

5.3°(tele)

52°(wide)

5.2°(tele)62°(wide)

3.2°(tele)58.7°(wide)

 Aperture coefficient

F1.6~F3.5

 Digital Zoom

12X

 Control terminal

RS-232, RS-422/485

Optical Parameter    (1080P60+HDMI+LAN+USB3.0)

Sensor

 1/2.8"  inch Exmore CMOS

Effective Pixels

16:9  2.1 Megapixels

Resolution

1080p60/50/30/25/10,720p60/50/30/25

Optical Lens

10X Optical Zoom f=4.7~94mm

Horizontal View Angle

55.4°(W)~2.9°(T)

Min illumination

0.1Lux

White Balance & Focus

Auto, Manual

Aperture & Shutter

Auto

Noise-Signal Ratio

≥50db

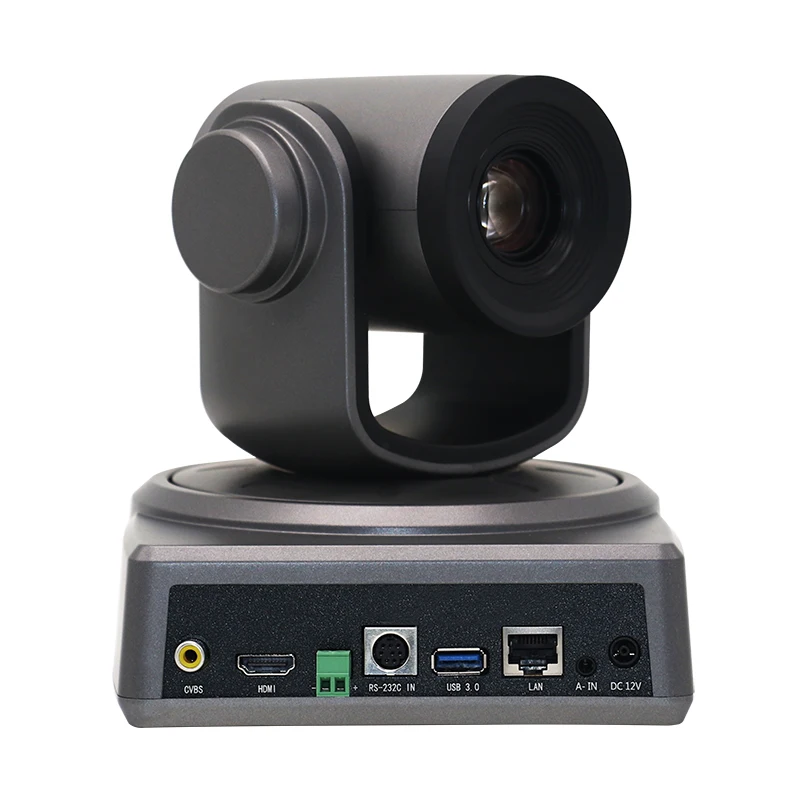

Input/Output interface

HD video interface

HDMI,USB3.0,RJ45,CVBS

Control signal interface

8 mini DIN

Control signal format

Baud rate:9600/4800/2400bps

Power interface

HEC3800 power socket

Support operating system

Windows XP,Vista,7,8, Windows  10, Mac OS X, Linux

USB protocol

UVC1.1

USB interface PTZ control

Support PTZ control

Mechanical Parameter

Pan-Tilt

Horizontal Angle: ±170°(Maximum speed: 100° /s);

Vertical Angle: -30° to +90°(Maximum speed: 60° /s)

Preset accuracy:0.1°

No. of Preset Positions:255

Power adapter

AC110V-AC220V turn to DC12V/2A

Input voltage

DC12V(DC11.5-DC12.5V)

Power dissipation

15W(Max)

Storage Temperature

-10℃~+60℃

Working  Temperature

0℃~45℃

Dimensions

(Length)155 × (Width)186 x (Height)172mm

Weight(Net weight)

2.5KG(1.3KG)

Environment

Indoor
