Заводская цена 1600C огнестойкое кремниевое керамическое волокно изоляционное одеяло
- Категория: >>>
- Поставщик: Henan Synthe Corporation
Сохранить в закладки 1600432095567:
Описание и отзывы
Характеристики
Product Description
Ceramic fiber blanket classification temperature is 1600c, working temperature is 1500C. Thickness is 6-50mm, density is 96-160kg/m3. We can provide a large range of temperature:1260C,1400C,1600C. Also provide density from 64kg/m3 - 160kg/m3. Our ceramic fiber blanket contains no organic binders which guarantee its’ stability and constructability. What’s more, We are one of the manufacturers who can produce ceramic fiber blankets of 1600 degrees and ceramic fiber boards of 1900 degrees.
Specification
Type | SYN-1260T | SYN-1600T | ||||||
Classification Temperature(℃) | 1260 | 1600 | ||||||
Working Temperature(℃) | 1100 | 1500 | ||||||
Color | white | white | ||||||
Density(kg/m3) | 96/128 | 96/128/150 | ||||||
Thermal Conductivity(w/mk) | 400℃ | 0.09 | - | |||||
600℃ | 0.15 | - | ||||||
800℃ | 0.22 | 0.08 | ||||||
1000℃ | - | - | ||||||
1200℃ | - | 0.17 | ||||||
Al2O3 | 42-44 | 72 | 80 | 95 | ||||
SiO2 | 56 | 28 | 20 | 5 | ||||
ZrO2 | - | - | - | - | ||||
CrO2 | - | - | - | - | ||||
Fe2O3 | ＜1.2 | ＜0.1 | ＜0.1 | ＜0.1 | ||||
Slag ball content 212um≤(%) | 10 | 0.4 | 0.05 | 0.05 | ||||
Shrinkage(%) | 1100℃*24h(2-3) | 1500℃*24h(0.5-1.3) | 1500℃*24h(0.5-1.0) | - | ||||
Stand Size:7200*610*6-50mm/9000*1220*10mm
Special specifications can be booked in advance
Special specifications can be booked in advance

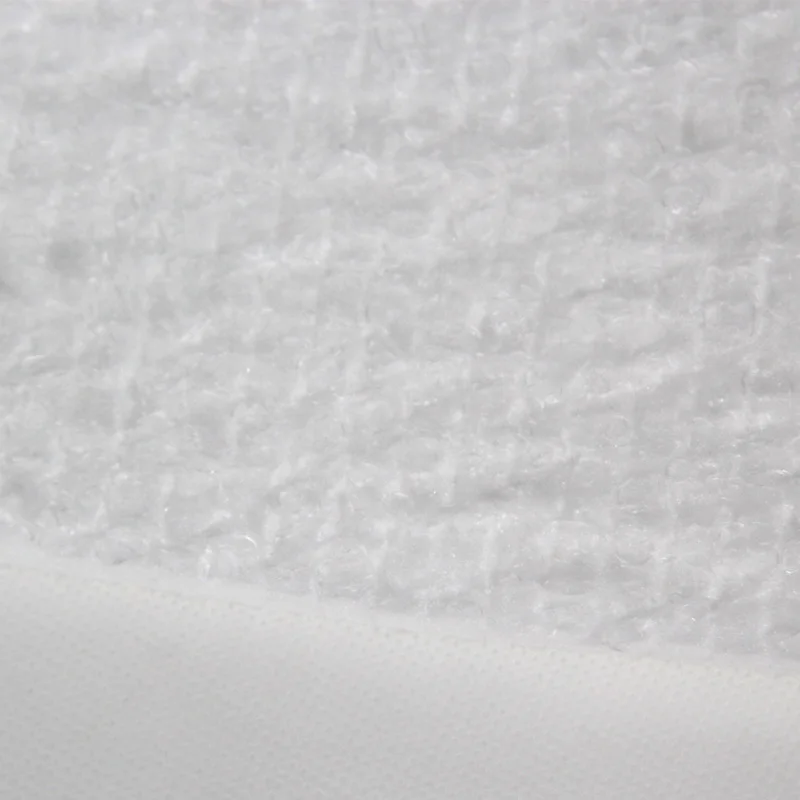

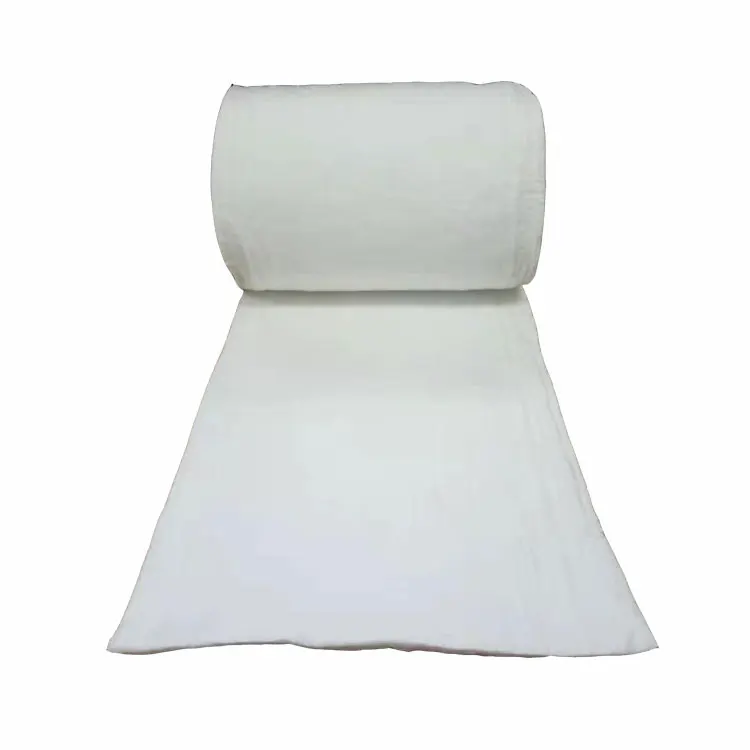

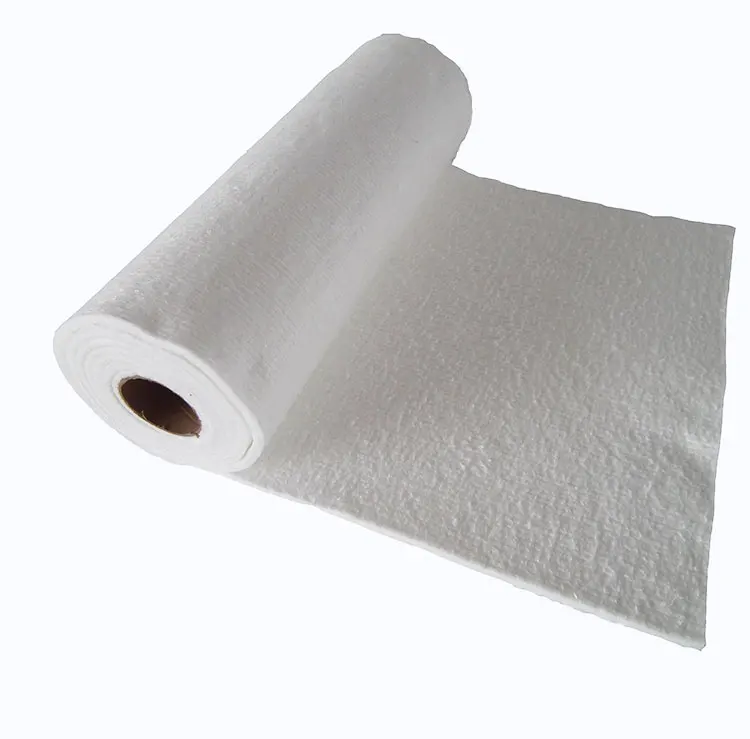

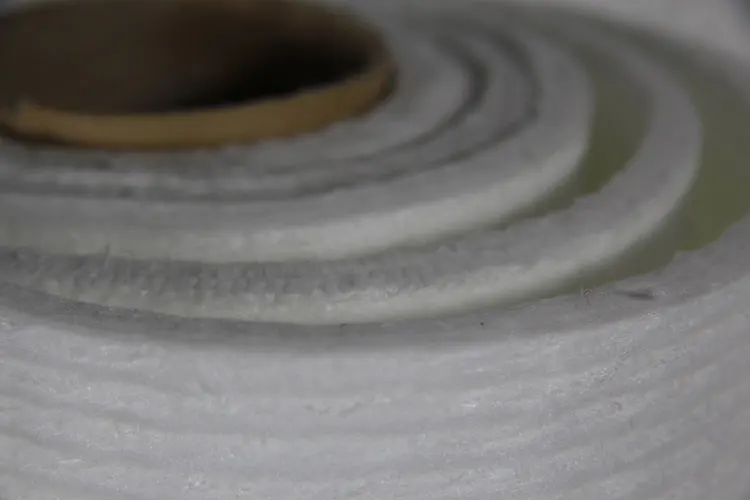

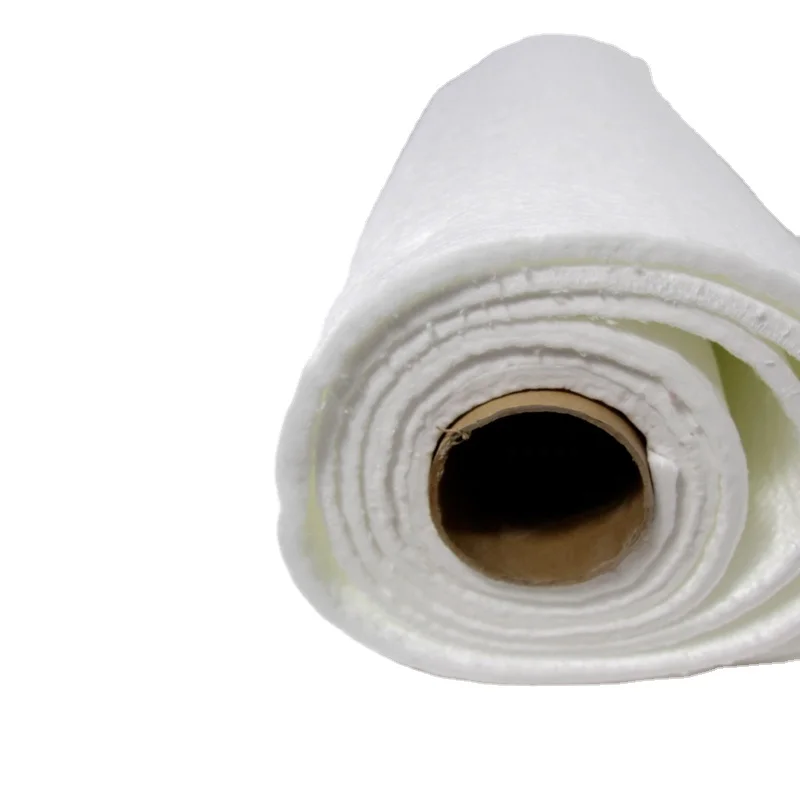

Details Images
Products Advantages
1. We can provide free samples and free design and drawing for you to test.
2. Low thermal conductivity & Low thermal capacity; Good chemical stability;
3. Excellent tensile strength, thermal stability, and good resistance to heat shock;
4. Grade 1600 ceramic fiber blanket is of great advantage in our factory, as we are one of the very few factories that can supply grade 1600 ceramic fiber blankets.
5. Price is very competitive with 1260C ceramic fiber products.
6. According to your special requirement, we have the ability to offer the design and drawing for free. Our technical team and design capabilities are our most significant advantages.
7. Stander size is 7200×610×6-50/ 3600×610×50mm/ 9000×1220×10mm, Special specifications can be produced as you require.
2. Low thermal conductivity & Low thermal capacity; Good chemical stability;
3. Excellent tensile strength, thermal stability, and good resistance to heat shock;
4. Grade 1600 ceramic fiber blanket is of great advantage in our factory, as we are one of the very few factories that can supply grade 1600 ceramic fiber blankets.
5. Price is very competitive with 1260C ceramic fiber products.
6. According to your special requirement, we have the ability to offer the design and drawing for free. Our technical team and design capabilities are our most significant advantages.
7. Stander size is 7200×610×6-50/ 3600×610×50mm/ 9000×1220×10mm, Special specifications can be produced as you require.
Product Application
Here is the real case we have done.
Project 1. Design and construction of fireproof for annealing furnace
Project 2. Annealing furnace
Project 3. Lifting furnace
Project 4. We are the first company at home to recombine 1400 ceramic fiber modules and boards to make the new type of vacuum sintering furnace.
Application
1. Industrial furnace wall lining;
2. Back lining material;
3. Furnace masonry expansion joints, door, roof heat insulation seal;
4. High-temperature pipe insulation material;
4. High-temperature pipe insulation material;
5. Module processing material;
6.Fireproof coating.
Our Company
Henan Synthe Corporation was founded in January 2013, is engaged in the design, development, manufacture, and sales of high-temperature insulation, vacuum-formed ceramic fiber heaters, diffusion heaters, and high-quality thermal processing equipment, all custom designed to meet your thermal requirements. Temperature ranges from room temperature 20°C ( 68°F) to 1800°C ( 3272°F), for over ten years in the industry,SYNTHE have been a problem-solver working with our customers to resolve their thermal management problems.
International Exhibition:
HK2017 Heat Treatment Congress Held in Koln, Germany
THERMPROCESS 2019 Held in Dusseldorf/ Germany
THERMPROCESS 2019 Held in Dusseldorf/ Germany
Relanted Products
Certifications
The company has obtained the "High-tech enterprise", "Private enterprise of technology", and other awards successively. Currently,it has eight new utility patents, and two other patents of invention and eight other new utility patents are in the process of application.
Product packaging
FAQ
1. Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.
2. Shall you offer samples?
Yes, we can offer the client samples in stock.
3. How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
4. What is the delivery time?
15-25 days after receiving the deposit
A: If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is about 10-25days.
5. What‘s your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
We have our own factory and excellent technical team, and we accept OEM service.
2. Shall you offer samples?
Yes, we can offer the client samples in stock.
3. How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
4. What is the delivery time?
15-25 days after receiving the deposit
A: If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is about 10-25days.
5. What‘s your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
Похожие товары
Высокое качество расплава пистолет Гуле палка для пластмассовых изделий, одежда, бумажная коробка и чехол
Лучшее качество зарядное устройство 48 в 800 Вт 2000 Вт бесщеточный двигатель широкое колесо самый быстрый Электрический Скутер E-Scooter Eu склад
98,60 $ - 145,20 $
Напитки стек масло центригал машина автоматическая отслаивание дрожжевой сепаратор дисковая Центрифуга

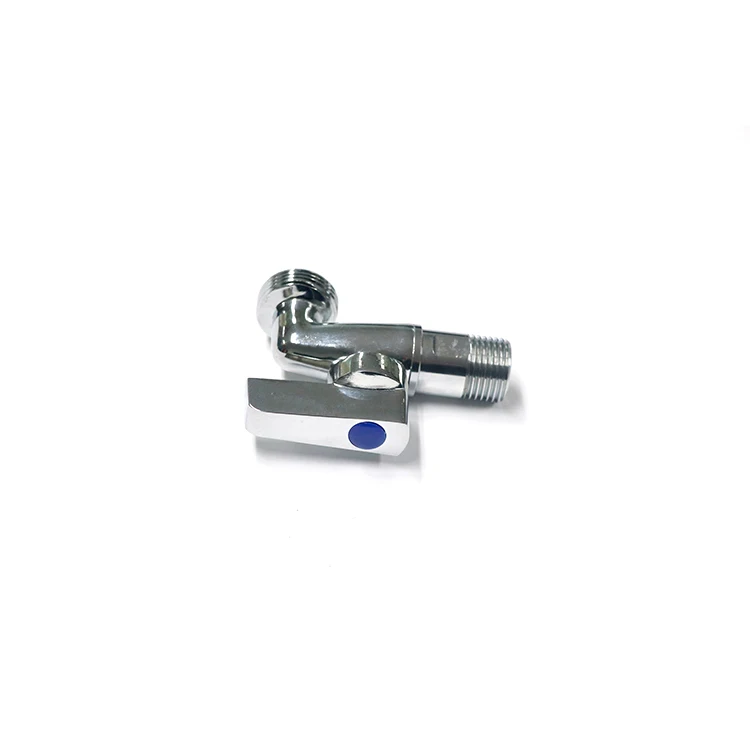

Оптовая продажа заказной хорошее качество латунный кран bibcock конкурентоспособная цена Латунный

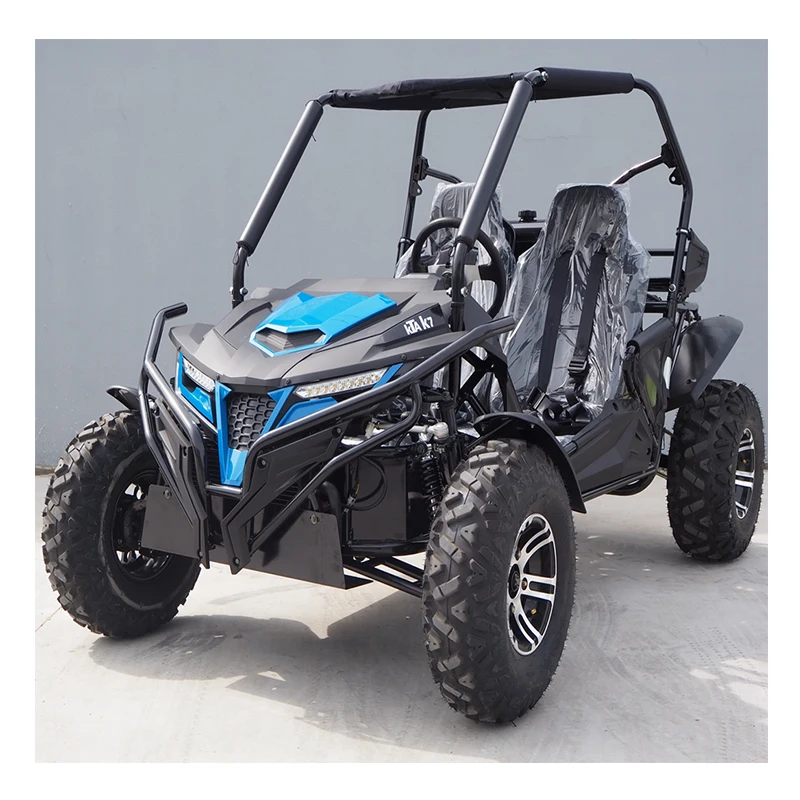

Специальная конструкция широко используемая, Зерноуборочные комбайны, обрабатывающие автоматически 2 сиденья Газа Багги ssvdune 200cc cheapbuggypro k1 k3 k5 k7 Go kartss для продажи
2 700,00 $ - 2 750,00 $

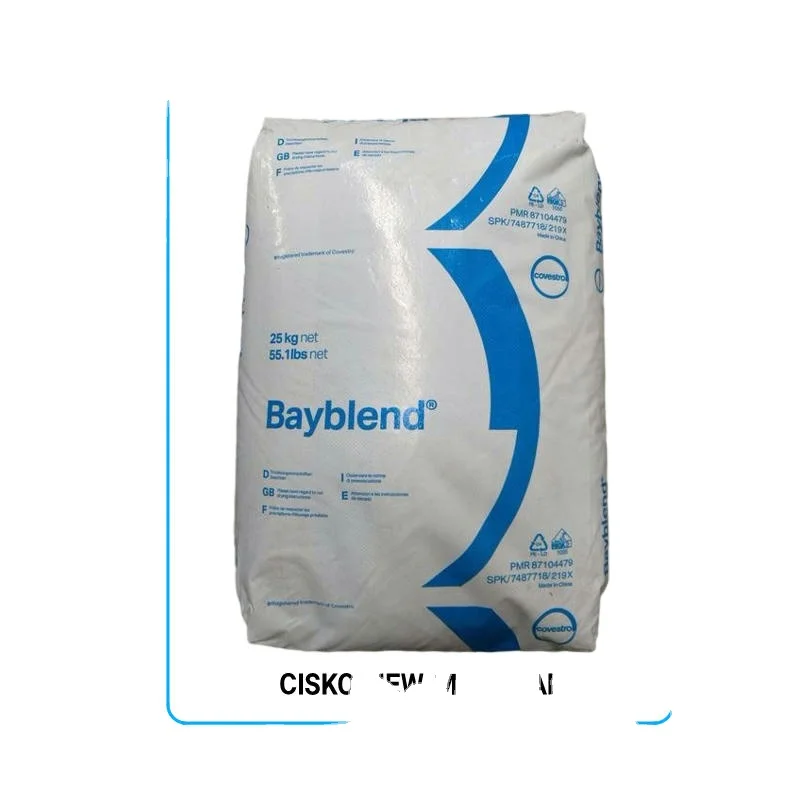

Covestro PC/ABS Bayblend FR3021/FR3021 GR/FR3025/FR3030/FR3050/FR3200 TV
