Weight of Ductile Iron Pipe Pricing Dn300 Black
20,00-30,00 $
Горячая Распродажа черная битумная решетка SYI En124 D400 из чугуна
- Категория: >>>
- Поставщик: Syi Industrial Co. Ltd.Syi Ltd.
Сохранить в закладки 1600433815225:
Описание и отзывы
Характеристики

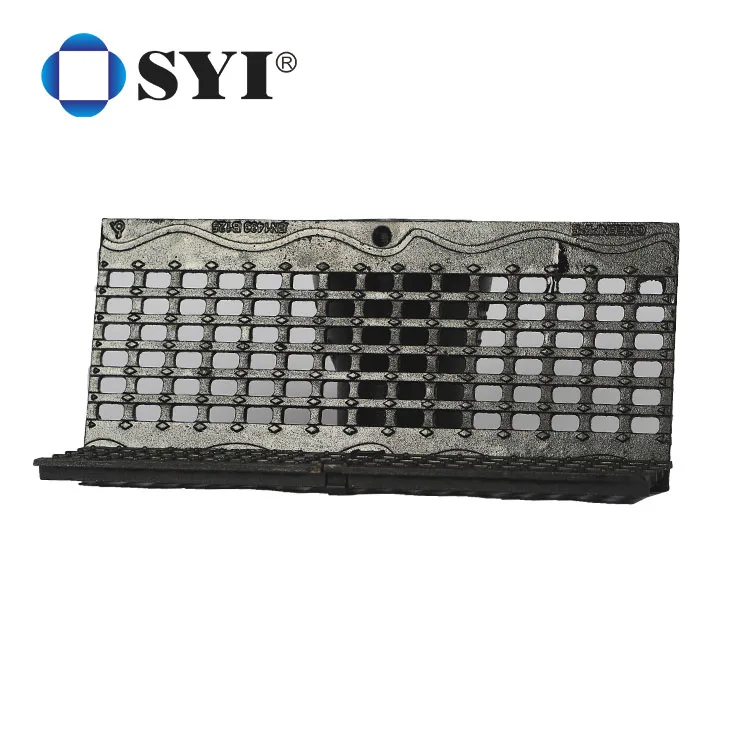

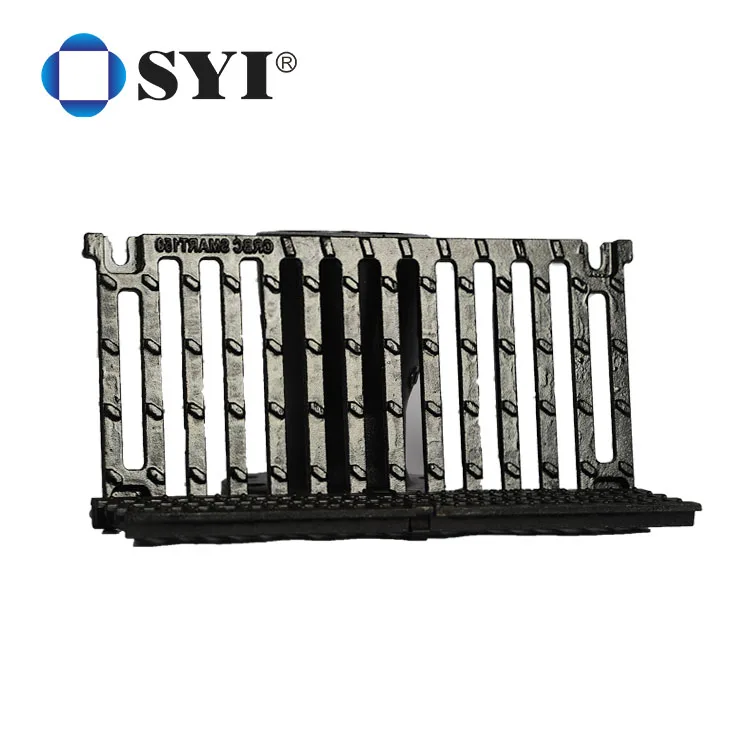

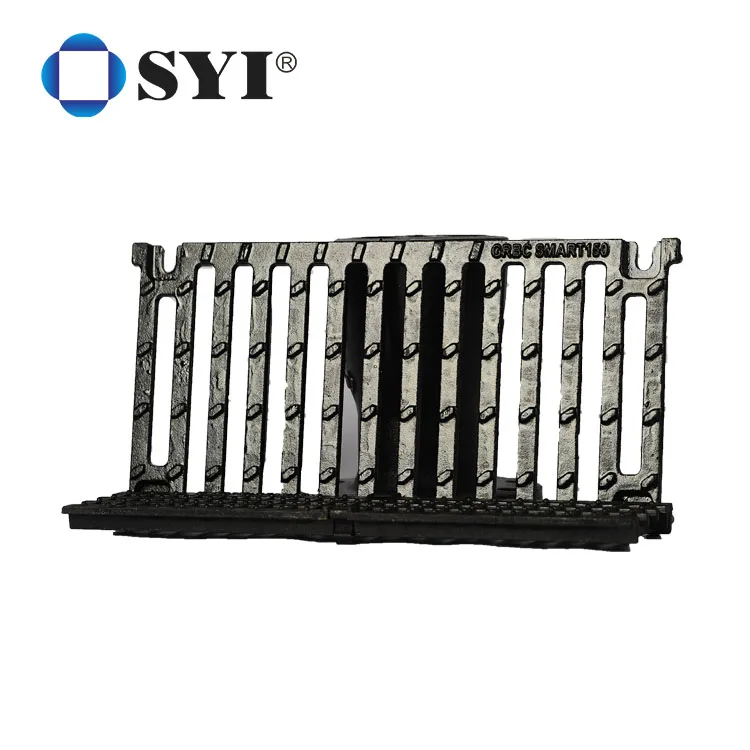

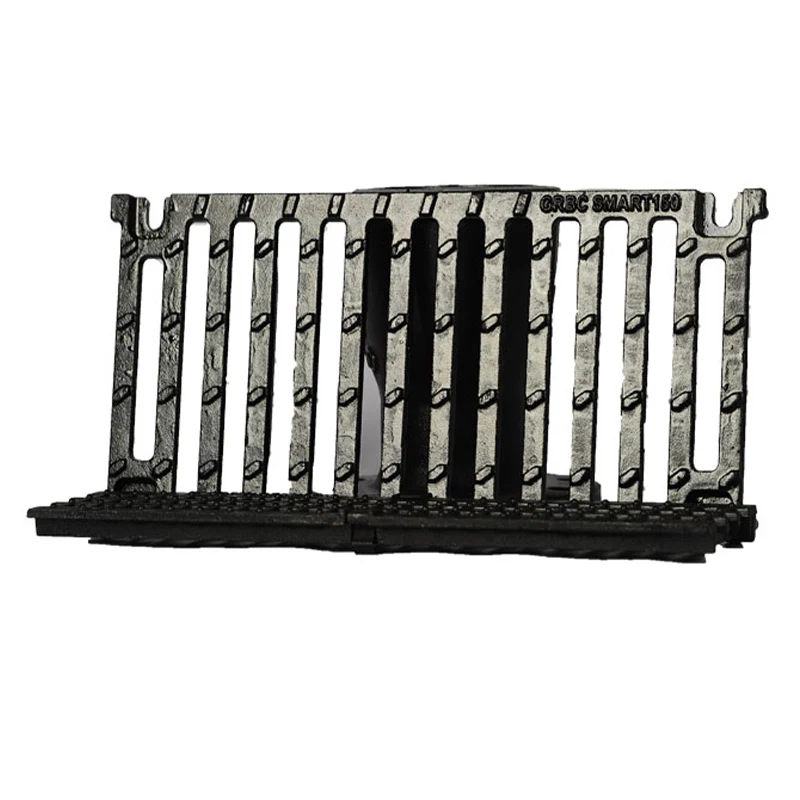

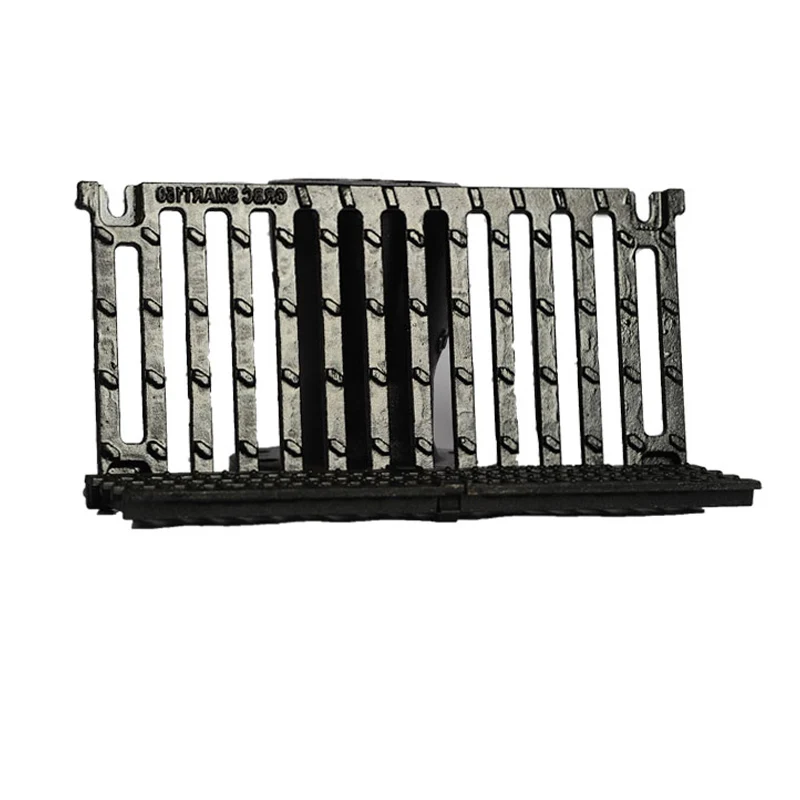

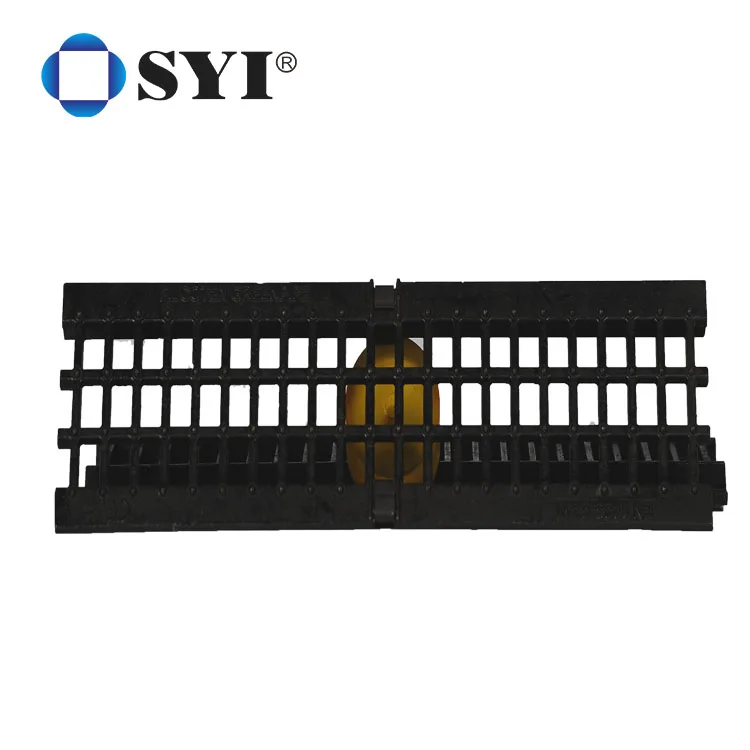

SYI Ductile iron Channel Gully Grating
Product Description
SYI can supply ductile iron heavy duty D400 or medium duty C250 type channel gully grating, with or without two separate frame strips,grating can be connected the frame strips with 4 carbon steel or SS304 bolts.
Ductile iron C250/D400 channel gully grating is made from spherical graphite cast iron (ductile iron) by auto machine moulding,flat top, without hinge. Very good quality, smooth and free from sand holes, blow holes, distortion or any othe defects. Loading capacity is 25tons or 40 tons. With or without kite mark.
The normal coating is black bitumen 50 microns thickness, also can make the epoxy coating according to the customer’s demand.
The normal coating is black bitumen 50 microns thickness, also can make the epoxy coating according to the customer’s demand.
The sizes of SYI Channel Gully Grating with the exsit moulds are as following:
Item | Clear Opening | Cover Size | The depth of insertion | Frame size | Height | ||||
G15100C4 | 150X1000 | 200X1000 | 27 | 282X100 | 60 | ||||
G20100C4 | 200X1000 | 250X1000 | 27 | 332X1000 | 60 | ||||
G25100C4 | 250X1000 | 300X1000 | 27 | 382X1000 | 60 | ||||
G35100C4 | 350X1000 | 400X1000 | 27 | 482X1000 | 60 | ||||
G1575D | 152×750 | 200×750 | 54 | 290×750 | 60 | ||||
G2075D | 202×750 | 250×750 | 54 | 340×750 | 60 | ||||
G2575D | 252×750 | 300×750 | 54 | 390×750 | 60 | ||||
G3075D | 302×750 | 350×750 | 54 | 440×750 | 60 | ||||
G3575D | 352×750 | 400×750 | 54 | 490×750 | 60 | ||||
G4075D | 402×750 | 450×750 | 54 | 540×750 | 60 | ||||
The marks including the customer’s logo can be changed.
We have a strong R&D team, can design and make the new mould for you.
We have a strong R&D team, can design and make the new mould for you.
Quality Control
Packing & Delivery
The package:
iron or plywood or fimugated wooden pallet, wrap film to keep the clean, the pallet should be enough strong, and it is suitable for the long time sea transportation, and bear with the bumps in transit.
Company Profile
SYI Foundry is a Professional Supplier of the Municipal, Drainage & Machinery Products & Services!
SYI Foundry ( Shanxi Yuansheng Casting & Forging Industrial Co., Ltd. ) – a Proud Member of SYI Group- manufactures Manhole Covers, Gully Gratings, Surface Boxes, Tree Gratings, Bollards, Garden Benches, Cast Lamp Posts & Bases and all types of OEM/ODM municipal products and Outdoor Furnitures.
With annual production capacity of 35,000 tons, our major equipments include 2 sets of automatic moulding lines, 4 sets of 5-tons cupola and furnaces, 2 sets of load testing machines, 1 epoxy coating machine, 5 sets of core-shooting machines, 3 set of shot blasting machines, 4 set of water pressure machines, 2 machining workshops and all necessary chemical and physical test facilities.
SYI Foundry ( Shanxi Yuansheng Casting & Forging Industrial Co., Ltd. ) – a Proud Member of SYI Group- manufactures Manhole Covers, Gully Gratings, Surface Boxes, Tree Gratings, Bollards, Garden Benches, Cast Lamp Posts & Bases and all types of OEM/ODM municipal products and Outdoor Furnitures.
With annual production capacity of 35,000 tons, our major equipments include 2 sets of automatic moulding lines, 4 sets of 5-tons cupola and furnaces, 2 sets of load testing machines, 1 epoxy coating machine, 5 sets of core-shooting machines, 3 set of shot blasting machines, 4 set of water pressure machines, 2 machining workshops and all necessary chemical and physical test facilities.
SYI Products Have Served 118 Countries Worldwide Up To Now! Most Of These Customers Cooperated With SYI For More Than 20 Years! We Value Long Term Cooperation Relationship Mostly!
Government Audits
Похожие товары
OEM Manufacturer Die Casting Parts Accessories for Train Fly Wheel Flywheel Manhole Cover Grate Motor Housing Engine Block
1,00-3,00 $

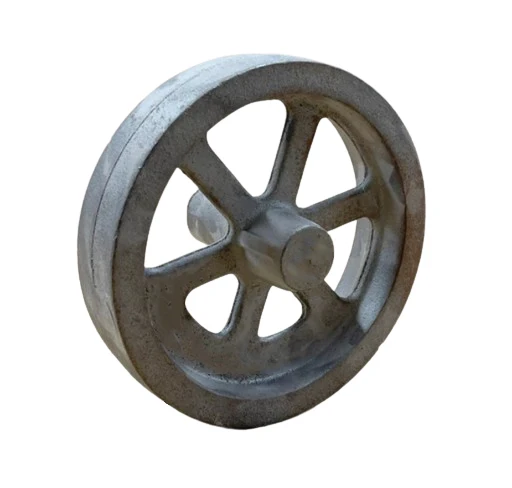

OEM/ODM Large Castings Flywheel 1ton Cast Iron Bench
1,35 $
Прецизионная трансмиссия двигателя автомобиля выполнить часть
100,00 $
Двухвальный бетономешалка запасные части включая смесительные рычаги скребки облицовки услуги литья
100,00 $
OEM суперсплав Инконель 792/Haynes 188/Rene 41 самолет/вертолетный ГАЗОТУРБИННЫЙ лопасти услуги по литью на заказ для GE
5,17-43,45 $

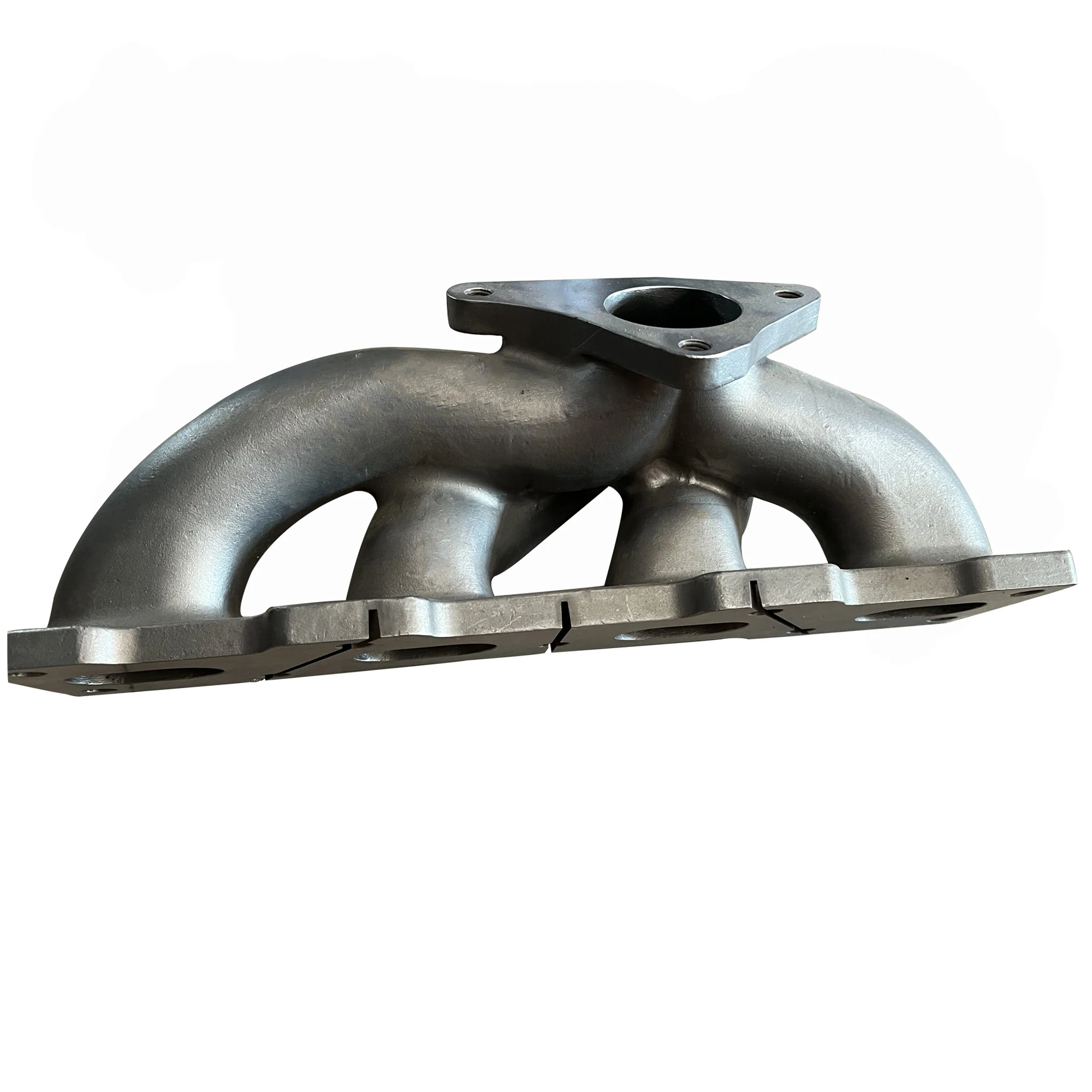

High Quality Stainless Steel Header Exhaust Manifold Piping for Honda Civic 88-00 Eg Ef Ek Em
