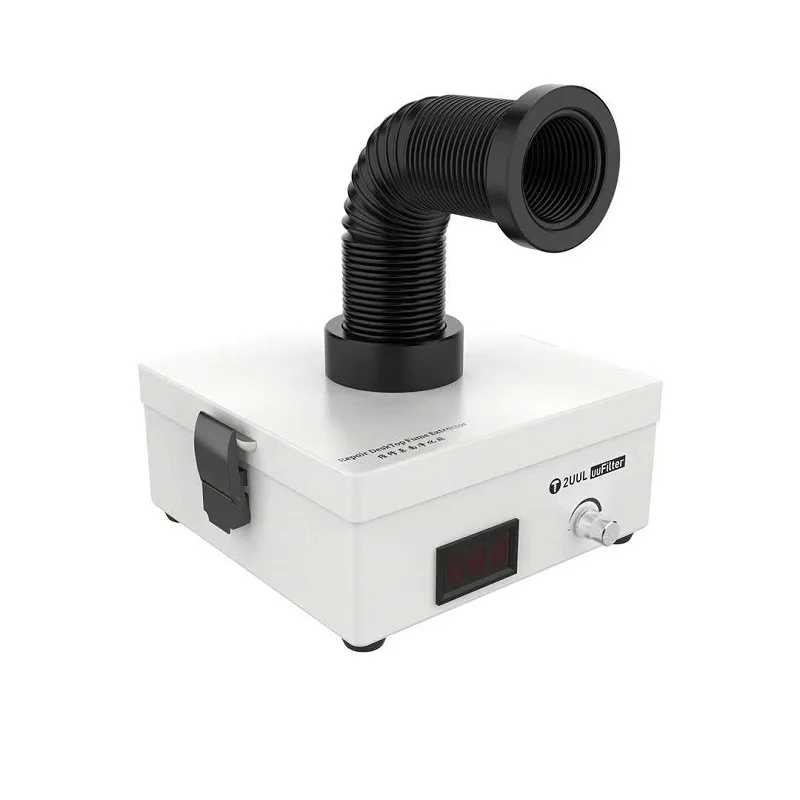

2UUL Настольный газовый экстрактор 110V 220V телефонное печатных плат сварочного аппарата лазерной маркировки дым поглощающий фильтр для очистки с активацией фильтра активированным
7 654,00 ₽ - 8 874,20 ₽
Стандартное электронное оборудование для очистки воздуха YANING GMP индивидуальный модульный очиститель помещений воздушный Душ
- Категория: Air Cleaning Equipment >>>
- Поставщик: Dongguan Yaning Purification Equipment Co. Ltd.
Сохранить в закладки 1600434872318:
Описание и отзывы
Характеристики

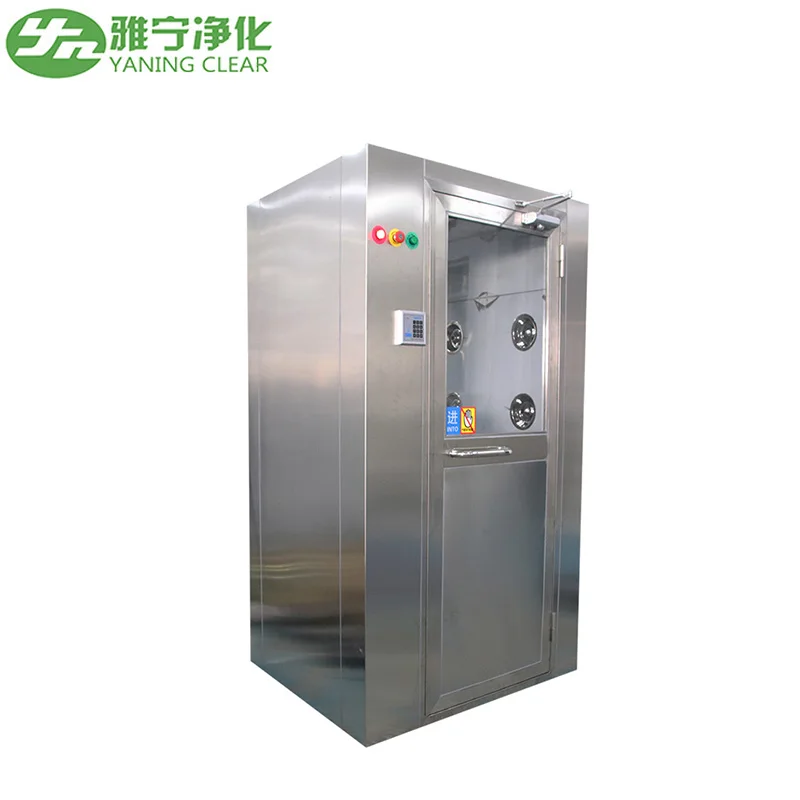

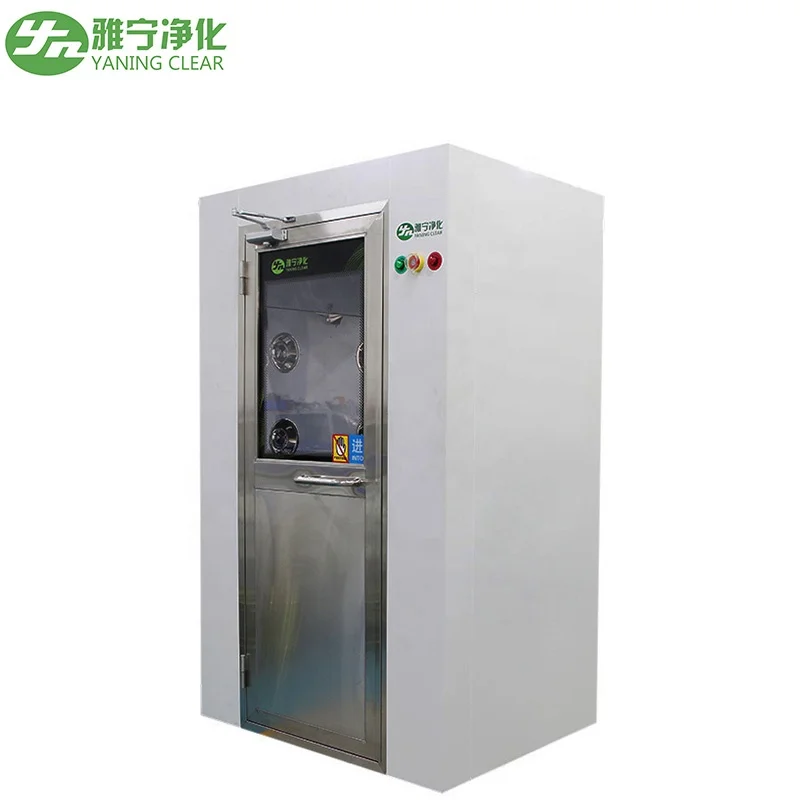

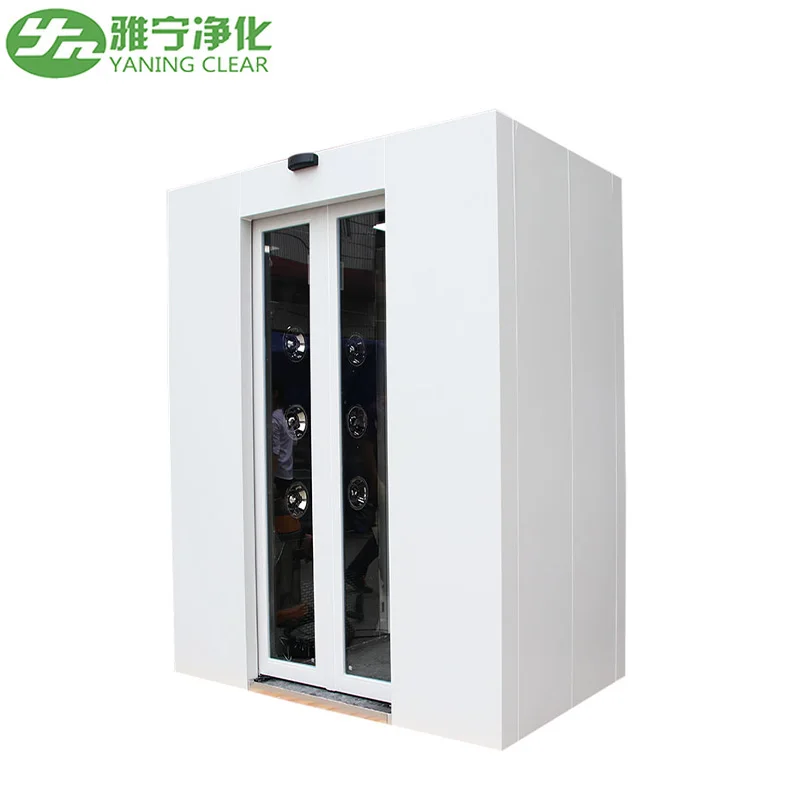

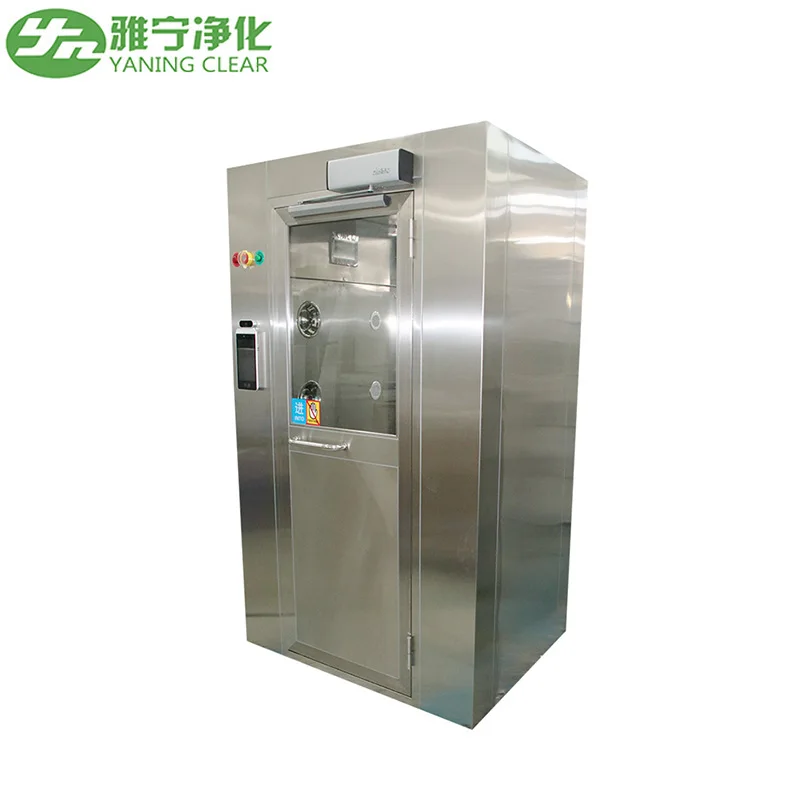

Air Shower
①G4 pre filter and H13 HEPA filter, 2-stage
filtration. Ensure purification level.
filtration. Ensure purification level.
②Fully automatic infrared induction blowing.
③Equipped with 360-degree adjustable stainless .steel nozzle.Left and right sides blowing shower,large air volume and low noise centrifugal fan.The air velocity of the nozzle can reach 22-27m/s.
④Adopt LCD time display, air shower time is
adjustable from 0-99S, show the completion
time of air shower, with humanized voice prompts.
adjustable from 0-99S, show the completion
time of air shower, with humanized voice prompts.
⑤According to the needs of the site, customize the door direction.
Product Description
Removes surface-deposited particles from personnel prior to entering the cleanroom
• Self-contained, turnkey chambers are preassembled at the factory and shipped in two sections (top and bottom) for fast
installation
• HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on garments
• Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
• Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
• Shower time and door interlock duration can be programmed using the touchscreen control panel
• Air nozzles can be adjusted to redirect streams of air
• Energy-efficient LED lighting includes motion-activation
• Self-contained, turnkey chambers are preassembled at the factory and shipped in two sections (top and bottom) for fast
installation
• HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on garments
• Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
• Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
• Shower time and door interlock duration can be programmed using the touchscreen control panel
• Air nozzles can be adjusted to redirect streams of air
• Energy-efficient LED lighting includes motion-activation
Configuration Options
1.According to the material requirements: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
2.According to powersupply requirements: voltage 220V/380V, frequency 50Hz/60Hz. Number of phases: single-phase / three-phase; 3.According to therequirements of blowing: single blow, top blow, double blow, three blow; 4.According to the number of people:
single person,double person,multiple people. 5.According to the door requirements: manual doors,automatic 90 degree doors, sliding doors, fastrolling shutter doors. curtain doors, no doors, etc.
6.According to the requirements of use: manual door, automatic door, S type,L type,three-doors air shower, bufferroom, etc.
Product Parameters | ||||||||||
Model | YN-1000 | YN-1500 | YN-2000 | Air Shower Tunnel | ||||||
External Dimension | 1290×1000×2130 | 1290×1000×2130 | 1290×2000×2130 | 2000×2000×2130 | ||||||
Internal Work Zone | 790×860×1910 | 790×860×1910 | 790×1860×1910 | 790×4860×1910 | ||||||
Suitable Number | 1-2 person | 1-2 person | 2-4 person | Tunnel type | ||||||
Noise Level(dB) | ＜62 | ＜62 | ＜62 | ＜62 | ||||||
Stainless Steel Nozzle | 6pcs | 12pcs | 24pcs | 72pcs | ||||||
Wind Speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s | ||||||
Prefilter | Size | 775×380×17×1pc | 775×380×17×2pcs | 775×380×17×4pcs | 775×380×17×8pcs | |||||
Efficiency | G4 | G4 | G4 | G4 | ||||||
HEPA Filter | Size | 610×610×120×1pc | 610×610×120×2pcs | 610×610×120×4pcs | 610×610×120×8pcs | |||||
Efficiency | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | ||||||
Fluorescent Lamp | 20W×1 | 20W×2 | 20W×4 | 40W×4 | ||||||
Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | ||||||
Total Power | 780W | 780W | 780W | 780W | ||||||
Products Description
Single Person Double Blow | ||
Outside Dimensions W×D×H(mm) | 1290×1000×2130 | |
Internal Size W×D×H(mm) | 790×880×1925 | |
Nozzle | 12 Pcs | |
Fan Power(W) | 1100W×1 Pcs | |
Two Person Double Blow | ||
Outside Dimensions W×D×H(mm) | 790×880×1925 | |
Internal Size W×D×H(mm) | 790×1380×1925 | |
Nozzle | 18 Pcs | |
Fan Power(W) | 750W×2 Pcs | |
Three Person Double Blow | ||
Outside Dimensions W×D×H(mm) | 1290×2000×2130 | |
Internal Size W×D×H(mm) | 790×1880×1925 | |
Nozzle | 24 Pcs | |
Fan Power(W) | 1100W×2 Pcs | |

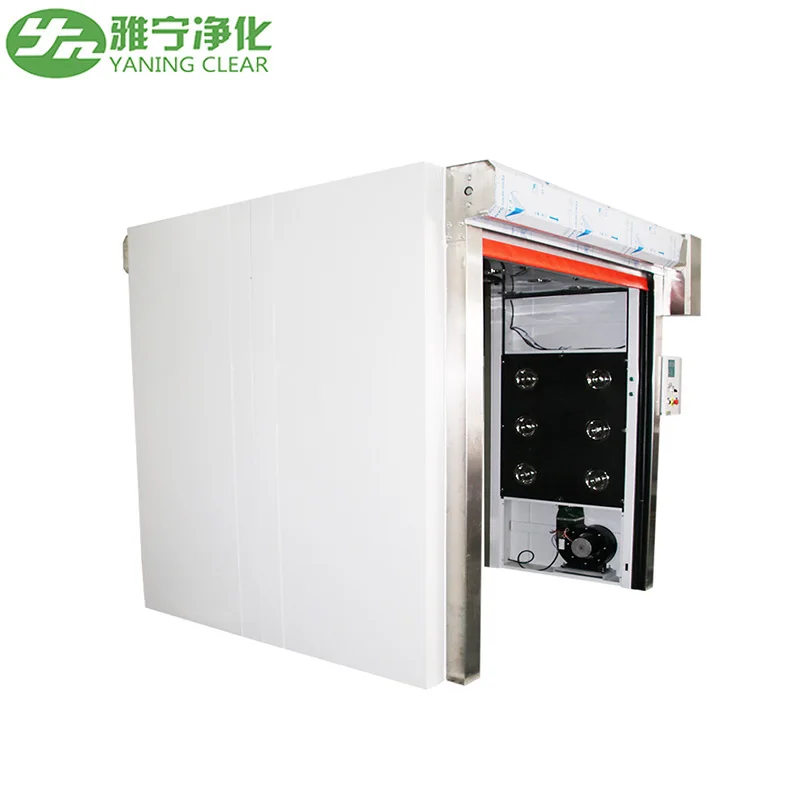

Air shower Tunnel | ||
Outside Dimensions W×D×H(mm) | 1290×3000×2130 | |
Internal Size W×D×H(mm) | 790×2880×1925 | |
Nozzle | 36 Pcs | |
Fan Power(W) | 1100W×3 Pcs | |
Detail Image
Success case show
Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
Packing&Delivery
Exhibition
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Похожие товары

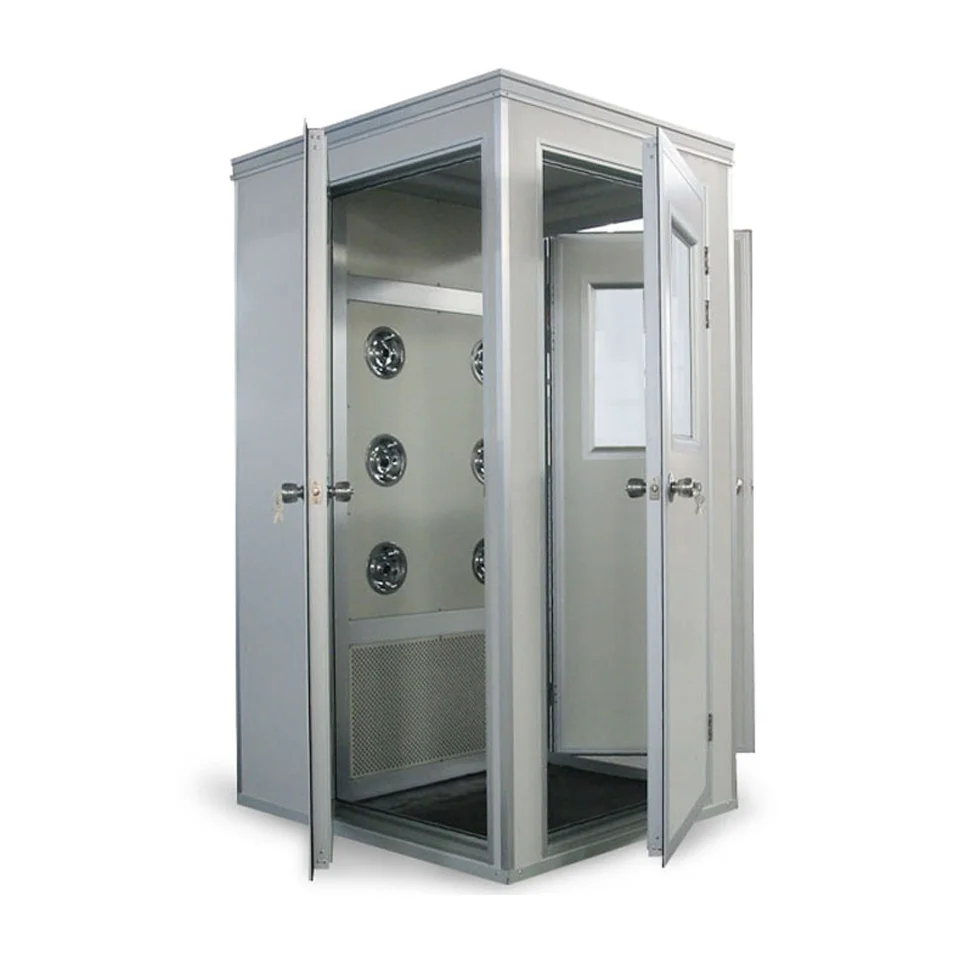

Оборудование для чистых комнат, надувной душ из нержавеющей стали на заказ
88 742,00 ₽ - 144 205,75 ₽

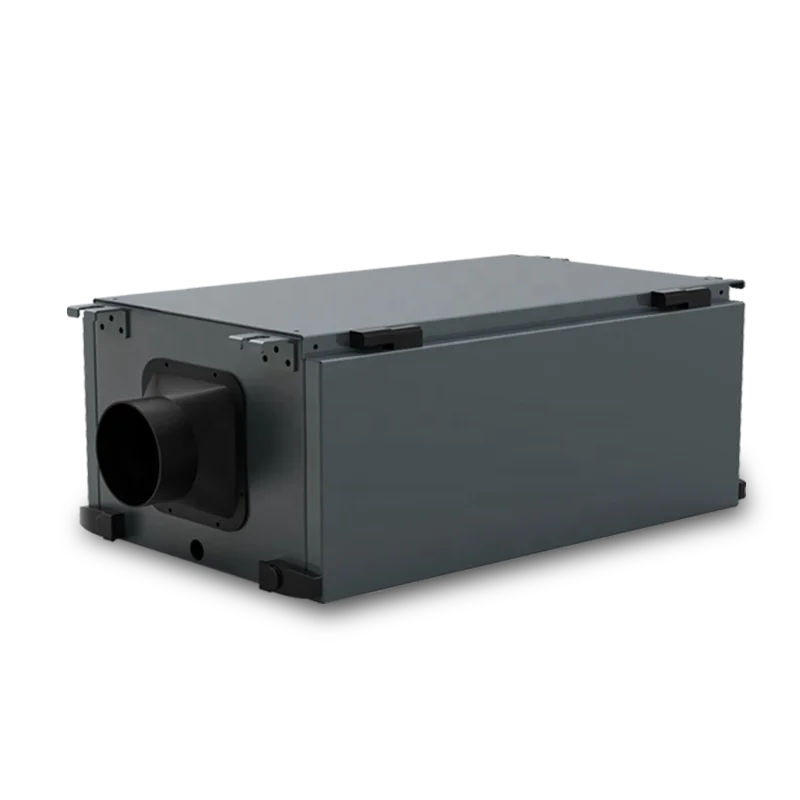

Высокоэффективный индивидуальный потолочный осушитель 26L/D промышленной емкости с сертификатом CE
26 622,60 ₽ - 28 841,15 ₽
Привлекательная цена новый тип 304 нержавеющая сталь промышленный пластиковый осушитель

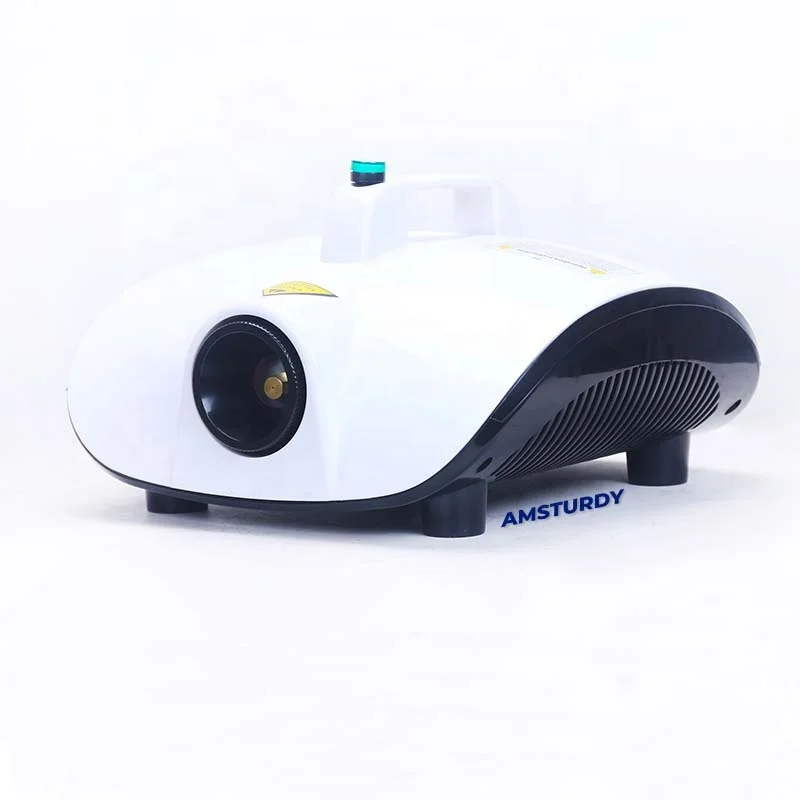

Amsturdy FMS900 портативный с ручкой для вечеринок рассеивания светодиодные фонари мини стойка токарного станка низкая запотевание машины
1 519,71 ₽ - 2 338,36 ₽
4 промышленная увлажнитель HR-50 холодный туман вентилятор для Ласточка дом
1 102,12 ₽

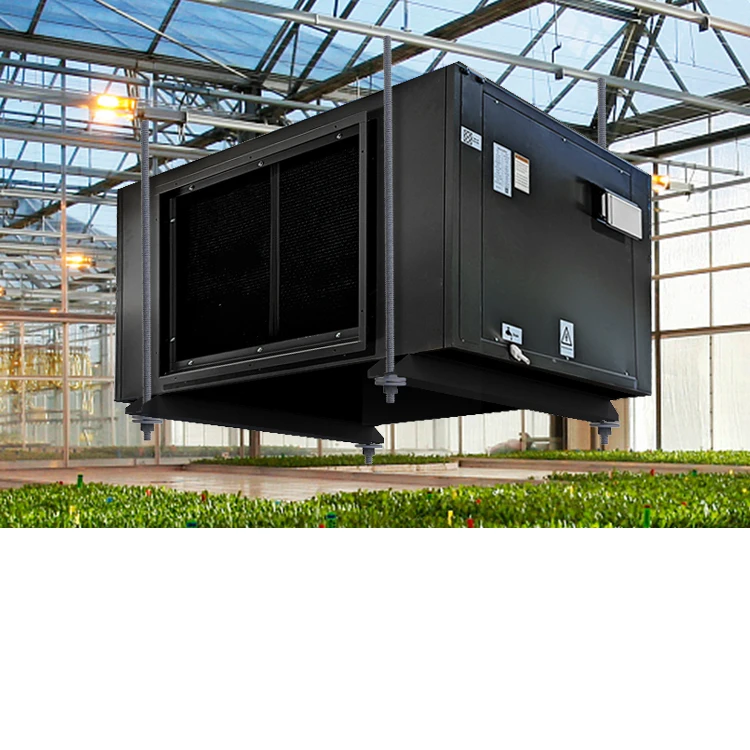

Промышленный осушитель для теплиц 480 л/день настенный потолочный
