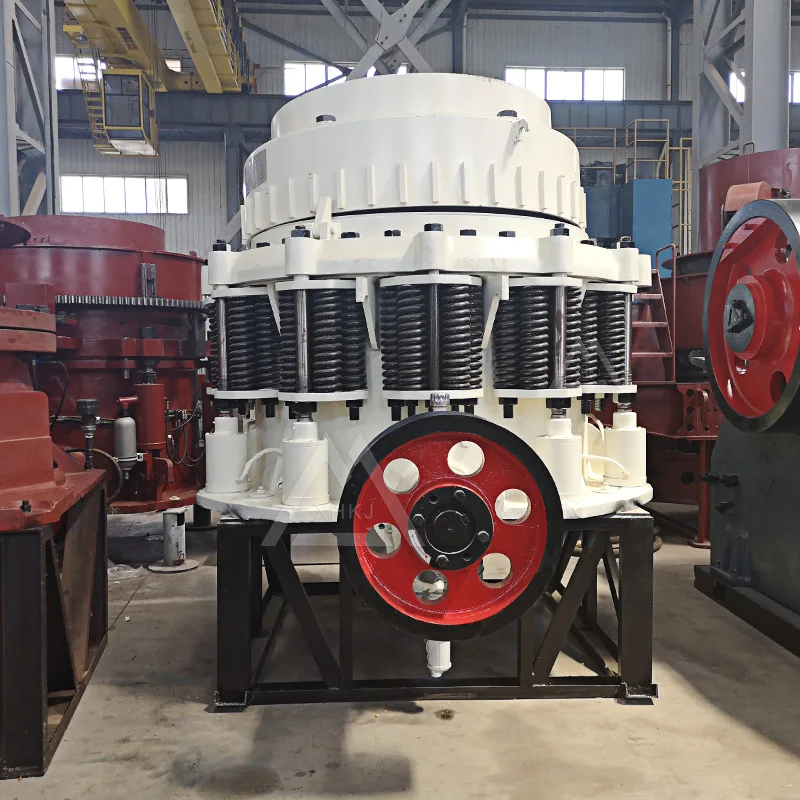

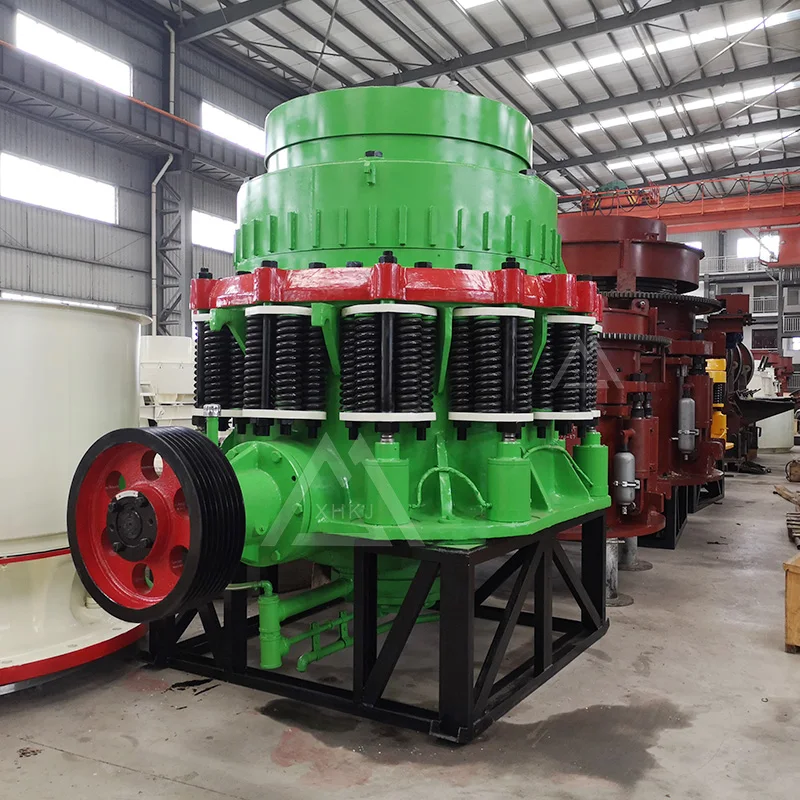

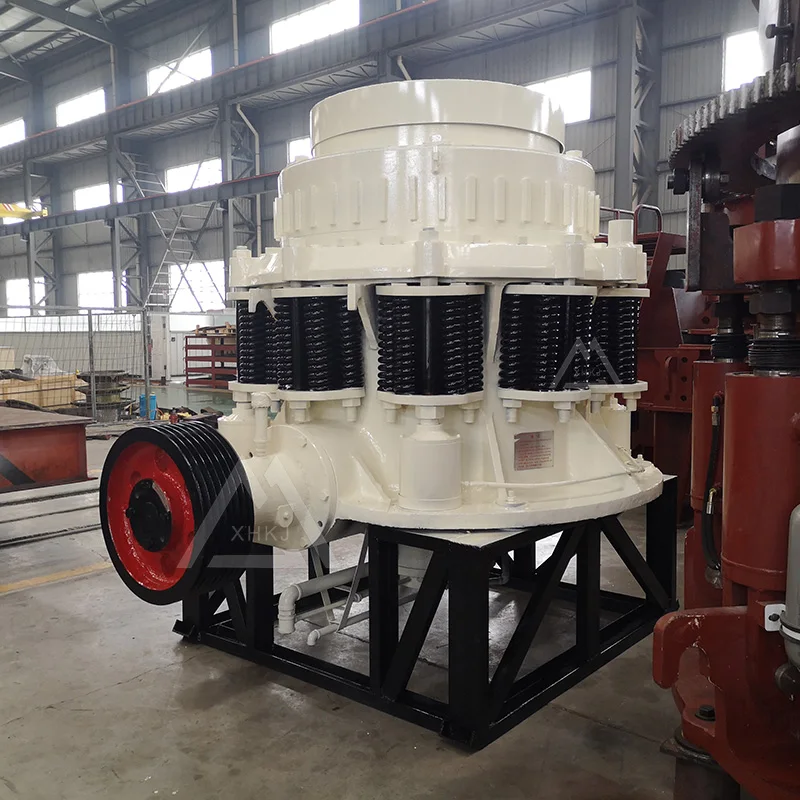

Конусная Дробилка Серии ZX Эксцентриковая конусная дробилка
- Категория: >>>
- Поставщик: Jiaozuo City Xinhai Mine Machinery Equipment Plant(General Partnership)
Сохранить в закладки 1600435359737:
Описание и отзывы
Характеристики
Product Description
ZX compound cone crusher has hydraulic clearing system,hydraulic opening adjustingfunction,easy for changing movable and fixed plate,dacreasing managemengt and maintence cost,It is widely used for medium and fine crushing of granite,basalt,disbase,cobble,cobblestone,iron,ore etc.
Product Features
1.It only needs two hours to change the tooth plate, reduces the downtime
2.Crushing ratio, large main shaft eccentricity, large feeding opening, small discharging opening, so the capacity will become maximization.
3.Crushing cavity: ZX series cone crusher had special design of crushing cavity, customers can choose according to their requirement. crushing ratio, even final product size, cubic size, mantle and concave even attrition, also have long service life.
4.Dry oil seal anti-dust: the anti-dust structure of ZX series cone crusher is unique, the sealing effect is reliable, extended the replacement period of lubrication oil, the service life of bearing, bearing bush, gear etc such spare parts become long, it suitable for areas lack of water.
5.We choose special material to make key parts.
6.The distance between the mantle and concave become larg in every stroke, it not only can be feed in materials, but also produce big discharging product, the material passing through the cavity speed become fast.
7.Daily operation and maintenance cost is low. chosen the raw material and design is reasonable, long service life, long crushing arm, decrease sliding bearing, crushing ratio, even products, reduce circulation load; hydraulic adjusting, locking and clearing system is very simple, improving operability, low power consumption, rational distribution
Specifications
Model | Cavity Type | Stroke(mm) | Max.Feeding Size(mm) | Discharging Opening Adjusted Scope(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) |
ZX1650C2-D | Coarse | 34 | 300 | 35-65 | 280-610 | 250 | 35 |
ZX1650C-D | Coarse | 34 | 260 | 30-60 | 2665-580 | 250 | 35 |
ZX1650Z-D | Medium Coarse | 34 | 240 | 25-60 | 240-550 | 250 | 35 |
ZX1650S-X | Fine | 28 | 130 | 20-45 | 180-350 | 250 | 35 |
ZX1400C-D | Coarse | 30 | 235 | 30-60 | 210-530 | 220 | 25 |
ZX1400Z-D | Medium Coarse | 30 | 215 | 25-50 | 200-500 | 220 | 25 |
ZX1400Z-X | Medium Coarse | 25 | 180 | 22-45 | 180-475 | 220 | 25 |
ZX1400S-X | Fine | 25 | 100 | 19-40 | 130-260 | 220 | 25 |
ZX1200C-D | Coarse | 22 | 180 | 19-50 | 110-250 | 132 | 16 |
ZX1200S-X | fine | 15 | 80 | 16-40 | 80-180 | 132 | 16 |

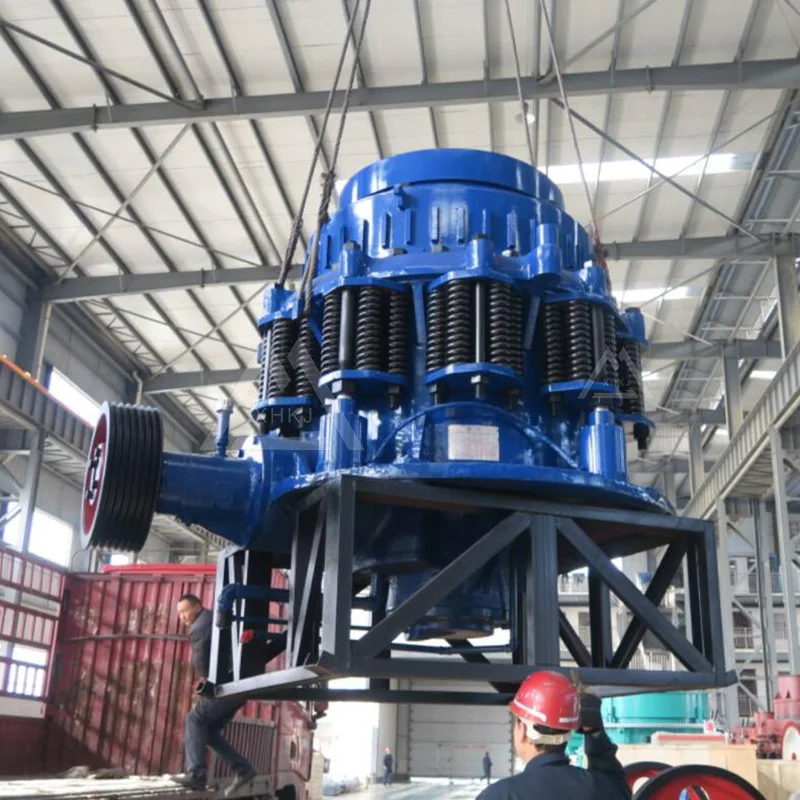

Delivery

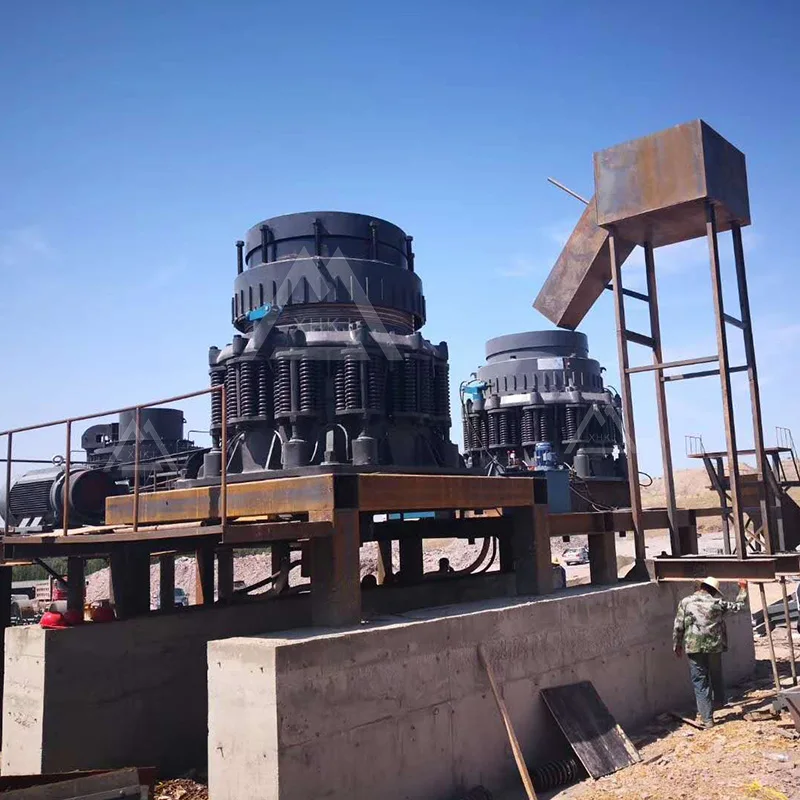

case
Company Information
Jiaozuo Xinhai Heavy Industrial Machinery Co.,Ltd is a crushing and screening equipment manufacturer in China.We produce full range of cone crusher,jaw crusher,impact crusher,vertical shaft impact crusher,vibrating screen ,vibrating feeder,sand washing machine,etc.
Twenty years of manufacturing expencice enable our products already have been extensively used in metallurgy,beneficiation,city constrction,road constrction,also refractory materral industry.Besides expansion on domestic market,our products have also been exported to Canda,Russia,India,Mongolia,South Afica,Central Asia,Weaten Asia and other cnuntries and regions.
