Product Description
Flat-plate collectors are the most common solar thermal technology in the world. They consist of an enclosure containing a dark-colored absorber plate with fluid circulation passageways, and a transparent cover to allow transmission of solar energy into the enclosure. The sides and back of the enclosure are typically insulated to reduce heat loss to the ambient.
Schematic diagram
The above diagram is the schematic diagram of an project flat plate collector.
It contains glazing, absorber plate, insulation, flow tubes frame and back sheet.
Our absorber is welded by laser.The welding spots are uniform and the combination is firm
All our collectors are tested three times to ensure excellent quality.
Specification
Model No. & Specs | FITI2.0-2 | ||
Overall Data | Collector dimension(mm) | 2000x1000x80 | |
Overall area( ㎡ ) | 2 | ||
Absorber | Header pipes size (mm) Length | Φ22*0.6mm (Length) | |
Riser pipes & qty | Φ10*0.5mm & 7pcs | ||
Welding way | Laser welding | ||
Max. working pressure | 1.2Mpa | ||
Absorber material | Aluminium plate+copper pipes | ||
Absorber coating& thickness( mm) | Black coating & 0.4mm | ||
Absorber specification(mm) | 0.4*950*1950mm | ||
Absorption & Emittance | 96%（@AM1.5）& 10-12%(@80℃) | ||
Insulation | Insulation material | Glass wool+polyester fiber | |
Insulation density(Kg/m³) thickness(mm) | Bottom:35 Kg/ m³/T=30mm Side:25 Kg/ m³/T=20mm | ||
Glazing | Transmittance | 92% | |
Material | 3.2mm Low iron tempered textured glass | ||
Casing | Frame | Aluminum alloy | |
Back plate | 0.4mm Color-Coated Plate | ||
Frame color | Black/Silver/Customer’s requirement | ||
Sealing gasket | Integral Silicone glue | ||
Overall weight | Net weight(kg) | 35 | |
Logo | Client’s requirements | ||
Container loading | 40‘’HQ container | 350pcs | |
Product Process
1. Back Cutting
2.Cutting material
3.Flow pipes welding
4.Laser Welding
5.back sheet assembly
6.Glue Manipulator
8.Automatic sealing
8.Glass Manipulator
9.Automatic Packaging
Use Case
Solar water heater
The flat plate collector is matched with a water tank and bracket to form a solar water heater for use

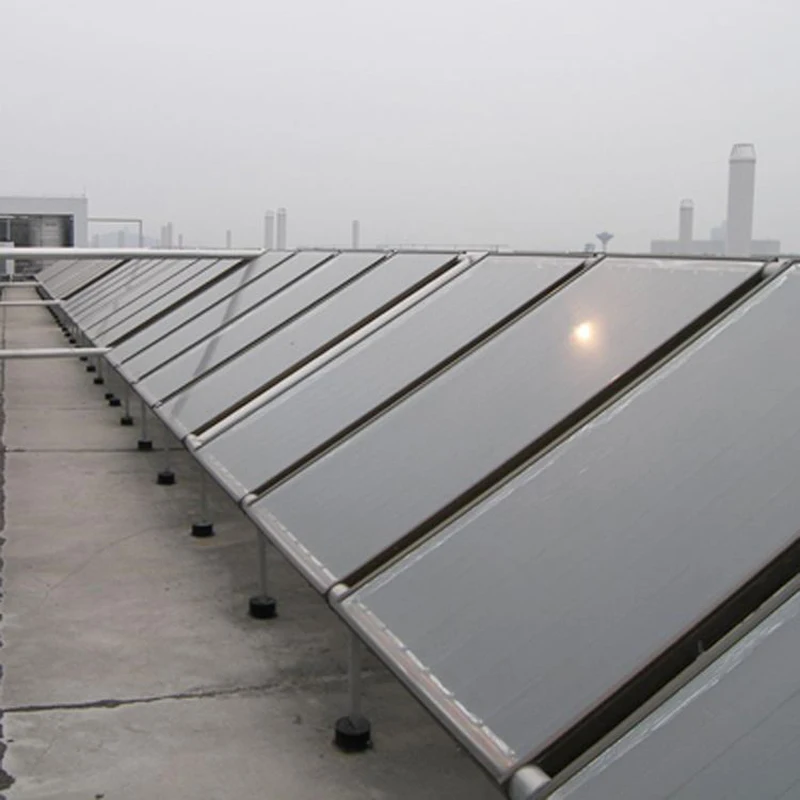

Hot water project
Multiple flat plate collectors form a heat collection array.
Provide plenty of hot water for hotels, hospitals and schools.
Large district heating
It consists of thousands of flat plate collectors.
To provide winter heating for the whole city
Packing&Shipping
Company Profile
Shandong Feitian New Energy Co., Ltd., located in Dezhou, Shandong, is an innovative enterprise focusing on the field of solar thermal application. With a number of independent intellectual property rights of the core technology, has been committed to the development, manufacturing and sales of solar thermal products and equipment.
In 2002, Feitian was established. Relying on the strong technical background, it entered the solar thermal field. In the same year, it successfully developed the solar engineering integrated tank and produced a special production line for the industry, and the products were highly recognized by the industry leaders.In the field of solar thermal energy, Feitian New Energy was established in April 2018 with positive innovation, tenacious enthusiasm and breakthrough development. Feitian provides customers high quality products and services for its own responsibility, over the years to forge their own management team, establish a scientific and perfect management system. In 2010, the company passed the ISO9000 quality management system certification, and all kinds of products passed the inspection of national quality testing institutions. Good corporate reputation, excellent product quality and excellent service to win customers widely recognized. Feitian never stops exploring the pace, the old and new kinetic energy conversion, new power, new engine, takeoff light heat Chinese dream!
FAQ
1. Is your company a trading company or factory?
We have own factory. Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
