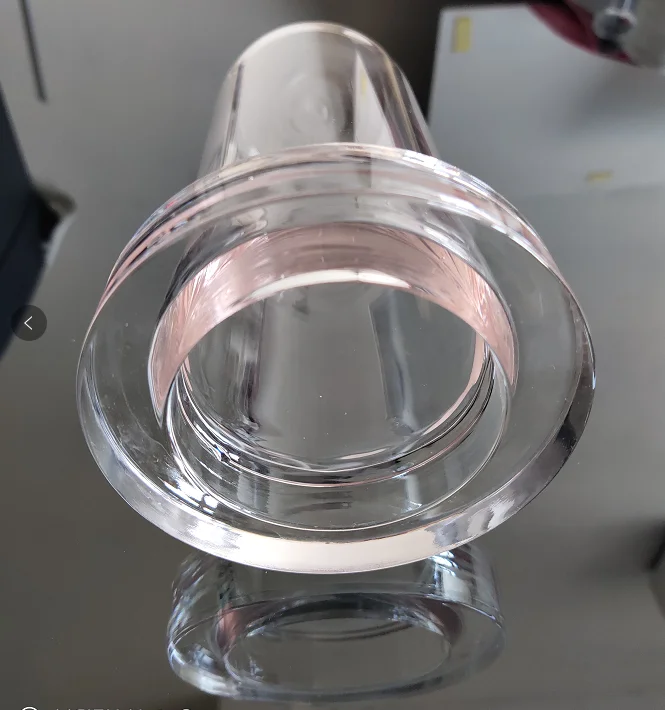

Высококачественная Полированная кварцевая стеклянная трубка с высокой термостойкостью
- Категория: Quartz Tubes >>>
- Поставщик: Hoyue Technology (lianyungang) Co. Ltd.
Сохранить в закладки 1600436081011:
Описание и отзывы
Характеристики
Product Description
Material | quartz | Visible light transmittance | above 93% |
SiO2 | 99.99% | UV spectral region transmittance | 80% |
Density | 2.2 g/cm3 | Resistance value | 10000 times than ordinary glass |
Degree of hardness moh' scale | 6.6 Pa | Annealing point | 1180°C |
Melting point | 1730°C | Port | Lianyungang/qingdao/shanghai |
Working temperature | 1250°C | MOQ | 1Piece |
Max temperature can reach in a short time | Softening point1450°C | Softening point | 1630°C |
Acid tolerance | 30 times than Ceramics,150 times than stainless steel | Strain point | 1100°C |
Product Characteristics:
① High temperature resistance.
② Good thermal stability,lower coefficient of thermal expansion.
③ High Corrosion Resistant,acid and alkali, anti-corrosion ability.
④ Excellent electrical insulation,good electrical insulation properties.
① High temperature resistance.
② Good thermal stability,lower coefficient of thermal expansion.
③ High Corrosion Resistant,acid and alkali, anti-corrosion ability.
④ Excellent electrical insulation,good electrical insulation properties.
Excellent thermal shock stability ,Small thermal expansion coefficient,it is only 5.5×10-7/℃
Control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM ,2 PPM.
Control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM ,2 PPM.

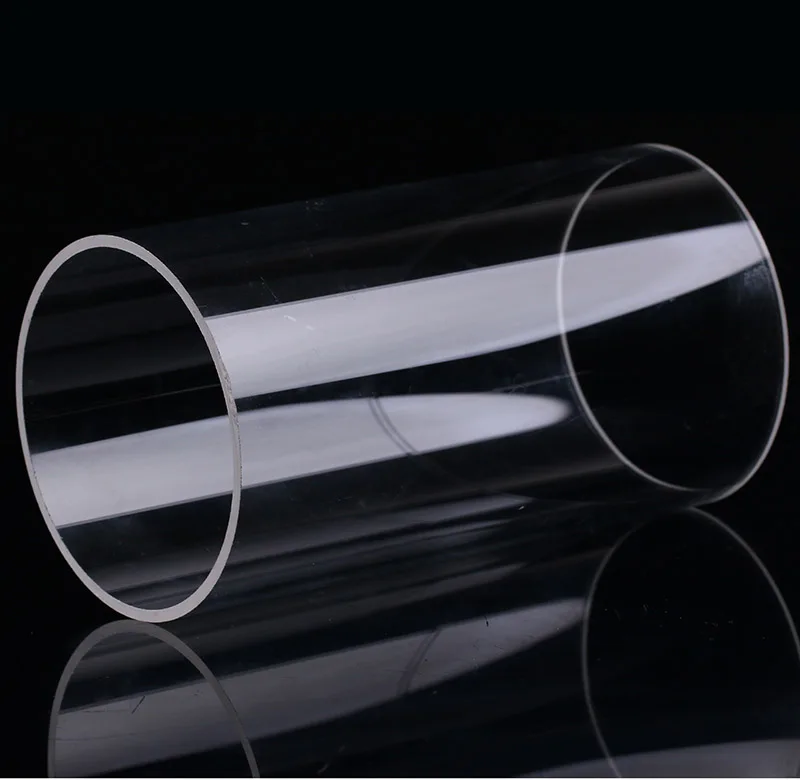

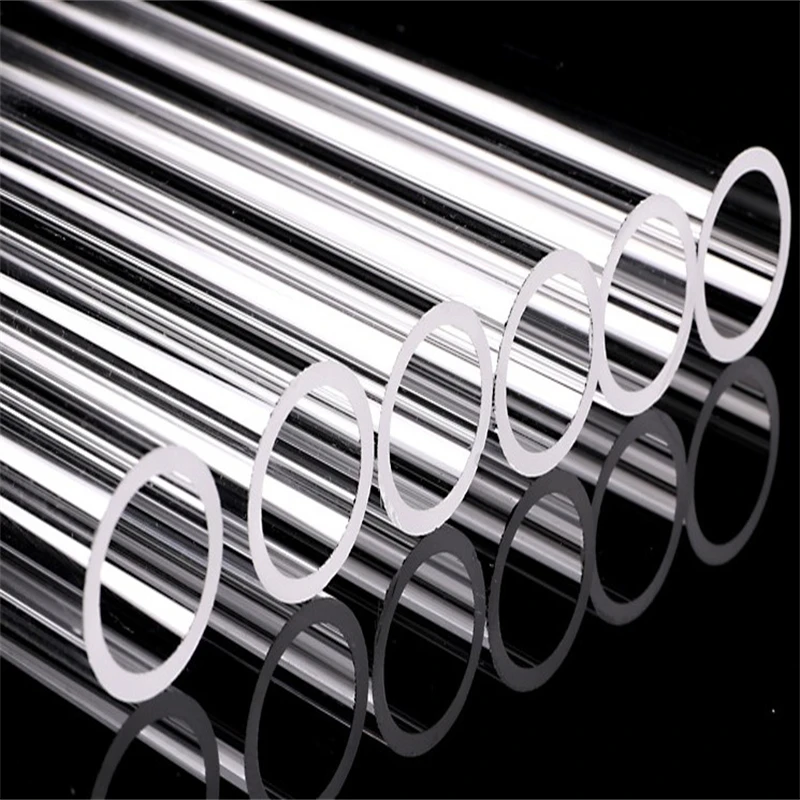

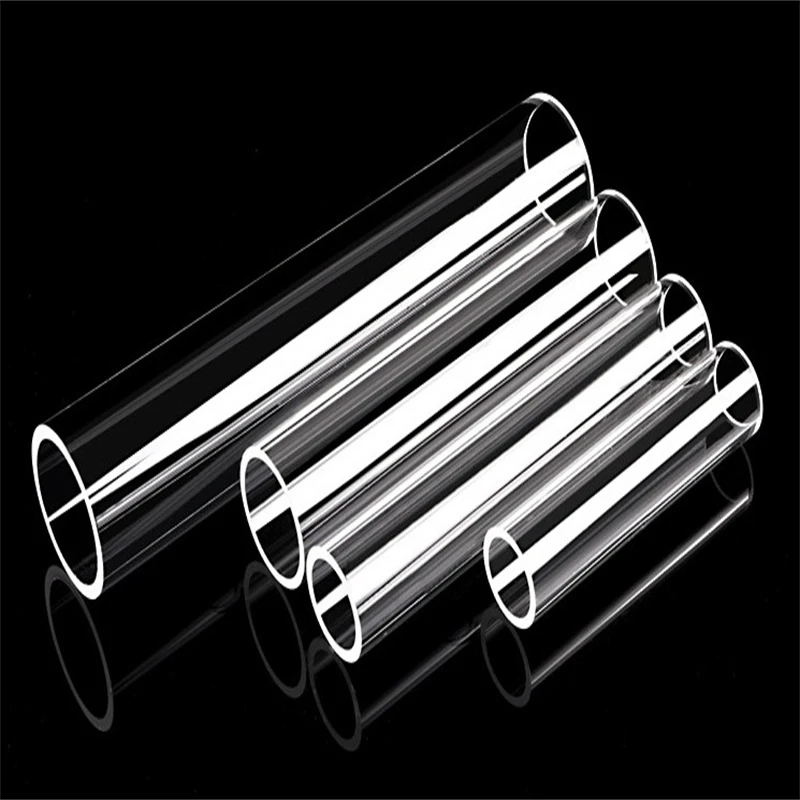

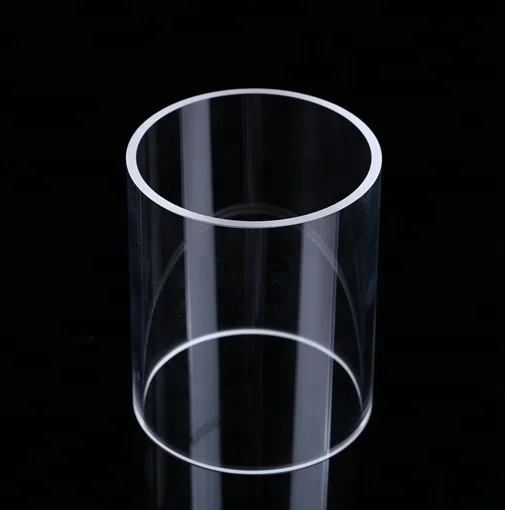

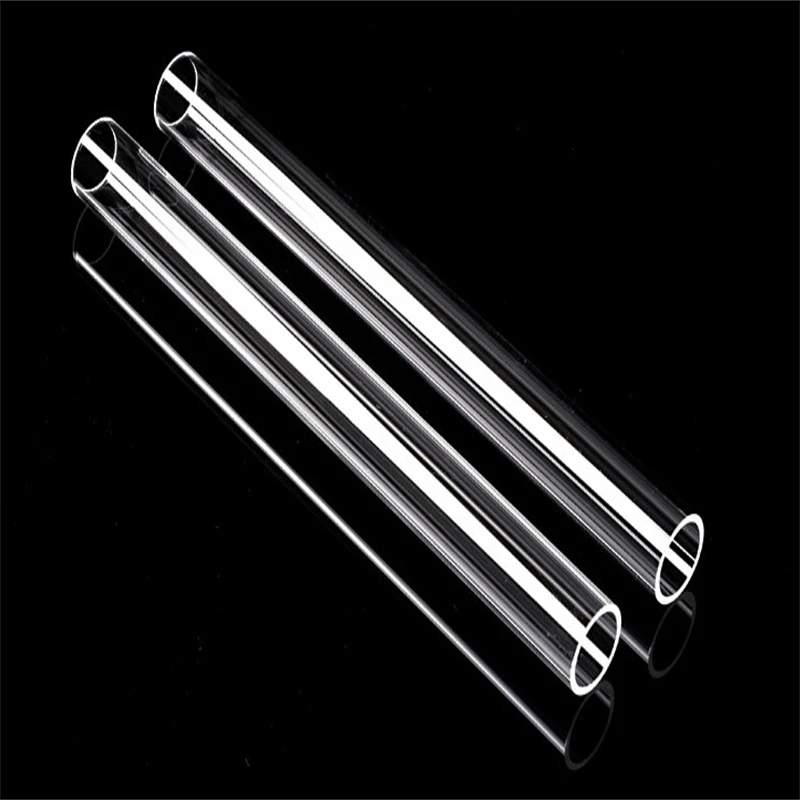

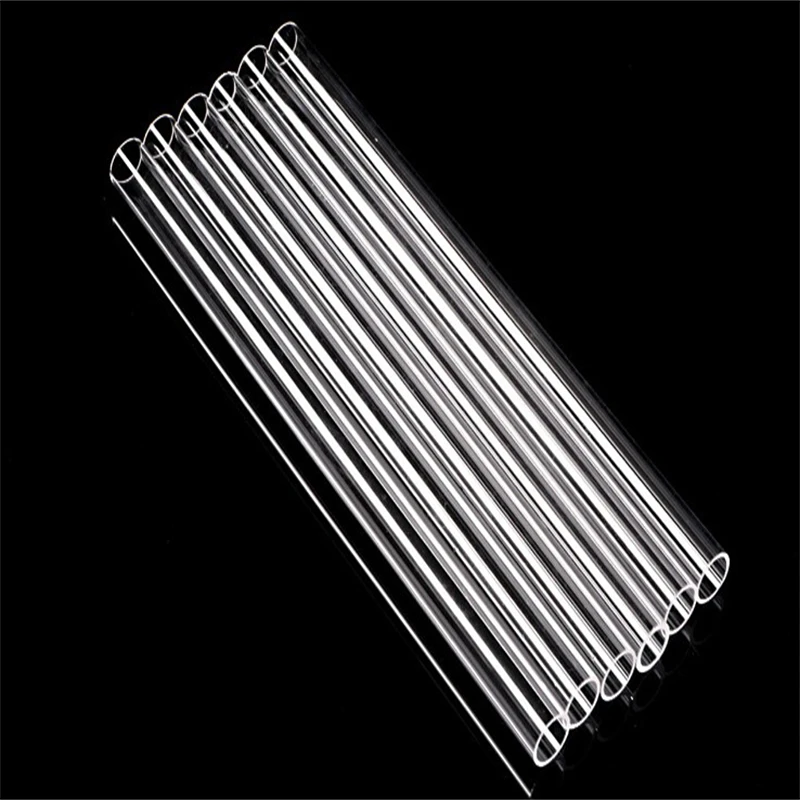

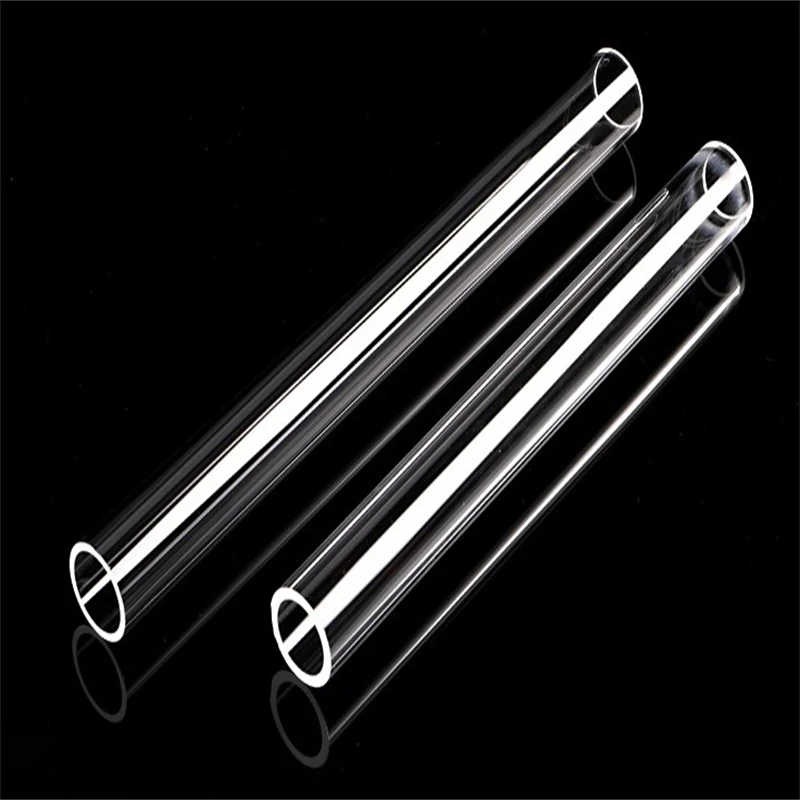

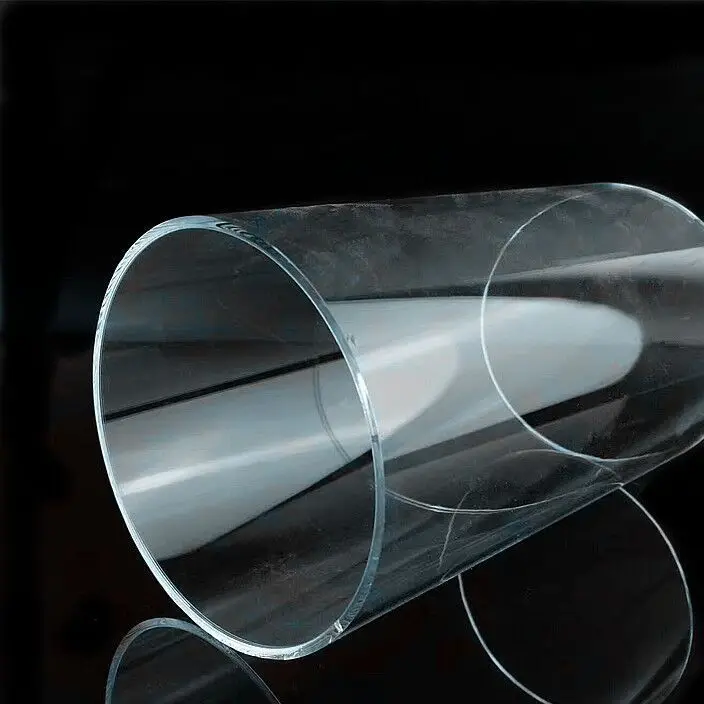

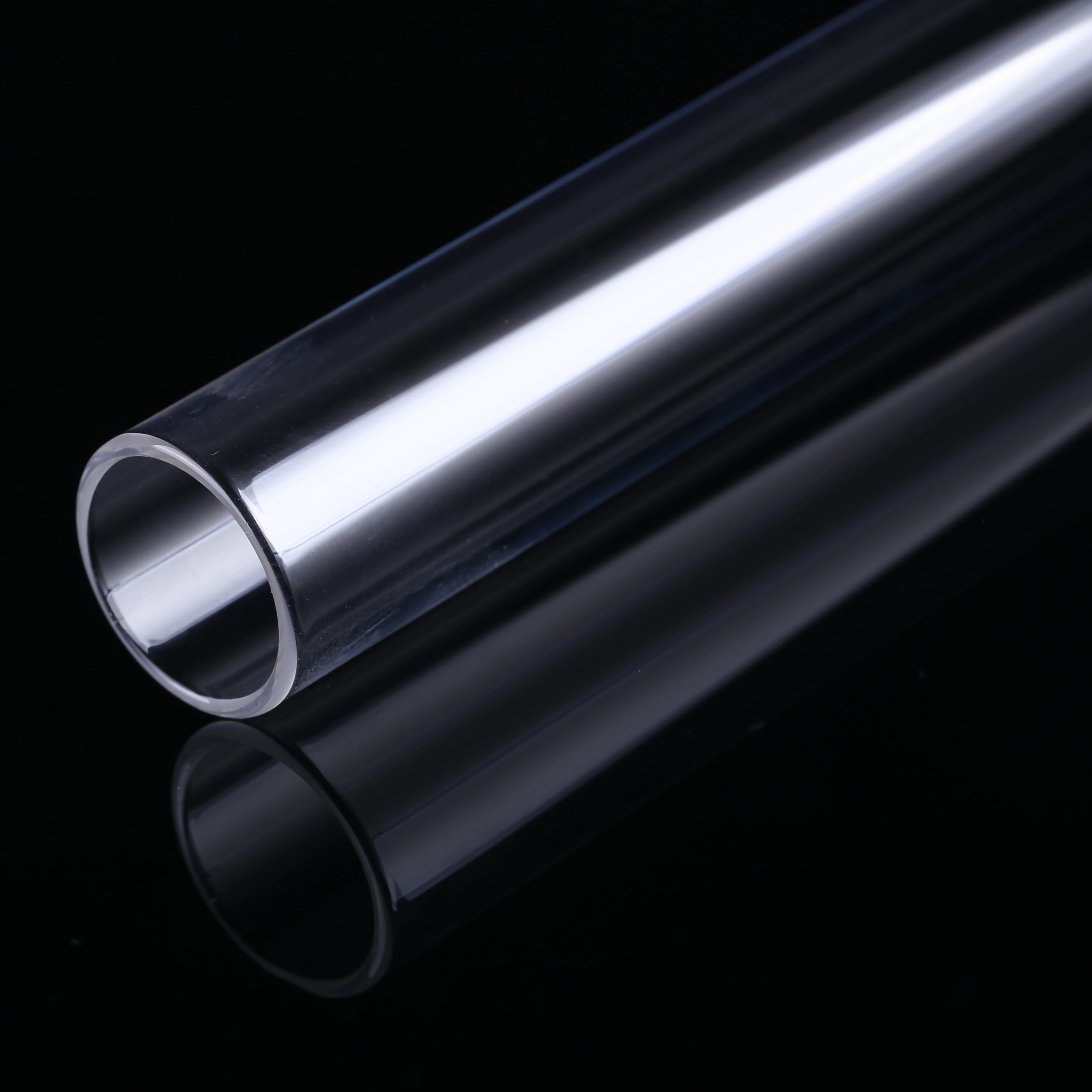

quartz glass tube
High purity made of 99.99% pure quartz
Strong Hardness, Can reach Morse level 7.
High temperature resistance, can work under 1200°C continuously,and in short time can even work under 1500°C.
Acid and Alkali resistance. Except Hydrofluoric acid, quartz glass tube does not react with any acid Electric insulation, it is 10000 times of usual glass.
High light transmittance , it is different from 85%-95% depend on different spectrum.
High purity made of 99.99% pure quartz
Strong Hardness, Can reach Morse level 7.
High temperature resistance, can work under 1200°C continuously,and in short time can even work under 1500°C.
Acid and Alkali resistance. Except Hydrofluoric acid, quartz glass tube does not react with any acid Electric insulation, it is 10000 times of usual glass.
High light transmittance , it is different from 85%-95% depend on different spectrum.
Specification
Density | 2.2x103kg/m2 |
Hardness | 570KHN100 |
Tensile strength | 4.8x107Pa(N/M2) |
Compression strength | >1.1x109Pa cm/cm℃ |
Coefficient of thermal expansion(20℃-300℃) | 5.5x10-7cm/cm℃ |
Thermal conductivity(20℃) | 1.4W/m℃ |
Specific heat(20℃) | 660J/kg℃ |
Softening point | 1730℃ |
Annealing point | 1200℃ |
Packing & Delivery
Our Service
Our advantage:
1). We are a professional manufacturer for quartz product
2). We will try our best to offer the most affordable price and best service
3). We can accept customized
4). We can send you samples for review the quality before your ordering.
6). We will take detailed pictures for you check before shipping,
7). We can delivery the order on time.
8). we will keep all the files and full set of printings for re-orders
How to order:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just
send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
1). We are a professional manufacturer for quartz product
2). We will try our best to offer the most affordable price and best service
3). We can accept customized
4). We can send you samples for review the quality before your ordering.
6). We will take detailed pictures for you check before shipping,
7). We can delivery the order on time.
8). we will keep all the files and full set of printings for re-orders
How to order:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just
send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
Company Profile
Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
FAQ
1.Q:What is the material of your products?
A:As a professional manufacture,we produce the gas refined quartz tubes,quartz ingots,quartz difused tubes,quartz lamp shells an
apparatus which are widly used in field of semicongductor,solar power,photovoltaic,transparent quartz crucible, the quartz
crucible, arc quartz crucible, quartz fiberrod,quartz rod,quartz plate, quartz sheet, quartz wafer,quartz heating tube, crystal
tableware, Crystal ball.
2.Q:How can I get some samples?
A: We offer samples, but not free. For the cost of the company's system as follows:
1 )the sample fee If the customer desired product is our regular size, customers only need to pay the freight
2 )refined fee If the customer require customized products, we will add the freight on the basis of our production costs required
3.Q:How does your factory do regarding quality control?
A:A whole set of advanced equipment and detecting instrument have been brought in from Taiwan,Gemany,etc.and standard purification
workshop has been built,all off which ensure thecapacity of mass production.The company has passed the ISO9001(2000) quality
certification.With professional techical team,advanced management mode,precise detecting instrument and strong customer sercice
consciousness,we are sure to provide customers with the high-quality quartz products and good service.
A:As a professional manufacture,we produce the gas refined quartz tubes,quartz ingots,quartz difused tubes,quartz lamp shells an
apparatus which are widly used in field of semicongductor,solar power,photovoltaic,transparent quartz crucible, the quartz
crucible, arc quartz crucible, quartz fiberrod,quartz rod,quartz plate, quartz sheet, quartz wafer,quartz heating tube, crystal
tableware, Crystal ball.
2.Q:How can I get some samples?
A: We offer samples, but not free. For the cost of the company's system as follows:
1 )the sample fee If the customer desired product is our regular size, customers only need to pay the freight
2 )refined fee If the customer require customized products, we will add the freight on the basis of our production costs required
3.Q:How does your factory do regarding quality control?
A:A whole set of advanced equipment and detecting instrument have been brought in from Taiwan,Gemany,etc.and standard purification
workshop has been built,all off which ensure thecapacity of mass production.The company has passed the ISO9001(2000) quality
certification.With professional techical team,advanced management mode,precise detecting instrument and strong customer sercice
consciousness,we are sure to provide customers with the high-quality quartz products and good service.
Похожие товары
Запчасти для бытовой техники, электрическая кварцевая трубка нагревателя, дезинфекционный шкаф для посуды
0,72 $ - 2,00 $

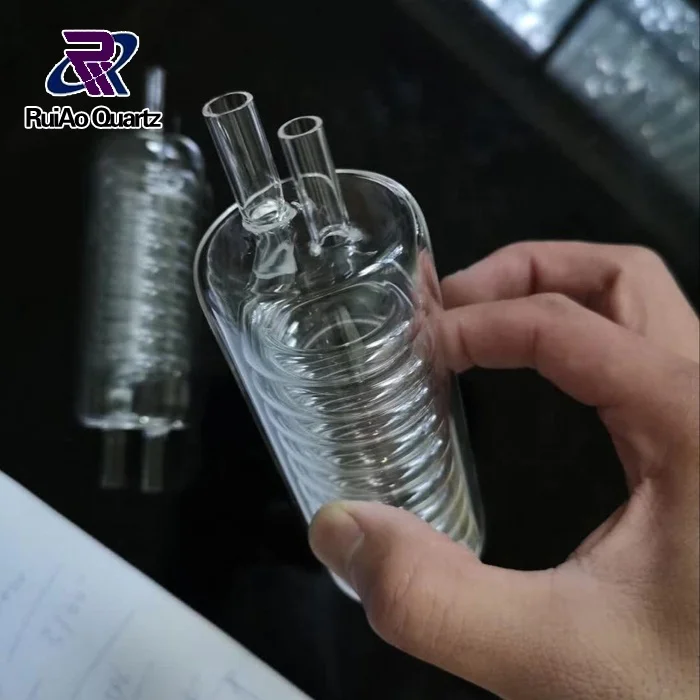

Прозрачное кварцевое спиральное трубчатое конденсаторное
