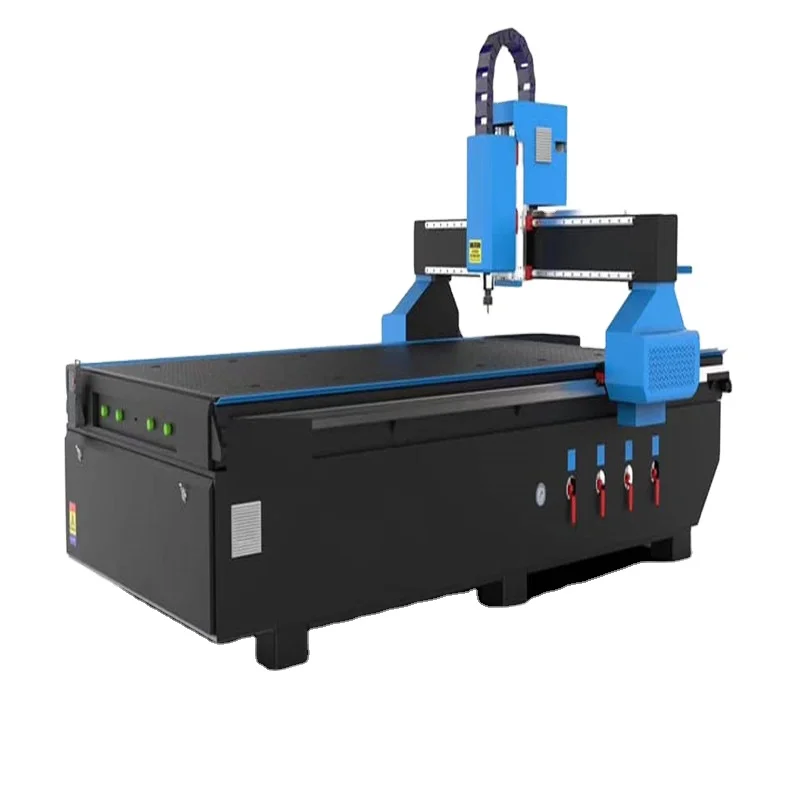

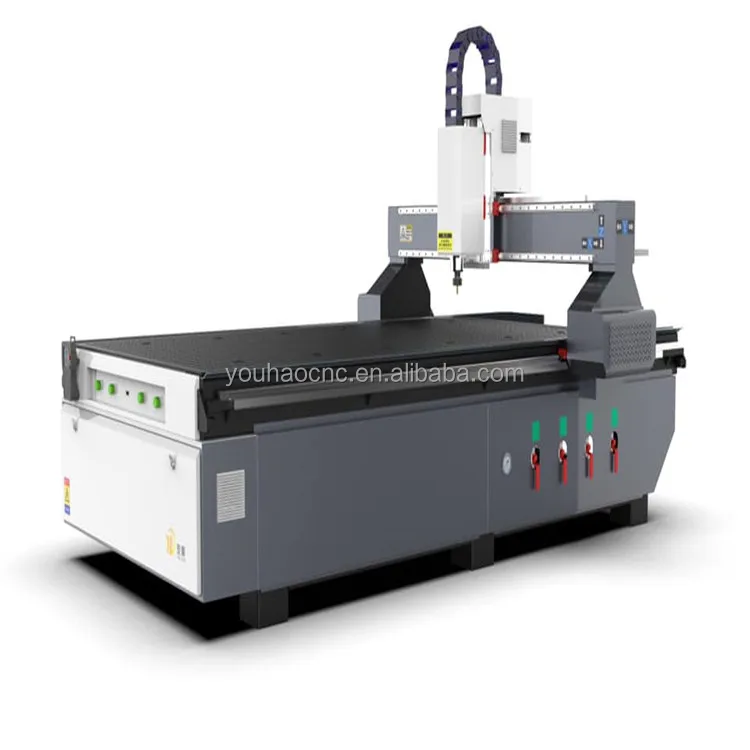

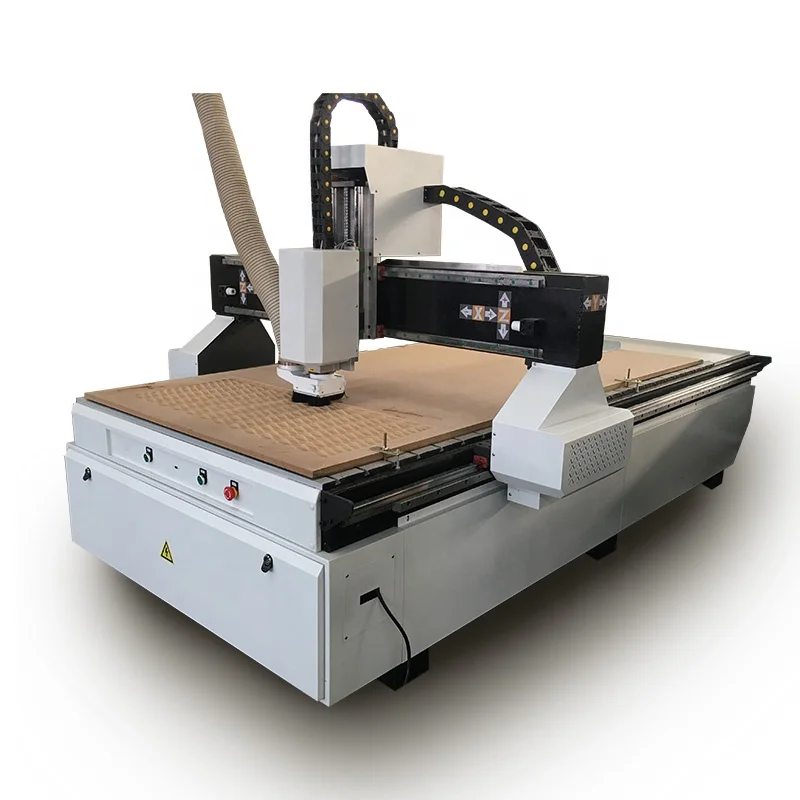

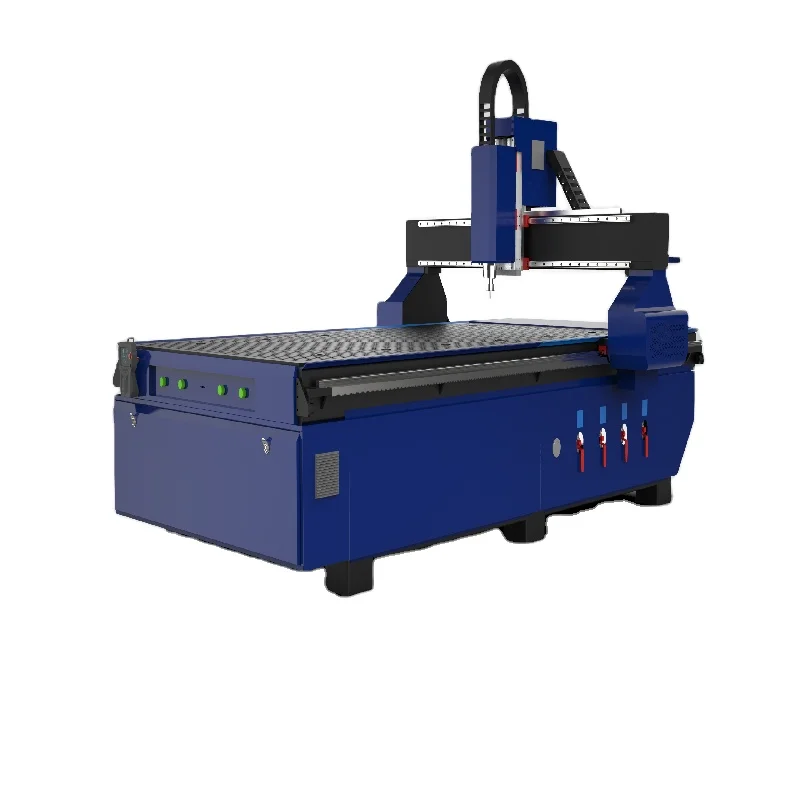

Лучший 2000*3000 фрезерный станок с ЧПУ 1100/1600 контроллер 4 оси
- Категория: >>>
- Поставщик: Shandong Youhao Energy Technology Co. Ltd.
Сохранить в закладки 1600436180561:
Описание и отзывы
Характеристики
best 2000*3000 cnc router with DSP a11controller
Product Description

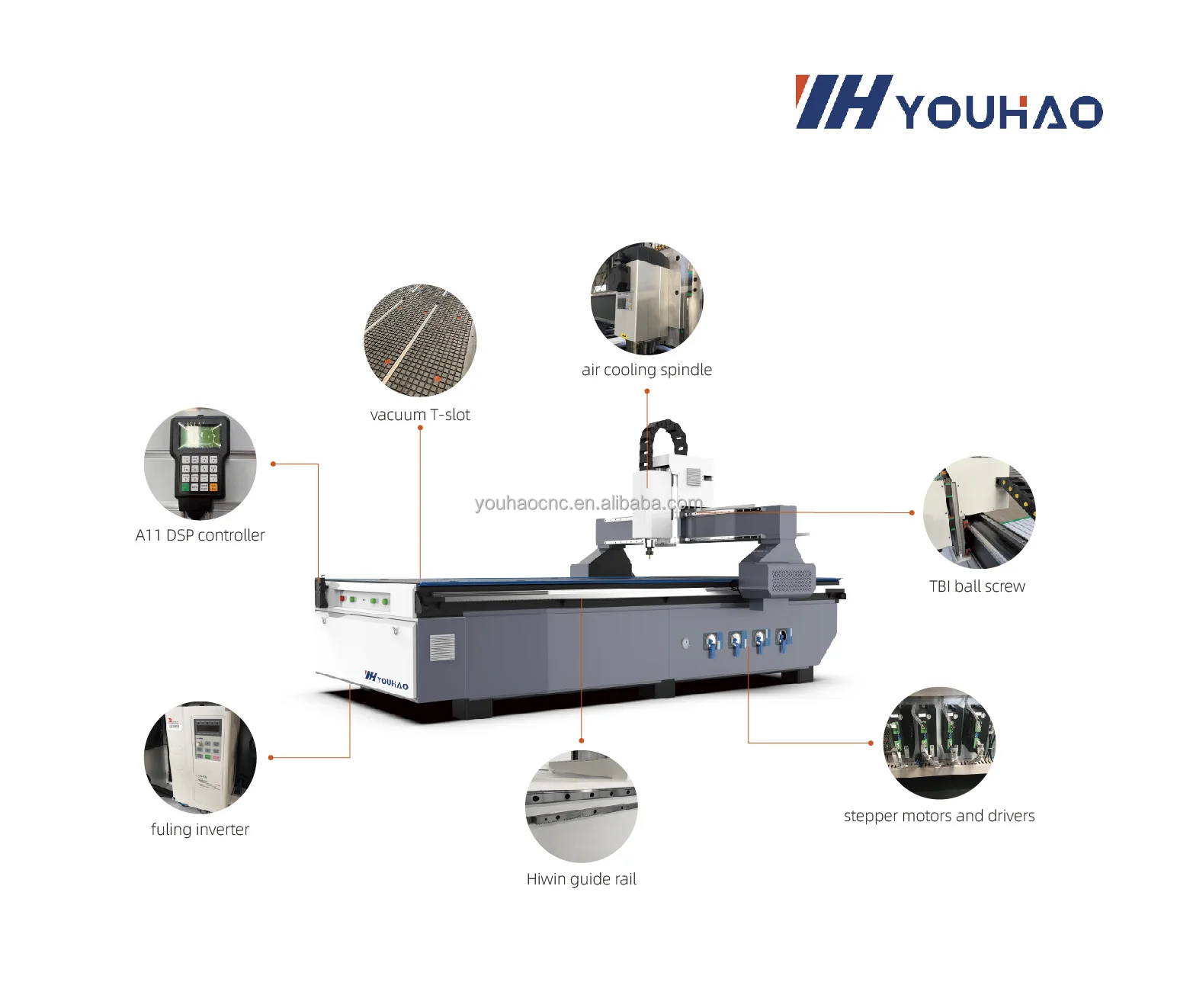

Features of best 2000*3000 cnc router with DSP a11controller
1.Using high-precision linear guide rail, X Y adopts high-precision helical gear transmission, which has large bearing capacity stable operation, high precision, long service life and accurate lower cutter.
2.The whole machine adopts steel structure for seamless welding, good rigidity, strong strength and rigidity, and the machine bearing capacity can reach more than one ton.
3.High-power spindle motor with high cutting force and high efficiency.
4.Software compatibility, compatible with a variety of CAD / CAM design software such as Typ3 / Artcam / Castmate / Wentai.
5.It has the functions of power failure recovery, breakpoint continuous carving and so on.
6.Thickened square tube welding, fine grinding by milling machine to ensure installation accuracy.
Specification
Parameters | Standard Specifications YH-1325 |
X,Y,Z Working Area for Panel | 1300*2500*200mm/1500*3000*200mm/2000*3000*200mm/2000*4000*200mm |
Spindle Power | 3.2kw water cooling spindle or 3.5kw air cooling spindle (4.5kw, 5.5kw or 6kw spindle for option) |
X,Y,Z Traveling Positioning Accuracy | ±0.025mm |
Table Surface | Hybrid Vacuum and Aluminum T-slot table |
Vacuum pump | 5.5kw or 7.5kw for Option |
X,Y,Z Rail and Transmission | X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw |
Max. Rapid Travel Rate | 25,000mm/min |
Max. Working Speed | 20,000mm/min |
Spindle Speed | 0-24,000RPM |
Drive Motors | Stepper motor and driver(Servo Motor for option) |
Working Voltage | AC380V/3PH/50Hz(option:220V or custom made) |
Command Language | G Code |
Operating System | Mach 3(DSP or Weihong for option) |
Interface | Ethernet or USB |
Software capabilities | Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
TheYouHao CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported.
XY Helical rack and pinion
The Alpha ABS Series CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the stepper motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.
The Alpha ABS Series CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the stepper motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.
Applications
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
FAQ
Q1: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping. , we will send detail training video , user’s manual along with the machine. 95% customers can learn by themselves.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping. , we will send detail training video , user’s manual along with the machine. 95% customers can learn by themselves.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Похожие товары
Ватные палочки из натурального хлопка, 100 шт., круглая коробка, безопасные ватные палочки, купить
0,19 $ - 0,21 $
Дешевые изготовленные на заказ купить дешевые поощрения Поворотный Открытый usb-накопители

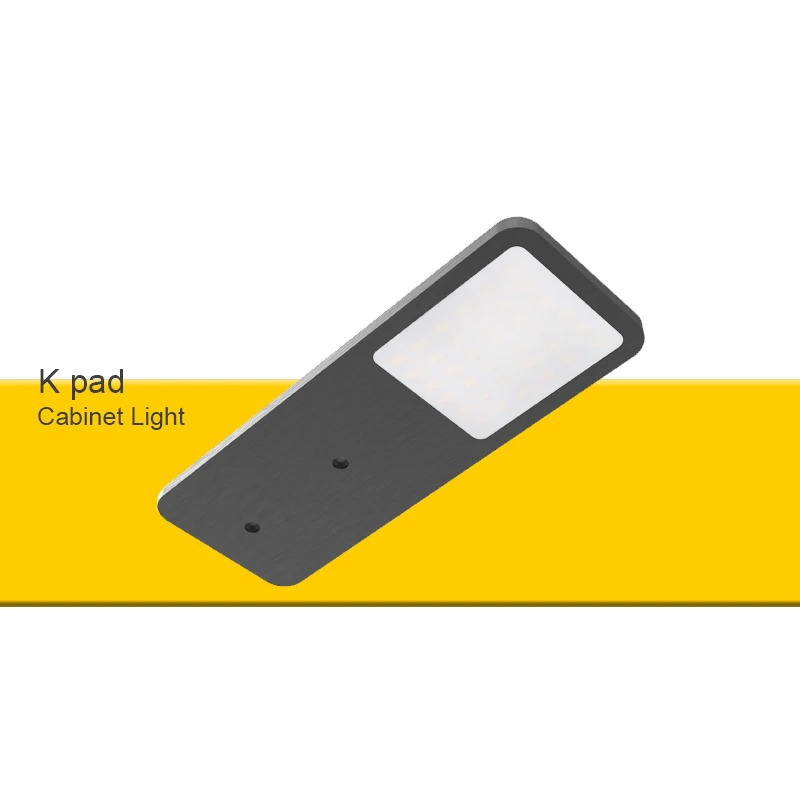

Индукционная светодиодная ИК-лампа под шкафы, лампа-полоса, 70 светодиодов, лампы для бара, купить для кухни, освещение с петлями, пластиковый светильник для шкафа Puvk

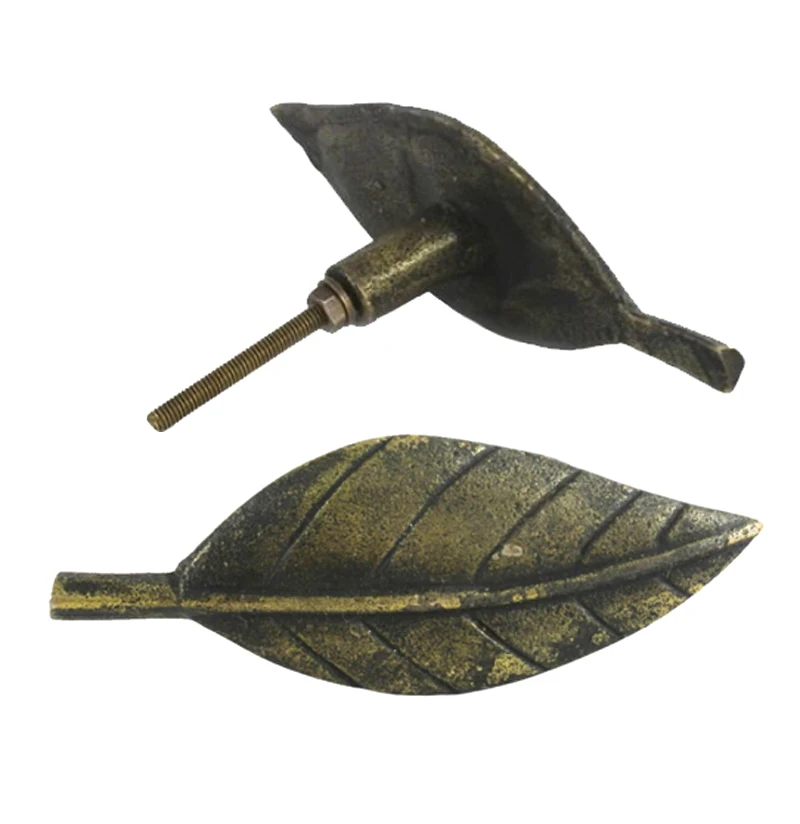

Ручка из чугунного листового гудка для шкафа и вытяжная ручка [HBRMW
2022 г., Лидер продаж, экспортеры барбекю, производство фруктовых палочек, продажа бамбуковых палочек для шпажки

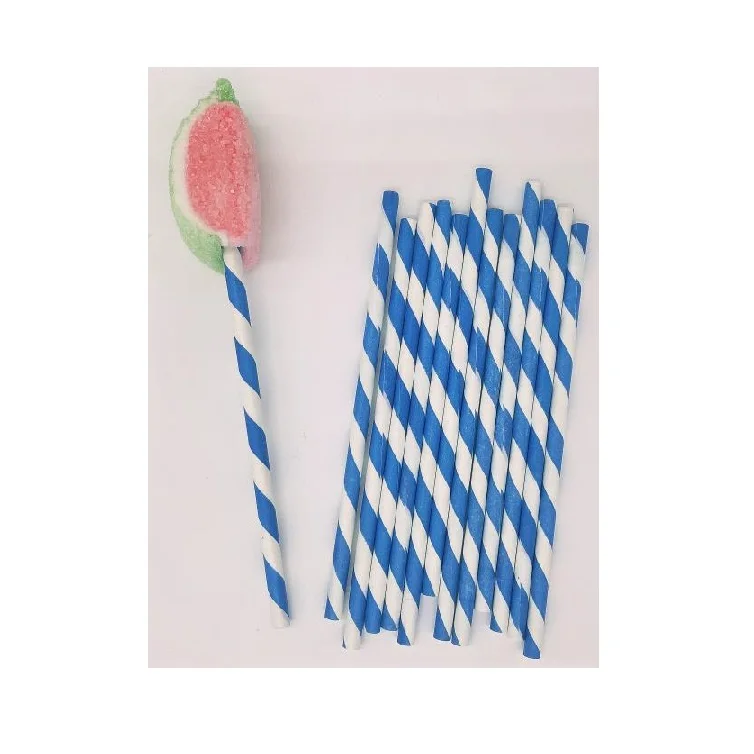

Одноразовые палочки для леденцов Cakepop для домашней вечеринки, бумажные пластиковые детские биоразлагаемые палочки для леденцов
3,40 $ - 3,50 $

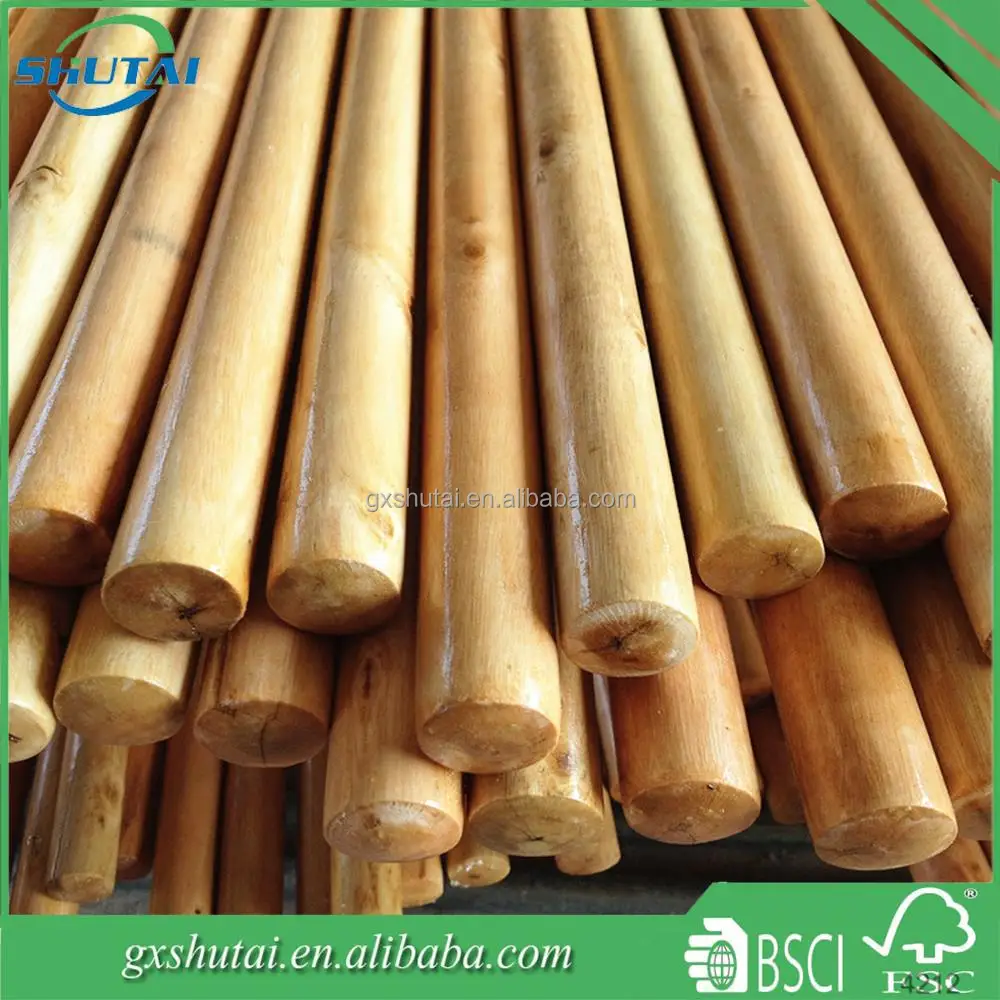

Купить Деревянные Палочки Из Китая
