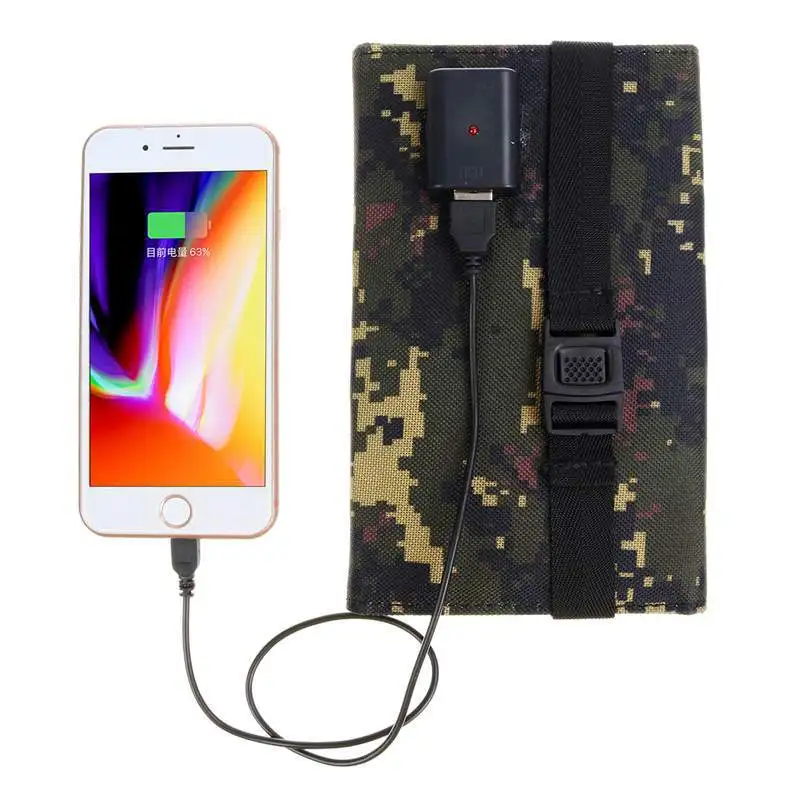

Уличная портативная солнечная панель 40 Вт складная для
9,89 $ - 9,99 $

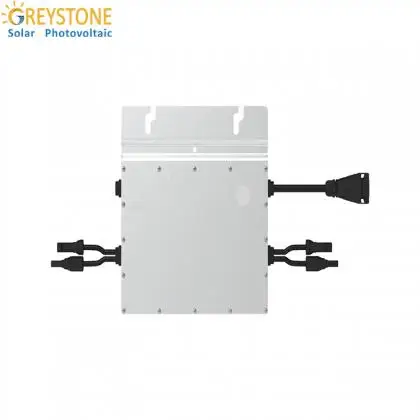

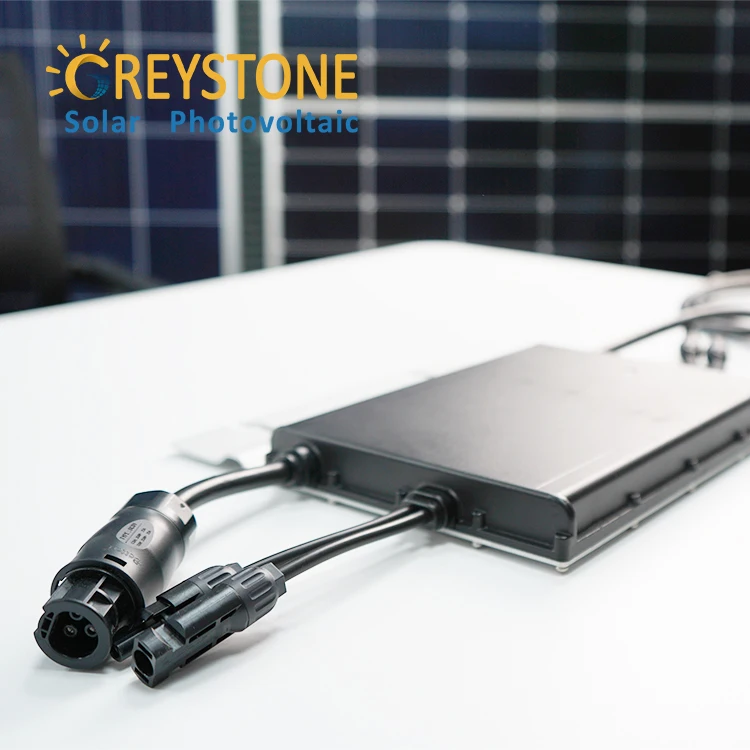

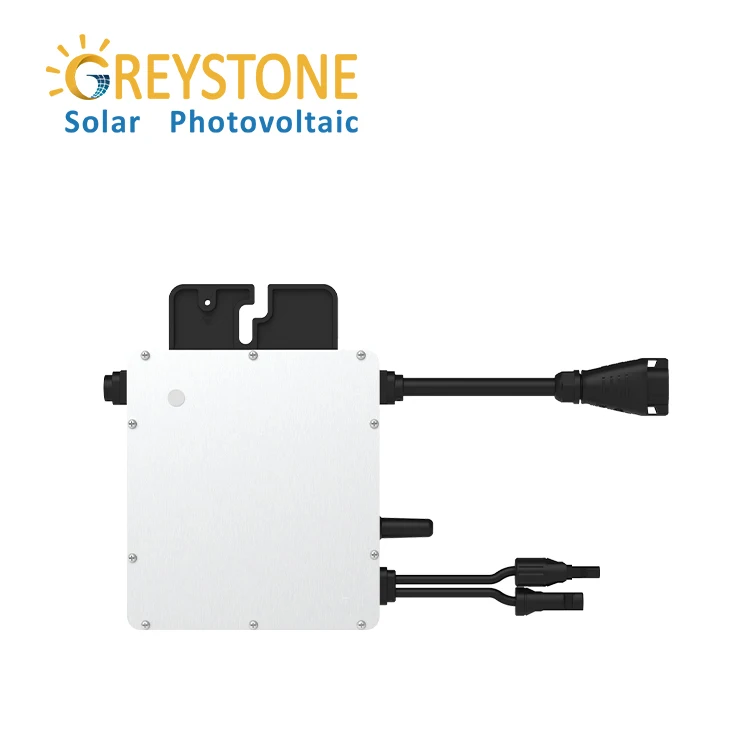

Высокоэффективный Солнечный микроинвертор одиночный Инвертор солнечной энергии IP67 60 в совместимые модули
- Категория: Solar Energy Products >>>
- Поставщик: Jiangsu Elemac Energy Co. Ltd.
Сохранить в закладки 1600436205579:
Описание и отзывы
Характеристики
Details Images
Product Paramenters

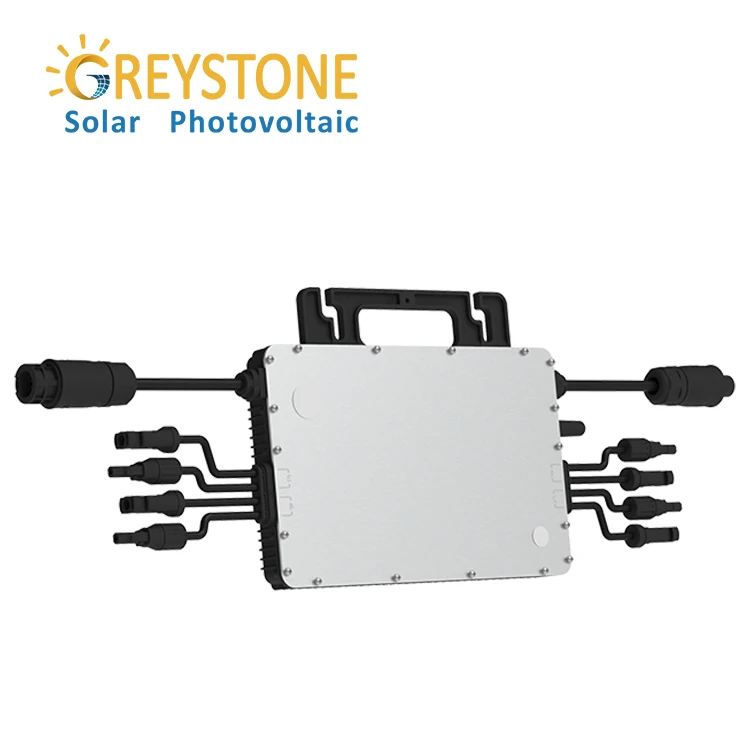

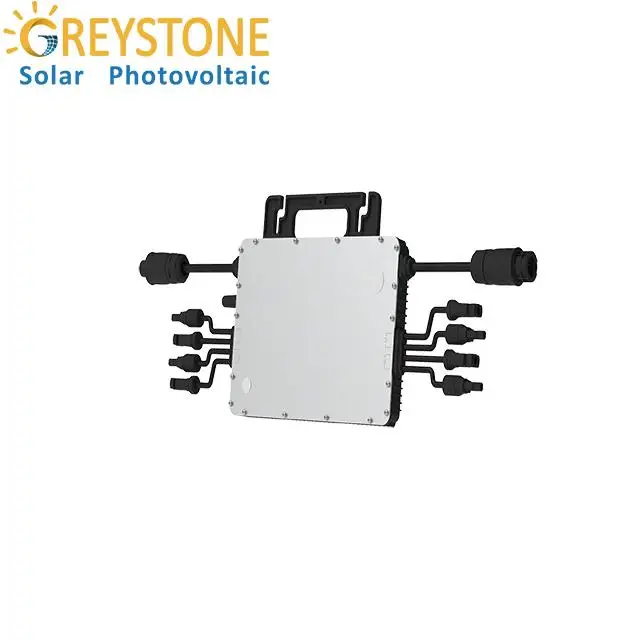

* Single microinverter connects four PV modules with dual MPPT
* Peak output power up to 1000/1200/1500W; Adapted to 60 & 72 cells PV panels
* Peak efficiency 96.70%; CEC weighted efficiency 96.50%
* Static MPPT efficiency 99.80%; Dynamic MPPT efficiency 99.76% in overcast weather
* High reliability: NEMA6 (IP67) enclosure; 6000V surge protection
* Peak output power up to 1000/1200/1500W; Adapted to 60 & 72 cells PV panels
* Peak efficiency 96.70%; CEC weighted efficiency 96.50%
* Static MPPT efficiency 99.80%; Dynamic MPPT efficiency 99.76% in overcast weather
* High reliability: NEMA6 (IP67) enclosure; 6000V surge protection

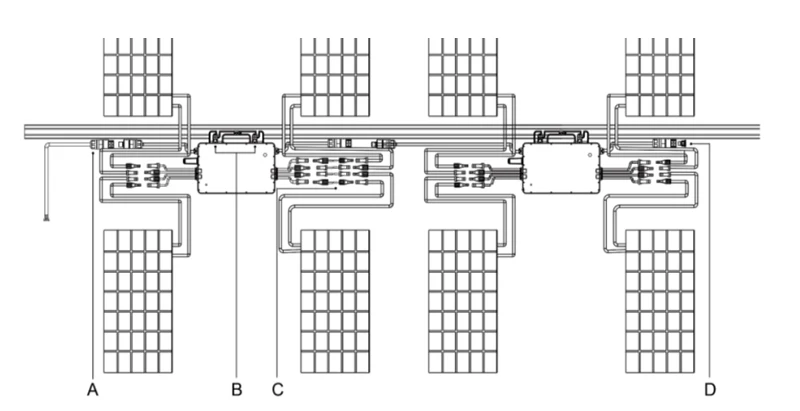

Item | Description | |
A | AC End Cable (Female), 2m 12AWG Cable | |
B | M8*25 screws | |
C | DC Extension Cable, 1m | |
D | AC Female End Cap, IP67 | |
All accessories above are not included in the package, and need to be purchased separately. Please contact our sales representative for the price. (M8 screws need to be prepared by installer-self. | ||
Component name | Product attributes | Parameter |
Input Data(DC) | Commonly used module power(W) | 240-310 |
Module cmpatibility | 60 cells or 72 cells PV modules | |
Peak power MPPT voltage range(V) | 27-48 | |
Start-up voltage(V) | 22 | |
Operating voltage range(V) | 16-60 | |
Maximum input voltage(V) | 60 | |
Maximum input current(V) | 4*10.5 | |
Output Data(AC) | Rated output power(W) | 1000 |
Nominal output voltage(A) | 240/211-264 | |
Nominal output voltage range(V) | 180-275 | |
Nominal frequency/range(Hz) | 60/55-65 | |
Power factor | >0.99 | |
Total harmonic distortion | <3% | |
Maximum units per branch | 4/3 | |
Efficiency | CEC peak efficiency | 96.7% |
CEC weighted efficiency | 96.5% | |
Nominal MPPT efficiency | 99.8% | |
Nighttime power consumption(mW) | <50 | |
Mechanical Data | Ambient temerature range (℃） | -40~+65 |
Dimensions (WxHxD mm) | 280x176x33 | |
Weight (KG) | 3.75(including 2.32m AC cable) | |
Enclosure rating | Outdoor-IP67 | |
Cooling | Natural convection-No fans | |
Features | Communication | 2. 4GHz Proprietary RF(Nordic) |
Monitoring | Monitoring system | |
Warranty | Up to 25 years | |
Compliance | UL1741,IEEE1547, CSA C22.2 No. 107.1-16, FCC 15C,FCC 15B |
Microinverter Advantages
1.In microinverter system the solar panels are connected in parallel, without high voltage on the DC side, which has a good safety.
2.The solar panels do not interfere with each other, independent power generation has no short-board effect.The system efficiency can be maximized.
3.In the environment with shadow obscuration,it can shows more efficient conversion efficiency than ordinary on grid string inverters.
4.In the same system, it can be flexibly designed to connect to different power and different types of solar panels.
5.The background can monitor the power generation of each solar panels to reduce maintenance costs.
6.The design service life is 25 years, and the comprehensive investment cost is lower.
1.In microinverter system the solar panels are connected in parallel, without high voltage on the DC side, which has a good safety.
2.The solar panels do not interfere with each other, independent power generation has no short-board effect.The system efficiency can be maximized.
3.In the environment with shadow obscuration,it can shows more efficient conversion efficiency than ordinary on grid string inverters.
4.In the same system, it can be flexibly designed to connect to different power and different types of solar panels.
5.The background can monitor the power generation of each solar panels to reduce maintenance costs.
6.The design service life is 25 years, and the comprehensive investment cost is lower.

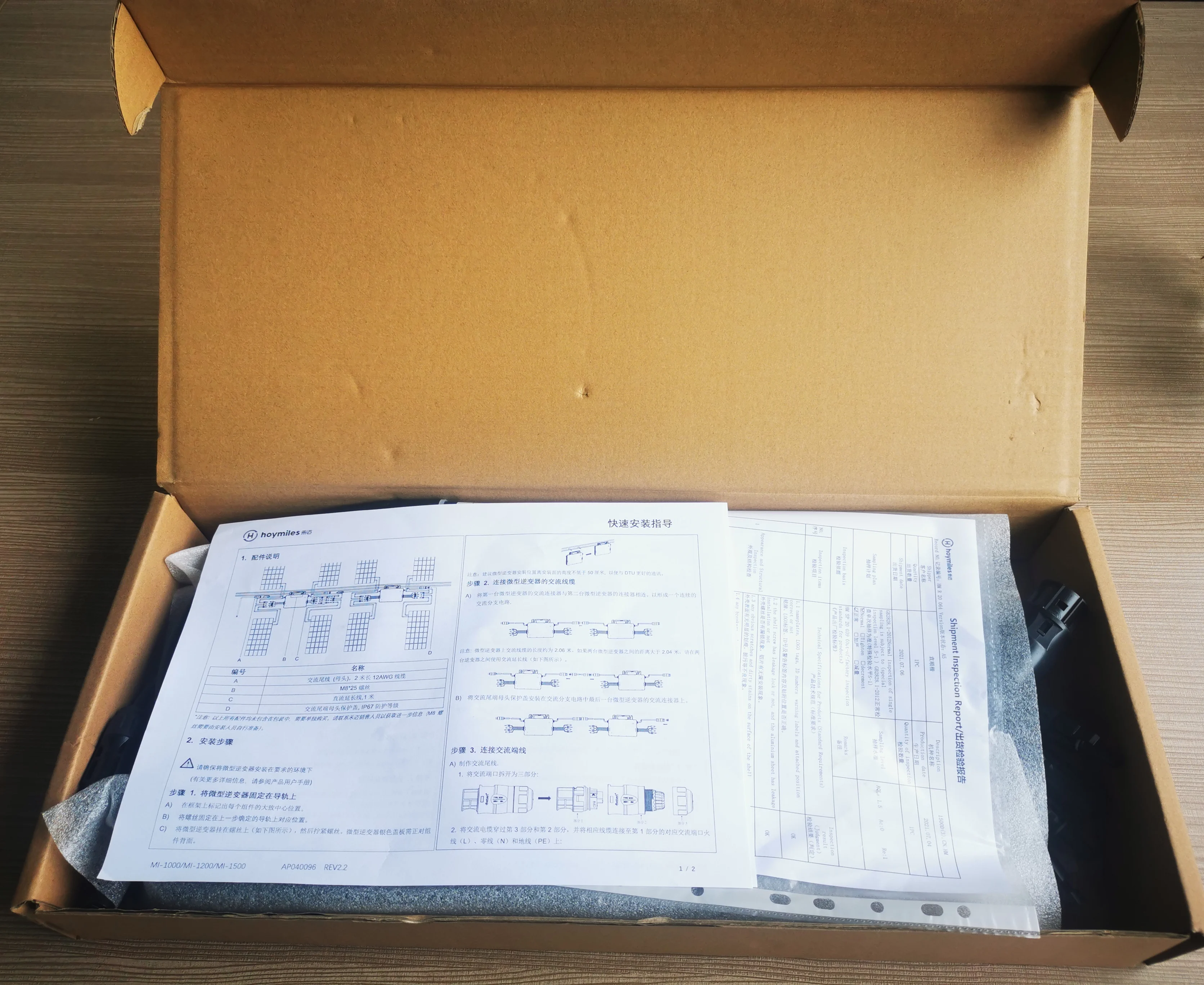

Product packaging
Packing Specification
1pcs/box
5boxs/carton
48cartons/1pallet
Company Profile
ELEMAC ENERGY CO., LTD
Elemac Energy Co., Ltd is a company dedicated to developing photovoltaic high-tech products. Felicity was founded in 2007, and its headquarters is located in Nanjing, one of the important export cities in China. At present, our products have been exported to more than 100 countries and regions around the world.
Greystone is a high-tech enterprise integrating R&D, production, sales, engineering design, installation and after-sales service, In the past 11 years, Greystone uses advanced production equipment and production technology at home and abroad, concentrate on research, constant innovation, has formed its own unique characteristics of the technical advantages, product advantages and market advantages.
Greystone will continue to focus on the popularity of solar energy storage system look into the future, adhering to the values of hard-working, innovation, focus and integrity, provide clean energy to the areas with insufficient power, and bright their life.
Looking forward to your good cooperation!!
Greystone is a high-tech enterprise integrating R&D, production, sales, engineering design, installation and after-sales service, In the past 11 years, Greystone uses advanced production equipment and production technology at home and abroad, concentrate on research, constant innovation, has formed its own unique characteristics of the technical advantages, product advantages and market advantages.
Greystone will continue to focus on the popularity of solar energy storage system look into the future, adhering to the values of hard-working, innovation, focus and integrity, provide clean energy to the areas with insufficient power, and bright their life.
Looking forward to your good cooperation!!
Certifications
FAQ
Q1: How to choose a right system and products?
Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.
Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income;zero pollution;Low maintenance costs;
Q3: Why choose us?
A3: Greystone have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
Q3: Why choose us?
A3: Greystone have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
Recommend Products
Похожие товары

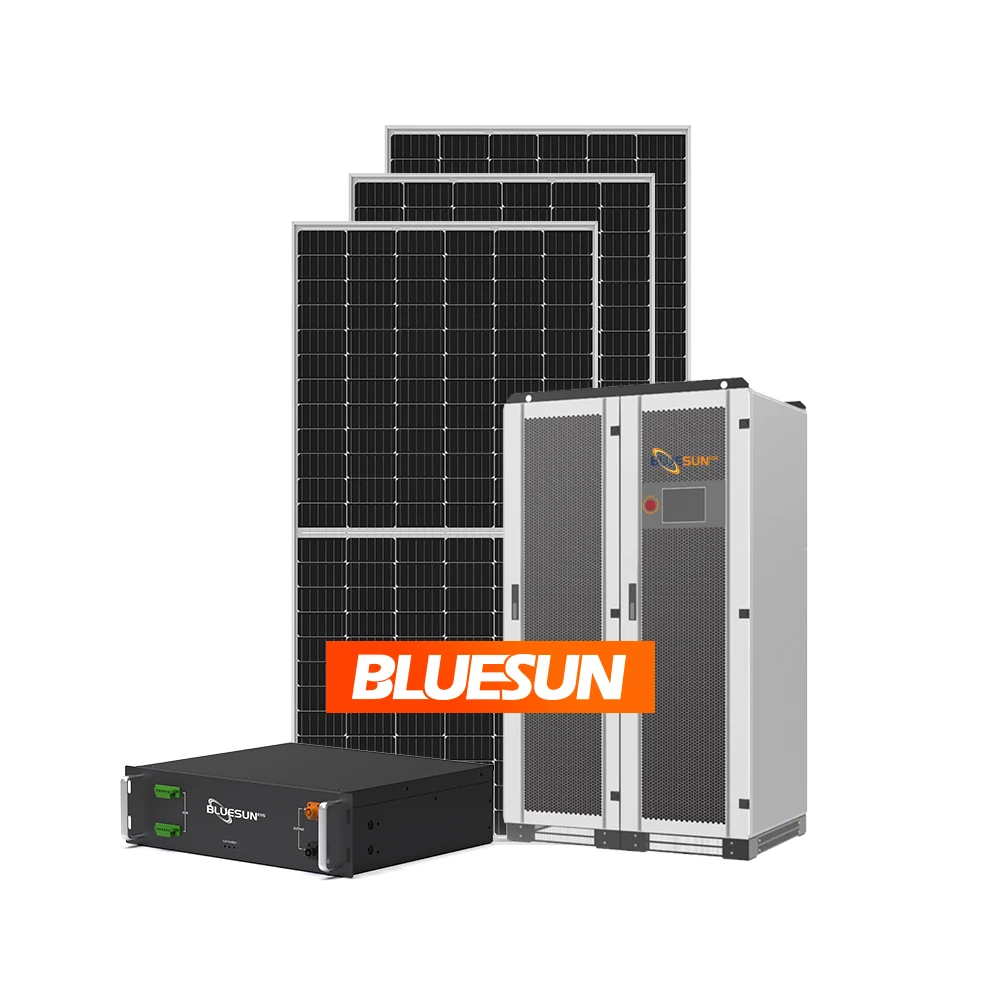

Полная гибридная инверторная солнечная система 10 кВт 30 50 100 150 автономная жиловая энергосистема литиевая
550,00 $ - 1 000,00 $

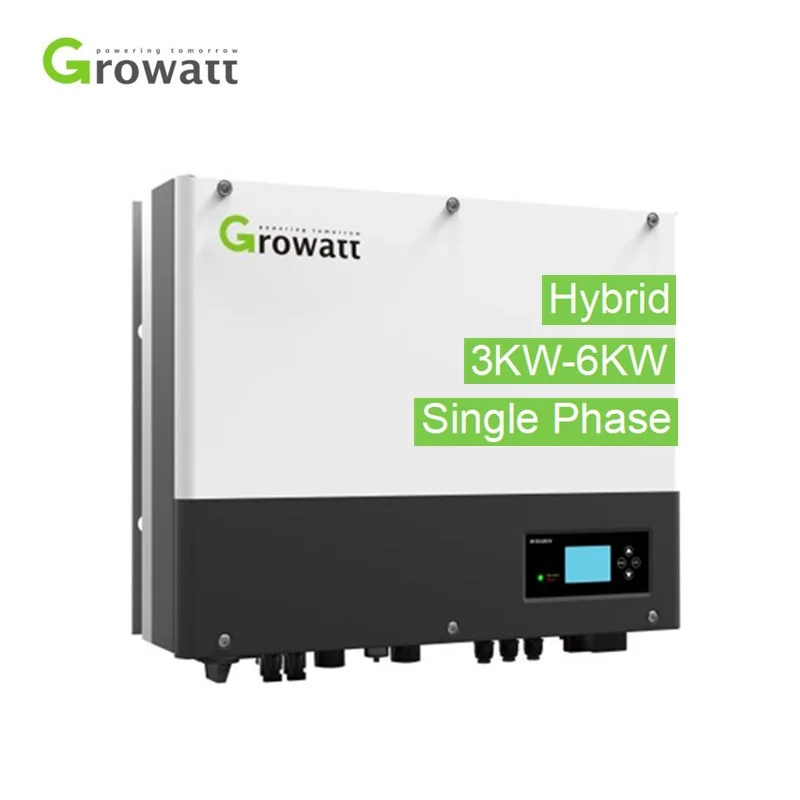

Гибридный солнечный инвертор GROWATT Sph готовый к отправке все серии SPH 3000 3600 4000 4600 5000 6000 гибридный с
963,00 $ - 1 313,00 $
Китайский производитель прямая продажа алюминиевая направляющая для солнечных панелей монтажа на крыше
3,55 $ - 3,58 $

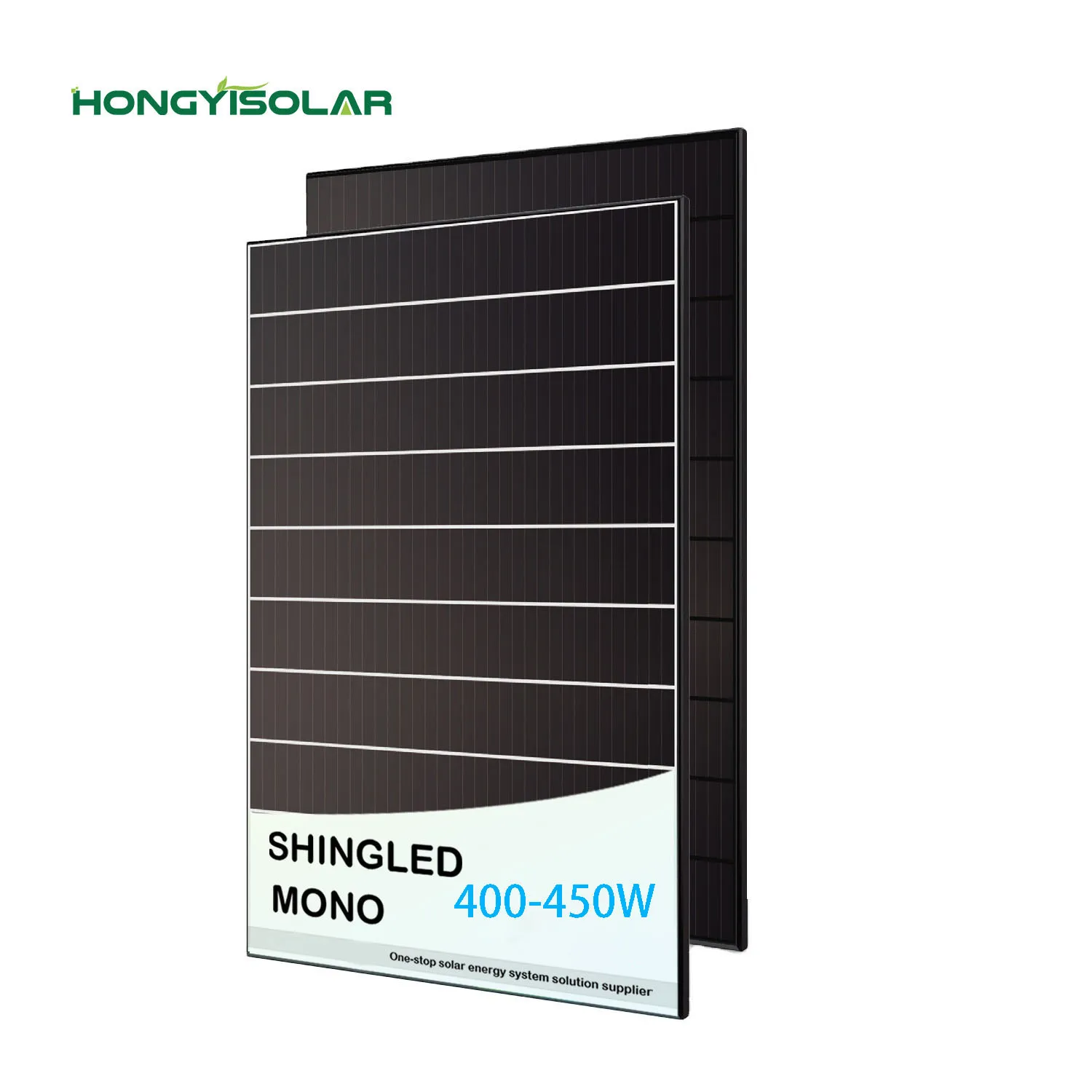

Полностью черные солнечные панели Роттердам европейские склады 400 Вт 410 415 425 440 монолитные Shingled
0,18 $ - 0,20 $

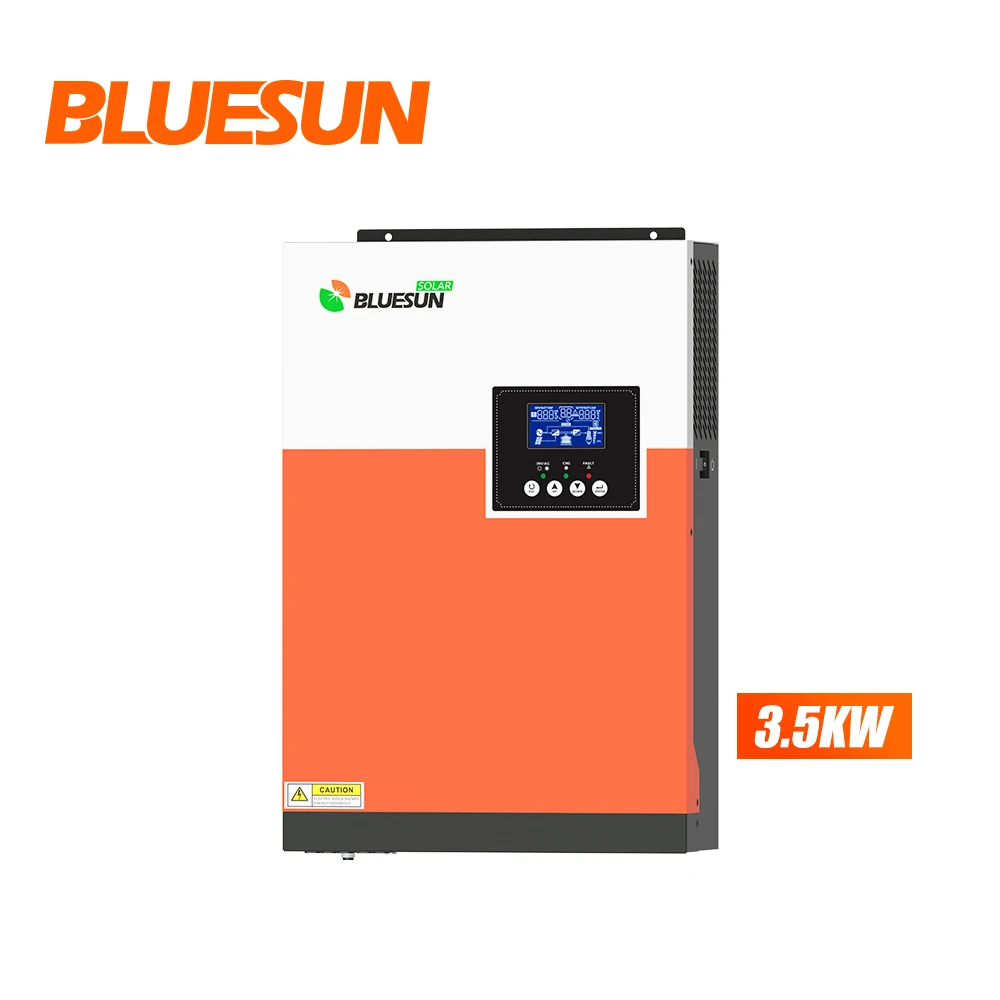

Солнечный инвертор и контроллер Bluesun 3 кВт 5 10 гибридный для домашней системы
298,00 $ - 355,00 $

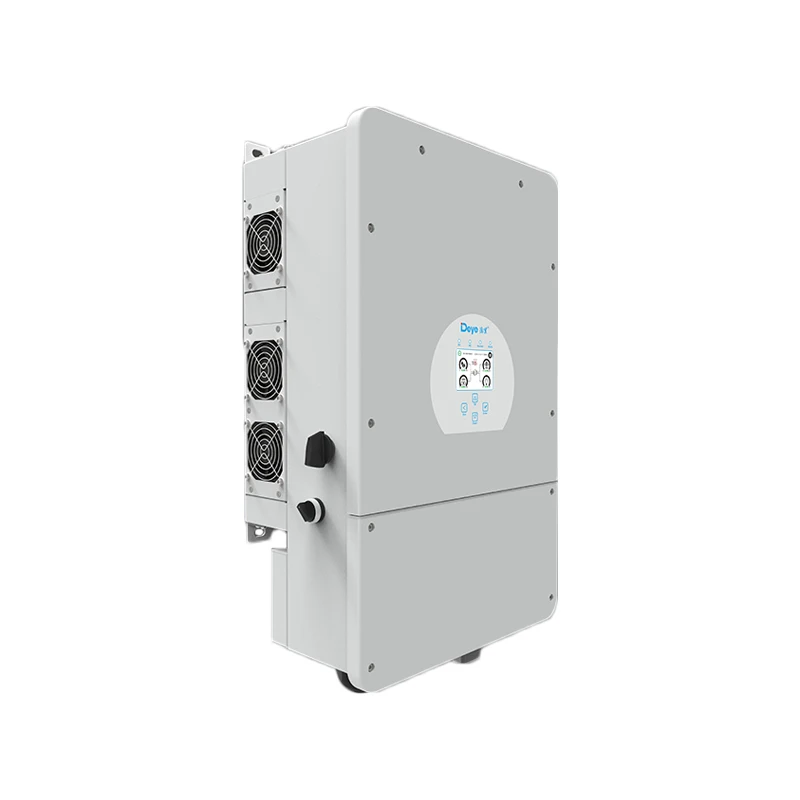

Deye Гибридный солнечный инвертор Sun-5k-sg01lp1-eu/США Sun-8k-sg01lp1-us/eu 3.6kw 5kw
