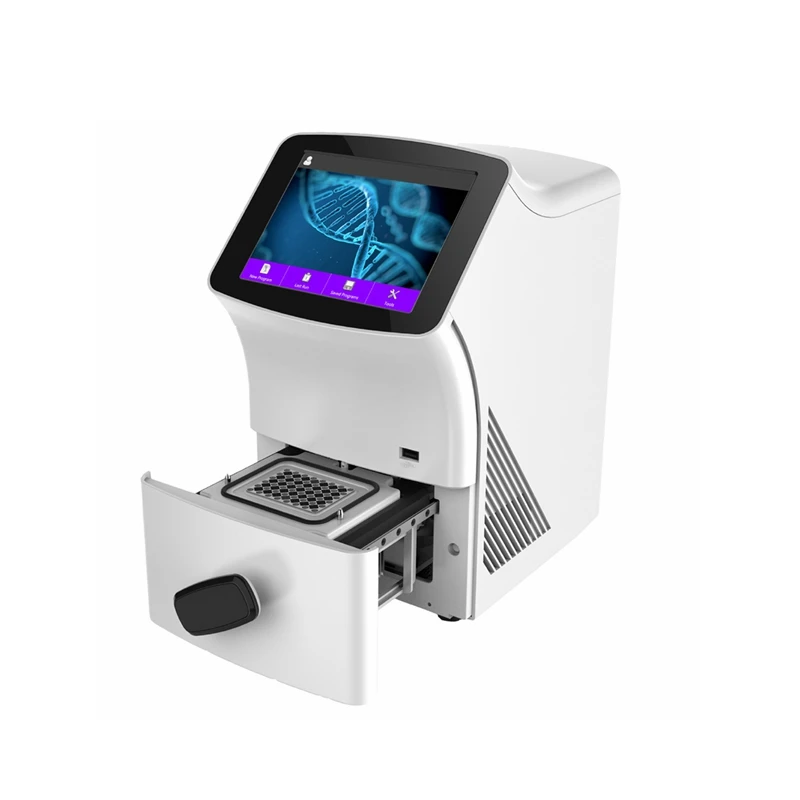

Лабораторная машина для ПЦР в реальном времени 48 или 96 фунтов ПЦР анализа на вирус туберкулеза ВИЧ вирусной нагрузки

Сохранить в закладки 1600436374699:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

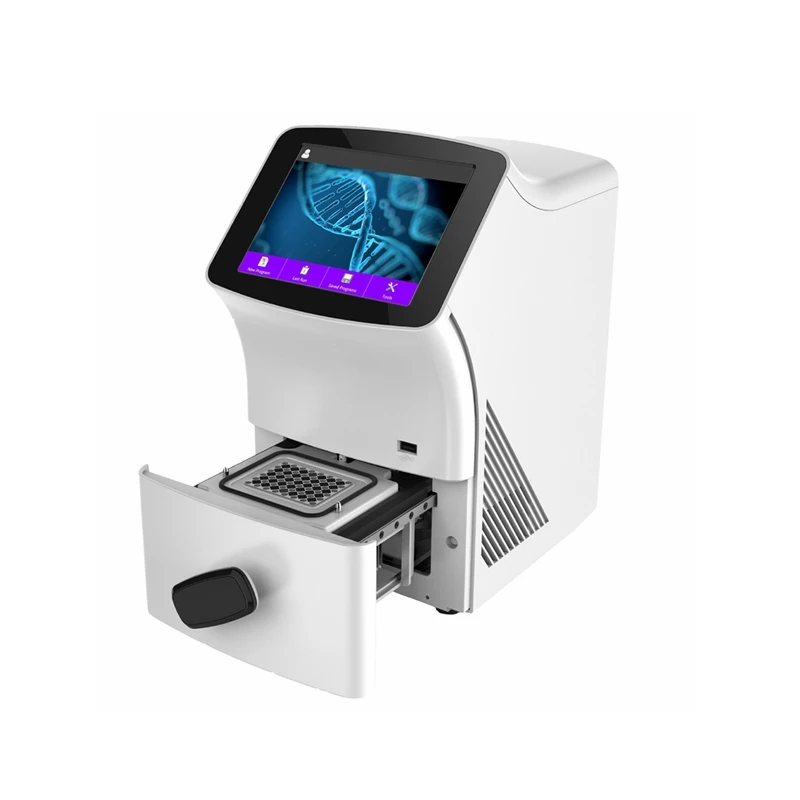

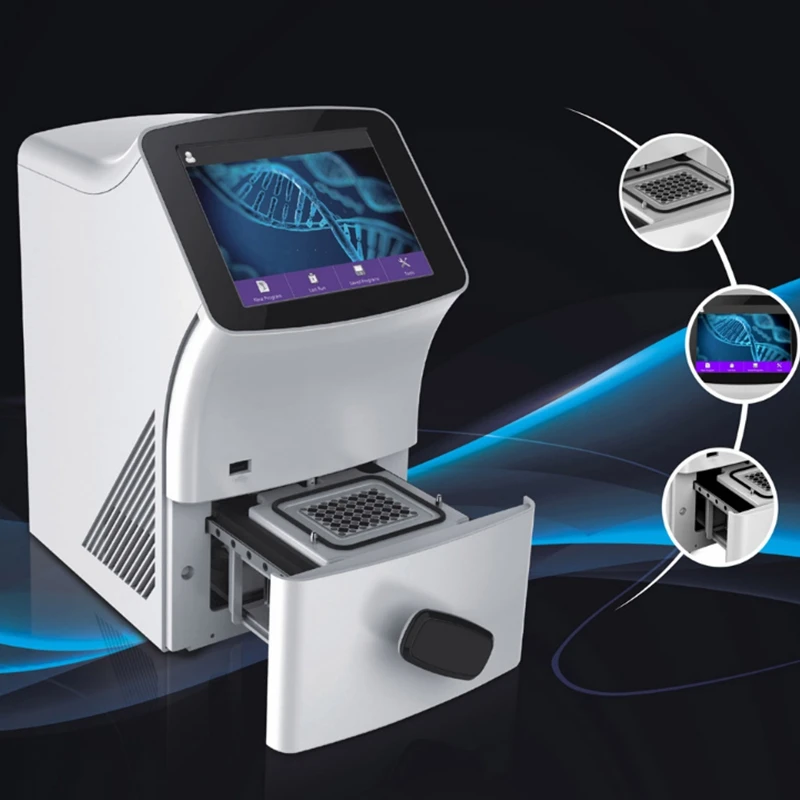

Laboratory 48 wells or 96 wells Real time PCR machine tuberculosis HIV viral load PCR virus PCR machine price







Features:
* 7"TFT LCD touch screen.
* Analysis software free upgrade.
* Drawer sample stage design, convenient sampling.
* Using TopticalTM technology to reduce background noise.


* System dual-channel fluorescence synchronization detection.
* Semiconductor heating and cooling technology, changing temperature rate 7 degrees per second.





Main Advantages:




The new powerful Peltier technology, fast ramping rate up to 79C/s.
Sample block capacity: 48 wells * 2/4 channels. White PCR tubes could be used. In quantitative PCR experiments, white tubes offer the highest sensitivity and shield background.
T-OpticalTM technology, reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.
Simultaneous detection of wells, not in sequence.
User could view qPCR process and run PCR protocol through self-contained 7" TFT LCD and touch screen.
Special designed optical system for qPCR, avoiding more moving parts problems like overheat, wear and off center. Not optical fiber based, avoiding break and block.
Long life LED lamps to excite fluorescence and detect with SSLPTM CCD imaging technology.
Sample wells with temperature gradient function, convenient to optimize PCR conditions.

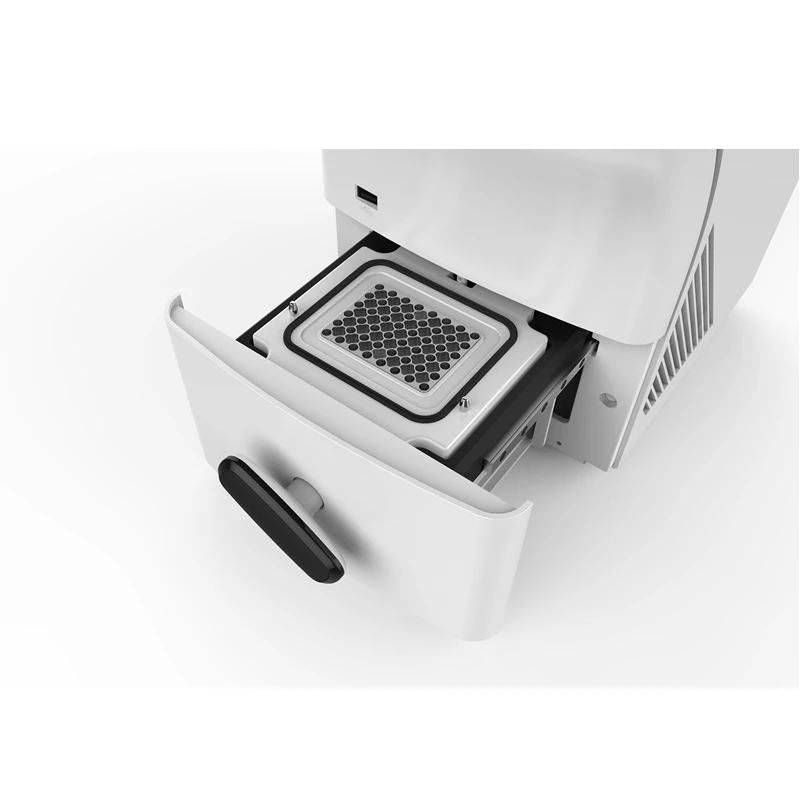

The drawer design of sample block, makes it easier to pick and place PCR tubes and plates.
The qPCR analysis software could be upgraded for free.



Product specification:

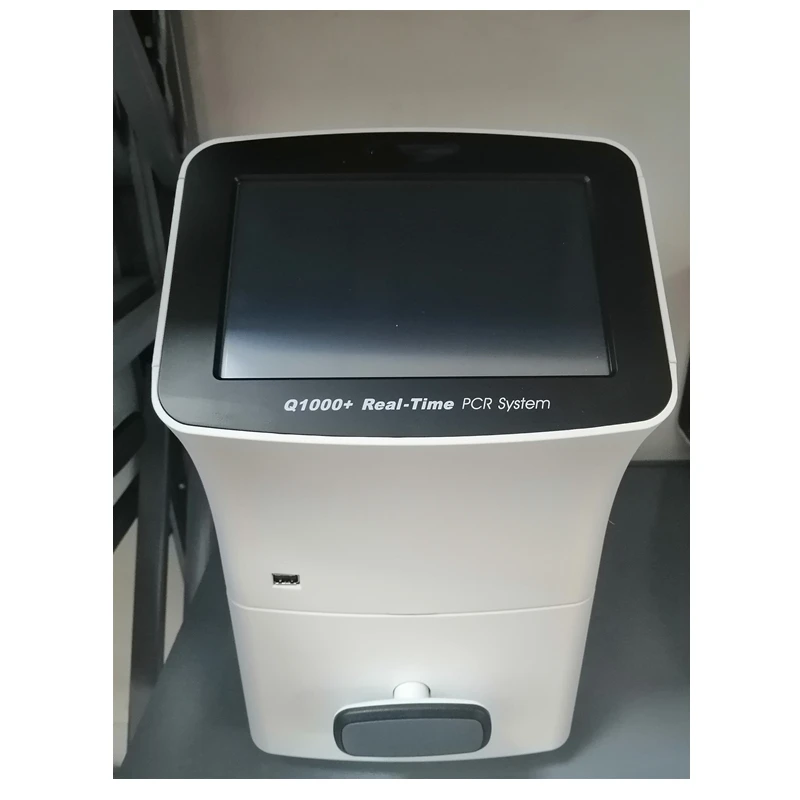

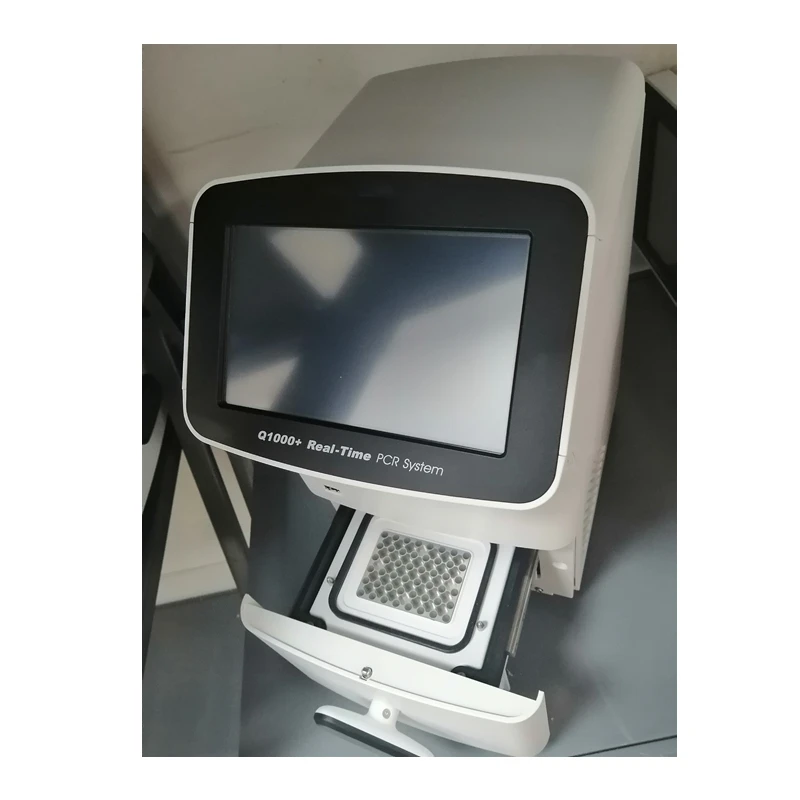

Model


Q1000


Q1000+



Instrument Performance



Sample Block Capacity


48 wells*0.1ml


Reaction Volum


10-50ul(recommend 20ul)


Tubes Option


white or clear low-profile 0.1ml PCR tube/eight strip tubes with optical flat cap


Heating and Cooling Technology


The newest generation of Peltier technology for more than one million thermal cycles


Control Methods


Operate via PC remote control; or the touch screen on instrument with limited function


Language


English


Communications


USB 2.0 and LAN, export data via USB flash drive


Display


7" Color TFT LCD and Touch Screen



Temperature



Block Temperature Range


0-100℃


Max.Heating Rate


7℃/S


Max.Colling Rate


5℃/S


Temperature Uniformity


≤±0.2℃(at 90℃)


Temperature Accuracy


≤±0.1℃(10 seconds after reach 90℃)


Display Resolution


0.1℃


Heat Lid Temperature Range


30℃~112℃ Adjustable


Temperature Control Mode


Block & Sim-tube mode



Fluorescence Detection range



Excitation


Long Life LED lamps


Detection


High sensitivity CCD


Sensitivity


≥1 copy


Suitable Fluorescent Dyes


F1:FAM,SYBR,Green F2:VIC,HEX,JOE,CY3,NED


F1: FAM,SYBR Green
F2: VIC,HEX,JOE,CY3,NED
F3: ROX,TEXAS -RED
F4: CY5


Fluorescence Excitation Range


300~800nm


Fluorescence Detection Range


500~800nm


Date Export Formats


Excel, txt


Power


Global switch power supply: 100~240V, 50~60Hz


Consumption


400W


Net Weight


8.2 kg


Dimension (LxWxH)


320x205x380 mm


Operating System


Windows 7, Windows 10, Windows XP
