Лидер продаж, высокоэффективный тринатриевый цитрат, Вибрирующая флюидированная сушилка
10 000,00 $
Высокоэффективный тринатриевый цитрат Вибрирующая флюидизированная кровать сушилка
- Категория: >>>
- Поставщик: Changzhou Hengmai Drying Equipment Co. Ltd.
Сохранить в закладки 1600436483087:
Описание и отзывы
Характеристики
Product Overview

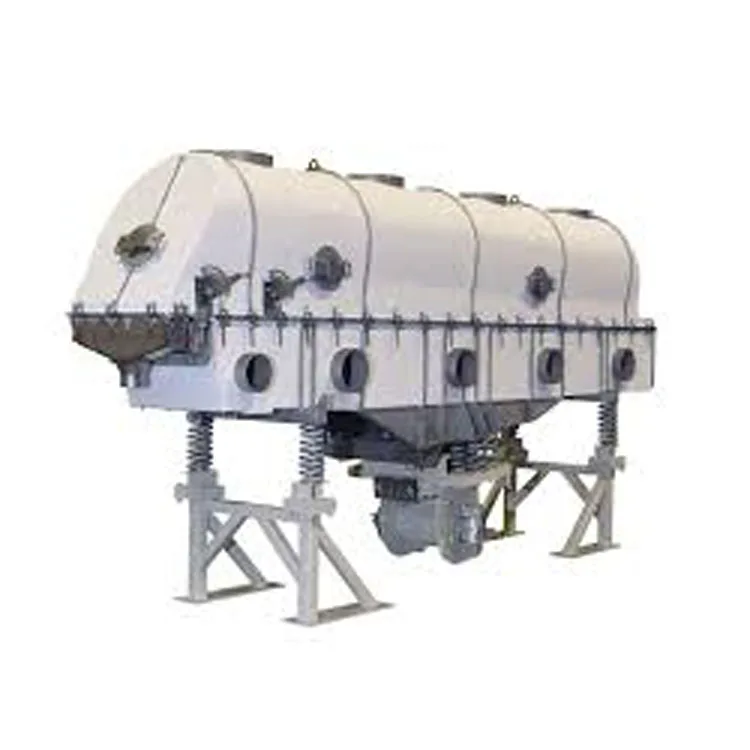

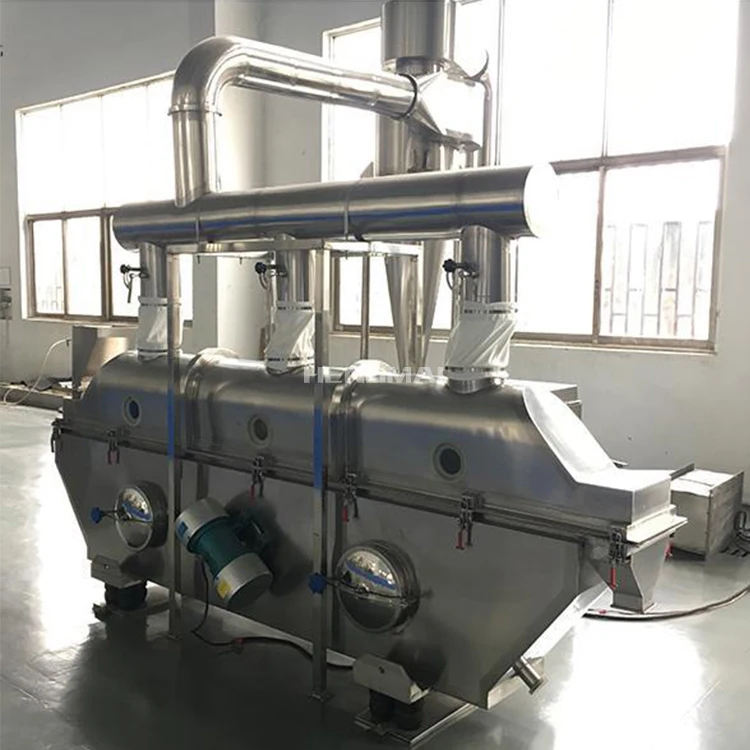

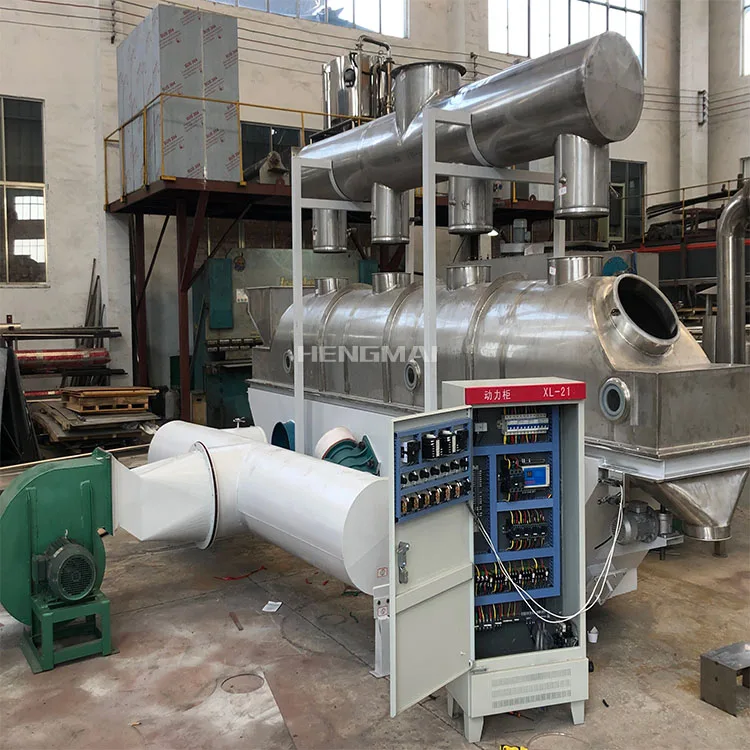

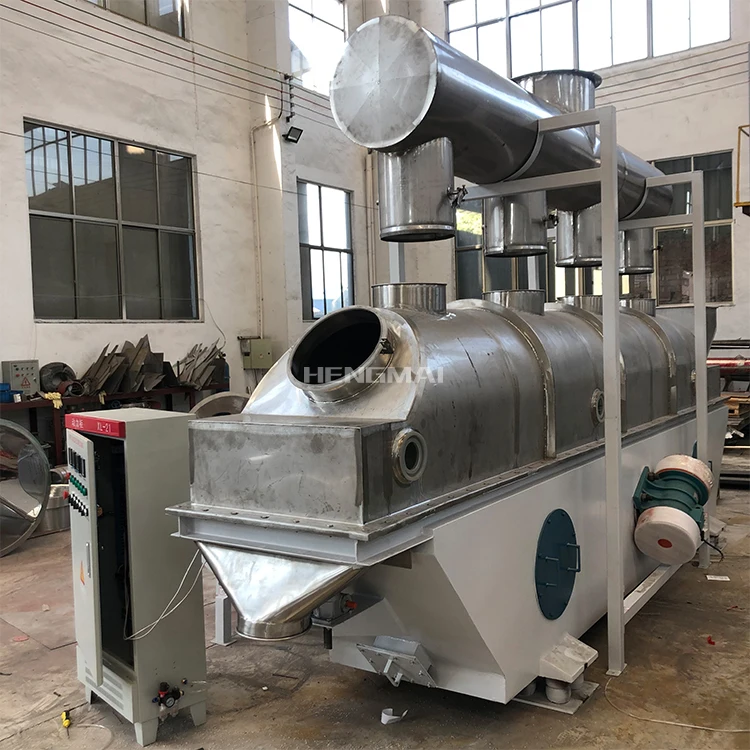

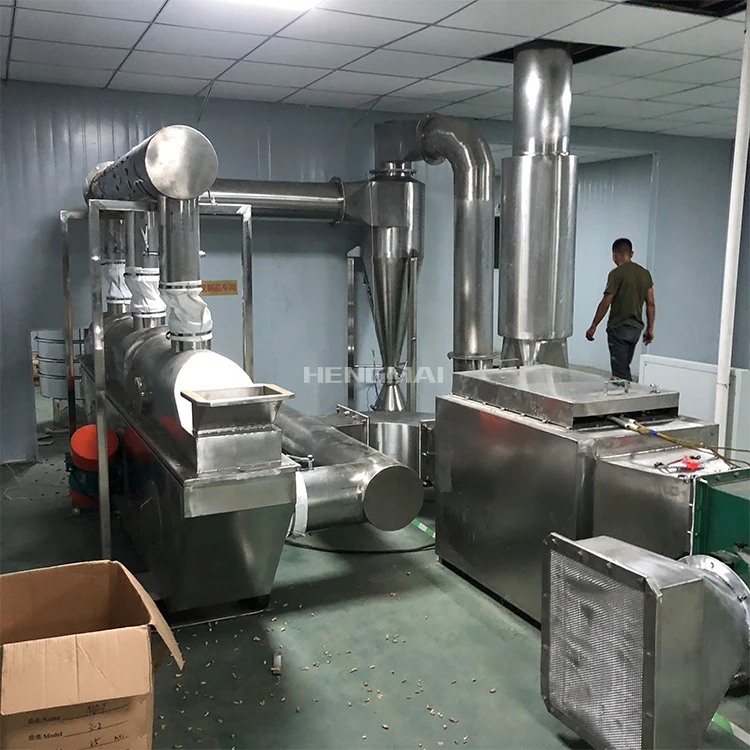

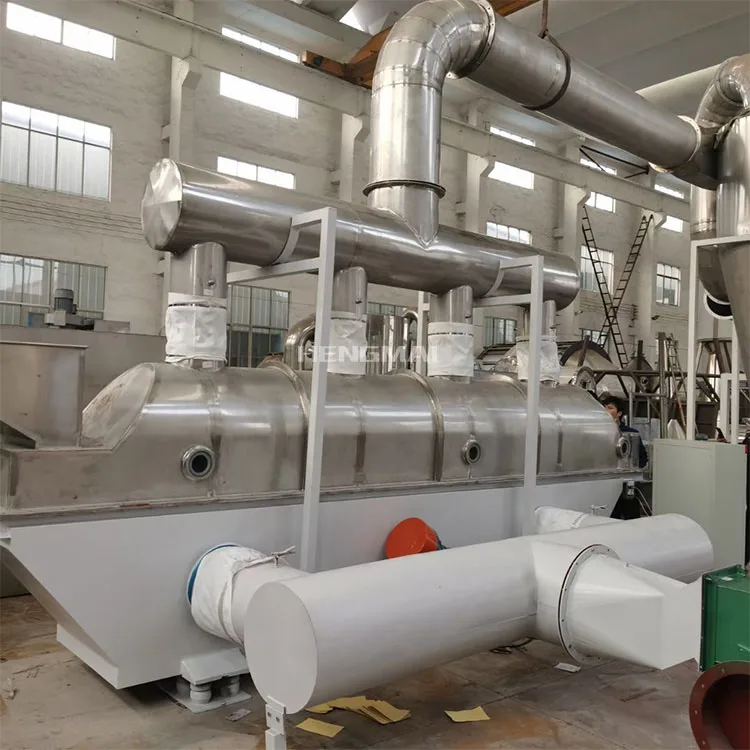

ZLG vibrating fluidized bed dryer
ZLG vibrating fluidized bed dryer is widely used in chemical industry, light industry, medicine, food, plastic, grain, oil, slag, salt, sugar and other industries of powder granule material drying, cooling, humidification and other operations. The material enters the machine from the feed port. Under the action of vibration force, the material is thrown along the horizontal direction and moves forward continuously. After the hot air passes through the fluidized bed upward and exchanges heat with the wet material, the wet air is discharged through the exhaust outlet after being dedusted by the cyclone separator, and the dry material is discharged from the discharge port.
Main Features
Vibration source is driven by vibration motor, stable operation, easy maintenance, low noise, long life, easy maintenance.
High thermal efficiency, compared with the general drying equipment can save energy more than 30%.The temperature distribution of the bed is uniform, without local overheating, fluidization symmetry and dead Angle.
Good adjustability, wide adaptability; the thickness of material layer, internal moving speed and full amplitude can be changed uniformly, which can realize stepless adjustment.
It has little damage to material surface and can be used for drying fragile materials.The work effect is not affected when the particle size is irregular.
The fully enclosed structure can effectively prevent the empty fork between material and air from infecting the clean working environment.
When it is used in mass production of high moisture materials, multiple sets can be connected in series to meet the requirements of users (typical materials: polyacrylamide, etc.).
High thermal efficiency, compared with the general drying equipment can save energy more than 30%.The temperature distribution of the bed is uniform, without local overheating, fluidization symmetry and dead Angle.
Good adjustability, wide adaptability; the thickness of material layer, internal moving speed and full amplitude can be changed uniformly, which can realize stepless adjustment.
It has little damage to material surface and can be used for drying fragile materials.The work effect is not affected when the particle size is irregular.
The fully enclosed structure can effectively prevent the empty fork between material and air from infecting the clean working environment.
When it is used in mass production of high moisture materials, multiple sets can be connected in series to meet the requirements of users (typical materials: polyacrylamide, etc.).
PRODUCT SPECIFICATIONS
Model | Fluidized bed area | Inlet air temperature | Outlet air temperature | Water evaporating capacity | Vibration motor | ||
Model | Power | ||||||
ZLG3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8*2 | |
ZLG4.5*0.3 | 1.35 | 35-50 | ZDS31-6 | 0.8*2 | |||
ZLG4.5*0.45 | 2.025 | 50-70 | ZDS32-6 | 1.1*2 | |||
ZLG4.5*0.6 | 2.7 | 70-90 | ZDS32-6 | 1.1*2 | |||
ZLG6*0.45 | 2.7 | 80-100 | ZDS41-6 | 1.5*2 | |||
ZLG6*0.6 | 3.6 | 100-130 | ZDS41-6 | 1.5*2 | |||
ZLG6*0.75 | 4.5 | 120-140 | ZDS42-6 | 2.2*2 | |||
ZLG6*0.9 | 5.4 | 140-170 | ZDS42-6 | 2.2*2 | |||
ZLG7.5*0.6 | 4.5 | 130-150 | ZDS42-6 | 2.2*2 | |||
ZLG7.5*0.75 | 5.625 | 150-180 | ZDS51-6 | 3.0*2 | |||
ZLG7.5*0.9 | 6.75 | 160-210 | ZDS51-6 | 3.0*2 | |||
ZLG7.5*1.2 | 9 | 200-260 | ZDS51-6 | 3.0*2 | |||
Product packaging and delivery
Company Profile
Changzhou Hengmai Drying Equipment Co., Ltd.
Our company located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
