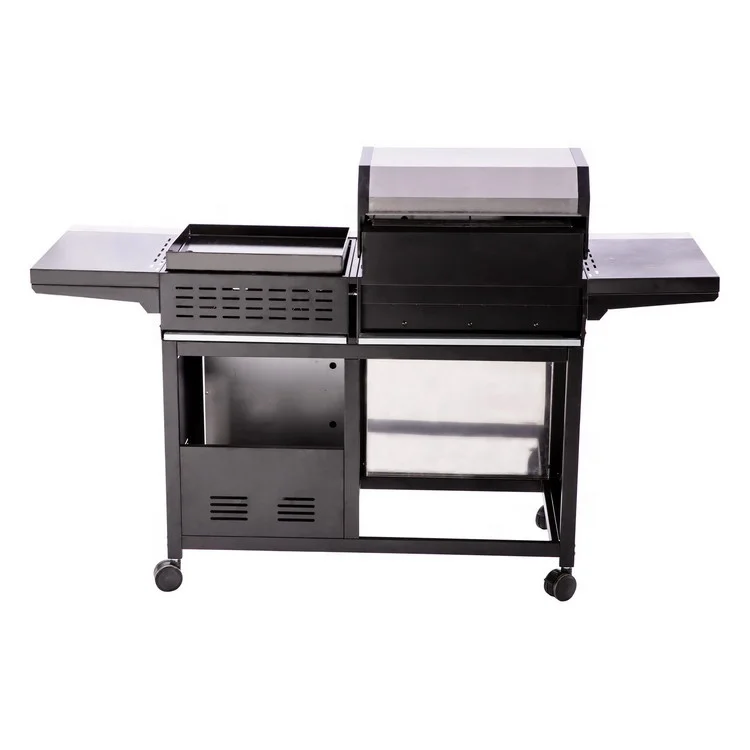

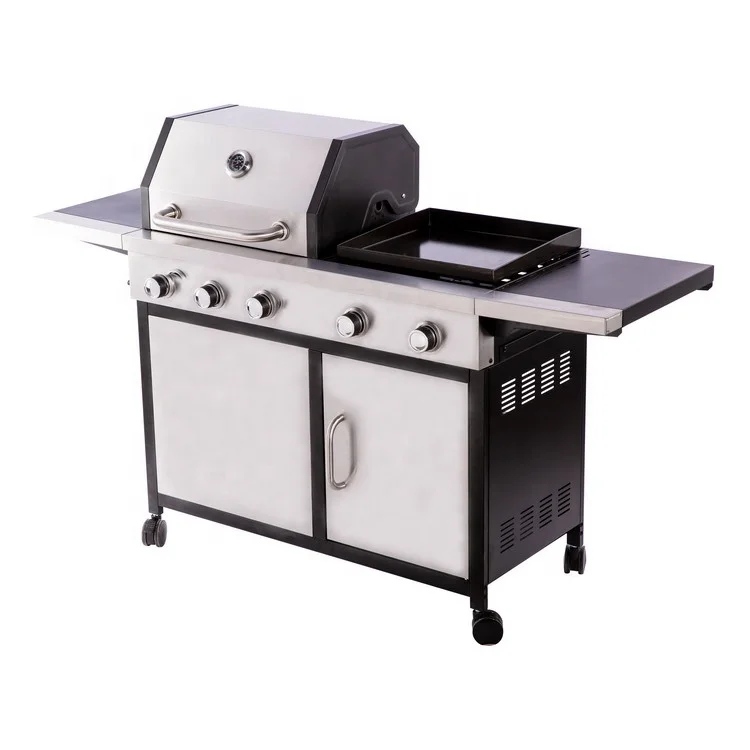

Komenjoy J003 газовый гриль для барбекю сверхмощный и портативный угольный нержавеющий

MODEL NO.

G030+Plancha

HOOD

LID FRONT PANEL

SUS430, T=0.6mm

LID LINNER

 AL-coated steel, , T=0.5mm

LID LEF & RIGHT PANEL

SPCC T0.8 Black paint

HANDLE

SUS 201 ring pipe(40*20  T=0.8)

METAL LOGO

NOT included

TEMPERATURE GAUGE

included

FIRE BOX

CONTROL PANELFRONT FACIA

SUS430, Front:T=0.7mm, Side:T=1.0mm

COOKING AREA

480*420mm+580*420mm

FIRE BOX INSIDE

SUS430, Front& back panel: T=0.6mm; Left & right panel:T=0.7mm

WARMING RACK

SUS201, Ø4.5,630x110mm

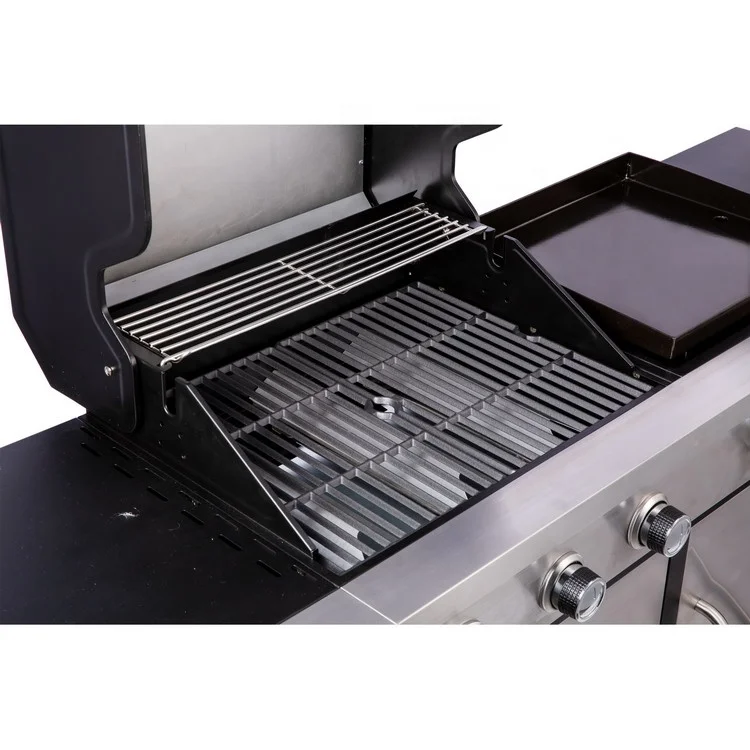

COOKING GRID

enameled casting iron,285x420mm,  2PCS
enameled casting iron,235x420mm,  2PCS

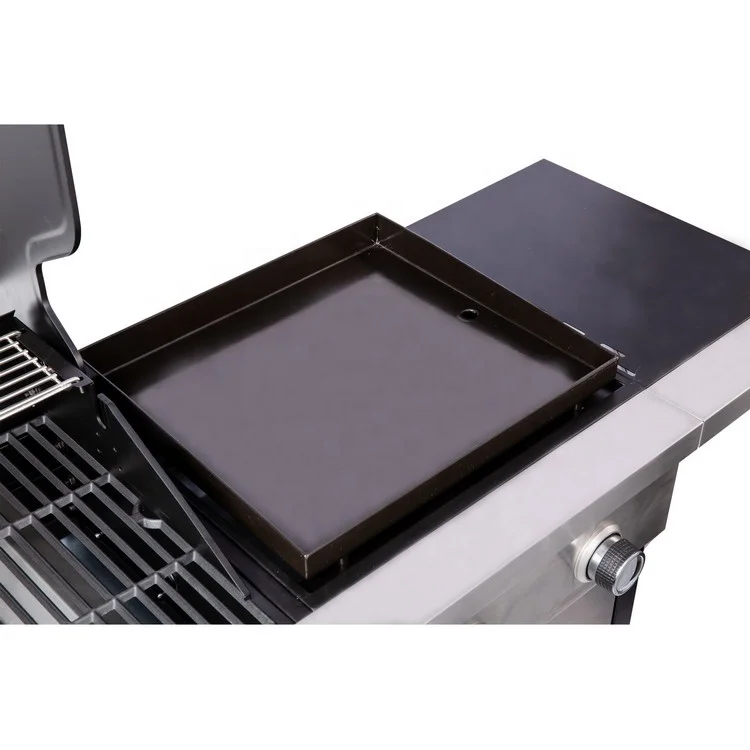

COOKING PLATE

/

MAIN BURNERS

SUS201  Tube, Ø25*0.8, 12000BTU*5pcs

IGNITION

Piezo ignition

VALVE

Alumimum

FLAME TAMER

 AL-coated steel, 4pcs, T=0.8mm

FAT TRAY

Galvanized Plate,T=0.6mm

HALOGEN LIGHT AT BACK

/

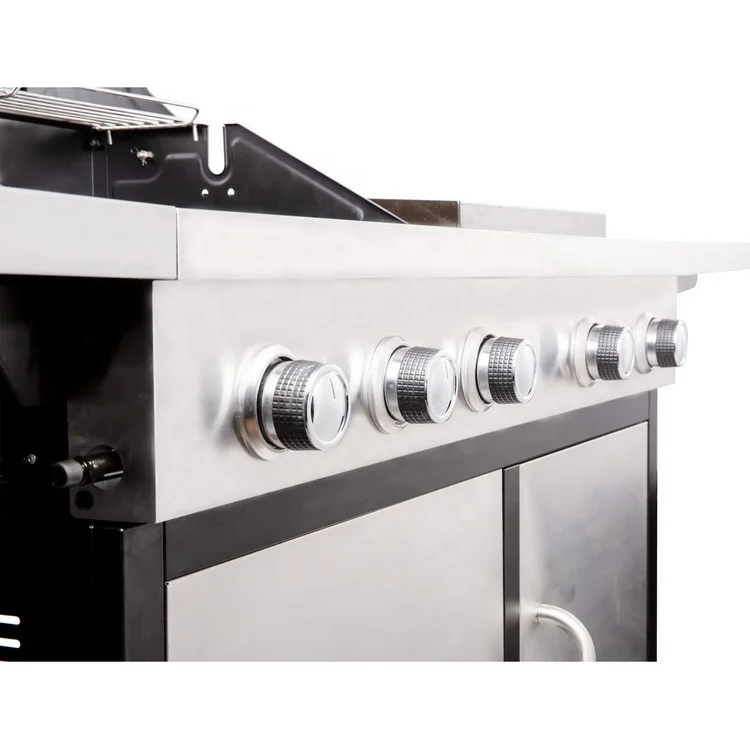

CONTROL KNOB SEAT

SUS430 , 5pcs

CONTROL KNOB

ABS with Chrome plated, 5pcs

OPENER

/

BRACKET FOR THE BUILT-IN ITEM

/

SIDE TABLE AND SIDE BURNER

SIDE TABLE (L & R side)

SPCC T0.7 Black paint

SIDE TABLE FRONT PANEL (L&R)

SUS430, T=1.0mm

SIDE BURNER

SUS, 1PC, 11000BTU

SOUP TRAY

Porcelain, T=0.8mm

SIDE BURNER LID

SUS, T=0.7mm

SIDE BURNER GRID

enamel, Ø5, ,1pcs

TROLLEY

TOP PANEL

/

BOTTOM SHELF

SPCC T0.7 Black paint

REAR PANEL

SPCC T0.6 Black paint

LEFT AND RIGHT PANEL

SPCC T0.6Black paint

DOOR

SUS430, T=0.7mm, with SUS201 handle

DOOR INNER

/

DOOR HANDLE

 Ø16x0.8, SUS201, 2PCS

WHEELS/CASTORS

2 pcs without brake, 2pcs with brake

INFRARED BACK BURNER

/

REGULATOR & HOSE

not included

CERTIFICATE

PENDING

PRODUCT SIZE

1752*554*1162(mm)

 PACKING

Outer CARTON

1225*668*515mm,brown carton with blank printing

Gross Weight

60kg

LOADING QTY (40HQ)

140PCS/40HQ
