Product Overview

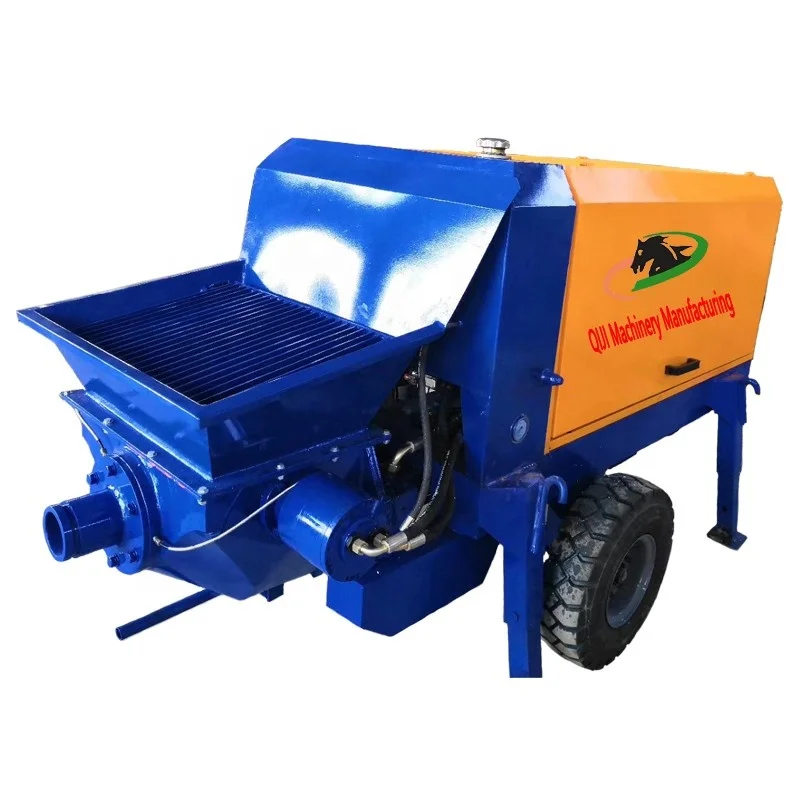

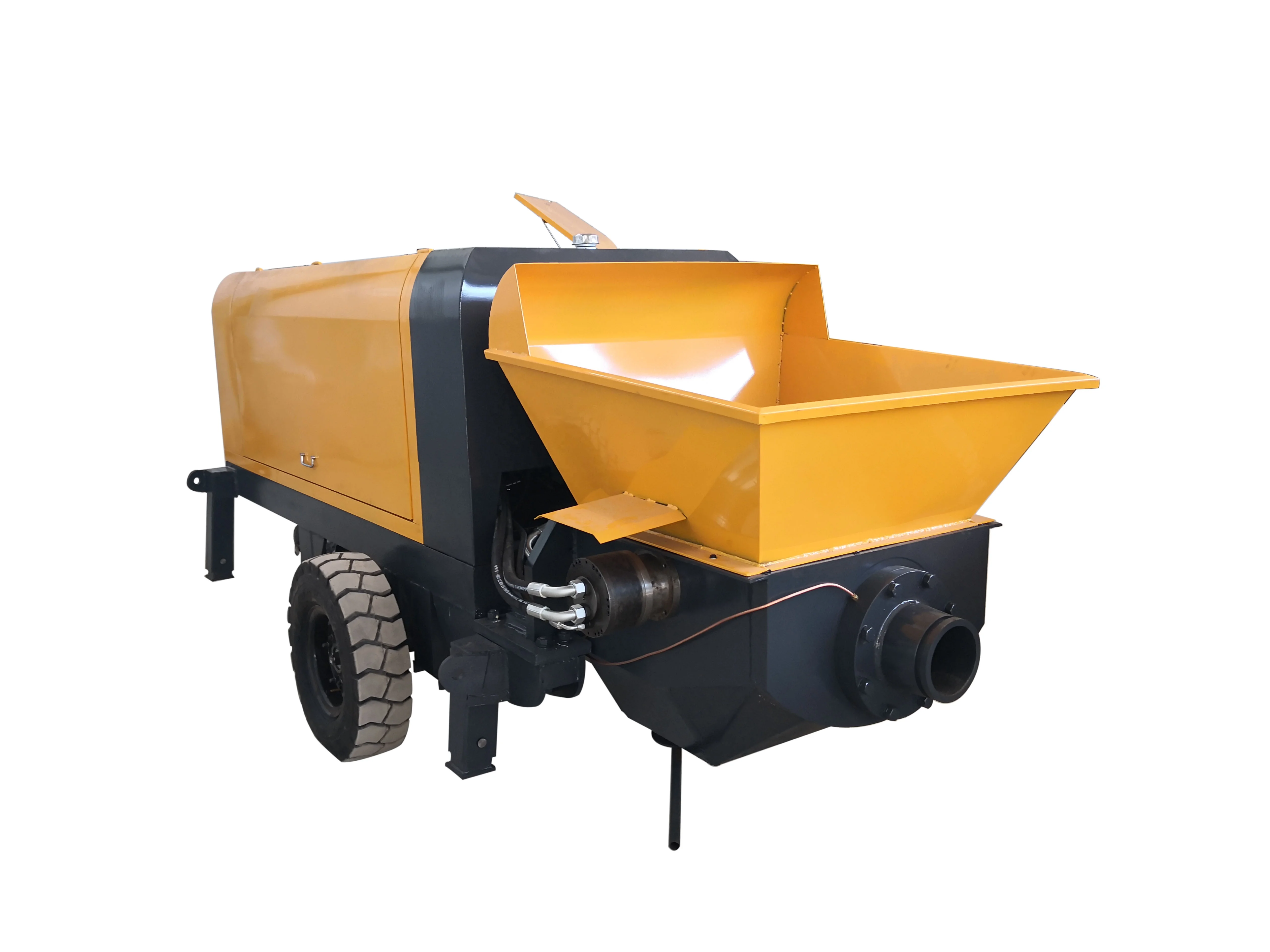

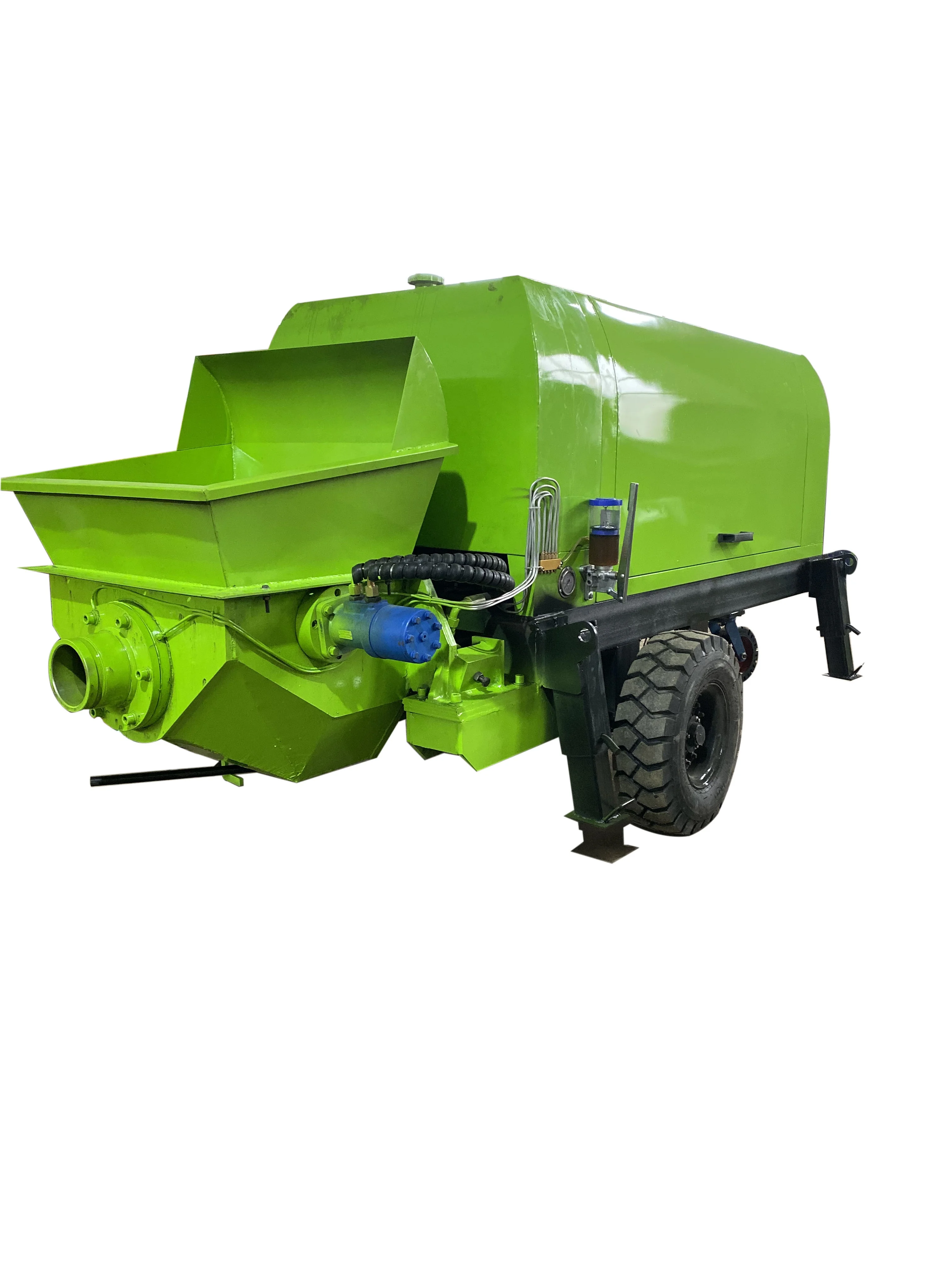

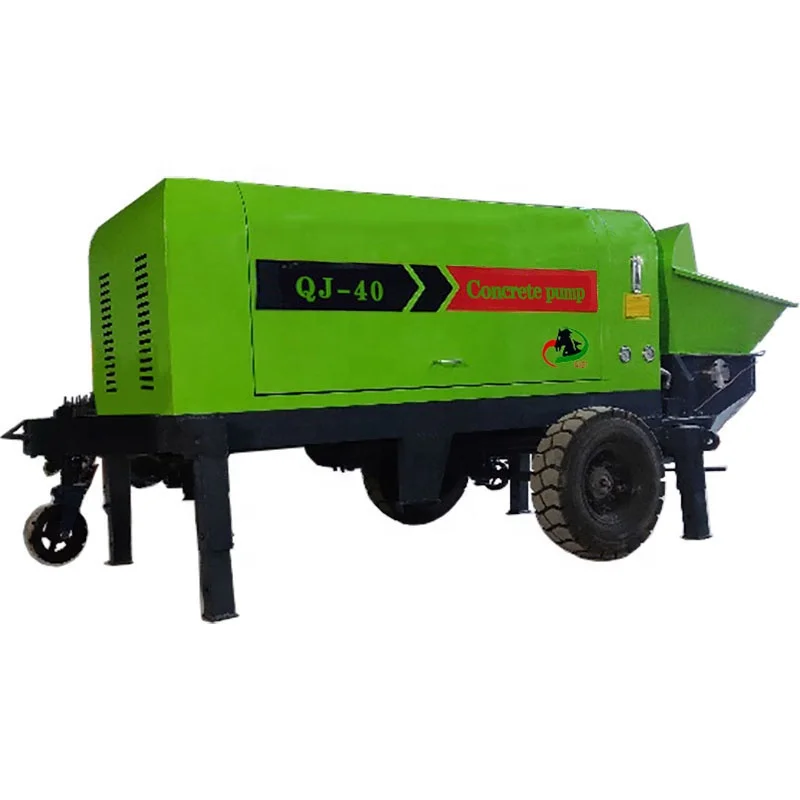

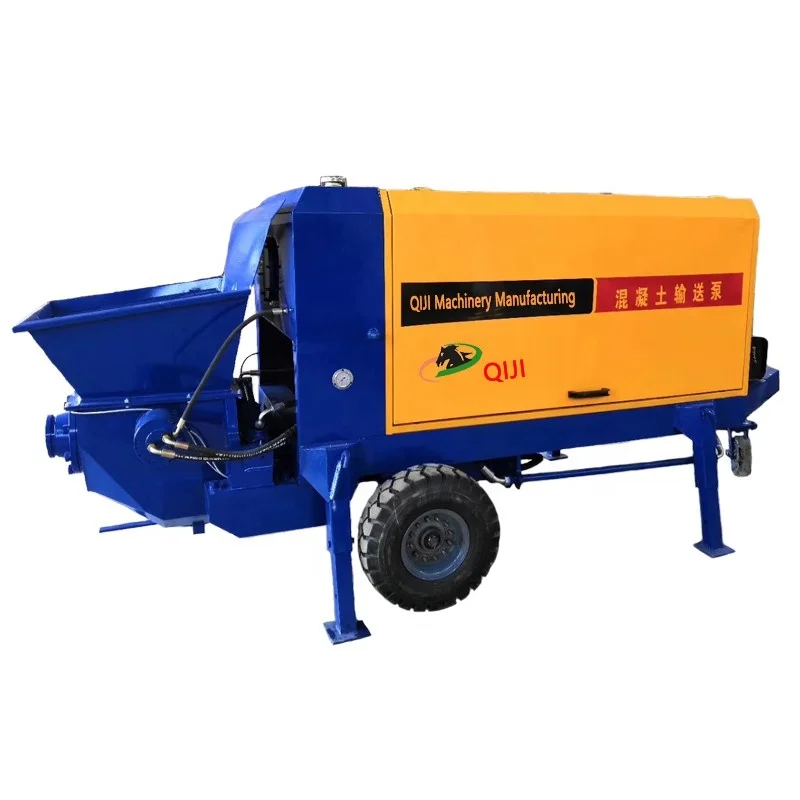

QJ-HBT-20 Diesel Concrete pump
The concrete pump produced by our company is a kind of fine aggregate concrete conveying equipment that is continuously conveyed to the pouring site through horizontal or vertical pipelines. It is widely used in water conservancy, electric power, railways,highways, tunnels, mines, national defense and other construction fields. The products are also exported to many countries and have gained a good reputation. The company's products have passed CE certification.
FEATURES AT A GLANCE
1. The S tube is used as the distribution valve to satisfy the pumping of large aggregate concrete.
2. The hydraulic stirring device can play a good role in secondary stirring which is beneficial to
pumping water.
3. The glass plate and cutting ring are inlaid and manufactured with hard alloy materials, which are
wear-resistant and have a long service life.
4. The hydraulic system adopts independent three-way electro-hydraulic control with high
reliability.
5. The electrical system has complete control functions, with back pressure control function, which
eliminates pipeline blockage failure.
6. Elegant appearance, light weight, easy to transport; with batching mixing equipment, continuous
pumping construction can be realized and construction progress can be improved.
2. The hydraulic stirring device can play a good role in secondary stirring which is beneficial to
pumping water.
3. The glass plate and cutting ring are inlaid and manufactured with hard alloy materials, which are
wear-resistant and have a long service life.
4. The hydraulic system adopts independent three-way electro-hydraulic control with high
reliability.
5. The electrical system has complete control functions, with back pressure control function, which
eliminates pipeline blockage failure.
6. Elegant appearance, light weight, easy to transport; with batching mixing equipment, continuous
pumping construction can be realized and construction progress can be improved.
PRODUCT SPECIFICATIONS
QJ-HBT-20 Concrete pump | ||||
电机功率 Motor Power | Kw | 30 | ||
生产率 productivity | M3/h | 10-20 | ||
电机额定转速 Motor rated speed | rpm | 1440 | ||
油泵型号 Oil pump model | Ml/r | 63 | ||
液压缸尺寸 Hydraulic cylinder size | Bore * Stroke/mm | 80*900 | ||
砼缸 Concrete cylinder (bore * stroke) | mm | 120*850 | ||
出料口直径 Outlet diameter | mm | 80/100 | ||
送料管直径 Feed pipe diameter | mm | 80/100 | ||
料斗尺寸 Hopper size | L*W*H | 460*650*650 | ||
垂直距离 vertical distance | m | 30-50 | ||
水平距离 Horizontal distance | m | 50-100 | ||
泵机出口压力 Pump outlet pressure | Mpa | 10.5 | ||
混凝土坍落度 Concrete slump | mm | 95 | ||
泵机操作控制 Pump operation control | Manual / Remote | |||
通过颗粒 Through particles | mm | 1-20 | ||
轮胎 tired | Pneumatic tire | |||
整机重量 Total Weight | kg | 1000 | ||
外形尺寸 Dimensions | mm | 2400*1200*1100 | ||
PRODUCT CONFIGURATION
Electrical valve
Control box
Inner parts
