Overview

This solar power management module is designed for 6V~24V solar panel. It can charge the 3.7V Li battery through solar panel or USB connection, and provides 5V/1A regulated output.

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar powered, low-power IoT, and other environmental protection projects.

Features

• Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel


• Supports solar panel / USB connection battery charging


• For 6V~24V solar panel, DC-002 jack input or screw terminal input


• Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency


• Two 5V output interfaces: pinheaders and USB port


• Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance


• 14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V Li battery


• Several LED indicators, for monitoring the status of solar panel and battery


• Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use

Specifications

• Solar panel input voltage (SOLAR IN): 6V~24V


• Micro USB input voltage (USB IN): 5V


• Pinheader / USB output (USB OUT): 5V 1A


• Charging cutoff voltage: 4.2V±1%


• Over discharging protection voltage: 2.9V±1%


• Solar panel charge efficiency:: ~78%


• USB charge efficiency:: ~82%


• 3.7V battery boost output efficiency: ~86%


• Max quiescent current: <2mA


• Operating temperature: -40℃~85℃

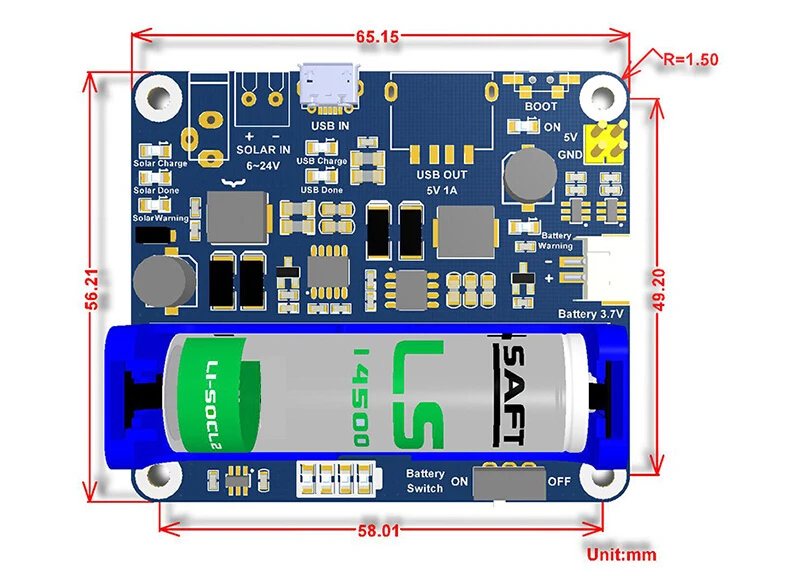

• Dimension: 65.2mm × 56.2mm × 22.9mm

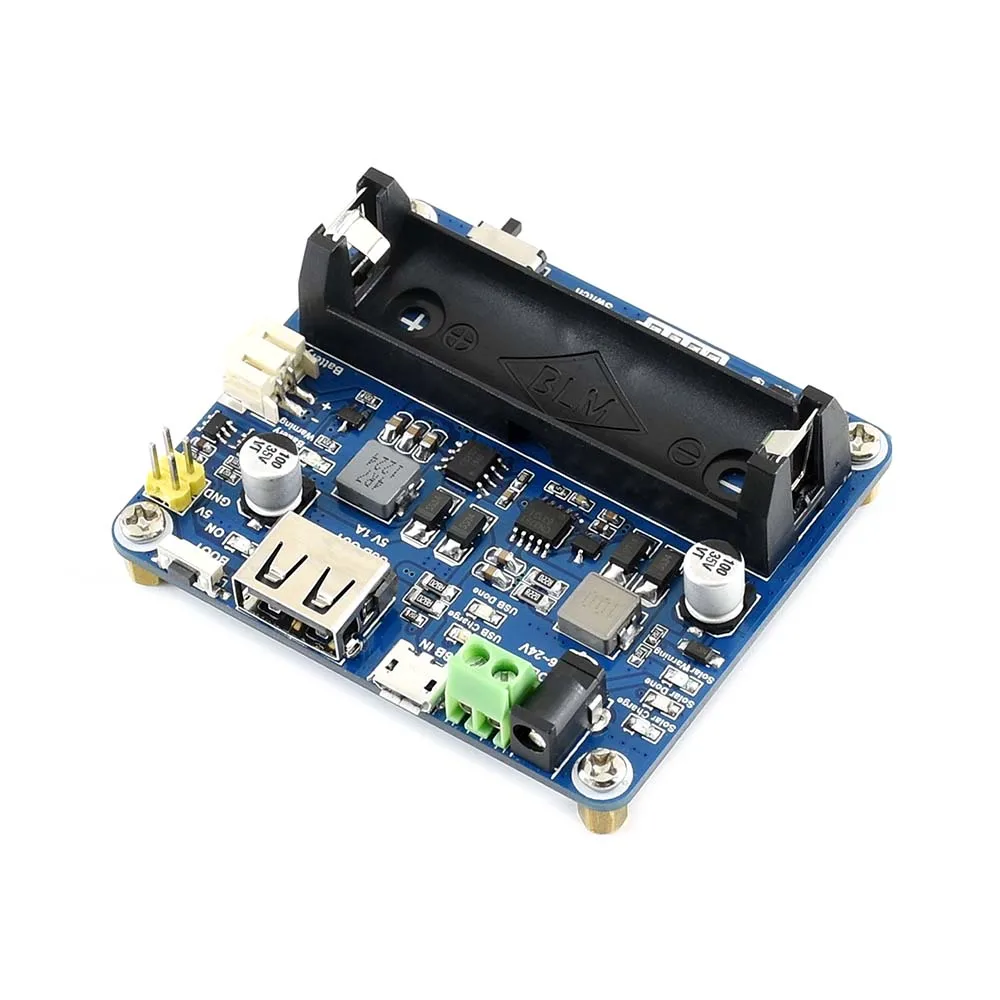

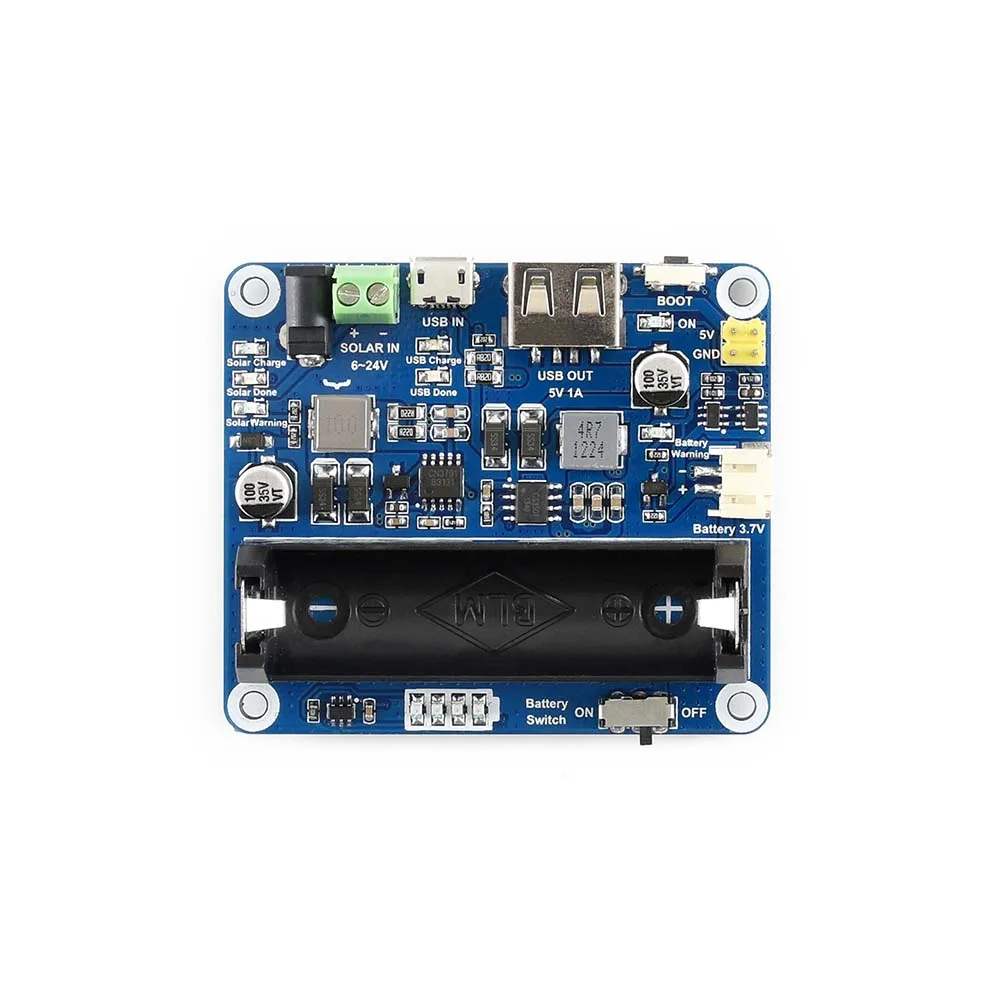

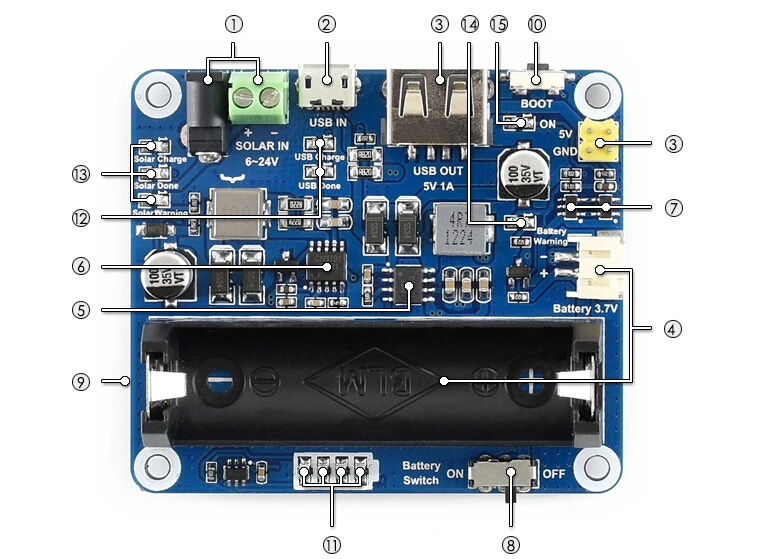

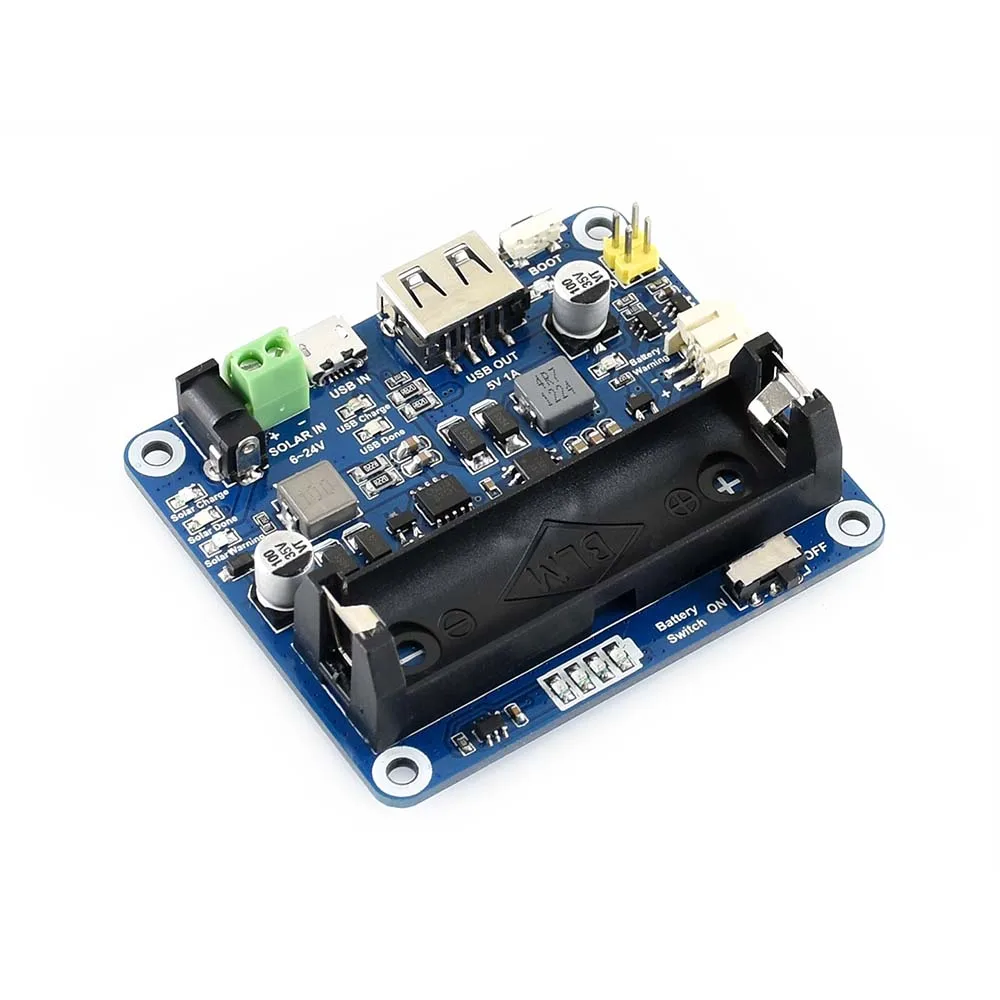

What's on Board

1. Solar panel charging input: charged by solar panel, DC-002 jack or screw terminal


2. USB charging input: charged by USB connection, connect a 5V power adapter through the Micro USB port


3. 5V/1A power output: provides regulated 5V/1A output, USB port or 2.54mm pinheader


4. Battery interfaces: for connecting 3.7V Li battery, PH2.0 connector or 14500 battery holder


5. CS8501: USB power management chip, for USB charging and 5V/1A boost output


6. CN3791: solar power management chip, for solar panel charging and buck input


7. Li battery protection chip: Li battery over charge / over discharge protection


8. Battery switch

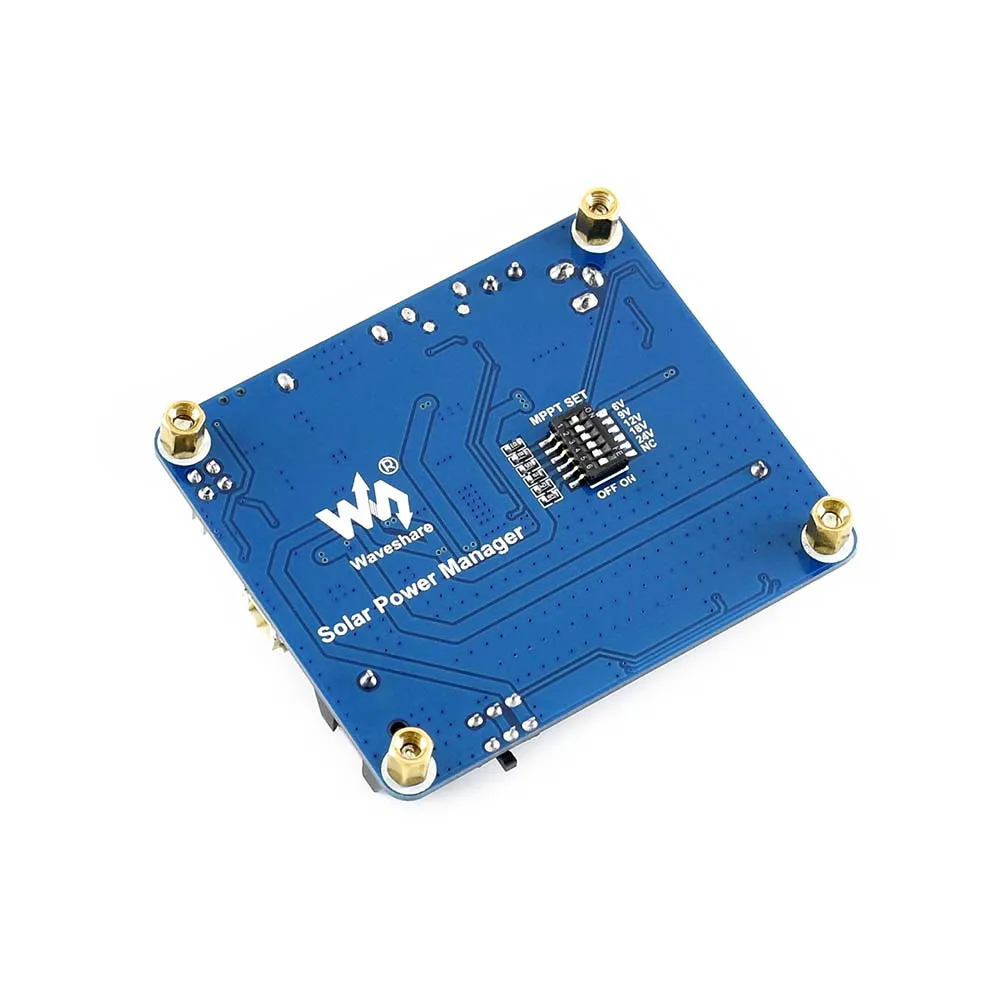

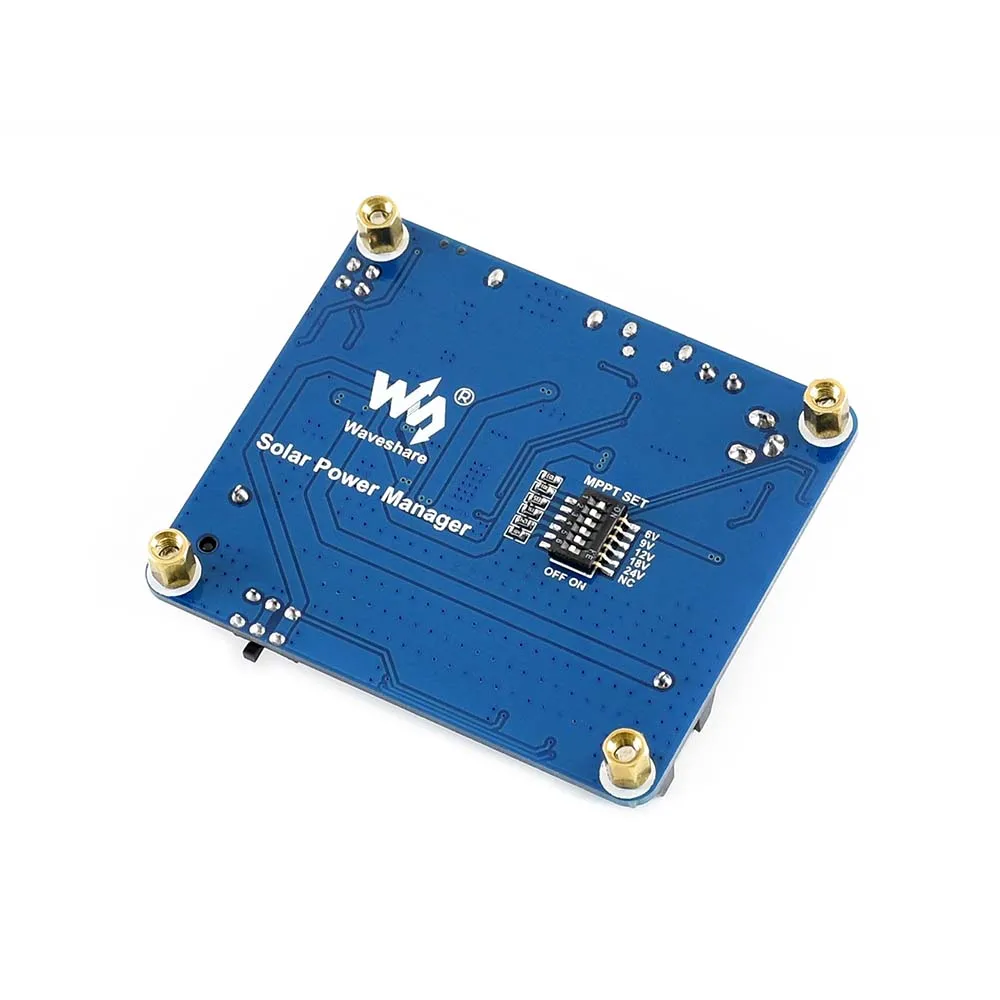

9. MPPTSET switch (bottom side):
   supported level: 6V/9V/12V/18V/24V
   select the level closed to input level to improve charging efficiency


10. BOOT key


11. Battery capacity indicators


12. USB charging indicators:
    USB Charge: on when USB charging
    USB Done: on when the battery is full charged by USB


13. Solar panel charging indicators:
    Solar Charge: on when solar panel charging
    Solar Done: on when the battery is full charged by solar panel
    Solar Warning: on when solar panel reverse connection


14. Battery warning: on when battery reverse connection


15. Power output indicator: 5V/1A output

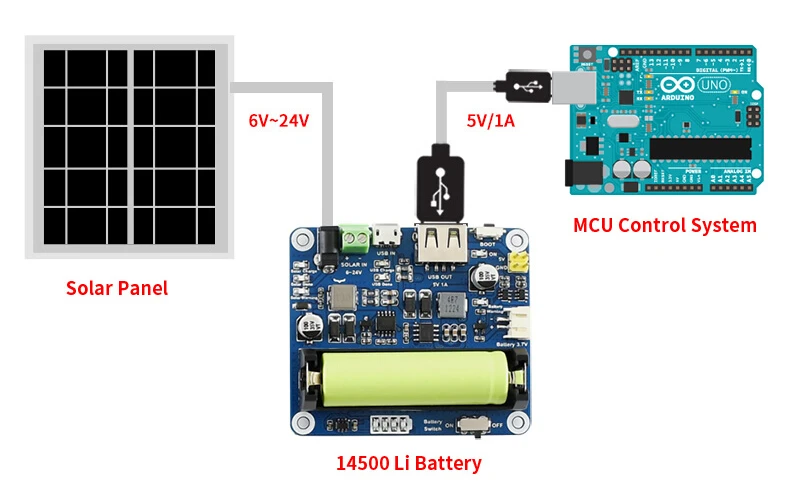

Application Example

Dimension

           PACKAGE CONTENT



Weight: 0.029 kg

Note: the 14500 battery is NOT included.

1. Solar Power Manager x1
