Product Description

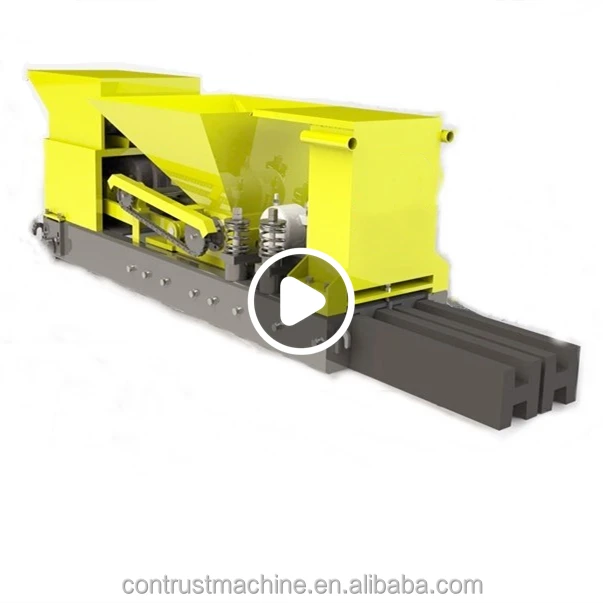

Easy to Operating Precast Concrete T Shape Beam Machine for House Building

Technical of Concrete Lintel/Beam Machine
This Precast Concrete Lintel machine has many abilities, such as making Square, H, T, shape beam. etc.
1. Square: mainly used for Green house, Vineyard, farm fence etc.
H Beam: Mainly used for Concrete fence for family or factory.
T Beam: Mainly used for Roofing slab and worked with hollow core slabs
2.Each Machine can make specific shape and size according to the customer needs.
3. This Lintel machine can automatically feeding and walking, It only needs 2 persons I transport material, the other one control the machine.

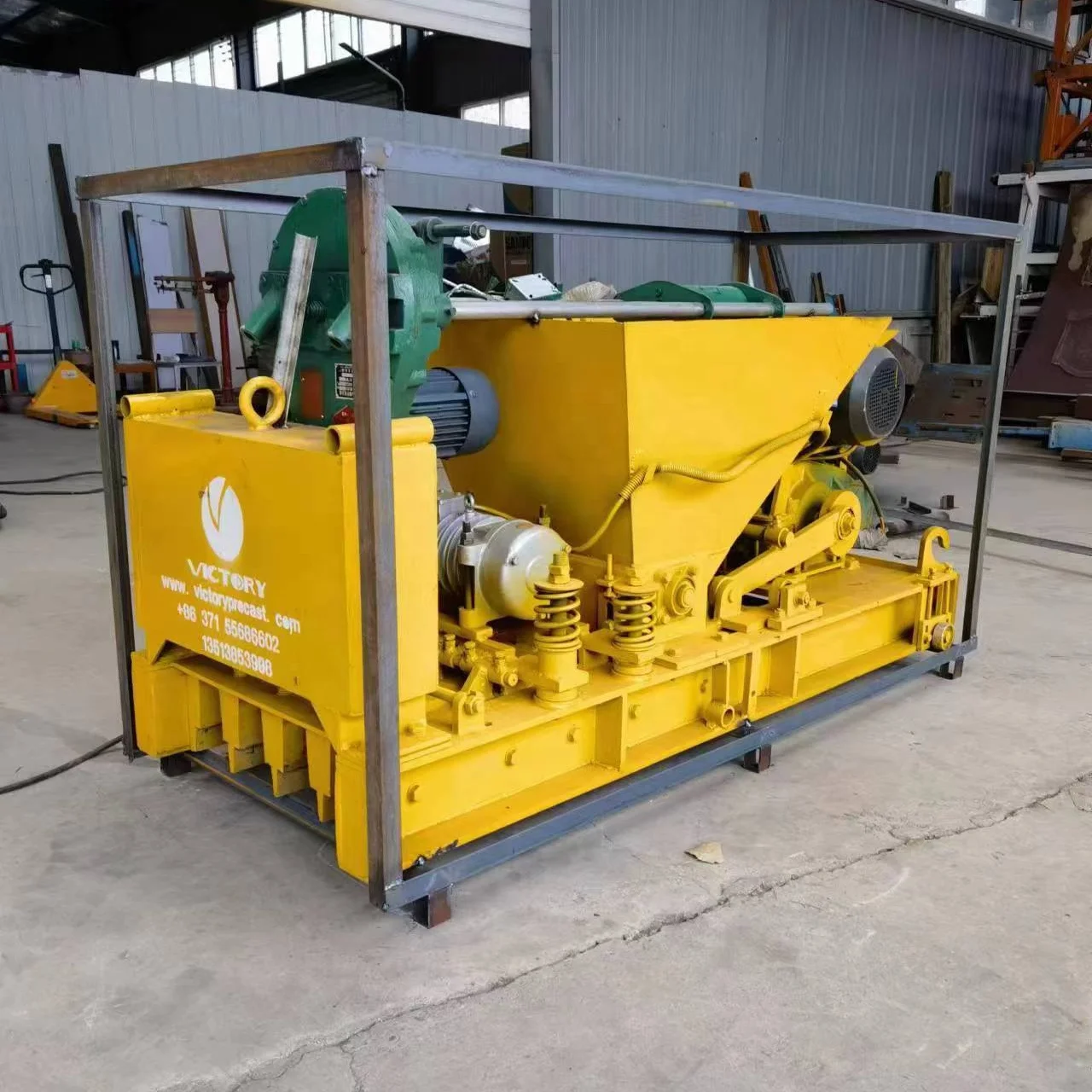

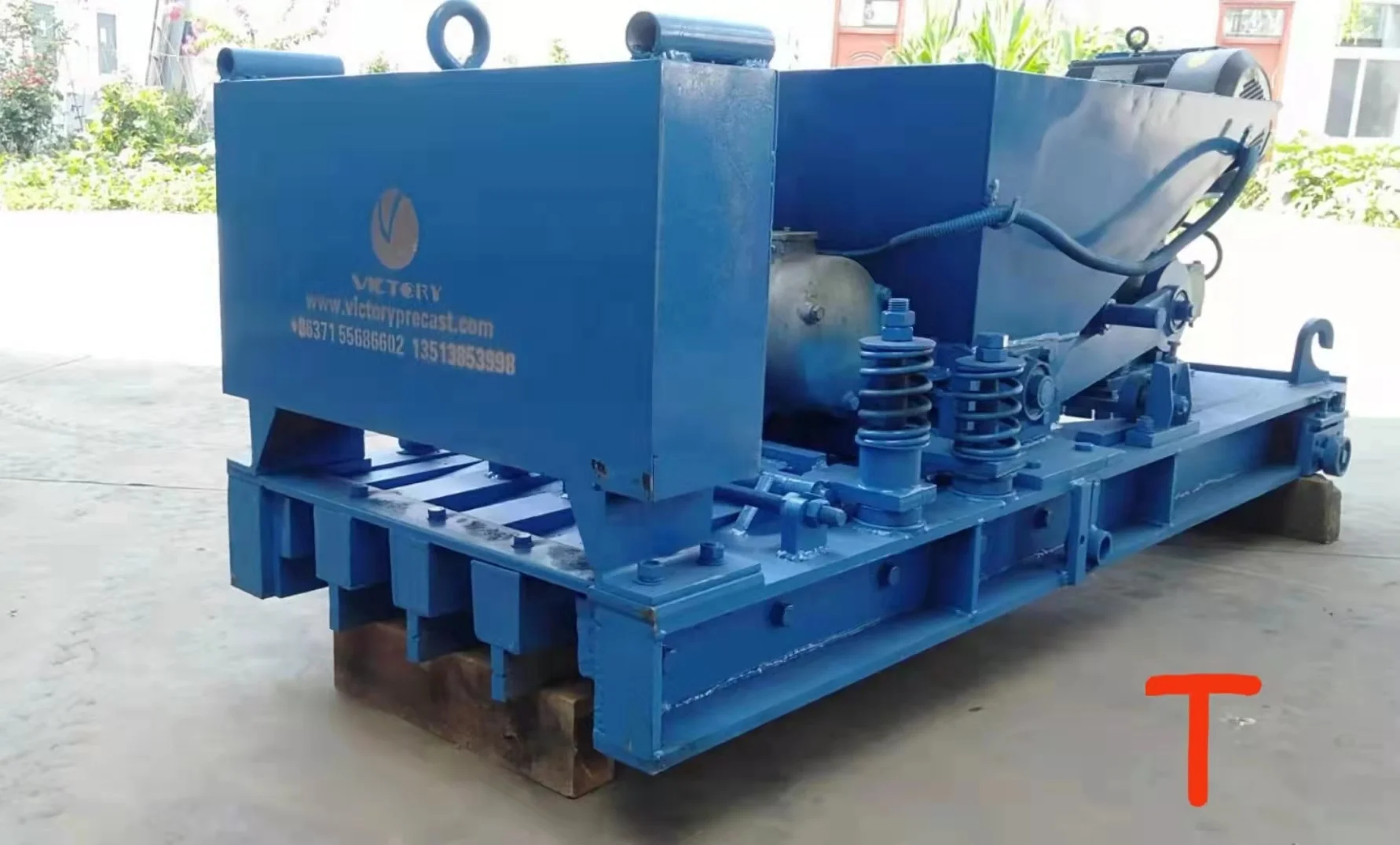

T Beam Making Machine

The T Beam Making Machine is our special developed products as results of our engineers’ research, with witch 60% steel material will be saved compared with traditional revolving die method, efficiency can be improved 3 to 5 times compared traditional method, those machine are easy for operation and convenient for maintenance, products from these machines are in good quality, smooth appearance and accurate in size.
Main Features
1)One machine can make one slab, low investment
2)Simple structure, easy operate
3)Long working-life with easywear spare parts
4)Smooth surface, high-density structure
Working Principle

Specification

Model	Motor Power （kw)	Vibrator power （kw）	Weight speed (m/min)	Forming speed （m/min)	Holes No.	Dimension LWH (m）	Remark
90*120	5.5	2.2	1380	1.5-3	4	2500850700	solid
100*120	5.5	2.2	1450	1.5-3	4	2500850710	solid
120*120	7.5	3.0	1540	1.5-3	4	2500850720	solid
120*140	7.5	3.0	1680	1.5-3	4	2500930720	solid
130*140	7.5	3.0	1750	1.5-3	4	2500930730	solid

The T shape cement beam forming machine is used to feed concrete into a die by means of a slide block's reciprocation along the steel tendon and compact concrete into a designed form by extrusion on a bed box in open air or a workshop, under the operation of external vibration, surface press polish, the formed concrete is completed. Precast concrete beam machine is suitable for all kinds of factories which produce concrete products. It is a successful molding machine painstakingly researched by the researchers With its small size and smart design, it is easy to handle, maintain and repair. Beam is used to support the roof inside the house. The beam produced by our machine is smooth in the surface and has excellent weight capacity with precast steel in the concrete.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certifications

Company Profile

Henan victory is a company integrated by a team of professions with a wide and deep experience in the precast concrete machinery industry. The company was founded in 1995 and since then, it has been a leading manufacturer of single equipment and complete plants for the precast concrete industry. Especially, we are the earliest designer and manufacturer of slipformer precast wall panel extruder in Henan Province, even in all over China.
In order to develop overseas market, we set up foreign trading department in Zhengzhou City, provincial capital OF Henan in 2011. Since then, we have established business relations with over 30 countries. Currently, our precast concrete machinery has been used in many precast factories from South Asia, Middle East and African Countries.

FAQ

1. Where is your company located?
    Henan Victory Co. is located in ZhengZhou,Henan province,China.
    closest to XinZheng airport,we can pick you up at XinZheng airport.
2. What is the Standard Size of Precast concrete beam?
size: 120*240;
120*240*2;
120*370;
etc
3. How Much Sqm will be installed 1 day?
    Very quickly by Our Precast concrete beam Installer (300sqm/day)
4. How To Order From "Henan Victory Industrial co. ltd."?
    Confirm PI (Profroma Invoice) with our sales Man and
    Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy.
(Old Customer: 30% &70%)
5.What kind of raw materials may be used?
    5.1 Cement, small stones, sand etc.
    5.2 low carbon steel wire(dia.1.6-4mm ) for strengthening.
6.How to maintain within 48 hours?
6.1 Put the felt cloth on top of the wall panel.
6.2 Water 3-4 times each day on top of the cloth. If you donot do this, it will break at the surface of the panel.
7.What are the supporting machine if need a basic production line?
Mixer, cutting machine,tension,stacker,etc.
8.Are the installment service provided?
Yes, For the client who need an overseas service or training, all the payment, such as: air fly ticket fee, insurance fee, visa fee, accommodations fee, worker salary during that time ,other transport fee should be paid by client.
