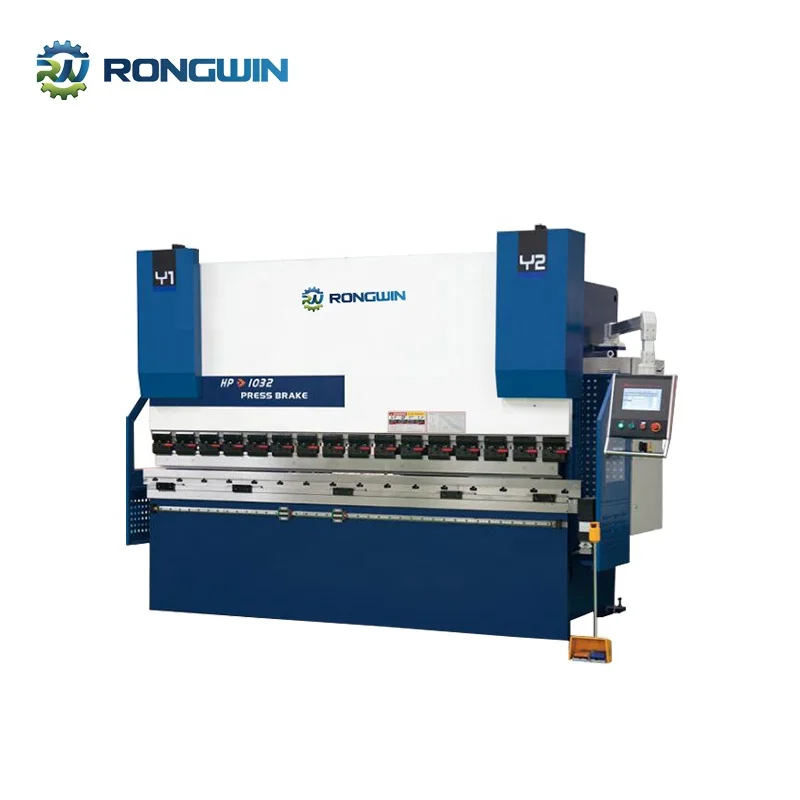

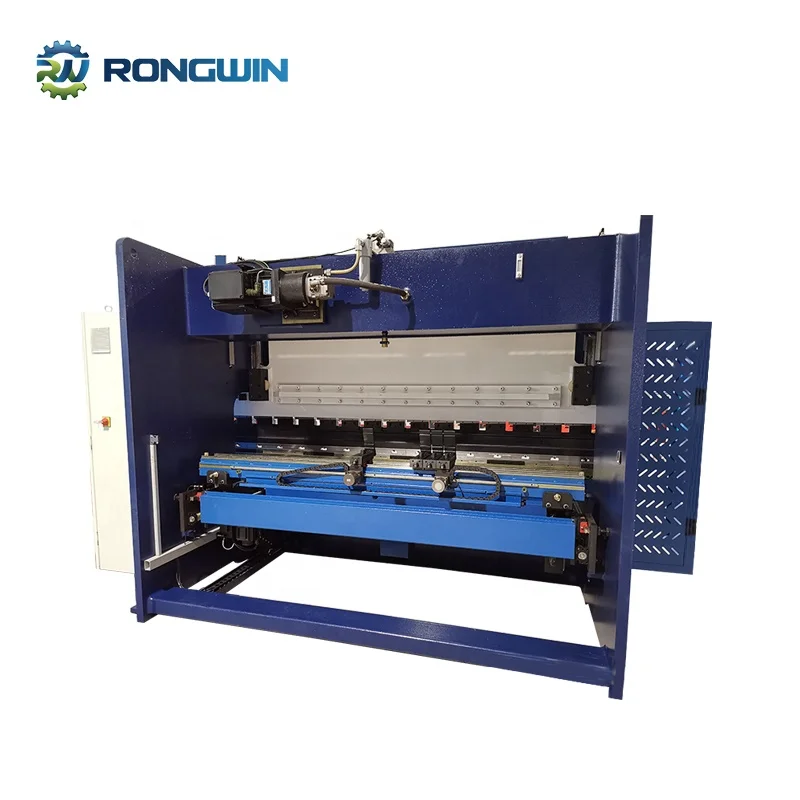

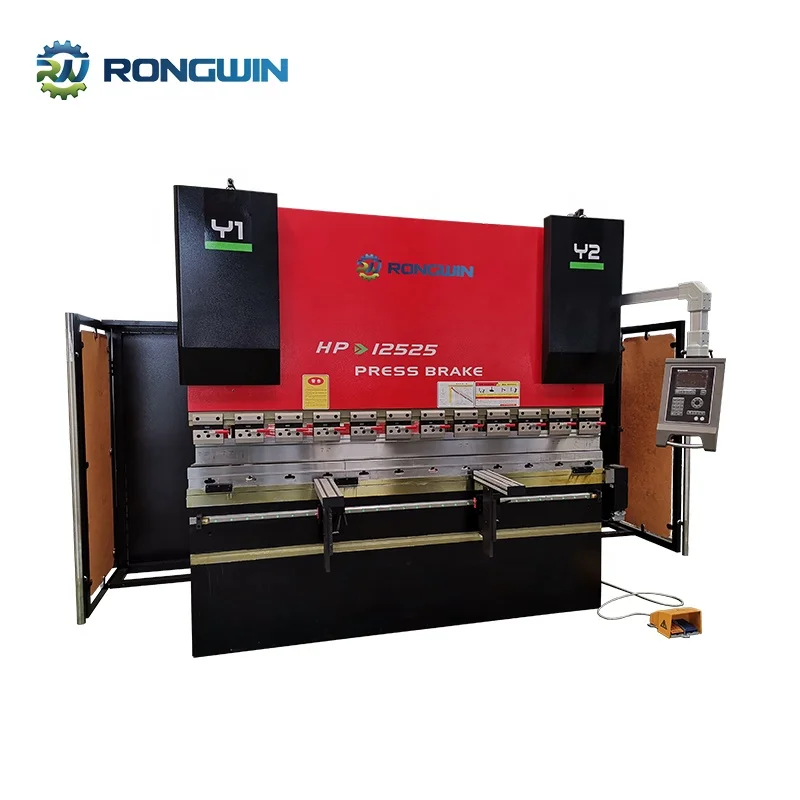

Rongwin WF67K C высокого прогресса электро гидравлический сервопривод автоматический гибочный станок
- Категория: >>>
- Поставщик: Nanjing Rongwin Machinery Technology Co. Ltd.
Сохранить в закладки 1600438358930:
Описание и отзывы
Характеристики
Product Description

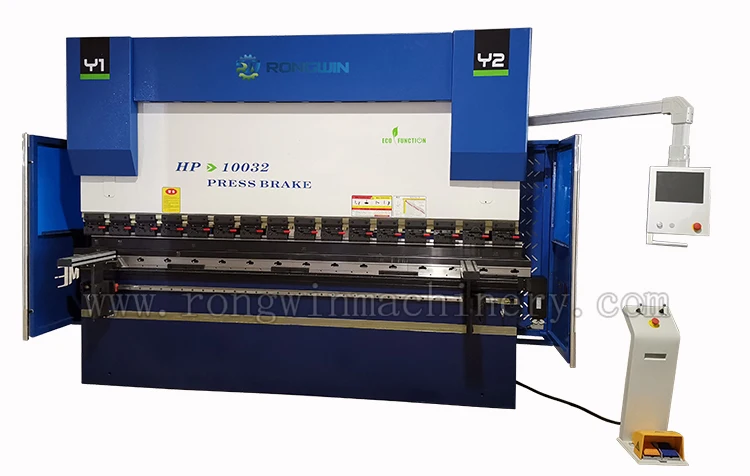

WF67K -C Series high efficiency bending metal plate machine press brake

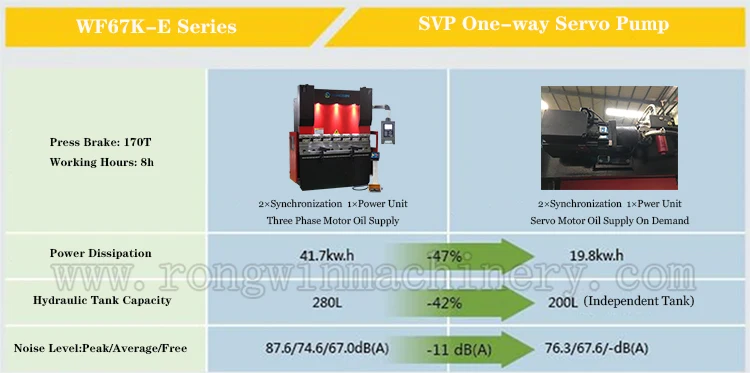

1. The electro-hydraulic servo system adopts on-demand oil supply mode to reduce overflow and save energy by more than 30%.
2. Heat balance temperature is low, fuel tank capacity is reduced,service life of hydraulic system and components is prolonged.
3. Long interval of oil change,reduce energy waste and reduce user cost.
4. When bending the workpiece of different specification,the speed can be adjusted.
5. High precision,energy saving,environmental protection and efficiency.
Detailed Images

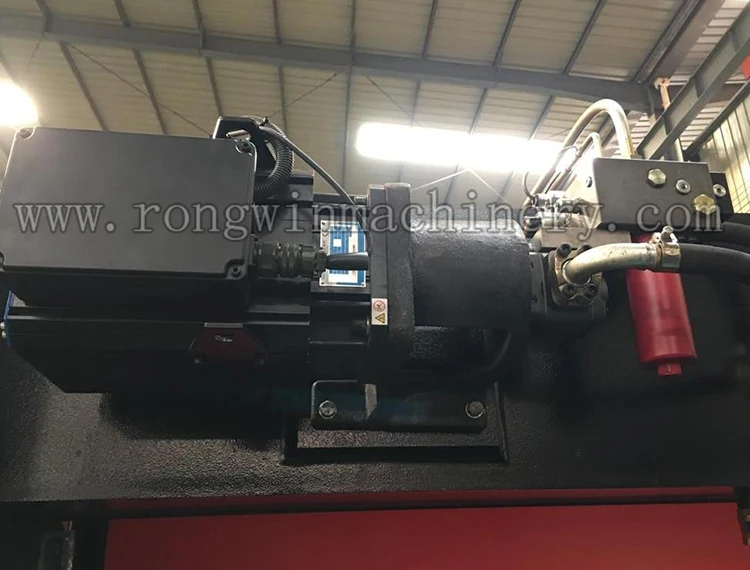

Main Motor
The electro-hydraulic servo system adopts on-demand oil supply mode to reduce overflow and save energy by more than 30%
Independent tank
Over 85% of the bending machine are related to the cleanliness of the hydraulic oil passage. Our company is equipped with an independent tank with special processing technology, which can reduce the faults related to hydraulic oil to the greatest extent, ensure the stable operation of the machine tool and reduce the failure rate of the equipment.

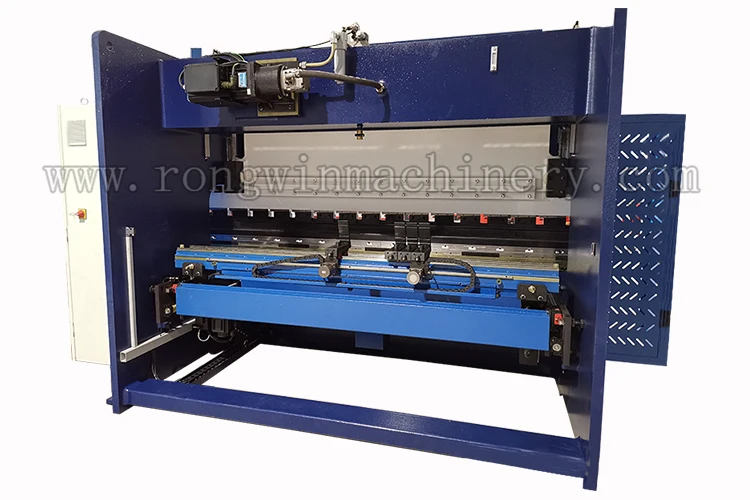

Hydraulic system

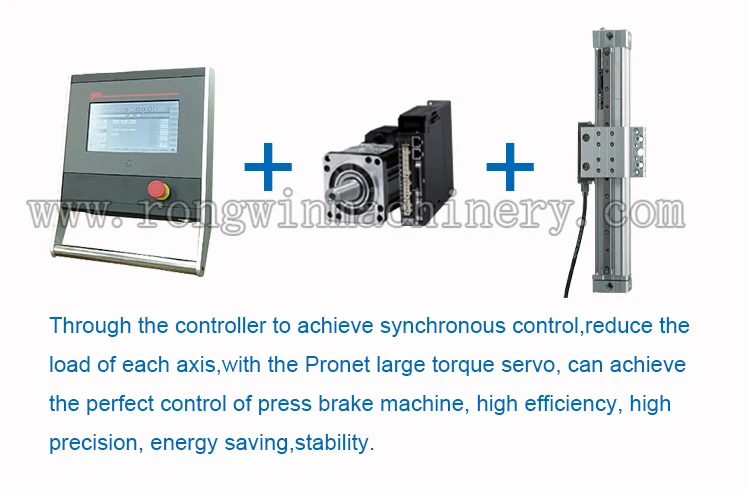

The digital closed-loop hydraulic system (electro-hydraulic proportional servo synchronous control system) for Rexroth bending machine, a famous brand in the world, is adopted. The system is a position control system, which can dynamically detect the synchronous error of the slide block through the grating ruler. The synchronous error of the slide block is corrected by the electro-hydraulic servo valve of the numerical control system, so that the slide block can always keep parallel with the workbench under the condition of off load. The synchronous accuracy of the slider is ≤± 0.02mm.
High quality fast clamps
Easy to operate, time-saving and labor-saving
High quality bending die
The integral quenching precision
CNC bending die is durable
Compensation Worktable
In order to ensure the bending accuracy of the workpiece, a mechanical deflection compensation mechanism (convex control axis w) controlled by the numerical control system is specially set up to compensate the deformation of the sliding plate and the vertical plate of the worktable under load. By using the wedge iron compensation device of the bending machine table, a group of ideal convex lines can be formed, which can realize perfect compensation in the whole length and ensure the quality of workpiece processing requirements.
Avoid operator and third party hazards
Grating rule
Axis Y1, Y2 -- the left and right sides of the slide block are respectively equipped with Italian givi high-precision grating ruler (Y1, Y2), which is used to determine the exact position of the slide block and the workbench. The grating ruler is connected with the workbench through a C-shaped frame, which can eliminate the influence of the deformation of the throat of the rack on the position of the slide block to the greatest extent. The measurement accuracy will not be affected by the elastic deformation of the rack, and the accurate position data will be fed back to the CNC system In general, it can calculate the output servo valve control signals (S1, S2). Thus, the positioning accuracy of the slider is ± 0.02mm, and the repeated positioning accuracy is ± 0.01mm.

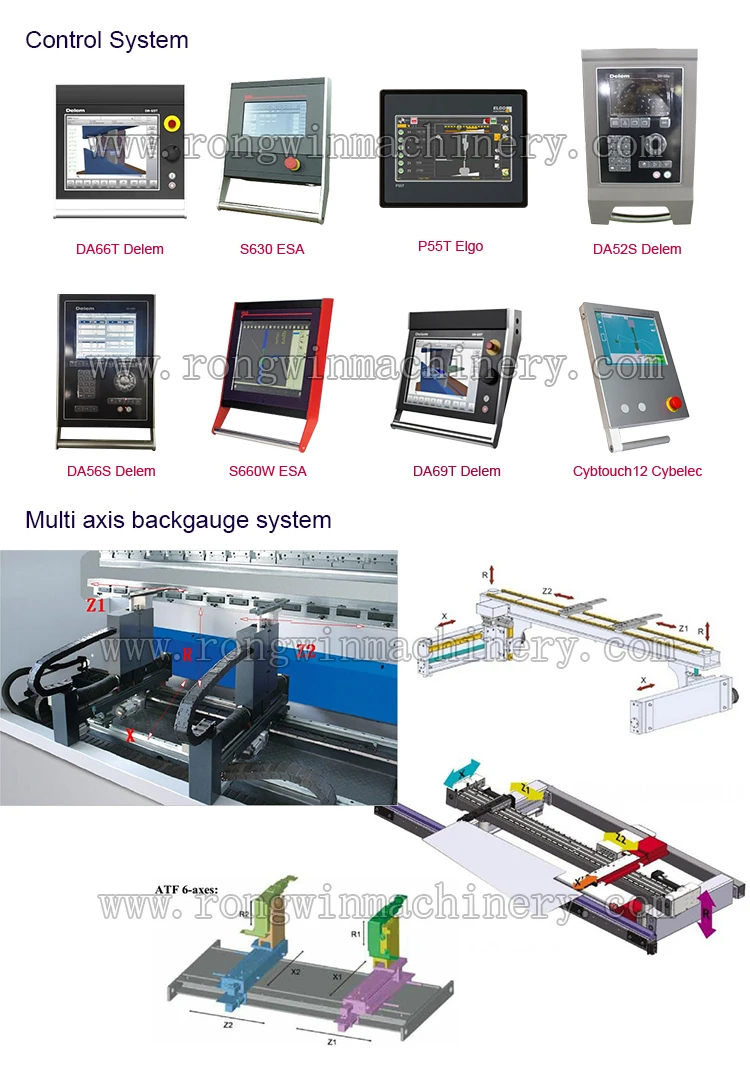

A variety of control systems are available for you to choose.
Different systems control different number of backguage axis. Customers can choose suitable solutions according to their own needs.
Related Products
Packing&Shipping
Quantity(Sets) | 1-5 | >5 |
Est. Time(days) | 30 | Negotiable |
Company Introduction
Nanjing Rongwin machinery technology co.,ltd is located in Zijin Technology Center, Lishui Economic Development Zone,Nanjing,Jiangsu,China (Mainland). Our company is a comprehensive enterprise integrating production and sales. The main products are bending machine and other mechanical equipment, longitudinal shear blades, hobbing scissors, rubber-coated spacers, carbide blades, bending machine die, etc.It is widely used in metallurgy, paper making, printing, forestry hardware, plastics, rubber, metal and other industries.The company's products have won high praise from customers all over the world with high quality and preferential prices. Our company has a strong research and design force, constantly absorbing advanced technology and experience at home and abroad. After years of development, the company with strong technical force, excellent management system, excellent equipment, perfect testing methods, to bring customers real benefits, earlier delivery date and quality assurance. Our company's consistent pursuit is to improve product quality, take science and technology as the spirit, take quality as the guarantee, seek development with products, survive with reputation, perfect quality management system and excellent and thoughtful after-sales service to serve you wholeheartedly.
Why Choose Us
FAQ
Q: Are you factory or manufacture?
A: YES.We are group factories agent exporting company.We have more than 10 directly factories
Q: What's your delivery time?
A: 30 days for machine and 20 days for tools and blades,and spare parts after confirmed order with payment
Q: What's kinds of shipping you choose after order?
A: Usually we choose FCL,Or LCL by sea.
We also can supply door to door shipping service by air or intermational express.
Q: Which kinds of Payment and MOQ？
A: We can accept TT,LC or Trade assurance.MOQ:1 set for machine order
Q: What's your packing?
A: Fumigation-free plywood case for small machine in LCL Shipment by sea,and blades and tools and spar parts.
If FCL shipping by sea we just professional fixed in container without cover.
Q: What's your Warranty Time?
A: THREE Year Warranty for machine,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free.
Q: Can you support overseas commissioning or traning service?
A: YES.We CAN.But the buyer need to afford this cost,tickets and foods,hotel etc.
Q: What's your delivery time?
A: 30 days for machine and 20 days for tools and blades,and spare parts after confirmed order with payment
Q: What's kinds of shipping you choose after order?
A: Usually we choose FCL,Or LCL by sea.
We also can supply door to door shipping service by air or intermational express.
Q: Which kinds of Payment and MOQ？
A: We can accept TT,LC or Trade assurance.MOQ:1 set for machine order
Q: What's your packing?
A: Fumigation-free plywood case for small machine in LCL Shipment by sea,and blades and tools and spar parts.
If FCL shipping by sea we just professional fixed in container without cover.
Q: What's your Warranty Time?
A: THREE Year Warranty for machine,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free.
Q: Can you support overseas commissioning or traning service?
A: YES.We CAN.But the buyer need to afford this cost,tickets and foods,hotel etc.
