RADXA CM3 CORE BOARD MODULE RK3566 CHIP

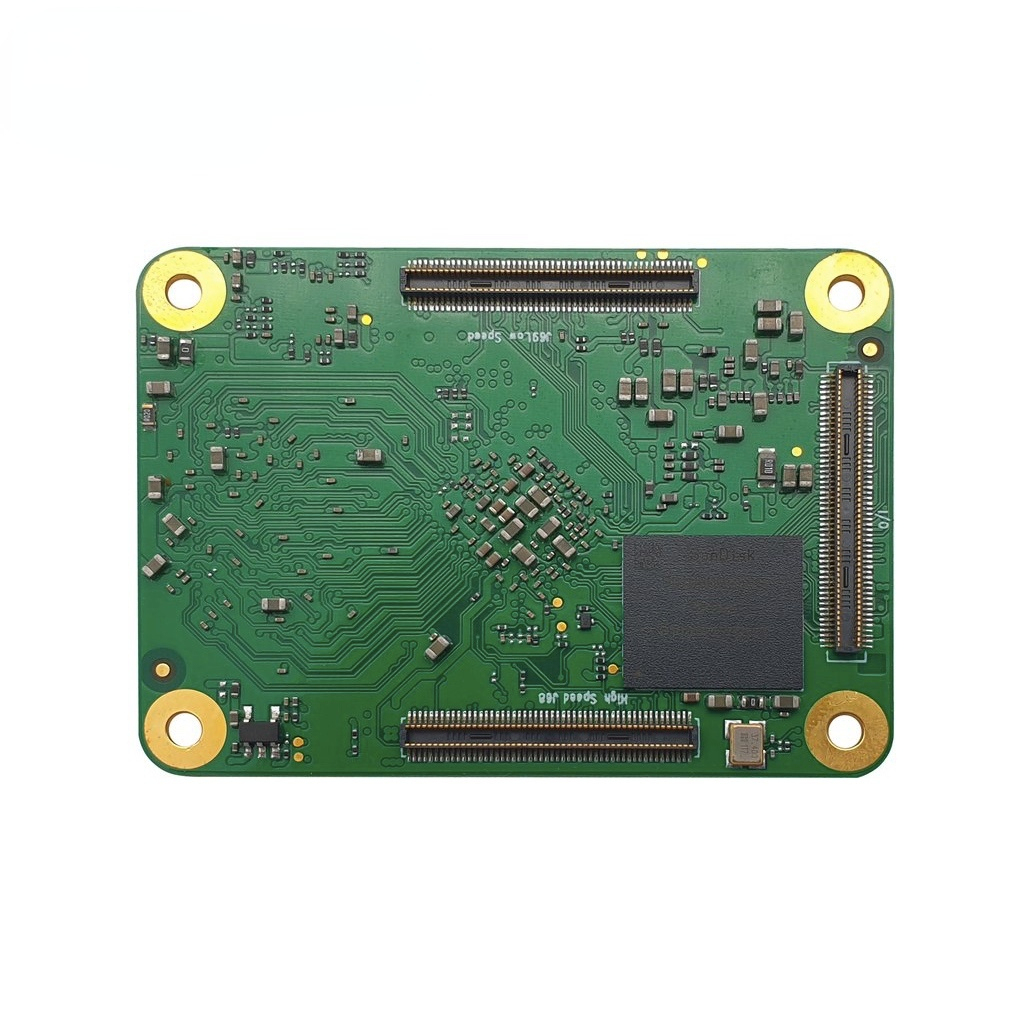

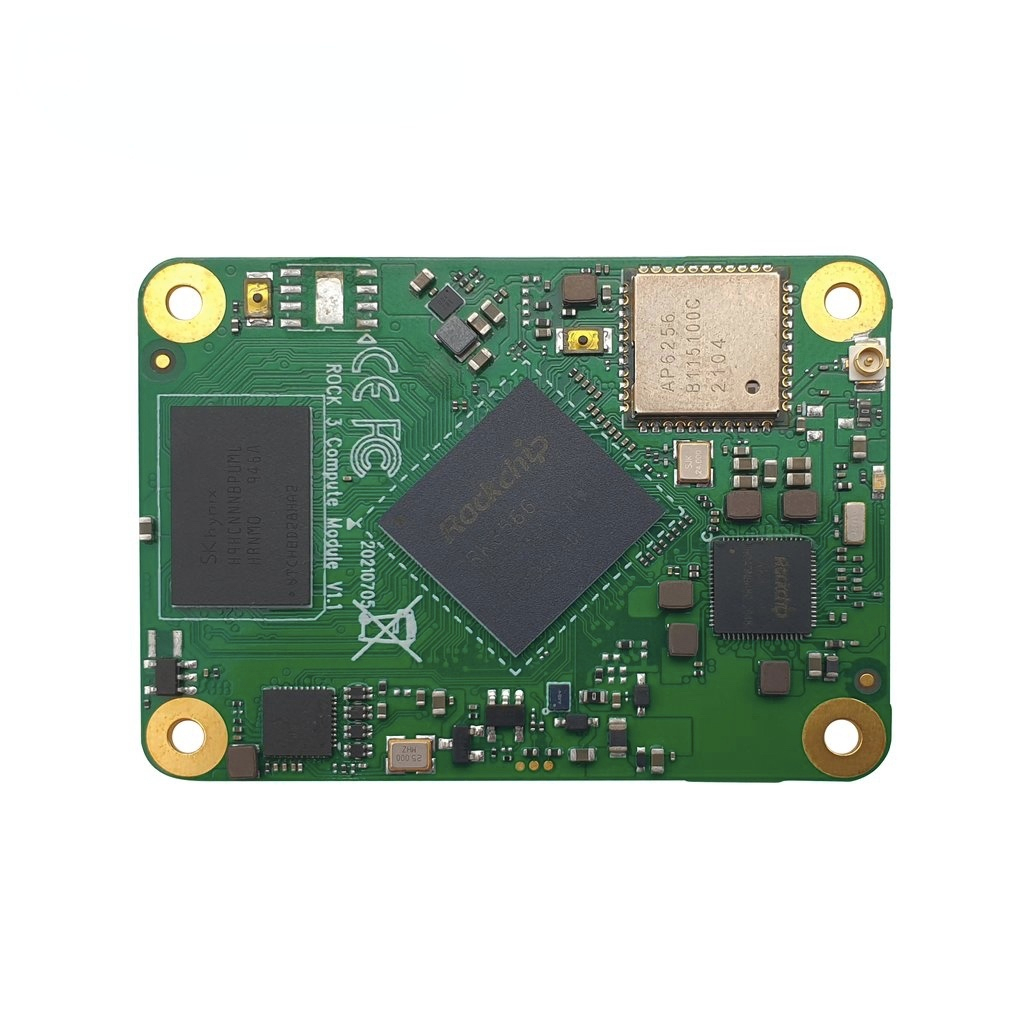

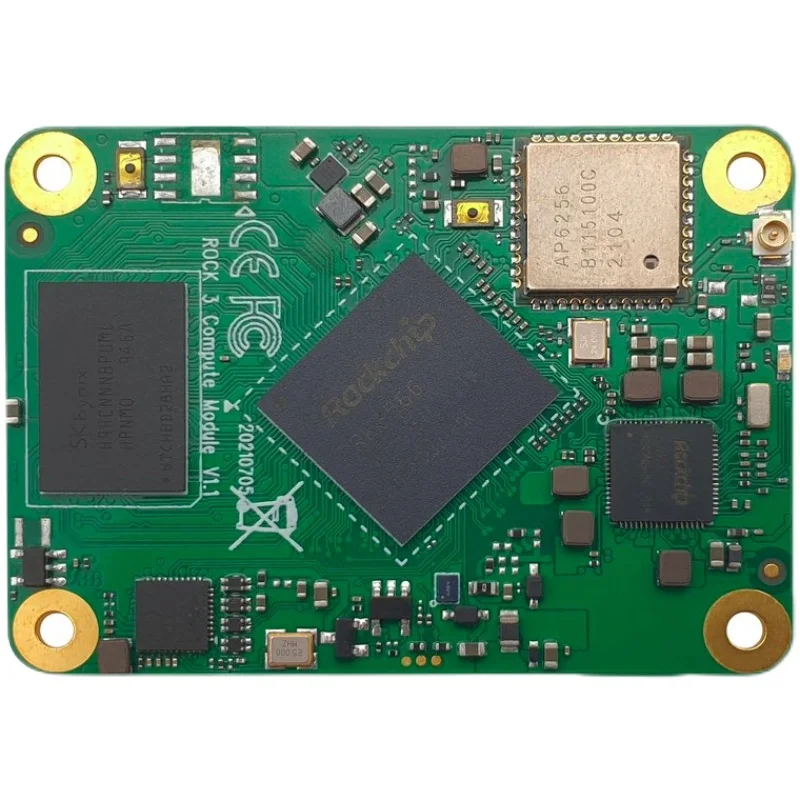

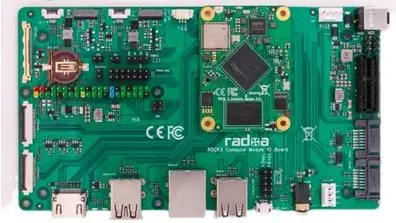

Radxa´s ROCK3 Compute Module (Radxa CM3) is a SoM (System on Module)

Based on the Rockchip RK3566 SoC in a small form factor of 55mm x 40mm, it integrates CPU/PMU/DRAM/STORAGE and Wireless.

Radxa´s CM3 offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.

Overview of features:

Quad core 64 bit High Performance Solution

Rich interfaces

I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, USB2, USB3, I2S, MIPI,
SATA, eDP interfaces are available as well as PCIe 2.0 high bandwidth buses.

Display Capability

The Dual Video Out put Processor supports dual display output to any two of HDMI, eDP, MIPI, DP, with a resolution of up to 4K x 2K and one 2.5k

Powerful multimedia utility support

 Small size and low power

55mm x 40mm form factor and industry compatible 3 x 100PIN board to board connectors save board space and provide standardized interfaces and save board space.

Multiple OS support

Ubuntu 20.04 / Debian 10 / Buildroot / Android

Open documents and source code

Source code, documents, tools & utilities are freely available, community and commercial support are available to help you put your prototype into production

Widely used in various applications

Perfect SoM for Robotics, HMI, Vending Machines, Smart Home, IOT Gateway, Industrial Control, Medical Equipment etc.

Detailed technical specs:

Processor:

Rockchip RK3566, Quad core Cortex-A55 (ARM v8) 64-bit SoC @2.0GHz

Memory:

1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)

Connectivity:

- Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
wireless, Blth 5.0, BLE with onboard and external antenna options
- Onboard Gigabit Ethernet PHY
- 1 × USB 2.0 port ( highspeed ), 1 x USB 3.0 port ( 5Gbps )
- 1 × PCIe 1-lane Host, Gen 2 ( 5Gbps )
- 2 x SATA ports, one shared with USB 3, one shared with PCIe
- 50 × GPIO support

Video:

Audio:

Multimedia:

Input power: 5V DC

Connector: 3x 100P 0.5mm pitch B2B connector

Dimension: 55 mm × 40 mm
