Самозакрепляющиеся накатанные шпильки болт для сдвига
0,20 $ - 0,25 $
ISO 13918 стальной соединитель ML15 Нельсон сварной ножницы с керамическим
- Категория: >>>
- Поставщик: TIANJIN CHENG AN METAL INTERNATIONAL TRADE CO. LTD
Сохранить в закладки 1600440273478:
Описание и отзывы
Характеристики
Product Description

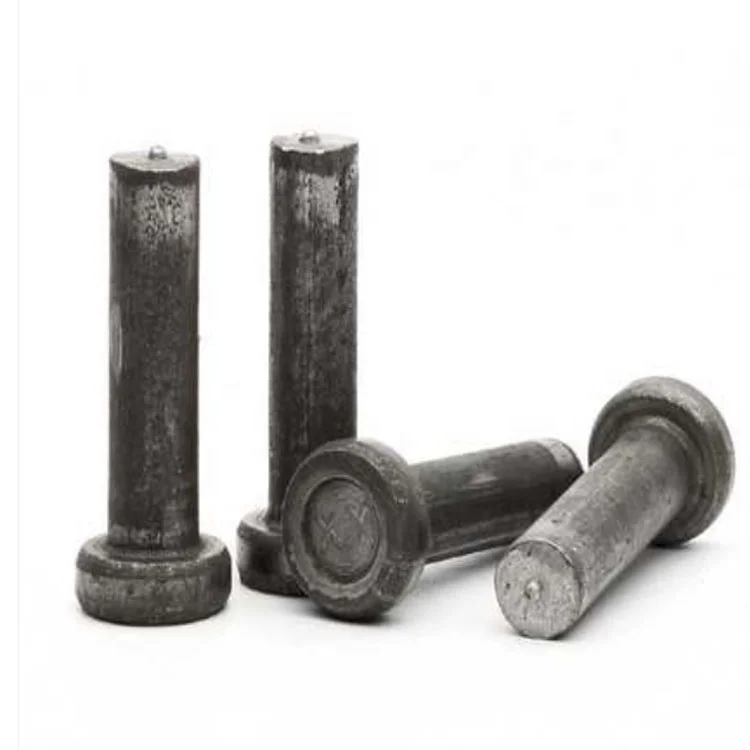

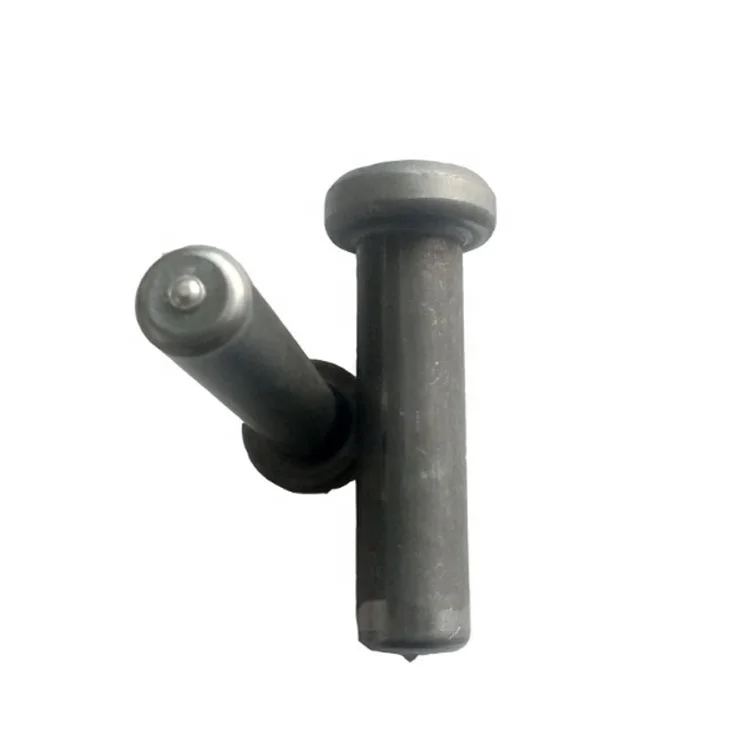

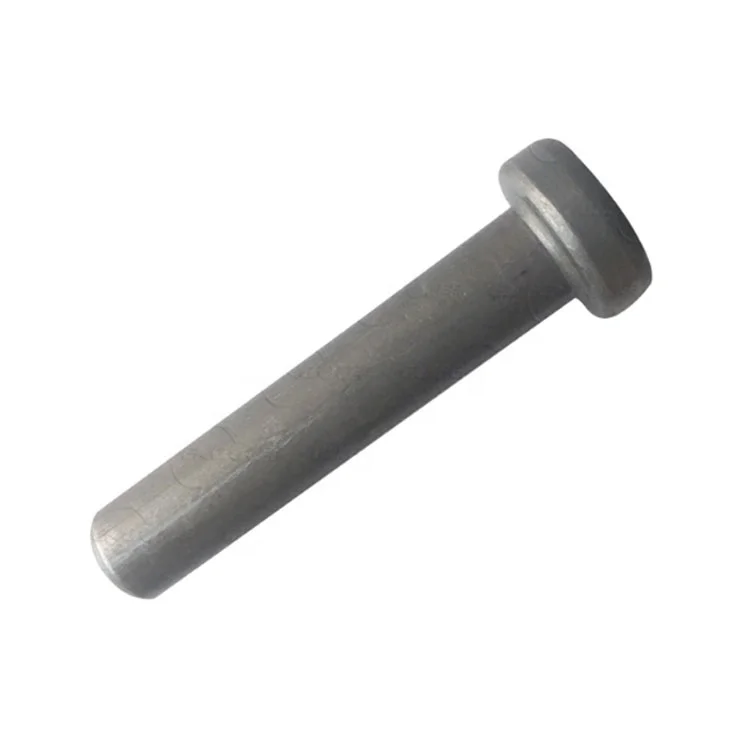

Shear Stud Connector
Shear connectors also named shear studs, concrete anchors, are typically used in composite steel construction to tie the concrete to steel members and resist shear forces between the concrete slab and steel members. They are widely used in steel building, bridges, etc. Welding Through Metal Deck are available for this stud, for this option, special ceramic ferrule type UFT are recommended.
Main Features
Features1
Stud welding can be used with a variety of metals and stud sizes. Stainless steel, mild steel, aluminum, copper, and brass can be effectively stud welded if the proper equipment is used.
Features2
Shear connectors are a critical way of creating strong connection points that hold up to shear loading. They are used in many applications including, but not limited to: Connecting upright steel beams to a concrete foundation. Connecting load bearing beams to a concrete flooring in multi-story buildings.
Specification
Product Name | Cheese Head Shear Connector with Ceramic Ferrule For steel Structural building |
Size(diameter) | M10, M13, M16, M19, M22, M25 |
Length | 40-400mm or customized |
Material | carbon steel SWRCH15A,SWRCH18A,S235J2+C450 |
Coating | Plain or Zinc plated |
Samples | samples are free |
Surface Treatment | Polished, Anticorrosion,Phosphating |
Tensile strength | >450N/mm2 |
Yield Strength | >350N/mm2 |
Bottom Treatment | Slightly Curve or Chamfer |
Head marking | CA or As per client's headmark |
Quality Assurance | 3 years |
Certifications | CE, SGS, FPC BC1, UDEM, UKTC etc. |
Technical Data
Mechanical Properties of CA Metal's Shear Stud Connector | ||||||
Hot Sell Standard | Tensile strength | Yield strength | Elongation | |||
EN ISO 13918 SD1 | ≥450 Mpa | ≥350 Mpa | ≥15% | |||
AWS D1.1 TYPE B | ≥450 Mpa | ≥350 Mpa | ≥15% | |||
BS 5400 | ≥495 Mpa | ≥385 Mpa | ≥18% | |||
AS/NZS 1554.2 | ≥410 Mpa | ≥345 Mpa | ≥12% | |||
JIS B1198 | ≥400 Mpa | ≥235 Mpa | ≥20% | |||
GB/T 10433 | ≥420 Mpa | ≥340 Mpa | ≥14% | |||
Chemical Component Of the Raw Material (%) | ||||||
C | Si | Mn | P | |||
SWRCH15A | 0.13-0.18 | ≤0.10 | 0.30-0.60 | |||
SWRCH18A | 0.15-0.20 | ≤0.10 | 0.60-0.90 | |||
Q345D | ≤0.18 | ≤0.50 | ≤1.70 | |||
ISO13918 Shear Studs
CA Metal shear connector comply with ISO 13918, GB/ T10433-2002, AWS D1.1, JIS B1198, BS5400 etc standard and according to the material: Low/ Mild Carbon Steel with Grade SWRCH18A, SWRCH15A, ML15AL etc.
Products Advantage
Advantages of CA Metal shear stud connectors
Firstly,The shear connectors are simple and quite economical tools and aid quality construction in many ways.
Secondly, it is easy and quick to weld into structures for providing equal shear strength in all directions, don't obstruct the process of slab reinforcement.
Thirdly, There is a better compaction of concrete around the shear connectors, which offering more strength to the structure itself.
Secondly, it is easy and quick to weld into structures for providing equal shear strength in all directions, don't obstruct the process of slab reinforcement.
Thirdly, There is a better compaction of concrete around the shear connectors, which offering more strength to the structure itself.
Application

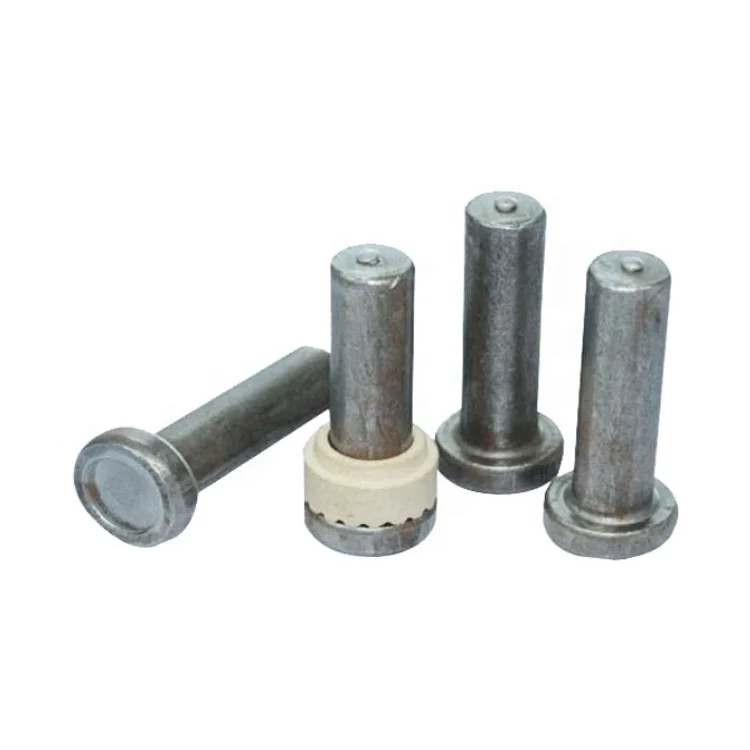

ISO13918 Shear studs with ceramic ferrules
CA METAL shear stud connector are made of a material suitable to be welded by arc melting.The dimensions and design of the connector are in accordance with the BS - EN ISO13918:2008. Widely used by bridge, steel deck, steel construction etc.
CA METAL shear stud connector are made of a material suitable to be welded by arc melting.The dimensions and design of the connector are in accordance with the BS - EN ISO13918:2008. Widely used by bridge, steel deck, steel construction etc.
Our Machine
Certifications
Packing & Delivery
CA Metal has different package ways to ensure the pallet strong and firm according different products and quantity requirement, and also, it set up its own logistics department and works with long term freight forwarder partner, for providing a strong & convenient warehousing, road and sea transportation services and make sure the cargoes arrived customer's hand timely and smoothly.
FAQ
Why you prefer CA Metal's shear stud connector?
1.The high quality shear stud connector's raw materials (SWRCH18A) from chinese famous state owned steel mills HBIS Group.
2.We do strictly phosphorization pretreatment for the raw material using drawing machine.
3.Our modern multi-station cold forging machine from Taiwan should be used to ensure the better mechanical property of shear connector to match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4.We make a special techinical control to get the welding point by automatic riveting machine for putting firmly on the shear stud connector so that working smoothly.
5.CA Metal shear connector is suitable to do long time ship on the sea bcz a good package avoid rusty.
6.Competitive price and quick shipment because of the good management on production and Professional team.
2.We do strictly phosphorization pretreatment for the raw material using drawing machine.
3.Our modern multi-station cold forging machine from Taiwan should be used to ensure the better mechanical property of shear connector to match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4.We make a special techinical control to get the welding point by automatic riveting machine for putting firmly on the shear stud connector so that working smoothly.
5.CA Metal shear connector is suitable to do long time ship on the sea bcz a good package avoid rusty.
6.Competitive price and quick shipment because of the good management on production and Professional team.
7. There is excellent after-sales team working for the products.
Похожие товары

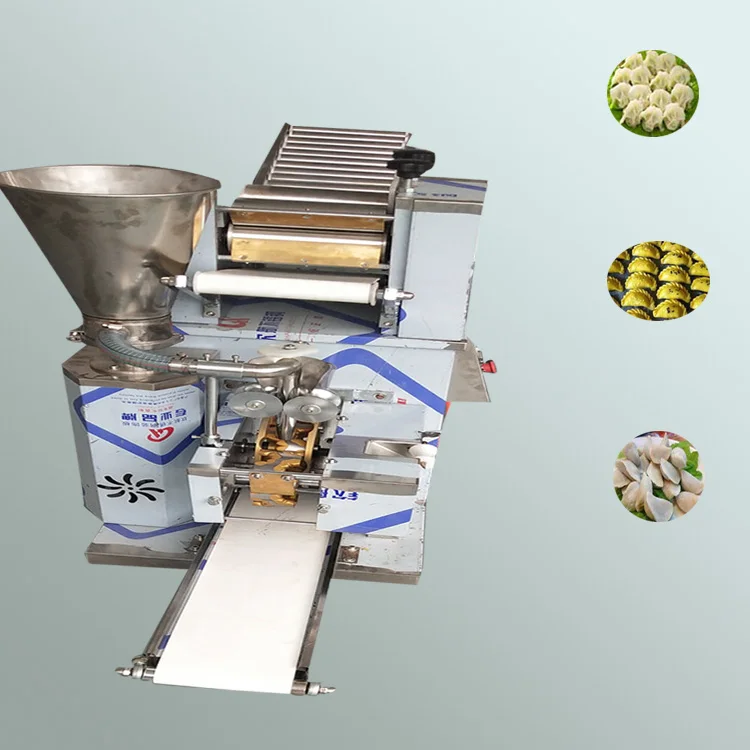

Автоматическая машина для производства пельменей Россия/машина для производства пельменей jiaozi

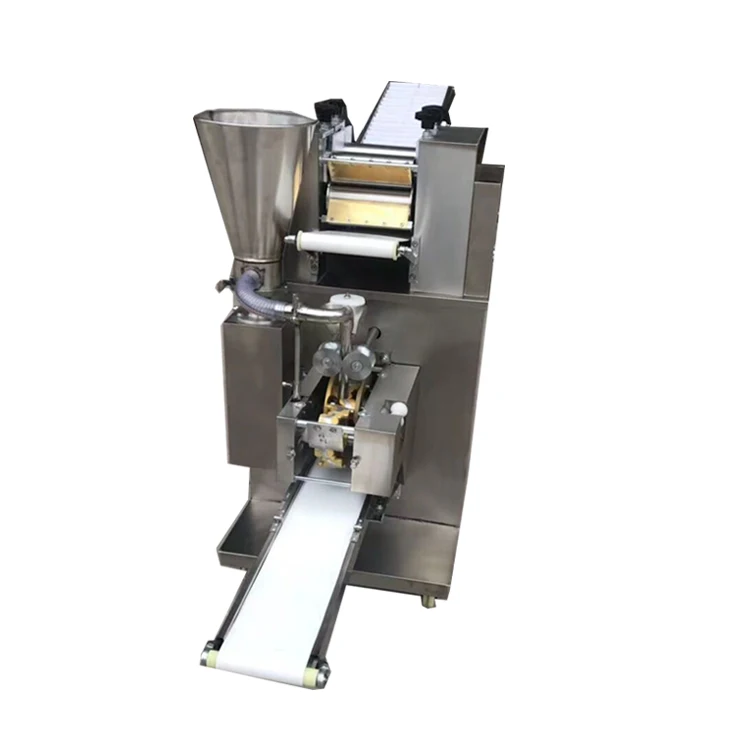

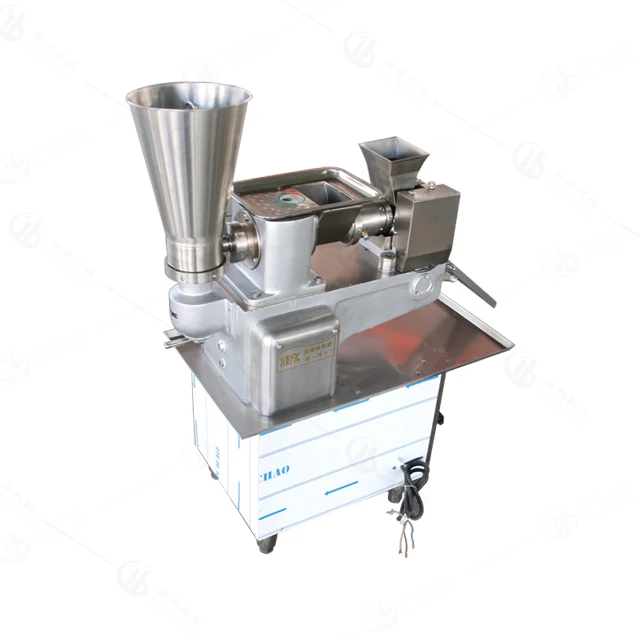

Автоматический Электрический кондитерский Пресс из нержавеющей стали для производства пельменей и теста
600,00 $ - 860,00 $
Выдувной агент переменного тока 7000 выдувной из ПВХ для пенообразовательных продуктов азодикарбонамид
2 100,00 $ - 2 350,00 $

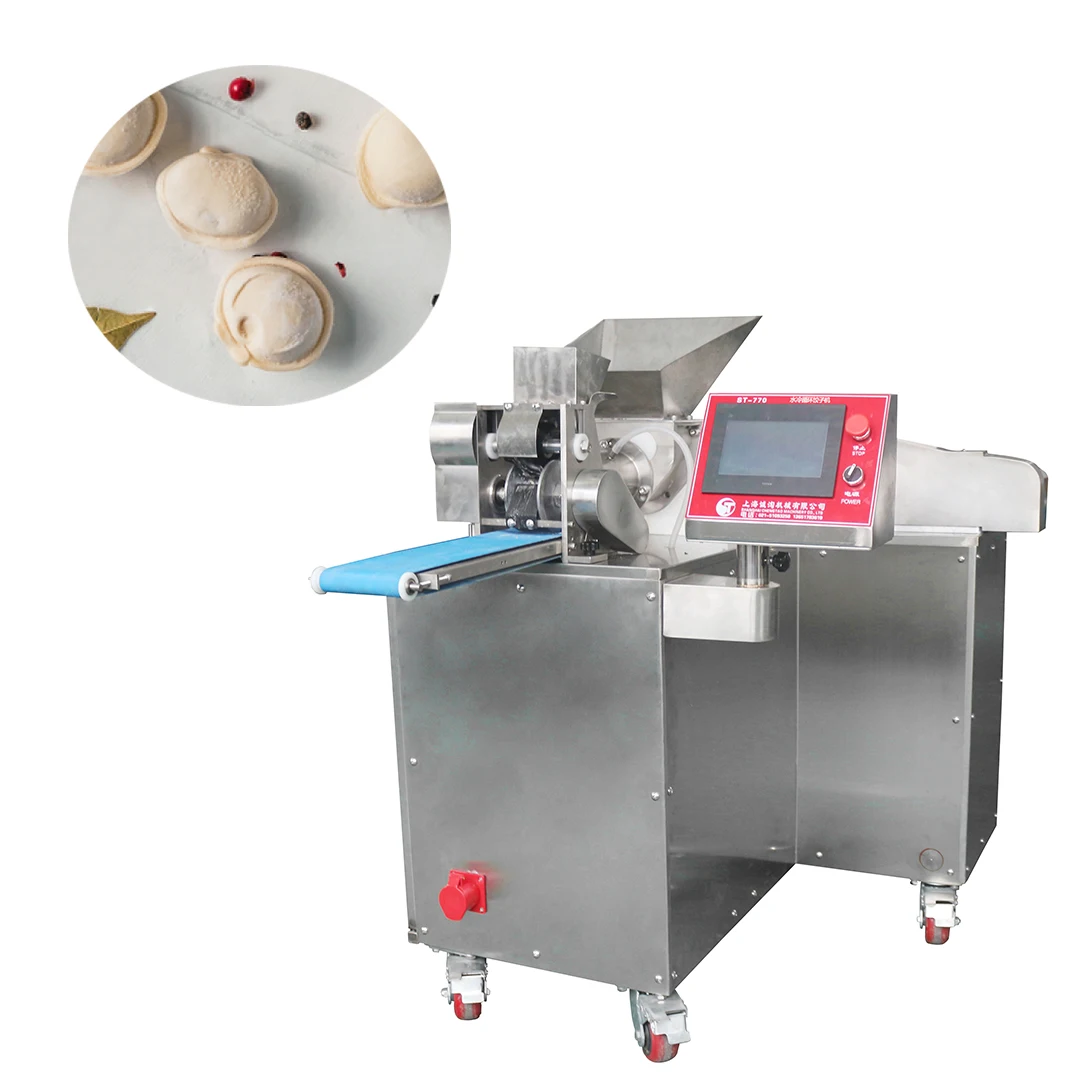

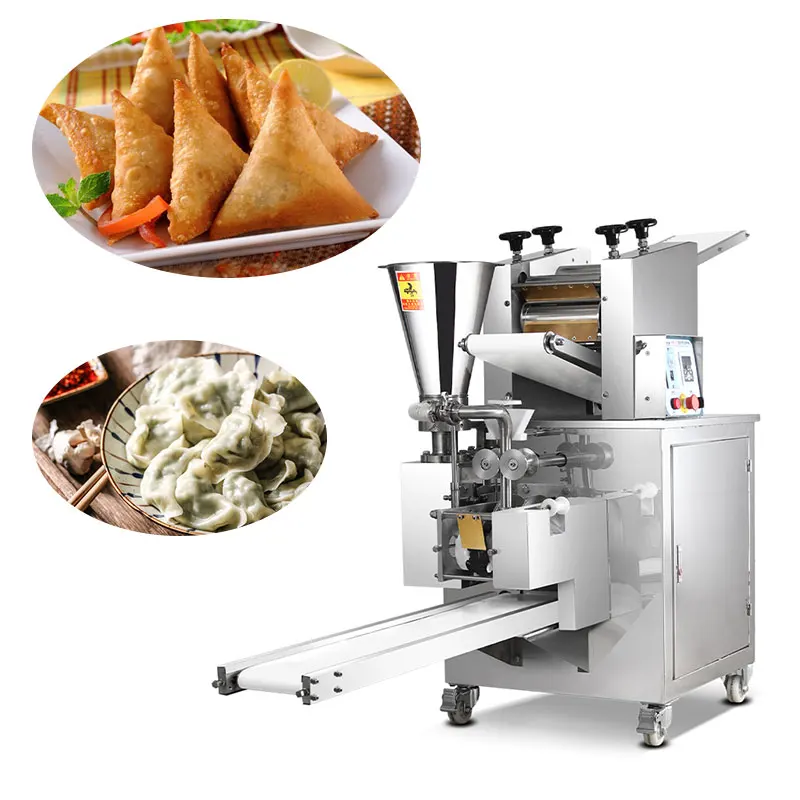

Китайские автоматические пельмени, Равиоли, Empanada, пельмени, большие кондитерские изделия, Складная машина для приготовления пельменей для пищевой компании
