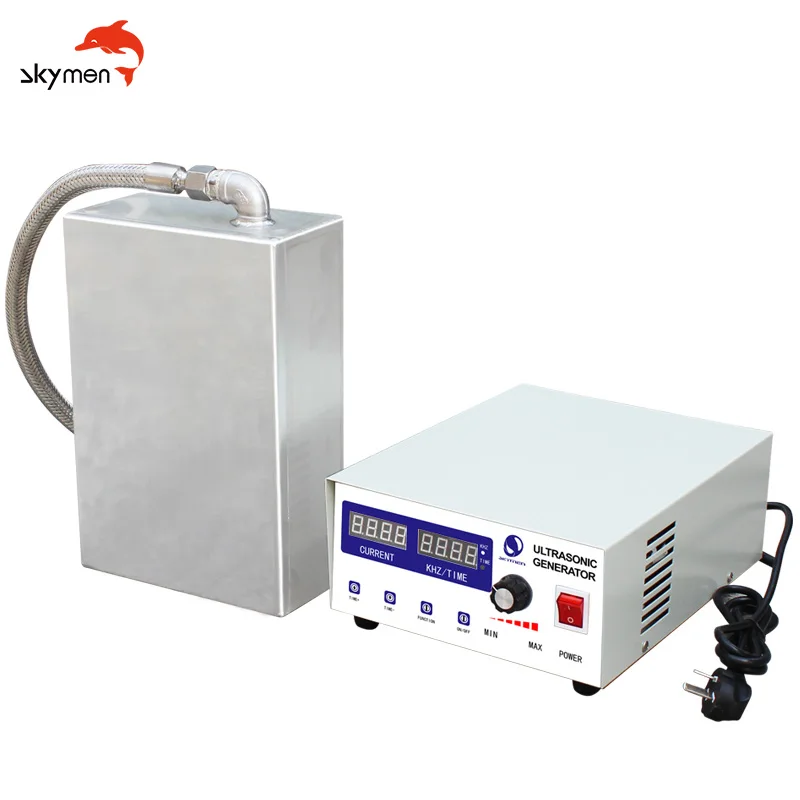

Погружные ультразвуковые преобразователи skymen блок преобразователей ультразвуковой генератор 40 кГц
- Категория: >>>
- Поставщик: Skymen Technology Corporation LimitedSkymen Limited
Сохранить в закладки 1600440580618:
Описание и отзывы
Характеристики
Product Description
Features:
Original BLT type transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
ultrasonic generator with sweep mode
User-friendly operation
Transducer no./transducer box: range[6pcs~36pcs per box]—transducer box size can be custom made
Ultrasonic power: range[300W~1800W]
Ultrasonic frequency: 28KHZ/40KHz
Original BLT type transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
ultrasonic generator with sweep mode
User-friendly operation
Transducer no./transducer box: range[6pcs~36pcs per box]—transducer box size can be custom made
Ultrasonic power: range[300W~1800W]
Ultrasonic frequency: 28KHZ/40KHz
(1) 1 transducer box (have 36pcs transducers) and 1 unit generator is 1 set.
(2) JTM-1036 transducer box equip with 36pcs transducers inside,1800W; the transducer box is water-proof and acid base resistable.

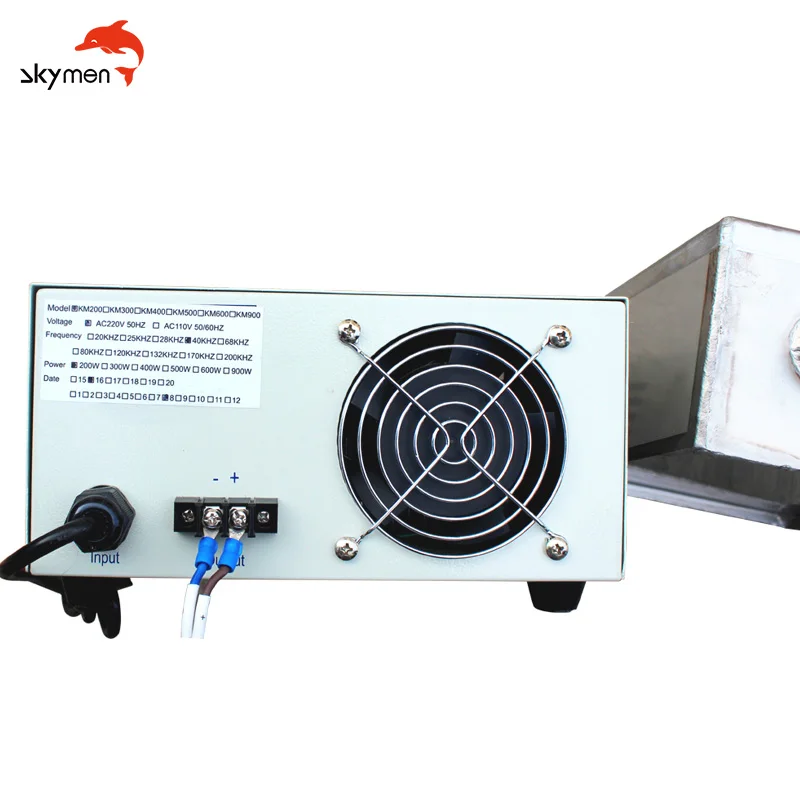

(3) Outer dimension of ultrasonic Generator Set (L*W*H): 390*280*135mm
(4) SUS304/316L stainless steel housing; Surface finishing: Hard-Cr Plating Treatment ( 20 + microns )
(5) Ultrasonic output power (Max.):1800W
(6) Ultrasonic frequency: 28KHz/40KHz available
(7) Generator power requirement: AC 110~120V ; AC 220/240V, 1,13AMP
(8) Adaptable for continuous operation and adjustable ultrasonic power
(9) Ultrasonic generator with sweep mode
(2) JTM-1036 transducer box equip with 36pcs transducers inside,1800W; the transducer box is water-proof and acid base resistable.
(3) Outer dimension of ultrasonic Generator Set (L*W*H): 390*280*135mm
(4) SUS304/316L stainless steel housing; Surface finishing: Hard-Cr Plating Treatment ( 20 + microns )
(5) Ultrasonic output power (Max.):1800W
(6) Ultrasonic frequency: 28KHz/40KHz available
(7) Generator power requirement: AC 110~120V ; AC 220/240V, 1,13AMP
(8) Adaptable for continuous operation and adjustable ultrasonic power
(9) Ultrasonic generator with sweep mode

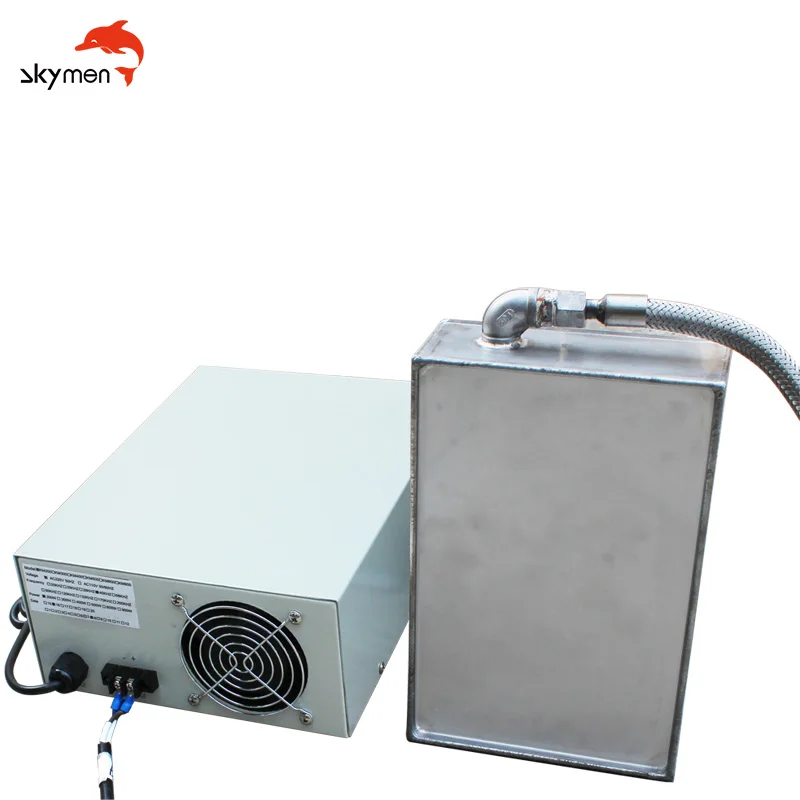

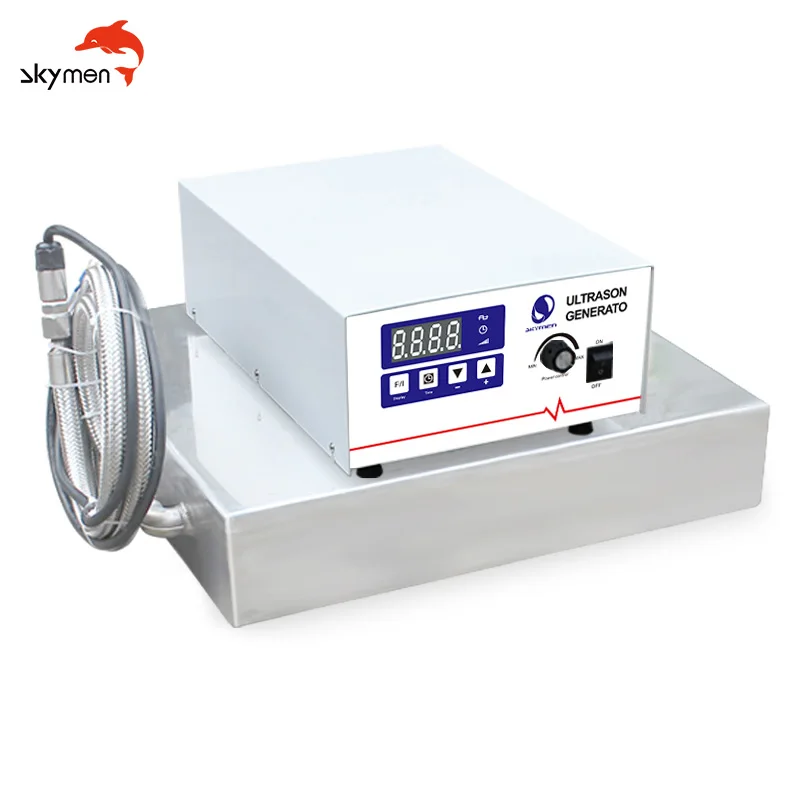

JTM models immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order.
Model: JTM series\tJTM-1006\tJTM-1012\tJTM-1018\tJTM-1024\tJTM-1030\tJTM-1036
Model: JTM series\tJTM-1006\tJTM-1012\tJTM-1018\tJTM-1024\tJTM-1030\tJTM-1036
OVERALL DIMENSION (mm)\t
L\t305\t355\t406\t500\t550\t500
\tW\t250\t305\t305\t355\t406\t460
\tH\t100\t100\t100\t100\t100\t100
HOUSING'S MATERIAL\tSUS304/SUS316L
SURFACE FINISHING\tHard-Cr Plating Treatment ( 20 + microns )
ULTRASONIC FREQUENCY*\t28kHz / 40kHz
TOTAL ULTRASONIC TRANSDUCER NUMBERS\t6 pcs\t12 pcs\t18 pcs\t24 pcs\t30 pcs\t36pcs
ULTRASONIC OUTPUT POWER (MAX.)\t300W\t600W\t900W\t1200W\t1500W\t1800W
ELECTRONIC GENERATOR\tKG300\tKG600\tKG900\tKG1200\tKG1500\tKG1800
\tWORK SEPARATELY
GENERATOR POWER SUPPLY\tAC 220 / 240V, 1, 13AMP
* NEW PRODUCT : 68kHz / 80kHz / 120kHz are available
\tW\t250\t305\t305\t355\t406\t460
\tH\t100\t100\t100\t100\t100\t100
HOUSING'S MATERIAL\tSUS304/SUS316L
SURFACE FINISHING\tHard-Cr Plating Treatment ( 20 + microns )
ULTRASONIC FREQUENCY*\t28kHz / 40kHz
TOTAL ULTRASONIC TRANSDUCER NUMBERS\t6 pcs\t12 pcs\t18 pcs\t24 pcs\t30 pcs\t36pcs
ULTRASONIC OUTPUT POWER (MAX.)\t300W\t600W\t900W\t1200W\t1500W\t1800W
ELECTRONIC GENERATOR\tKG300\tKG600\tKG900\tKG1200\tKG1500\tKG1800
\tWORK SEPARATELY
GENERATOR POWER SUPPLY\tAC 220 / 240V, 1, 13AMP
* NEW PRODUCT : 68kHz / 80kHz / 120kHz are available
Specification
Model | Specification |
Size (mm) | 460*380*100 |
Tank material: | 304 Stainless Steel |
Ultrasonic power | 1800W |
Frequency | 40khz or 28Khz for Option |
Transducer | 30 |
Timer | 1 to 99 hours |
Heater | N/A |
Lead-out way | Flexible or rigid tube |
Working voltage | 110V or 220V; 50&60 HZ |
Company Profile
Skymen Cleaning Equipment Shenzhen Co. Ltd., that has worked on ultrasonic cleaner for more than 13 years.Our ultrasonic products fully range from mini household ultrasonic cleaner, benchtop stainless steel small ultrasonic cleaner, and industrial large tank ultrasonic cleaner as well as Immersible ultrasonic transducer system.Our company devote to research and development, with strong engineer teams.Otherwise, we accept customer’s idea and want to develop new products together.
FAQ
Q: What's the advantage of Skymen ultrasonic cleaner?
Q: How often should I change the cleaning fluid in my tank?
A: Changed whenever it becomes visibly too contaminated, or when the cleaning process is not as effective.
Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get a better cleaning effect.
Q:Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What about the warranty?
A: 1 Year warranty for Skymen ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
A: Skymen ultrasonic cleaner is the best way to have thorough cleaning without damaging objects. It helps to remove stubborn dirt and dust from the watch, eyeglasses, jewelry, etc, make them look new once again. It's very safe and easy to operate, proves to be the best helping hand for you at home.
Q: How often should I change the cleaning fluid in my tank?
A: Changed whenever it becomes visibly too contaminated, or when the cleaning process is not as effective.
Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get a better cleaning effect.
Q:Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What about the warranty?
A: 1 Year warranty for Skymen ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
Похожие товары

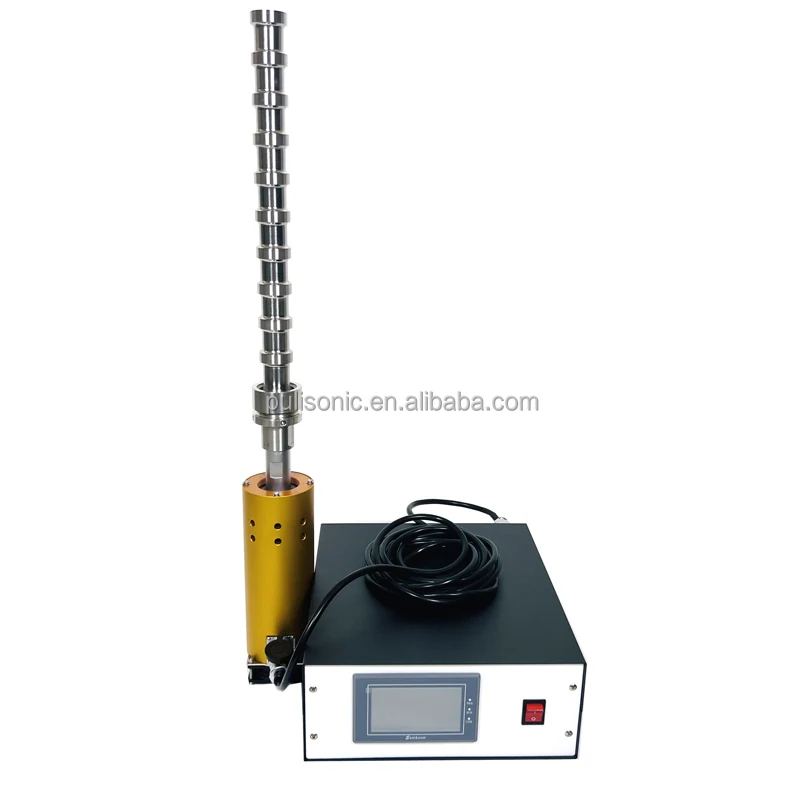

Промышленный ультразвуковой эмульгирующий гомогенизатор сонохимическое оборудование с цифровым генератором
1 500,00-2 500,00 $
Защита от плесени PP PBT PET PA щетина для уборочной щетки
1,70-1,85 $

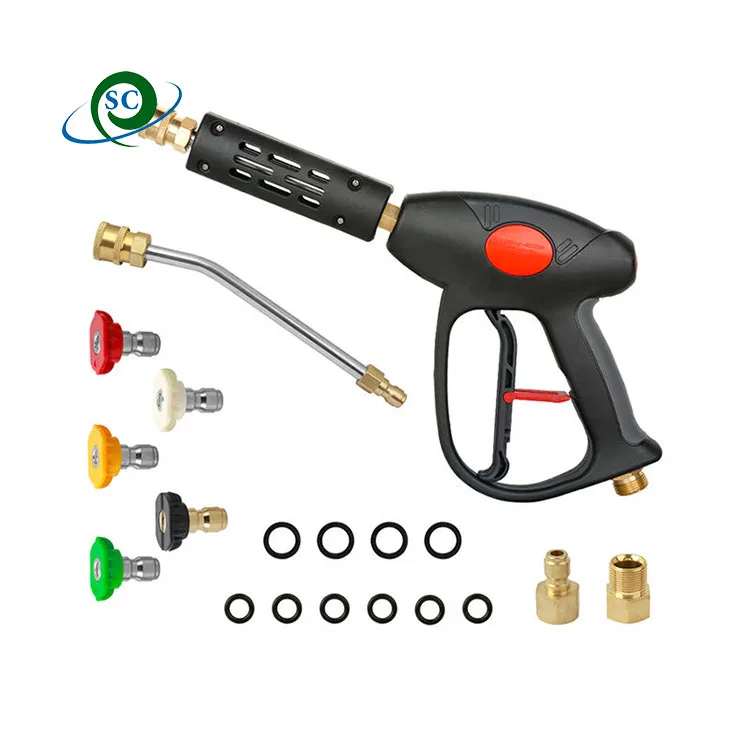

CS водяной пистолет высокого давления инструмент для очистки автомобиля мойка распылитель автомойки
7,60-15,00 $

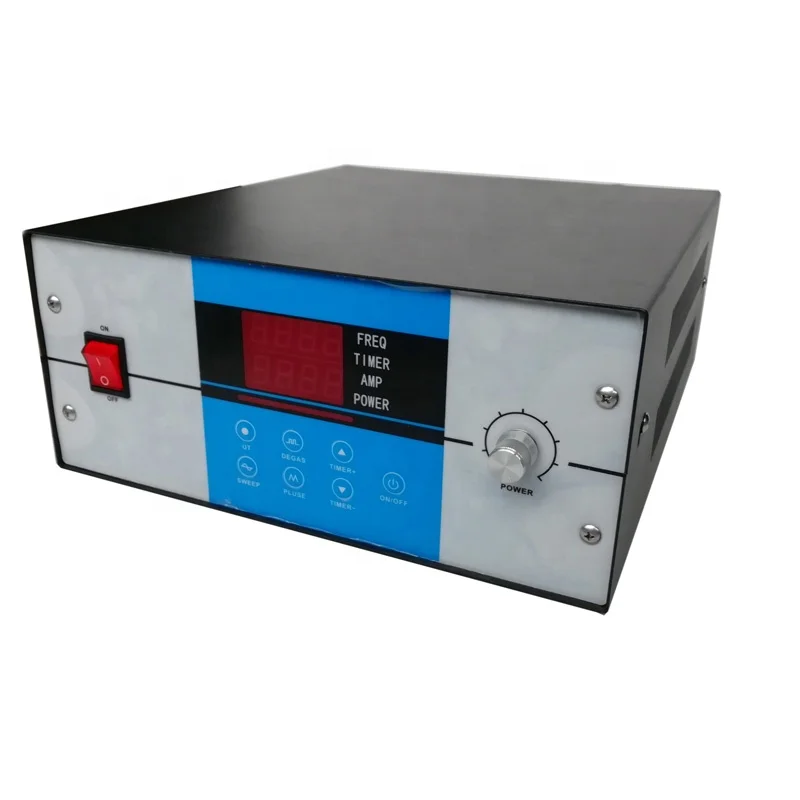

Автоматическая регулировка частоты ультразвуковой генератор 1800 Вт 28 кГц излучатель для масляной машины очистки от ржавчины
220,00-260,00 $
Оптовая продажа различные мойки труб высокого давления мойка для автомобиля Вращающаяся насадка из нержавеющей стали очистки канализации
15,90-27,90 $

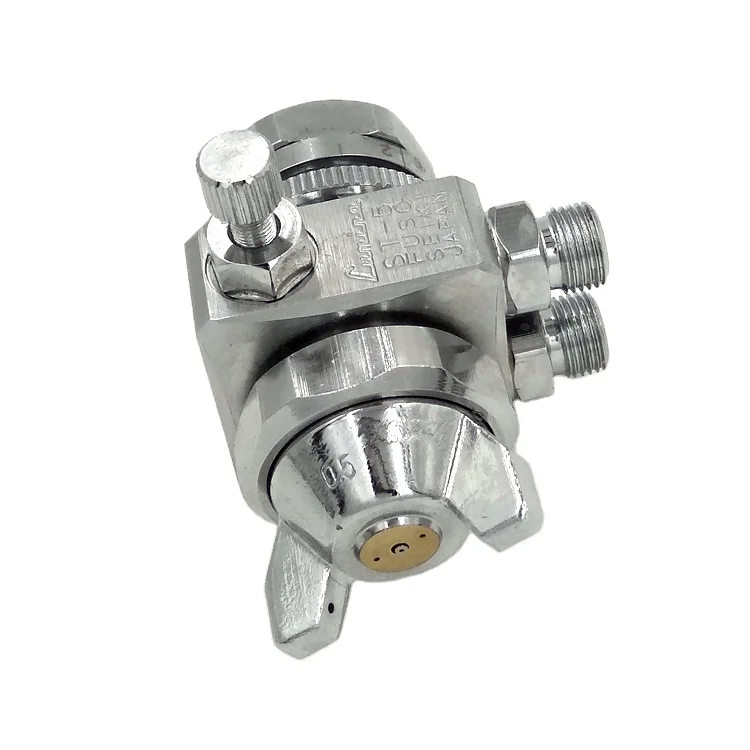

KMECO ST-5 ST-6 шоколадный распылитель воздуха
