Хит продаж Новый мини гидравлический грейдер Gr215 китайский 215HP небольшой дорожный с креплением заводская цена

Сохранить в закладки 1600440666348:


Цена:5 997 471,84-8 421 193,84 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

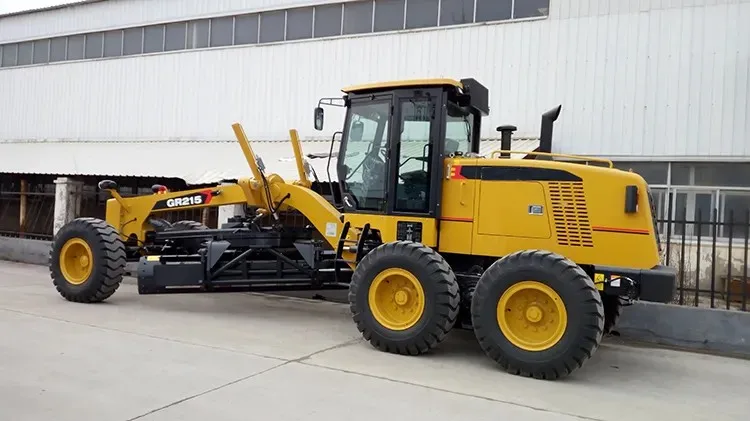

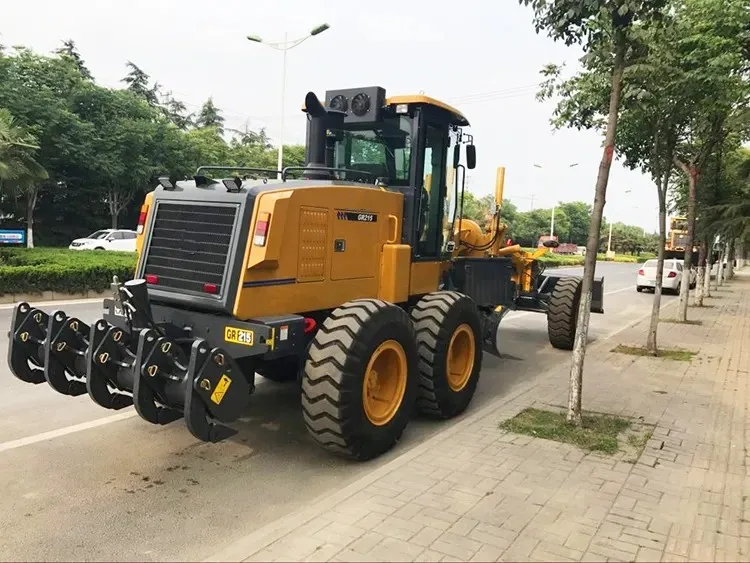

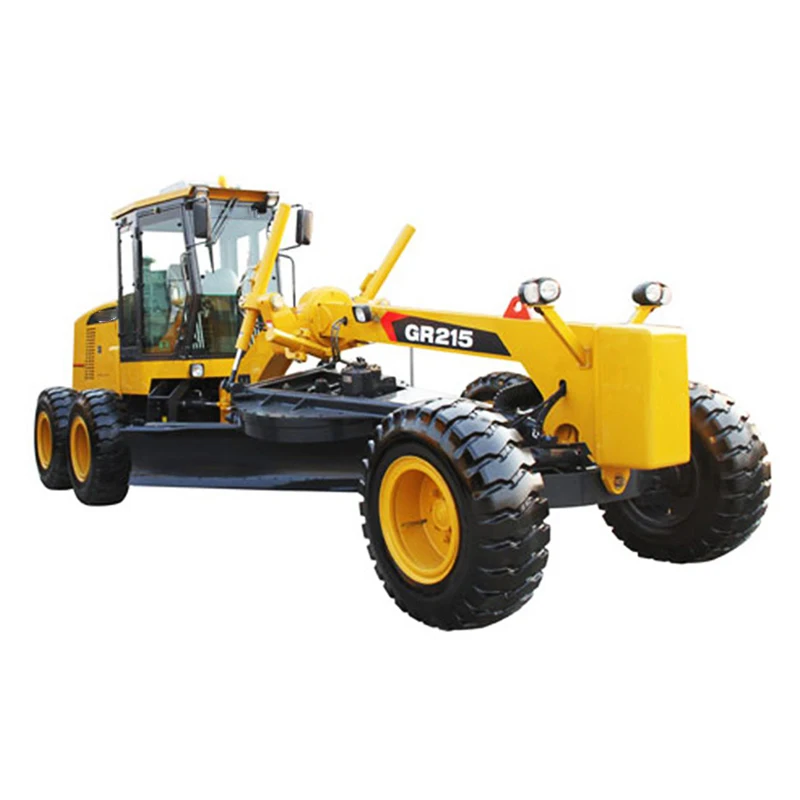

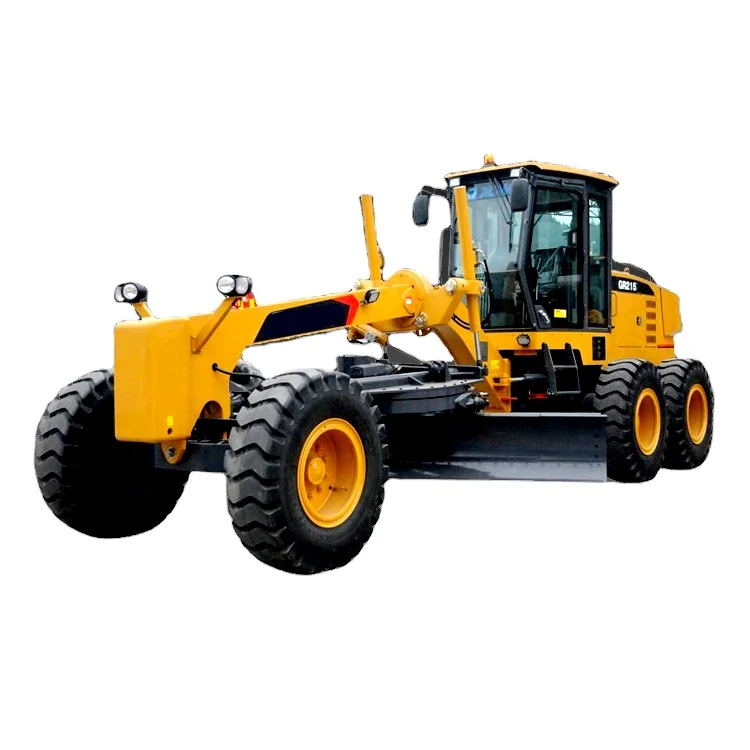

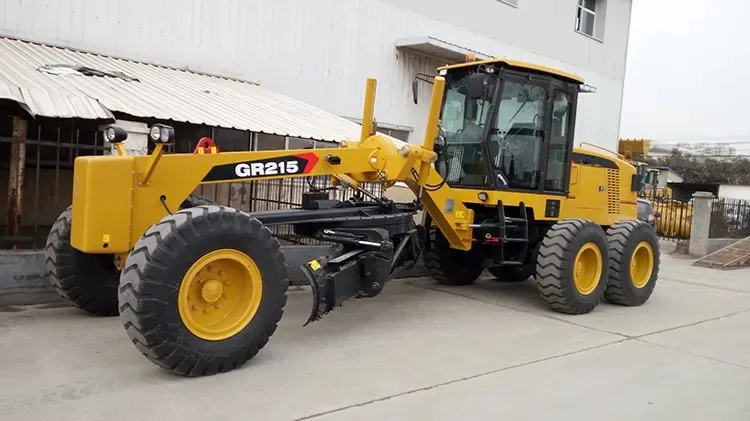

GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland.
The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.


Item
GR215
Basic parameters
Engine model
6CTA8.3-C215
Rated power/speed
160kW/2200rpm
Overall dimension (standard)
8970x2625x3420
Total weight (standard)
16500 kg
Tire specification
17.5-25
Ground clearance (front axle)
430mm
Space of front and rear axles
6219 mm
Space of middle and rear wheels
1538 mm
Performance
parameters
Forward velocity
5,8,11,19,23,38km/h
Reverse speed
5,11,23km/h
Tractive effort f=0.75
87 kN
Maximum gradeability
20%
Tire inflation pressure
260kPa
Working system pressure
16MPa
Transmission pressure
1.3—1.8Mpa
Working parameters
Maximum steering angle of front wheel
±50°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
forwards15°, Reverse15°
Maximum steering angle of frame
±27°
Minimum turning radius
7.3m
Scrape knife
Maximum lift height
450mm
Maximum cutting depth
500mm
Maximum tilt angle
90°
Cutting angle
28°—70°
Angle of revolution
360°
Length & chord height
4270x610mm
Oil filling amount
Coolant
50L
Fuel tank
280L
Engine
24L
Transmission
38L
Equilibrium box
46L
Coolant
28L
Hydraulic oil
110L







1. Dongfeng cummins engine, technology gearbox and Meritor drive axle make the dynamic matching of transmission system more reasonable and reliable.

2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.

3. The double-circuit hydraulic brake system is applied to realize more reliable and stable braking.

4. The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system stability and reliability.

5. The special enhanced working device is applied.

6. The blade body adopts adjustable large slide slot and double slideway mechanism and the blade plates are made of wear-resistant high strength materials.

7. The multiple optional parts expand the performance and working scope of machine.












1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu
province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on
the advantage of them,we also estabish long-time business with other famous brands.

2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly
treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the
price from manufacturers/factories.

3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a
variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for
manufacturers/factories, it will take more than 30 days to produce the ordered machine.

4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the
time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.

5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of
original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek
the advice from the individual sales manager whom you work with.

6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese

7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare
parts.
