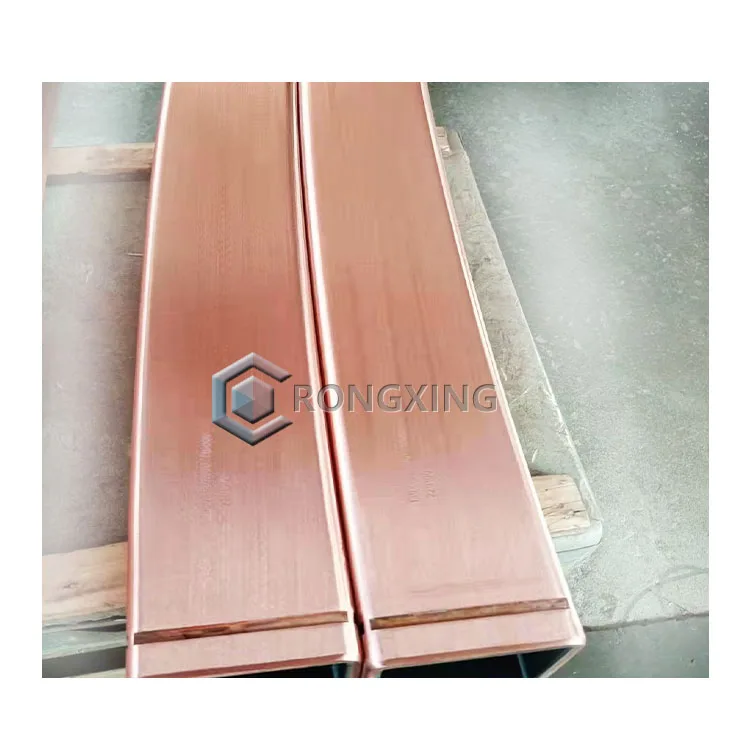

Square Copper Mould Tube
Product Parameters
Copper Mould Tube includes square type, rectangular type, round type, H beam blank type and other non-standard copper mould tubes.
| Copper Mould Tube | |||||
| Item | Unit | Size | Thickness | Length | Radius |
| Square Copper Mould Tubes | mm | 50*50-500*500 | 6-50 | 700-1100 | 4000-17000 or Straight |
| Round Copper Mould Tubes | mm | φ110-1200 | 10-50 | 700-900 | 5000-17000 or Straight |
| Rectangle Copper Mould Tubes | mm | (100-500)*650 | 6-50 | 700-1100 | 4000-17000 or Straight |
| Beam Blank Copper Mould Tubes | mm | Customized | 12-50 | 780-1016 | 6000-17000 |
| Non-standard Copper Mould Tubes | mm | Customized | 12-50 | 780-1016 | 6000-17000 |
| Metallurgy of Copper Mould Tubes | |||
| Material | Cu-DHP | Cu-Ag | Cu-Cr-Zr |
| High Phosphorus Deoxidized Copper | Cu-Ag(Cu-0.1Ag) | Cu-Cr-Zr(Cu-0.6Cr-0.15Zr) | |
| Properties | Normal Deoxidized Copper | Through the addition of about 0.1% silver,strength is significantly enhanced with no loss in thermal conductivity | Cr and Zr precipitation hardening provides this alloy with high strength, high resistance to heat, and thermal conductivity |
| Melting point | 1083℃ | 1083℃ | 1078℃ |
| Coefficient of thermal expansion at 20℃ | 1.68*10-5 | 1.68*10-5 | 1.70*10-5 |
| Thermal | 340w(m.K) | 377w(m.K) | 325w(m.K) |
| Recrystallization | 330℃ | 370℃ | 700℃ |
| Hardness at 20℃ | Min.85HB | Min.90HB | Min.120HB |
| Complete technical data, Please contact us for catalog. | |||
| Item | Sectional Dimension (mm) | CCM Radius (mm) | Length (mm) |
| Square Type Copper Mould Tube | 70*70 | R=3000-5000 | L=812-850 |
| 80*80 | |||
| 90*90 | |||
| 100*100 | R=3000-6000 | L=812-900 | |
| 110*110 | |||
| 120*120 | R=4000-10000 | L=800-900 | |
| 130*130 | R=4000-10000 | L=812-900 | |
| 135*135 | |||
| 140*140 | |||
| 150*150 | |||
| 160*160 | |||
| 175*175 | |||
| 180*180 | |||
| 195*195 | R=6000-10000 | L=812-900 | |
| 200*200 | |||
| 250*250 | |||
| 300*300 | |||
| 350*350 | |||
| 400*400 |
Superior Quality
To provide mould tubes with optimal physical and mechanical properties to customers' specifications, mould tube products are supplied of the following materials:
Cu-DHP: Normally used for mould tubes section size below 180x180mm and round tubes below Dia.150mm.
Cu-Ag: Normally used for mould tube section size above 180x180mm and round tubes above Dia.150mm
Cu-Cr-Zr: Normally used for beam blank mould tubes
These materials have different levels of hardness and thermal conductivities. We are highly experienced in choosing proper materials to meet the specific demands in heat resistance and thermal conductivities of customers' applications.
Production Process:
Melting & Casting --- Hot Extrusion/Forging --- Cold Drawing --- Tapering --- Machining --- Electroplating --- Machining after Electroplating --- Final Inspection --- Packing

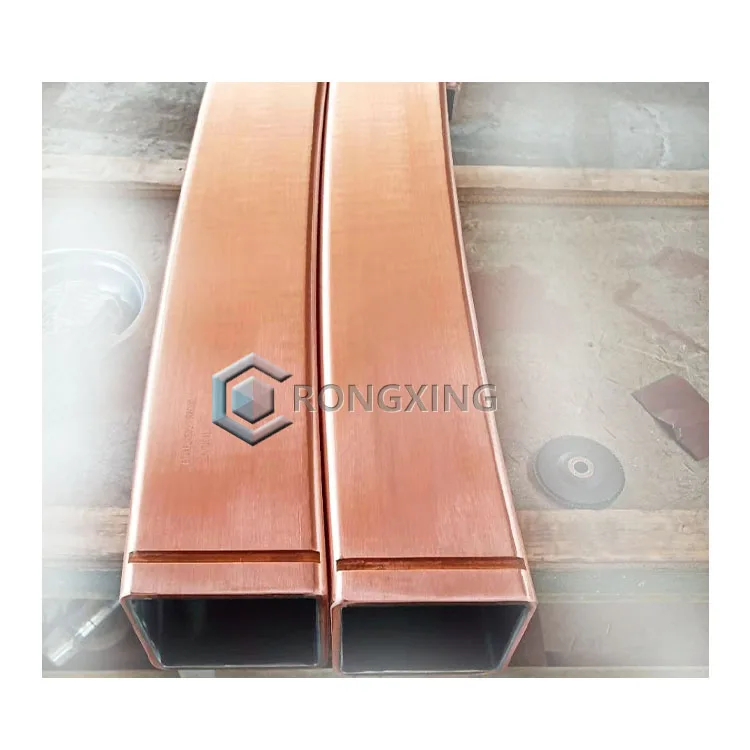

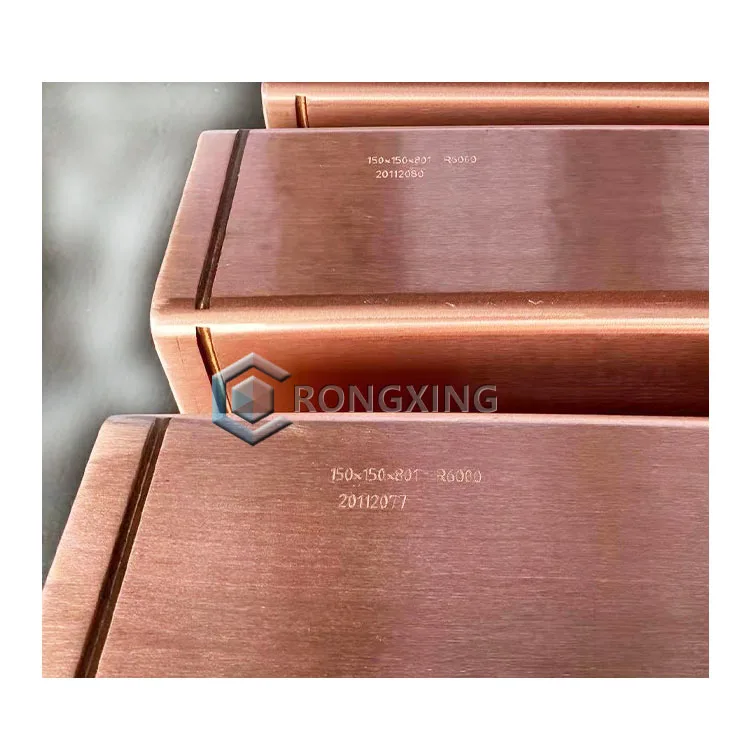

![Copper mould tube]()
Advantages of Rongxing Copper Mould Tubes:
• Uniform shell growth,Optimum billet quality
• Reliable quality
Created copper mould tube with good raw materials, produce copper mould tube products based on industry norms and high standards.
• Special coatings. Increase erosion resistance and service life
We always dedicated to research special coatings. The mould tubes can be coated with our different types of internal surface coating: Cr, Ni-Co, Ni-Fe, Ni-Co-Cr. The coating thickness has been controlled in the best range.
• Customized and low cost.

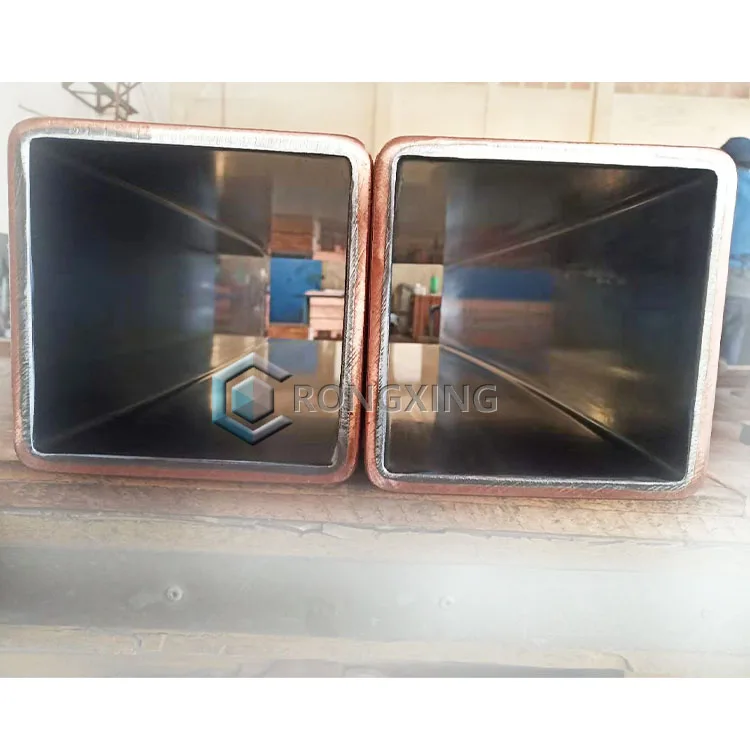

You might order copper mould tube according to your industrial needs. We help you to produce these products on your limited budget to access on your field.![copper mould tube]()
Cu-DHP: Normally used for mould tubes section size below 180x180mm and round tubes below Dia.150mm.
Cu-Ag: Normally used for mould tube section size above 180x180mm and round tubes above Dia.150mm
Cu-Cr-Zr: Normally used for beam blank mould tubes
These materials have different levels of hardness and thermal conductivities. We are highly experienced in choosing proper materials to meet the specific demands in heat resistance and thermal conductivities of customers' applications.
Production Process:
Melting & Casting --- Hot Extrusion/Forging --- Cold Drawing --- Tapering --- Machining --- Electroplating --- Machining after Electroplating --- Final Inspection --- Packing
Advantages of Rongxing Copper Mould Tubes:
• Uniform shell growth,Optimum billet quality
• Reliable quality
Created copper mould tube with good raw materials, produce copper mould tube products based on industry norms and high standards.
• Special coatings. Increase erosion resistance and service life
We always dedicated to research special coatings. The mould tubes can be coated with our different types of internal surface coating: Cr, Ni-Co, Ni-Fe, Ni-Co-Cr. The coating thickness has been controlled in the best range.
• Customized and low cost.
You might order copper mould tube according to your industrial needs. We help you to produce these products on your limited budget to access on your field.
Packaging & Shipping
Customers
Company Information
Founded in 1992, posessing a professional technical team of experienced staff having huge exposure in steel mills, we supply all sizes and specifications of copper moulds. As a professional manufacturer cetrified by ISO 9001:2015, we have strict requirements on products quality. For raw materials produced by casting, rolling and forging processes, we will have 100% flaw detection. For products with high requirements on dimensional accuracy and surface roughness, it will be machined by CNC machine tools and CNC grinding machines. For products with heat treatment, each batch of products will be subjected to a tensile test using a sample bar to confirm the heat treatment effect.
Thus we assure all our customers of superior output through our copper moulds.Being approved by international well-known inspection institutions such as SGS, OMIC, IKA, ISQI, COTECNA, our products have been exported to Europe, Asia, Africa, South America and
Middle Eastern countries, which enjoys good reputation.
Thus we assure all our customers of superior output through our copper moulds.Being approved by international well-known inspection institutions such as SGS, OMIC, IKA, ISQI, COTECNA, our products have been exported to Europe, Asia, Africa, South America and
Middle Eastern countries, which enjoys good reputation.
FAQ
1. Are you Factory or Trading?
We are factory with ISO 9001:2015 certified
3. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
We are factory with ISO 9001:2015 certified
2. How to guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
More requirements,Please send inquiry to us,let's confirm them directly.
Похожие товары

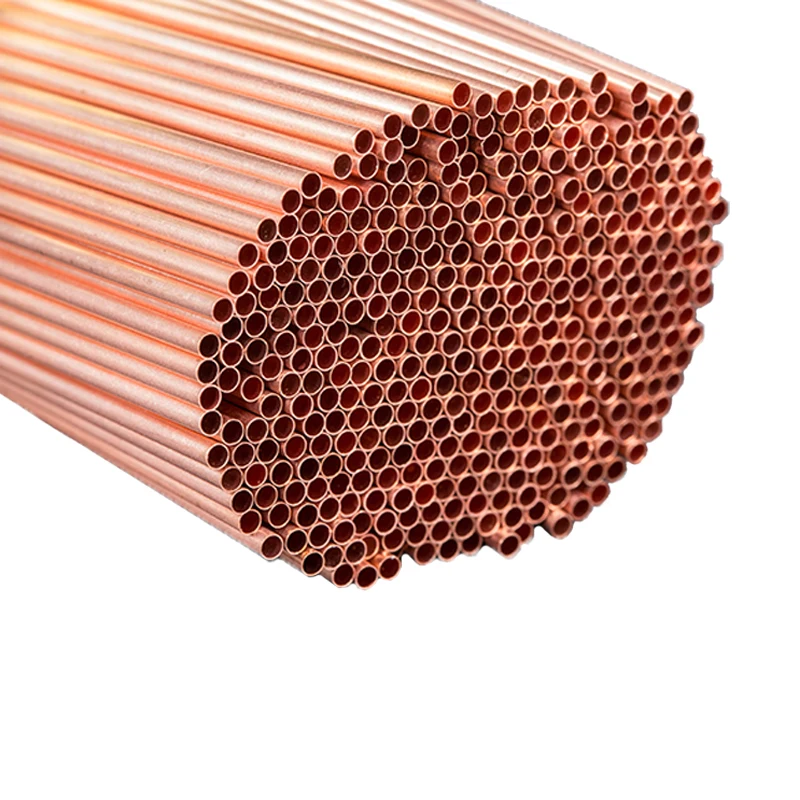

Заводская цена для зданий и кондиционирования воздуха C36010 C1020 C1100 C1221 C33000 медная трубка/круглый стержень/прямая
9 500,00 $ - 10 000,00 $
Жесткая охлаждающая медная трубка переменного тока прямой длины для кондиционеров
1 499,00 $ - 1 899,00 $

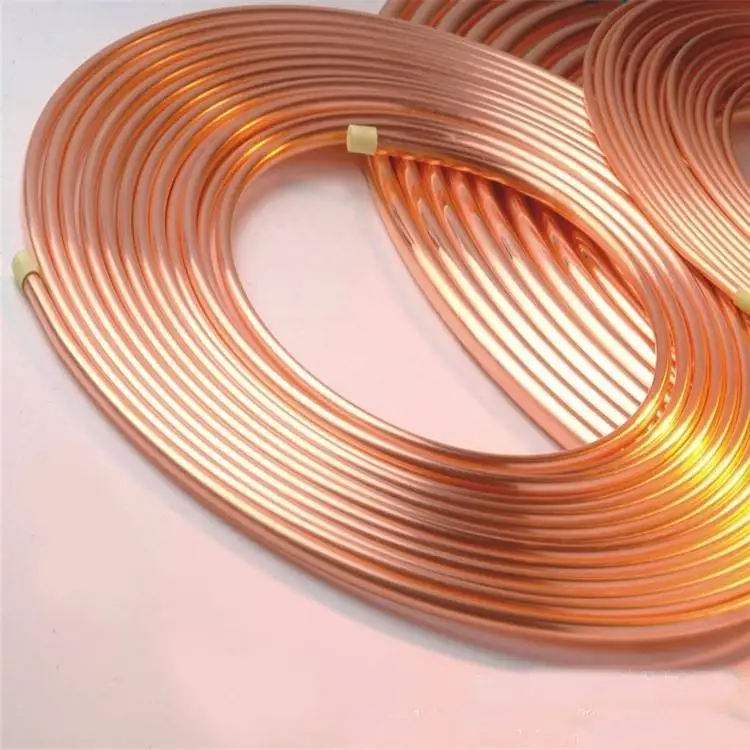

Профессиональный производитель 99.9% чистая медная труба кондиционер катушка для блинов медные
6 500,00 $ - 6 700,00 $

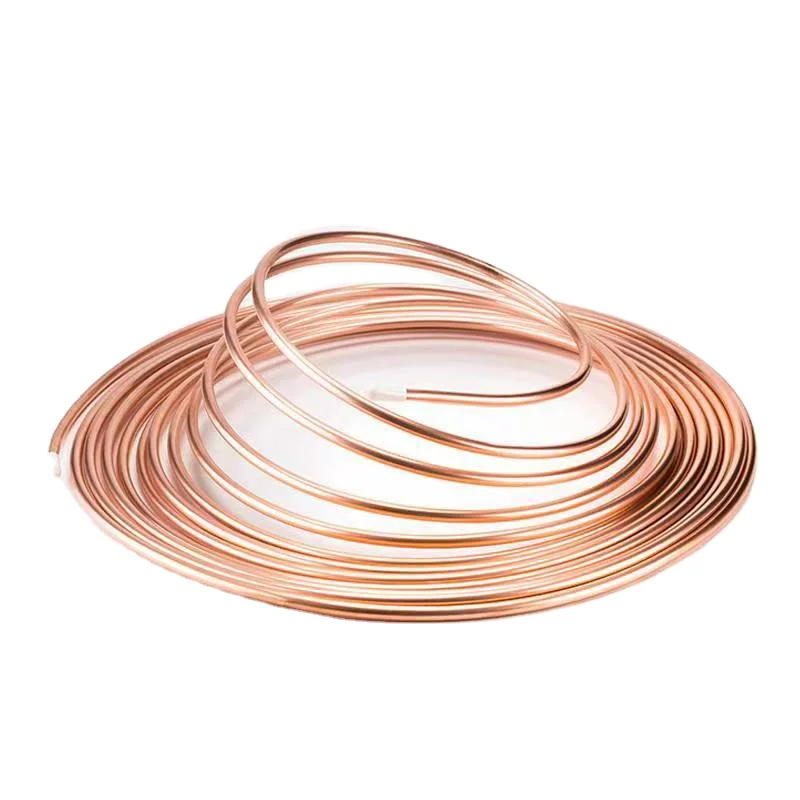

Медная трубка для оладий 1/4 дюйма на 15 метров кондиционирования

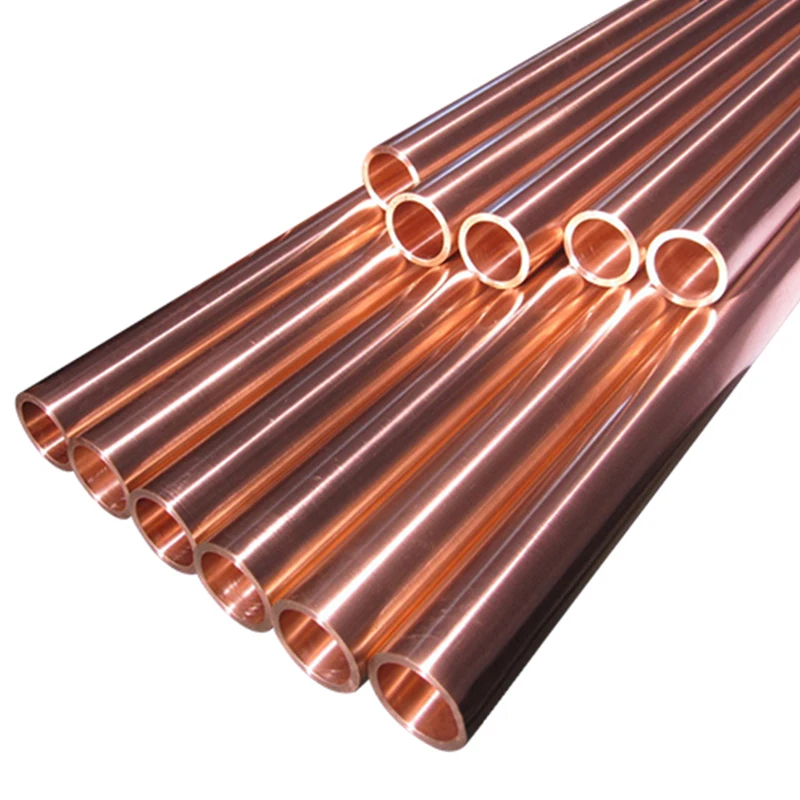

Медная труба 100 мм медная C10200 28 R32
5,20 $ - 8,50 $

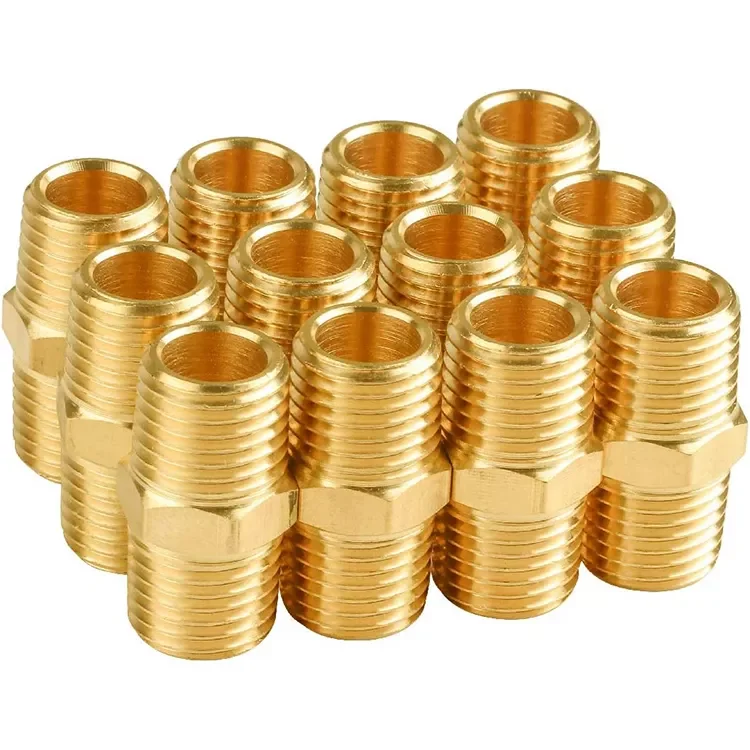

Медная маслопроводная арматура диаметром под
