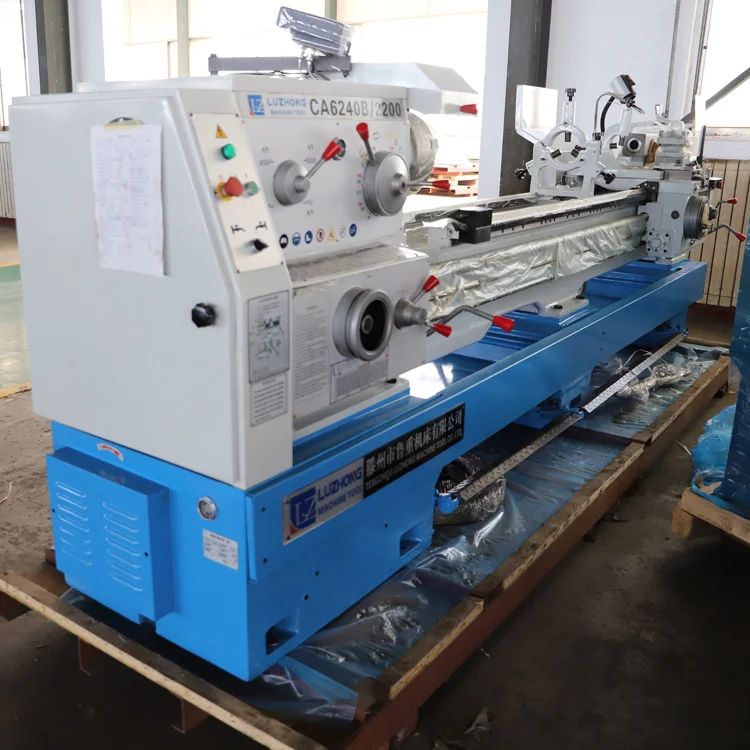

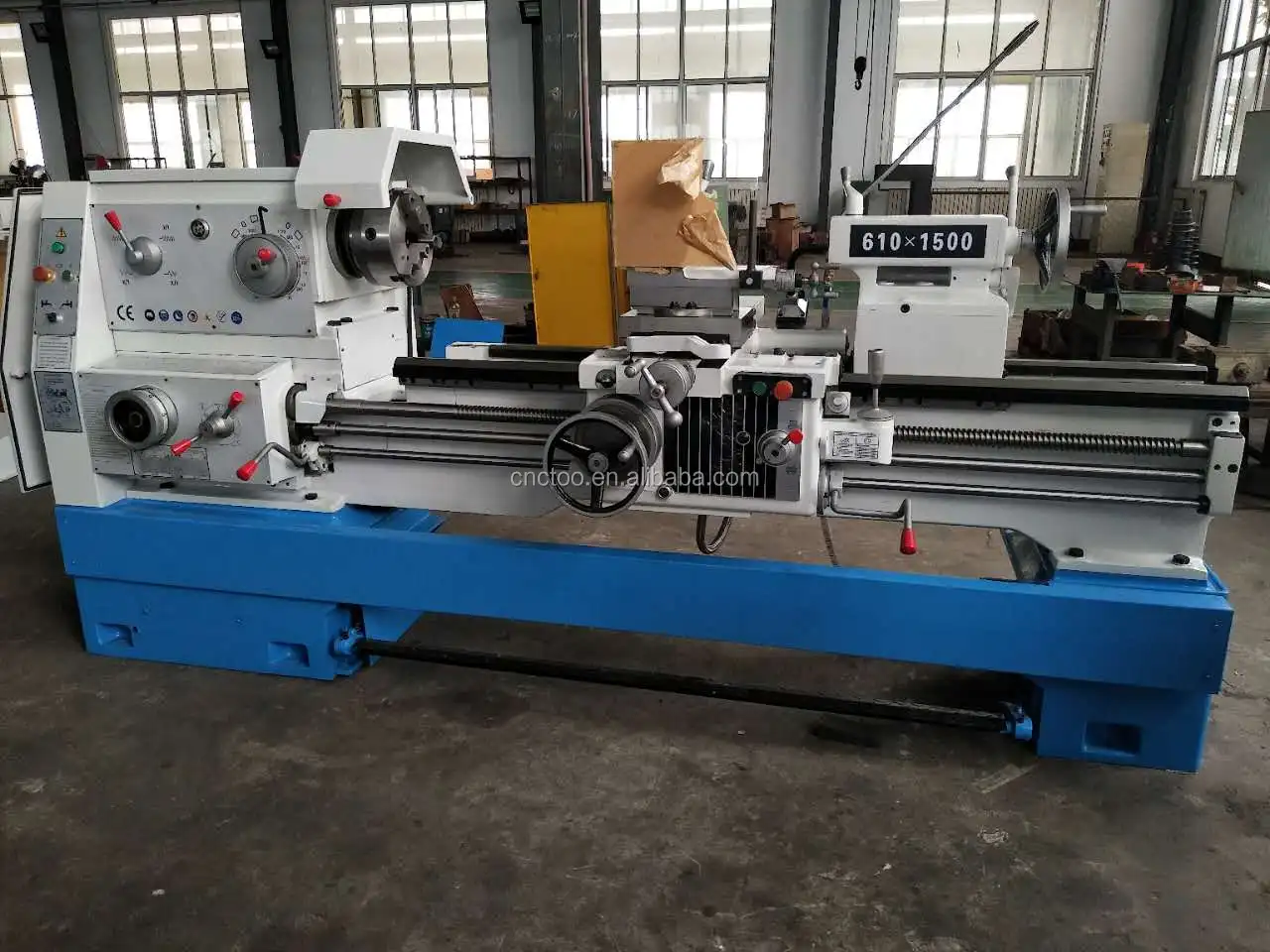

Токарный станок для стали CA6240 горизонтальный
- Категория: >>>
- Поставщик: Zaozhuang City Tengdong Machine Co. Ltd.
Сохранить в закладки 1600443003162:
Описание и отзывы
Характеристики
Product Description
CA6240 metal turning machine Specification | CA6140 CA6140B | CA6240 CA6240B | |||||
Max. swing over bed | 400mm | ||||||
Max. swing over carriage | 210mm | ||||||
Max. swing in gap | ------ | 630mm | |||||
Effective gap length | ------ | 210mm | |||||
Max. length of work piece | 750/1000/1500/2000/2200/3000/4000mm | ||||||
Width of bed | 400mm | ||||||
Section of turning tool | 25*25mm | ||||||
Spindle | Spindle speed | 16-1400rpm (24steps) | |||||
Hole through spindle | 52mm / [80mm(B type) / [105mm(C type)] | ||||||
Spindle end form | ISO(GB)C6 / D8(B type C type) | ||||||
Spindle taper | MT6 [φ90 1:20(B type)] [φ113 1:20(C type)] | ||||||
Feed | No. of feed | 64 kinds | |||||
Range of metric threads | 1-192mm (44 kinds) | ||||||
Range of inch threads | 1-24tip (21 kinds) | ||||||
Range of module threads | 0.25-48(module 39 kinds) | ||||||
Range of diameter pitch threads | 1-96DP (37 kinds) | ||||||
Tailstock | Max. tailstock spindle travel | 150mm | |||||
Tailstock spindle diameter | φ75mm | ||||||
Tape of tailstock spindle center hole | MT5 | ||||||
Main motor | 7.5kw(10HP) | ||||||
Packing dimensions (L*W*H) | Overall dimensions for 750mm | 2440*1140*1750 | |||||
Overall dimensions for 1000mm | 2650*1140*1750 | ||||||
Overall dimensions for 1500mm | 3150*1140*1750 | ||||||
Overall dimensions for 2000mm | 3650*1140*1750 | ||||||
Overall dimensions for 2200mm | 4030*1140*1750 | ||||||
Overall dimensions for 3000mm | 4800*1140*1750 | ||||||
Overall dimensions for 4000mm | 5680*1140*1700 | ||||||
Weight (kg) | Length | G.W. | N.W. | ||||
Overall dimensions for 750mm | 2100 | 1990 | |||||
Overall dimensions for 1000mm | 2190 | 2070 | |||||
Overall dimensions for 1500mm | 2350 | 2220 | |||||
Overall dimensions for 2000mm | 2720 | 2570 | |||||
Overall dimensions for 2200mm | 2800 | 2600 | |||||
Overall dimensions for 3000mm | 3300 | 3200 | |||||
Overall dimensions for 4000mm | 3500 | 3400 | |||||
FAQ
Q1: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much
strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
Q1: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much
strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
Похожие товары

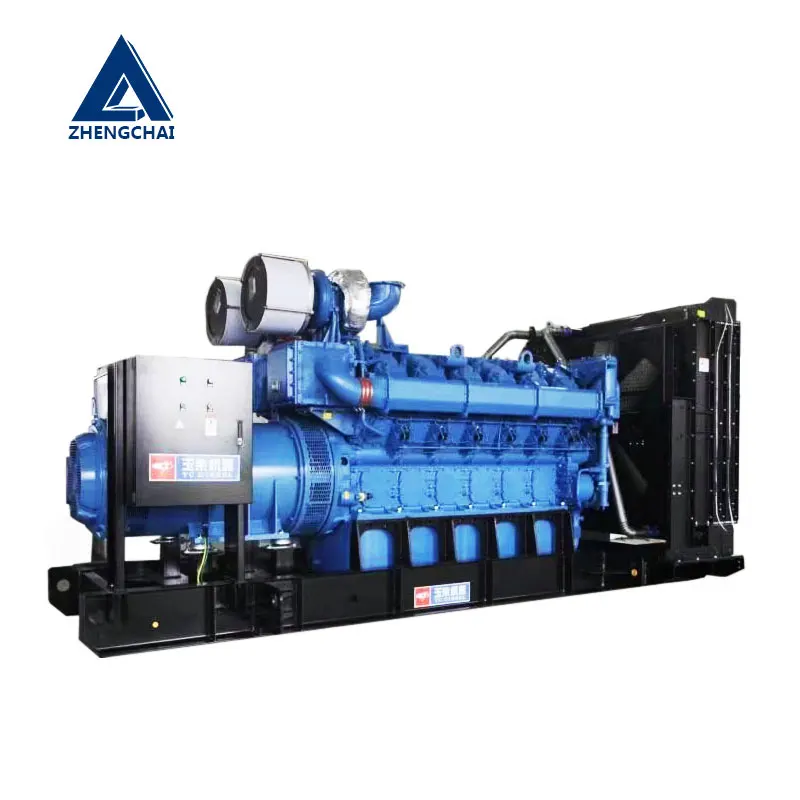

50 Гц, 380 В, 640 кВт, генератор мощности 800 ква, Дизельная генераторная установка по заводской цене
64 200,00 $ - 65 800,00 $
Профессиональные классические щипцы для завивки волос с 3 бочками, Автоматические щипцы для завивки волос
5,90 $ - 10,00 $

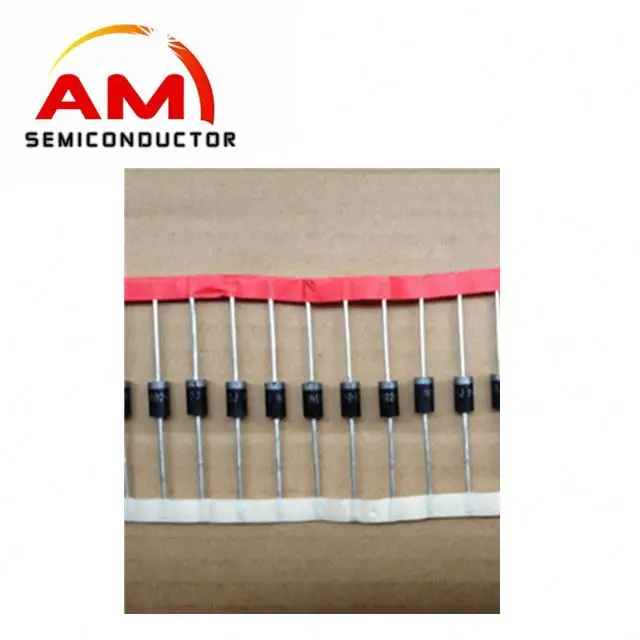

600V 4A модуль быстрого восстановления диода DO-201AD MUR460RLG MUR460
0,06 $ - 0,14 $

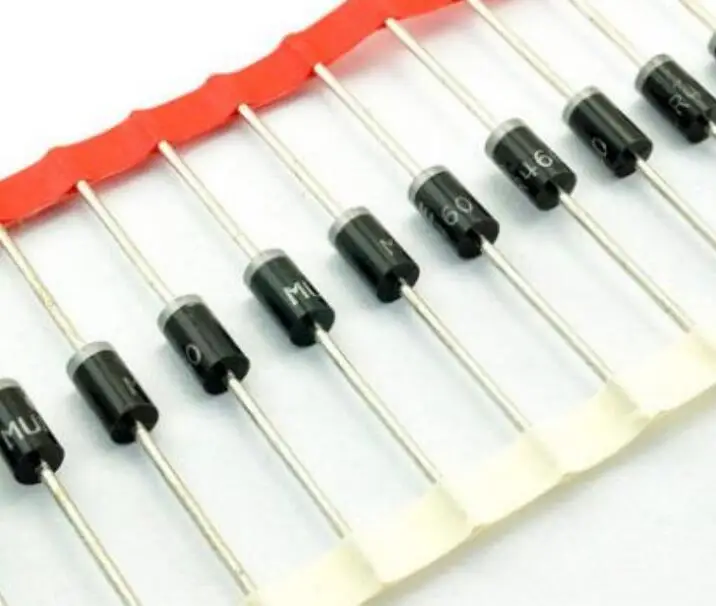

SMD выпрямительный диод 600V 4A DO-201AD 440 460 список MUR440 MUR460
0,01 $ - 0,03 $
Супер Бесшумный генератор 800/900/100/1100 kua кВт дизельный генератор цена фото
134 100,00 $

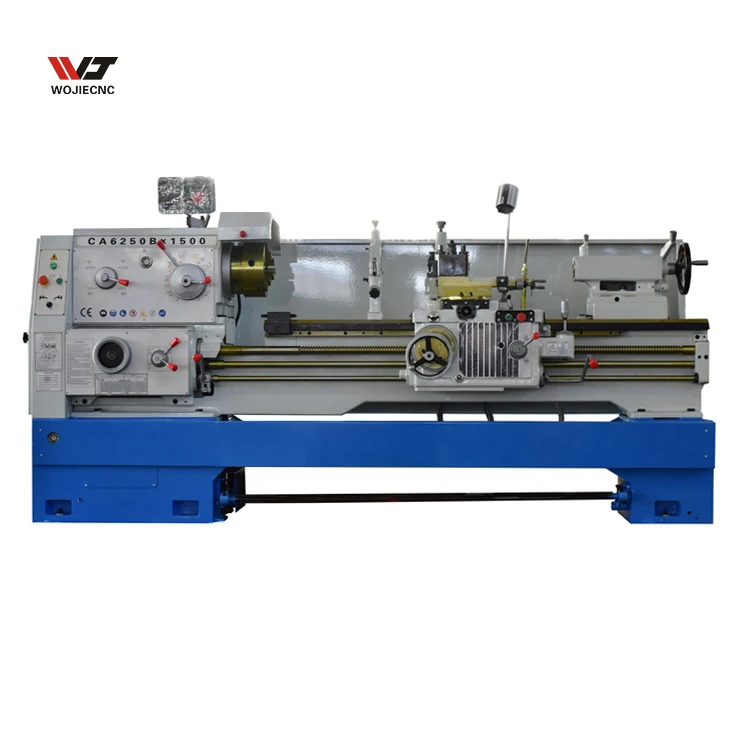

CA6250 горизонтальный токарный станок с поворотом над кроватью 400 мм зазор кровать
