Лидер продаж лидер параллельный двухшнековый экструдер серии TSSK машина для производства ПЭТ гранул
- Категория: >>>
- Поставщик: Zhangjiagang Kooen Machinery Co. Ltd.
Сохранить в закладки 1600443442102:
Описание и отзывы
Характеристики
TSSK Series Parallel Twin Screw Pelletizing Line PET flakes pelletizing line
TSSK Series Parallel Twin Screw Pelletizing Line Main Technical Parameter
Model | TSSK-50 | TSSK-65 | TSSK-75 | TSSK-92 |
Screw Dia (mm) | 50.5 | 62.4 | 71.2 | 91 |
Motor power (kw) | 37/45 | 55/75 | 90/110 | 220/250 |
L/D | 32-48 | 32-48 | 32-48 | 32-40 |
Output(kg/h) | 20-150 | 100-300 | 300-600 | 600-1000 |

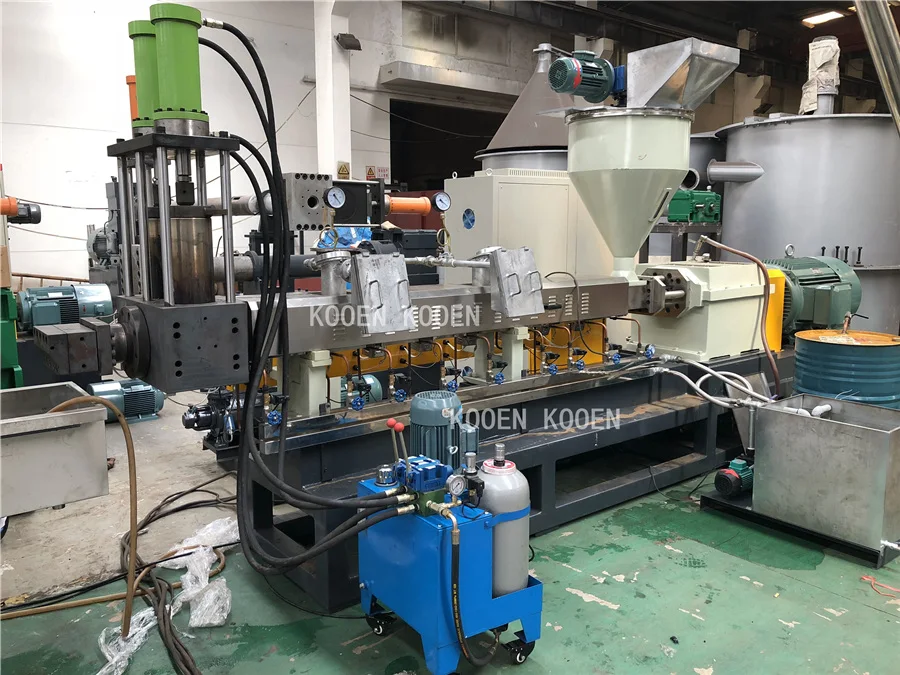

TSSK parallel twin screw extruder can directly convert thermoplastic filler, compounding, modified, degassing, stability of coloring and granulation equally. It is ideal machine for polymer industry; It is also used for PET flake pelletizing line.
Consist of:
Feeder → TSSK series Parallel twin screw extruder → Hydraulic screen changer →Cooling tank→ Air drying → Cutter
Main Components:
Screw charger
Feeding plastic materials
Main extruder
Screw diameter: 50/65/75/95 for option
Copper heater
Screw elements material: W6Mo5Cr4V2, through quench;
Screw core is material of 40CrNiMo
Copper heater
Screw elements material: W6Mo5Cr4V2, through quench;
Screw core is material of 40CrNiMo

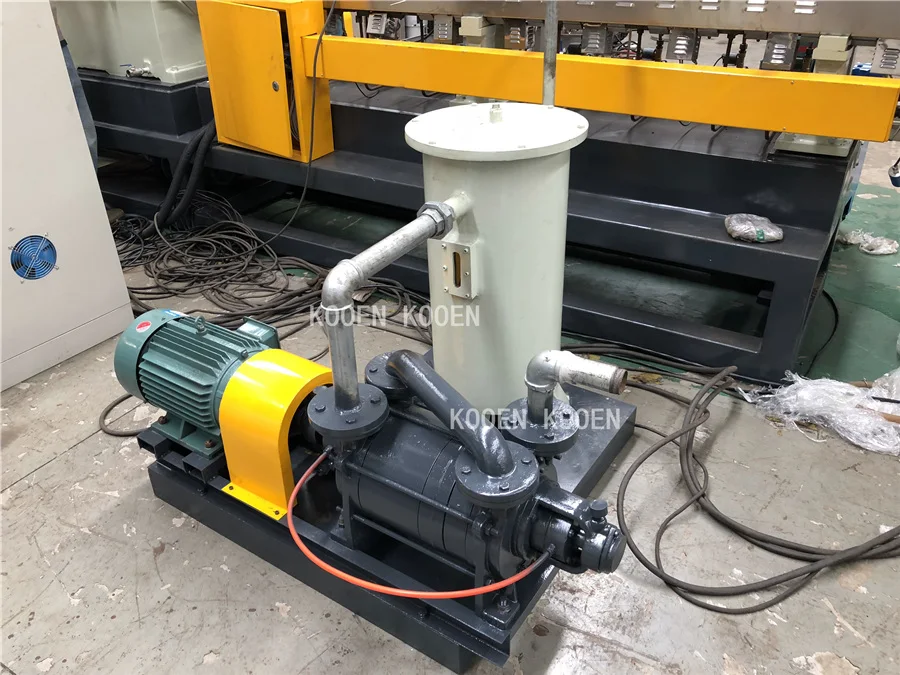

Double stage Vacuum system

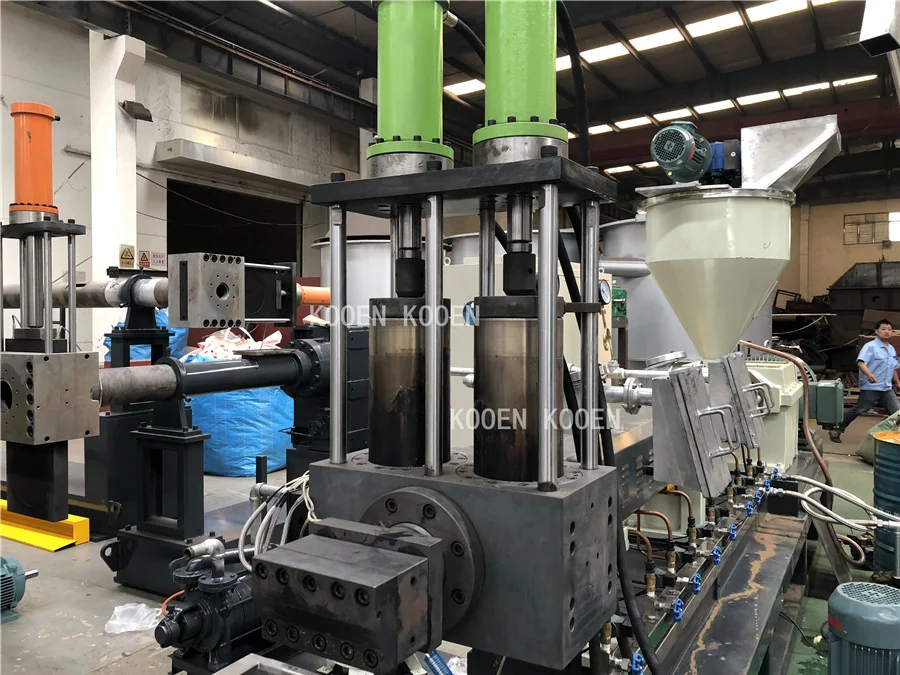

YH HYDRAULIC NET EXCHANGE
Non-stop change screen, time below 1 second
screen change and die head material is 40Cr, Equipped with Melt filter pump
screen change and die head material is 40Cr, Equipped with Melt filter pump
Water Tank
Length 5 meters,made of stainless steel,frame Q235

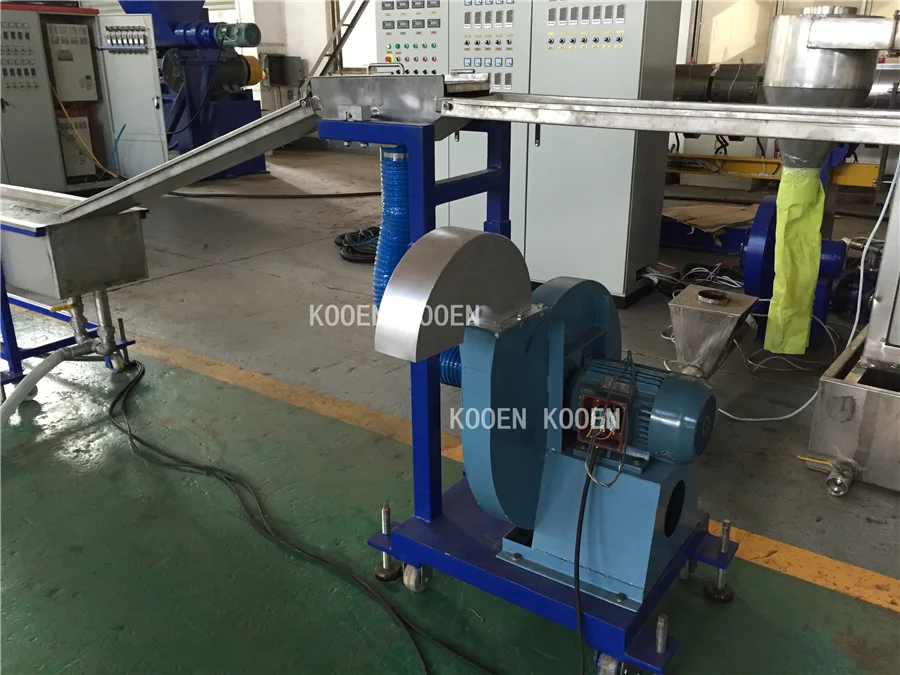

Wind Dryer
Cooling plastic strip

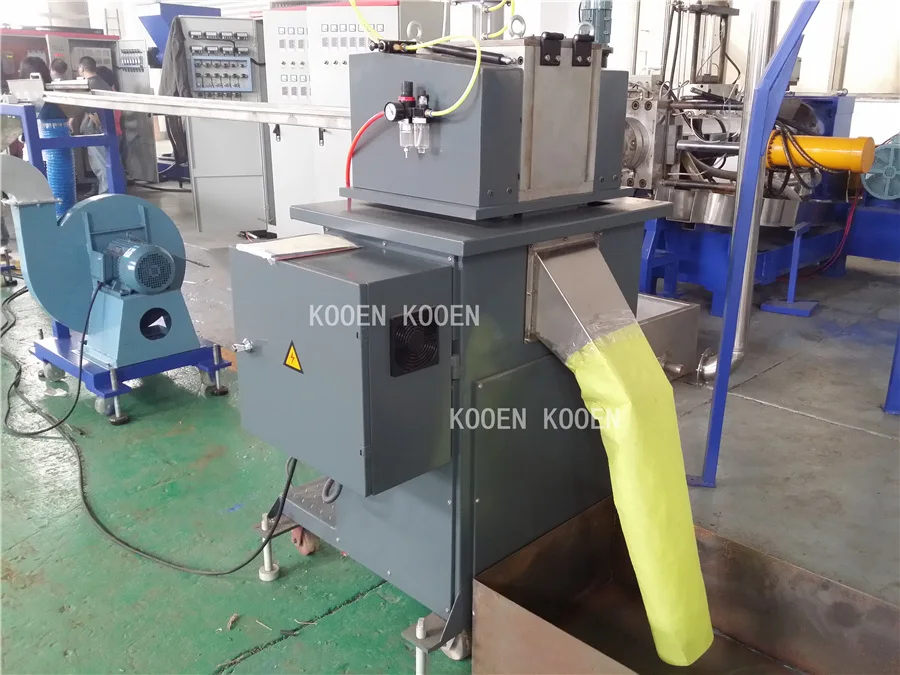

Cutter
Gantry-type cutter,high quality alloy blade
Speed adjustment:frequency control
Speed adjustment:frequency control
Control Cabinet
Word famous brand electric components
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
Advantages:
1. Our TSSK series parallel twin screw pelletizing machine has pull strip cutting, and water ring cutting method(include vertical water ring cutting and horizontal water ring cutting) for option.
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line- SKF bearing, Schneidercontactor, Japan Omron temperature controller, ABB or TECO invertor, Siemens motor, and Siemens PLC control.
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line- SKF bearing, Schneidercontactor, Japan Omron temperature controller, ABB or TECO invertor, Siemens motor, and Siemens PLC control.
4. The whole production line with CE certification, ISO9001 certification .
Our Service:
1. KOOEN will provide all the machines for the complete production according to customer's requirements.
2. KOOEN will provide complete service for factory layout and other information to help customer to build the factory.
3. KOOEN will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. Forlong-term cooperation, we always provide good quality, good price and good service to customer.
2. KOOEN will provide complete service for factory layout and other information to help customer to build the factory.
3. KOOEN will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. Forlong-term cooperation, we always provide good quality, good price and good service to customer.
PE/PP film washing line (with squeezer machine)
//www.kooenmachine.com/pe-pp-film-washing-line-2/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ (Video link)
PE/PP film washing line (with centrifugal dryer)
//www.kooenmachine.com/pe-pp-film-washing-line-2/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ (Video link)
HDPE, PP bottle(hard plastic) washing line
http://www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ (Video link)
PET bottle washing line
//www.kooenmachine.com/pet-bottle-washing-line/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ (Video link)
ZL series single stage compactor granulator
//www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ (Video link)
ZL series double stage compactor granulator
//www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ (Video link)
SJ series double stage granulator (water ring cutting)
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/
(Video link)
SJ series double stage granulator (pull strip cutting)
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/
(Video link)
Squeezer machine
//www.kooenmachine.com/squeezer-machine/ (Website link)
//www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/ (Video link)
Shredder machine
//www.kooenmachine.com/shredder-machine-crusher-machine/ (Website link)
//www.kooenmachine.com/shredder-machine-crusher-video/ (Video link)
KOOEN is a leading plastic recycling machinery manufacturer in China, dedicated to Series of waste plastic recycling machine with more than 20 years experience, our plastic recycling machinery with CE certificate which exported to more than 180 different countries...
If you want to see more information (videos) of our plastic recycling machine(plastic washing line, plastic pelletizing machine, squeezer machine, shredder/crusher, etc), please log on our website: www.kooenmachine.com
If you want to see more information (videos) of our plastic recycling machine(plastic washing line, plastic pelletizing machine, squeezer machine, shredder/crusher, etc), please log on our website: www.kooenmachine.com
Похожие товары
Хорошее качество, легкий водонепроницаемый детский рюкзак, новые модели, дизайнерские школьные ранцы для детей
5,10 $ - 5,80 $
Бейсбольная кепка Aibort из ПВХ с 5 резиновыми панелями, водонепроницаемая бейсбольная кепка с просверленным отверстием и изогнутым козырьком

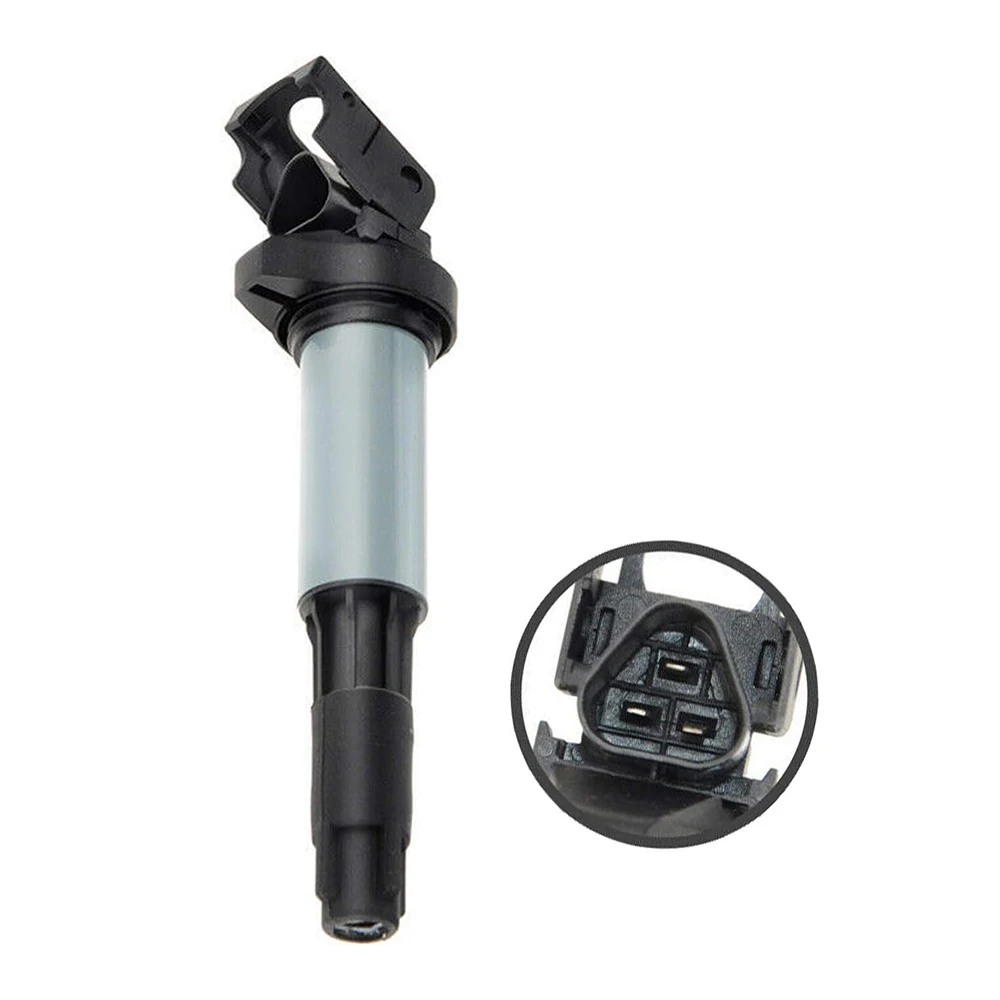

Заводская мини-Катушка N13 8616153 зажигания, 7594596 7562744 V757164380 V7562744 для катушки зажигания PEUGEOT, медная катушка зажигания
6,50 $ - 10,00 $

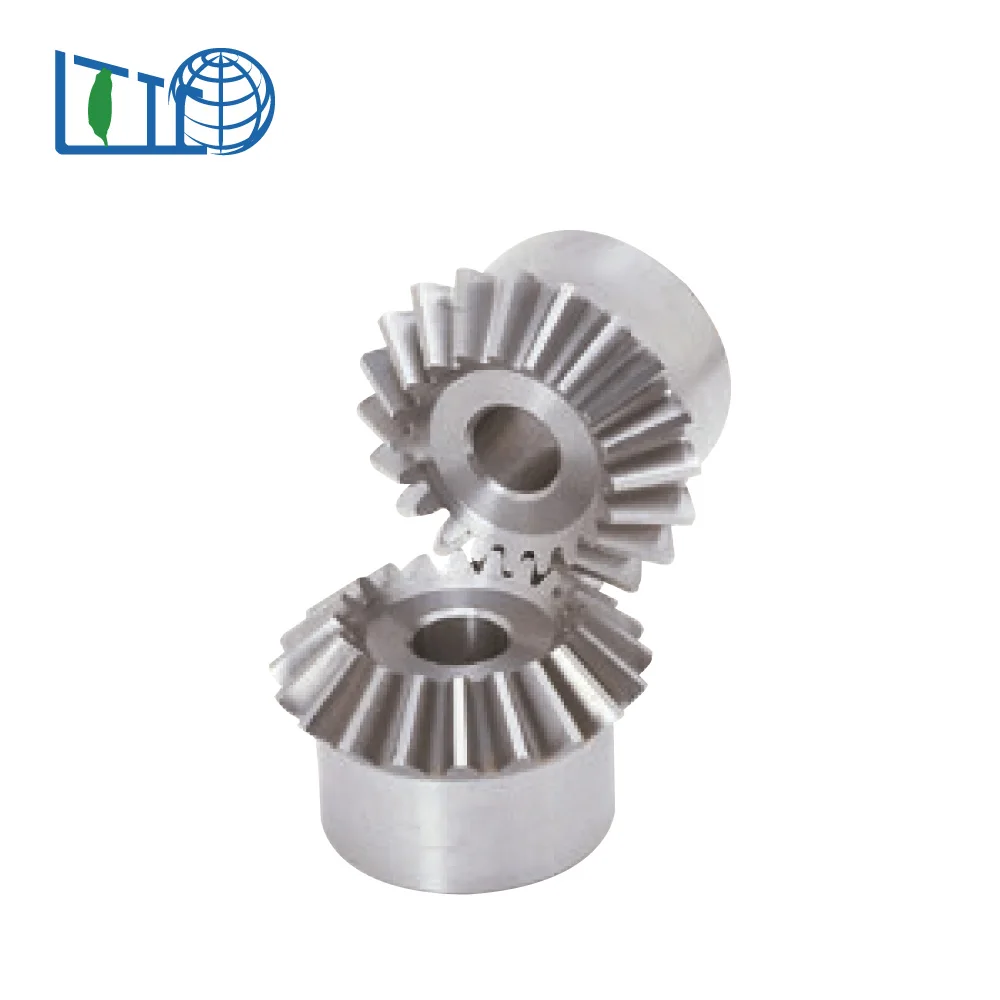

KHK SUS303 зубчатая шестерня из нержавеющей стали серии

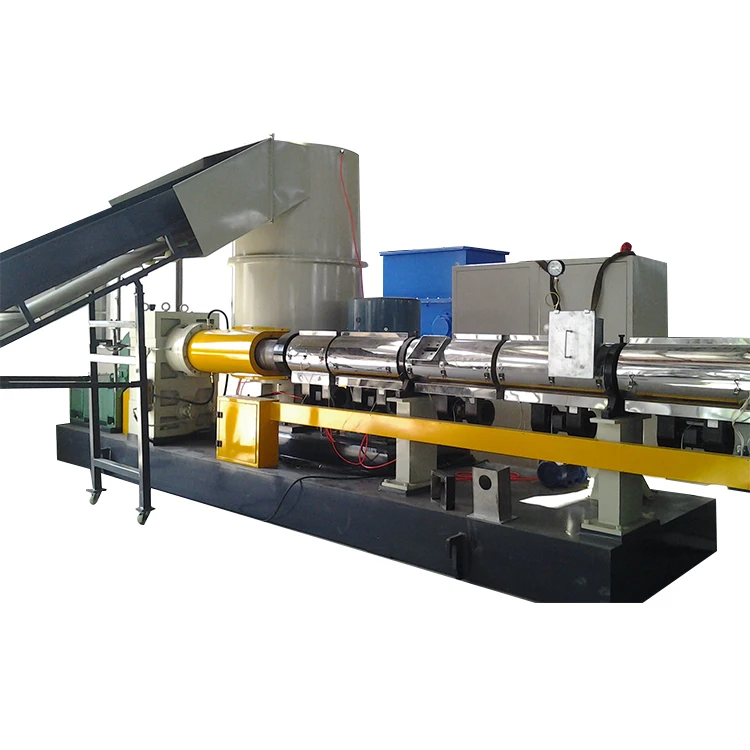

Высокая производительность ПП ПЭ пленка Двухступенчатая пластиковая грануляционная производственная линия

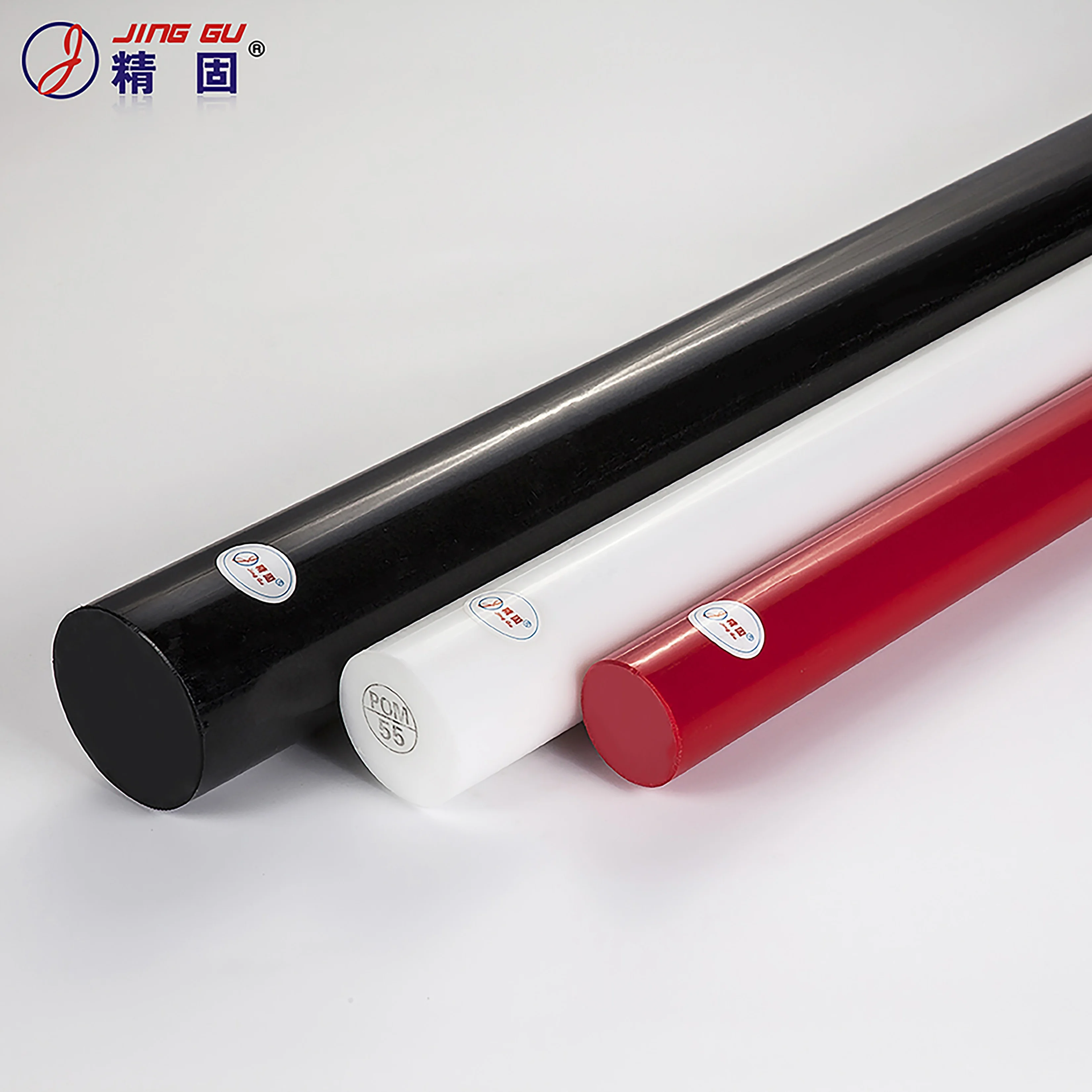

Пластиковый инженерный планка POM 70 мм x 1000 мм
