Термопара с разъемом типа B K S сенсор температуры
- Категория: >>>
- Поставщик: Yancheng Baojun Stainless Steel Products Co. Ltd.
Сохранить в закладки 1600444565620:
Описание и отзывы
Характеристики
Products Description
Kindly Note:Temperature sensor is highly customized items, different customers need different specs, please contact us for more information.
Thermocouple
Thermocouple is a commonly used temperature measuring element in temperature measuring instruments. It directly measures the temperature, converts the temperature signal into thermoelectric EMF signal, and converts it into the temperature of the measured medium through electrical instruments (secondary instruments). The shapes of various thermocouples are often very different due to needs, but their basic structures are roughly the same. They are usually composed of main parts such as thermal electrode, insulating sleeve, protective tube and junction box. They are usually used together with display instrument, recording instrument and electronic regulator.

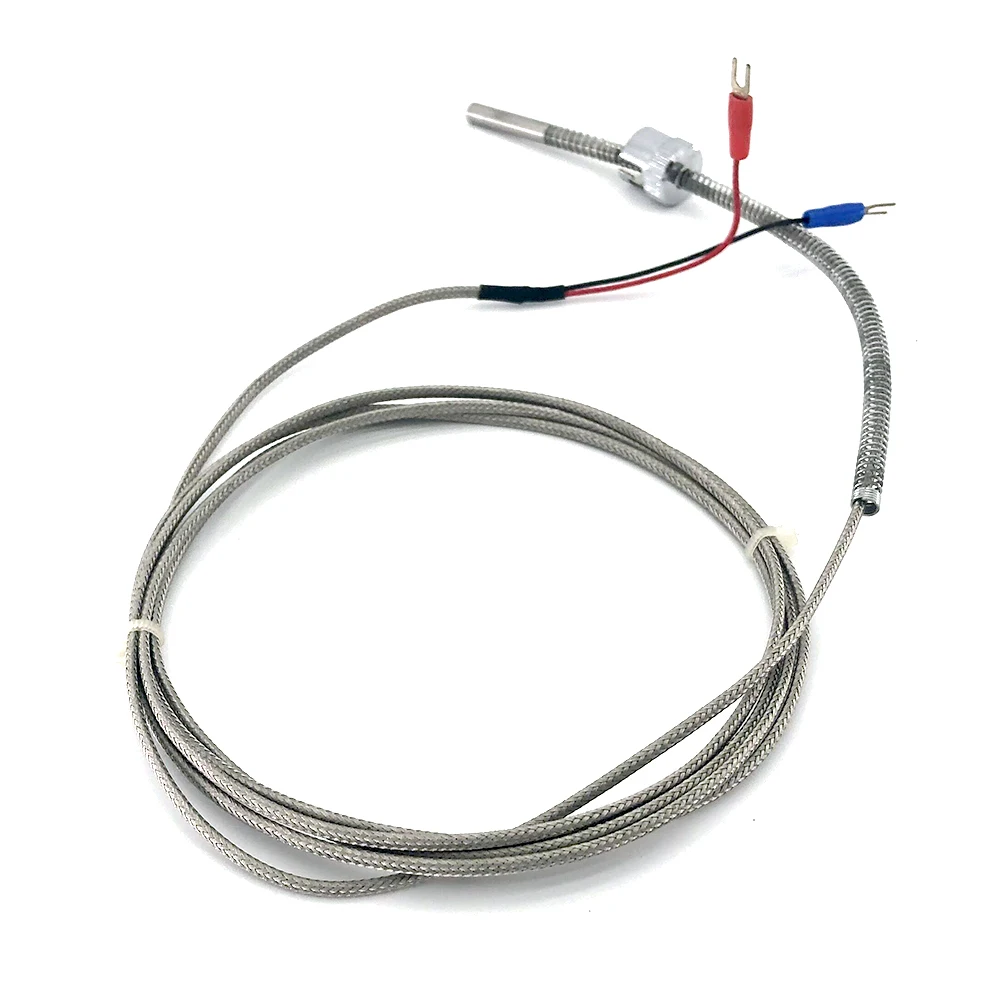

Products Images
In the process of industrial production, temperature is one of the important parameters that need to be measured and controlled. In temperature measurement, thermocouple is widely used. It has many advantages, such as simple structure, convenient manufacture, wide measurement range, high precision, small inertia and convenient remote transmission of output signal. In addition, as thermocouple is a passive sensor, it does not need external power supply and is very convenient to use, so it is often used to measure the temperature of gas or liquid in furnace and pipeline and the surface temperature of solid.

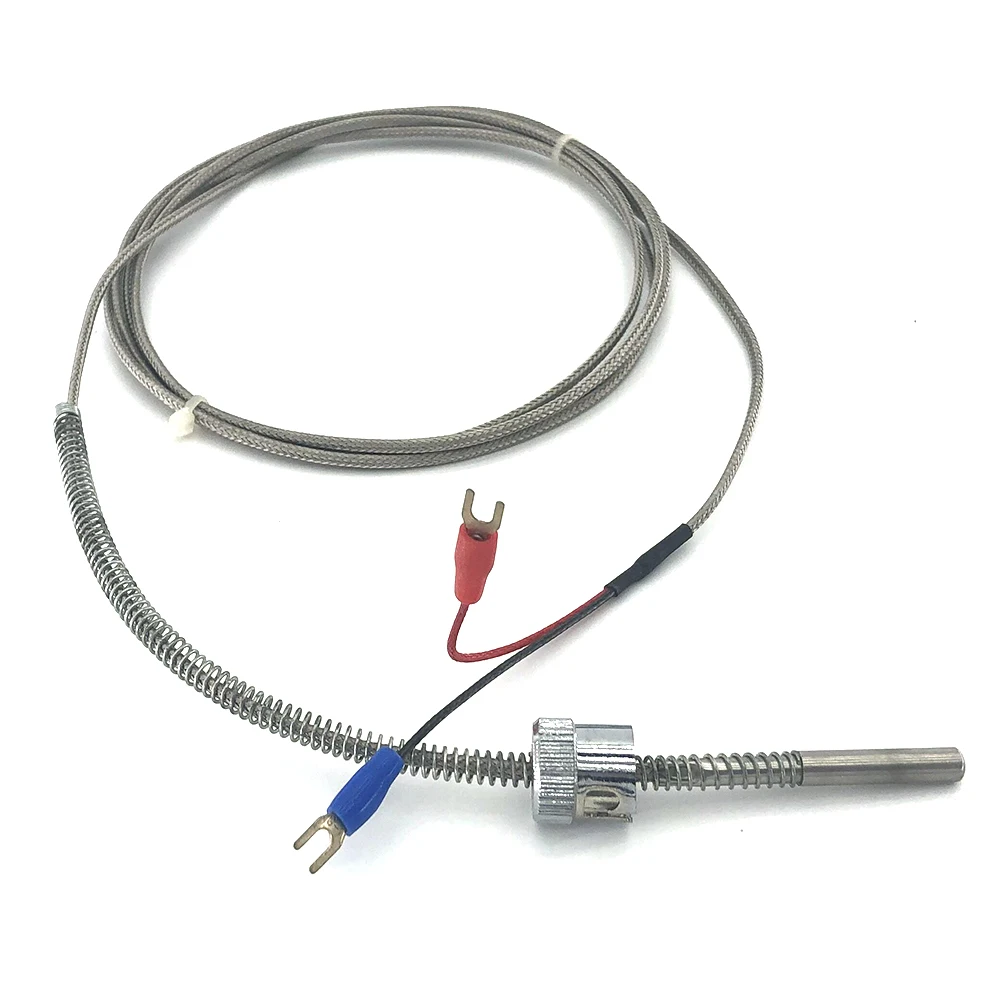

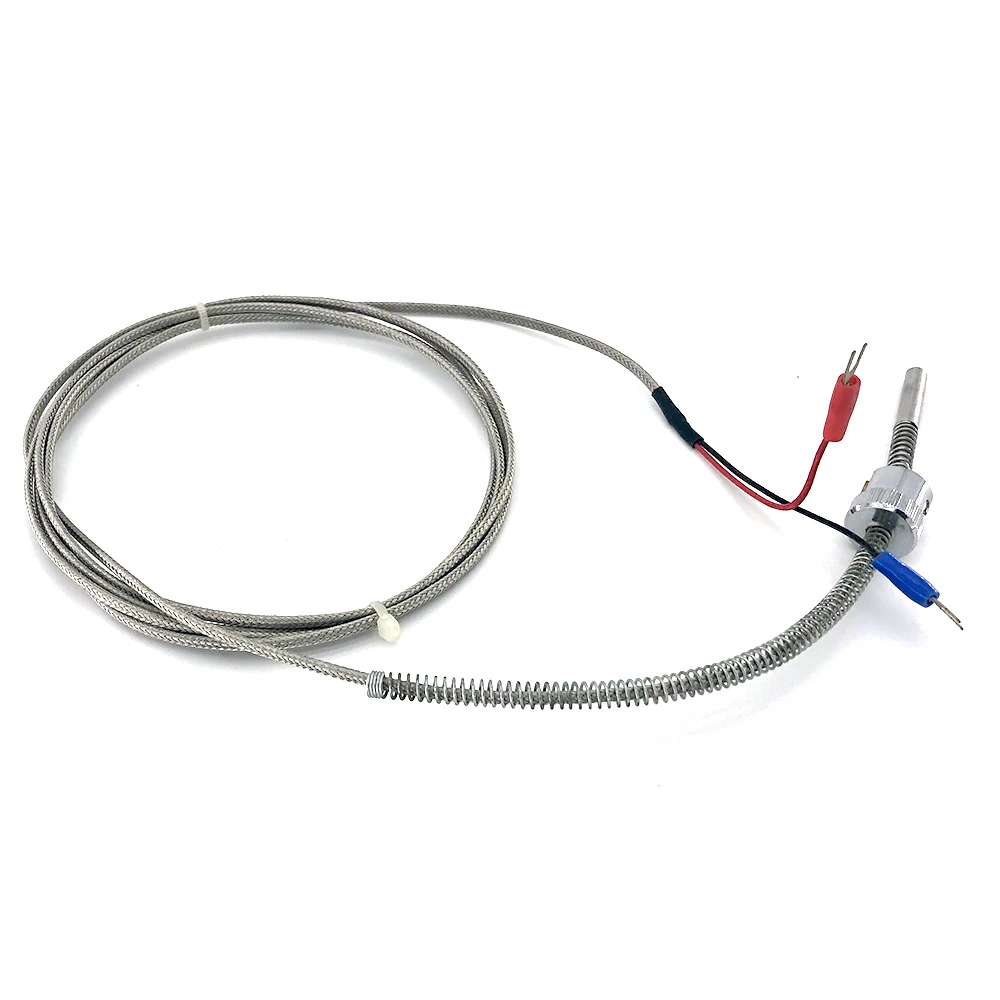

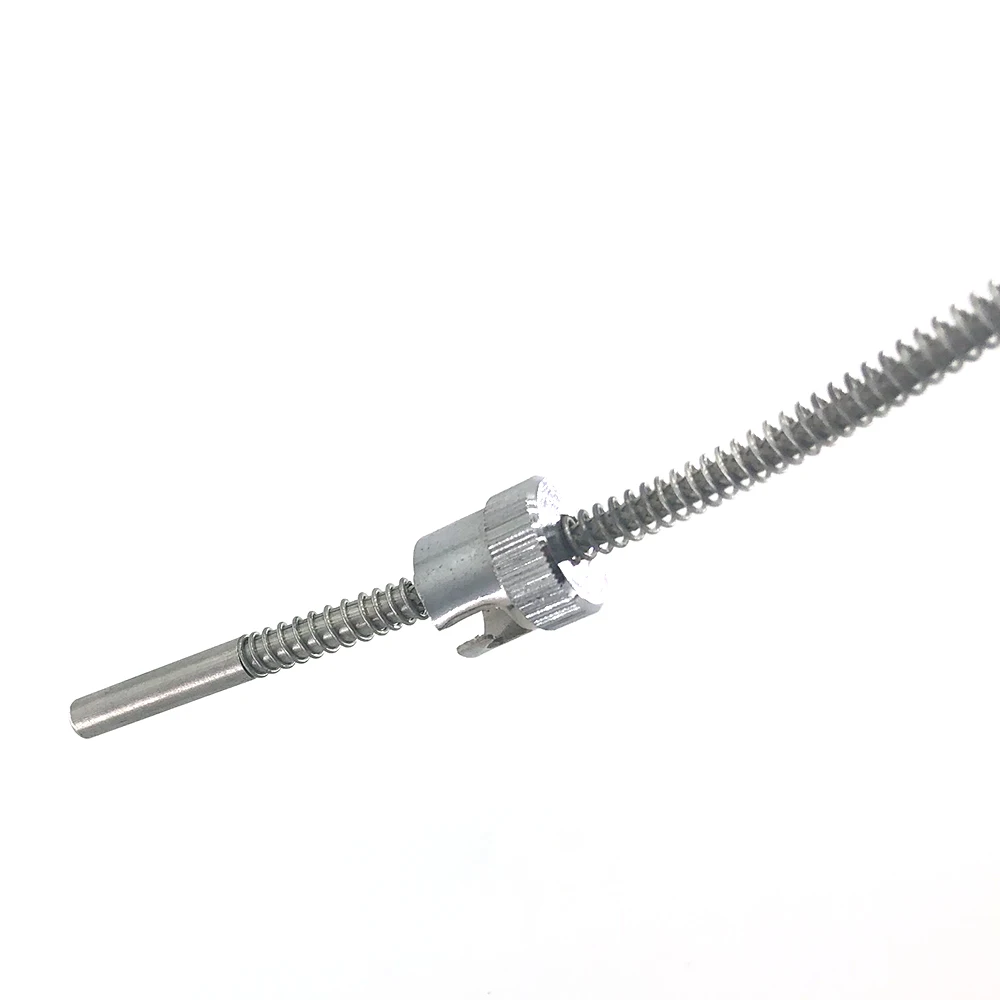

Details Images
Technical Data
Product | CONDUCTOR MATERIAL | TYPE | GRADUATION | USE TEMPERATURE (SHORT TIME) | USE TEMPERATURE |
THERMOCOUPLE | PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C |
PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | |
PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | |
NiCrSi-NiSi | WRM | N | 0-1000°C | 0-1000°C | |
NiCr-NiAl(Si) | WRN | K | 0-1200°C | 0-900°C | |
NrCr-constantan | WRE | E | 0-700°C | 0-600°C | |
Iron- Constantan | WRF | J | 0-600°C | 0-500°C | |
Copper-Constantan | WRC | T | 0-400°C | 0-350°C | |
THERMAL RESISTANCE | Copper heat | CU50 | -50-150°C | ||
CU100 | -50-150°C | ||||
PT100 | -200-600°C |
Main applications:
Applications of thermocouple:
• Thermocouple used in Food processing equipment
• Thermocouple used in De-icing
• Thermocouple used in Plating baths
• Thermocouple used in Industrial processing
• Thermocouple used in Medical equipment
• Thermocouple used in Pipe tracing control
• Thermocouple used in Industrial heat treating
• Thermocouple used in Packaging equipment
• Thermocouple used in Liquid temperature measurement
• Thermocouple used in Refrigerator temperature control
• Thermocouple used in Oven temperature control
• Thermocouple used in Food processing equipment
• Thermocouple used in De-icing
• Thermocouple used in Plating baths
• Thermocouple used in Industrial processing
• Thermocouple used in Medical equipment
• Thermocouple used in Pipe tracing control
• Thermocouple used in Industrial heat treating
• Thermocouple used in Packaging equipment
• Thermocouple used in Liquid temperature measurement
• Thermocouple used in Refrigerator temperature control
• Thermocouple used in Oven temperature control
L shape temperature sensor handheld surface thermocouple
high temperature K/J/T/E/R/N K type temperature sensor thermocouple PT100
K J Type Thermocouple Rtd Temperature Transmitter 4-20mA Output
Certifications
Company Profile
Baojun was founded in 2001,formerly known as the trade of electric heating and instrumentation, the group's total assets are RMB120 million, with 360 employees. In 2010, we had our own factory building and 5A office production environment, From trade mangement to self-built factory, office building production and sales of explosion-proof heater ,air duct heater,pipeline heater, drying oven, gas mould temperature machine, electromagnetic thermal oil furnace, thermal oil furnace and all kinds of heating elements.From embarrassingly short of money to group mangement model, at present, we integrated research, development, production
and sales the products are exported to 12 countries in the world,Mainly Europe and America with strong product independent research and development capabilities and technological innovation. The work has obtained the explosion proof authentication,many patents authentication, the quality system authentication.
and sales the products are exported to 12 countries in the world,Mainly Europe and America with strong product independent research and development capabilities and technological innovation. The work has obtained the explosion proof authentication,many patents authentication, the quality system authentication.
Contact us
Похожие товары
Springletile, индивидуальный цветочный узор, итальянская керамическая дизайнерская художественная Золотая инкрустация, декоративная Роскошная плитка для ванной комнаты, стены
81,00 $ - 90,00 $

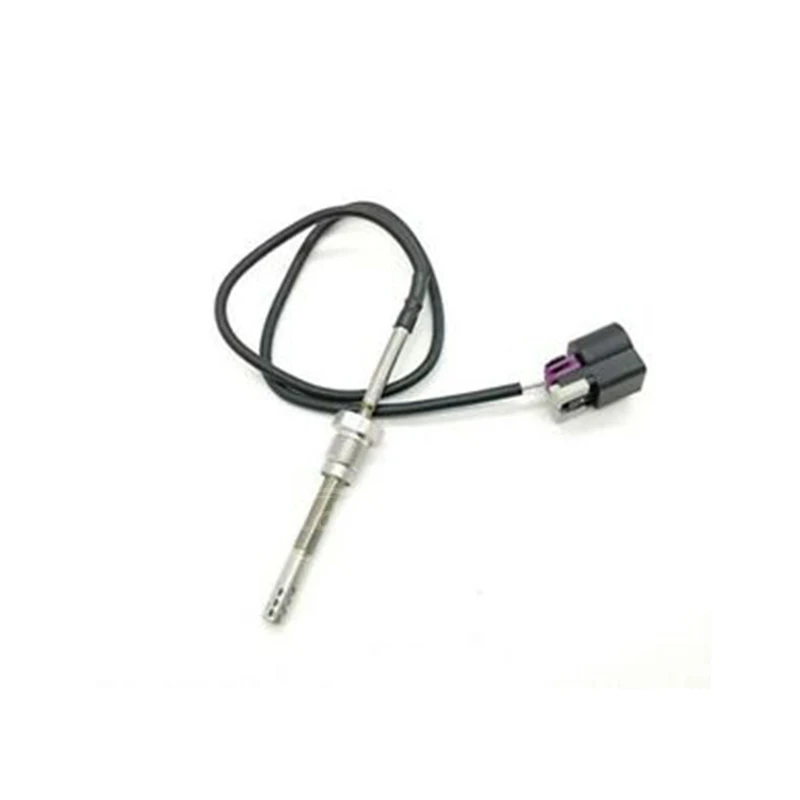

Датчик температуры выхлопных газов EGT для Audi A3 VW Jetta Beetle Golf 2.0L
