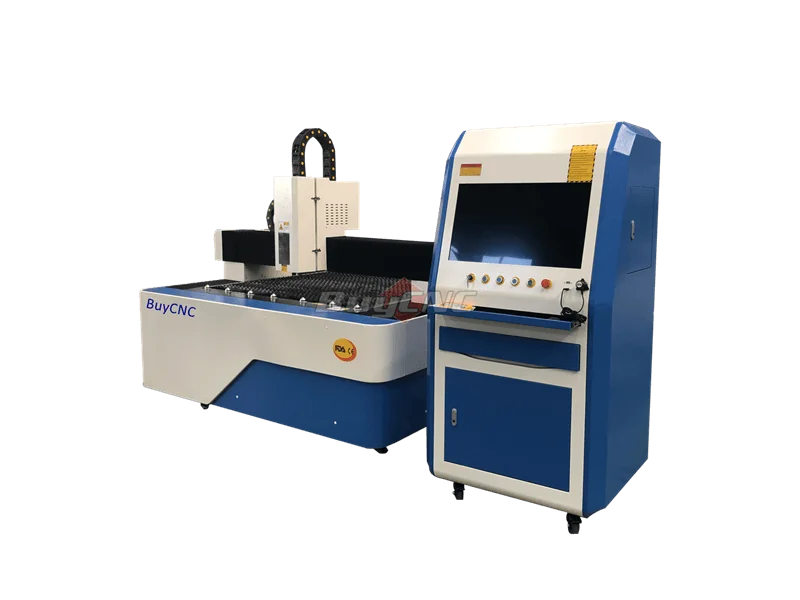

Полностью закрытый волоконно-лазерный станок для резки 4020 закрытый лазерный станок для резки, резак, обменный стол, волоконно-лазерный станок для резки
813 269,25 ₽ - 1 626 430,07 ₽
Готов к отправке! Микро Лазерная струйная режущая машина для лазерной резки труб
- Категория: >>>
- Поставщик: Alpha Cnc Co. Ltd.
Сохранить в закладки 1600447200717:
Описание и отзывы
Характеристики
Product Description
2000w 3000w Fiber Laser Cutting Machine Metal Laser Cutting Machine
This fiber laser cutting machine is designed for the medium thickness metal sheet cutting,it even can cut the 18mm thickenss metal sheet easily.The metal laser cutting machine has two power options, one is 2000w and the other is 3000w.You can choose the suitable machine.And We can provide more information about the fiber laser cutter 2000w or 3000w.Please contact us quickly.
Fiber Laser Cutting Machine For Sale
Do you want to have a fiber laser cutting machine that can perfectly process thick metal sheets, the high-power metal laser cutting machine developed by BuyCNC can meet your needs.This fiber laser 2000w machine is designed for cutting medium thickness metal sheet, it can process 18mm thickness metal sheet perfectly.The main parts of this fiber laser cutting machine are famous brands, such as the Japanese Yaskawa drive motor, the Taiwanese TBI ball screw on the Z axis and the Swissland Raytools laser head, etc. so this machine is highly efficient , High cutting precision.If you are interested in this fiber laser cutter machine,please leave your contact information
High Power And Deep Processing Thickness Of Fiber Laser Cutter 2000w
This metal laser cutting machine has two power options, they are 2000w and 3000w laser cutting machine. And this fiber laser cutting machine is designed for cutting medium thickness metal sheet, the cut thickness of this machine can up to 18mm.
Safety Protection Device (Protect Plate And Water Chiller)
Because this fiber laser cutting machine is a 3kw laser ctting machine,so we need to place the additional protecting plate on the brackets of the bed to protect the bed from high-power laser cutting .When the protecting plates shield is cut by the high power laser,it can be replaced at any time.Meanwhile,we also install the water chiller to reduce the temperature of the laser generator and prevent the laser from being burned out,We only use brand-name water coolers with reliable quality.
Big Independ Control Cabinet And Electrical Components Control Cabinet
In order to make this fiber laser cutting machine run more smoothly, we installed the control panel, driver and other low-voltage components in a large independent control cabinet, which has a lot of space to help place and dissipate electrical components. Moreover , It can prevent interference to the greatest extent and improve machine production efficiency. All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.
This metal laser cutting machine has two power options, they are 2000w and 3000w laser cutting machine. And this fiber laser cutting machine is designed for cutting medium thickness metal sheet, the cut thickness of this machine can up to 18mm.
Safety Protection Device (Protect Plate And Water Chiller)
Because this fiber laser cutting machine is a 3kw laser ctting machine,so we need to place the additional protecting plate on the brackets of the bed to protect the bed from high-power laser cutting .When the protecting plates shield is cut by the high power laser,it can be replaced at any time.Meanwhile,we also install the water chiller to reduce the temperature of the laser generator and prevent the laser from being burned out,We only use brand-name water coolers with reliable quality.
Big Independ Control Cabinet And Electrical Components Control Cabinet
In order to make this fiber laser cutting machine run more smoothly, we installed the control panel, driver and other low-voltage components in a large independent control cabinet, which has a lot of space to help place and dissipate electrical components. Moreover , It can prevent interference to the greatest extent and improve machine production efficiency. All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.

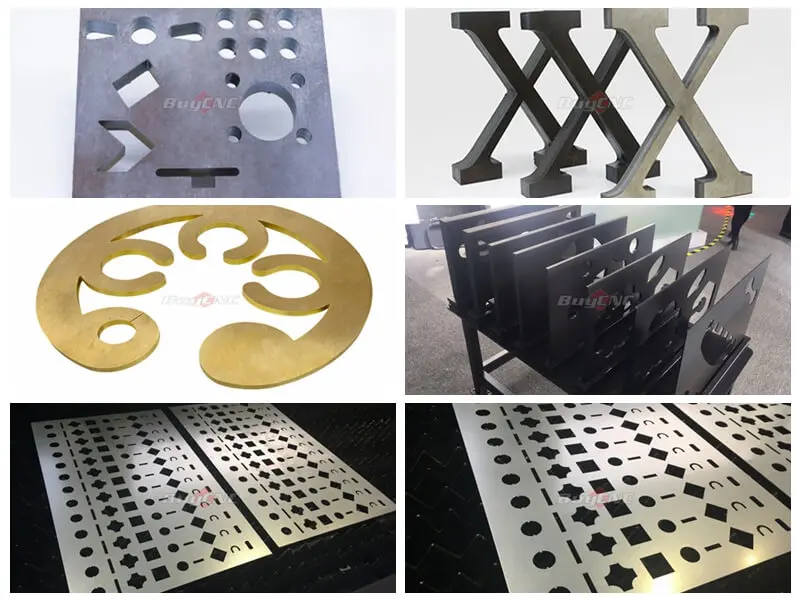

Application In Widely Industries For Laser Sheet Metal Cutters
Laser cut sheet metal Application Industry | Advertising Industry | ||
Metal Industry | |||
Sign Industry | |||
kitchen Ware Industry | |||
Cabinet Industry | |||
Craft Industry | |||
Many Other Industry | |||
Material that can be cut by laser metal cutter | Stainless steel | Mild steel | |
Iron | Carbon steel | ||
Bronze | Copper | ||
Aluminum | Other | ||
Fiber Laser Cutting Machine Technical Parameters
Descriptions | Laser Cut Sheet Metal Parameters |
Model | ATF-3015-F-LV |
Working Area | 3000*1500mm |
X axis working area | 3,000mm |
Y axis working area | 1,500mm |
Laser Power | 2kw/3kw for option |
Repeatability positioning accuracy | ±0.02mm |
Positioning accuracy | ±0.03mm |
XY Axis Maximum Acceleration | 0.5-1g |
XY Axis Max. speed | 80m/min |
Working Table | Serrate working platform |
XY Axis Transmission system | German helical rack and pinion |
Z axis Transmission system | Taiwan TBI ballscrew |
Cooling System | Industry water chiller |
Power Supply Rated Voltage | 3-phase 380V/50Hz or Custom made |
Machine Weight | 4,000KG |
Dimension | 2250*4500*2100mm |
Main Parts of Laser Cutting Machine
Raycus Laser Generation
The multi-module continuous fiber laser series developed by Raycus Laser covers products between 1500W and 20kW. It has high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, high reliability, long life and maintenance-free operation. And so on, can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its fiber output features make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of 3D machining.
Protection Plate
Because this fiber laser sheet cutting machine is a 3kw laser cutting machine,so we need to place the additional protecting plate on the brackets of the bed to protect the bed from high-power laser cutting .When the protecting plates shield is cut by the high power laser,it can be replaced at any time.
Cypcut Controller

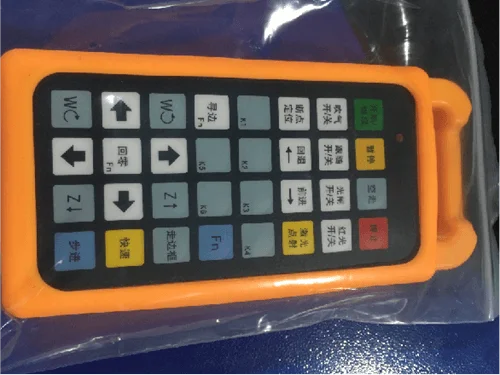

The cypcut controller as a famous controller, it supports multiple functions.Such as,It supports capacitor patrol edge, photoelectric, electric focusing, double table, automatic cutting tube cutting, power-off memory and other advanced functions and supports three levels of perforation, segmentation or progressive combination.Advanced technology such as cooling point, sharp corner cutting, release angle, etc.Moreover,The cpycut controller is a Open-loop control system and it uses the CypCut third generation motion control algorithm. The detailed data is as follows:Trajectory accuracy 0.03mm, positioning accuracy 0.001mm, repeat positioning accuracy 0.003mm,Maximum cutting speed 50m/min, maximum movement speed 150m/min,Maximum acceleration 1.5G and it Supports dual drive error detection.
Big Independent Control Cabinet
This is a big independ control cabinet. In order to make this fiber laser cutting aluminum sheet machine run more smoothly, we installed the control panel, driver and other low voltage components into this independent control cabinet. It has a lot of space to help place and Dissipative electrical components. Moreover, it can prevent interference to the greatest extent and improve machine production efficiency.

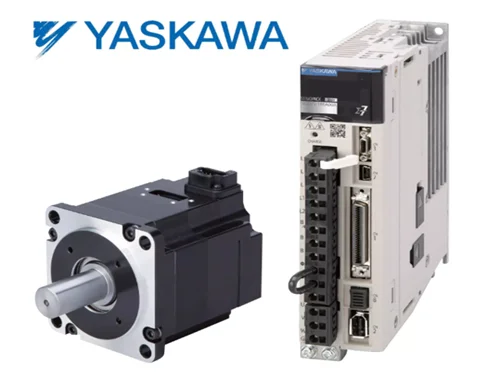

Japan Yaskawa Servo Motors
The drive motor of this sheet metal cutting machine is Japan yaskawa servo motor,it is a famous servo motor brand.The Yaskawa servo motor is installed on XYZ axis.The big powerful servo motor on Y axis, makes the machine cutting at high speed, the Max. speed can be 80m/min. Moreover the yaskawa servo motor has stable operation, low failure rate and other advantages

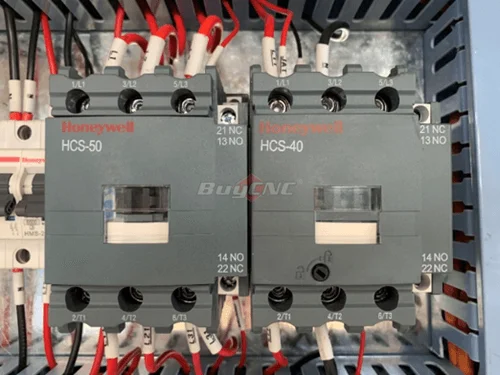

America HoneyWell Plug
The plug of our fiber laser sheet cutting machine is American Honeywell Brand,It is a world famous plug.Compared with the other brand plugs,the honeywell plug has the degaussing function,and it can effectively prevent electromagnetic interference between wires and reduce errors happened.
Heavy Duty Steel Frame
Electrical Control Cabinet
France Schneider Low Voltage Electrical Parts
Automatic Lubrication System
Automatic Lubrication System
Add Your Heading Text Here
Protective Blocks
Water Chiller
Add Your Heading Text Here

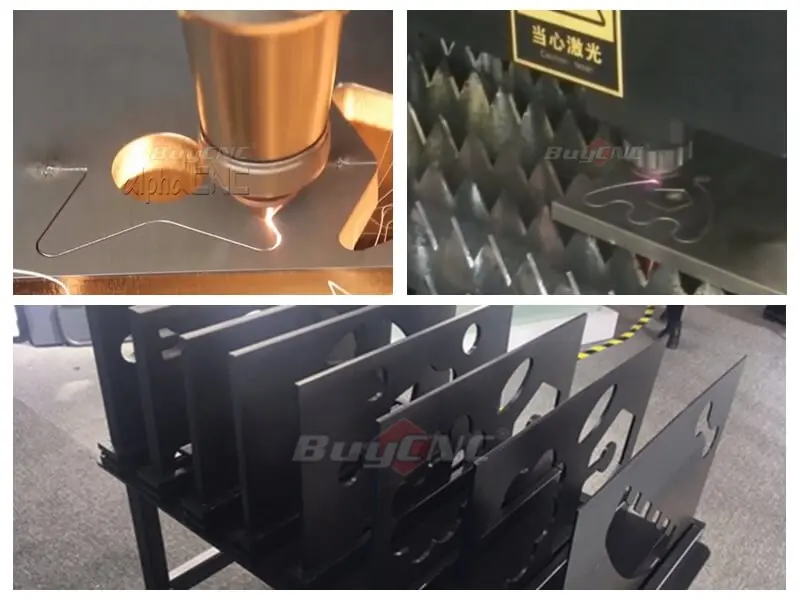

Projects of Cheap Sheet Metal Cutting Machine

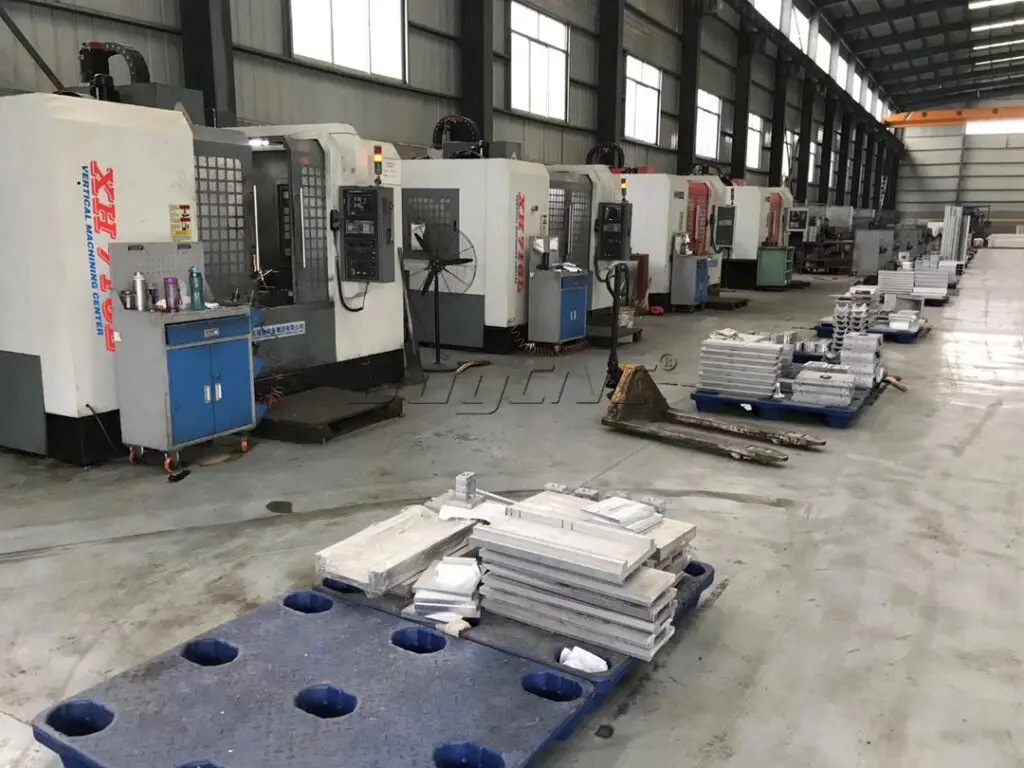

Strong Factory Strength

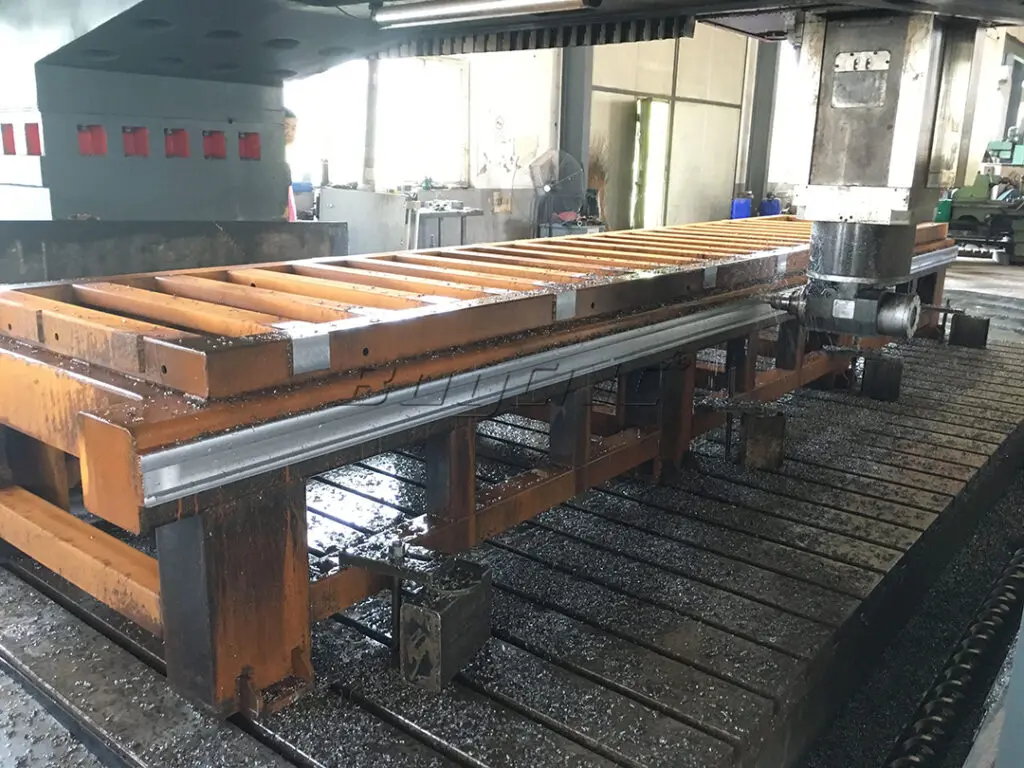

BuyCNC is with advanced and powerful machining capability. We have high precision 5 axis CNC Machining center to process the machine frame. The top milling, side milling, and side drilling will be finished in the same machining center by one clamping, which ensure our laser fiber machines are with higher precision. Not only the machine frames but also the small machining parts are machined by ATC CNC Center too.

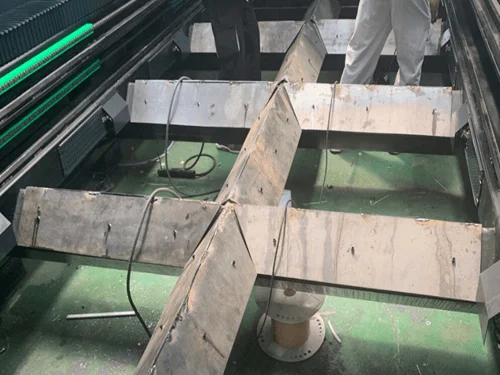

High Precision Installation for Cheap Laser Cutter
During the installation of key components such as guide rails and racks, a dial indicator is used to check the installation accuracy to ensure the high precision of the Cheap Laser fiber machine.
Our Services
Packing For Cheap Laser Cutter
Step 1: PVC film packing, which can ensure that the Laser Fiber Machine is completely covered, avoiding water and rust.
Step 2: Wooden box packing, with a fixed template on the outermost layer.
Step 3: All of the packing are inspected carefully by QC before delivery.
Step 2: Wooden box packing, with a fixed template on the outermost layer.
Step 3: All of the packing are inspected carefully by QC before delivery.
Pro-Sale Service Of Cheap Sheet Metal Cutting Machine
Free sample testing service: you can send us the CAD file of the sample you want to cut, we will cut it at the factory and send the cutting video to you, or we can mail the sample to you.
Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
Inquiries and consulting services for all fiber laser cutting machine.
Personalized customized solutions: In order to meet your needs of cutting quality and efficiency, we can design unique solutions according to your requirements.
Inquiries and consulting services for all fiber laser cutting machine.
After-Sale Service Of Fiber Laser Cutting Machine
The warranty period is 2 years for the Cheap Laser Cutter.
When you need to replace the wearing parts of cheap laser machine, we will provide them at the agent price.
If there are any problems during the warranty period, we will replace the main parts free of charge.
The Fiber Laser cutting machine software provides free lifetime update service.
24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
We provide English training videos and user manuals for laser fiber machine installation and operation, etc. We can also provide technical guidance remotely.
Free training at the BuyCNC factory.
The engineer can repair the laser sheet metal cutting overseas.
When you need to replace the wearing parts of cheap laser machine, we will provide them at the agent price.
If there are any problems during the warranty period, we will replace the main parts free of charge.
The Fiber Laser cutting machine software provides free lifetime update service.
24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.)
We provide English training videos and user manuals for laser fiber machine installation and operation, etc. We can also provide technical guidance remotely.
Free training at the BuyCNC factory.
The engineer can repair the laser sheet metal cutting overseas.
All of the cheap laser cutter can be shipped worldwide. You can choose shipping by sea, by train, by truck, by air or by international express and DHL, FEDEX, UPS, etc. Click the button below to submit your information, we will provide you with professional service. Welcome!
Our Company
Alpha CNC Co., Ltd. is a high-tech enterprise with R&D, Producing, Sales and After-Sales Service for various industrial laser equipment involving fiber laser cutting machine , fiber laser marking machine, etc. At present, we have been researching in the laser equipment industry for many years. We have exported our fiber laser cutting machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
All of Alpha CNC Laser Equipments has passed ISO9001:2008 Certificate, EURO CE Certificate, USA Certificate and SGS Inspection Certificate and meets various industry standard. We have a professional after sales team to offer machine installation, debugging and comprehensive technical supports. we have also provide customized solutions to meet the needs of different customers.
All of Alpha CNC Laser Equipments has passed ISO9001:2008 Certificate, EURO CE Certificate, USA Certificate and SGS Inspection Certificate and meets various industry standard. We have a professional after sales team to offer machine installation, debugging and comprehensive technical supports. we have also provide customized solutions to meet the needs of different customers.
In the future, we will continue to invest a lot of money to support the development of fiber laser cutting machines. We treat every customer sincerely and we hope our agent and distributor all over the world! Welcome to join us!
