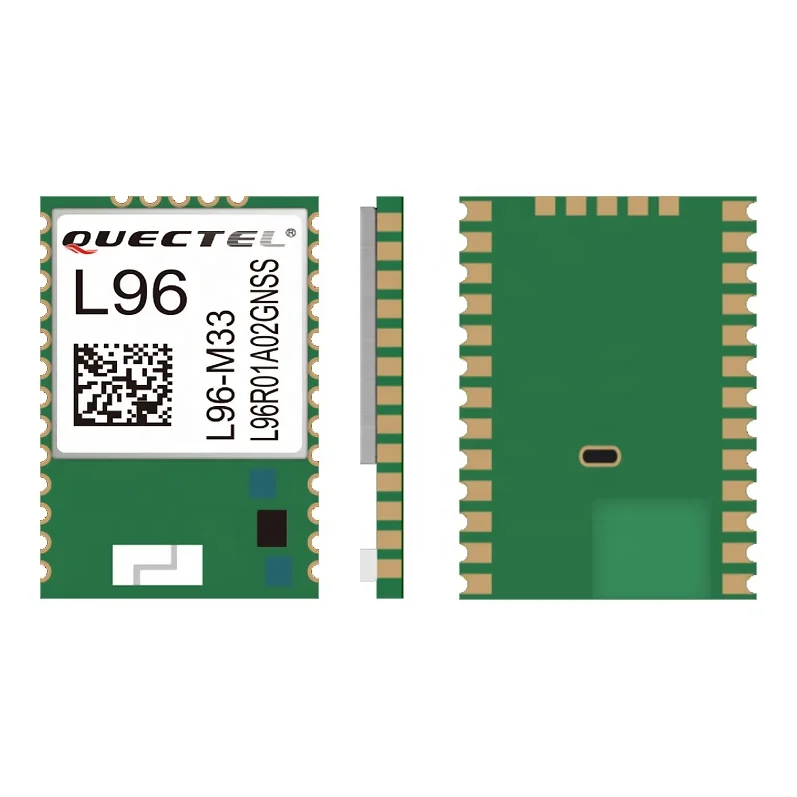

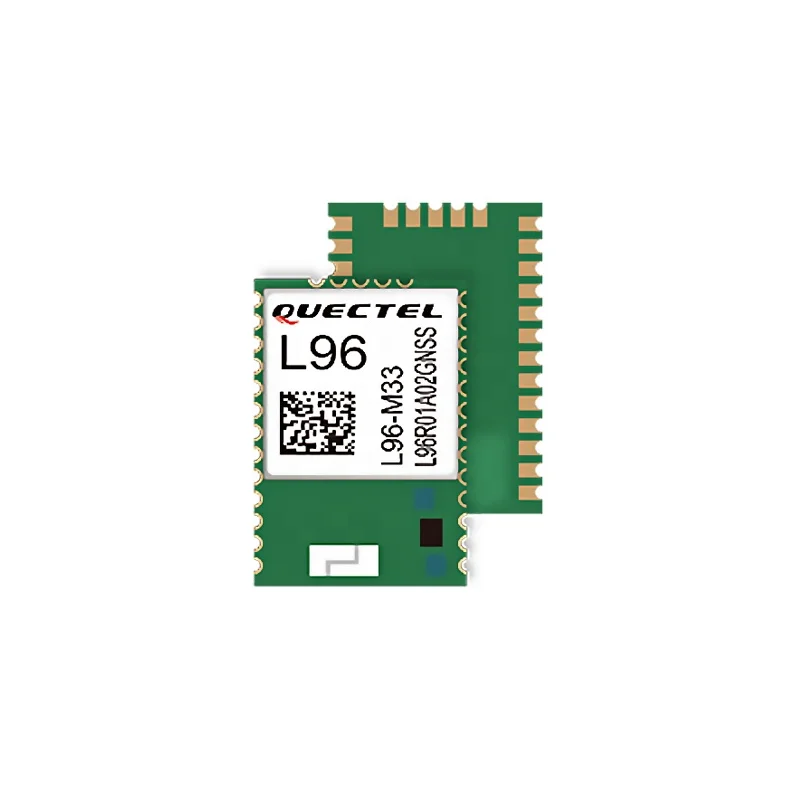

Чрезвычайно компактный GNSS модуль Quectel L96 с чиповой антенной Gps модуль
- Категория: >>>
- Поставщик: Suzhou Tianhoo Communication Technology Co. Ltd.
Сохранить в закладки 1600449297235:
Описание и отзывы
Характеристики
Product Description
Product Introduction
L96 is a concurrent multi-GNSS receiver module with embedded chip antenna. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, L96 supports concurrent reception of up to three GNSS systems (GPS+GLONASS+Galileo). The built-in LNA provides the module with better performance under weak signal areas. The embedded chip antenna reduces the total size of customers’applications. To meet varied application demands, L96 also provides an external antenna interface.
Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, especially when driving in rough urban environments.
Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L96 fully meets the industrial standard and provides greatly reduced TTFF and ultra-low power consumption. EASY™ technology allows L96 to calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal flash memory, so the module can fix position quickly even at low signal levels and provide low power consumption. With AlwaysLocate™ technology, L96 can adaptively adjust the ON/OFF time to achieve balance between positioning accuracy and power consumption according to the environmental and motional conditions.
Its super performance makes L96 ideal for automotive, industrial and consumer applications. Extremely low power consumption makes it easier to be applied to power sensitive devices, especially portable applications.

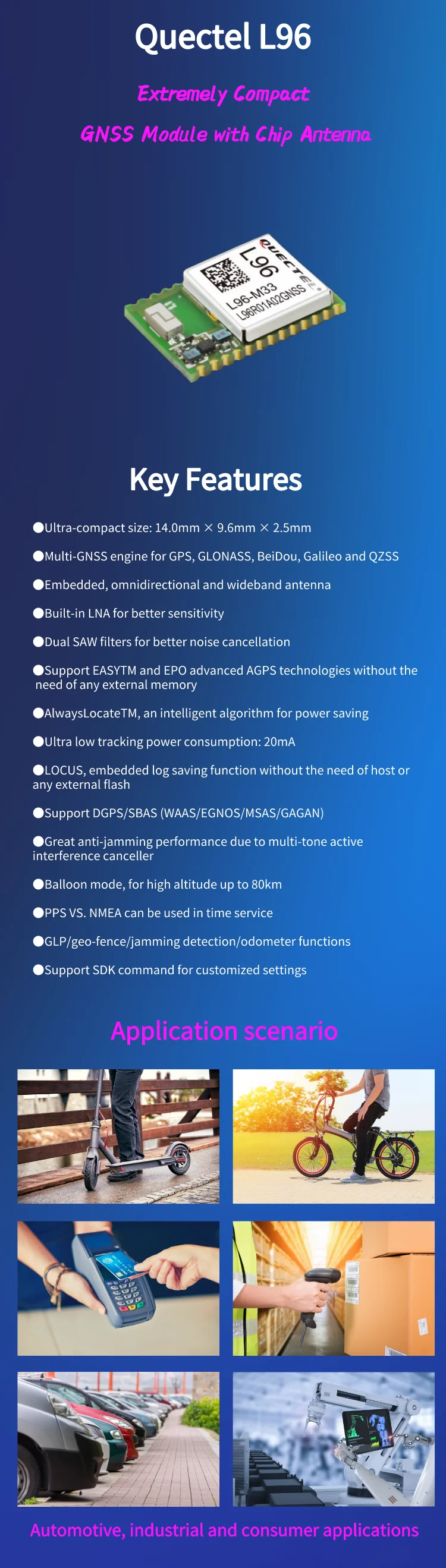

Key Features

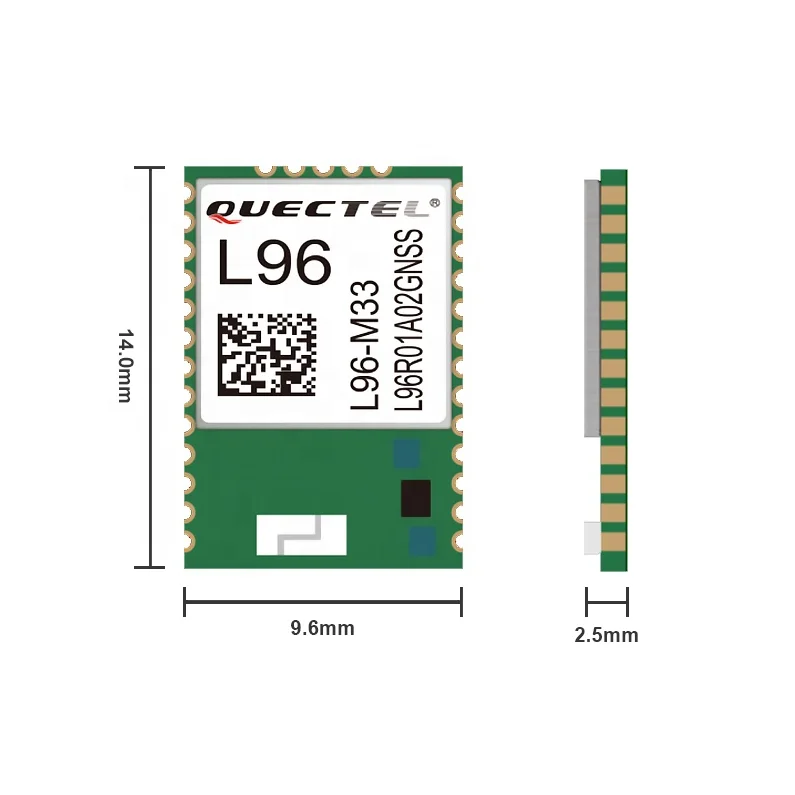

●Ultra-compact size: 14.0mm × 9.6mm × 2.5mm
●Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS
●Embedded, omnidirectional and wideband antenna
●Built-in LNA for better sensitivity
●Dual SAW filters for better noise cancellation
●Support EASYTM and EPO advanced AGPS technologies without the need of any external memory
●AlwaysLocateTM, an intelligent algorithm for power saving
●Ultra low tracking power consumption: 20mA
●LOCUS, embedded log saving function without the need of host or any external flash
●Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN)
●Great anti-jamming performance due to multi-tone active interference canceller
●Balloon mode, for high altitude up to 80km
●PPS VS. NMEA can be used in time service
●GLP/geo-fence/jamming detection/odometer functions
●Support SDK command for customized settings

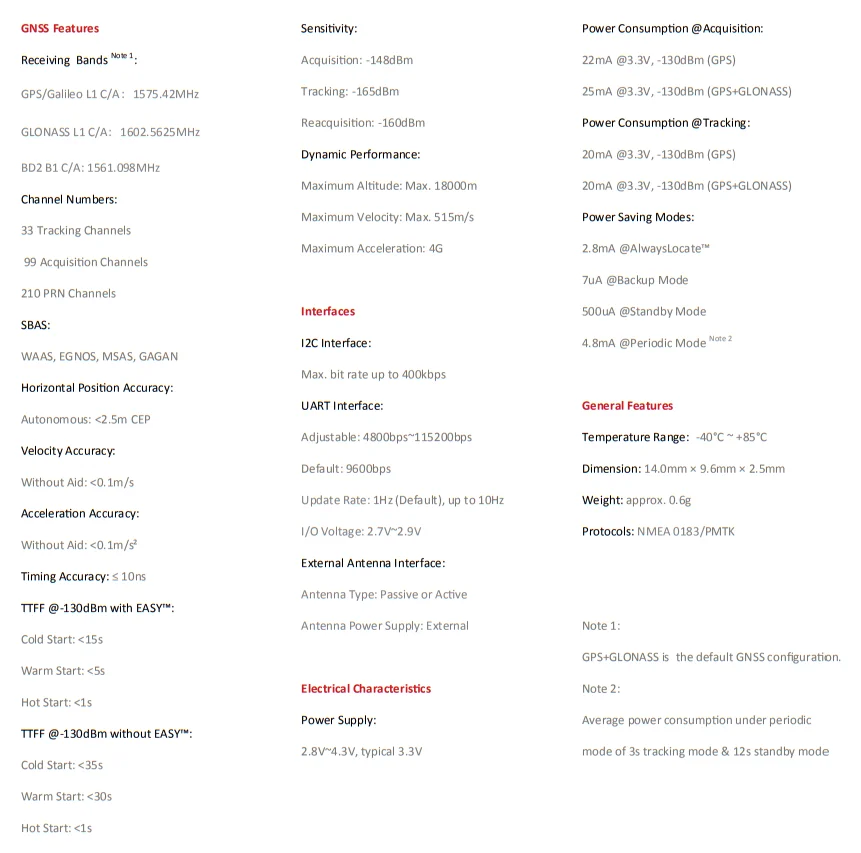

L96 | ||
Receiving Bands | ||
GPS/Galileo L1 C/A | 1575.42MHz | |
GLONASS L1 C/A | 1602.5625MHz | |
BD2 B1 C/A | 1561.098MHz | |
More Products
Production line
Company Profile
Company Profile：
1.Suzhou Tianhoo Communication Technology Co., Ltd. established in 2021,is Wireless Module, 5G/4G Modem,Communication Antenna and accessoriesearphone etc. the most advanced and innovative digital gadget.2.We have exported many countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc
3.tianhoo is a global supplier of cellular IoT modules and antennas: we are committed to connect devices and people to networks and services,
powering digital innovation and helping to build a smarter world. Our products help make life more efficient, convenient,and secure.
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best technical team of Wireless Module.
5) Smooth communication
Company Advantage
1.We have an experienced R & D team to support product customization and development;
2.We have a professional sales and after-sales team;
3.Our products have a wide coverage and reliable quality;
2.We have a professional sales and after-sales team;
3.Our products have a wide coverage and reliable quality;
Certifications
Exhibition
Product packaging
FAQ
Q1.Why choose Linkall.Iot?
A. High quality of service: OEM and ODM services; reply within 24 hours; all our products meet international quality standards, and have seven years of software and hardware development experience.
Q2. If the products can't work after receiving it,what should I do?
A.We will replace new items for you at once and then we make the judgement for the issue.
Q3.Do you accept ODM design?
A.Yes,we do.We can design according to your requirement,For details, please consult customer service
Q4.What payment terms you accept?
A.We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD)
A. High quality of service: OEM and ODM services; reply within 24 hours; all our products meet international quality standards, and have seven years of software and hardware development experience.
Q2. If the products can't work after receiving it,what should I do?
A.We will replace new items for you at once and then we make the judgement for the issue.
Q3.Do you accept ODM design?
A.Yes,we do.We can design according to your requirement,For details, please consult customer service
Q4.What payment terms you accept?
A.We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD)
Похожие товары
Порошок для устричных грибов, 180 г, для приготовления супа, марината, мяса, рыбы, для овощей
10,85 $
4-канальный Профессиональный усилитель мощности звука FP20000Q 4000 Вт X4 4 Ом Stereo Power(RMS) и 4-канальный

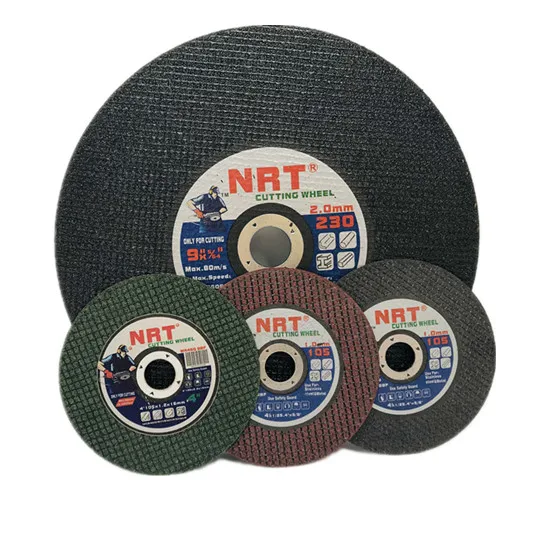

Рекламный продукт 14 дюймов NRT 355x3 2x25 4 мм менее вибрирующий режущий диск хорошая стабильность абразивный
1,15 $ - 1,30 $

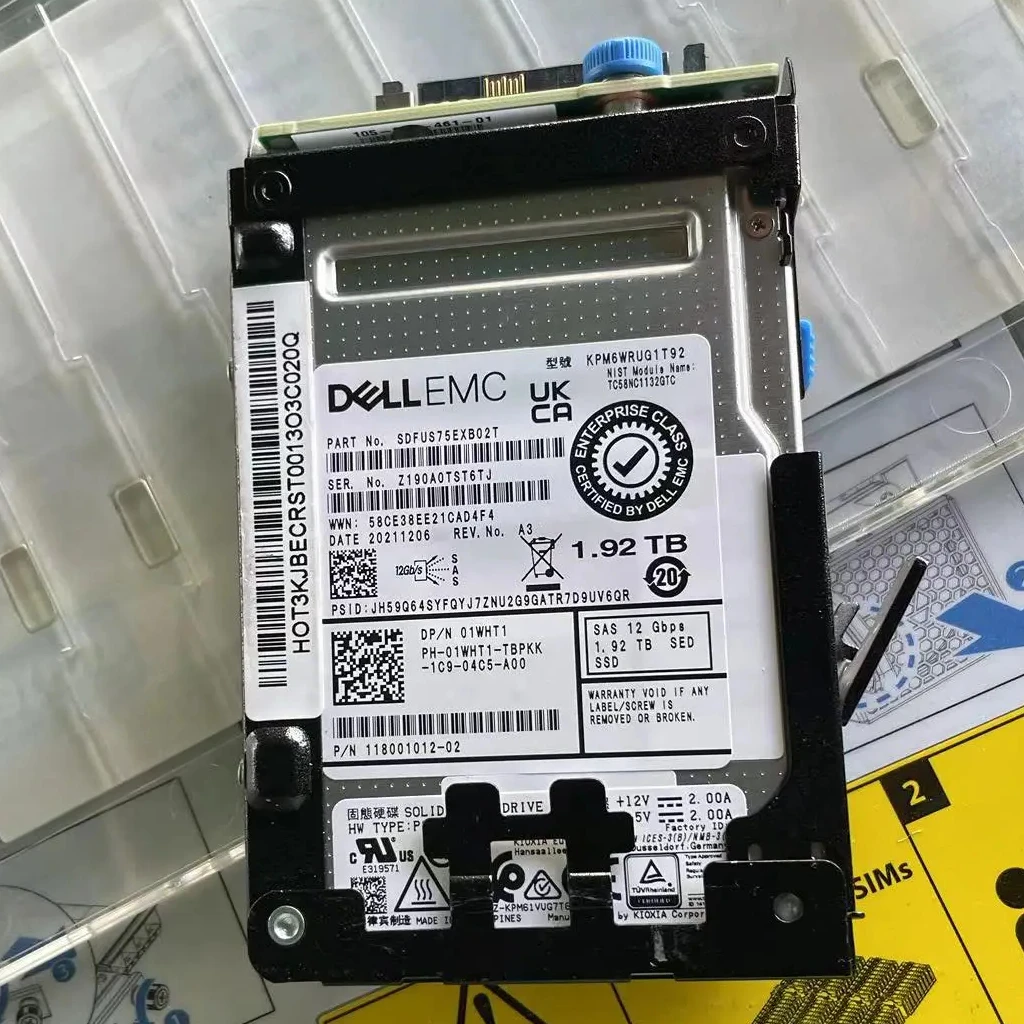

01WHT1 DE LL EMC KIOXIA KPM6WRUG1T92 1,92 ТБ SAS 12 Гбит/с 2,5 дюйма SSD 1WHT1
289,00 $ - 299,00 $
Кофейный кувшин для молока из нержавеющей
1,30 $ - 2,10 $

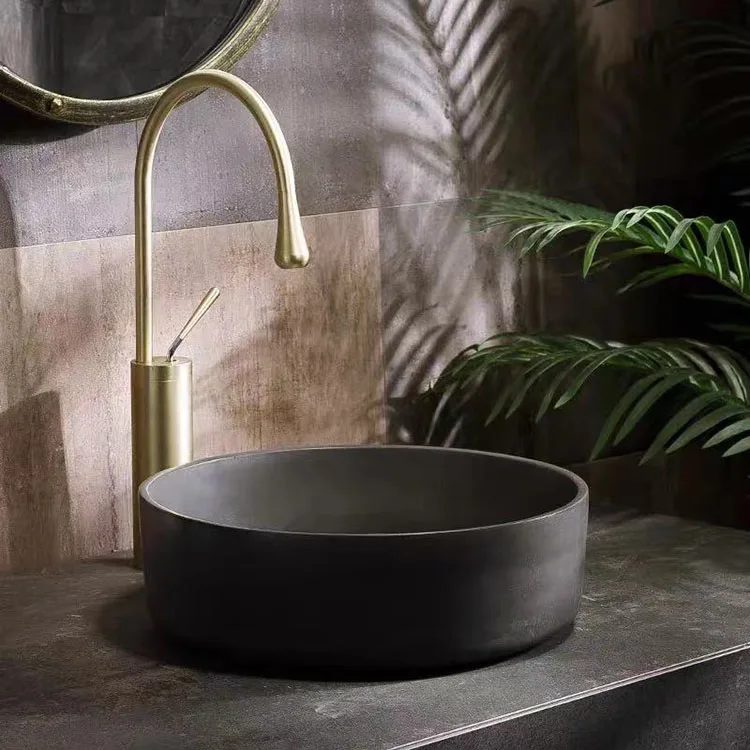

Раковина Круглой Формы, бетонная раковина небольшого размера для ванной комнаты, раковины в скандинавском стиле серого цвета
35,00 $ - 40,00 $

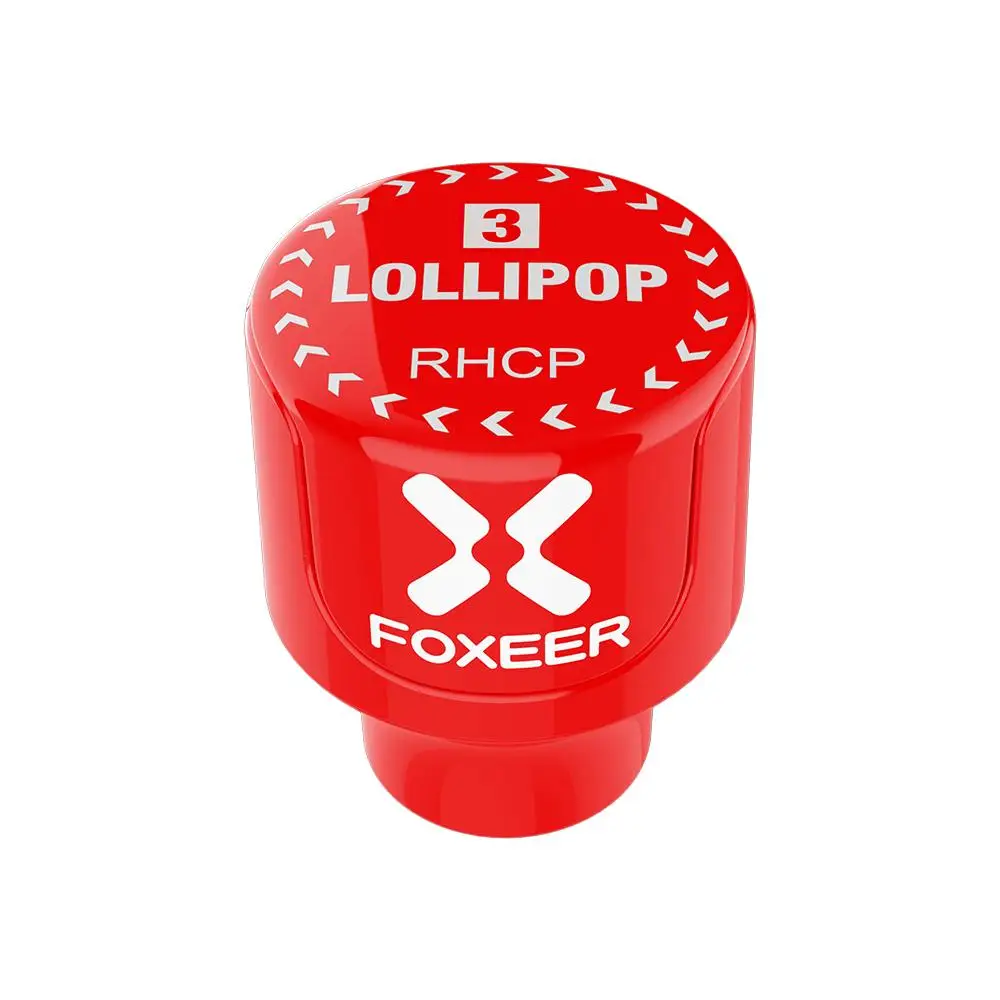

2 шт./кор. Foxeer леденец на палочке 3 телевизионные антенны 5,8G 2.3Dbi RHCP LHCP 22,7 мм 4,8g FPV SMA микро гриб принимающей антенны для дрона с дистанционным управлением
