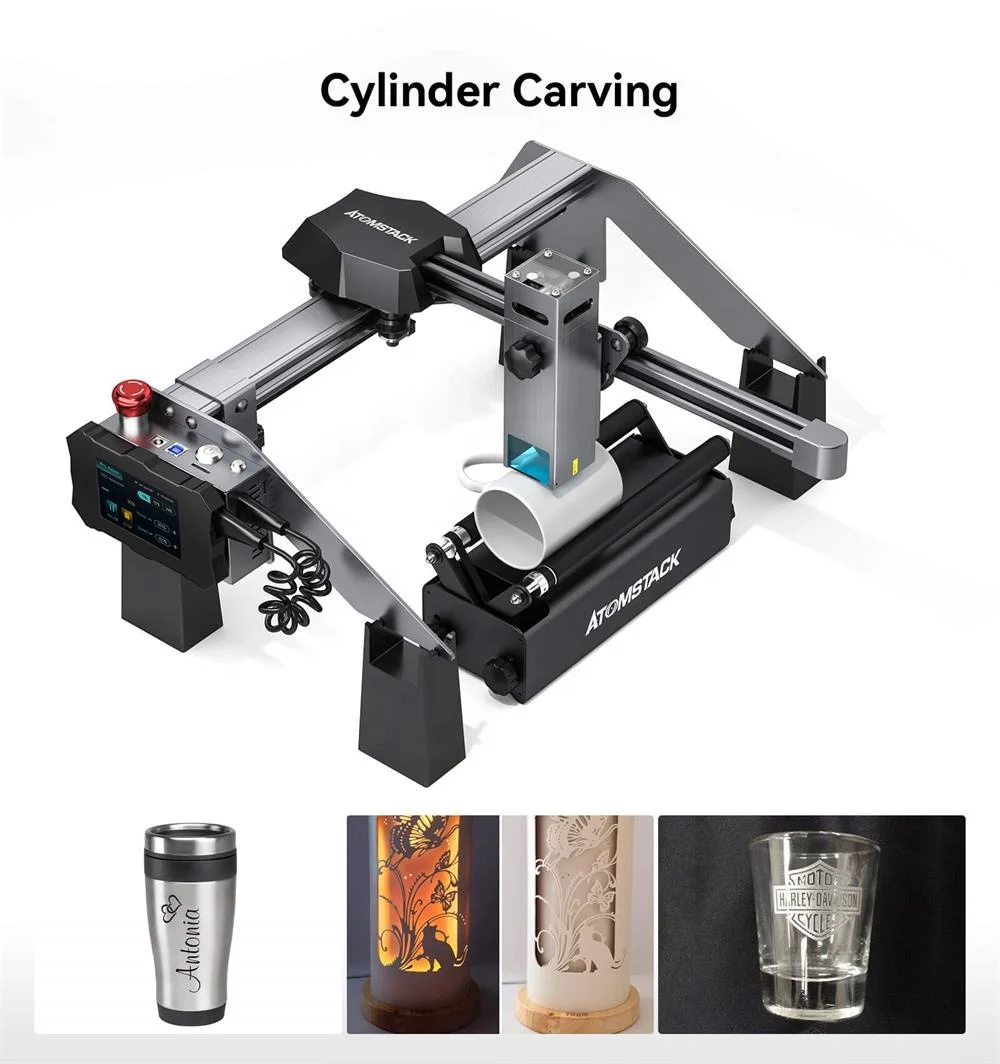

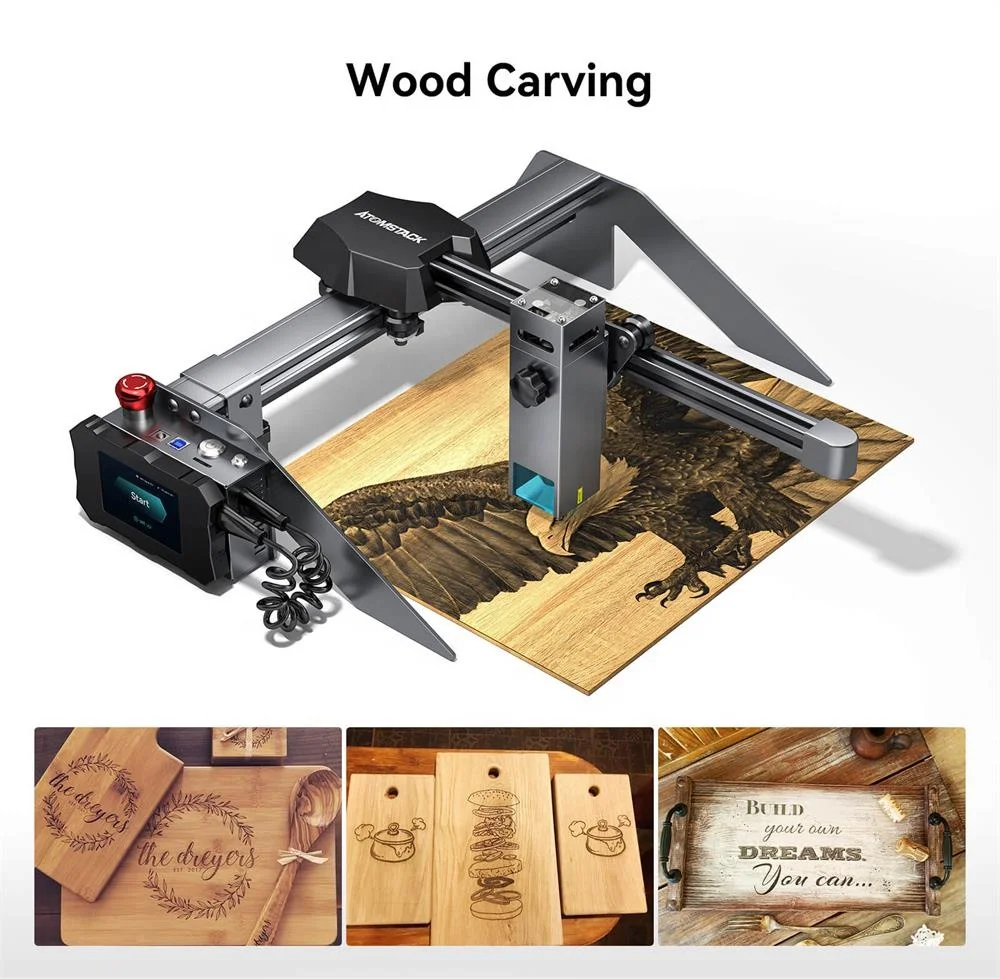

Atomstack P9 M50 50 Вт Мини Портативный стекло гранит камень металлическое engravies резки по дереву лазерная гравировка машины
- Категория: Industry Laser Equipment >>>
- Поставщик: Shenzhen Ssjy Tech Co. Ltd.
Сохранить в закладки 1600449728499:
Описание и отзывы
Характеристики
Product Description
1.The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.
2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3.Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 220*250mm large area engraving interval can meet your various engraving needs.
6.Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.
7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement
of the laser more precise and the coupling more durable.
of the laser more precise and the coupling more durable.
8.New laser with knob: It is more convenient and quick to adjust the
height of the laser.
height of the laser.

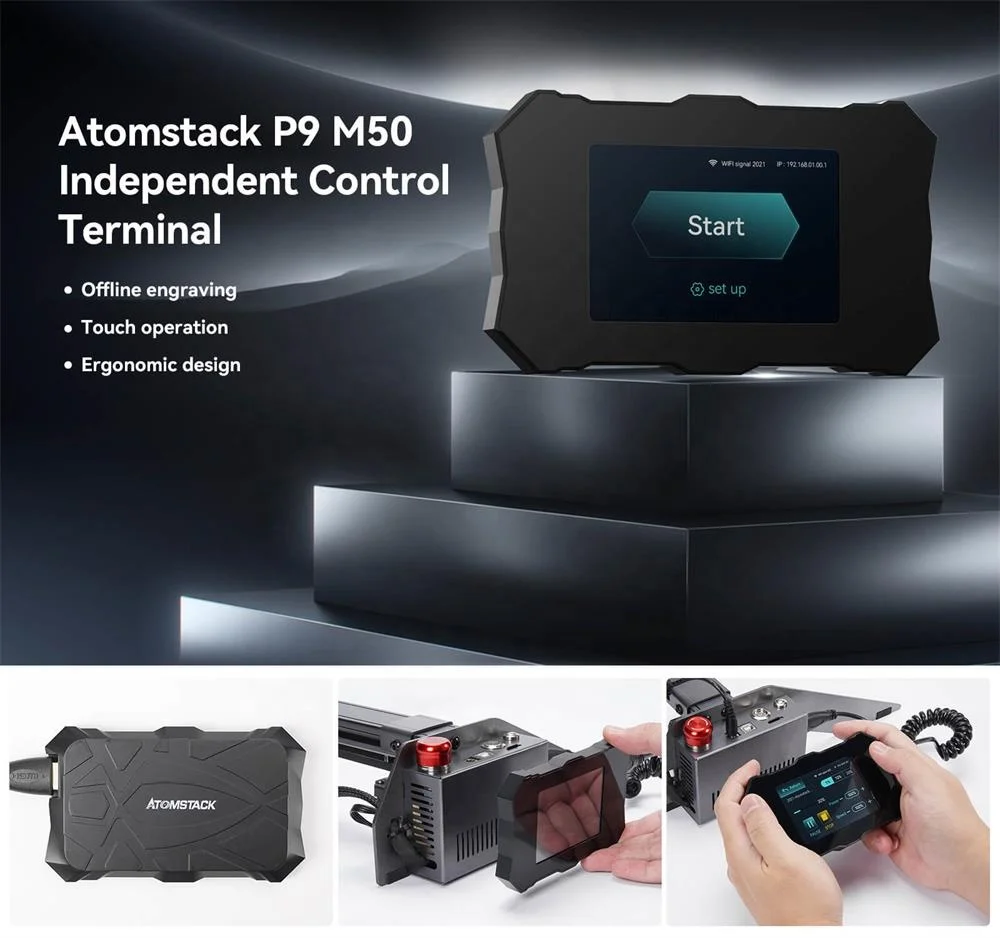

9. Support offline engraving: ATOMSTACK P9 M50 configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
10. The laser sintering temperature is up to 1200℃
11. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer
12. Stopper: Yes
13. Reset switch: Yes

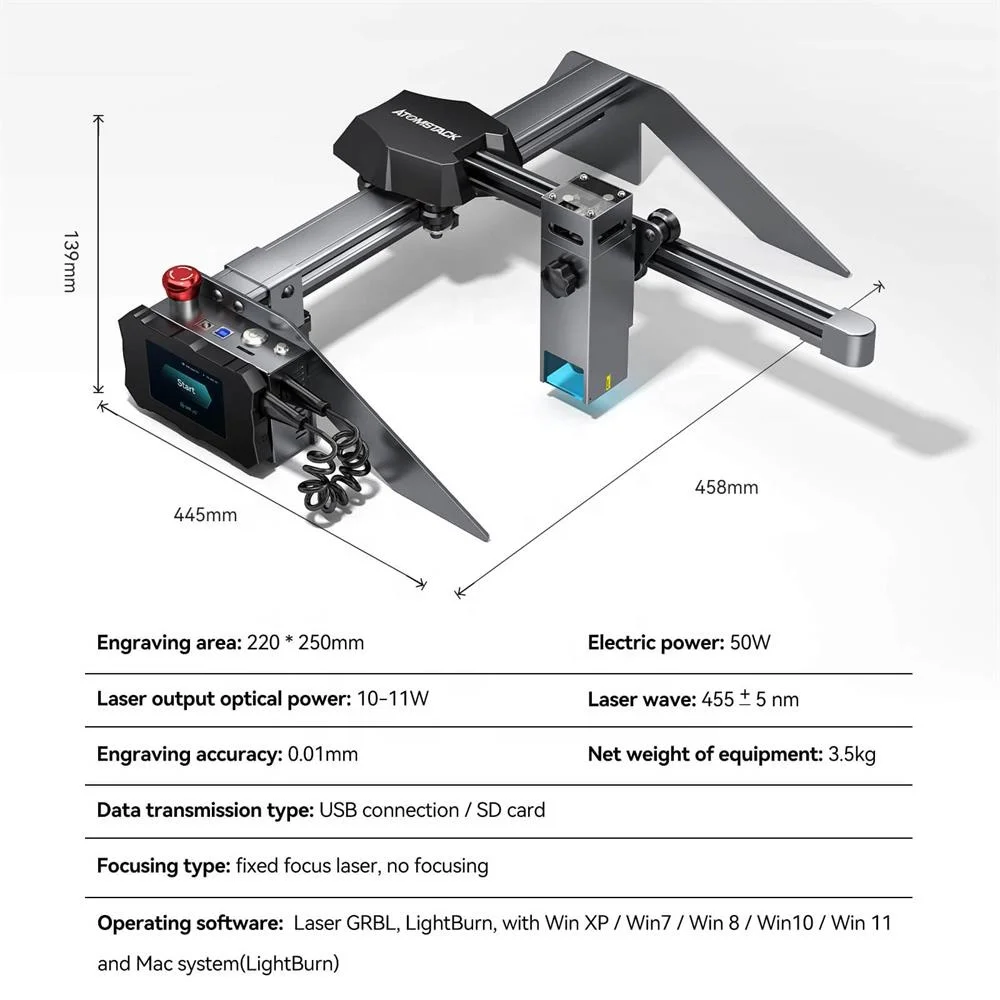

Item model number | ATOMSTACK P9 M50 50W |
Print Size | Recommend Print Size 220*250mm |
Carving Objects | All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal |
Cutting Objects | Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. |
Laser power | 50W |
Laser output power | 10W-11W |
Wave Length | 445 ± 5nm |
Engraving accuracy | 0.01mm |
Focusing method | fixed focus laser, no need to focus |
Laser protective cover | Protect the user's eyes and prevent pets from grabbing the laser spot. |
Operating software | LaserGRBL, LightBurn, |
Support system | support Win XP / Win 7 / Win 8 / XP / Win 10 system |
Input Format | NC, BMP, JPG, PNG, DXF, etc. |
Data transmission method | USB connection |
Input Voltage | AC100-240V, 50/60Hz |
Output Voltage | DC12V, 5A |
Equipment net weight | 4kg |
Package weight | 6kg |
Equipment size | 382*420*146mm |
Packing size | 510*285*14mm |
Certification | CE FCC RoHS |
Product Certifications
Applicable materials
Packing & Delivery
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
FAQ
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay.about 6-10 days to door.
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay.about 6-10 days to door.
Q: Can I adjust the laser power?
A: yes ,can adjustable.
Q:New ATOMSTACK P9 M50 50W Laser in the description informs 10W-11W, wouldn't it be 50W?
A :The total power of the machine is 50W, and the laser power is 10W-11W.
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit You need to assemble it yourself All tools and part are included in the kit.
Q：I can't assemble the product. Do you have a manual?
A:Yes, we have instructions in many languages in the package.
Note
*Do NOT operate laser without eye protection 。
*When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire。
*Please set up laser engraver in the fireproofing area, with good ventilation。
*Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。
*Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。
*When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire。
*Please set up laser engraver in the fireproofing area, with good ventilation。
*Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。
*Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。
Похожие товары
2000 Вт промышленная машина для волоконной лазерной резки с рабочим столом 3 м * 1 5
13 900,00 $ - 19 500,00 $
Портативные лазерные гравировальные машины волоконно-лазерная маркировочная машина оптовая цена золото серебро УФ лазерная 3 Вт для
850,00 $

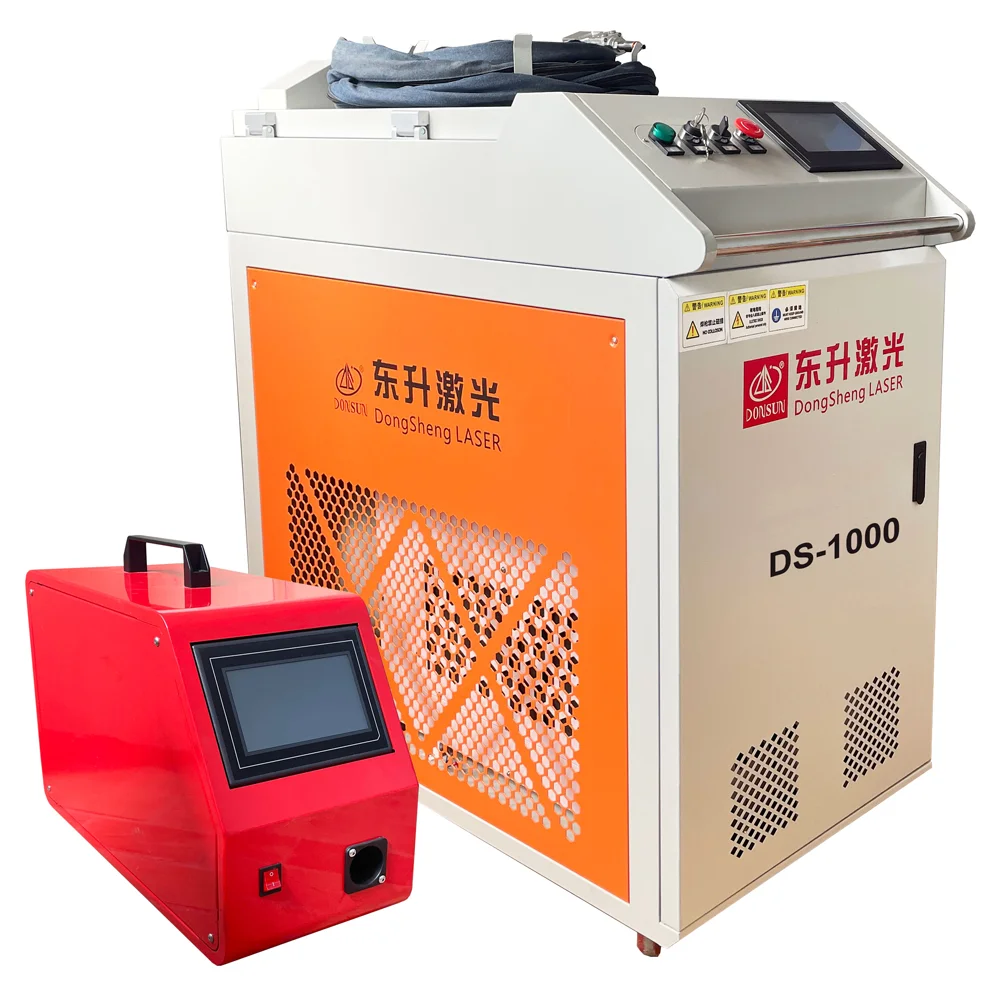

Волоконно-лазерный сварочный аппарат DONSUN 1000 Вт 1500 Вт 2000 Вт стальной ручной лазерный сварочный аппарат для нержавеющей стали алюминиевый Металл
3 480,00 $ - 4 480,00 $

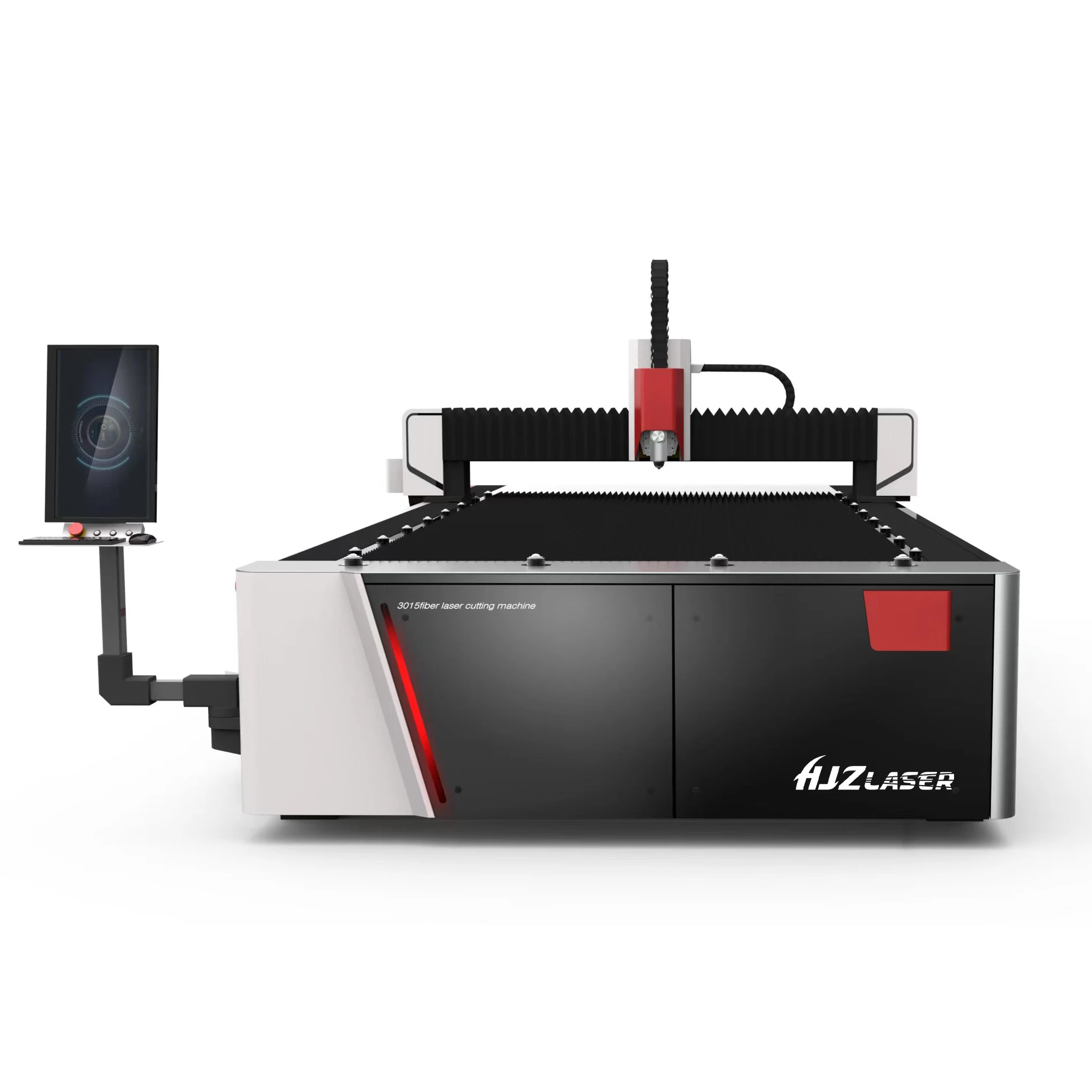

GC-3015 1500*3000 мм волоконно-лазерная резка 1500 Вт ЧПУ Лазерная Волоконно-металлическая машина для резки
10 000,00 $

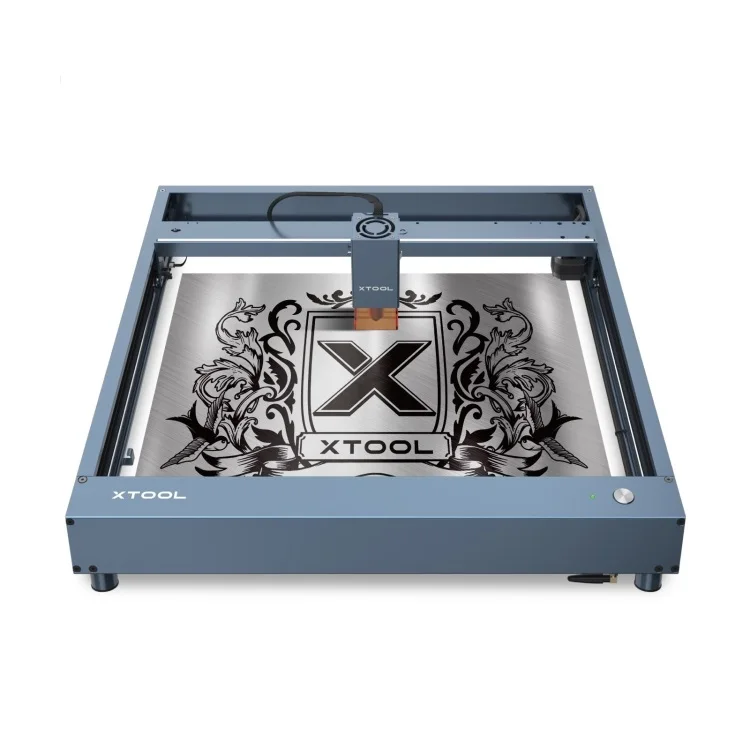

Новинка; Лидер продаж; XTOOL D1 Pro-10W высокая точность DIY лазерный гравировальный станок для лазерной
320,00 $ - 558,00 $

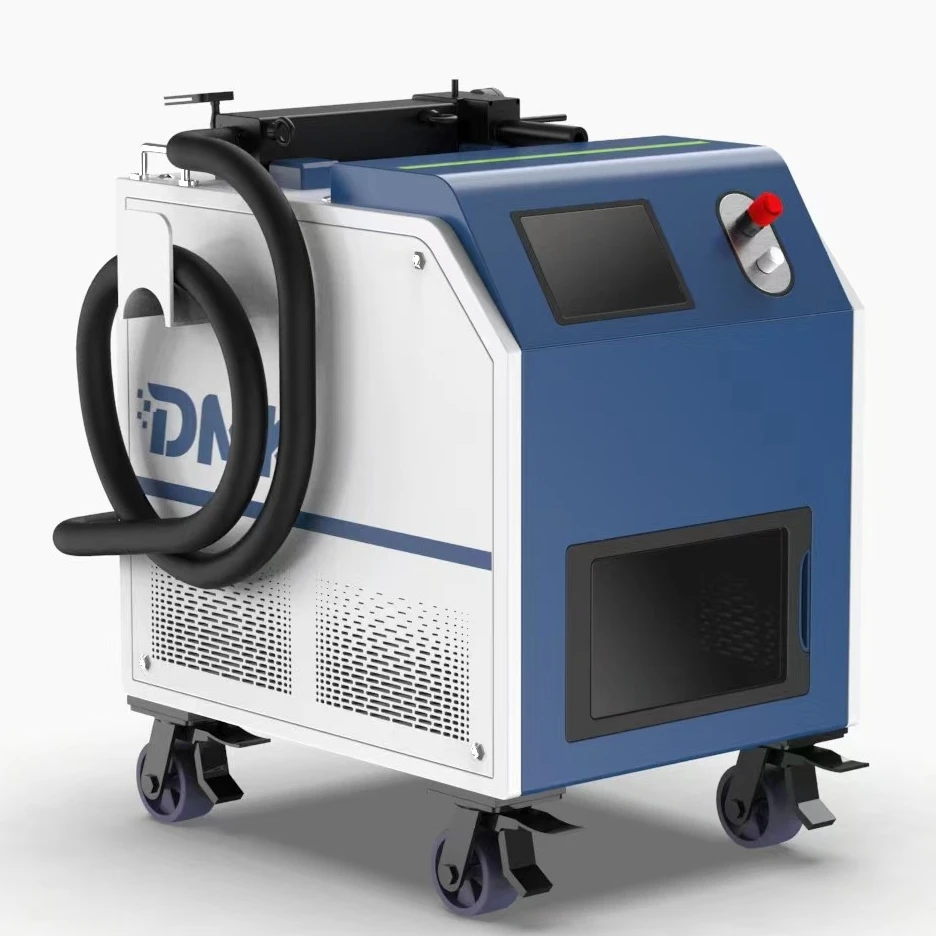

Аппарат для лазерной очистки импульса JPT 500
