Reverse Circulation Pipes (dual wall drilling)
Product Description

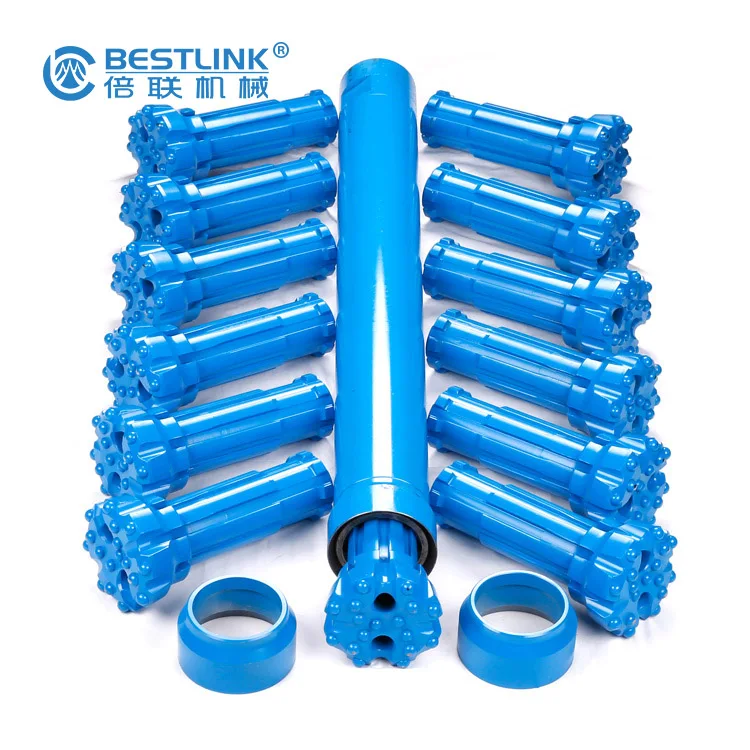

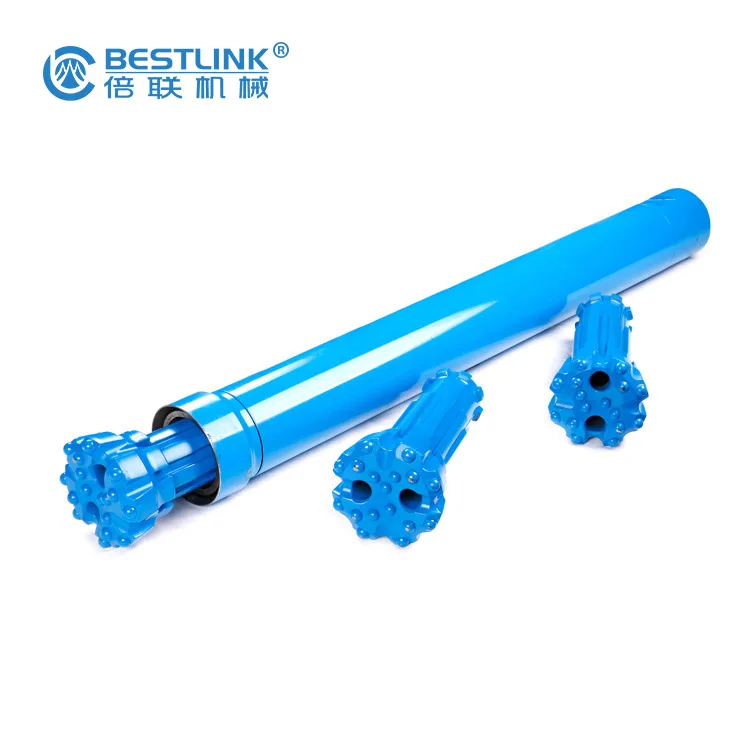

Dth Reverse Circulation Hammer For Exploration Drilling 127-178mm Bit Dia
RCseries reverse circulation DTH Hammer is the latest developed product of our company. It is mainly used for deep exploration drilling and ore grade control.
It has the following characteristics:
1.Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.

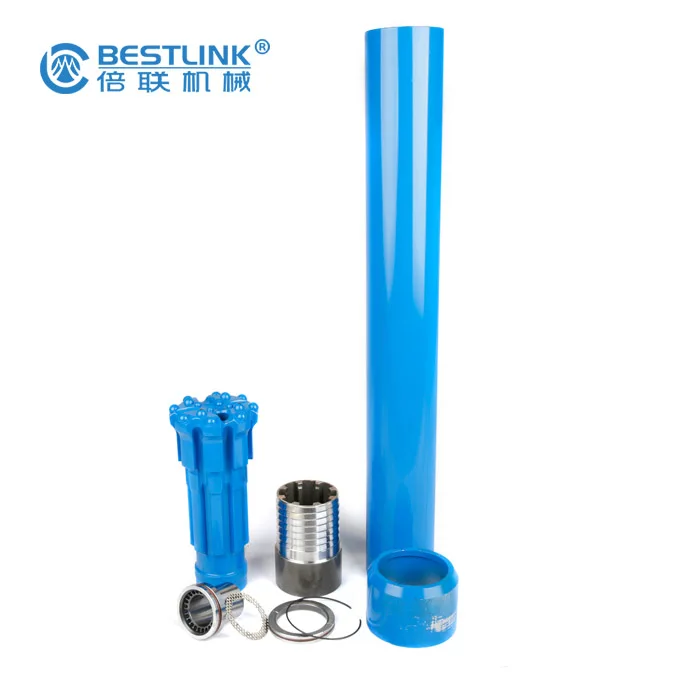

2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
3.The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.
4.Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.
5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
Technical Data for RC Hammer:
DTH hammer type | HRC45 | DTH hammer type | HRC55 | HRC65 | HRC52 | ||
Length(with bit) | 1020 | Length(with bit) | 1111 | 1250 | 1208 | ||
Weight(less bit) | 94 | Weight(less bit) | 66.5 | 110 | 70 | ||
External diameter | Φ99 | External diameter | Φ126 | Φ146 | Φ126 | ||
Bit shank | HRC45 | Bit shank | HRC55 | HRC65 | HRC65 | ||
Hole range(mm) | Φ114-127 | Hole range(mm) | Φ133-152 | Φ155-190 | Φ133-146 | ||
Connection thread | upon drill the tube | ||||||
Working pressure | 1.0-3.0Mpa | Working pressure | 1.3-3.5Mpa | 1.3-3.5Mpa | 1.5-3.5Mpa | ||
Impact rate at 1.7Mpa | 30Hz | Impact rate at 2.4Mpa | 35Hz | 28Hz | 35Hz | ||
Recommended Rotation speed | 25-40r/min | Recommended Rotation speed | 25-40r/min | 25-40r/min | 25-40r/min | ||
Air consumption | 1.0Mpa | 8.0m3/min | Air consumption | 1.7Mpa | 16.0m3/min | 20.0m3/min | 16.0m3/min |
1.8Mpa | 12.0m3/min | 2.4Mpa | 22.0m3/min | 26.0m3/min | 22.0m3/min | ||
2.4Mpa | 16.0m3/min | 3.0Mpa | 28.0m3/min | 35.0m3/min | 28.0m3/min | ||

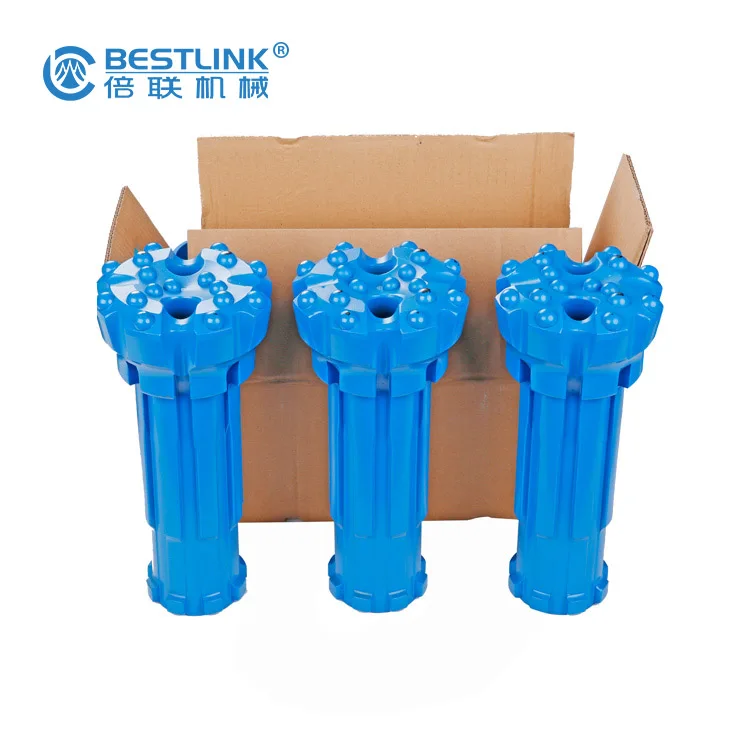

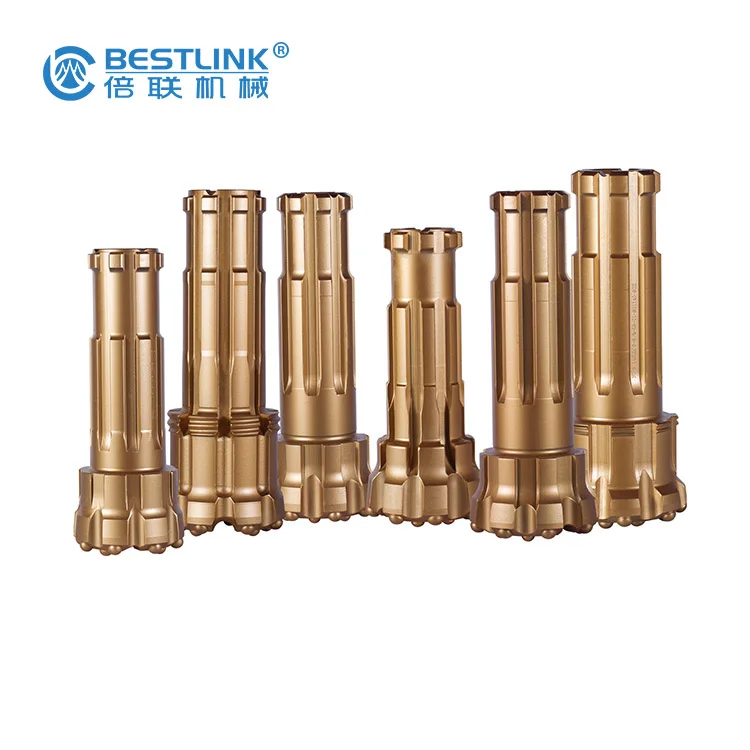

Reverse circulation drill bits:
| Drill Bit | Bit Dia. (mm) | NO.Air | Gauge | Front | Weight | Part No. |
| Holes | Buttons | Buttons | (Kg) | |||
| HRC | 115 | 2 | 8×φ14 | 8×φ13 | 14 | HRC45-115 |
| 140 | 2 | 8×φ16 | 8×φ14 | 16.5 | HRC55-140 | |
| 165 | 2 | 8×φ18 | 8×φ16 | 19.5 | HRC65-165 | |
| Mic | 133 | 2 | 8×φ16 | 8×φ14 | 17.5 | Mic-133 |
| 140 | 2 | 8×φ16 | 8×φ14 | 18 | Mic-140 | |
| 146 | 2 | 8×φ18 | 8×φ14 | 20 | Mic-146 | |
| PR5 | 133 | 2 | 8×φ16 | 8×φ14 | 12.5 | PR5-133 |
| 140 | 2 | 8×φ16 | 8×φ14 | 13 | PR5-140 | |
| 146 | 2 | 8×φ18 | 8×φ14 | 13.5 | PR5-146 | |
| PR4 | 115 | 2 | 8×φ16 | 8×φ13 | 14.4 | PR4-115 |
| 127 | 2 | 8×φ16 | 8×φ14 | 15 | PR4-127 | |
| 133 | 2 | 8×φ16 | 8×φ14 | 15.5 | PR4-133 |
Packaging & Shipping
Our Services
We have two main business field:
1) Rock drill tools for quarrying and mining: www.quarryingtools.com
2) Natural Stone Processing/Cutting/Splitting machines: www.split-stone.com
Our products range:
A. Rock drill tools, including small hole,drifting,bench and products drilling, down-the-hole drilling;
B.Chisel bits, button bits regrinding system.
C.Non-explosive demolition, cracking agent.
D.Natrual face stone processing system, including hydraulic splitting machine, stamping machine, mosaic stone making machine,decoractive stone breaking machine...
FAQ
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight,onetouch.cn,Escrow,Paypal
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality
In order to quote you the best price, please tell us the details as following:
01.Grade and specification or drawings;
02.Quantity and quality level;
03.Operation environment;
04.Other special requirement.
Company Information
1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.
2. We have advanced technology and equipment.
3. Our technician has more than 36 year’s professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Brazil, Chile, Colombia, Uruguay, Australia,Ukraine,Russia, ,Norway, Turkey, USA,Canada, Malaysia, Thailand, India, etc.
