Недорогое радио GPS оборудование для наблюдения Hi target V30 PLUS gnss rtk gps с антенной full wave GNSS
- Категория: >>>
- Поставщик: Shanghai Hexin Survey Instrument Company Ltd.
Сохранить в закладки 1600450143420:
Описание и отзывы
Характеристики

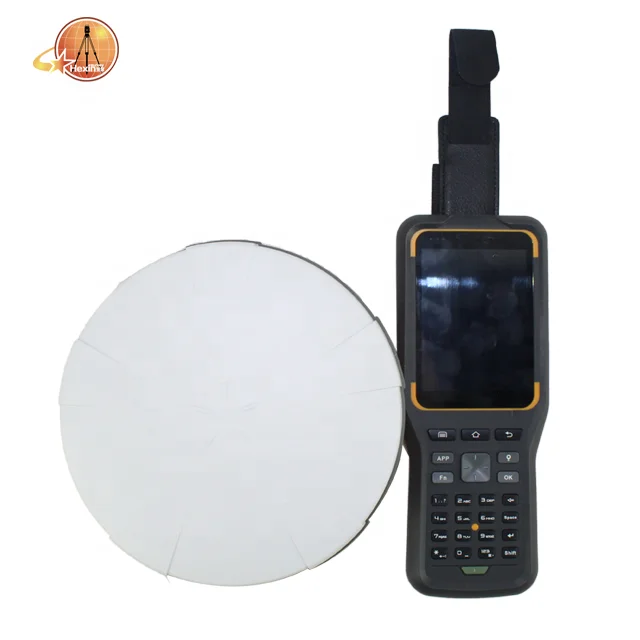

Low Cost Radio GPS Survey Equipment Hi-target V30 PLUS gnss rtk gps with full-wave GNSS antenna
Product Description
Smart application
- Built-in Linux system and 8G storage.
- Intelligent management of the static data.
- Intelligent voice assistant to guide field operations.
- Standard Rinex data and Hi-Target raw data recorded simultaneously.
V30 PLUS GNSS RTK SYSTEM With its built-in multi-constellation GNSS engine, smaller dimension, and industrial-grade compact design, V30Plus provides a flexible GNSS work solution.It also integrates with the Web UI, WIFI and 4G module to make data management and transmission more convenient and faster.Accompanied by Hi-Target professional field surveying software and its up-to-10-hours working time, V30Plus meets users' needs of efficient and convenient surveying experience. |  |
 | Full-frequency air antenna
|
Multi-constellation GNSS engine
|  |
Data communication
- Compatible with other vendors' communication protocols.
- Long transmission distance, and good electromagnetic compatibility.
- Perfectly compatible with a variety of CORS systems.
Web UI
- Intelligent query device information.
- Intelligent management of the device status automatically.
iHand30 Professional Field Controller
- The iHand30 is a rugged field controller that is designed for data collection and GNSS device control. Based on the android operating system, it is compatible with Hi-Target professional software and third-party android software. Combining the physical keyboard with a touch screen it can boost efficient fieldwork and provide express solutions for users.
KEY FEATURES
- Ergonomically designed, lighter and easy to hold in hand.
- Industrial-grade protection, that can withstand tough environments.
- Convenient wireless data transmission via Wi-Fi and 4G.
- Quick charge, with large capacity lithium battery to ensure all day work.
TECHNICAL SPECIFICATIONS
| Hardware Configuration | |
| OS | Android 6.0 |
| Processer | MTK6737,1.5GHz,4 core |
| RAM | 2GB |
| Storage | 16GB(up to 128GB external storage) |
| Display | 3.7",640 x480, sunlight readable |
| Camera | 8MP, tag available |
| Sensors | G-sensor,E-compass, barometer,light-field sensor,gyro |
| GNSS Features | |
| GNSS | GPS,GLONASS,AGPS,20 channels |
| Update rate | 1Hz |
| Communication | |
| Cellular mode | Dual SIM card, dual stand-by |
| Cellular network | 4G(TDD-LTE,FDD-LTE,WCDMA,GPRS) |
| Wi-Fi | IEEE 802.11b/g/n, 2.4GHz/5GHz |
| USB | Type-C, supports OTG |
| NFC | Support |
| Power Supply | |
| Battery | Removable 3.7V lithium battery,5200mAh |
| Duration | 15hours |
| Quick charge | Within 3 hours |
| Physical | |
| Weight | 440g(within battery) |
| Size | 208mm*83mm*24mm |
| Operating temperature | -20℃~ +60℃ |
| Storage temperature | -30℃~ +70℃ |
| Free fall | 1.2m |
| Water/dustproof | IP67 |
Product Show
PERFORMANCE SPECIFICATIONS
| Satellite Signals Tracked Simultaneously | |
| Channels | 440 |
| GPS | L1,L2C/L2P,L5 |
| BeiDou | B1,B2,B3 |
| GLONASS | L1C/L1P,L2C/L2P |
| Galileo | Reserved |
| SBAS | Reserved |
| High-precision static GNSS Surveying | |
| Horizontal | 2.5mm+0.5ppm RMS |
| Vertical | 5mm+0.5ppm RMS |
| Single Base | |
| Horizontal | 8mm+1ppm RMS |
| Vertical | 15mm+1ppm RMS |
| Network RTK | |
| Horizontal | 8mm+0.5ppm RMS |
| Vertical | 15mm+0.5ppm RMS |
| Initialization time | Typically 2-10s |
| Initialization reliability | Typically >99.9% |
| Network Communication | |
| 4G cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM) | |
| Wi-Fi frequency 2.4GHz, supports 802.11b/g/n protocol | |
| Internal UHF Radio | |
| Frequency | 403-473MHz |
| Channels | 116(16 adjustable) |
| Transmitting power | 1W,2W,4W adjustable |
| Supports multiple protocols | HI-TARGET,TRIMTALK450S,TRIMMARK III,TRANSEOT,SATEL-3AS, etc. |
| Working range | 3-5km typical,5-8km optimal |
| 1/0 Interface | |
| Mini USB port x1, TNC antenna connector x1, DC power input (5-pin) x1, SIM card slot x1 | |
| Internal Battery | |
| 5000mAh lithium-ion rechargeable and removable battery | |
| RTK Rover (UHF/Cellular) for 10 hours | |
| External Power | |
| 6-28V DC external power input (5-pin port) with over-charge protection | |
| Power consumption | 4.2W |
| Dimensions(W x H) | 164mm×83.5mm |
| Weight | ≤1.4kg (includes battery) |
| Data storage | 8G internal storage |
| Control Panel | |
| Physical button | 1 |
| LED lamp | Satellite, Signal, Power |
| Environment | |
| Water/dustproof | IP67 |
| Shock and vibration | Designed to survive a 2m natural fall onto concrete |
| Humidity | 100%,considering |
| Operating temperature | -45℃ to +75℃ |
| Storage temperature | -55℃ to +85℃ |
| External UHF Radio | |
| Frequency | 410-470MHz |
| Channels | 8 |
| Transmitting power | 5W/25W adjustable |
| Supports multiple protocols | TRIMTALK 450S,TRIMTALK III, TRANSEOT |
| Data Formats | |
| Output rate | 1-20Hz |
| Static data format | GNS, Rinex |
| Network mode | RS, supports NTRIP protocol |
| CMR&RTCM | CMR,RTCM 2.x,RTCM 3.0,RTCM 3.2 |
| Navigation outputs ASCI | NMEA-0183 |
Company Information
- With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc. The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
- We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
![Low Cost Radio GPS Survey Equipment Hi-target V30 PLUS gnss rtk gps with full-wave GNSS antenna.jpg]()
Packaging & Shipping
Terms of payment
Our terms of payment are as follows:T/T, Western Union, Paypal , etc.
Our Services
- Any inquire will be replied within 12 hours.
- All our products have one year warranty, and we sure the products will be free from maintenance within warranty period.
- All products will have been strictly quality checked in factory before sending out.
