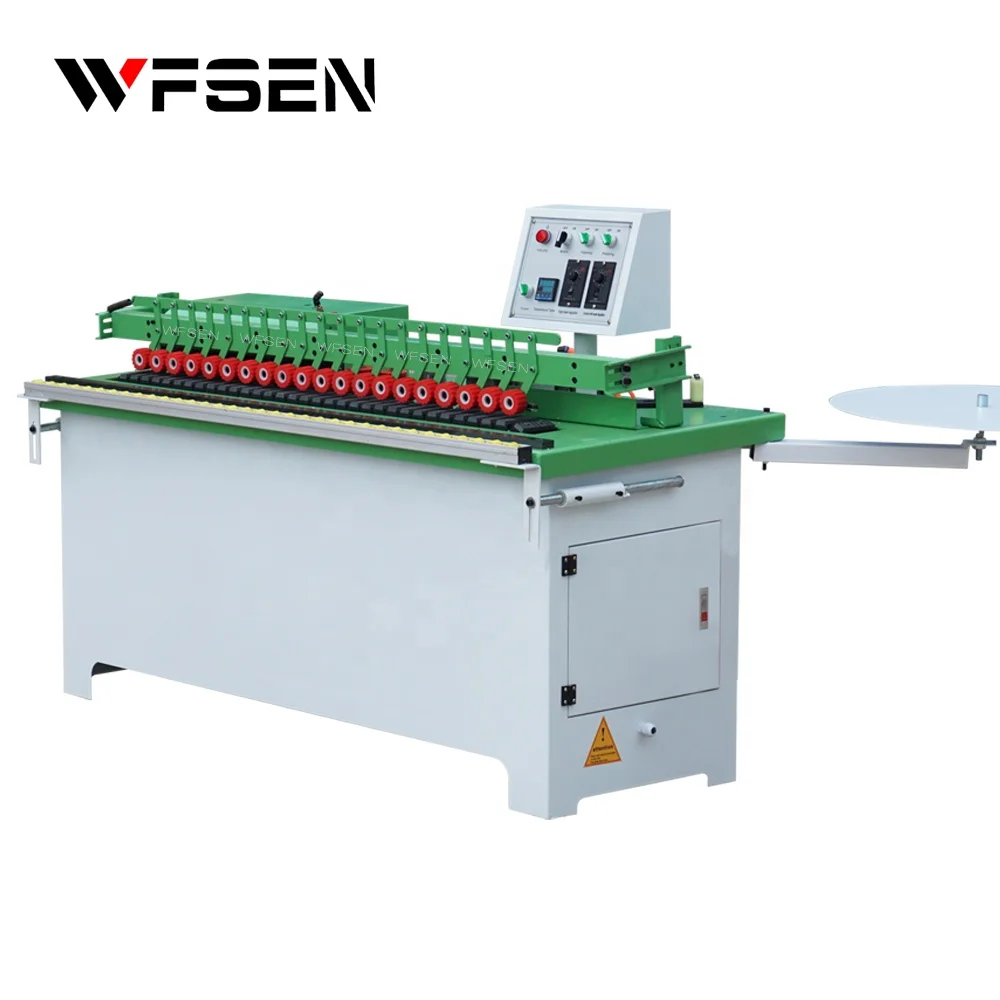

МДФ ПВХ лучший автоматический кромкооблицовочный станок для дерева
400,00 $ - 2 200,00 $
Заводская цена автоматическая Bga наладочная станция материнская плата для мобильного телефона ноутбука паяльная ремонтная
- Категория: >>>
- Поставщик: Shenzhen Oubel Technology Co. Ltd.
Сохранить в закладки 1600450806936:
Описание и отзывы
Характеристики
Product Description
Factory price Automatic Bga Rework Station Mobile Phone Laptop Motherboard Rework Soldering Station Repairing Motherboard
Features of BGA Rework Station:
1. The integrated design of hot air head and placement head has the functions of automatic placement, automatic welding and automatic disassembly;

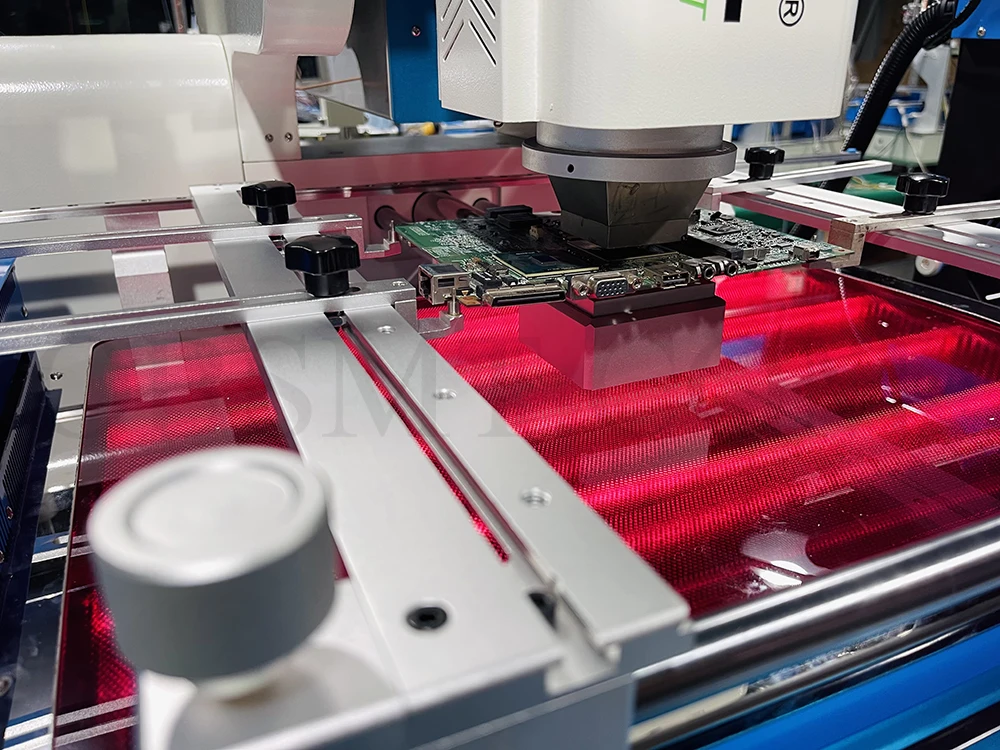

2. Independent three temperature zones (upper temperature zone, lower temperature zone, infrared preheating zone), the upper temperature zone and the lower temperature zone realize synchronous automatic movement, and can automatically reach any position in the bottom infrared preheating zone. The lower temperature zone can move up and down, support the PCB, and adopt automatic motor control. Realize that the PCB does not move on the fixture, and the upper and lower heating heads can be moved to the target chip of the PCB;
3. PCB card board adopts high-precision slider to ensure the placement accuracy of BGA and PCB board;
4. The original bottom preheating platform adopts excellent heating materials imported from Germany (infrared gold-plated light tube)+ anti-glare constant temperature glass (temperature resistance up to 1800 ℃). The preheating area reaches 500 * 420mm; The preheating platform, clamping plate device and cooling system can move in the X direction as a whole. Make PCB positioning and folding welding safer and more convenient;
5. X, Y adopts the motor automatic control movement mode, which makes the positioning fast and convenient, the equipment space is fully utilized, and the ultra-large area PCB is repaired with a relatively small equipment volume, the maximum splint size can reach 510 * 480mm, and there is no corner for repair.

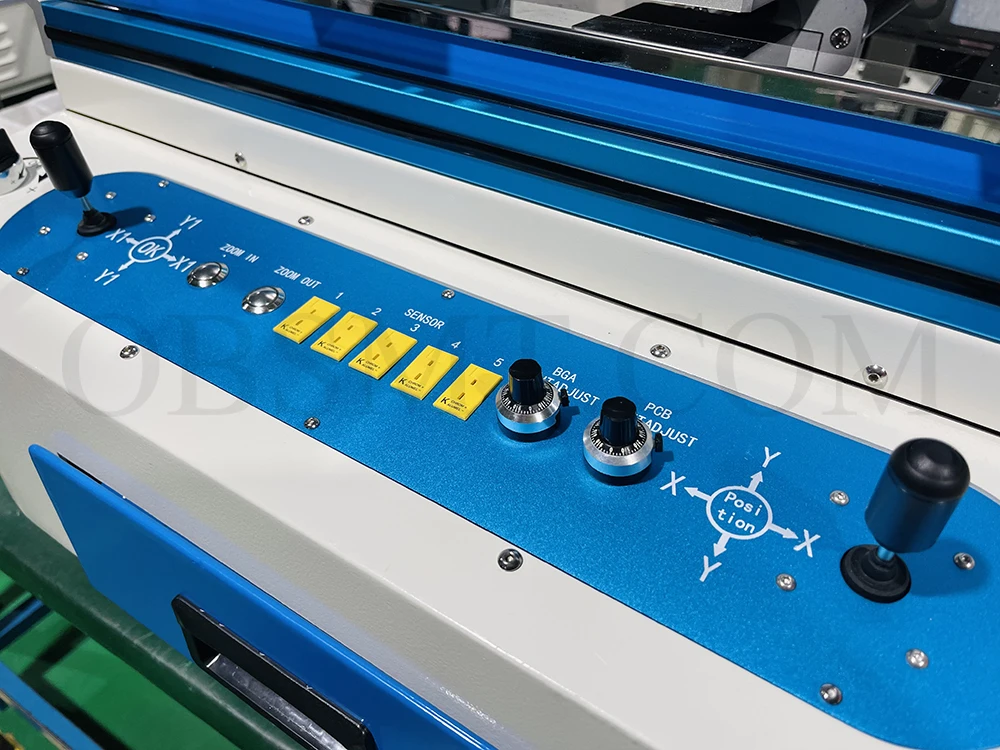

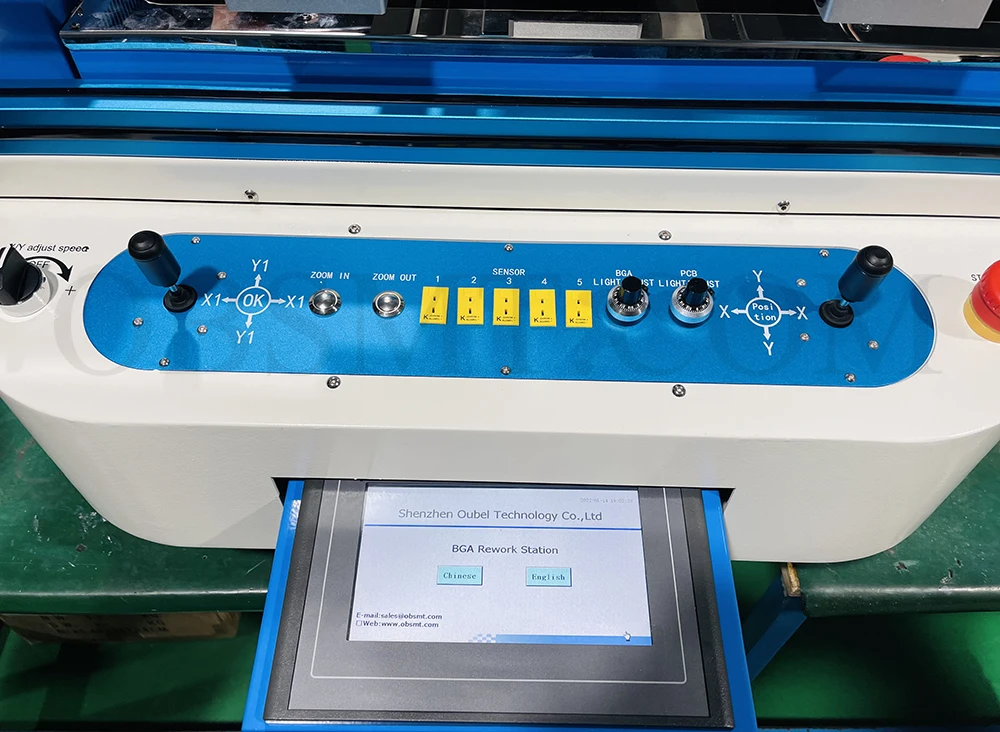

6. Double rocker control, alignment lens and upper and lower heating platform to ensure alignment accuracy;
7. Built-in vacuum pump, φ angle rotation, precise fine adjustment of mounting nozzle;
8. The suction nozzle automatically recognizes the suction material and the mounting height, and the pressure can be controlled within a tiny range of 10 grams. It has 0 pressure suction and mounting functions for small chips;

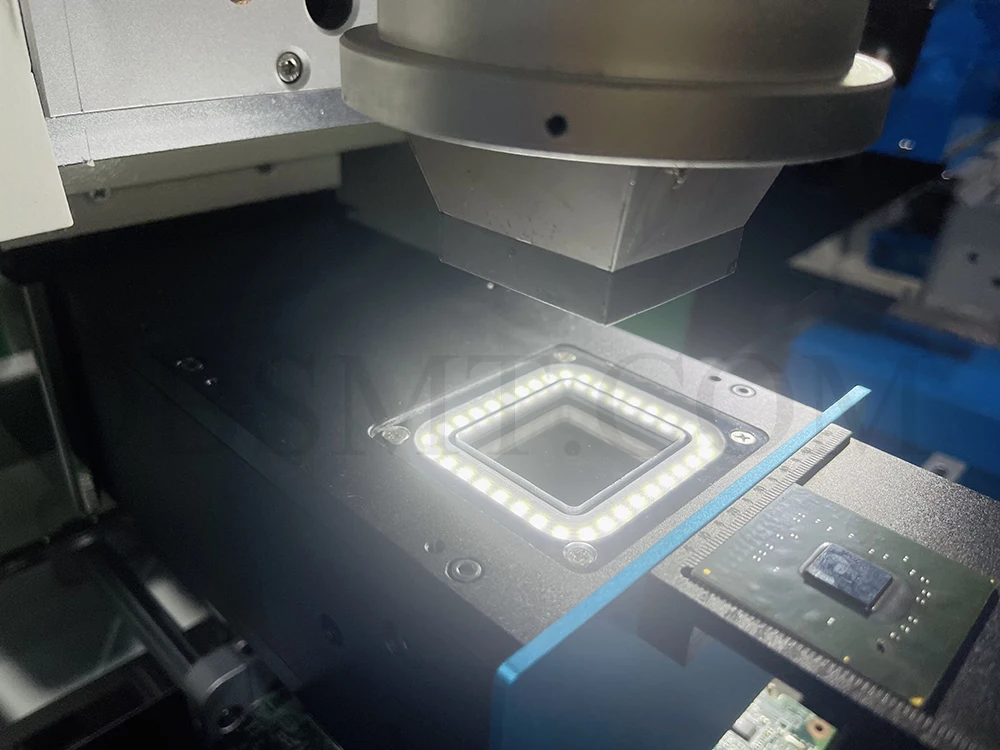

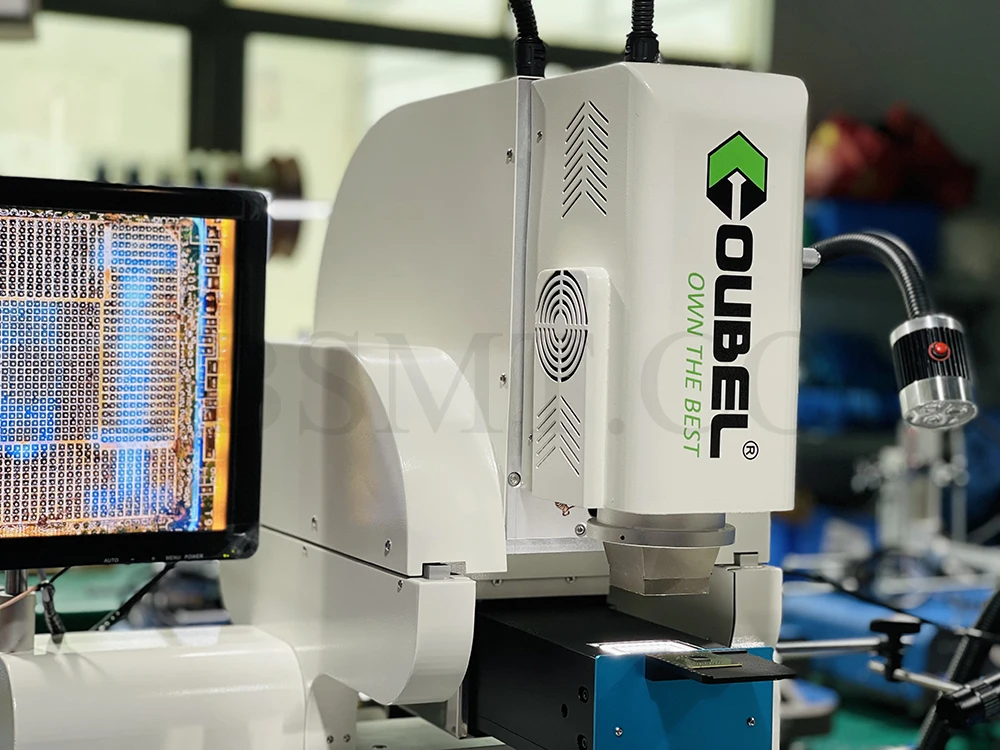

9. The color optical vision system has manual X, Y direction movement, with split-color, magnification and fine-tuning functions,including color difference resolution device, auto focus, software operation function, and can be repaired with a maximum BGA size of 80 * 80 mm;
10. Various sizes of alloy hot air nozzles are easy to replace and can be rotated and positioned 360 °;
11. Configure 5 temperature measurement ports, with multi-point real-time temperature monitoring and analysis function;
Specification of BGA Rework Station:
Model | OB-RS800 |
Dimensions | L970 * W700 * H830mm |
Total power | 7600W |
Upper heating power | 1200W |
Lower heating power | 1200W |
Infrared heating power | 5000W (2000W controlled) |
power supply | Two-phase 220V, 50 / 60Hz |
Targeting | Optical lens + V-shaped card slot + laser positioning lamp for quick positioning |
Selection of electrical appliances | touch screen + temperature control module + PLC + stepper driver |
Maximum PCB size | 630 * 480mm (actual effective area, no rework corner) |
Minimum PCB size | 10*10mm |
Number of temperature measuring interfaces | 5 |
Chip zoom in and out | 2-50 times |
PCB thickness | 0.5~8mm |
Applicable chip | 0.8*0.8~80*80mm |
Applicable chip minimum pitch | 0.15mm |
Mounting maximum load | 800g |
Mounting accuracy | ±0.01mm |
Weight | Approx.135KG |
Applications of BGA Rework Station:
Detail Pictures
Related Product
Packing&Delivery
Company Profile
Shenzhen Oubel Technology Co.,Ltd.
Oubel supplies the dispensing and PCB conformal coating machine, SMT &DIP machines that is supported by a global service network,we offer customer-inspired solutions in a range of industries. OUBEL is dedicated to making quality products that help our clients operate more efficiently and effectively. Oubel is guided by the principles of fairness to our suppliers, associates,clients and employees, and helping them achieve to the best of their potential.
Clients feedback
FAQ
1.Are you a trade company or a manufacture?
We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 3-5 days after receipt of payment.
3.What is your payment terms?
Accept payment by T/T,Paypal,Alibaba.
4.Can you provide a whole line solution?
Yes, we can.We can supply SMT line,Coating line,DIP line and LED production line.
We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 3-5 days after receipt of payment.
3.What is your payment terms?
Accept payment by T/T,Paypal,Alibaba.
4.Can you provide a whole line solution?
Yes, we can.We can supply SMT line,Coating line,DIP line and LED production line.
Contact Us
Похожие товары

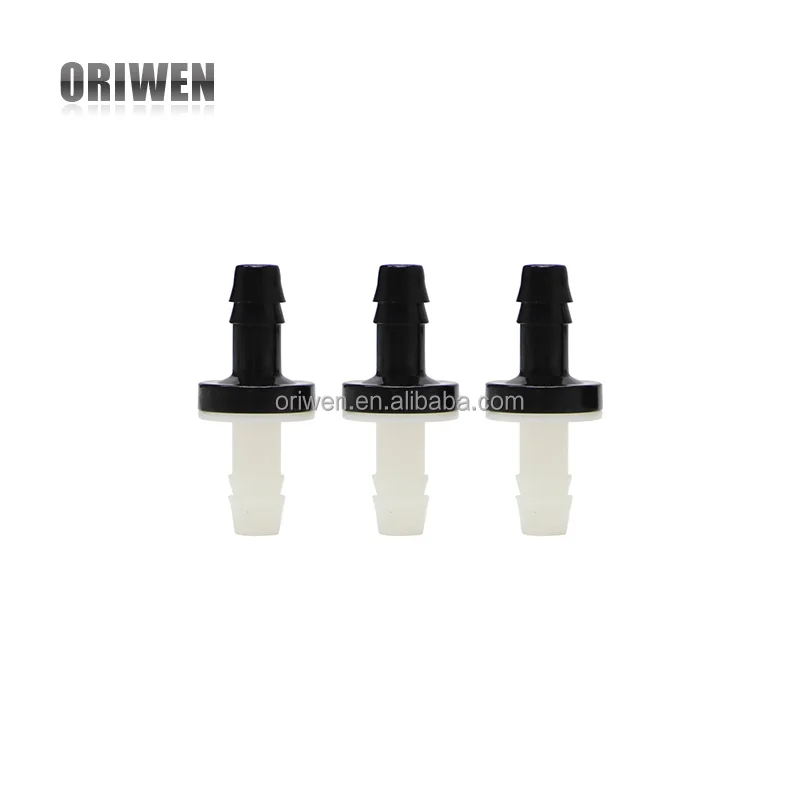

5/16 дюйма ABS Micro Mini односторонний невозвратный воздушный пластиковый мембранный обратный
Черно-белая Толстая непромокаемая занавеска для душа PEVA с защитой от
1,80 $ - 2,50 $

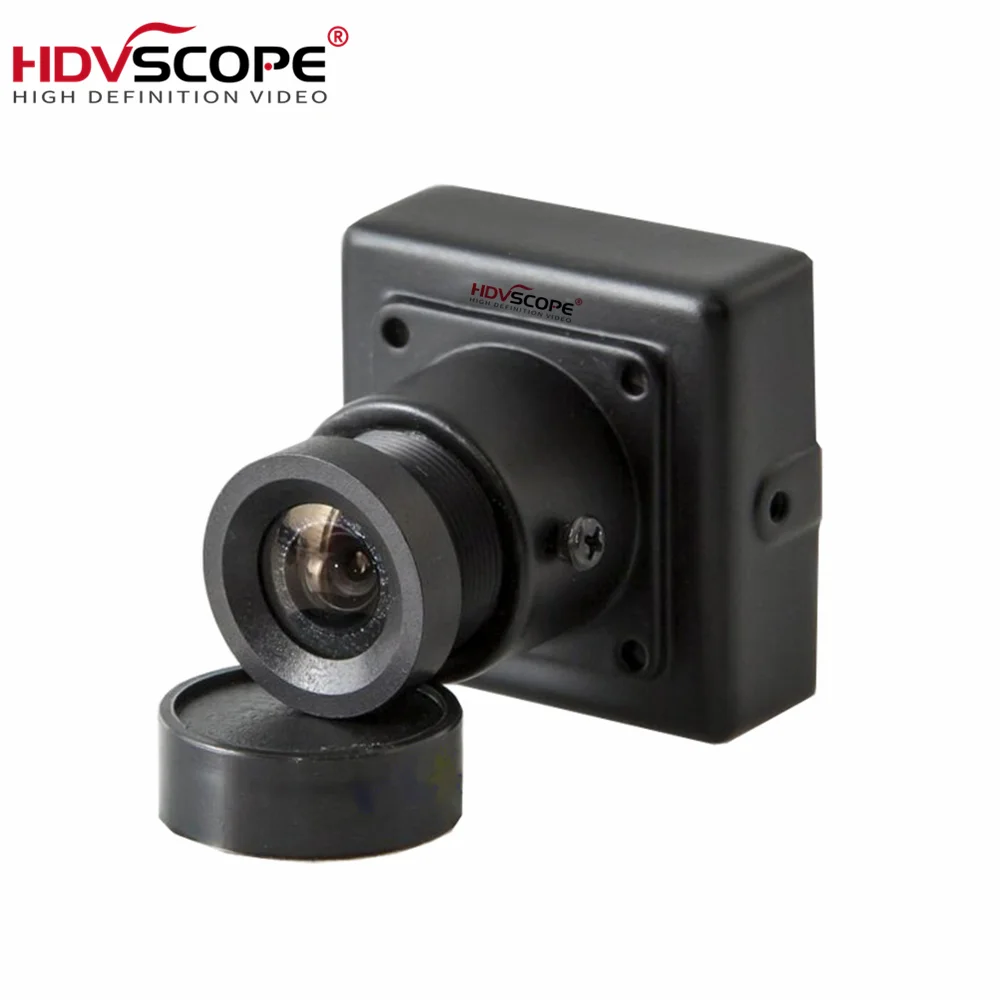

19/16/12 мм микро CVBS CCD камера 34*34 мм 2,1/2,5/2,8/3,6/4,2/6/8/12/16 мм объектив с фокусным расстоянием 34x34 мм с аудио промышленная камера RCA

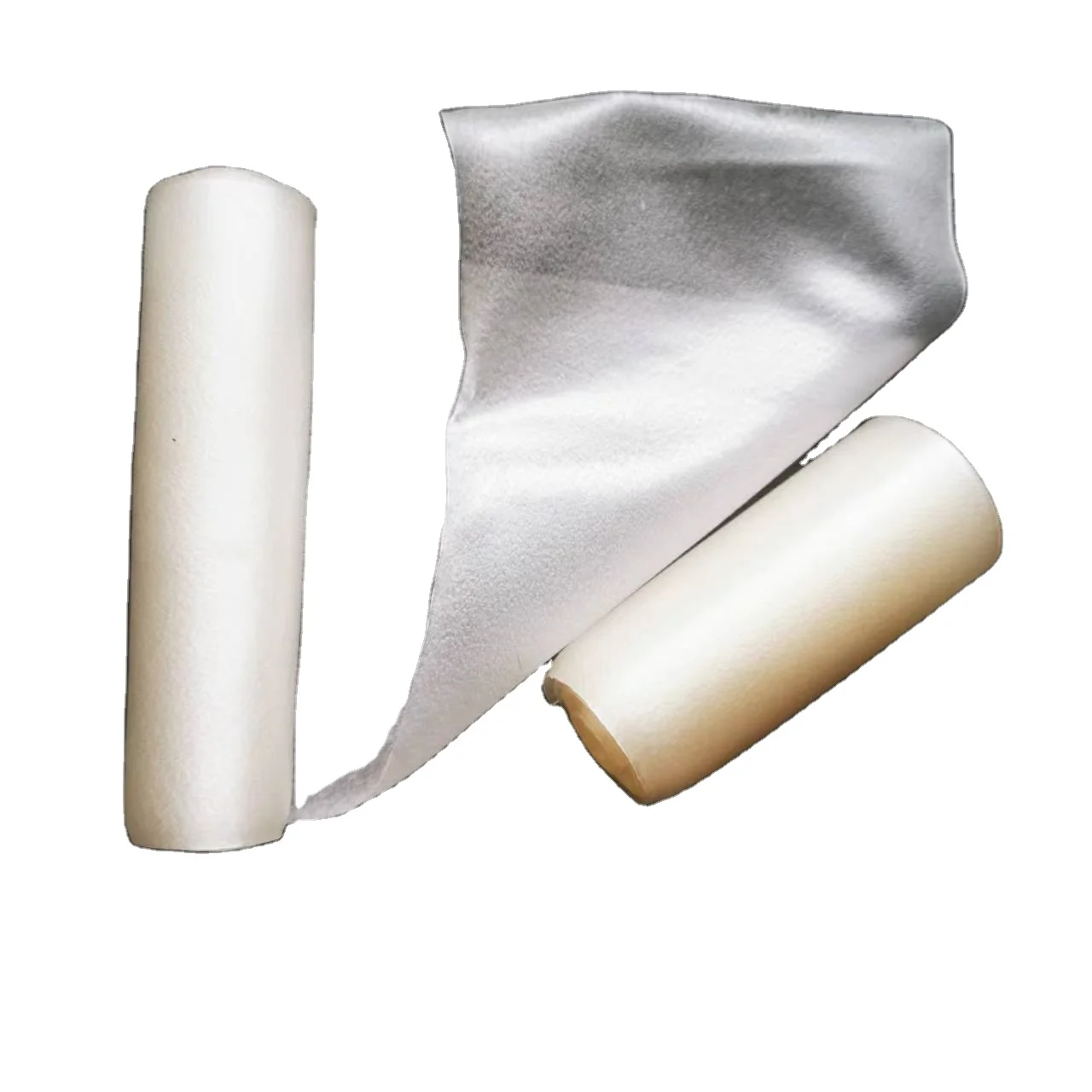

Индивидуальная длина ширина цветная пленка pvb мм pvb sgp пленка
1,50 $ - 1,70 $

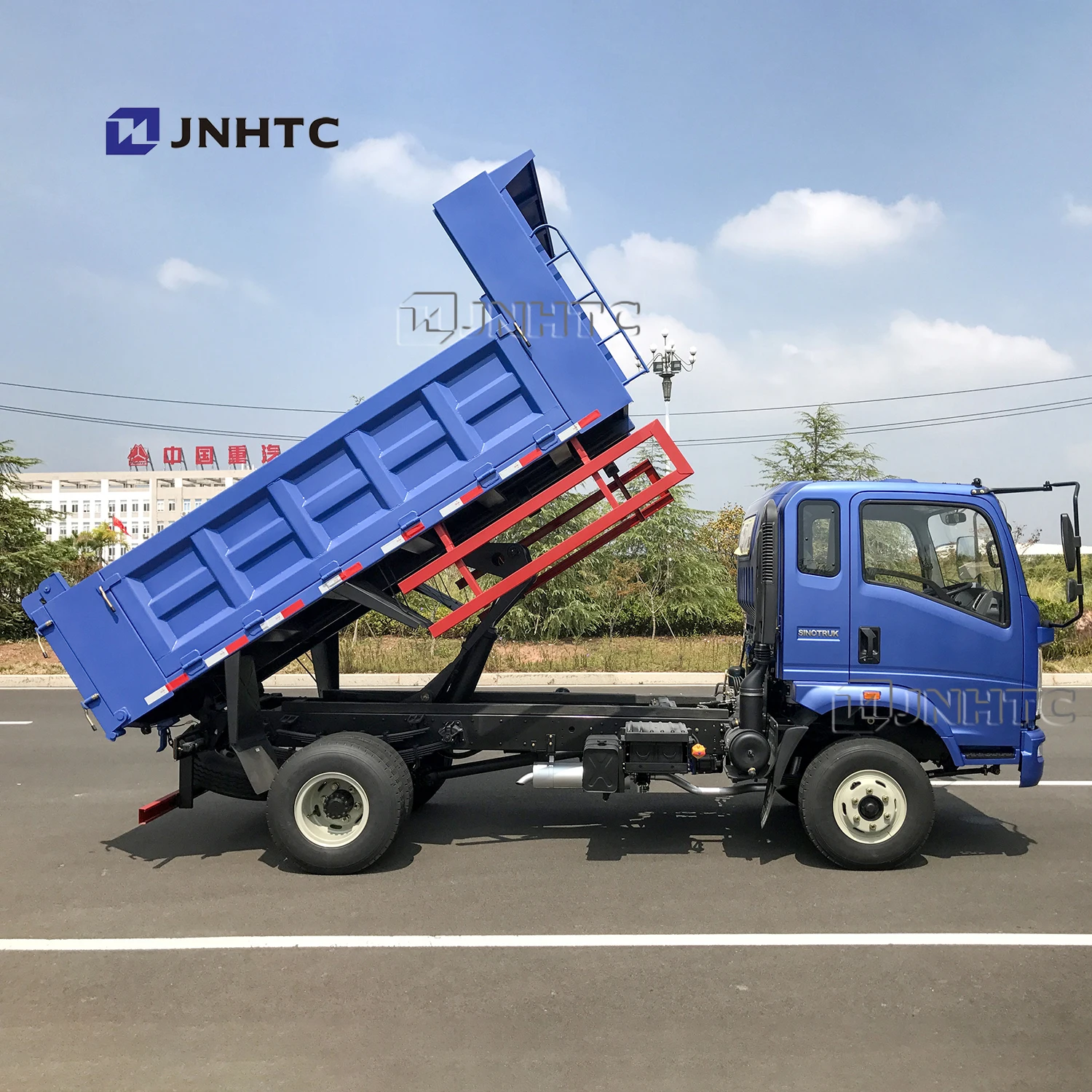

Маленький самосвал SINOTRUK грузоподъемностью 5-8 тонн, мини-самосвал HOMAN, грузовик HOWO, легкие грузовики
11 100,00 $ - 12 210,00 $

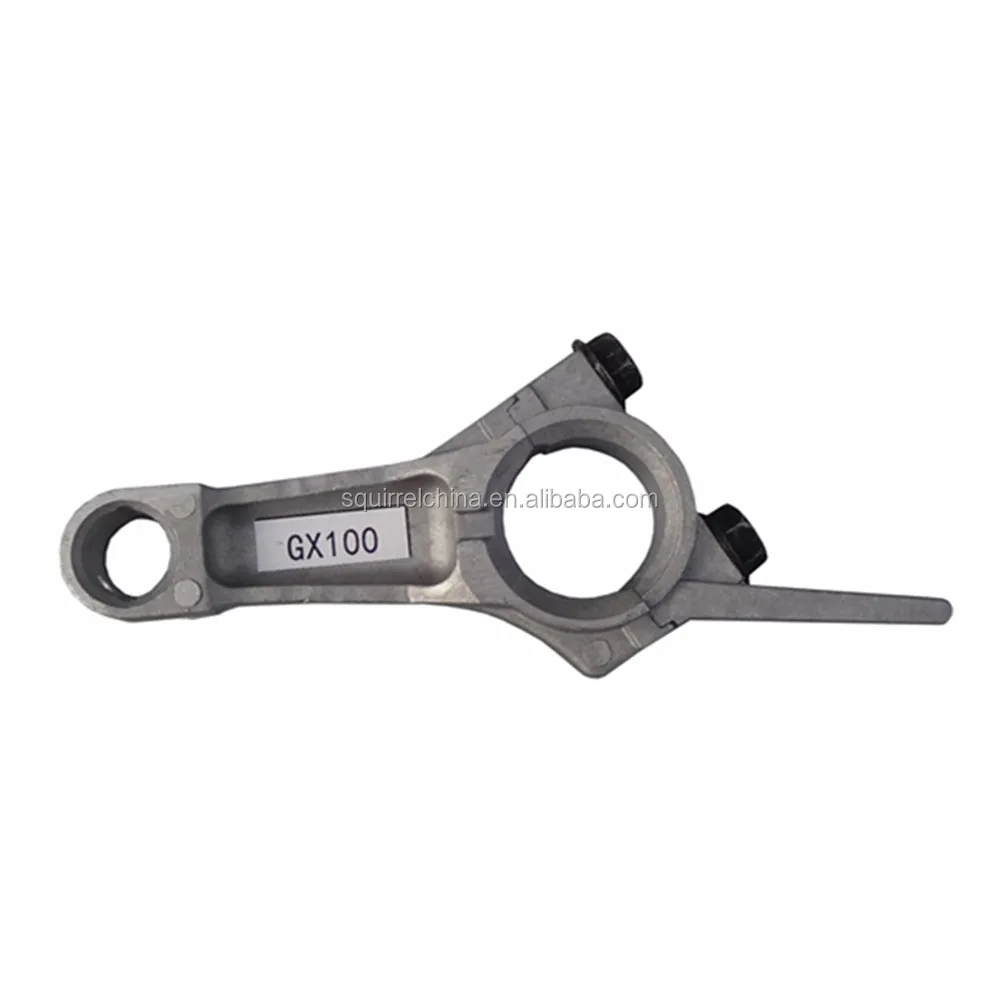

Высокое качество Шатун подходит для Honda GX100 13200-Z0D-000 стержневых двигателей
4,00 $ - 5,00 $

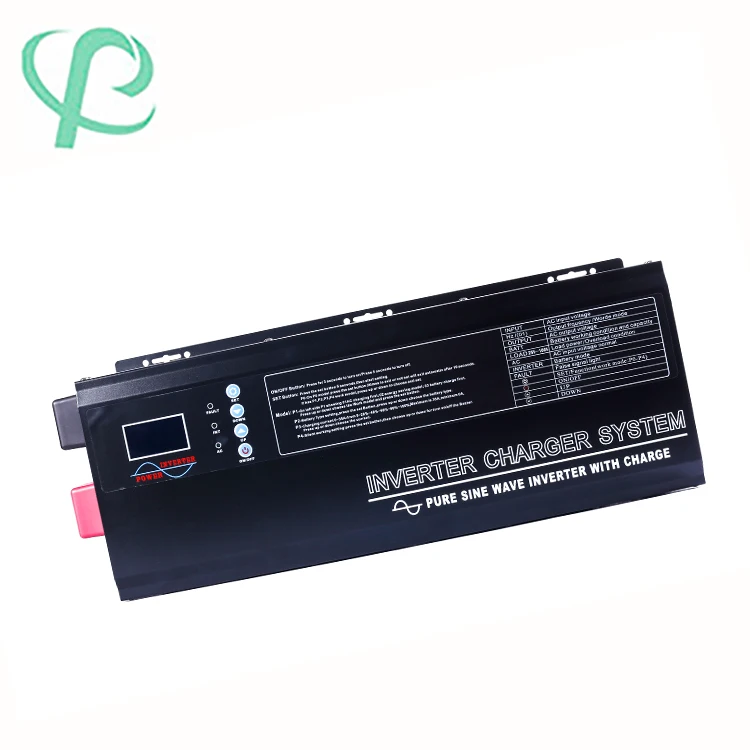

Инвертор мощности 3000 Вт, инвертор немодулированного синусоидального сигнала 48 В
