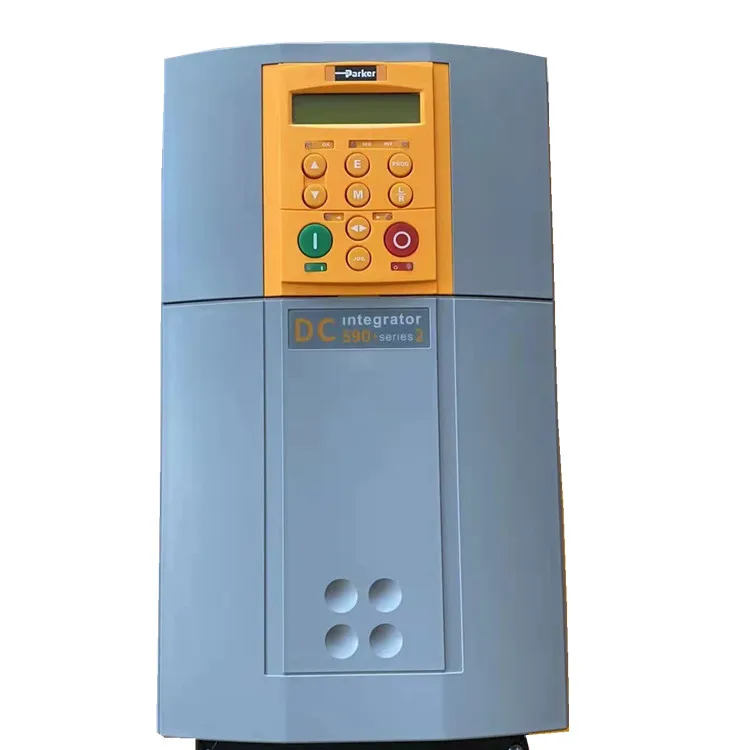

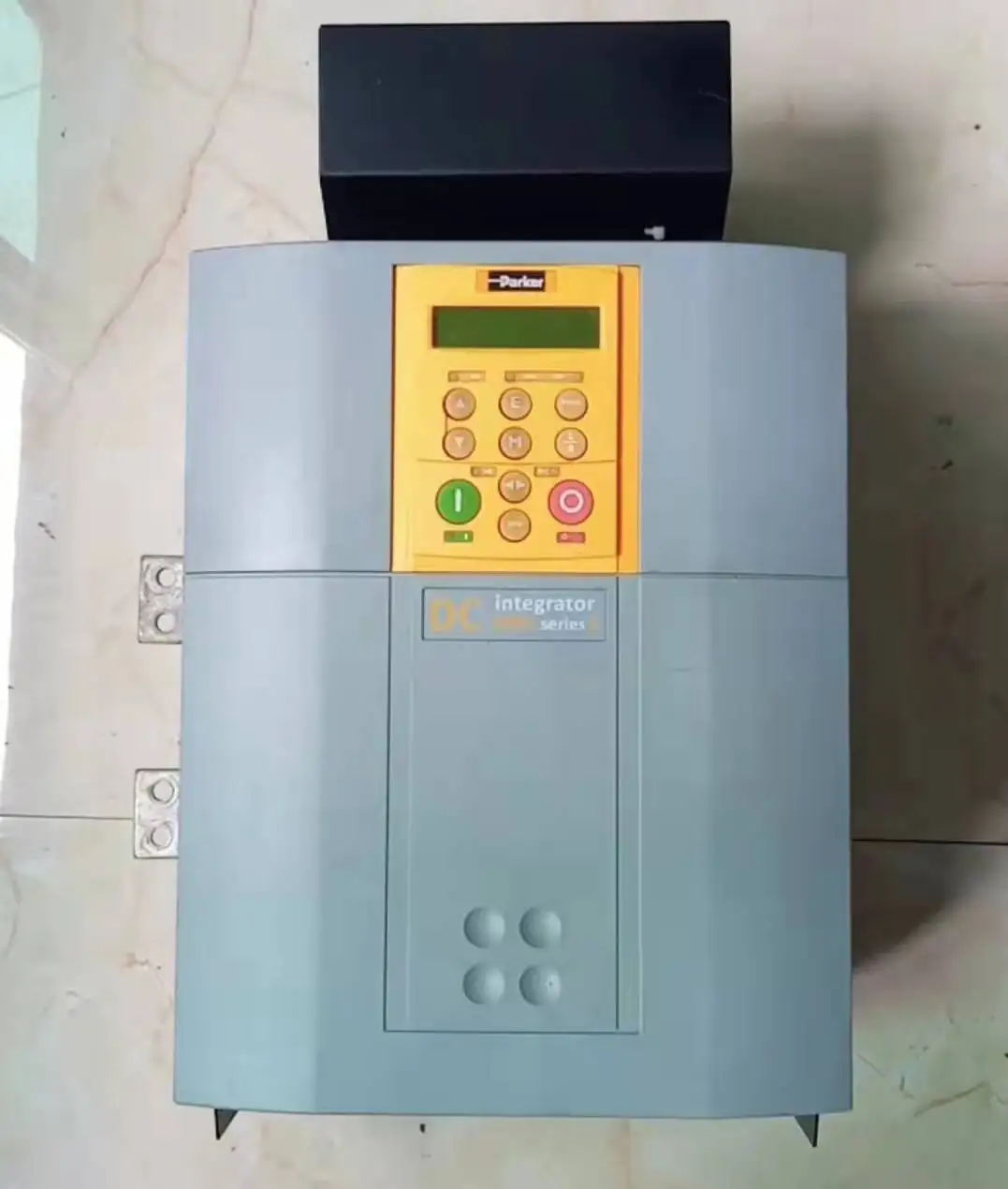

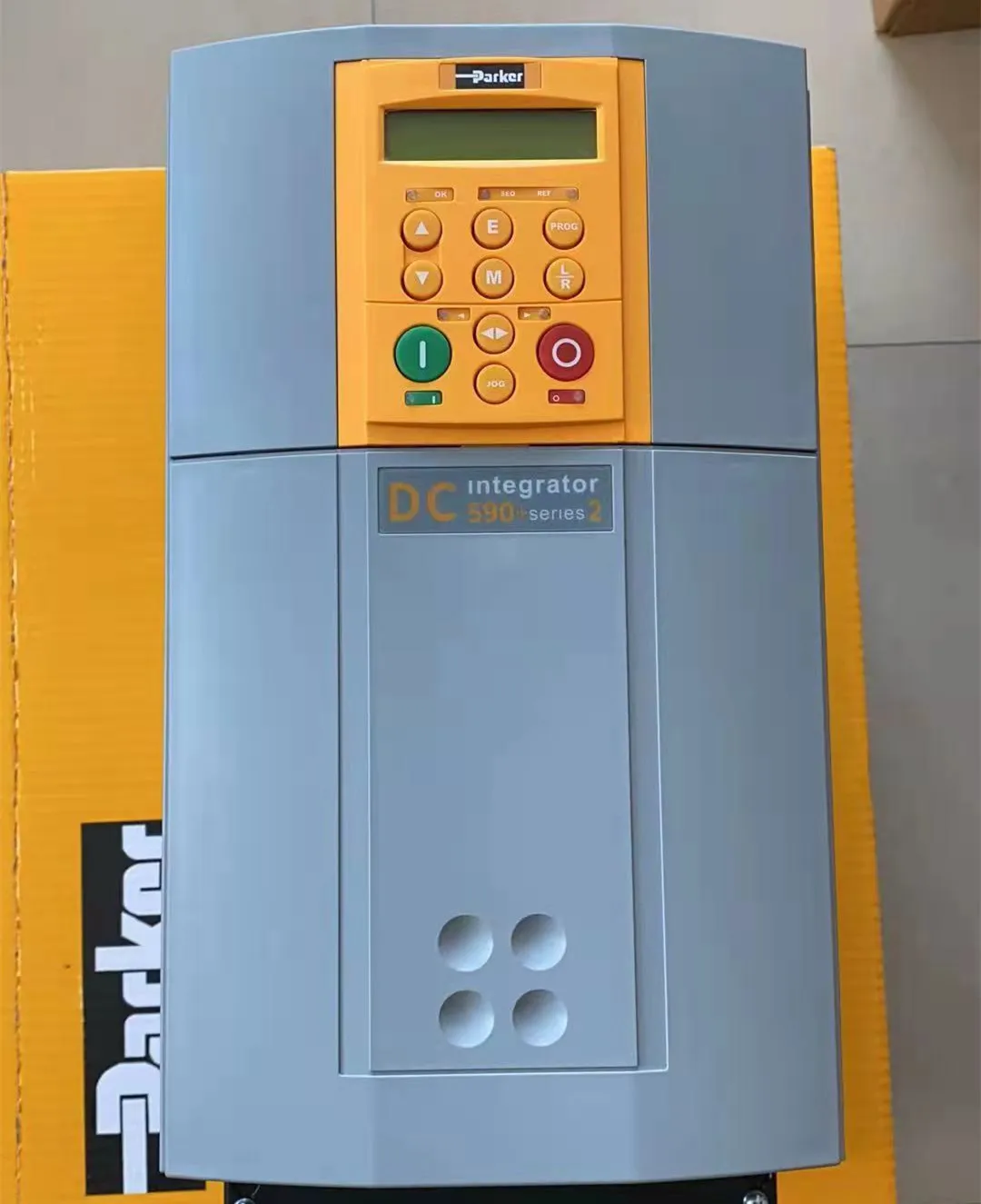

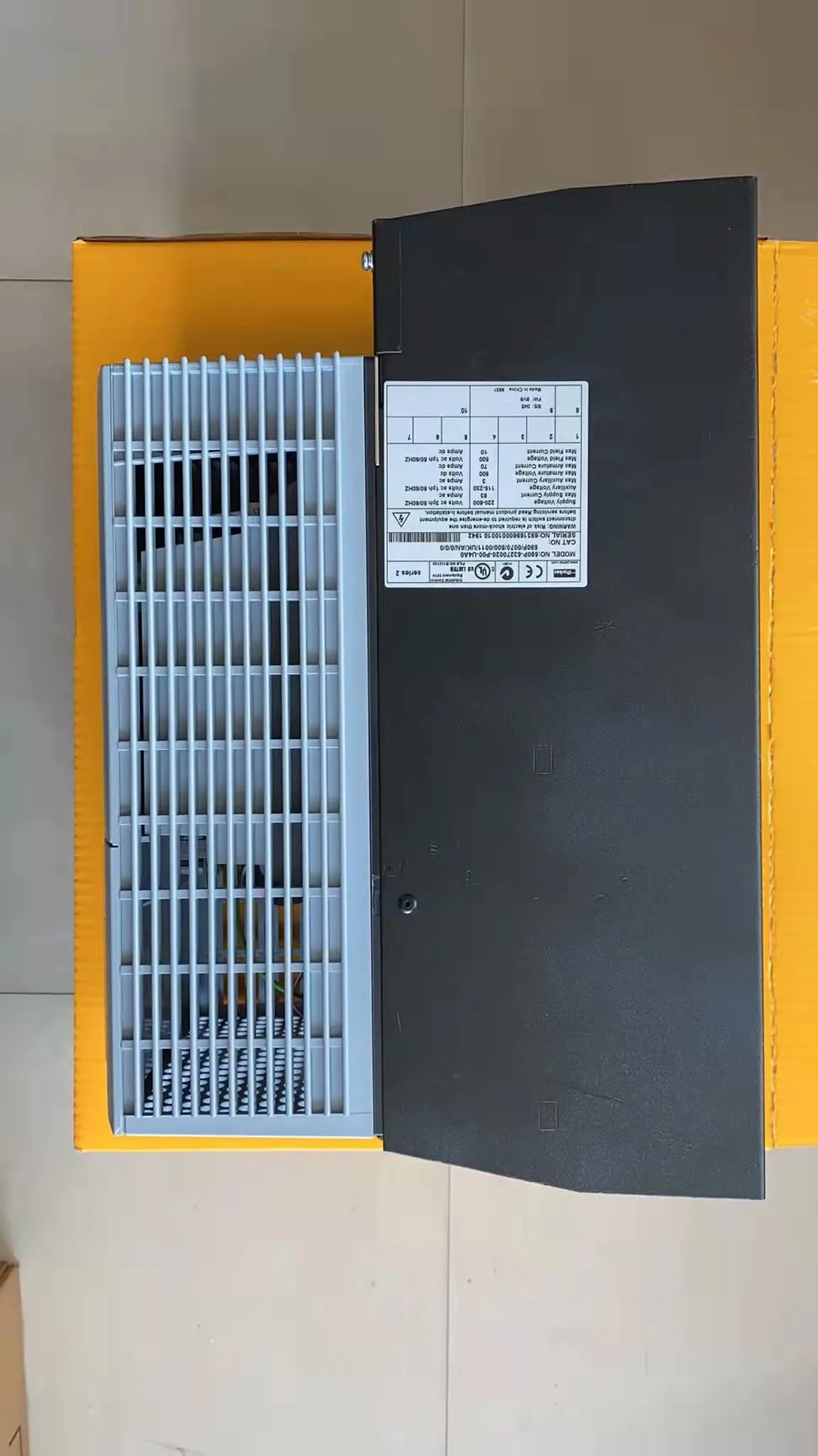

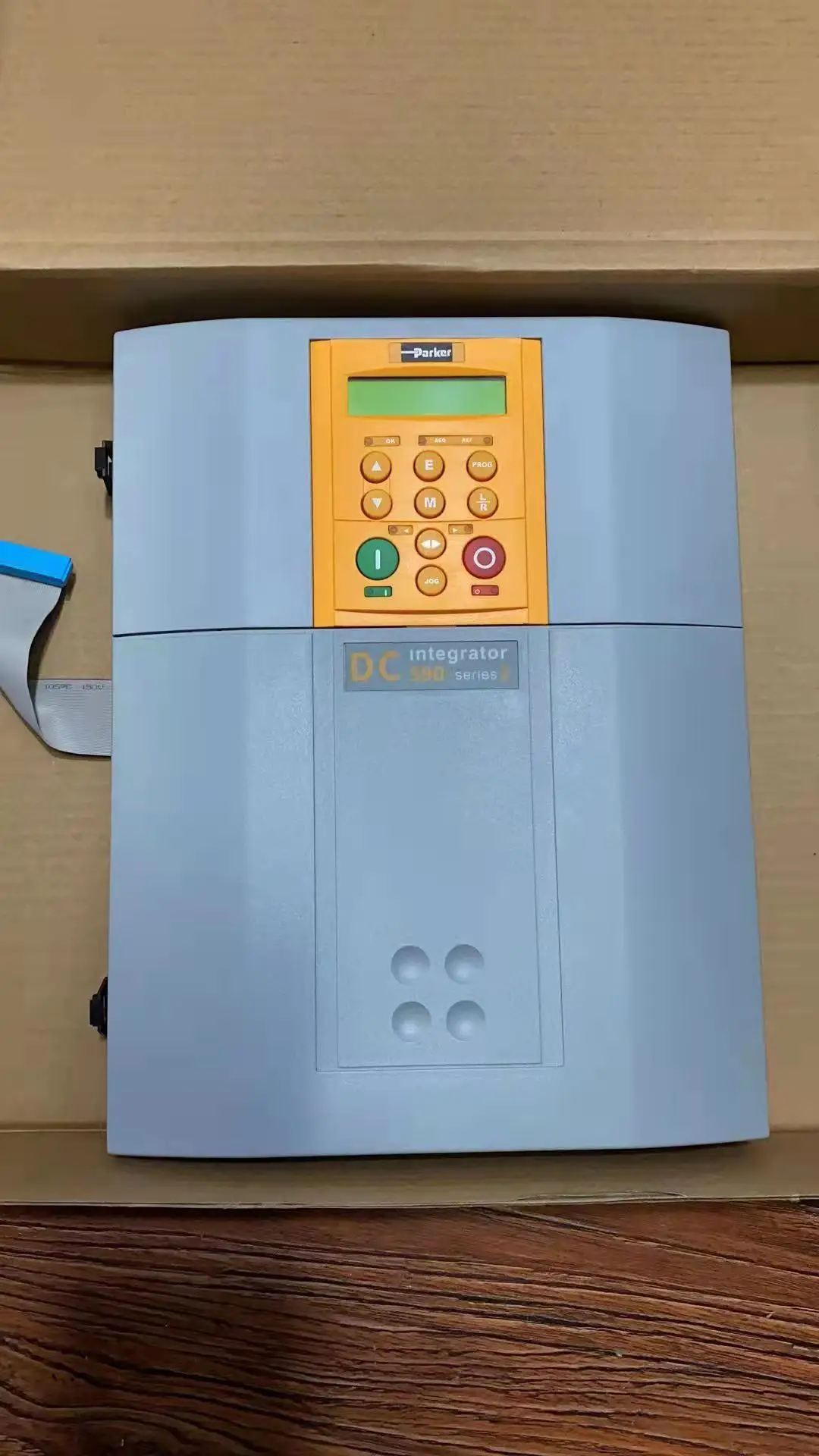

Parker привод постоянного тока 590P 590P 53235010 P00 U4A0 Eurotherm 590P/0035/500/0011 35A
- Категория: >>>
- Поставщик: Shanghai Fmz Industry Co. Ltd.
Сохранить в закладки 1600451237585:
Описание и отзывы
Характеристики
Product Description
The 590 Series Converter is designed for use in a suitable enclosure, with associated control equipment. The unit accepts standard three-phase ac supply voltages in the range 110V to 660V, depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
The coding circuitry adjusts automatically to accept supply frequencies between 45-65Hz and possesses high immunity to supply-borne interference. The armature controllers are phase rotation insensitive.
DC Motor Speed Controller - DC590+ Series | #590P-23235010-P00-U4V0
The advanced DC590+ series 4-quadrant variable speed DC drives offer current ratings of up to 1950A, function block programming, configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications.
Product Detail
DC Drive 590p/591p Series
DC Drive 590p/591p Series
DC Drive 590c/591c Series
DC Drive 590c/591c Series
Product specifications
Product Name | DC Drive 590 Series |
Model Number | 590P-53235010-P00-U4A0 |
Type | DC/DC Inverters |
Input Voltage | 200-500v |
Output Voltage | 500v |
Rated Current | 35A |
Output Frequency | 50Hz/60Hz |
Package Size | 440*290*315mm |
Weight | 7KG |
Warranty | 18 Months |
OEM | Accepted |
Selection Table
590P Model | Rated current | Output voltage | Mode of operation | |
590P/0015 | 15A | 500v | Reversible | |
590P/0035 | 35A | 500v | Reversible | |
590P/0040 | 40A | 500v | Reversible | |
590P/0070 | 70A | 500v | Reversible | |
590P/0110 | 110A | 500v | Reversible | |
590P/0165 | 165A | 500v | Reversible | |
590P/0180 | 180A | 500v | Reversible | |
590P/0270 | 270A | 500v | Reversible | |
590P/0380 | 380A | 500v | Reversible | |
590P/0500 | 500A | 500v | Reversible | |
590P/0725 | 725A | 500v | Reversible | |
590P/0830 | 830A | 500v | Reversible | |
590P/1580 | 1580A | 500v | Reversible | |
590P/2200 | 2200A | 500v | Reversible | |
590P/2700 | 2700A | 500v | Reversible | |
591P/0015 | 15A | 500v | Irreversible | |
591P/0035 | 35A | 500v | Irreversible | |
591P/0040 | 40A | 500v | Irreversible | |
591P/0070 | 70A | 500v | Irreversible | |
591P/0110 | 110A | 500v | Irreversible | |
591P/0165 | 165A | 500v | Irreversible | |
591P/0180 | 180A | 500v | Irreversible | |
591P/0270 | 270A | 500v | Irreversible | |
591P/0380 | 380A | 500v | Irreversible | |
591P/0500 | 500A | 500v | Irreversible | |
591P/0725 | 725A | 500v | Irreversible | |
591P/0830 | 830A | 500v | Irreversible | |
591P/1580 | 1580A | 500v | Irreversible | |
591P/2200 | 2200A | 500v | Irreversible | |
591P/2700 | 2700A | 500v | Irreversible |
590C Model | Rated current | Input voltage | Mode of operation | |
590C/0350 | 35A | 500v | Reversible | |
590C/0700 | 70A | 500v | Reversible | |
590C/1100 | 110A | 500v | Reversible | |
590C/1500 | 150A | 500v | Reversible | |
590C/1800 | 180A | 500v | Reversible | |
590C/2700 | 270A | 500v | Reversible | |
591C/0350 | 35A | 500v | Irreversible | |
591C/0700 | 70A | 500v | Irreversible | |
591C/1100 | 110A | 500v | Irreversible | |
591C/1500 | 150A | 500v | Irreversible | |
591C/1800 | 180A | 500v | Irreversible | |
591C/2700 | 270A | 500v | Irreversible |
Digital Keypad Description- 590P
222
All calibration is done in software, through the keypad.
The DC590+ can also be calibrated using the programming tool software.
Digital Keypad Description- 590C
1 | Main converter assembly | 10 | Calibration panel | |
2 | Converter door assembly | 11 | Busbars - main power input | |
3 | Hinged MMl cover | 12 | System Port (P3) | |
4 | Hinged terminal cover | 13 | Auxiliary Serial Port (P2) | |
5 | Field wiring terminals | 14 | Man-Machine Interface (MMI) keypad | |
6 | Control terminals | 15 | Status LEDs | |
7 | Control board | 16 | MMl display | |
8 | Tacho/Encoder/Microtach option board | 17 | IP20 Top Cover | |
9 | Main Serial Port COMMS option module (P1) | 18 | IP20 Fan Housing (where fitted) |
Installation Instructions
Size and Installation 590+
All units are designed for simple and economical panel mounting using keyhole slots.
Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.
Size and Installation 590P
Installing the Drive 590C
Packaging and Lifting Details
Caution
Improper packaging can result in transit damage.Use a safe and suitable lifting procedure when moving the drive. Never lift the drive by its terminal connections. The larger drives are fitted with lifting points. Prepare a clear, flat surface to receive the drive before attempting to move it. Do not damage any terminal connections when putting the drive down.Please refer to the manual: "Technical Specifications"-mechanical details per unit weight.
Packing & Delivery
1) Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)
2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)
3)Delivery
We support a variety of transportation methods such as ocean shipping, land transportation, air transport, express, etc., and can also be consigned by the customer's designated freight forwarder.You can be negotiated with us.
Lead time:
Can be negotiated.
Sample order: | 1~2 working days for delivery. | ||||||
Large order: | 10-20 working days for delivery. | ||||||
Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to 'Always be with you and enjoy success together'.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to 'Always be with you and enjoy success together'.
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter
4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market.
Own software to offer customized service.
We accept OEM service with technical support.
CE &TUV, ISO9001, CCC certificate.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter
4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market.
Own software to offer customized service.
We accept OEM service with technical support.
CE &TUV, ISO9001, CCC certificate.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
Похожие товары
Каталог производителя XP263 Вибрационный дорожный каток, уплотнитель 26 т, пневматический дорожный каток
35 000,00 $ - 42 100,00 $
Высокое качество LD1117AL диода стабилизатор напряжения чип TO263 LD1117AG-ADJ-A-Q

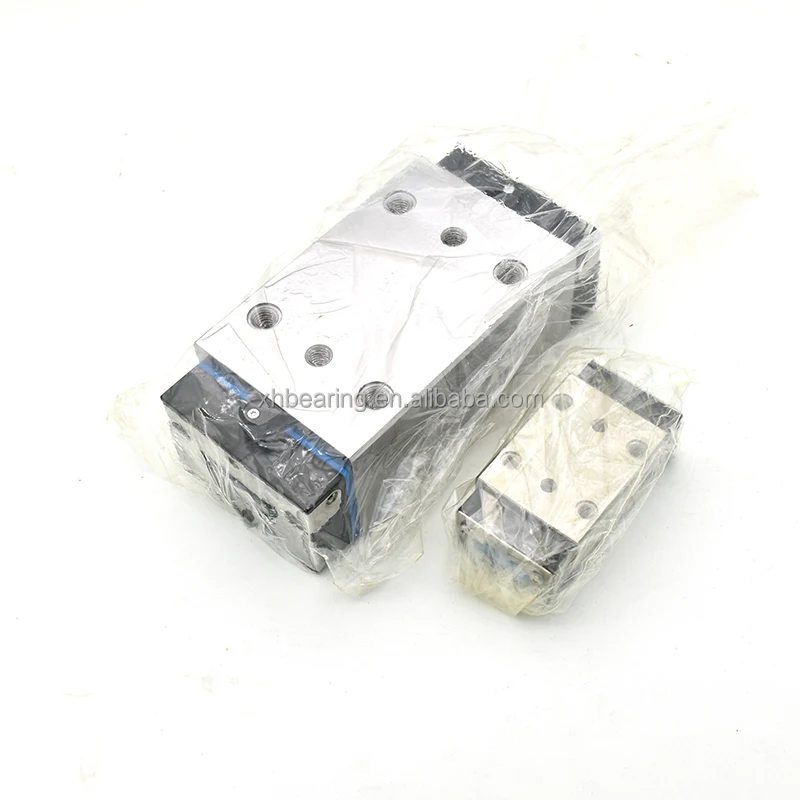

Rexroth линейный направляющий рельсовый блок подшипник R185152210 линейные направляющие R185152210
500 мл для кухни и туалета очиститель пестицидов полива 16oz PE пластиковый рычажный распылитель бутылки
19,21 ₽ - 29,32 ₽
Оптовая продажа по индивидуальному заказу, Волшебная Водонепроницаемая пластиковая карточная игра, черная желтая Золотая фольга, Настольная покерная игральная карта
1,00 $ - 1,70 $

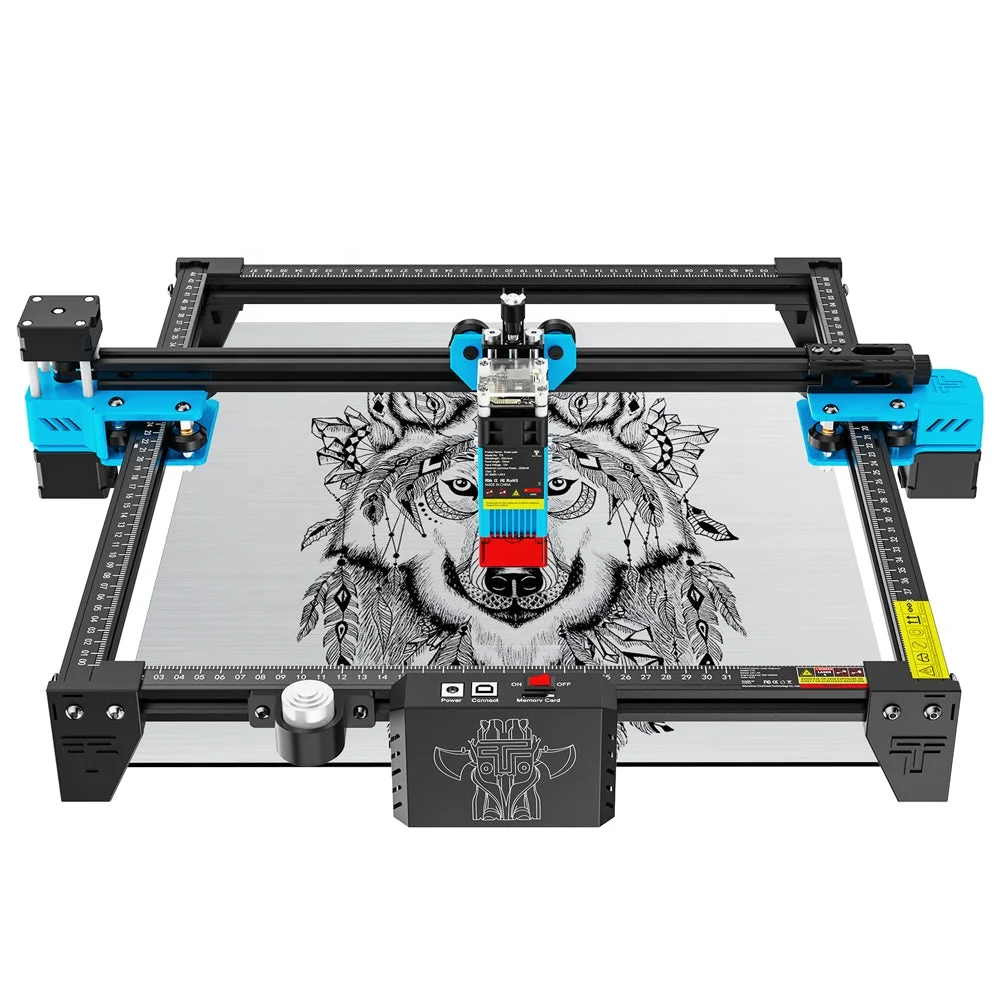

Лидер продаж, новый гравер TTS55, 10 Вт, Высокоплотный лазерный гравировальный станок 0,1 мм для гравировки дерева
