Простота установки горизонтальные многоступенчатые non самовсасывающий центробежный насос с длинным электрическим двигателем
- Категория: >>>
- Поставщик: Shanghai Pumping Tech International Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600453452242:
Описание и отзывы
Характеристики
Product Description
Introduction:
1. Impeller and wet parts are made of stainless steel.
2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.

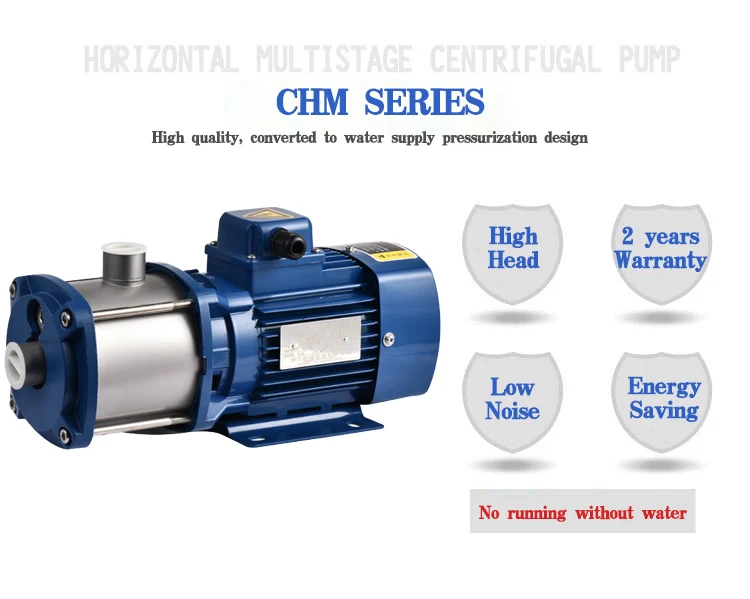

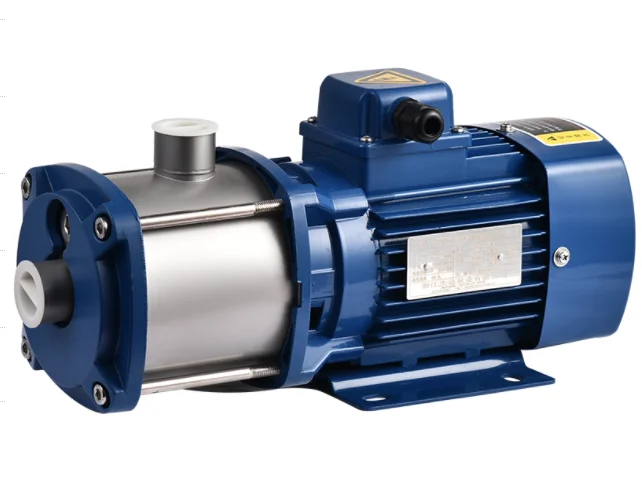

3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
4. Axial inlet and radial outlet.
5. CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.
2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.
3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
4. Axial inlet and radial outlet.
5. CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Specification
Working Principle: | Centrifugal |
Main applications: | Water, Chemical |
Driver: | Electric motor |
Power Specs: | 220-240V single phase, 220-240V/380-415V three phase 50Hz or 60Hz |
Max.permissible fluid temperature: | -15°C to +70°C(hot water type max 110°C) |
Type of connection: | Inlet thread, hose, flange |
Installation position: | Horizontal |
Casing parts material: | Stainless steel 304 or 316 |
Shaft seal type: | Mechanical seal |
Maximum drive rating: | 4KW(6HP) |
Maximum caliber: | 50mm(2inch) |
Maximum discharge-side pressure: | 0.6MPa(6bar) |
Maximum head: | 60m(196.8ft) |
Flow rate range: | 0.5-28m3/h(2.2-123.20US.GPM) |
Company Profile
Our factory
Mission
With constantly innovating and developing, brands that go out of China are no longer inferior to other international mega brands.
We simplify the complexity and push the best to the world. We aim number one.
We simplify the complexity and push the best to the world. We aim number one.
Certifications
Payment and shipping
FAQ
Q:Can you accept customized products?
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power,but they cannot be used as battery.
Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q: Do we need to set the parameter before using ?
A:No need for Solar inverter , our preset parameters have already meet your normal use. And our inverter is AI intelligent
working.
Pump Variable frequency driver need set the target pressure and RS485 communication for multi-pumps.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America,etc.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power,but they cannot be used as battery.
Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q: Do we need to set the parameter before using ?
A:No need for Solar inverter , our preset parameters have already meet your normal use. And our inverter is AI intelligent
working.
Pump Variable frequency driver need set the target pressure and RS485 communication for multi-pumps.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America,etc.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
