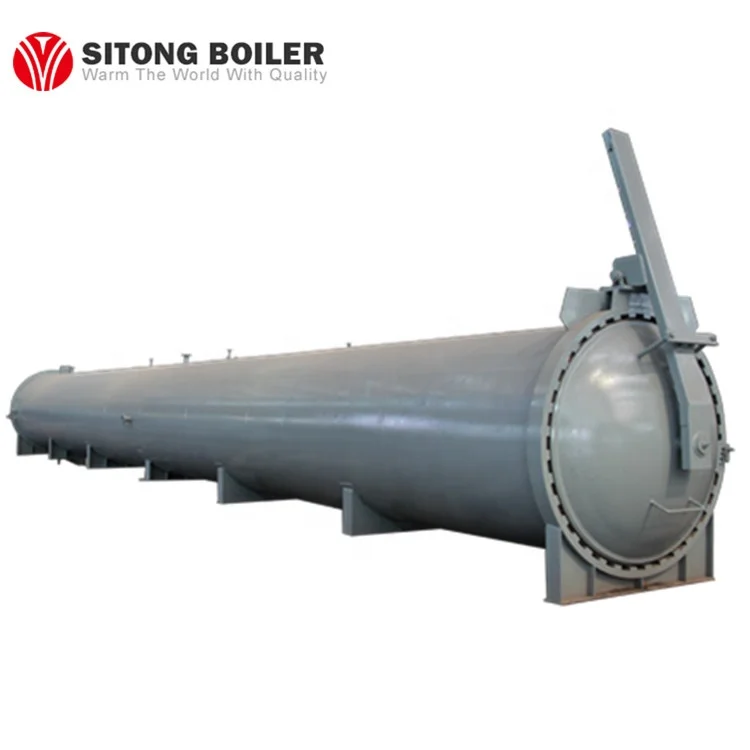

Large Autoclave Industrial Autoclave Price 30m for Rubber Wood Chip![Aac plant brick block machine]()
Product Description
1.Autoclavedoor seal uses professional manufacturers of imported rubber sealing ring, easy installation, good sealing, long service life.
2.Autoclave body bearing aimed at different position, Settings are fixed supprort, activities bearing, special bearings at the end of the three forms. Better meet the kettle body heat bilges cold shrink, guarantee the autoclaved autoclave normal work and service life.
Autoclave Kettle belongs large pressure vessel equipment, used for maintenance and steaming of lime-sand brick, fly-ash brick, aerated concrete blocks, new light wall material, and concrete tubular pile and other building products, presently, autoclave not only used in silicate building products, it was also used for the products steaming in chemical industry, medicine, rubber, wood, gypsum, glass, thermal insulation materials, textile, war industry and other areas.
Show Details:
Technical Parameters:
Model | FGZCS1.0-1.65x21 | FGZCS1.3-2x21 | FGZCS1.3-2x27 | FGZCS1.3-2x31 | FGZCS1.3-2.5x27 | FGZCS1.3-2.5x31 | |
Internal diameter(m) | 1.65 | 2 | 2 | 2 | 2.5 | 2.5 | |
Effective length(m) | 21 | 21 | 27 | 31 | 27 | 31 | |
Max working temperature(C) | 184 | 194 | 194 | 194 | 194 | 194 | |
Max working pressure(Mpa) | 1 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | |
Design Pressure(Mpa) | 1.1 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | |
Design Temperature(C) | 187 | 198 | 198 | 198 | 198 | 198 | |
Working medium | Saturated steam | ||||||
Total length(m) | 22.65 | 23.3 | 2.9 | 33.3 | 29.56 | 33.56 | |
Wide(m) | 2.6 | 2.9 | 2.9 | 2.9 | 3.2 | 3.2 | |
Height(m) | 2.6 | 3.3 | 3.3 | 3.3 | 4.1 | 4. | |
Boilers Application
Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
Packaging & Shipping
Our autoclave exported to many countries, India, Nigeria, Bangladesh, Ethiopia, Turkey, Uzbekistan, Egypt, Lebanon and Pakistan etc.
Company Information
Customer Visiting
Every time the customer comes to visit the factory, Our leaders will accompany the customer to visit the entire process, and at any time to answer questions from customers in the process of the visiting.And then after a visit to the factory, we will have a group photo with the customer.
Business Exhibition:
Certification
Warranty and after-sale service
Sitong promises the top quality of every set of machine and best
after-sales service as followings:
1.The boiler body guarantee is two years, for accessories three years.
2.During the guarantee period , if the main body defective or broken without wrong operating , Sitong must replace the parts for free or prepare the spare-parts for free.
3.Sitong should provide boiler technical service and operation guidance for whole life long.
4.Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets).
