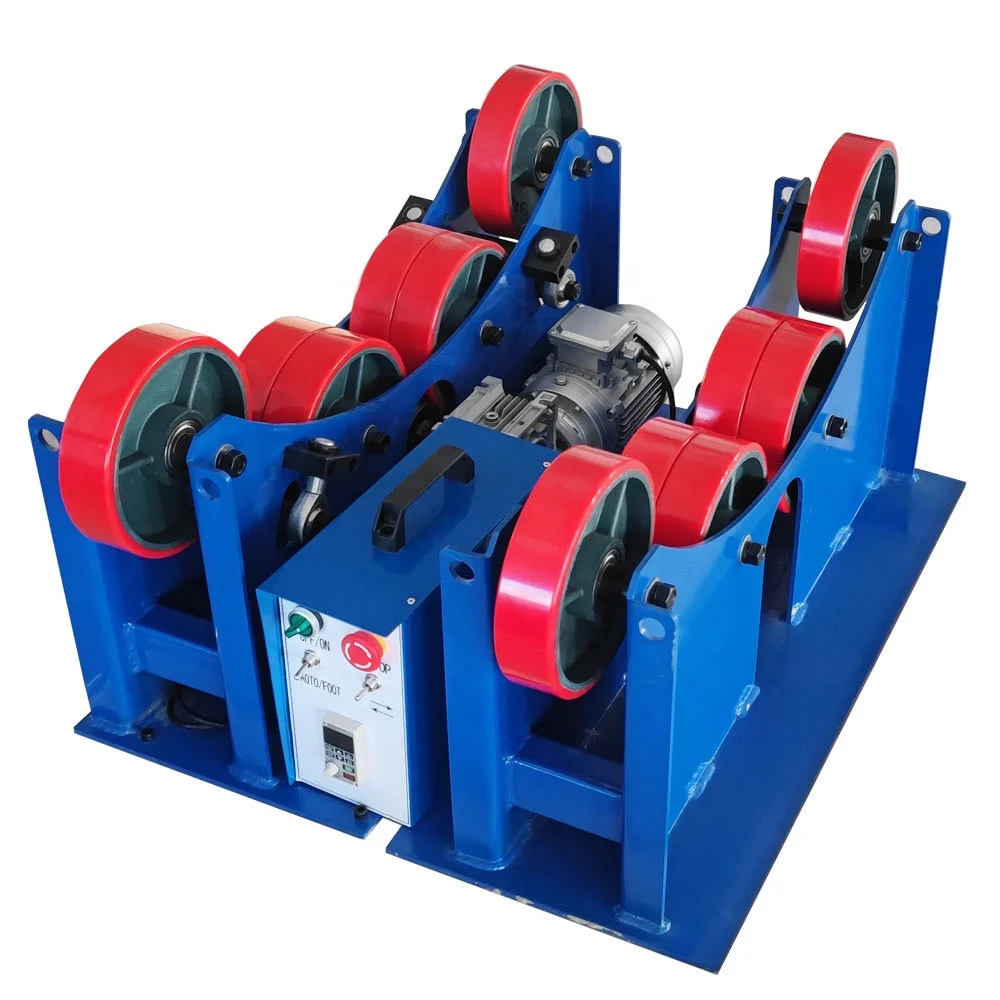

Китайские Производители напрямую поставляют самый продаваемый Регулируемый рулон 20 тонн масляного бака автоматический трубный преобразователь
271 639,66-330 691,76 ₽
От 2 до 10 лет 40t 80t 200t 400t 500t 800t 1200t обычных валки традиционные Сварка Rotator Для бензиновый газовый нефтепровод
- Категория: >>>
- Поставщик: Wuxi Zhouxiang Complete Set Of Welding Equipment Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1600453548324:
Описание и отзывы
Характеристики
Product Paramenters
The welding rotator is designed to aid the welding of cylindrical vessels. By using independent drive and idler units, vessels of varying lengths can be placed on the rotators supported on the rotator wheels.

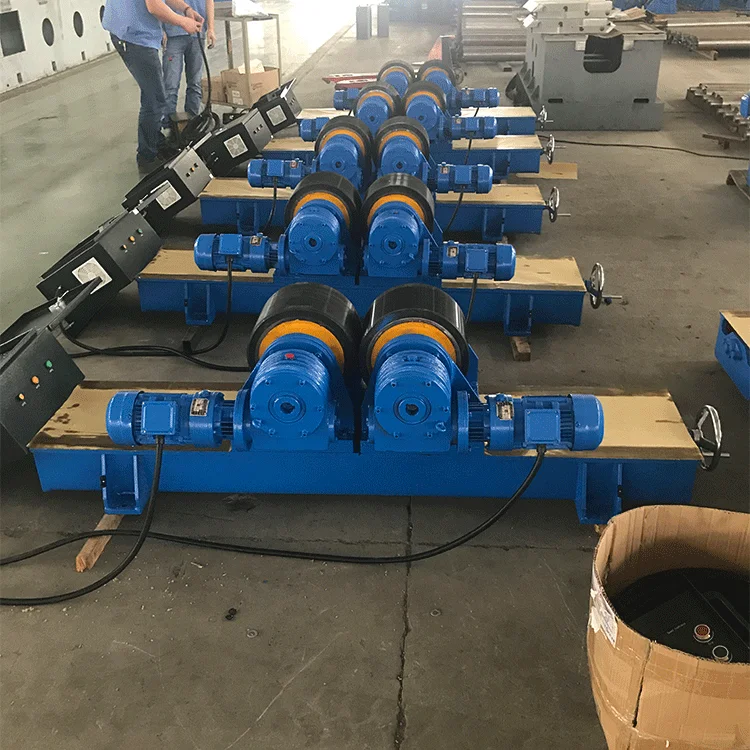

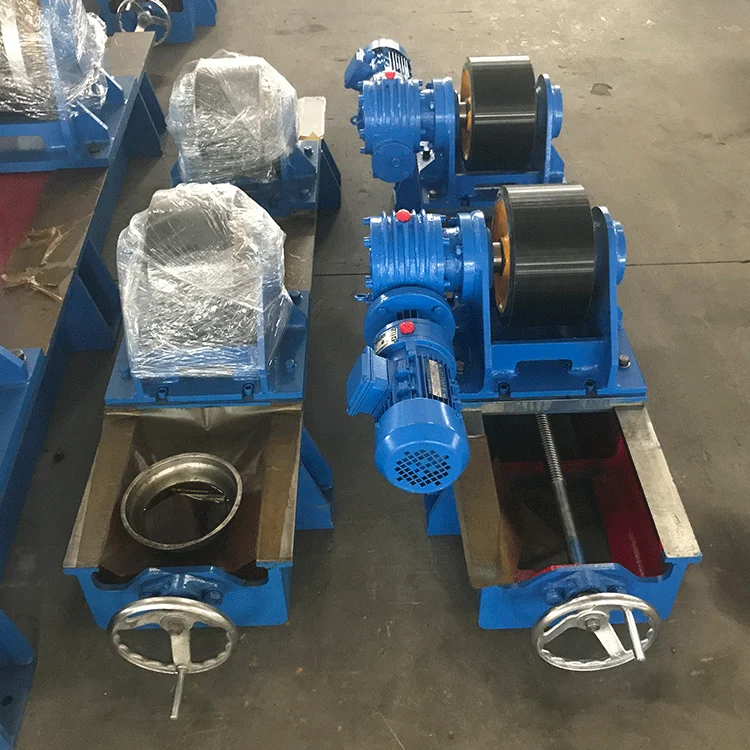

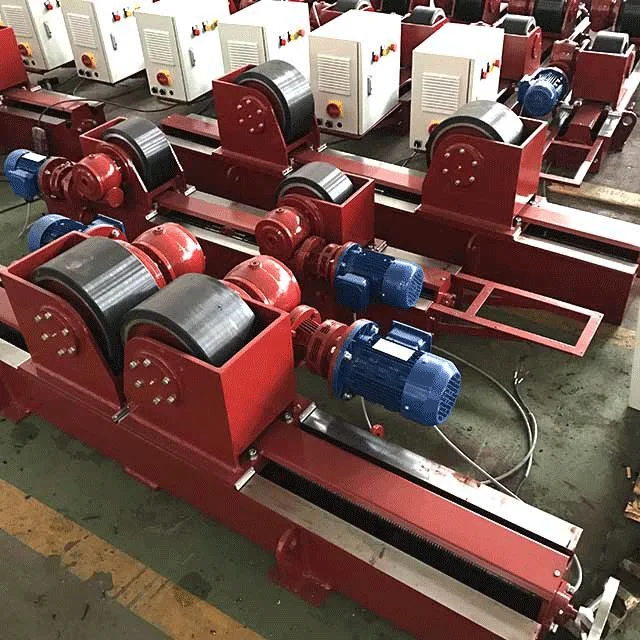

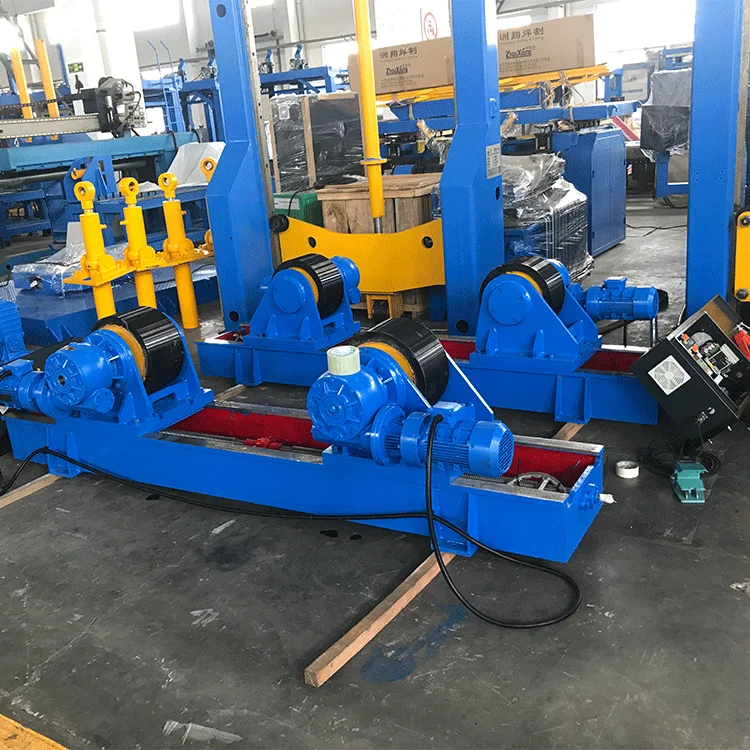

The wheels of conventional rotators can be adjusted on the base frame to accommodate different vessel diameters. Our heavy duty, built to last conventional rotators are designed and manufactured to tolerate the hardest, hard-wearing and unrelenting workload environments.
The wheels of conventional rotators can be adjusted on the base frame to accommodate different vessel diameters. Our heavy duty, built to last conventional rotators are designed and manufactured to tolerate the hardest, hard-wearing and unrelenting workload environments.
Model | Max Load Cap. | Tanks Dia. Range | Motor Power | Rotate Speed | Wheels Center Distance | Wheels Diameter & Width | Roll Dimensions | |||
C1-C2 | ΦW*Wr | Lp * Wp * H | Li * Wi * H | |||||||
Ton | M | Kw | M/h | m | mm | |||||
GLHK-3 | 3 | 0.25-1.8 | 2*0.25 | 6-60 VFD Adjust | 0.90-0.25 | 200*140 | 1673*485*385 | 1260*380*385 | ||
GLHK-5 | 5 | 0.32-2.3 | 2*0.37 | 1.10-0.40 | 250*140 | 1894*529*475 | 1600*436*475 | |||
GLHK-10 | 10 | 0.32-2.8 | 2*0.55 | 1.40-0.45 | 300*170 | 2479*605*534 | 1840*486*534 | |||
GLHK-20 | 20 | 0.5-3.5 | 2*1.1 | 1.75-0.50 | 350*180 | 2988*661*649 | 2450*514*649 | |||
GLHK-40 | 40 | 0.6-4.2 | 2*1.5 | 2.00-0.70 | 400*200 | 3489*724*715 | 2980*600*715 | |||
GLHK-60 | 60 | 0.75-4.8 | 2*2.2 | 2.55-0.76 | 450*240 | 4398*861*825 | 3500*700*825 | |||
GLHK-80 | 80 | 0.85-5 | 2*3 | 2.50-1.00 | 500*260 | 4365*900*890 | 3700*700*890 | |||
GLHK-100 | 100 | 1-5.5 | 2*3 | 2.80-1.00 | 500*300 | 4665*960*955 | 4000*760*955 | |||
GLHK-160 | 160 | 1.1-6 | 2*4 | 3.15-1.10 | 650*250 | 5528*1052*1140 | 4550*780*1140 | |||
GLHK-250 | 250 | 1.2-7 | 2*5.5 | 3.50-1.10 | 700*280 | 5168*1115*1245 | 4930*820*1245 | |||
GLHK-500 | 500 | 1.5-8 | 2*7.5 | 3.75-1.25 | 850*350 | 5824*1331*1565 | 5500*960*1565 | |||
GLHK-630 | 630 | 1.5-9 | 2*11 | 4.40-1.20 | 900*380 | 6805*1493*1475 | 6500*1110*1475 | |||

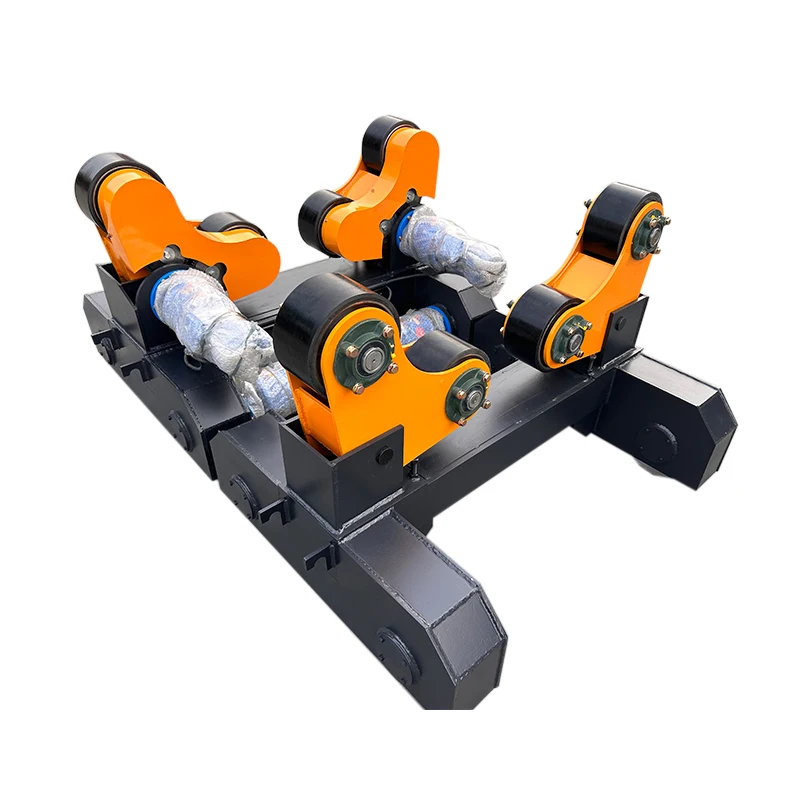

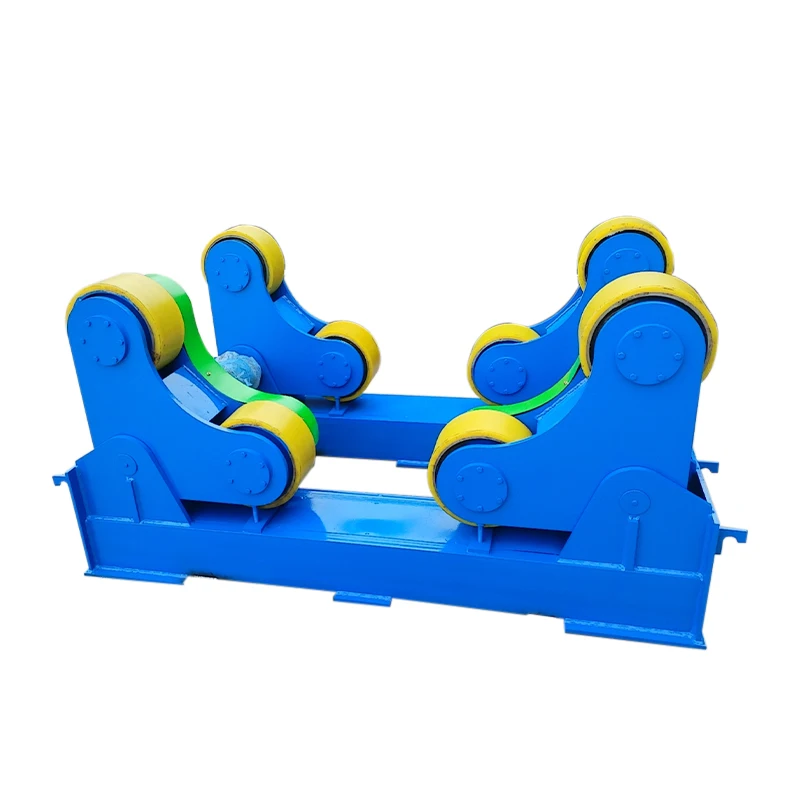

The self-aligned rotators automated adjustments to accommodate the rotation of workpieces with various weights and diameters. Our self-aligned rotators further enhance operator safety, productivity, weld quality and reduce worker fatigue. Self aligning welding rotators are the preferred option when working with thin-wall workpieces.
Model | Max Load Cap. | Tanks Dia. Range | Motor Power | Rotate Speed | Frame Center Distance | Wheels Diameter & Width | Roll Dimensions | ||||
C | ΦW*Wr | Li * Wi * H | Lp * Wp * H | ||||||||
Ton | M | Kw | M/h | mm | |||||||
GLHZ-5 | 5 | 0.25-2.3 | 0.75 | 6-60 VFD Adjust | 940 | 250*140 | 1240*380*692 | 1560*695*692 | |||
GLHZ-10 | 10 | 0.32-2.8 | 1.5 | 1100 | 300*150 | 1440*400*805 | 1800*705*805 | ||||
GLHZ-20 | 20 | 0.5-3.5 | 2.2 | 1400 | 350*180 | 1780*480*895 | 2180*910*895 | ||||
GLHZ-40 | 40 | 0.6-4.2 | 3 | 1600 | 400*200 | 2040*530*1018 | 2448*1000*1018 | ||||
GLHZ-60 | 60 | 0.75-4.8 | 4 | 1800 | 450*220 | 2340*585*1095 | 2770*1100*1095 | ||||
GLHZ-80 | 80 | 0.85-5.0 | 4 | 2000 | 500*240 | 2540*620*1198 | 2975*1165*1198 | ||||
GLHZ-100 | 100 | 1.0-5.5 | 5.5 | 2200 | 500*280 | 2800*730*1320 | 3380*1405*1320 | ||||
GLHZ-150 | 150 | 1.1-6.0 | 7.5 | 2500 | 600*280 | 3240*800*1550 | 3870*1600*1550 | ||||
GLHZ-250 | 250 | 1.2-7.0 | 2*5.5 | 2800 | 700*300 | 3620*860*1785 | 4468*1620*1785 | ||||
GLHZ-500 | 500 | 1.8-8.0 | 2*7.5 | 3500 | 850*350 | 4420*950*2062 | 5562*1784*2062 | ||||
Product Advantages
A1: Tanks rotation is by-way-of one-motor or two-motors with gear reducers. Compared with ordinary motors, variable frequency motor has lower noise and smaller electromagnetic vibration.
A2: Electrical control adopts imported French Schneider inverter and remote control box operation, motors and control box with IP54 protection against dust and heavy rain.
A3: The rotators are generally made of full PU rollers, which are wear-resistant, acid-resistant, and instantaneous high-temperature resistance; or can choose metal + rubber rollers, which have good pressure resistance; ratators with loading capacity of more than 100 tons need to use steel rollers.
Packaging & Shipping
Customer Cases
About Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
Our Services
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
