Вакуумная печь для пайки азотом
3 085 835,20 ₽ - 3 240 126,96 ₽
Высококачественная машина для духовки smt YX530 с независимой зоной охлаждения производственной линии SMT
- Категория: >>>
- Поставщик: Wenzhou Yingxing Import&Export Co. Ltd.
Сохранить в закладки 1600458166668:
Описание и отзывы
Характеристики

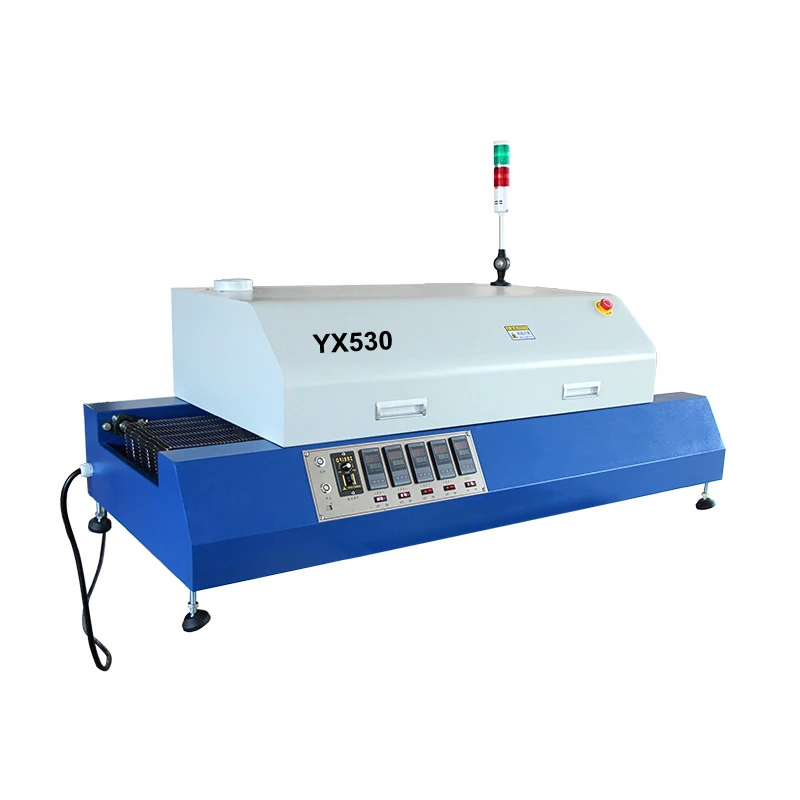

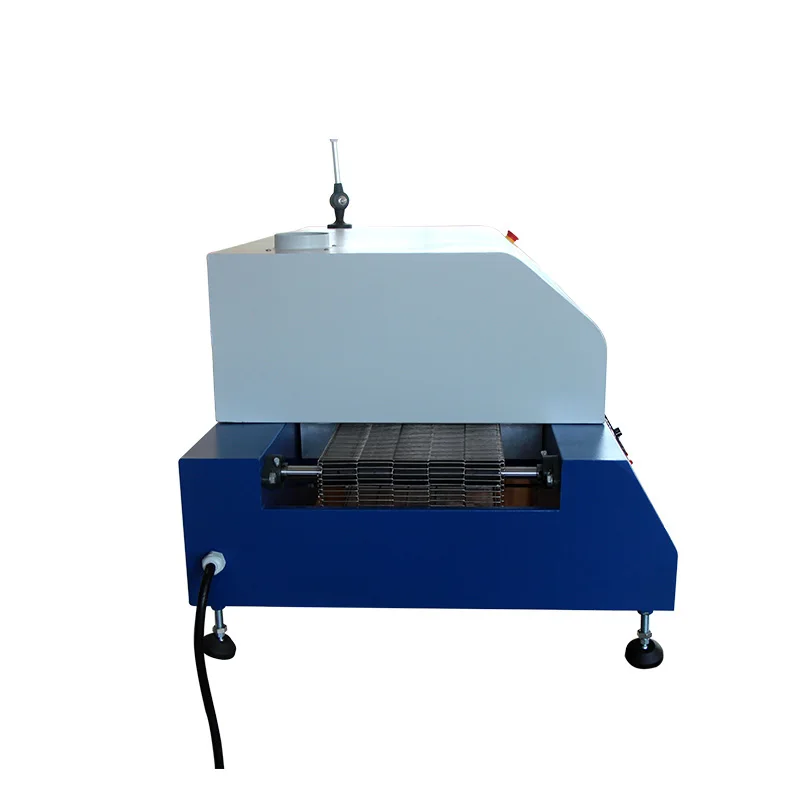

Introduction
This model can meet different customers' demands of SMD soldering or solidification of different products with its compact and reasonable structure and superior performance.
This machine adopts the M-type stainless steel finned heating pipe with corrosion resistance,high temperature resistance,long service life and high heat efficiency. Cooperating with hot air circulation system,the heat storage structure allows the heat to be fully used.The multi-layered heat insulation structure minimizes the loss of heat.
The temperature is controlled by PID closed circle,with highly precise temperature control.
This machine adopts the M-type stainless steel finned heating pipe with corrosion resistance,high temperature resistance,long service life and high heat efficiency. Cooperating with hot air circulation system,the heat storage structure allows the heat to be fully used.The multi-layered heat insulation structure minimizes the loss of heat.
The temperature is controlled by PID closed circle,with highly precise temperature control.
Packing list
1.Instruction manual: 1piece
2.Certificationi: 1piece
3.Exhaust duct: 2units
4.Pipe button: 2units
2.Certificationi: 1piece
3.Exhaust duct: 2units
4.Pipe button: 2units
Specification | ||
Model | YX530 | |
Heat zone numbers | 5 zones (up 3,down 2) | |
Heat method | Hot wind | |
Cooling zone numbers | Two natural air cooling | |
Length of heating zone | 1060mm | |
Width of net belt | 300mm | |
PCB size | 280mm | |
Height of net belt | 860-900mm | |
Transport speed of net belt | 0~2000mm/min | |
Transport direction of net belt | Left→Right (Right→Left) | |
Starting power | 7kw | |
Working power | 2.5kw | |
Input supply power | Three-phase five-wire 380V±10% 50Hz | |
Heating up time | About 30mins | |
Time of passing through the machine | 3.5~5.5 mins | |
Temperature control range | Inner temperature--400 degrees | |
Method of temperature control | PID closed-loop control | |
Net weight | 180kg | |
Size | 2000*710*1250mm | |

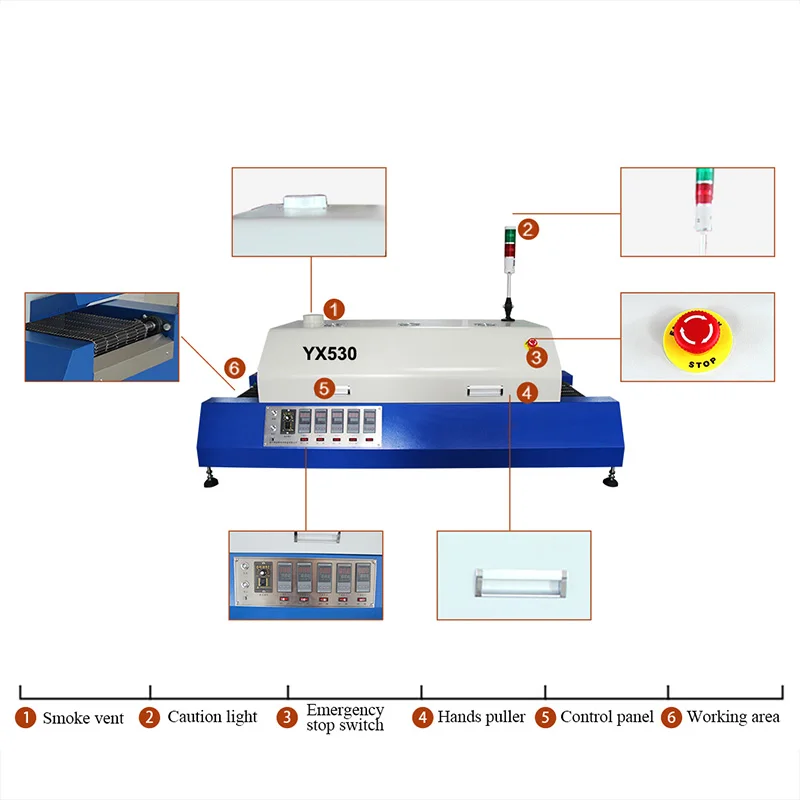

Products Details
Overall situation temperature control,convenient to operate
The temperature range instrument and transport adjusting outside,which is more convenient for
customers to detect the temperature change and speed adjusting status so they can promise the quality of the soldering block.
Newest PID minimum computer overall temperature control system,which provide precision temperature control,quick heating-up,low energy consumption and high efficient.
customers to detect the temperature change and speed adjusting status so they can promise the quality of the soldering block.
Newest PID minimum computer overall temperature control system,which provide precision temperature control,quick heating-up,low energy consumption and high efficient.
Can be used whether with or without lead
Inner comtainer contains imported high-temperature plastic powder spray paint,which can promise the inner container don't have any pollution inside the welding surrounding.
Convenient and humanization
Unique device with open bar, one person can clear up easily.
Unique device with inner controller can clear and maintain the furnace pipe easily.
Unique device with inner controller can clear and maintain the furnace pipe easily.
Easy to maintain
The furnace heater device uses drawer type devices to make exchanging the furnace heater device a extremely easy thing.
Wenzhou Yingxing Technology Co.,Ltd Specialises in SMT Production Line (PNP Machine）more than 9 years
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
FQA
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
A:Yes
