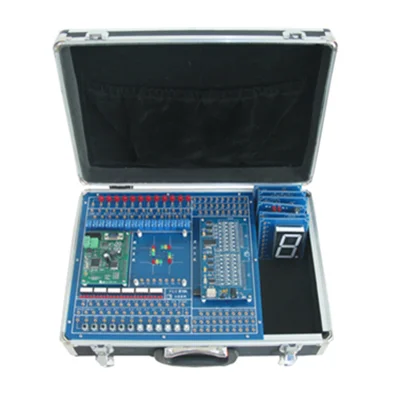

Тренировочный комплект PLC тренажер для электрической автоматизации программируемая система управления логикой

Main Feature

a) PLC core unit with independent intellectual property rights, integrated 24-way of DC24V on-off input, 16-way relay on-off output, 1-way high speed pulse input, 1-way high speed pulse output, 2-way analog quantity input and 1-way analog quantity output, provides RS232 and RS485 communication interface, convenient and flexible connection with other equipment, support common ladder diagram and statement table programming;

b) Special PLC Learning Function:

1) Intuitively understand the basic composition of PLC: central processing unit (CPU), memory, on-off input interface, on-off output interface, communication interface, etc.

2) Learn PLC ladder diagram programming

3) At the same time learn Mitsubishi FX series PLC and Siemens S7-200 series PLC instructions.

c) Unique PLC project training

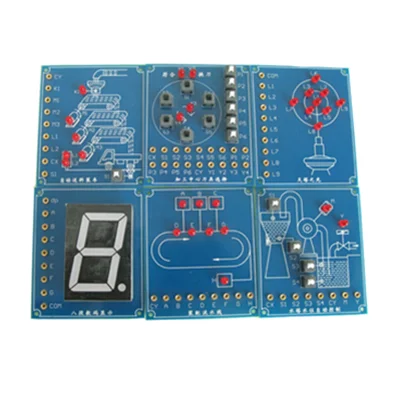

1) Provide modular artificial load training units: traffic lights, eight-segment digital display, automatic materials feeding and loading, processing center tools selection, sky tower light, assembly line, automatic water level control of water tower;

d) Control object simulator based on 3D technology

Simulate a variety of control objects such as washing machine, manipulator, assembly line, traffic lights, etc. It can solve the problem of lack of controlled simulation objects in training of SCM technology courses, and can be constantly upgraded.

e) Easy to operation

The device is small in size, easy to carry.

Technical Parameters

1. Overall size: 420mm*300mm*120mm

2. Power Supply

i.       Single phase AC220V,≤50W

ii.      Power supply indication

iii.     Grounding protection

3. Working environment: Temperature -10℃~+40℃ Relative humidity <80%(25℃)

4. PLC parameters

Ø  Provides 24-way of DC24V on-off input

Ø  Provides 16-way relay on-off output

Ø  Provide 1-way high speed pulse input

Ø  Provides 1-way high speed pulse output

Ø  Provides 2-way analog quantity input and 1-way analog quantity output

Ø  Provides RS232 and RS485 communication interface

Ø  Support two kinds programming of PLC ladder diagram and statement table

Training Items

Mitsubishi FX Series PLC instruction Learning and Training

1. Boolean instruction learning and training

2. Timing instruction learning and training

3. Count instruction, compare instruction learning and training

4. Transfer instruction, shift instruction learning and training

5. Arithmetic operation instruction learning and training

6. Logic instruction learning and training

7. High speed pulse input/output instruction learning and training

8. Analog quantity input/output learning and training

SIEMENS S7-200 Series PLC Instruction Learning and Training

1. Boolean instruction learning and training

2. Timing instruction learning and training

3. Count instruction, compare instruction learning and training

4. Transfer instruction, shift instruction learning and training

5. Arithmetic operation instruction learning and training

6. Logic instruction learning and training

7. High speed pulse input/output instruction learning and training

8. Analog quantity input/output learning and training

Artificial Load Training

1. Traffic light

2. Digital display

3. The light of tower

4. Material automatic feeding and loading

5. Assembly line

6. Automatic control of tower water level

7. Machining center tool selection

Virtual Load Training Items

1. Vending machine

2. Automatic mail sorting

3. Fully automatic washing machine

4. The light of sky tower

5. The traffic light

6. The responder

7. Punching machine

8. Material transport car

9. Star-delta start

10. Motor positive and negative rotation

11. Multi-liquid mixture

12. Automatic forming machine

13. Automatic control of tower water level

14. Material automatic feeding and loading

15. Electroplating production line

16. Manipulator

17. Assembly line
