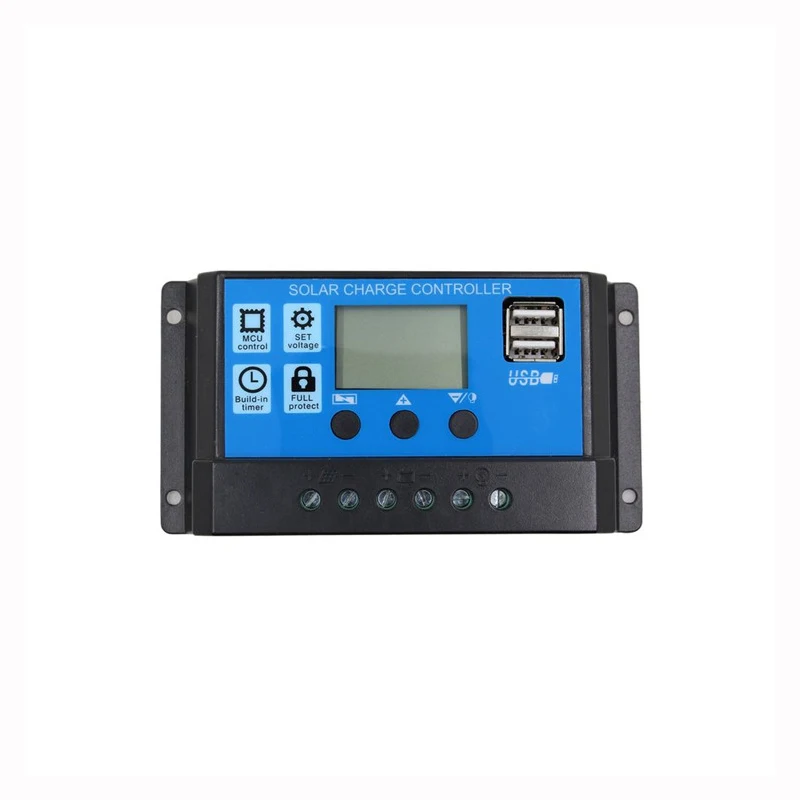

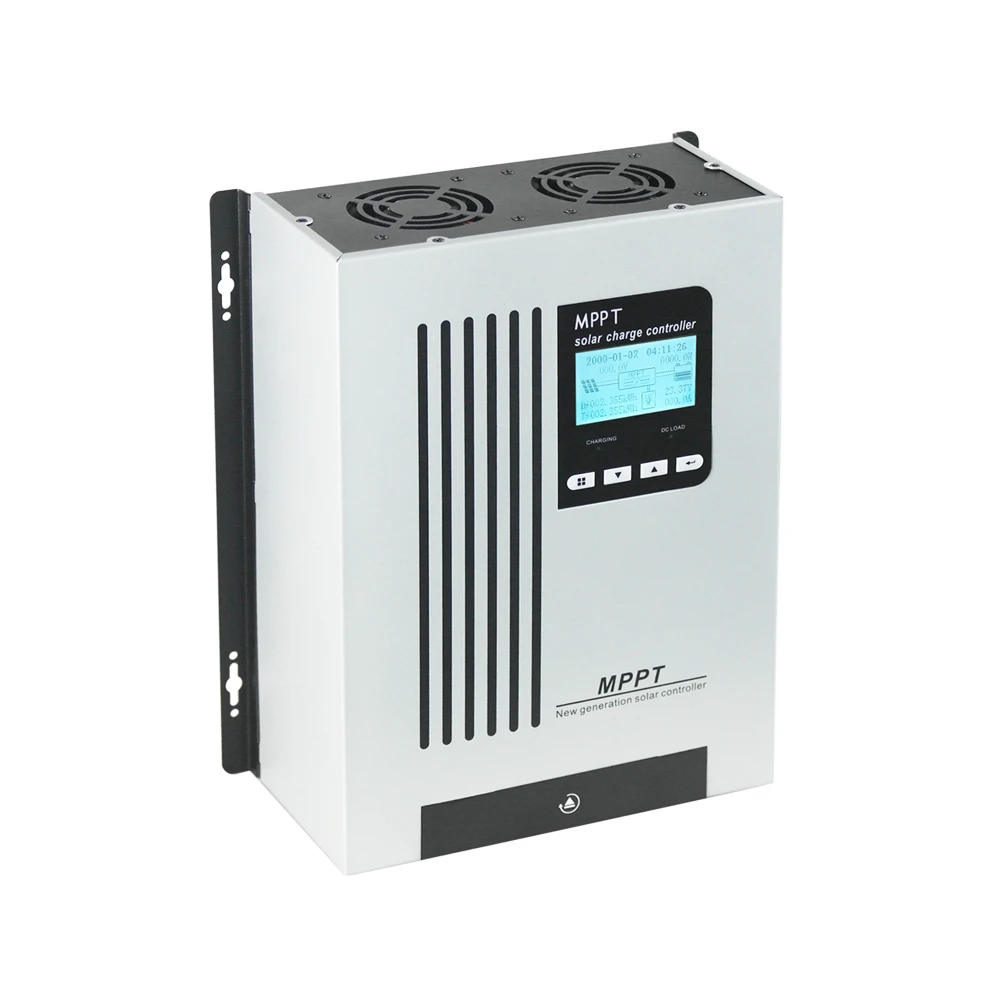

Bangladesh srne 20a 12v/24v mppt 80a 48v 200a литиевая инверторная машина с контроллером солнечного зарядного устройства pwm
- Категория: >>>
- Поставщик: Foshan Snat Energy Electrical Technology Co. Ltd.
Сохранить в закладки 1600460901419:
Описание и отзывы
Характеристики

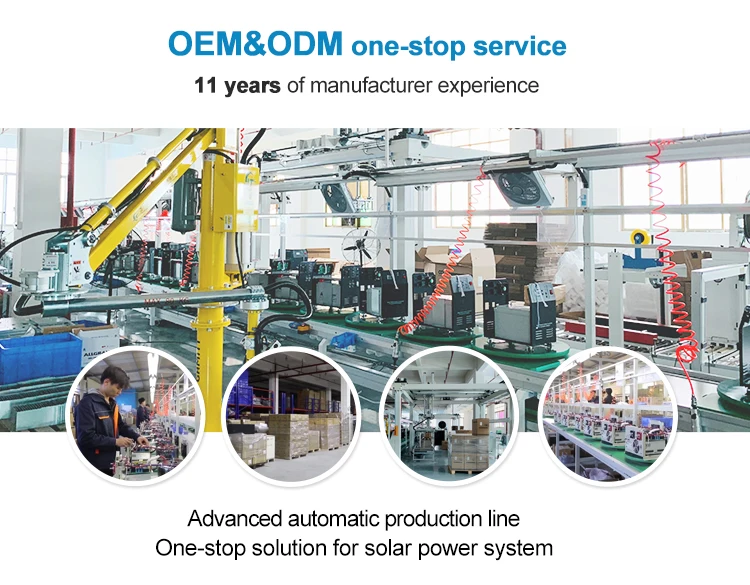

OEM&ODM one-stop service
11 years of manufacturer experience
Advanced automatic production line
One-stop solution for solar power system

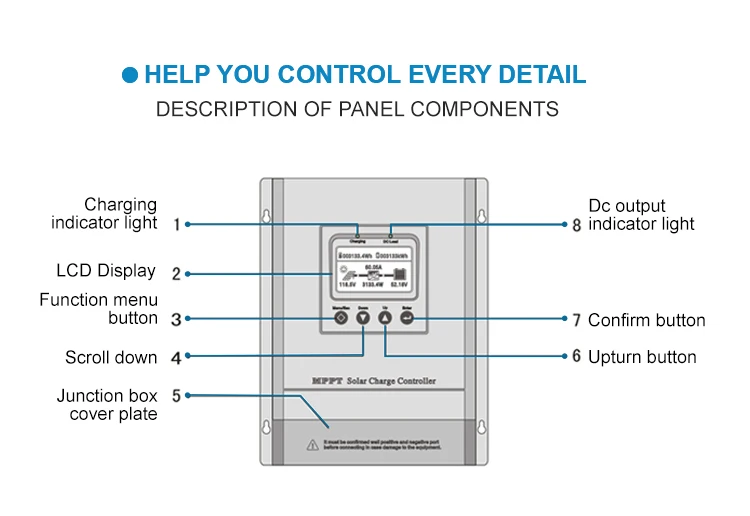

·HELP YOU CONTROL EVERY DETAIL
DESCRIPTION OF PANEL COMPONENTS

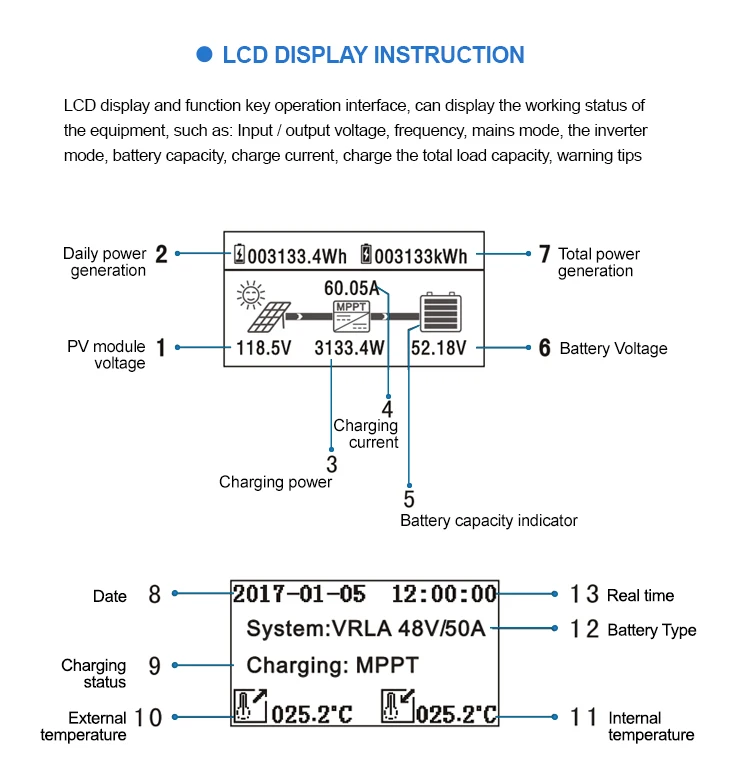

·LCD DISPLAY INSTRUCTION
LCD display and function key operation interface, ca n dispiay the working status of
the equipment, such as: input/ output coltage, frequency, mains mode, the inverter
mode, attery capacity, charge current, charge the total load capacity, warning tips
Model: MP-20/30/40/50/60 | 20A | 30A | 40A | 50A | 60A | |||||||||
Charging Mode | MPPT Automatic Maximum Power Point Tracking | |||||||||||||
Charging Method | Three Stages: Constant Current (MPPT), Balanced Charging, Floating Charge | |||||||||||||
System type | 12V/24V48V | Automatic dentification/ Manual setting | ||||||||||||
System Identification voltage Range | 12V System | DC 9V-DC15V | ||||||||||||
24V System | DC18V-DC30V | |||||||||||||
48V System | DC36V-DC60V | |||||||||||||
Solf start time | 12V/24V48V | ≤10S | ||||||||||||
Dynamic respnse recovery time | 12V/24V48V | ≤500us | ||||||||||||
Static Power | 12V/24V48V | ≤2w | ||||||||||||
Mechine Efficiency | 12V/24V48V | ≥96.5%-99% | ||||||||||||
Pv module Utilization | 12V/24V48V | ≤99% | ||||||||||||
MPPT operating voltage range | 12V/24V48V | DC18V-150V; 34V-150V; 65V-150V | ||||||||||||
Max solar panel input power | 12v | 280W | 420W | 570W | 700W | 900W | ||||||||
24v | 550W | 840W | 1130W | 1400W | 1700W | |||||||||
48v | 110W | 1650W | 2270W | 2800W | 3400W | |||||||||
Output Characteristics | ||||||||||||||
Optional Battery type (Default is lead-acid maintenance-free battery | 12V/24V48V | Lead-acid battery, gel battery, Liquid battery, Lithium battery (Customized battery type) | ||||||||||||
Current limiting Protection | 12V/24V48V | 22A | 32A | 42A | 52A | 62A | ||||||||
Temperature Efficient | 12V/24V48V | ±0.02%ºC | ||||||||||||
Temperature Cmpensation | 12V/24V48V | 14.2V- (Maximum Temperature -25ºC)*03 | ||||||||||||
Protection | Input low voltage protection, input high voltage protection | |||||||||||||
Short circuit protection | After 5 trial starts will enter the protection state, Restart Recovery | |||||||||||||
Temperature Protection | 90ºC | |||||||||||||
Temperature rise protection | Reduce Power Output when exceed 85ºC | |||||||||||||
Noise | ≤50dB | |||||||||||||
Heat Dssipation Method | Forced air cooling, Fan speed is adjusted by temperature | |||||||||||||
Protection Type | IP 21 | |||||||||||||
Humidity | 0-90%RH(No condensation) | |||||||||||||
Dimensions(mm) | 190*200*100 | 260*220*100 | ||||||||||||
Weight(kg) | 2 | 3.5 | ||||||||||||

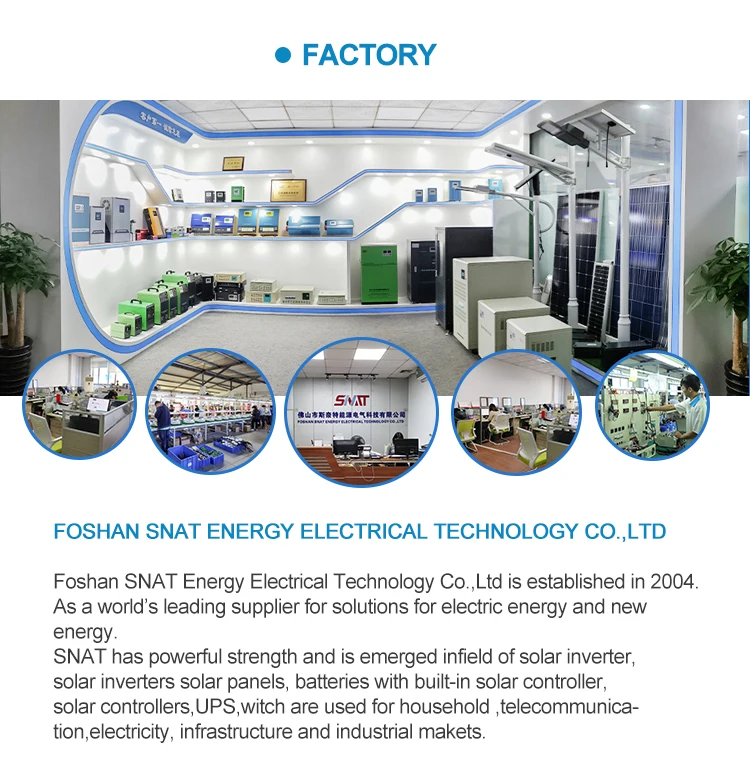

Foshan SNAT Energy Electrical Technology Co.,Ltd.
Foshan SNAT Energy Electrical Technology Co.,Ltd. is established in 2004,As a world's leading supplier for solutions for slsctric energy and new energy
SNAT has powerful strength and is emerged infield of solar inverter,solar inverters, solar planels, batteries with built-in sola r controller, solar charge controller, UPS, witch are used for household, telecommunication, electricity, infrastrucure and industrial makets.
Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
OEM&ODM one-stop service
11 years of manufacturer experience
Advanced automatic production line
One-stop solution for solar power system
·HELP YOU CONTROL EVERY DETAIL
DESCRIPTION OF PANEL COMPONENTS
·LCD DISPLAY INSTRUCTION
LCD display and function key operation interface, ca n dispiay the working status of
the equipment, such as: input/ output coltage, frequency, mains mode, the inverter
mode, attery capacity, charge current, charge the total load capacity, warning tips
Model: MP-20/30/40/50/60 | 20A | 30A | 40A | 50A | 60A | |||||||||
Charging Mode | MPPT Automatic Maximum Power Point Tracking | |||||||||||||
Charging Method | Three Stages: Constant Current (MPPT), Balanced Charging, Floating Charge | |||||||||||||
System type | 12V/24V48V | Automatic dentification/ Manual setting | ||||||||||||
System Identification voltage Range | 12V System | DC 9V-DC15V | ||||||||||||
24V System | DC18V-DC30V | |||||||||||||
48V System | DC36V-DC60V | |||||||||||||
Solf start time | 12V/24V48V | ≤10S | ||||||||||||
Dynamic respnse recovery time | 12V/24V48V | ≤500us | ||||||||||||
Static Power | 12V/24V48V | ≤2w | ||||||||||||
Mechine Efficiency | 12V/24V48V | ≥96.5%-99% | ||||||||||||
Pv module Utilization | 12V/24V48V | ≤99% | ||||||||||||
MPPT operating voltage range | 12V/24V48V | DC18V-150V; 34V-150V; 65V-150V | ||||||||||||
Max solar panel input power | 12v | 280W | 420W | 570W | 700W | 900W | ||||||||
24v | 550W | 840W | 1130W | 1400W | 1700W | |||||||||
48v | 110W | 1650W | 2270W | 2800W | 3400W | |||||||||
Output Characteristics | ||||||||||||||
Optional Battery type (Default is lead-acid maintenance-free battery | 12V/24V48V | Lead-acid battery, gel battery, Liquid battery, Lithium battery (Customized battery type) | ||||||||||||
Current limiting Protection | 12V/24V48V | 22A | 32A | 42A | 52A | 62A | ||||||||
Temperature Efficient | 12V/24V48V | ±0.02%ºC | ||||||||||||
Temperature Cmpensation | 12V/24V48V | 14.2V- (Maximum Temperature -25ºC)*03 | ||||||||||||
Protection | Input low voltage protection, input high voltage protection | |||||||||||||
Short circuit protection | After 5 trial starts will enter the protection state, Restart Recovery | |||||||||||||
Temperature Protection | 90ºC | |||||||||||||
Temperature rise protection | Reduce Power Output when exceed 85ºC | |||||||||||||
Noise | ≤50dB | |||||||||||||
Heat Dssipation Method | Forced air cooling, Fan speed is adjusted by temperature | |||||||||||||
Protection Type | IP 21 | |||||||||||||
Humidity | 0-90%RH(No condensation) | |||||||||||||
Dimensions(mm) | 190*200*100 | 260*220*100 | ||||||||||||
Weight(kg) | 2 | 3.5 | ||||||||||||
Foshan SNAT Energy Electrical Technology Co.,Ltd.
Foshan SNAT Energy Electrical Technology Co.,Ltd. is established in 2004,As a world's leading supplier for solutions for slsctric energy and new energy
SNAT has powerful strength and is emerged infield of solar inverter,solar inverters, solar planels, batteries with built-in sola r controller, solar charge controller, UPS, witch are used for household, telecommunication, electricity, infrastrucure and industrial makets.
Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
Похожие товары

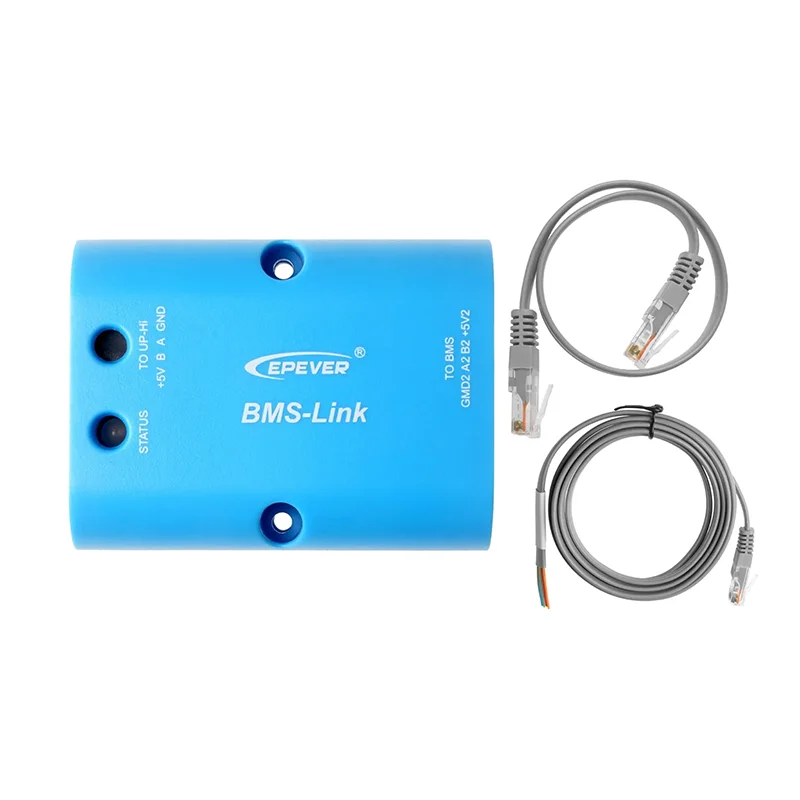

Преобразователь протокола EPEVER BMS BMS-LINK преобразователь протокола BMS для гибридного солнечного инвертора серии UP-HI, HP

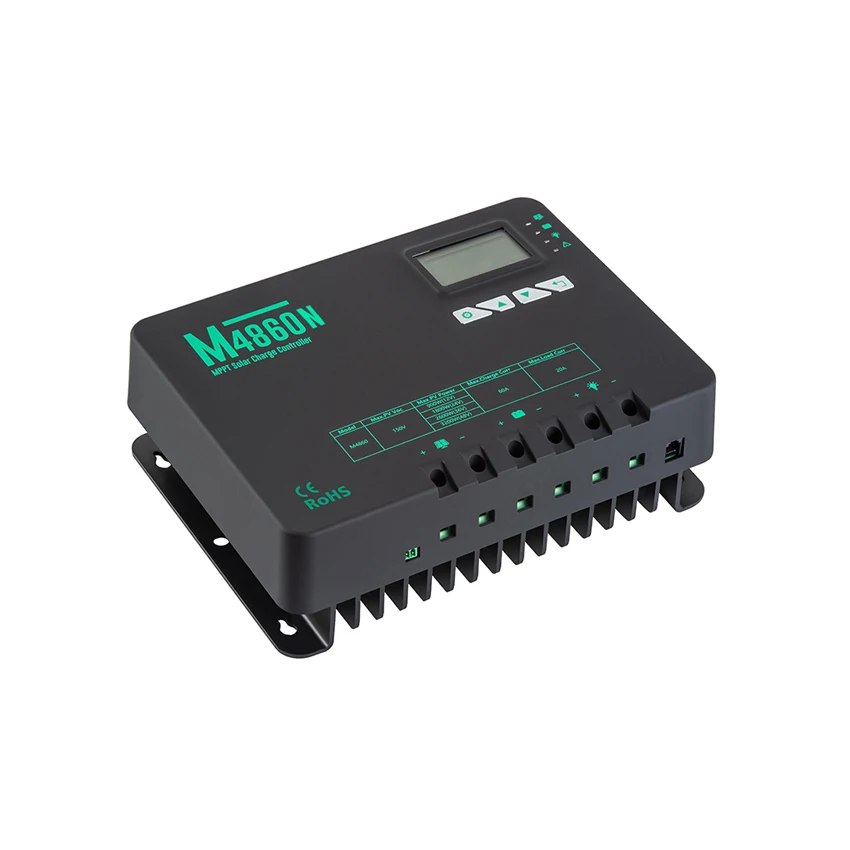

M4860N цена хорошее mppt солнечное зарядное устройство 12/24/36/48 В 60a M4860N
12 938,52 ₽ - 13 706,05 ₽

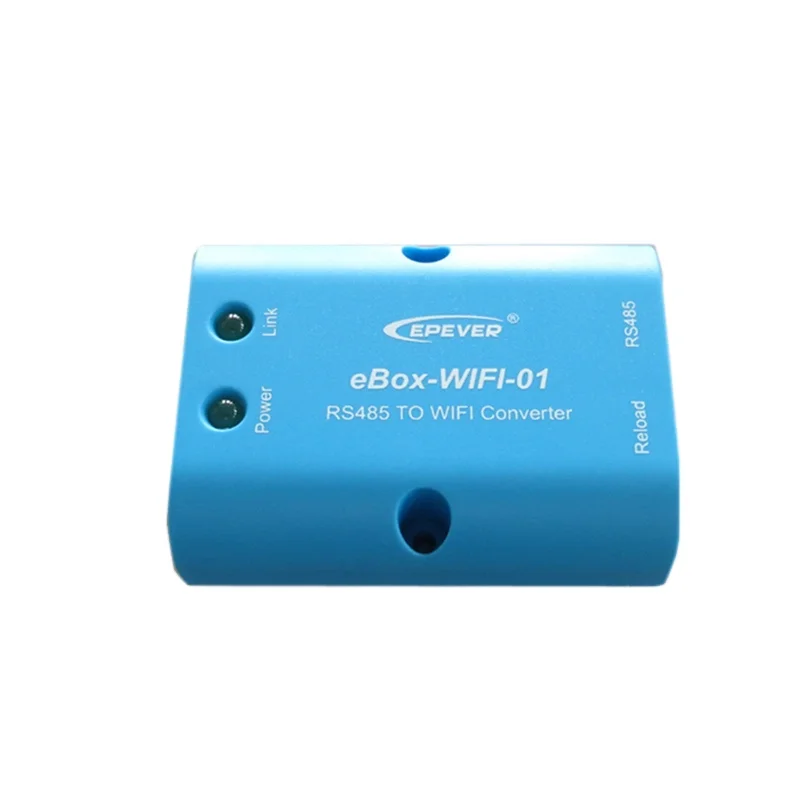

Преобразователь RS 485 в Wi-Fi для контроллера зарядки MPPT EPever 12 В 24 в 48 в 30A 40A 50A 60A 80A 100A
2024 Новый 12 В 24 В 48 В 40a 60a 80a 100a 120a Mppt контроллер солнечного заряда Wi-Fi приложение Lifep04, герметичный, ГЕЛЕВЫЙ, Agm, затопленный, литиевый аккумулятор
8 113,99 ₽ - 10 635,90 ₽
Контроллер солнечной батареи Mppt 80a 96 В 48 В с USB-преобразователем
Автоматический солнечный заряд 10А 20А 30А 40А 50А 60А 12/24 В контроллер солнечного регулятора зарядки свинцово-кислотный agm гелевый Аккумулятор

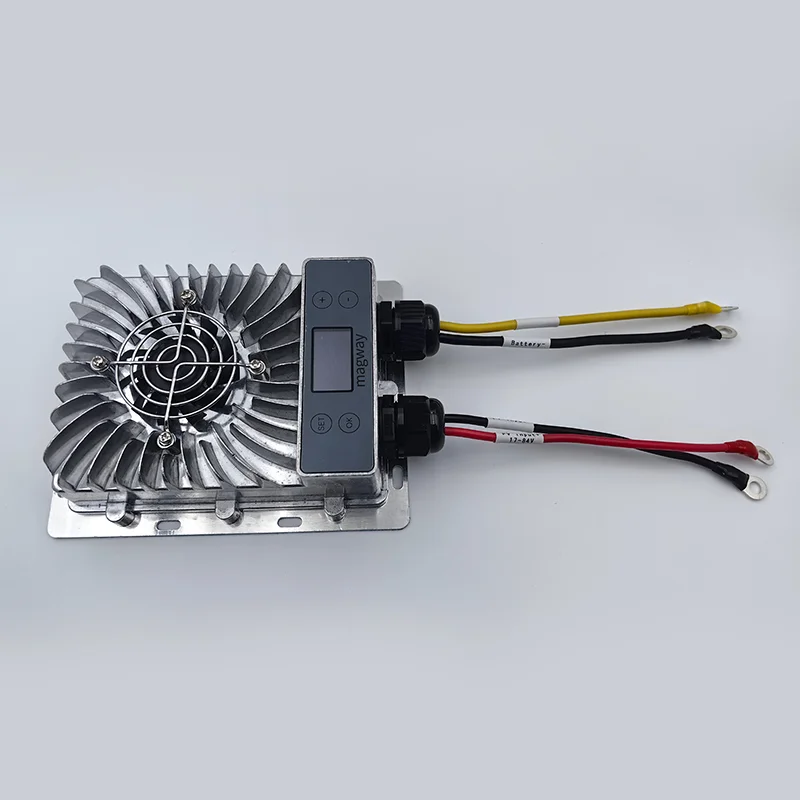

Magway, заводская цена, водонепроницаемый интеллектуальный контроллер для тестирования тока, понижающий mppt 600 Вт pwm, контроллер заряда солнечной панели
