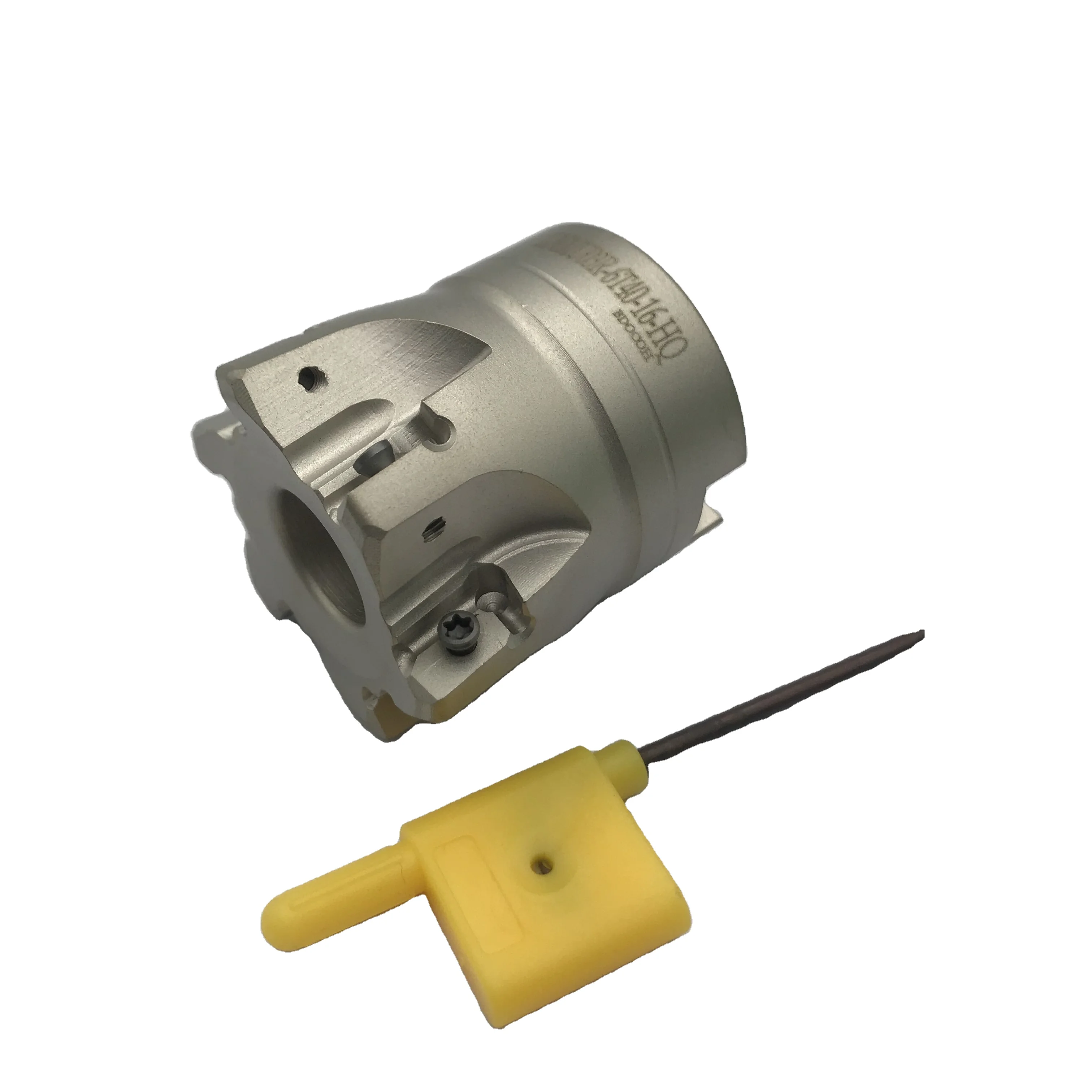

Лицевая фреза EXN03R LNMU03R ЧПУ фрезерные Вставки Держатель быстрого питания Концевая LNMU03R-6R40-16-B-HQ
1 303,51 ₽

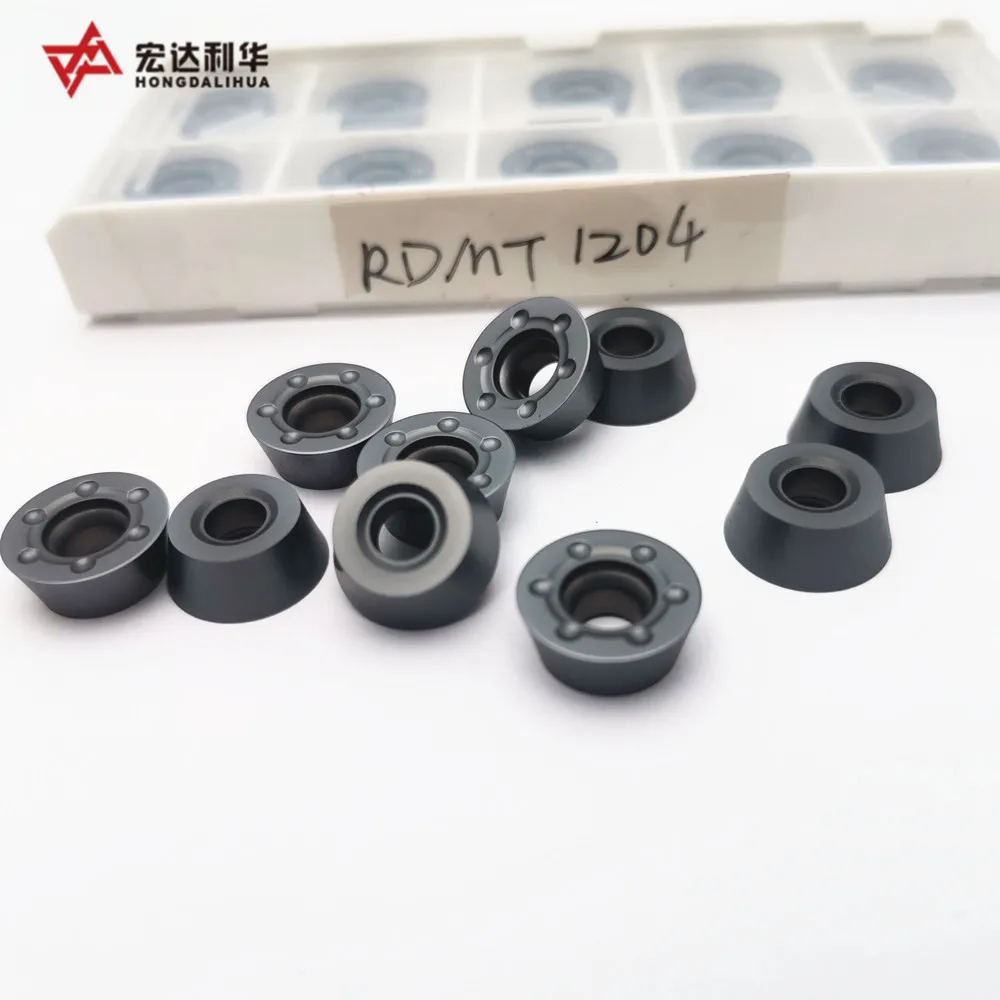

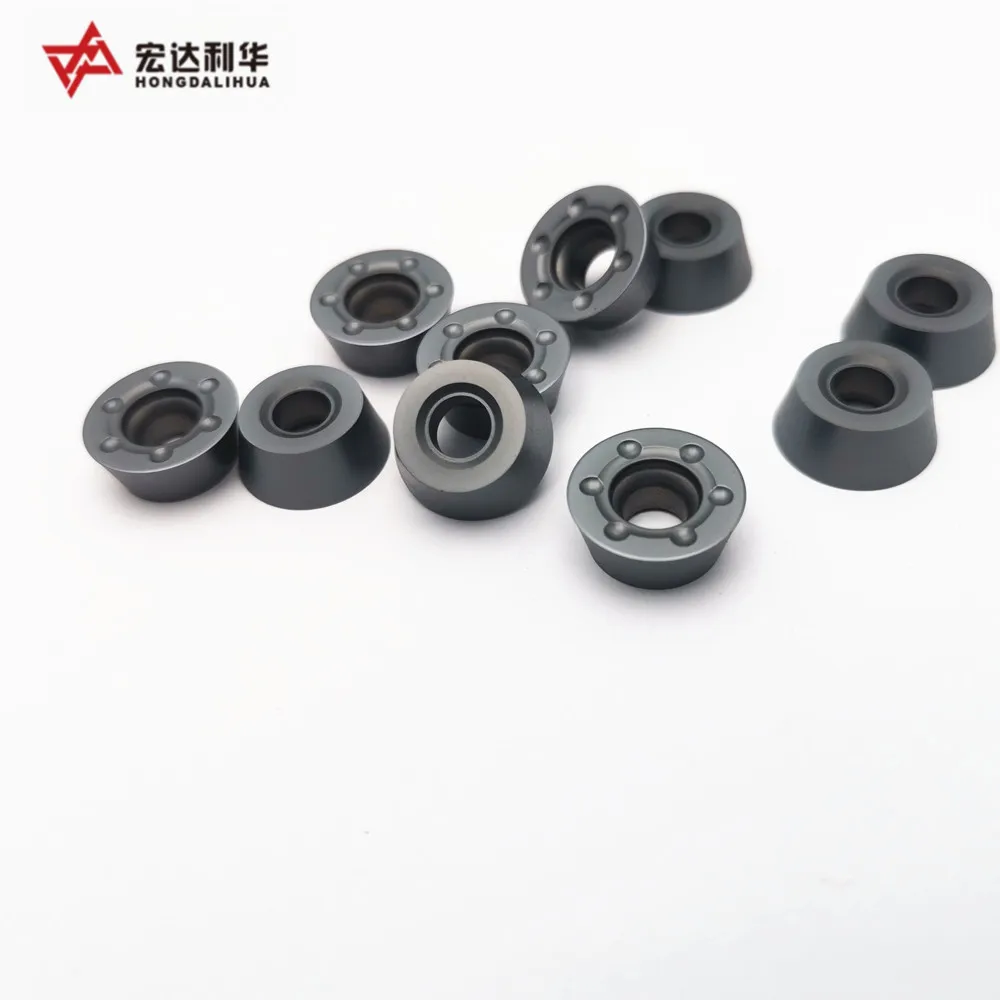

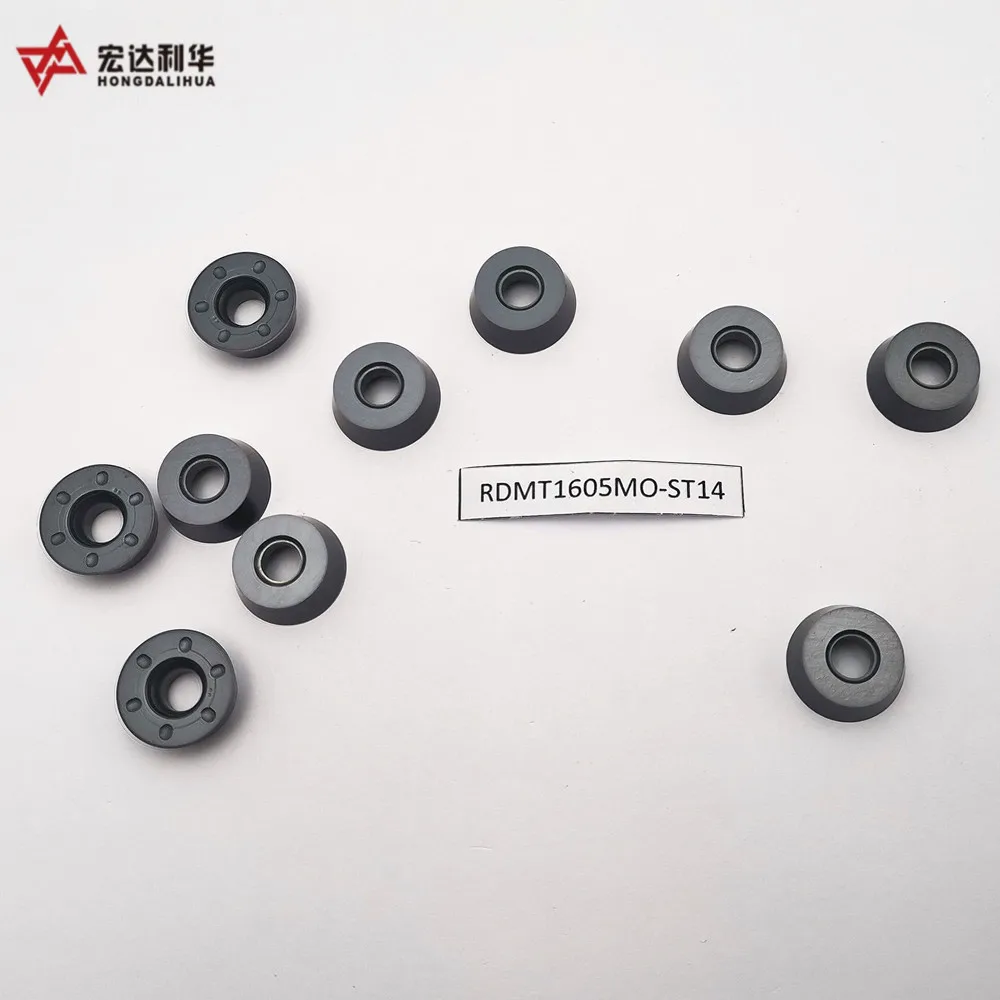

Твердосплавные фрезерные Вставки RDMT1605 1204 карбидные ЧПУ Индексируемые RDMT CNC вставки TiAlN PVD резаки с покрытием
- Категория: >>>
- Поставщик: Zhuzhou Lihua Cemented Carbide Co. Ltd.Zhuzhou Ltd.
Сохранить в закладки 1600460991242:
Описание и отзывы
Характеристики
Product Description
Carbide Cnc Milling Inserts
ApplicationsTungsten Carbide cnc insert is used for cutting wood, metal, or other hard materials.
Can be hand-operated or power-driven.Our carbide inserts have used in surface processing of cast irons, colored metal and alloys, as well as non-metal materials for hard metal, carbide rough turn, rough planning, and precision milling.
Applicable Machine | For milling, turning, threading, grooving tool, cutting tools, etc. |
Stock Level | For standard, have enough in stock |
For non-standard, can be customized | |
Nonstandard order | Customized as request |
Packing | 10 PCS/plastic box |
Coating | CVD or PVD coating |
Processing | Finishing, Semi-finishing and Roughing |
Carbide Milling Insert
Tool Set
Milling inserts
APMT1135PDR
L-11.25mm ,S-3.5mm, d-2.8mm
APMT160408PDER
L-17.25mm ,S-4.76mm, d-4.4mm
Modular Cutting End Mills
BAP3-10-1T-M5
BAP3-13-1T-M
BAP3-16-2T-M8
BAP3-20-2T-M10
BAP3-25-3T-M12
BAP3-33-4T-M16
BAP4-25-2T-M12
BAP4-32-2T-M16
BAP4-40-3T-M16
Tungsten Carbide Boring Bar
MFT-80-100-M4
MFT-10-100-M5
MFT-12-100-M6
MFT-15-150-M8
MFT-16-150-M8
MFT-19-200-M8
MFT-20-300-M10
MFT24-250-M12
MFT32-400-M16
Cutting End Mills Series
Corrner Rounding End Mills Series
Boring Cutter heads Series
Ball Precision Cutter Series
Grade
Title goes here.
Grade Recommendation of Tungsten Carbide Inserts
Grade | Applications |
YBC151 | High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
YBC152 | Thick TiCN and Al2O3 coating |
YBC251 | tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC252 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC351 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBG102 | nc-TiAN coating and fine-grained matrix. |
YBG202 | nc-TiAN coating and fine-grained matrix. |
YBG205 | Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
YBG302 | nc-TiAN coating and flexible cemented carbide matrix. |
YBM151 | Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
YBM251 | Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
YBM253 | With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
YBD052 | CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
YBD102 | CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
YBD152 | CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
YBD252 | CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
YNG151 | Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
YNG151C | Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
YD101 | Fine particle hardness phase WC and bond phase Co. |
YD201 | Middle particle hardness phase WC and bond phase Co. |
P/M | OTF Chip Breaker: Suitable for finishing steel and stainless steel material | OTM Chip Breaker: Suitable for semi-finishing steel and stainless steel material. | GM Chip Breaker: Suitable for semi-finishing steel and stainless steel material | OTR Chip Breaker: Suitable for finishing stainless steel material | |||
M | OMF Chip Breaker: Suitable for finishing stainless steel material | MF Chip Breaker: Suitable for semi-finishing stainless steel material | OMM Chip Breaker: Suitable for semi-finishing stainless steel material | ||||
MSF Chip Breaker: Suitable for finishing stainless steel material | |||||||
K | General Chip Breaker: Suitable for cast iron semi-finishing cutting | Flat Chip Breaker: Suitable for cast iron roughing cutting | |||||
S | OSF Chip Breaker: Suitable for hi-temp alloy finishing machining. | OSM Chip Breaker: Suitable for hi-temp alloy semi-finishing machining | |||||
N | NL Chip Breaker: Suitable for aluminum and aluminum alloy material | ||||||
Recommend Products
Company Information
About Zhuzhou LIhua cemented carbide
Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city which is the hometown of tungsten carbide in China .Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German,Turkey, USA, Mexico, India, Australia, South Africa etc
Capacity
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Exhibition And Qualification
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw
Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Packing&Shipping
We normally will dispatch your order within 2-10 working days depends on stock level, as soon as the
order is shipped. We will list the tracking number on your order details page. If there is any problem regarding to the
shipping,please feel free to contact us.
Below shows the estimate delivery time for different courier:
TNT: 8-10 working days
DHL: 5-7 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
order is shipped. We will list the tracking number on your order details page. If there is any problem regarding to the
shipping,please feel free to contact us.
Below shows the estimate delivery time for different courier:
TNT: 8-10 working days
DHL: 5-7 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
Payment
Title goes here.
Less than or equal to $1000: 100% in advance via Paypal ,or Western Union
Over $1000 : 30% T/T deposit , Balance before shipment .
Over $1000 : 30% T/T deposit , Balance before shipment .
Contact us
-Foreign Sales Manager : Coco Su
Mobile/Wechat/WhatsApp:+86 13973352165
Skype : Carbide tools
QQ: 1638174610/1007161690
Email: coco ATlihuacarbide.com /hongda AT lihuacarbide.com
Website: www.hdlihuacarbide.com
Factory Add: Building B-11,E-commerce Industrial Park ,Xinma South Road ,Tianyuan Zone ,Zhuzhou City ,Hunan Provice ,China 412000
Mobile/Wechat/WhatsApp:+86 13973352165
Skype : Carbide tools
QQ: 1638174610/1007161690
Email: coco ATlihuacarbide.com /hongda AT lihuacarbide.com
Website: www.hdlihuacarbide.com
Factory Add: Building B-11,E-commerce Industrial Park ,Xinma South Road ,Tianyuan Zone ,Zhuzhou City ,Hunan Provice ,China 412000
