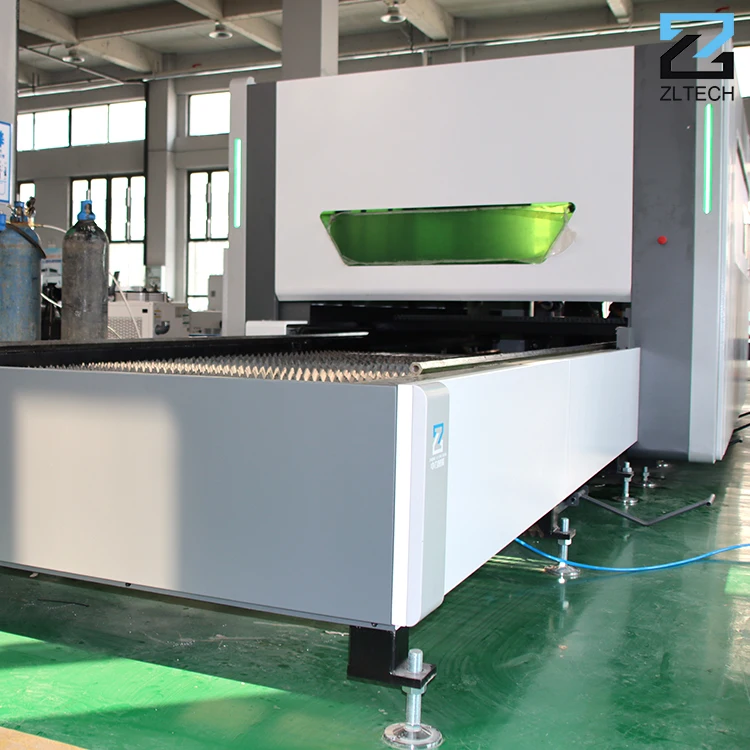

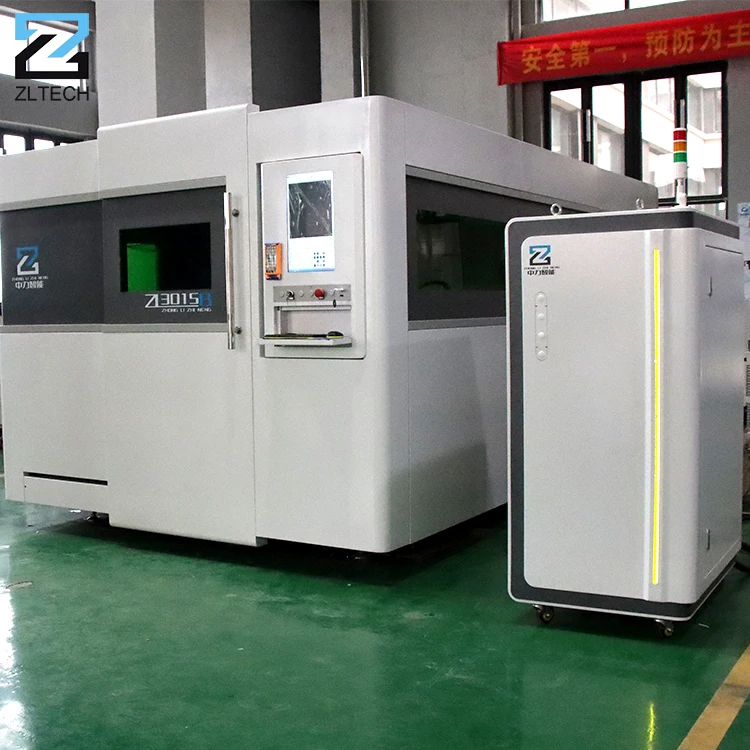

6020 6025 6000*2500 мм волоконный лазер с ЧПУ 2 кВт 4 6 8 Волоконно Лазерная режущая машина для резки металла лазерный резак
- Категория: >>>
- Поставщик: Jinan Zhongli Laser Equipment Co. Ltd.
Сохранить в закладки 1600461264799:
Описание и отзывы
Характеристики
Products Overview
Product Quality
Strong & Stable Welded Bed
The bed is welded with large thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength, the working performance is stable.With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.

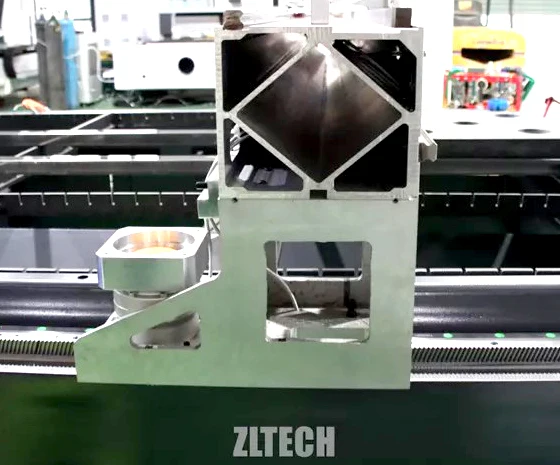

Aviation Stretched Aluminum Gantry
Machine adopts aviation stretched aluminum gantry, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong
deformation resistance.
deformation resistance.
Auto Focus Laser Cutting Head
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thicknesses of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.
Laser Source
100,000 hours life span;
Stable and cost-efficient;
Remote networking diagnosis system;
Free maintenance;
Stable and cost-efficient;
Remote networking diagnosis system;
Free maintenance;

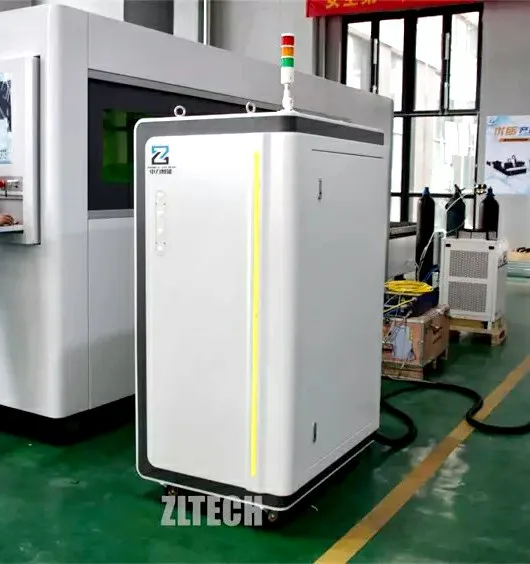

Dust-proof Electrical Cabinet
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.
Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.
Intelligent Software With Alarm Function
Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation
The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation
High-efficiency pneumatic exchange table
Adopts high-speed parallel exchange table design, dual working table exchange at the same time, stable
and reliable transmission mode. Fast, shorten the exchange time, save the loading and unloading auxiliary time. Exchange motor controlled by frequency converter, can finish the table exchange within 15S.
and reliable transmission mode. Fast, shorten the exchange time, save the loading and unloading auxiliary time. Exchange motor controlled by frequency converter, can finish the table exchange within 15S.

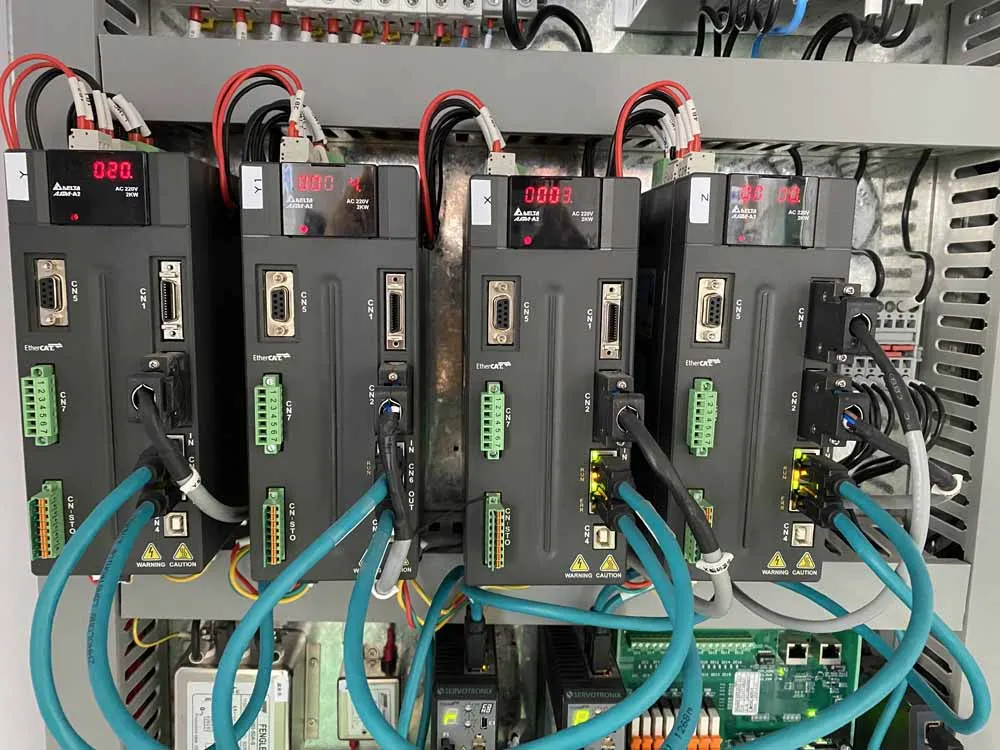

Servo Motor And Drivers
High speed,high precision,high reliability,high power.Gantry double drive mechanism has high damping coefficient, good rigidity,could withstand high speed and high acceleration.
YYC Rack Gear
High transmission efficiency;
The transmission is sensitive and stable;High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance
The transmission is sensitive and stable;High positioning accuracy;
Good accuracy retention;
High transmission rigidity;
Good synchronization performance
Water Chiller
1. With environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
Parameter
Brand | ZLTECH |
Model | ZL6025B |
Cutting area | 6000×2500mm (customized) |
Fiber laser power | 1KW-20KW |
Fiber laser generator brand | Raycus / Max / IPG / DK |
Laser wavelength | 1,070-1,080mm |
Interface | USB,RJ45 |
Moving speed | 200m/min |
Max Cutting speed | 120m/min |
Position accuracy | ±0.03mm |
Repeatability accuracy | ±0.01mm |
Power supply requirement | 3 phase 380v 50HZ / 60HZ (customized) |
Max acceleration | 2.5G |
Table load bearing | 3500KG |
Compatible software | CorelDraw / AutoCAD / Photoshop / AI |
Brand of motor and drivers | Japan Fuji; Japan Yaskawa; Taiwan Delta |
Support graphic format | LXD / DXF / PLT / AI / Gerber / DWG |
Transmit system | Dual Rack & Pinion type |
Control system and software | CypCut FSCUT |
Cutting head | Raytools / Au3tech / Ospri / Precitec |
Reducer | Japan Shimpo / France Motovario |
Liner guider system | Taiwan Hiwin / Taiwan PMI / Italy PEK |
Gear rack | Taiwan YYC / Germany HERION |
Electrical components | France Schneider |
Water chiller | S&A / Hanli brand |
Processing material | Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc |
Gross weight | 18000KG |
Packing method | 40 frame cabinet*2 |
Sample Display
Materials:
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
Different laser generators can help us to cut different thicknesses. Please tell us your materials, size and thickness, then we will recommend you suitable model and power
Company Profile
Service
High Accuracy Requirement from ZLTECH:
In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.
Strict Quality Control:
ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.
Independent Experienced Design Department (Unique Design For You)
Zhongli Laser established one independent design team to provide customized service and meet the different working requirements. This team owns 12 professional engineers and they will update and innovate regularly
Zhongli Laser established one independent design team to provide customized service and meet the different working requirements. This team owns 12 professional engineers and they will update and innovate regularly
FAQ
1.Are you a factory or a foreign trade company?
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service
2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service
2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
3. If I do not know how to operate the fiber laser cutter, how you can help me?
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.
4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry
6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.
4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry
6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.
7.What‘s your delivery time?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
8 Do I need the gas for my fiber laser cutting machine?
Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different gas. Please talk with our sales to get professional suggestion.
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
8 Do I need the gas for my fiber laser cutting machine?
Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different gas. Please talk with our sales to get professional suggestion.
Похожие товары
Китайский профессиональный производитель Vt2000bk усилитель карты для пропорционального клапана
179,00 $ - 183,00 $

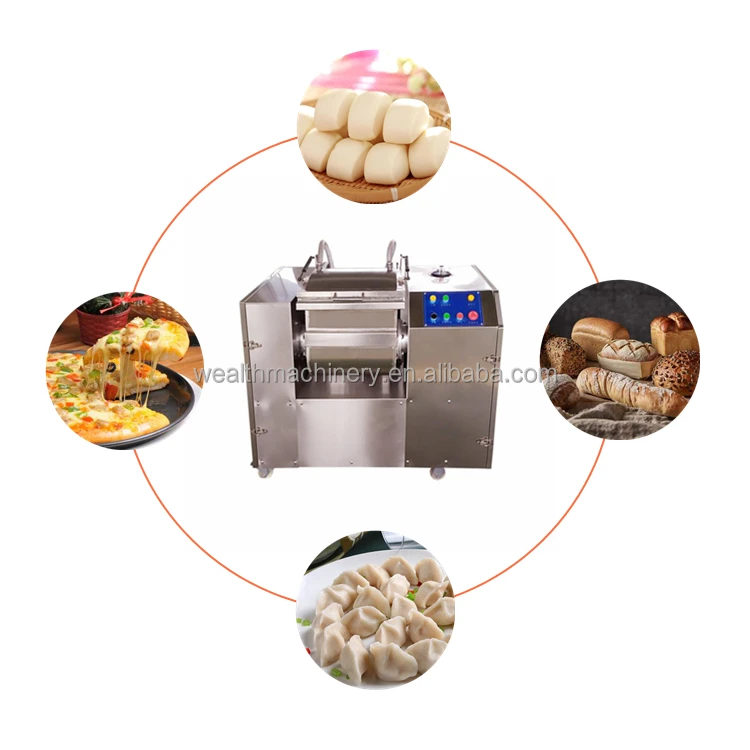

Полностью Автоматический Вакуумный Миксер для муки, теста, машина для смешивания теста для изготовления пельменей, лапши, хлеба, цена на продажу
Производственная линия лапши автоматическая упаковка лапши быстрого приготовления делая машину цена
10 000,00 $
4 шт. 85 мм шины для Wltoys 144001 124019 104001 RC автомобиль 1/10 RC багги
7,00 $ - 8,00 $
Электронные детали акустическая Поверхностная метка P3453 SOP8 EUP3453WIR1 прозрачный расходомер воды расходомер турбины расходомер 4 субпотока
0,16 $ - 1,00 $

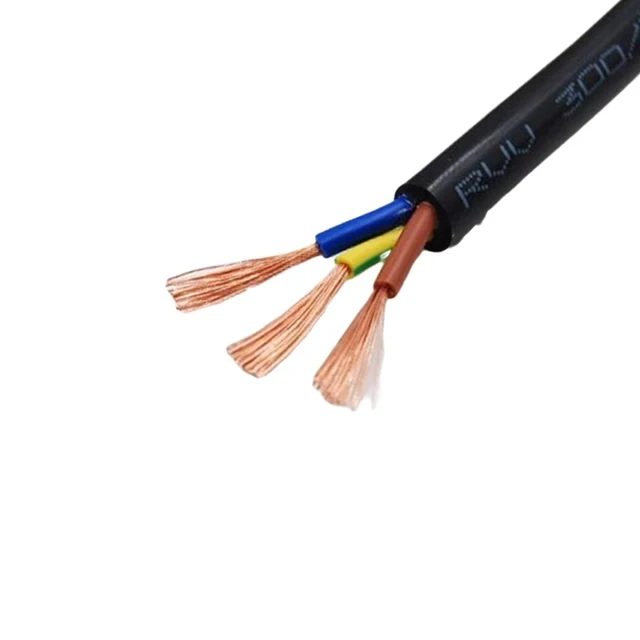

H05V2V2-F 2 4 6 ядер 24AWG 22AWG ПВХ изолированный медный провод 300/300 В кабель для дома проводка электронный кабель
0,40 $ - 6,00 $

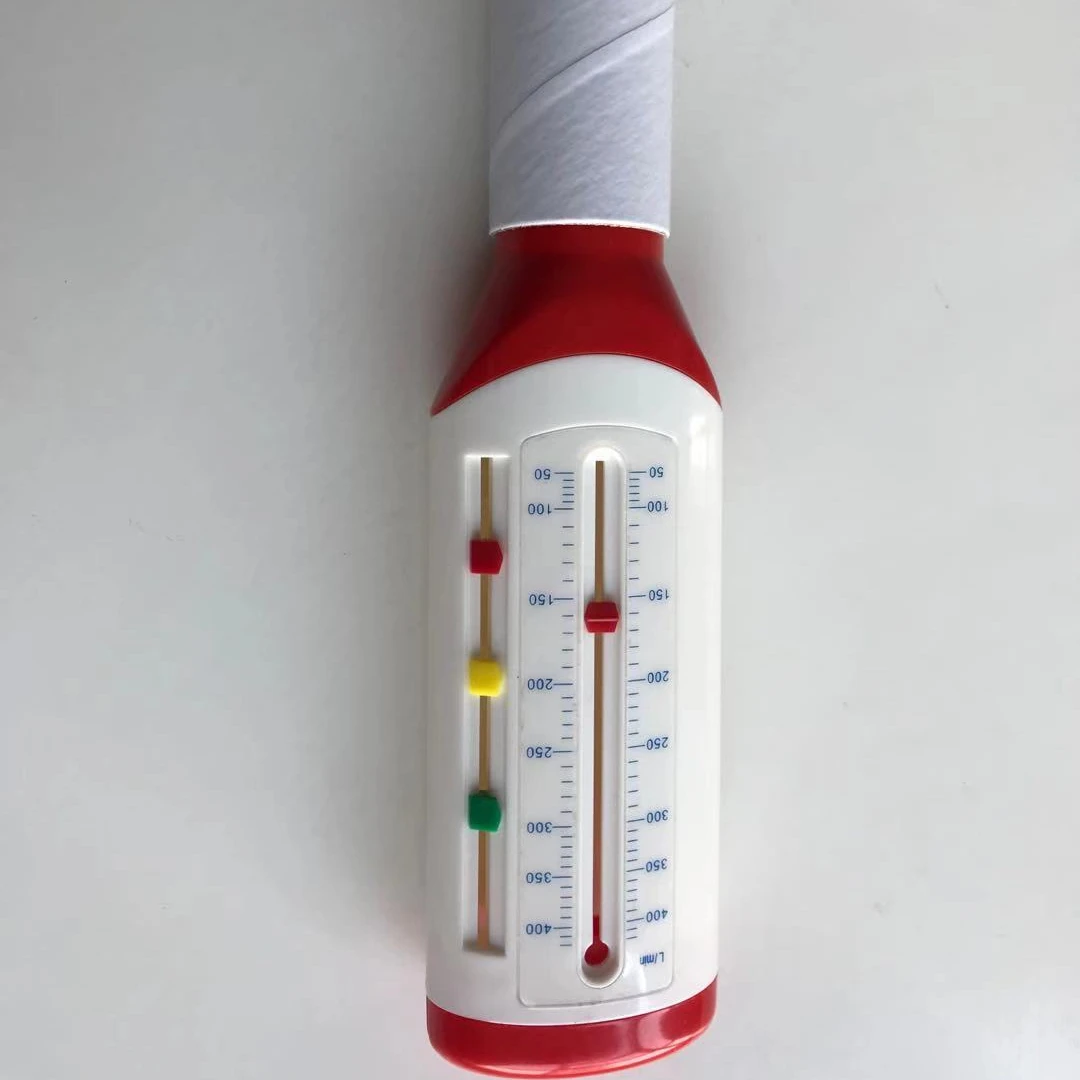

Медицинские товары, одноразовый спирометр пикового расхода для легких
