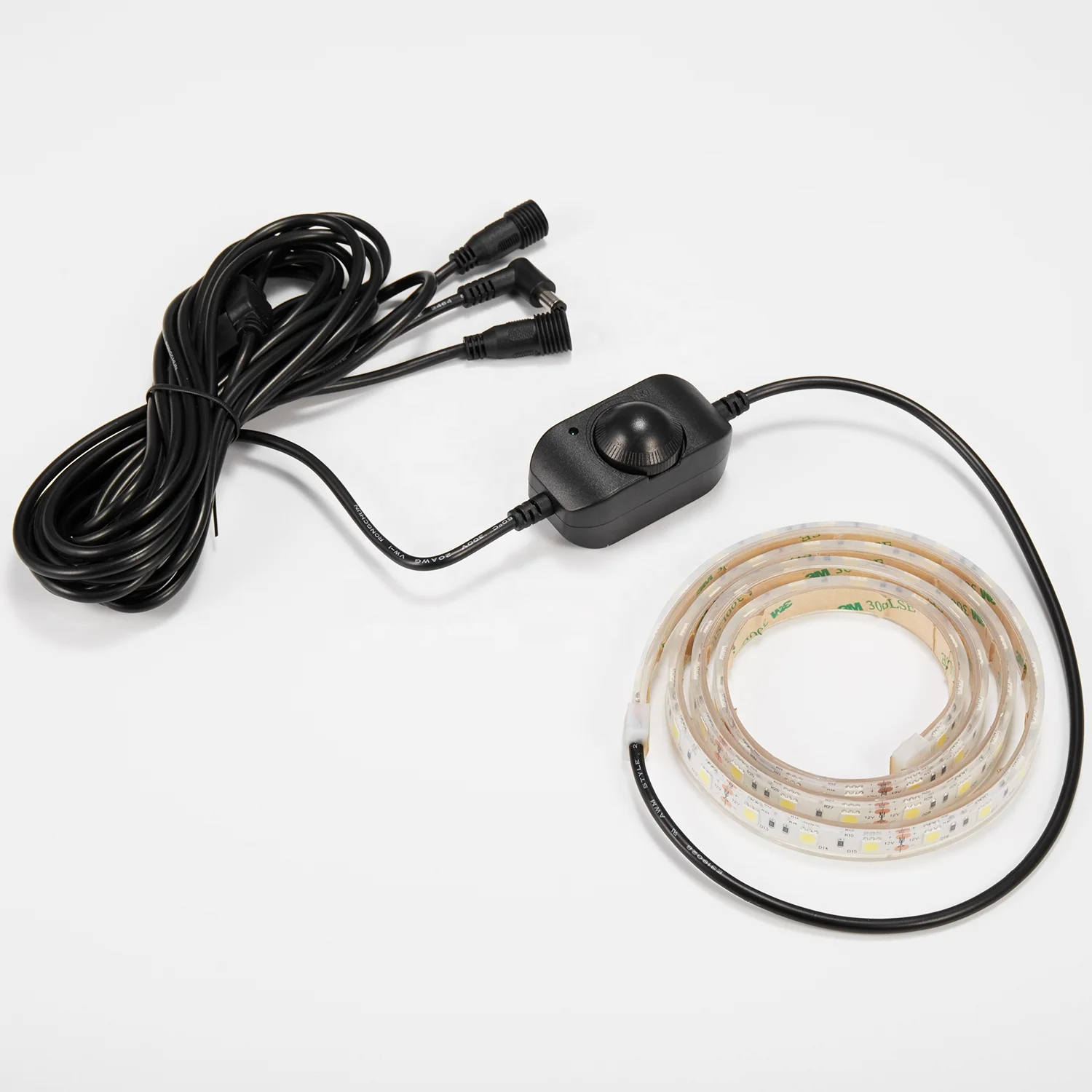

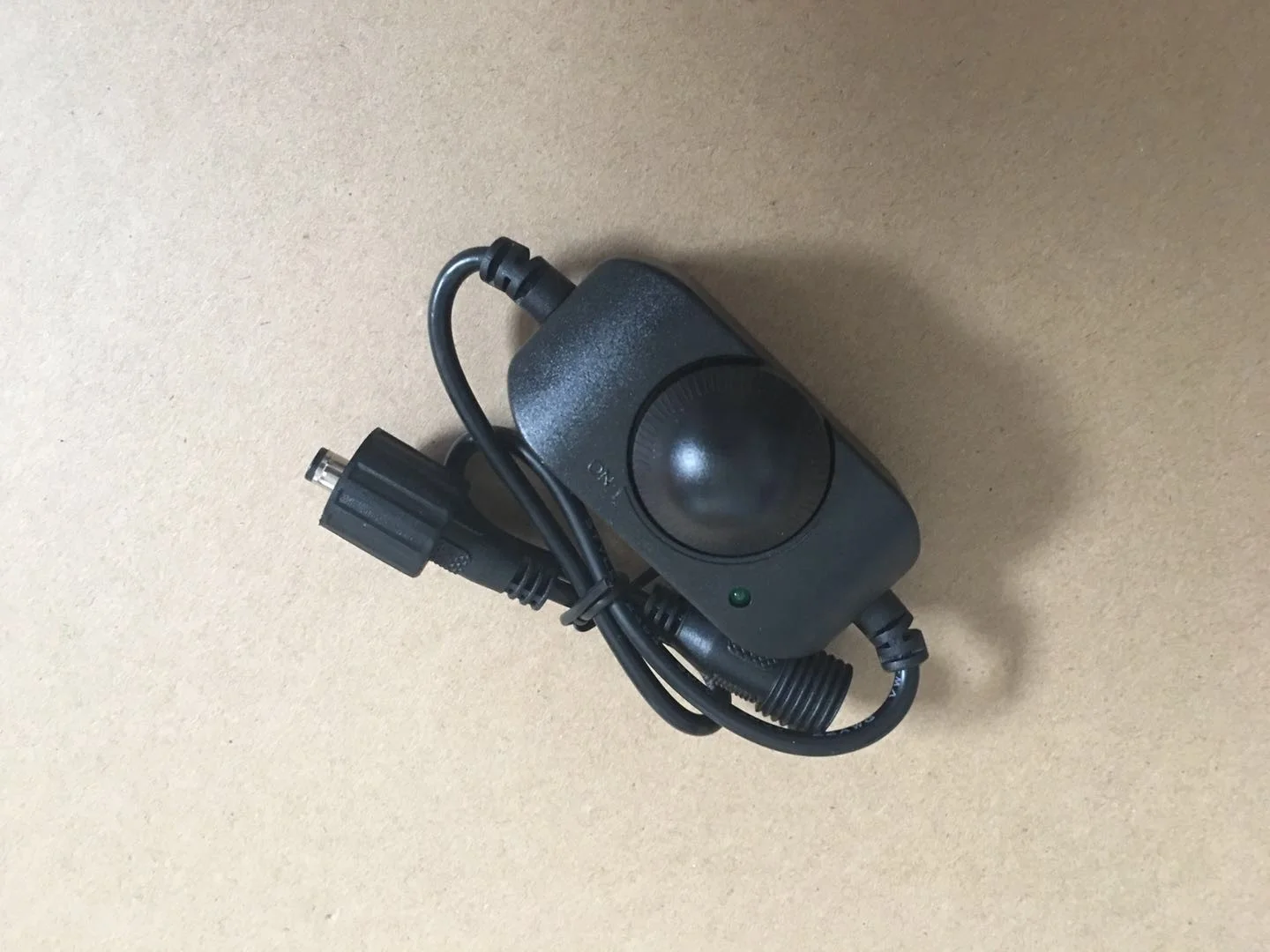

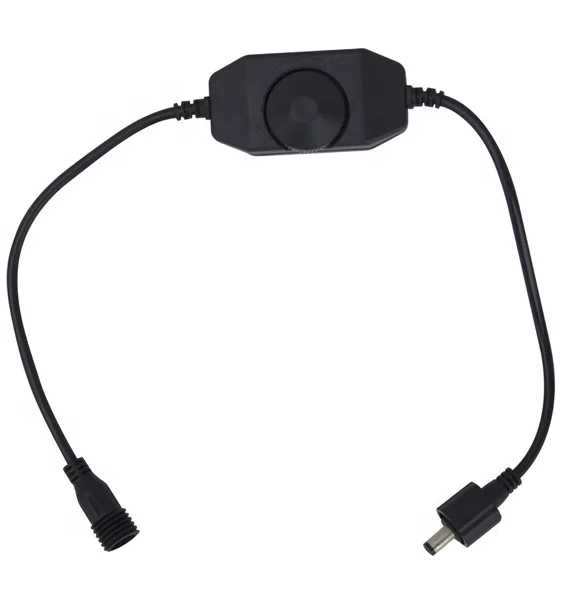

0-100% adjustable Inline led lamp dimmer knob switches for single color led strip
B-Description:
Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.
C-Features:
- 10%~100% brightness adjustable - Easy to install and simple to use - Adjust the light soft and stable, no flickering. - PWM digital dimming, avoid rush current, protect your LED lights - Mainly use to adjust single color LED light lamps and Led Strip. - Constant voltage and constant current output, can be connected with amplifiers to extend its load.
Item
LED Dimmer Knob Switch
Warranty(Year)
2-Year
Lighting solutions service
Lighting and circuitry design, Project Installation
Luminous Efficacy(lm/w)
72
Place of Origin
China
City
Guangdong
Brand Name
GNSOURCE
Type
Rotary Switch
Max. Load Power
72W
Connection Mode
Common cathode
Product name
Inline led strip dimmer controller 12V/24V for Single Color LED Lights
Application
12V/24V Led Lights
Certificates
CE ROHS
Color
Black
Input Voltage
DC12V-DC24V
Output power
12V<72W
Function
Color Adjust
Working temperature
20C - +60C
Output Current
6A/CH
Output signal
PWM
Direction for use
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Adopt rotary button, its function as follows: Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest. Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
