Hospital Equipment Blood Dialysis Device for Hemodialysis Treatment Kidney Hemodialysis Dialysis Machine Kidney Dialysis
Model: MCS0019

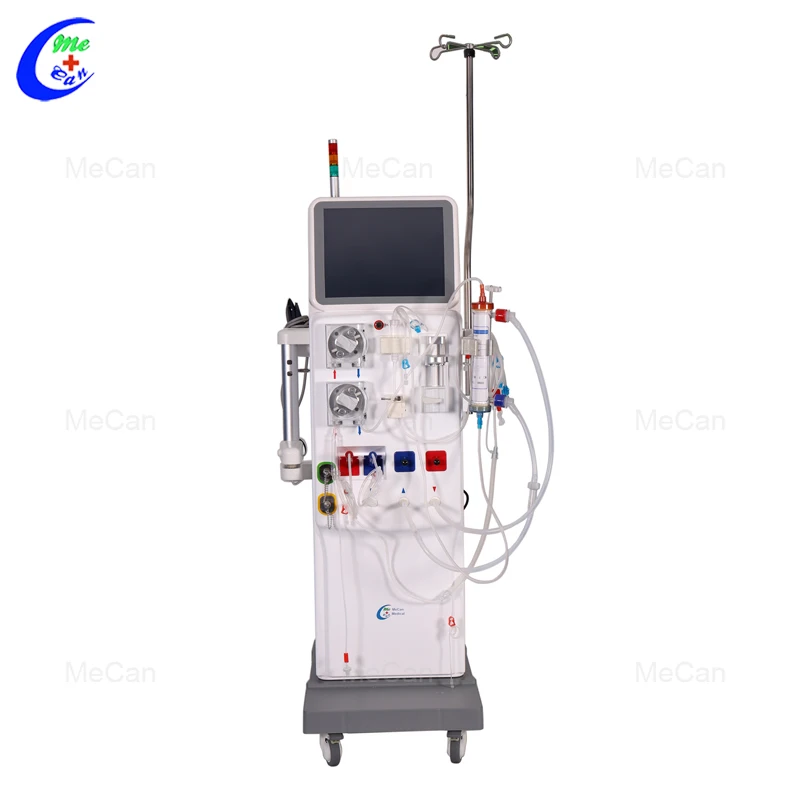

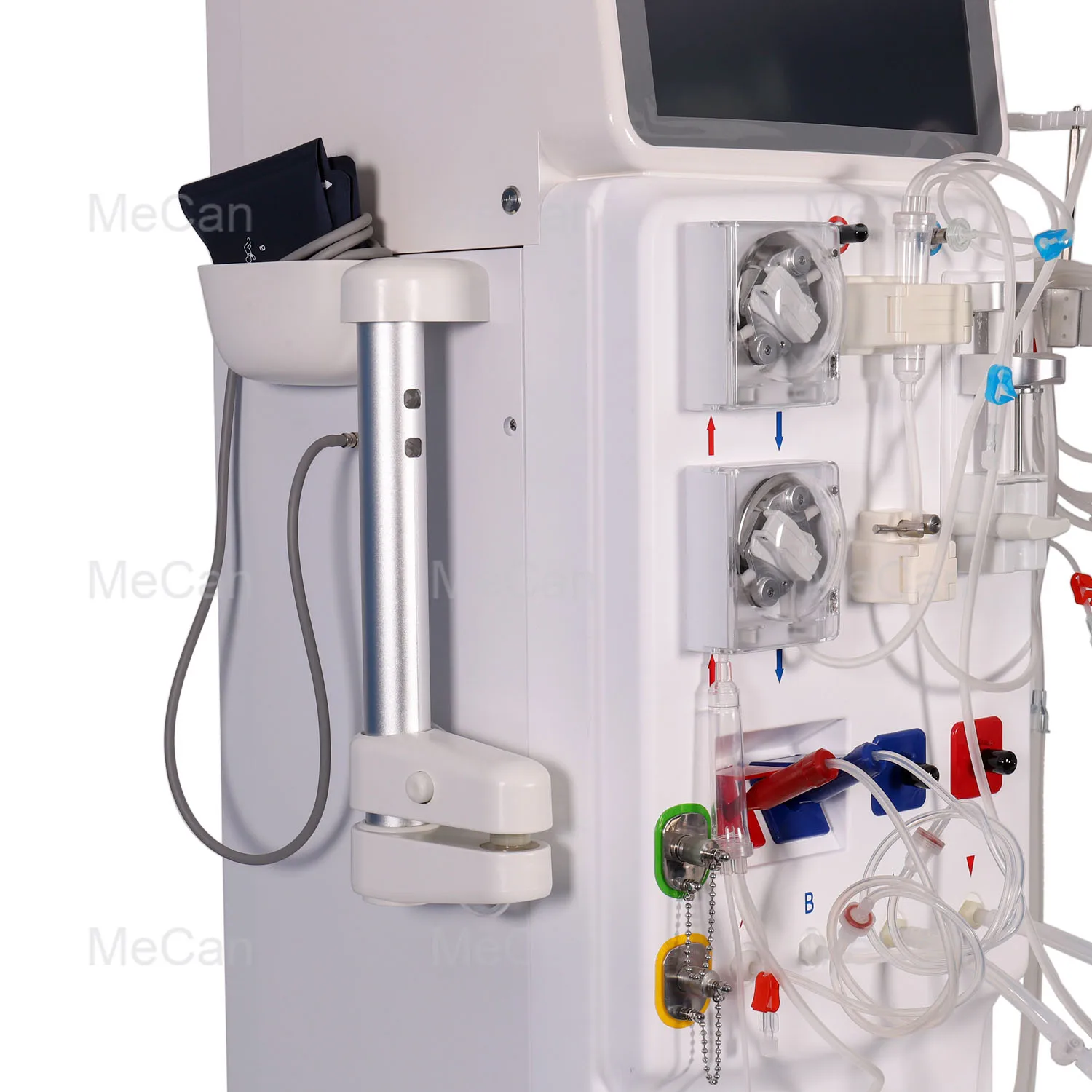

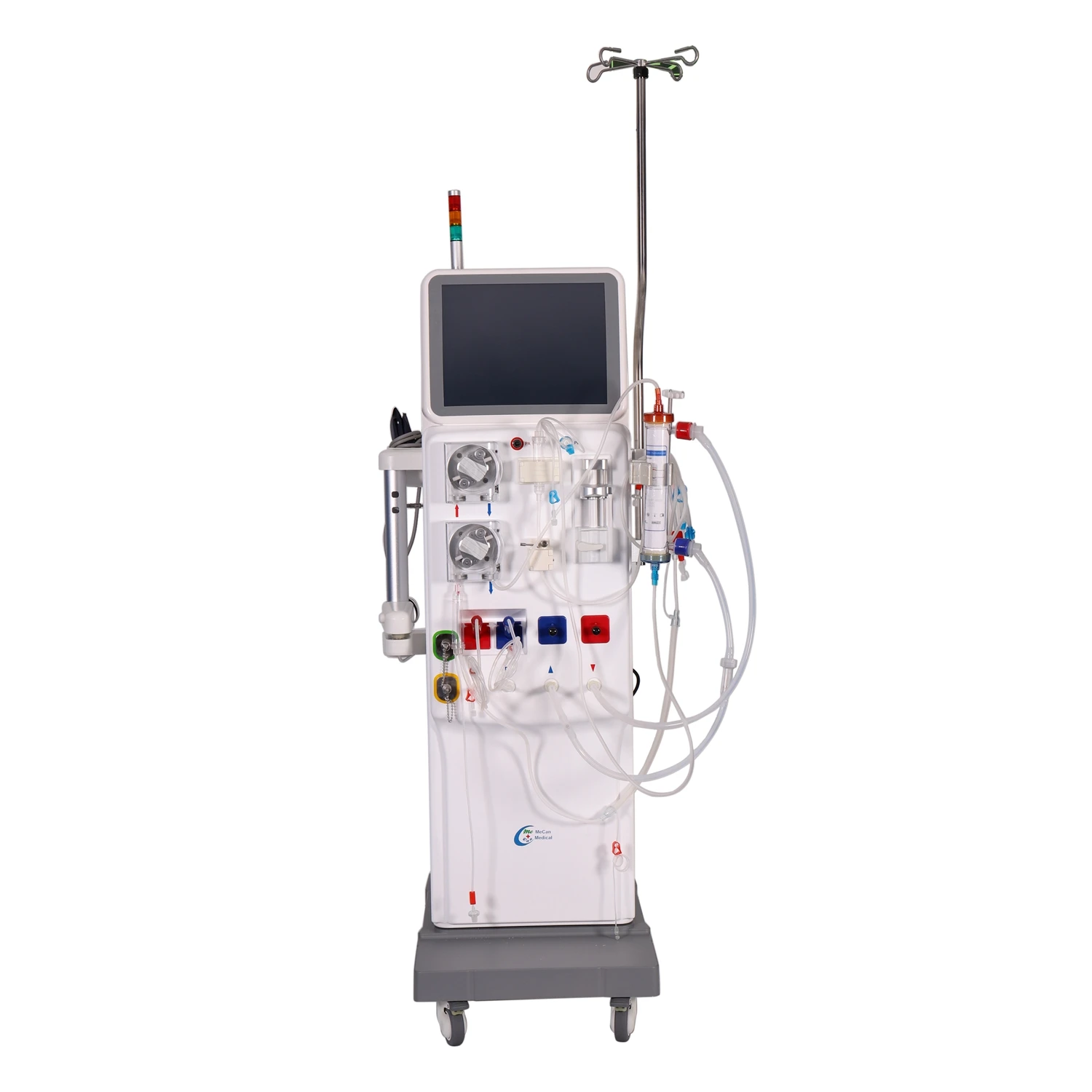

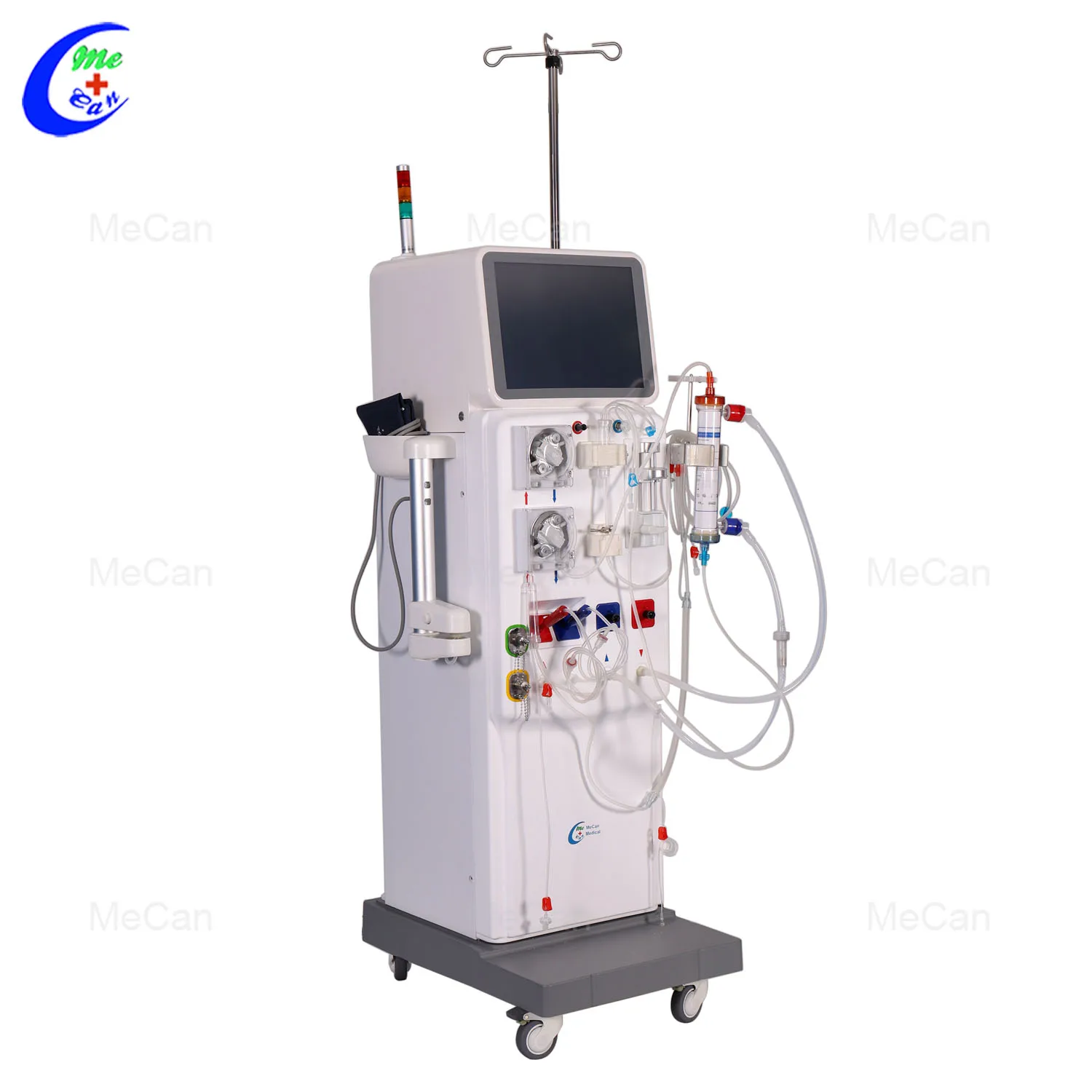

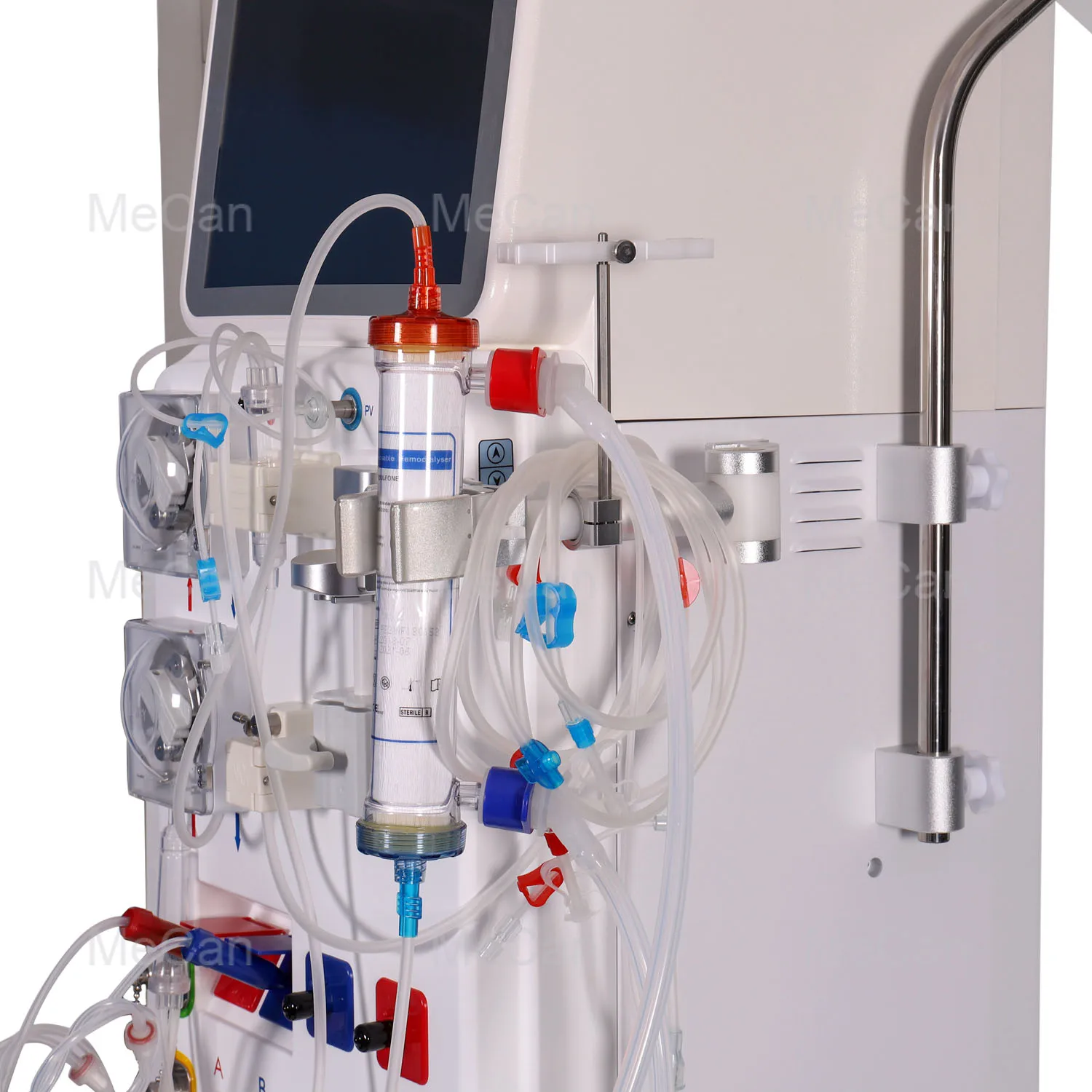

Haemodialysis Machine (HDF)
Haemodialysis Equipment Intelligent operation system; Easy operation with visual and audio alarms; Multi-purpose service/maintenance interface; Profiling: sodium concentration and UF curve.
Intelligent operation system; Easy operation with visual and audio alarms; Multi-purpose service/maintenance interface; Profiling: sodium concentration and UF curve;MCS0019 ensures the safety and efficiency during dialysis, provided comfortable dialysis
treatment, which can use to: On-line HDF, HD and On-line HF.
treatment, which can use to: On-line HDF, HD and On-line HF.
Features
1.On-line HDF
2.Adopted closed volume balance chamber, accurate ultrafiltration dehydration control;One-key low speed ultrafiltration: can set low speed UF, low speed UF working time, return to normal UF speed automatically after execution; support isolated UF, can modify the executed time and UF volume based on requirement while isolated UF.
3. One-key dialyzer priming+ function
Can set priming time, priming dehydration volume which effective use of diffusion and convection mechanism to improve the priming effect of bloodlines and dialyzer and improve the dialysis adequacy
4. Intelligent automatic disinfection and cleaning procedure
5.It can effectively prevent the deposition of calcium and protein in the pipeline of the machine, unnecessary to use sodium hypochlorite to remove protein which avoids the injury to medical personnel during the use of sodium hypochlorite.
6.One-key drainage function
Convenient and practical one-key drainage function, automatically remove the waste liquid in the bloodline and dialyzer after dialysis treatment, which prevents waste liquid from spilling on the ground when dismantling the pipeline, effectively keep the treatment site clean and reduce the management and transportation cost of medical waste.
7.Intelligent Haemodialysis device alarm system
8.History record of alarm and disinfection
9.15 inches LCD touch screen
10.Kt/V evaluation
11. Customized the Sodium and UF profiling parameter setting based on patients’ actual treatment situation, which is convenient for clinical personalized treatment, patients will feel more comfortable during dialysis and reduce the incidence of common adverse reactions.
2.Adopted closed volume balance chamber, accurate ultrafiltration dehydration control;One-key low speed ultrafiltration: can set low speed UF, low speed UF working time, return to normal UF speed automatically after execution; support isolated UF, can modify the executed time and UF volume based on requirement while isolated UF.
3. One-key dialyzer priming+ function
Can set priming time, priming dehydration volume which effective use of diffusion and convection mechanism to improve the priming effect of bloodlines and dialyzer and improve the dialysis adequacy
4. Intelligent automatic disinfection and cleaning procedure
5.It can effectively prevent the deposition of calcium and protein in the pipeline of the machine, unnecessary to use sodium hypochlorite to remove protein which avoids the injury to medical personnel during the use of sodium hypochlorite.
6.One-key drainage function
Convenient and practical one-key drainage function, automatically remove the waste liquid in the bloodline and dialyzer after dialysis treatment, which prevents waste liquid from spilling on the ground when dismantling the pipeline, effectively keep the treatment site clean and reduce the management and transportation cost of medical waste.
7.Intelligent Haemodialysis device alarm system
8.History record of alarm and disinfection
9.15 inches LCD touch screen
10.Kt/V evaluation
11. Customized the Sodium and UF profiling parameter setting based on patients’ actual treatment situation, which is convenient for clinical personalized treatment, patients will feel more comfortable during dialysis and reduce the incidence of common adverse reactions.
Technical Parameter | Size | 380mmx400x1380mm (L*W*H) | |
Area | 500*520mm | ||
Weight | 88KG | ||
Power supply | Power supply | AC220V, 50Hz/60Hz, 10A | |
Input power | 1500W | ||
Back-up battery | 30 minutes | ||
Working Condition | Water input pressure | 0.1Mpa~0.6Mpa, 15P.S.I~60P.S.I | |
Water input temperature | 5℃~30℃ | ||
Working environment temperature | 10℃~30℃ at relative humidity ≦70% | ||
UF rate | Flow range | 0ml/h~4000ml/h | |
Resolution ratio | 1ml | ||
Precision | ±30ml/h | ||

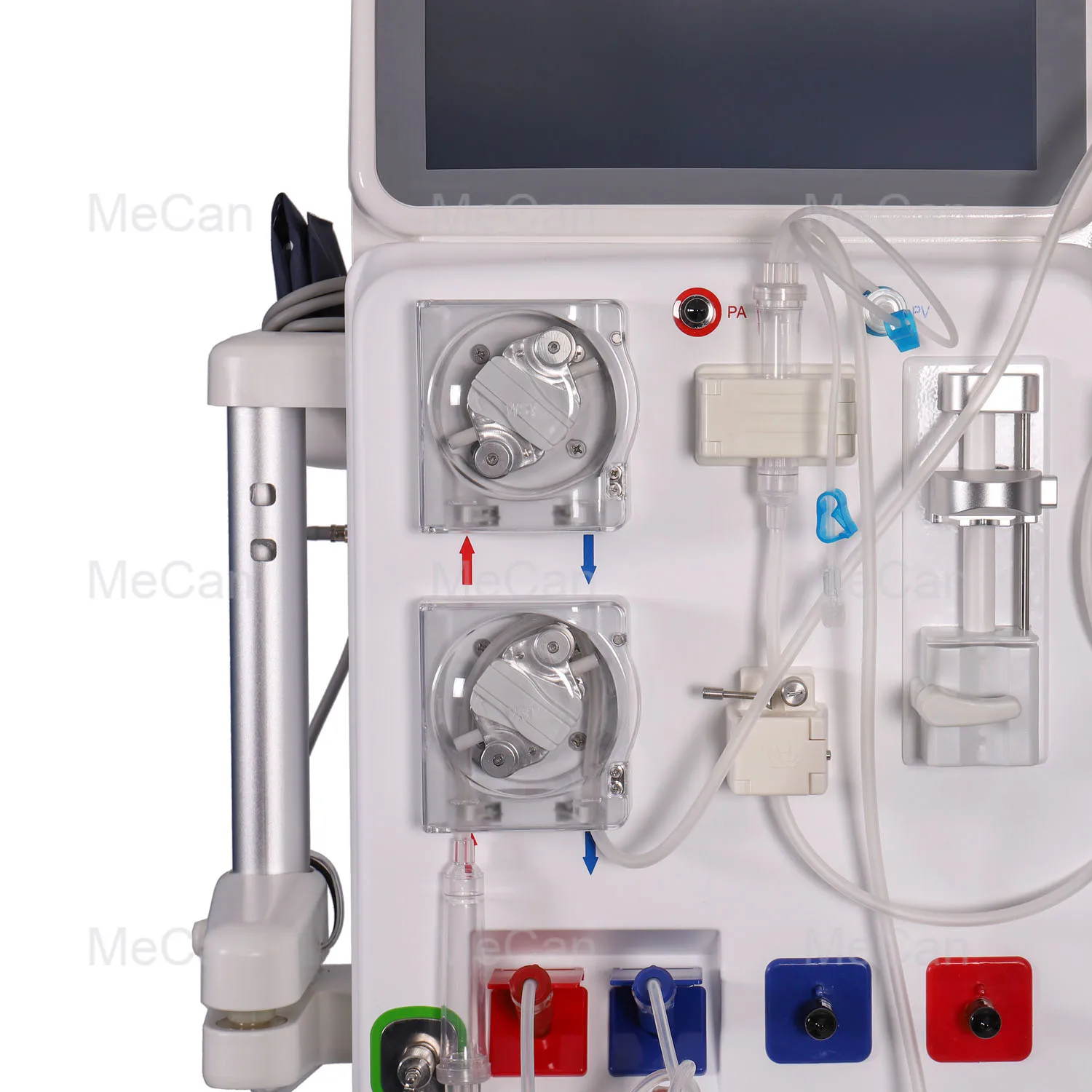

Blood pump & substitution pump | Blood pump flow range | 30ml/min~600ml/min (diameter: 8mm or 6mm) | |
Substitution pump flow range | 30ml/min~600ml/min (diameter 8mm or 6mm) | ||
Resolution ratio | 0.1ml | ||
Precision | ±10ml or 10% of reading | ||
Heparin pump | Syringe size | 20, 30, 50ml | |
Flow range | 0ml/h~10ml/h | ||
Resolution ratio | 0.1ml | ||
Precision | ±5% | ||
Storage Environment | Storage temperature should be between 5℃~40℃, at relative humidity ≦80% | ||
Air bubble monitor
Infrared and response threshold value | Single air bubble of 200u I exists when Blood flux is 200ml/min |
Inflow pressure | 0MPa~0.6MPa |
Inflow temperature | 5ºC~30ºC |
Environment temperature | 10ºC~30ºC, Relative humidity≤70% |
Rinse/disinfection | chemical disinfection (citric acid,peracetic acid and oxalic acid) |
Hot rinse | 80ºC |
Back-up power supply | last for 15-30min after electric-cut. |
Monitoring system & Alarm setup
Venous pressure | -180mmHg ~ +600mmHg, ±10mmHg |
Arterial pressure | -380mmHg ~ +400mmHg, ±10mmHg |
TMP | -180mmHg ~ +600mmHg, ±20mmHg |
Dialysate temperature | preset range 34.0℃~39.0℃ |
Dialysate flow | Less than 800 ml/min (Adjustable) |
Substitution flow range | 0-28 L/H (on line HDF) |
Blood leak detection | Photo chromic alarm when erythrocyte specific volume is 0.32±0.02 or blood leak volume is equal or more than 1ml per liter of dialysate. |
Bubble detection | Ultrasonic, Alarm when a single air bubble volume is more than 200μl at 200ml/min blood flow |
Conductivity | Acoustic-optic |
Disinfection/Sanitize
1. Hot disinfection:
Time: 30 minutes; Temperature: about 80℃, at flow rate 500ml/min;
2.Chemical disinfection:
Time: 30minutes, Temperature: about 36℃~50℃, at flow rate 500ml/min;
3.Chemical disinfection with heat:
Time: 45minutes, Temperature: about 36℃~80℃, at flow rate 50ml/min;
4.Rinse:
Time: 10minutes, Temperature: about 37℃, at flow rate 800ml/min;
Time: 30 minutes; Temperature: about 80℃, at flow rate 500ml/min;
2.Chemical disinfection:
Time: 30minutes, Temperature: about 36℃~50℃, at flow rate 500ml/min;
3.Chemical disinfection with heat:
Time: 45minutes, Temperature: about 36℃~80℃, at flow rate 50ml/min;
4.Rinse:
Time: 10minutes, Temperature: about 37℃, at flow rate 800ml/min;
Pyrogen filter port
Completely filtrating the remained bacteria and endotoxin.(optional)
Net connection
One computer can audit and control the treatment of maximum 20 units hemodialysis machine (optional)
Automatic Cleaning Function of MeCan Hemodialysis Machine
Our hemodialysis machine has an automatic cleaning function. After dialysis each time, if you click Disinfect, the machine will automatically disinfect, after disinfection, it will automatically shut down, or click Selftest, the machine will automatically disinfect and selftest, after it, the machine can be used by the second person.It can ensure safety used by between different patients.

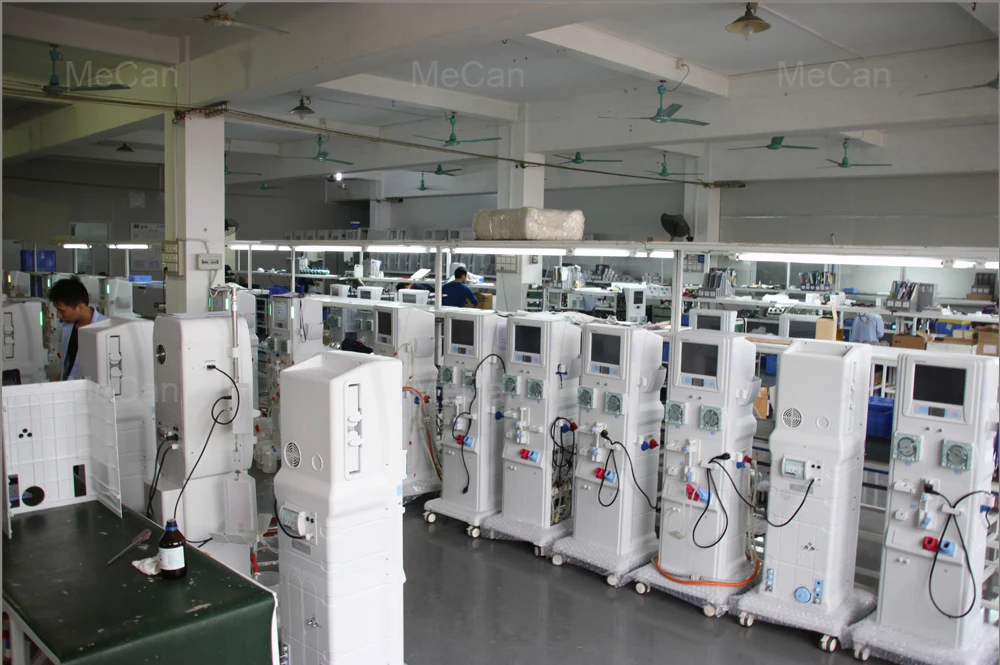

Factory View

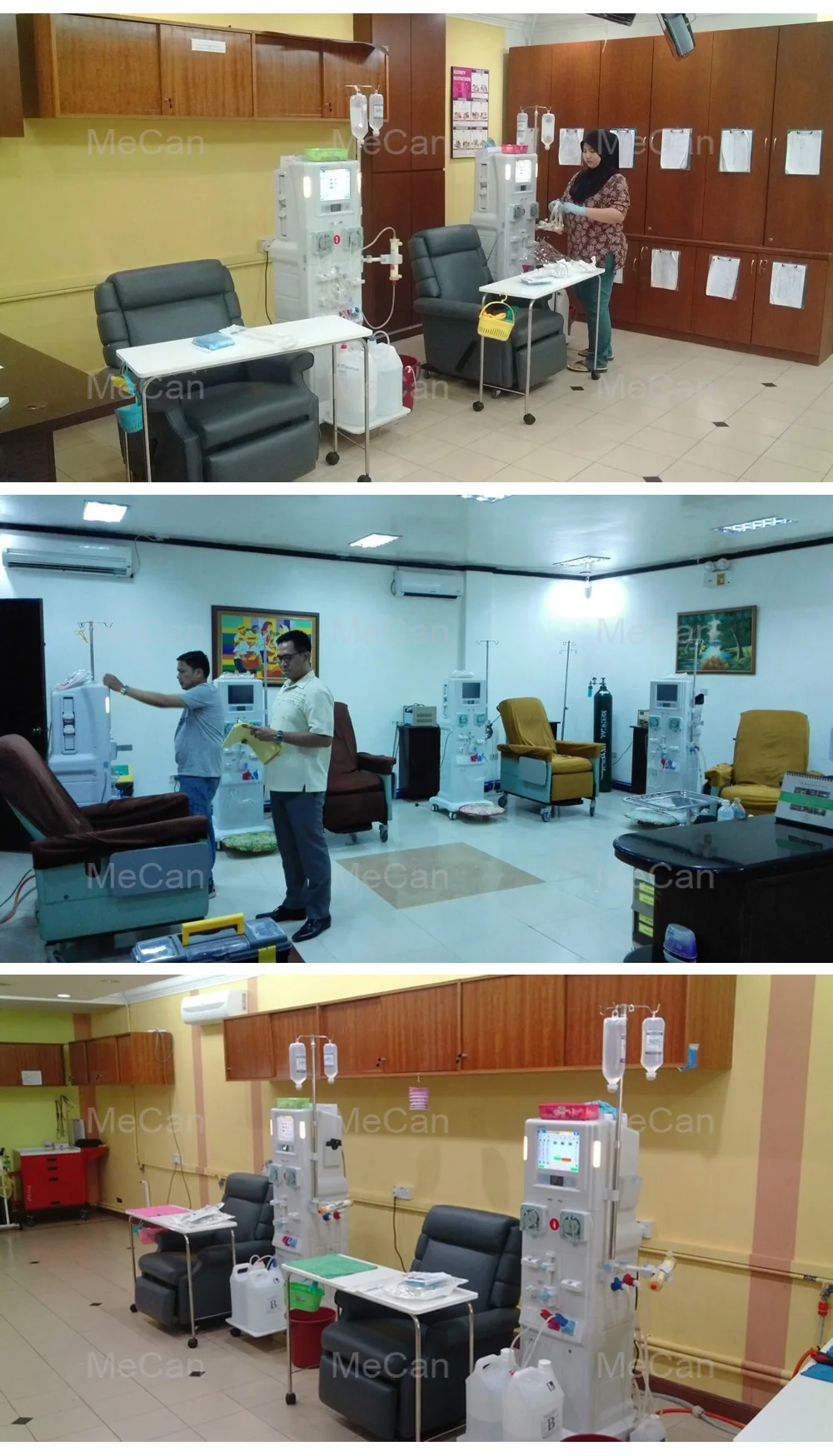

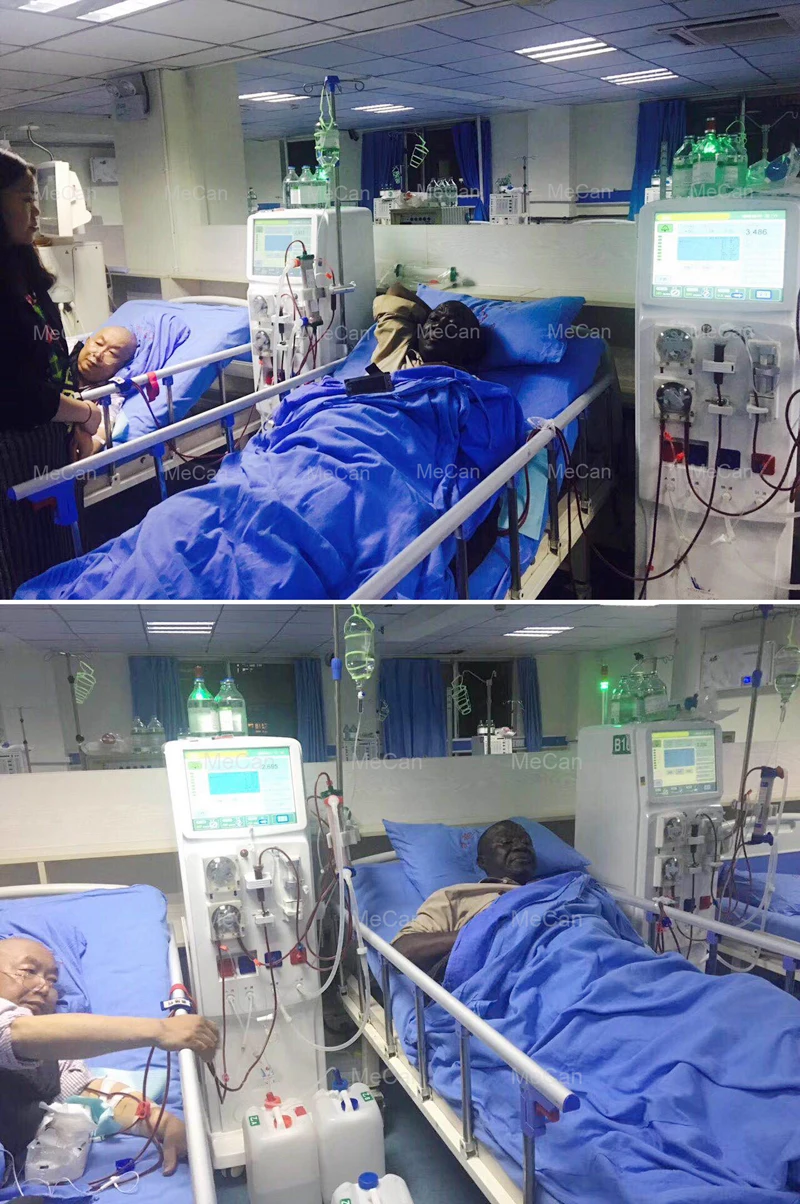

Customer Photos
Packing Delivery
Recommend Products
Company Profile
Ideal supplier for providing more than 2,000 hospitals with one-stop solutions.
Why Choose Us
* One of the most pioneer suppliers in one-stop medical equipment service in China.
* Satisfying purchasing needs for medical equipment from more than 2,000+ hospitals worldwide.
* One of the best suppliers approved by Ghana, Zambia & the Phillipines governments.
* Participating in construction of various Grade A tertiary hospitals oversea.
* Sharing the same component suppliers with national aerospace projects.
* Golden Supplier certified by SGS, TUV, COC, From E/F SGS, TUV, COC, From E/F.
* Having visualization in production, delivery and transport.
* Training for installation, operating and daily maintenance on line.
* Providing DDP service.
* No MOQ requirement for ODM/OEM service.
* English, Spanish, French & Cantonese supported.
* No MOQ requirement for ODM/OEM service.
* English, Spanish, French & Cantonese supported.
ABUOT US
Guangzhou MeCan Medical Limited, starting as one of the most pioneer suppliers in one-stop medical equipment service in China, was established in 2006.
Among more than 2,000 hospitals/clinics/universities worldwide with collaborations, we participated in construction of various Grade A tertiary hospitals oversea, and made it to be one of the best suppliers approved by Zambia & the Philippines governments.In addition, we strictly select suppliers for components, sharing the same ones with national aerospace projects, and got certified by SGS, TUV, COC, From E/F as Golden Supplier with our comprehensive services. Our advantages cover but are not limited by one-hand prices, ODM/OEM service without MOQ requirement, delivery on-time rate (99%), DDP incoterm, as well as favorable payment methods. Most problems met with international trades could be solved with every order sector reported directly by specialists, our on-line training for installation, operation, and daily maintenance, erasing all your possible concerns. English,Spanish, French & Cantones communications are also available to support customers from all over the world.
We aim to making more people enjoy better medical conditions, treating all customers with honesty, responsibility, efficiency and mutual benefits. Any collaboration chance is appreciated and welcomed.
Among more than 2,000 hospitals/clinics/universities worldwide with collaborations, we participated in construction of various Grade A tertiary hospitals oversea, and made it to be one of the best suppliers approved by Zambia & the Philippines governments.In addition, we strictly select suppliers for components, sharing the same ones with national aerospace projects, and got certified by SGS, TUV, COC, From E/F as Golden Supplier with our comprehensive services. Our advantages cover but are not limited by one-hand prices, ODM/OEM service without MOQ requirement, delivery on-time rate (99%), DDP incoterm, as well as favorable payment methods. Most problems met with international trades could be solved with every order sector reported directly by specialists, our on-line training for installation, operation, and daily maintenance, erasing all your possible concerns. English,Spanish, French & Cantones communications are also available to support customers from all over the world.
We aim to making more people enjoy better medical conditions, treating all customers with honesty, responsibility, efficiency and mutual benefits. Any collaboration chance is appreciated and welcomed.
FAQ
1.What is your warranty for the products?
One year for free.
2.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
3.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:
Express:UPS,DHL,TNT,ect (door to door),7-10 days
Hand carry:Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.
Air freigt(from airport to airport):3-10 days
Sea(any sea port):Mombasa(30 days), Port Kelang (12 days),Manila(10 days), Lagos(45 days), Guayaquil(45 days)
4.How to place the order?
WHAT IS YOUR LEAD TIME OF THE PRODUCTS?
40% of our products are in stock,50% of the products need 3-10 days to produce, 10%of the products need 15-30 days to produce.
WHAT IS YOUR PAYMENT TERM?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.
One year for free.
2.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
3.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:
Express:UPS,DHL,TNT,ect (door to door),7-10 days
Hand carry:Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.
Air freigt(from airport to airport):3-10 days
Sea(any sea port):Mombasa(30 days), Port Kelang (12 days),Manila(10 days), Lagos(45 days), Guayaquil(45 days)
4.How to place the order?
WHAT IS YOUR LEAD TIME OF THE PRODUCTS?
40% of our products are in stock,50% of the products need 3-10 days to produce, 10%of the products need 15-30 days to produce.
WHAT IS YOUR PAYMENT TERM?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.
Похожие товары
Усовершенствованный больничный диализный аппарат для переливания крови, для диализного центра, SWS 4000A

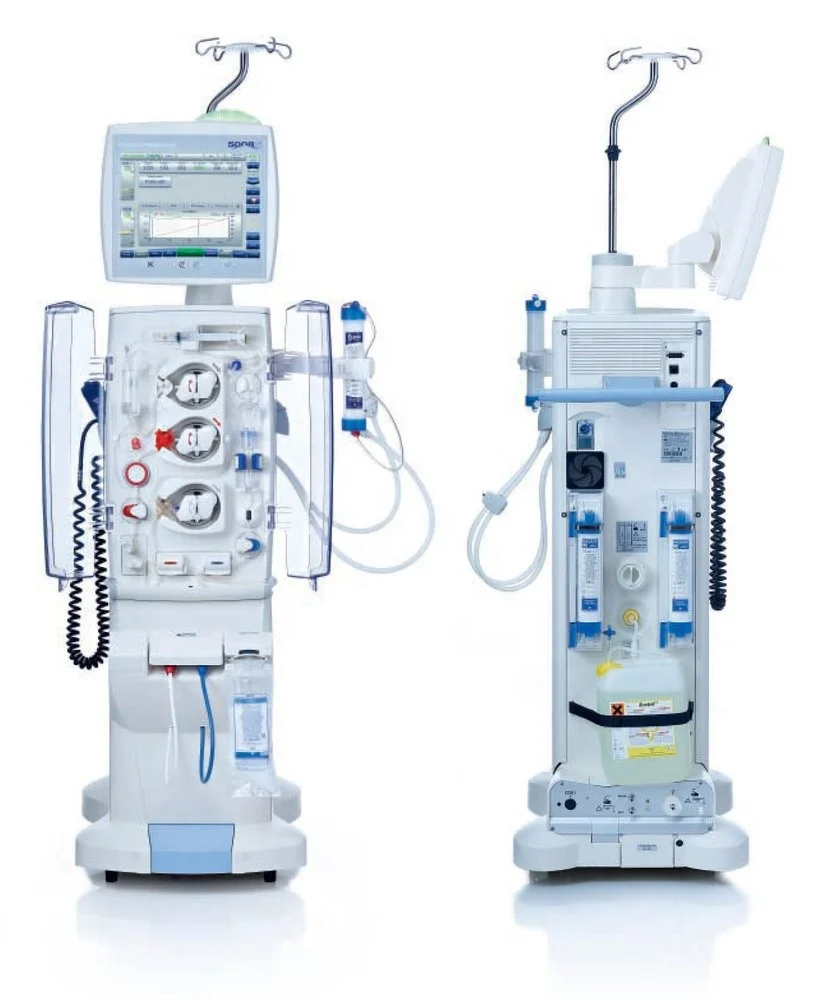

Диализный аппарат Fresenius 5008s для гемодиализа, медицинское оборудование, портативный анализатор крови, аппарат для диализа почек
