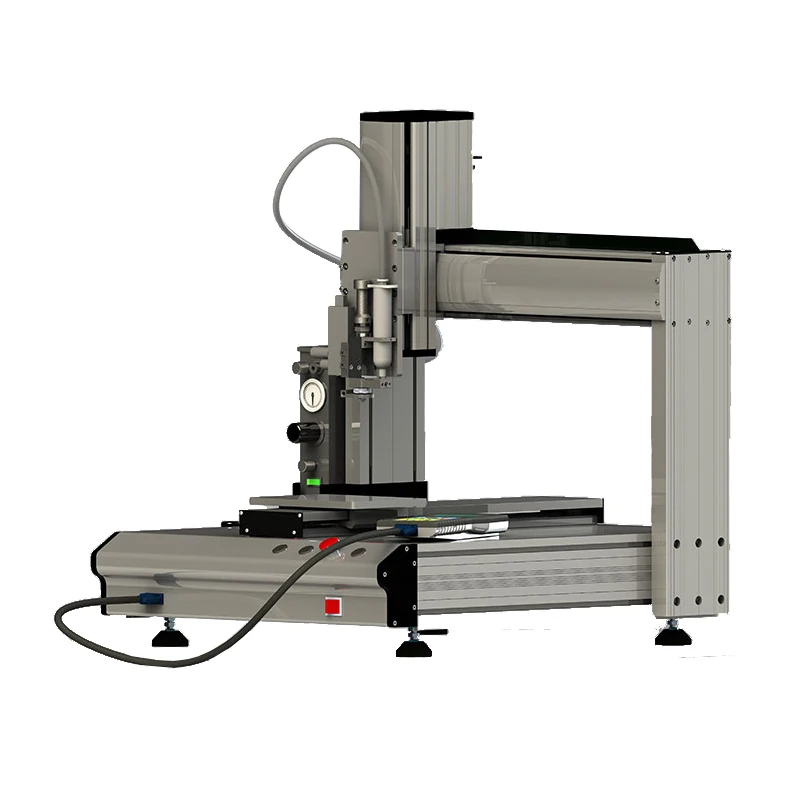

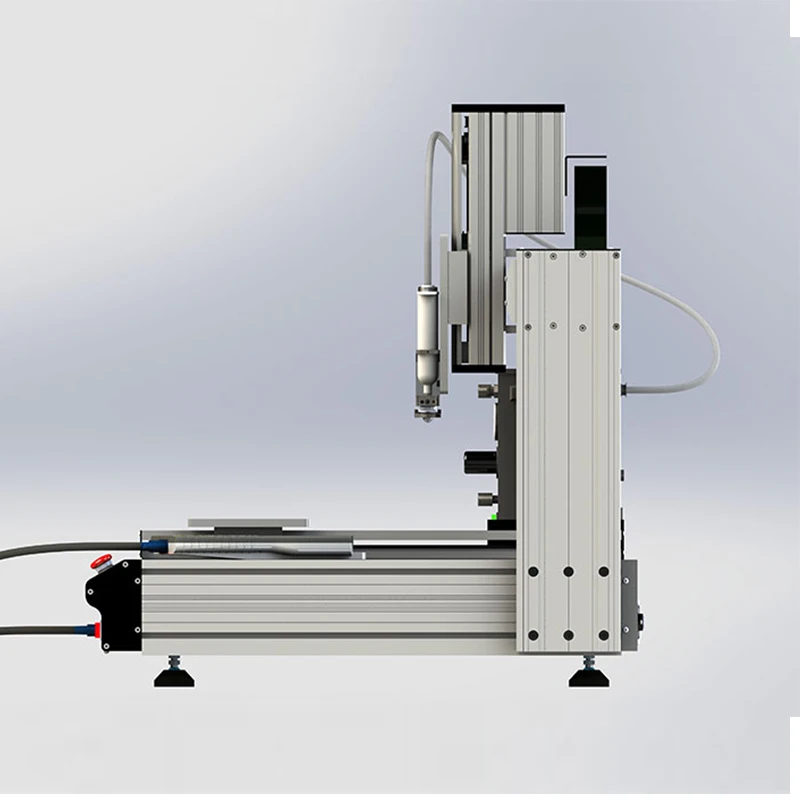

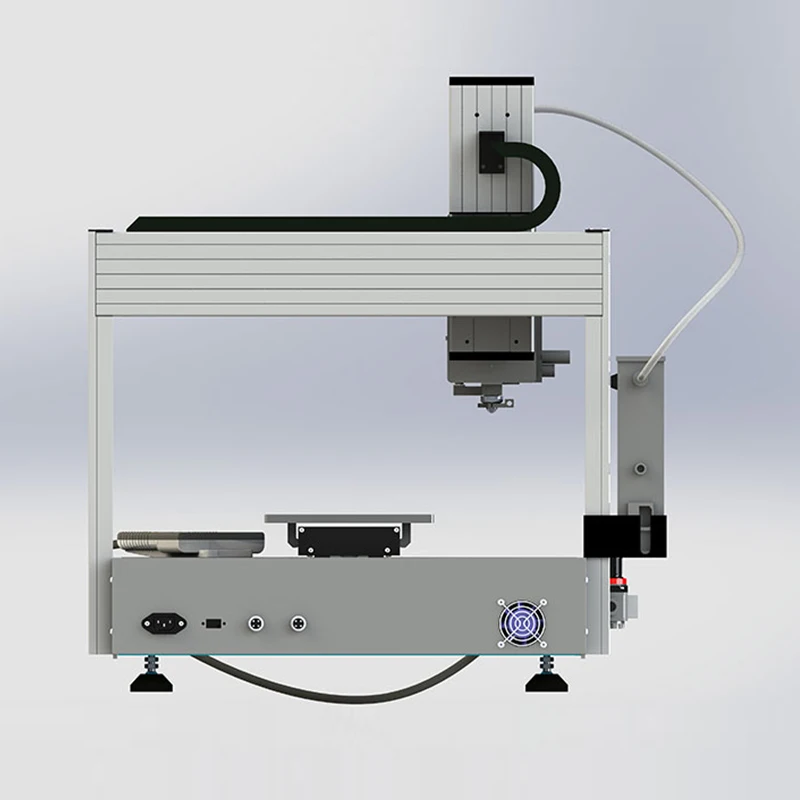

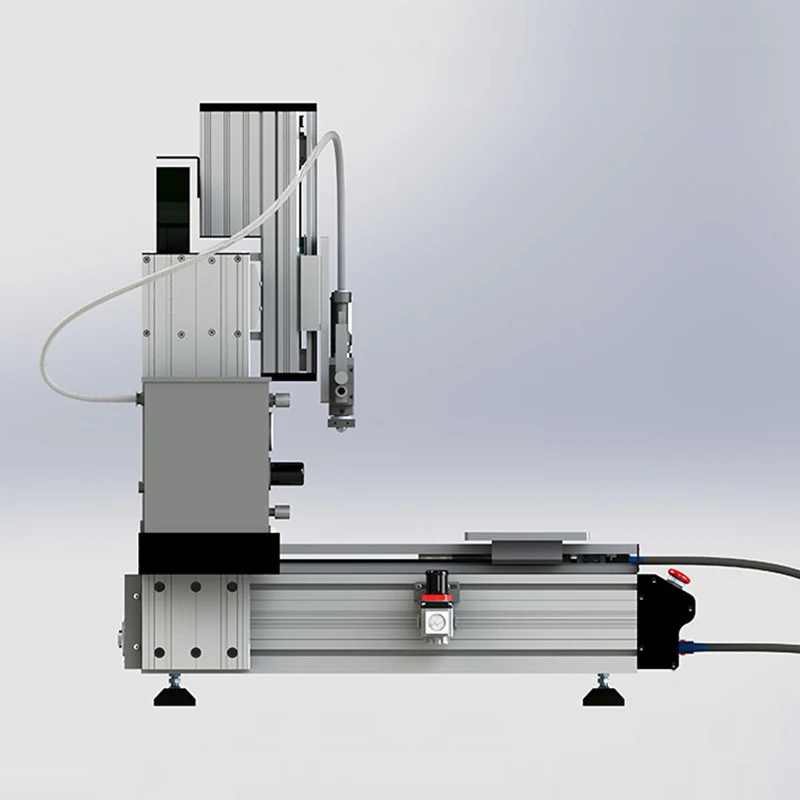

Customized CNC Dispenser Robot Automatic Liquid Glue Dispenser Dispensing Machine For Hot Melt Glue
Dispensing machine can replace manual operation to achieve mechanized production; single machine can be operated, simple and convenient, high speed and accurate; SD card storage mode, convenient for data management and file transfer between machines; can be equipped with a two-component pumping system to form a double Liquid automatic dispensing machine; can be equipped with accessories such as dispensing controller and dispensing valve to form floor-mounted dispensing equipment; can be equipped with screw locking mechanism and configured as an automatic locking screw machine; can be upgraded to an online robot on demand. Used in various automated assembly; strong bearing capacity and large processing space.
Specification
Model | DJ-221 | DJ-331 | DJ-441 | DJ-551 | DJ-4331 | DJ-5331 | |||||||
Number of Controlled axes | 3 Axis | 4 Axis | |||||||||||
Effective Travel | X Axis | 200mm | 300mm | 400mm | 500mm | 400mm | 500mm | ||||||
Y1 Axis | 200mm | 300mm | 400mm | 500mm | 300mm | 300mm | |||||||
Y2 Axis | 300mm | 300mm | |||||||||||
Z Axis | 80mm | 100mm | 100mm | 100mm | 100mm | 100mm | |||||||
Transmission mode | Double-track timing belt | ||||||||||||
Motor System | Precision Step Motor | ||||||||||||
Top speed | 800mm/sec | ||||||||||||
Repeat accuracy | ±0.02mm | ||||||||||||
Maximum load | 8kg / 4kg / 4kg /3kg (X-Y1-Y2-Z) | ||||||||||||
File storage space | 999 Programs | ||||||||||||
Size | W | 410mm | 450mm | 620mm | 720mm | 620mm | 720mm | ||||||
D | 410mm | 450mm | 700mm | 785mm | 630mm | 630mm | |||||||
H | 520mm | 520mm | 520mm | 520mm | 680mm | 680mm | |||||||
Weight | 40kg | 60kg | |||||||||||
Main Configuration.
●Taiwan HIWIN guide
●Japan SHINANO motor
●Italy ELATECH synchronous belt
●Taiwan MEAN WELL power
●Custom hot melting point glue head
●Yudian thermostat
●Taiwan HIWIN guide
●Japan SHINANO motor
●Italy ELATECH synchronous belt
●Taiwan MEAN WELL power
●Custom hot melting point glue head
●Yudian thermostat
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computer, PLT files, TCF files and G code files.
4. Suitable for glue: Anaerobics, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicone, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.
This equipment is suitable for high efficiency, high running precision and production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household
appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button
products,battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating,mechanical seals, etc
appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button
products,battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating,mechanical seals, etc
For other glues, please contact us now, our engineer team will provide the best solutions for you.
Welcome to visit our website: //www.waterun.com.cn
Application
Wide range glue dispenser machines meet your different glue dispensing needs!
1. Model DJ-331 30cc Syringe Glue Dispensing Machine
Main Components:
1.30ML Syringe
2.Dispensing Controller
3.3-Axis Platform
4.Handheld Teaching Box
1.30ML Syringe
2.Dispensing Controller
3.3-Axis Platform
4.Handheld Teaching Box
2. Model DJ-331 300ml Silicone Dispensing Machine
1.300ML Metal Silicone Dispensing Valve
2.Glue Dispensing Controller
3.3-Axis Platform
4.Handheld Teaching Box
Main Components:
1.300ML Metal Silicone Dispensing Valve
2.Glue Dispensing Controller
3.3-Axis Platform
4.Handheld Teaching Box
3. Model DJ-331 50ml AB Glue Dispensing Machine
Main Components:
1.AB Glue Y Type Bracket
2.Side-mounted Glue Controller
3.3-Axis Platform
4.Handheld Teaching Box
Main Components:
1.AB Glue Y Type Bracket
2.Side-mounted Glue Controller
3.3-Axis Platform
4.Handheld Teaching Box
4. DJ-551 Big Capacity 2600ml Pressure Bucket Silicone Glue Dispensing Machine
Main Components:
1.2600ml Pressure Bucket Automatic Dispenser
2.Filling Glue Valve
3.4-Axis Platform
4.Handheld Teaching Box
Main Components:
1.2600ml Pressure Bucket Automatic Dispenser
2.Filling Glue Valve
3.4-Axis Platform
4.Handheld Teaching Box

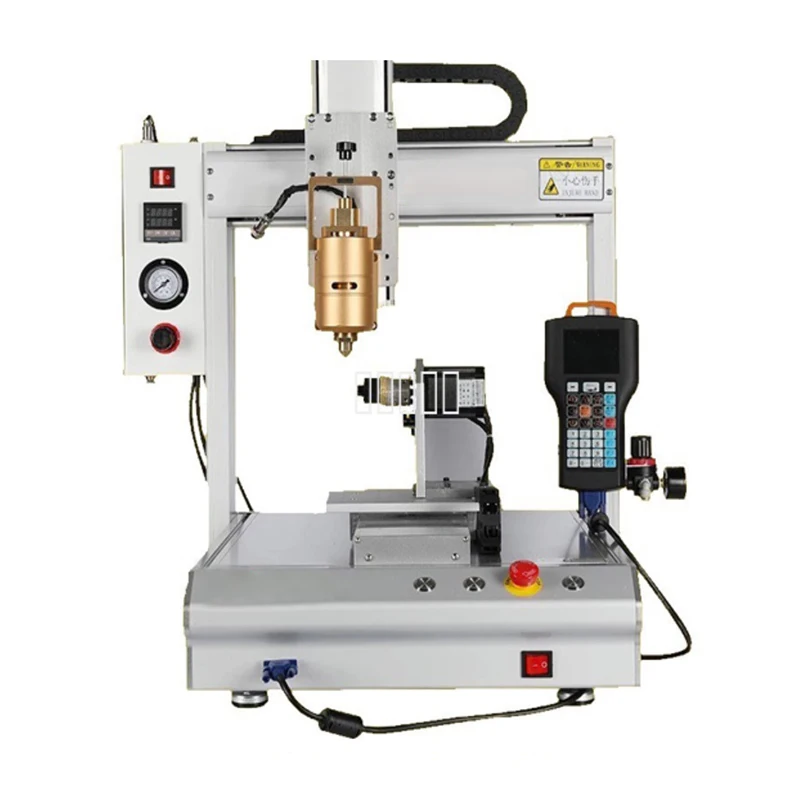

5. Model DJ-331 Hot Melt Glue Dispensing Machine
Main Components:
1.30ML Hot Melt Adhesive Heating Head
2.Side-mounted Controller
3.3-Axis Platform
4.Handheld Teaching Box
Main Components:
1.30ML Hot Melt Adhesive Heating Head
2.Side-mounted Controller
3.3-Axis Platform
4.Handheld Teaching Box
6. Model DJ-331 UV Glue Dispensing & Curing Integrated Machine
Main Components:
1.30ML Syringe Dispensing Barrel
2.UV Glue Curing Lamp
3.Filling Glue Valve
4.4-Axis Platform
5.Handheld Teaching Box
Main Components:
1.30ML Syringe Dispensing Barrel
2.UV Glue Curing Lamp
3.Filling Glue Valve
4.4-Axis Platform
5.Handheld Teaching Box
7. Model DJ-331 Multi-head Glue Dispensing Machine
Main Components:
1.Metal Dispensing Valve
2.5L Carbon Steel Pressure Barrel(Can be Customized)
3.Three-Axis Platform
4.Handheld Teaching Box
Main Components:
1.Metal Dispensing Valve
2.5L Carbon Steel Pressure Barrel(Can be Customized)
3.Three-Axis Platform
4.Handheld Teaching Box
8. Gantry Glue Dispensing Machine
Main Components:
1.Metal Dispensing Valve
2.Floor-standing three-Axis Platform (Can be customized)
3.Handheld Teaching Box
Main Components:
1.Metal Dispensing Valve
2.Floor-standing three-Axis Platform (Can be customized)
3.Handheld Teaching Box
High Quality Automatic Glue Dispensing Machines
Platform Features:
1. High-strength equipment body and CNC machining ensure the flatness and verticality required for assembly.2. Japan's MITSUBOSH timing belt, Taiwan's PMI linear guide and Japan's stepper motor are extremely cost-effective combination.
3. Very smooth and ultra-low noise during high-speed motion operation.
4. The aluminum alloy surface is specially treated with non-adhesive, and the cleaning of the machine becomes extremely easy.
5. The special assembly process of the synchronous pulley and the motor is adopted, and the synchronous belt of the latest Japanese technology is used to completely solve the problem of tension and loosening of the synchronous belt after long-term use.
6. Modular assembly process, each key component and key position can be disassembled separately, and accidental damaged parts can be quickly replaced.
7. Adopt European imported brand button switch combination, which is highly sensitive and durable.
8. The use of imported brand-resistant folding tape shielded cables makes the operation of the machine more worry-free, and fundamentally eliminates the hidden dangers of disconnection and lack of equal parts.
9. The bottom plate of the machine is thickened and treated with insulating surface, and the four self-adaptive large disc feet are firmly supported.
Glue Dispensing Machine Features:
1. The parameters of the large-size TFT color screen are centralized, and various parameters are clear at a glance. The setting and modification paths are easy to learn and understand;
2. It has the functions of drawing points, lines, surfaces, arcs, circles, continuous tweening of irregular curves and three-axis linkage;
3. Large storage memory capacity, and the software has functions such as area array, translation and rotation operations;
4. The size and thickness of glue volume, glue coating speed, glue dispensing time, and glue stop time can be set by parameters, the glue output is stable, and there is no glue leakage;
5. The function of importing AUTOCAD files can be used to simplify the operation accurately;
6. It can be matched with automatic feeding and discharging conveying mechanism to improve productivity efficiency and enterprise production competitive advantage
7. According to needs, can be installed with workbench positioning PIN, glue gun or bottom plate heating temperature control device
8. Optional multi-head fine-tuning needle, multi-head work at the same time, double the work efficiency;
9. Intelligent glue breaking function to prevent glue pulling, which not only saves glue, but also reduces glue repairing process;
10. The glue time control resolution is 1ms;
11. It can work cyclically with multiple fixtures on a single material tray, which greatly improves work efficiency.
2. It has the functions of drawing points, lines, surfaces, arcs, circles, continuous tweening of irregular curves and three-axis linkage;
3. Large storage memory capacity, and the software has functions such as area array, translation and rotation operations;
4. The size and thickness of glue volume, glue coating speed, glue dispensing time, and glue stop time can be set by parameters, the glue output is stable, and there is no glue leakage;
5. The function of importing AUTOCAD files can be used to simplify the operation accurately;
6. It can be matched with automatic feeding and discharging conveying mechanism to improve productivity efficiency and enterprise production competitive advantage
7. According to needs, can be installed with workbench positioning PIN, glue gun or bottom plate heating temperature control device
8. Optional multi-head fine-tuning needle, multi-head work at the same time, double the work efficiency;
9. Intelligent glue breaking function to prevent glue pulling, which not only saves glue, but also reduces glue repairing process;
10. The glue time control resolution is 1ms;
11. It can work cyclically with multiple fixtures on a single material tray, which greatly improves work efficiency.
