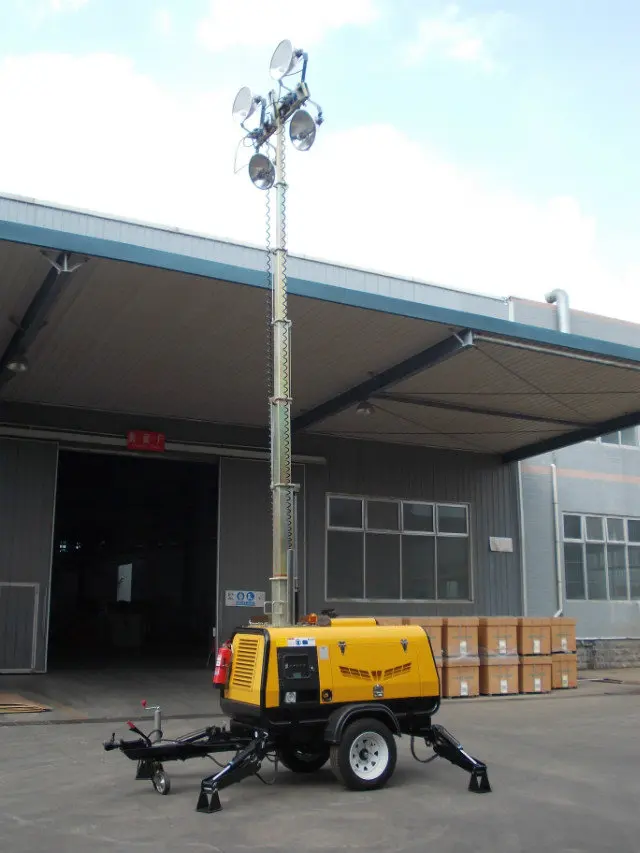

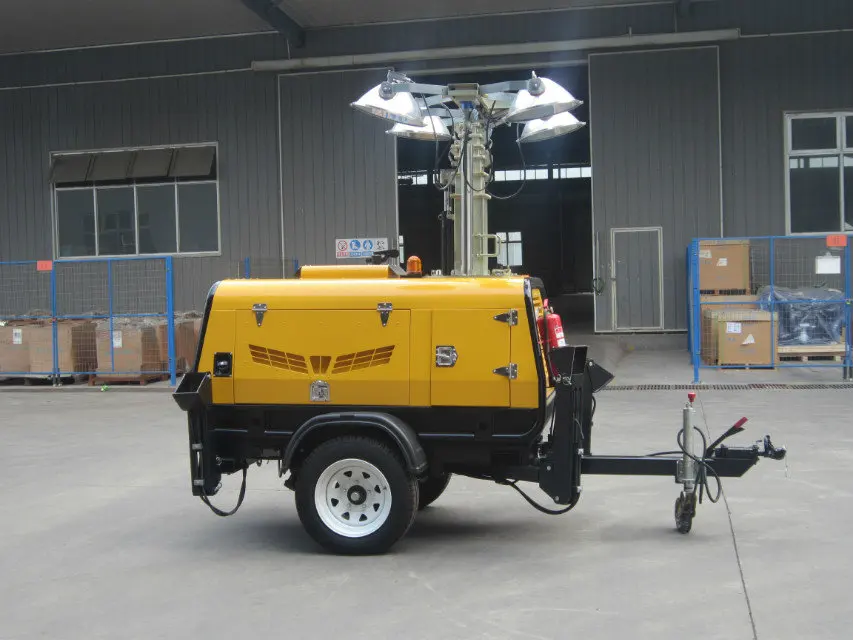

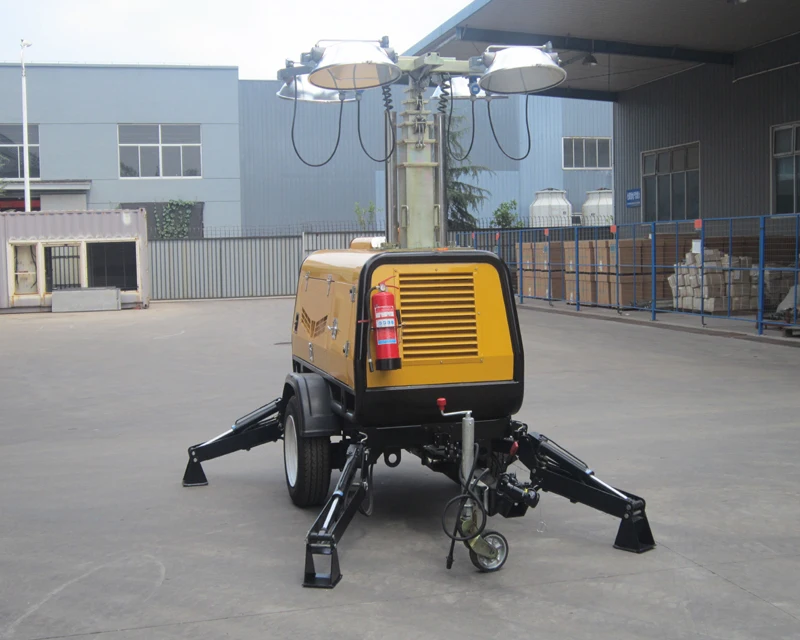

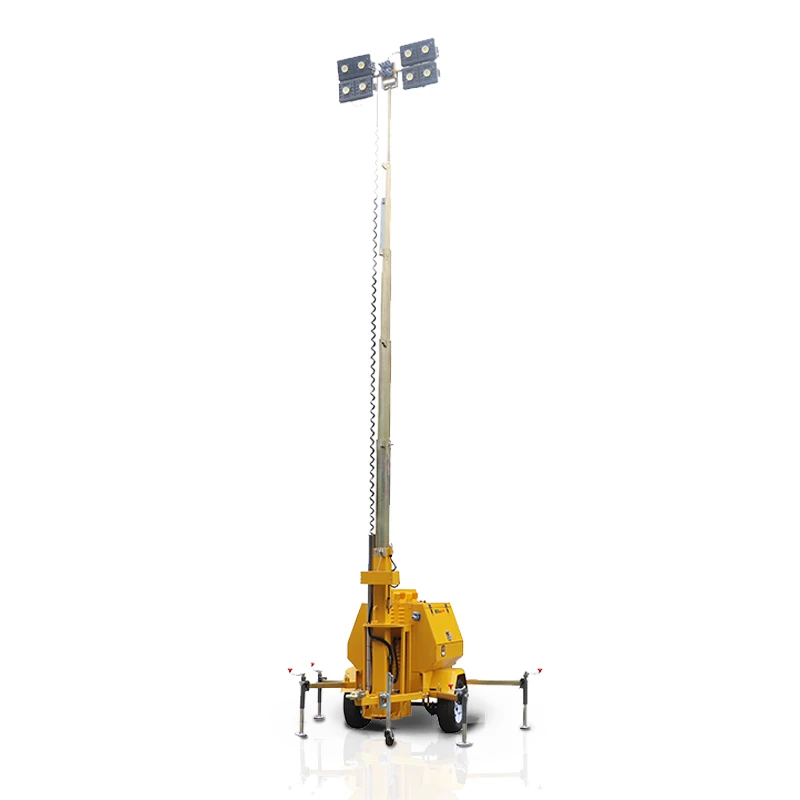

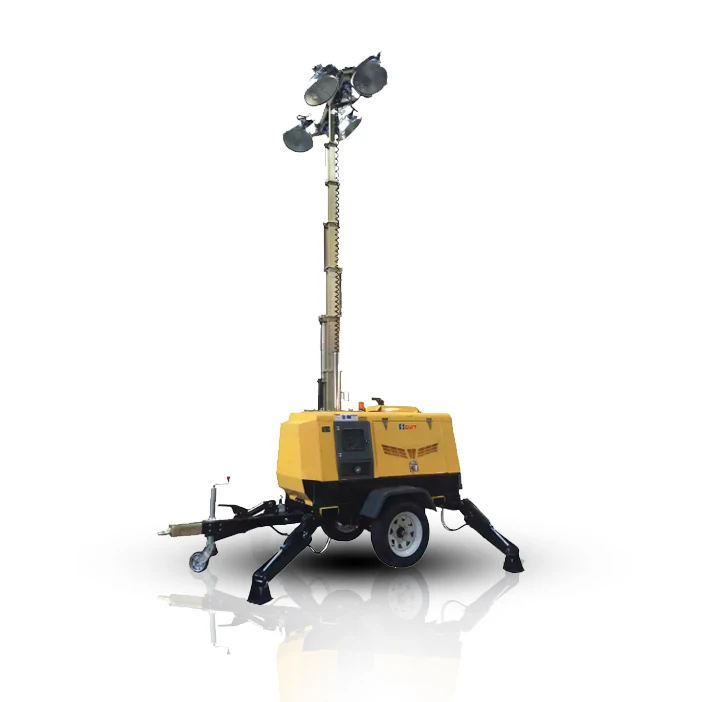

6 м 9 мачта 4x1000 Вт буксируемая Мобильная световая башня с дизельным генератором 5kw10 кВт
- Категория: >>>
- Поставщик: Shandong Superwatt Power Tech Co. Ltd.
Сохранить в закладки 1600465326022:
Описание и отзывы
Характеристики
Product Overview
TN LED Series 9meters Trailer Mounted Manual Mast Mobile Light Tower for outdoor working
SWT TN series LED lighting tower is one of the classic model with 4 LEDs and powered by low emission Kubota engine. Featuring a telescoping tower that lies flat for low transport and storage height, the tower rises to 9 meters with two winches when deployed. State-of-the-art technology provides superior illumination with LEDs. For fast job-site setup and less downtime, each light fixture can be aimed independently without the use of tools—and the fixtures stay in place once positioned. Reduce glare and minimize light pollution with new unique designed diffuse LED light safe and comfortable to use for road maintenance, construction site etc.
FEATURES AT A GLANCE
Powered by Kubota engine, Mecc alte generator, can be equipped with 4X300W, 4X350W, 4X400W LED lights;
Lockable cabinet, easy access for service
Low fuel consumption, approximately 130 hours of run time before refueling
Adjustable, 9 meters telescoping mast rotates 359o, 330o self-locking
Long lasting and high output LED, boasting 50,000 hour service life
Individual light breaker switches & ballast indicator lights
Lockable cabinet, easy access for service
Low fuel consumption, approximately 130 hours of run time before refueling
Adjustable, 9 meters telescoping mast rotates 359o, 330o self-locking
Long lasting and high output LED, boasting 50,000 hour service life
Individual light breaker switches & ballast indicator lights
Three views
PRODUCT SPECIFICATIONS
Dimension | Length | 4360mm |
Dimension | Width | 1430mm |
2 | Height | 1450mm |
3 | Full extending height | 9m |
4 | Generator set power(kW, 1500rpm/1800rpm) | 3kW/3.5kW |
5 | Gross Weight | 910kg |
Engine | Model | Z482 (KUBOTA) |
7 | Speed(rpm) | 1500/1800 |
8 | Number of cylinders | 2 |
Engine character | 4 cycles, water-cooled diesel | |
Combustion System | Direct injection | |
Engine aspiration | Naturally aspirated | |
Emission level | Regular | |
Alternator | Model | LT3N-75/4 (MECCALTE) |
Frequency(Hz) | 50/60 | |
Rated Voltage(V) | 230V (50HZ), 240V (60HZ) AC | |
Insulation | Class H | |
Protection grade | IP23 | |
Mast & Light | Type of Lights | LED |
Light fixture | Rectangle | |
Luminous flux(LM) | 39000LM/light | |
Number & power of lights | 4x300W, 4X350W, 4X400W | |
Number of mast sections | 3 | |
Mast lifting | Manually | |
Mast extention | Manually | |
Mast rotation | 359 rotating manually(330 self-locking) | |
Light tilt | Maually | |
Trailer | Trailer suspension & axle with brakes | Leaf springs & single axle without brake |
Tow bar | Retractable & adjustable supporting wheel tow bar | |
Stabilizing legs & number | 4 pcs extendable bar with manually retractable jacks | |
Wheels' rim size & tire | 14 rim with regular tires | |
Tow adapter | 2'' ball or 3'' ring adapter | |
Tail lights | Tail reflector | |
Max. towing speed | 80km/h | |
Addtiional Features | Fuel tank type | Rotational moulding plastic |
Fuel tank capacity | 170L | |
Operating hours with full fuel | 132/118 hours | |
Wires & electric components | Regular | |
Generator starting type or controller | HGM1790N (SMARTGEN) | |
Power outlet sockets | 2 sets | |
Maintenance tool | Option | |
Max. against wind when fully extended | 20m/s | |
Acoustic pressure | 72dB(A) at 7m away | |
Standard color | Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs | |
Max. load qty in 40 HC | 12 |
PRODUCT CONFIGURATION
Kubota engine
Mecc alte alternator
LED light
SALES AND SERVICE NETWORK
Successful Project
Project in Australia
Project in UAE
Project in China

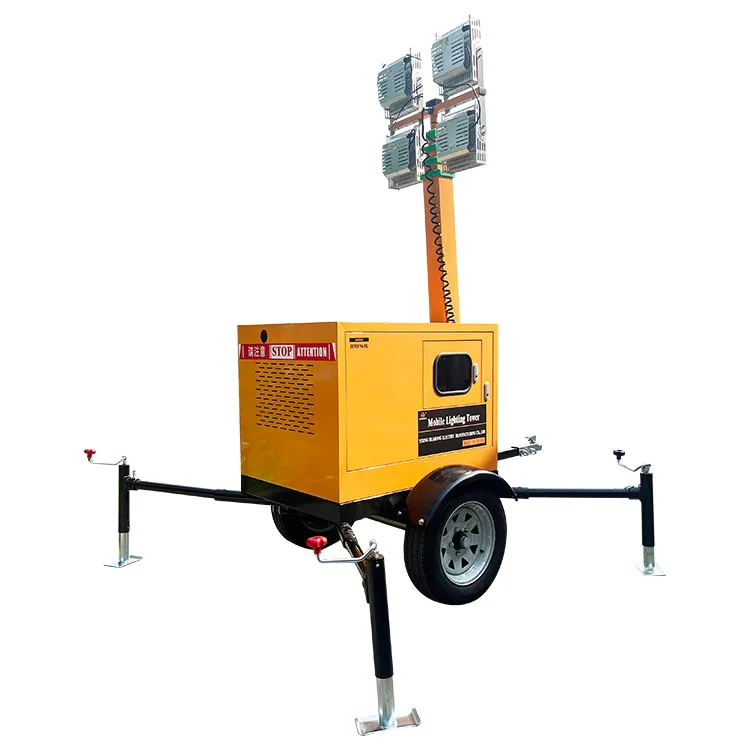

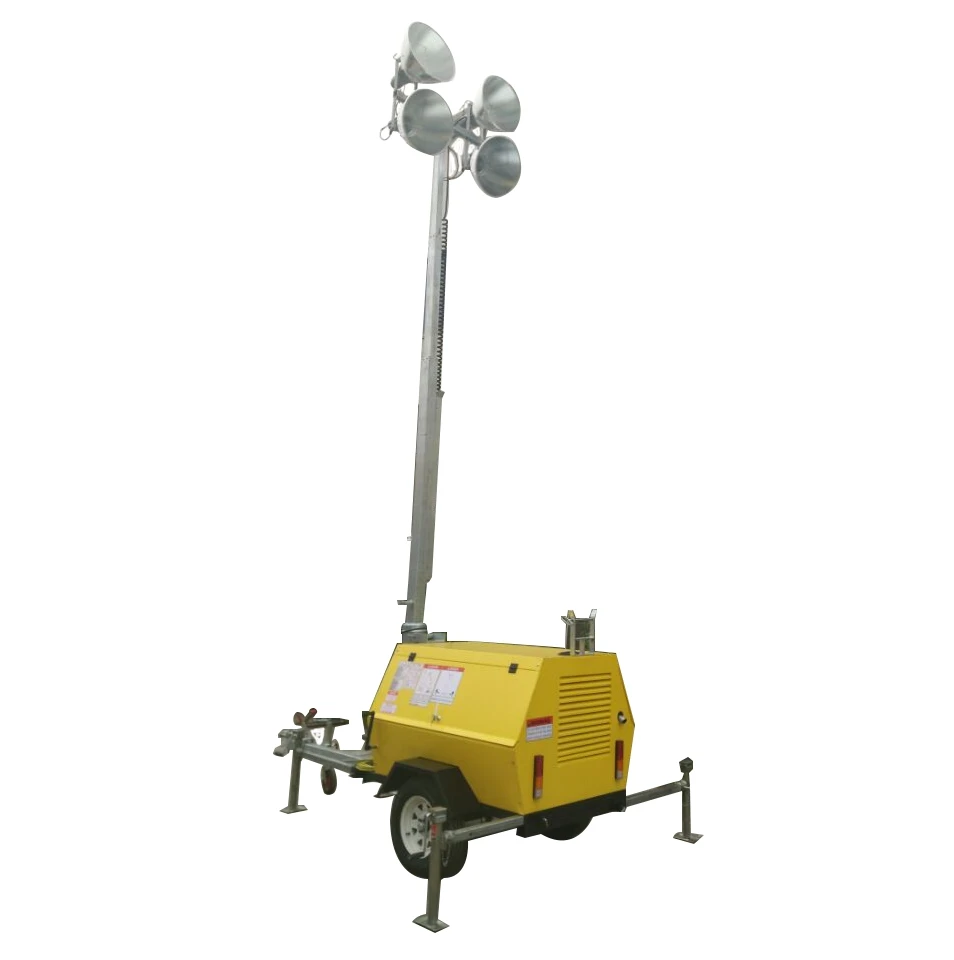

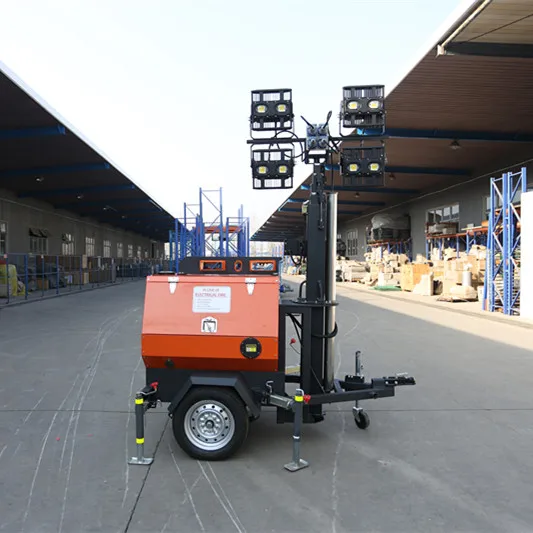

SIMILAR PRODUCTS

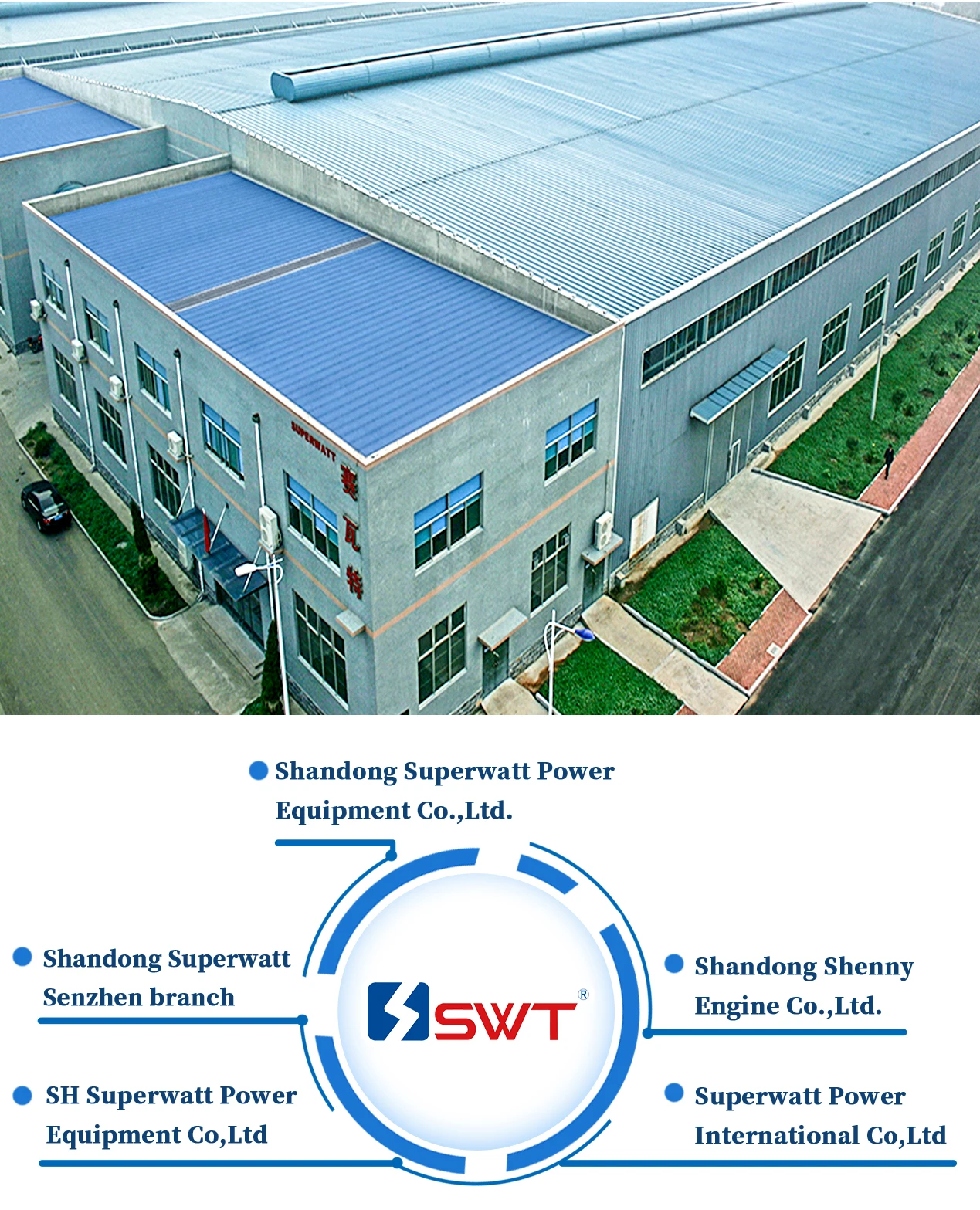

Company Profile
About us
SWT, the pioneer of power equipment manufacturer in China, was established in 1993. After continued developing for more than 25
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include open-type and silent type diesel generator set, gas generator set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.
SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe.
years, we have been an outstanding manufacture/sales/service provider in power equipment field.
We always persistent focus on the power product design and quality, especially for the customized power product. Now, our product include open-type and silent type diesel generator set, gas generator set, mobile trailer diesel generator set and welding generator set, hydraulic mast light tower, electric mast light tower, manual mast light tower and solar lighting tower which power output covered 8kva-3000Kva. And our products are widely used in the Power Station, Hospital, Hotel, Railway, Port, Large Factory, Communication Industry, Engineering Construction, Emergency Rescue and National Defense and so on.
SWT’s products have been sold to more than 100 countries in Southeast Asia, Australia, Middle East, Africa, America and Europe.
Customer Photos
Diesel Power Station In Yemen
This is a turn-key project and it took us less than 6 months to finish the entire project after we got the order, The design capacity of this power station is 15MW, 10.5KV, equipped with 26 sets diesel generators which rated power is 800KW, parallel operation system and high voltage distribution system.
South Africa Power Station Project
This project is 4X1500KW stackable container power station (10.5kV, 50Hz), used for the gold mining in Sudan. The running conditions is harsh and horrible due to the frequent dust storms at site, so the generator sets is easy to get damaged and failed to work. But SWT offered the creative stackable containerized solution and eventually solved the anti-dust issue, over 5 years have passed, the generators have still worked well.
Huawei Cloud Computing Data Center
HUAWEI is a leading global information and communications technology (ICT), and this project is the 5th big data center in China and SWT is the exclusive supplier of backup power systems for this project which equipped with 6sets 1800kW, 50Hz, 10.5kV, Perkins engine and Mecc Alte alternator, 40HC containerized high voltage diesel generator set.
Certificates & Awards
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).
Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).
2. What is your payment term?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C at sight irrevocable for regular customer.
3. What is your delivery time?
Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.
Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.
4. Can the generators be customized?
Yes. Our advantage is to provide customized power products, especially for large projects.
Yes. Our advantage is to provide customized power products, especially for large projects.
5. Can you OEM with our brand?
Yes. For mass orders, we can offer OEM use customer's logo instead of ours,
For more questions, Please feel free to contact us.
Yes. For mass orders, we can offer OEM use customer's logo instead of ours,
For more questions, Please feel free to contact us.
Tel: +86 15263703985 (Wechat/Whatsapp)
E-mail: wyf@swt.cn
Website: //www.swt.cn/
Address: No.7 Industry Park, Ji'ning High-Tech Zone, Ji'ning City, Shandong, China.
