Шаровой кран DIN API 6d 3 дюйма 6 дюймов dn50 pn40 32 мм 400 wog 2 шт. ss
- Категория: Valves >>>
- Поставщик: Gongyi Runda Pipeline Manufacturing Co. Ltd.
Сохранить в закладки 1600465335771:
Описание и отзывы
Характеристики
Why choose us
Products Description
Product name | DIN API 6d 3 inch 6 inch dn50 pn40 32mm 400 wog two piece 2pc ss 316 ball valve | ||||
Product model | Q11F | ||||
Size | DN15 - 100 | Pressure | PN16 | ||
Body material | SS304,316,etc. | Temp | -20℃~150℃ | ||
Applicable medium | Water, oil, steam, etc. | ||||
Application | Municipal construction, water supply and drainage, water treatment,etc. | ||||

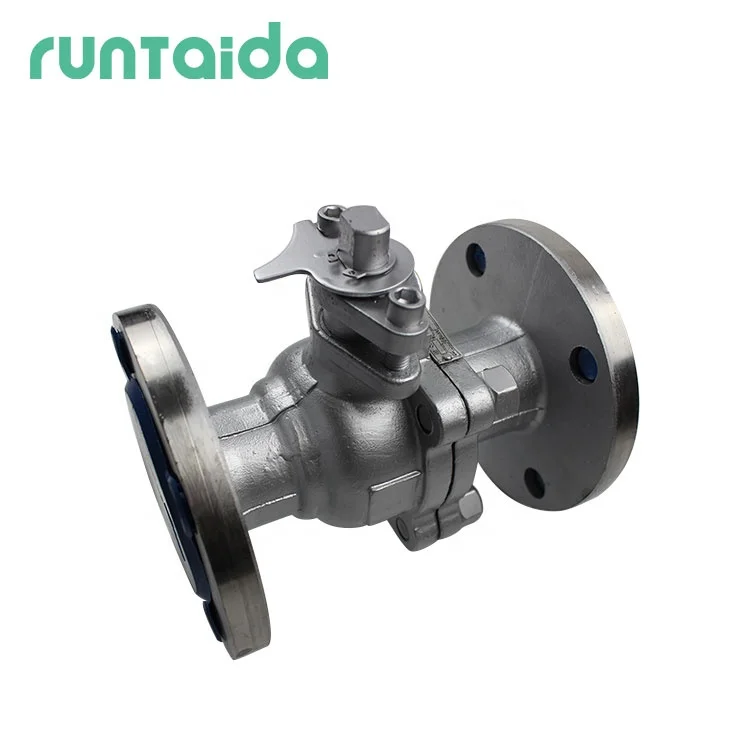

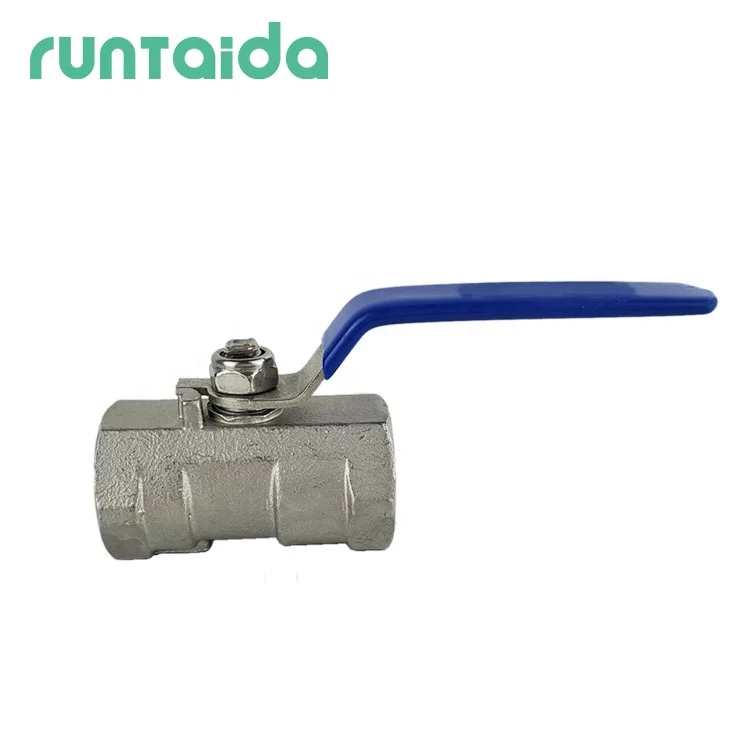

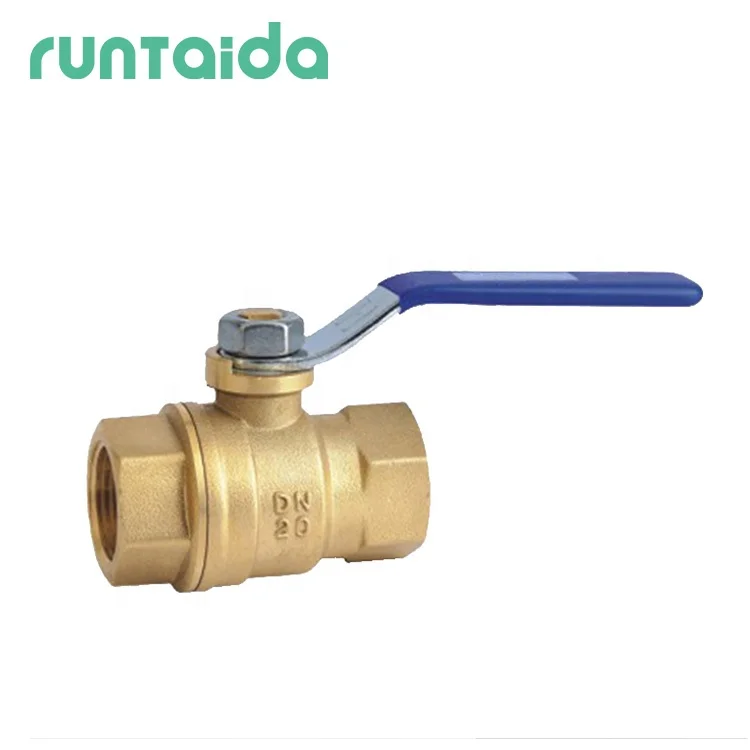

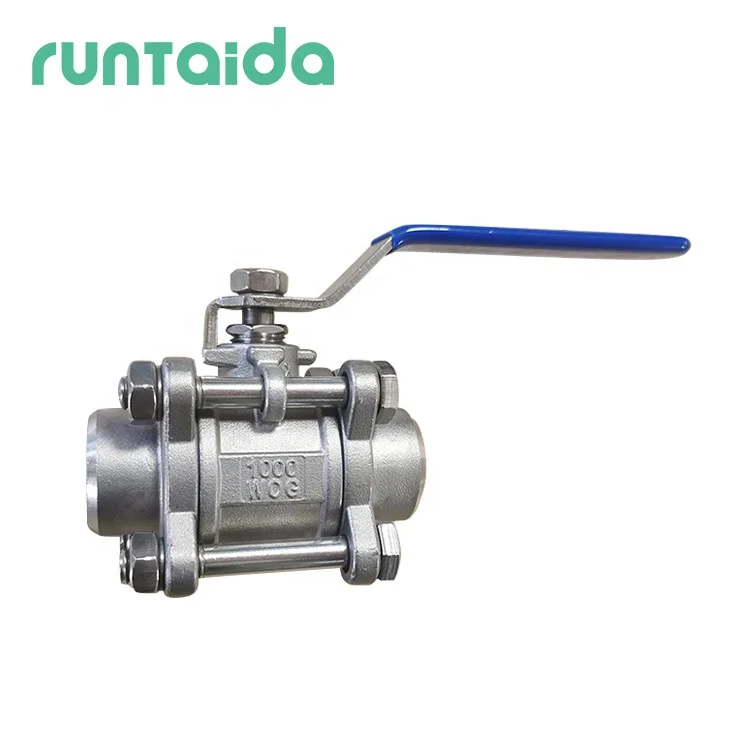

Related Products
We have different types of ball valves,If you want to know more details of our products,pls click here to contact us on alibaba.com!
We have different types of ball valves,If you want to know more details of our products,pls click here to contact us on alibaba.com!
Product Advantages
1.The chemical composition and mechanical properties of the valve body material meet the national standard requirements.
1.The chemical composition and mechanical properties of the valve body material meet the national standard requirements.
2.All valve bodies and parts are processed with CNC machine tools and interchanged wildly to ensure product accuracy.
3.Before assembly of the whole product,kerosene and anti-rust oil are used for high-pressure jet cleaning,and the pressure-testing medium is cleaned after pressure test and sprayed with anti-rust oil.
4.Each valve must be pressure tested in accordance with national standards before leaving the factory,and unqualified products will never leave the factory.
5.The valve stem is designed with explosion-proof device.
We provide free samples,if you are interested，pls click here to contact us on alibaba.com!
Technical parameter
Material of Main Parts | ||||||||||
Name | Body | Ball | Bonnet | Stem | Handle | |||||
Material | 304 | 304 | 304 | 304 | 201 | |||||
Optional | 304/316 | 304/316 | 304/316 | 304/316 | 201/304 | |||||
Main size information | ||||||||||
DN | NPS | Φd | L | W | K*K | |||||
15 | 1/2" | 15 | 68.5 | 140 | 9*9 | |||||
20 | 3/4" | 20 | 79 | 140 | 9*9 | |||||
25 | 1" | 25 | 89 | 170 | 11*11 | |||||
32 | 1 1/4" | 32 | 100.5 | 170 | 11*11 | |||||
40 | 1 1/2" | 38 | 111 | 200 | 14*14 | |||||
50 | 2" | 50 | 129 | 200 | 14*14 | |||||
65 | 2 1/2" | 65 | 169.5 | 300 | 17*17 | |||||
80 | 3" | 80 | 191 | 300 | 17*17 | |||||
100 | 4" | 100 | 242 | 300 | 17*17 | |||||
Datas above are only for reference, If you want to know more details of our products,pls click here to contact us on alibaba.com!
Certifications
Packaging&Shipping
Packaging
1.Commonly package the products by plastic bag and put it into carton,pallet or wooden cases.
2.Others packaging methods are customized.
Shipping
1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.
2.You could also choose the transportation according to your schedule and budget.
3.Or you could use your own cargo agent.
Factory introduction
Gongyi Runda Pipeline Manufacturing Co.,Ltd.
The main products are: Butterfly valve, Bellows seal globe Valve, Gate valve, Check valve, Rubber expansion joint, Metal bellow expansion joint, Repair clamp, Flexible metal hose, etc. We aim to make high quality products to cultivate a world famous brand.
The main products are: Butterfly valve, Bellows seal globe Valve, Gate valve, Check valve, Rubber expansion joint, Metal bellow expansion joint, Repair clamp, Flexible metal hose, etc. We aim to make high quality products to cultivate a world famous brand.
Exhibition and Team
Our products are exported to 133 countries and regions overseas.We have established long-term cooperative relations with global customers and accumulated a large number of loyal old customers.
You will not be disappointed if you choose us.
You will not be disappointed if you choose us.
Our values:Quality first, service first, integrity and responsibility;Loyal to the goal, efficient execution, trust and cooperation.
Welcome to contact us for advice and order.
Welcome to contact us for advice and order.
FAQ
Q:Are you trading company or manufacturer?
Q:Can you provide drawings and technical data?
Q:Do you provide samples? Is it free or charged?
A:We are manufacturer of Butterfly valve, Bellows seal globe Valve, Gate valve, Check valve, Rubber expansion joint, Metal bellow expansion joint, Repair clamp, Flexible metal hose, etc with more than 15-year experience.
Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messenger, we will send our catalog.
Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer.
Q:Can the products be manufactured by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Write your needs in below,Contact us for more details!
Q:Can the products be manufactured by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Write your needs in below,Contact us for more details!
Похожие товары
Латунный 1/4
0,20 $ - 0,40 $
Пневматический клапан-бабочка PN10 DN300

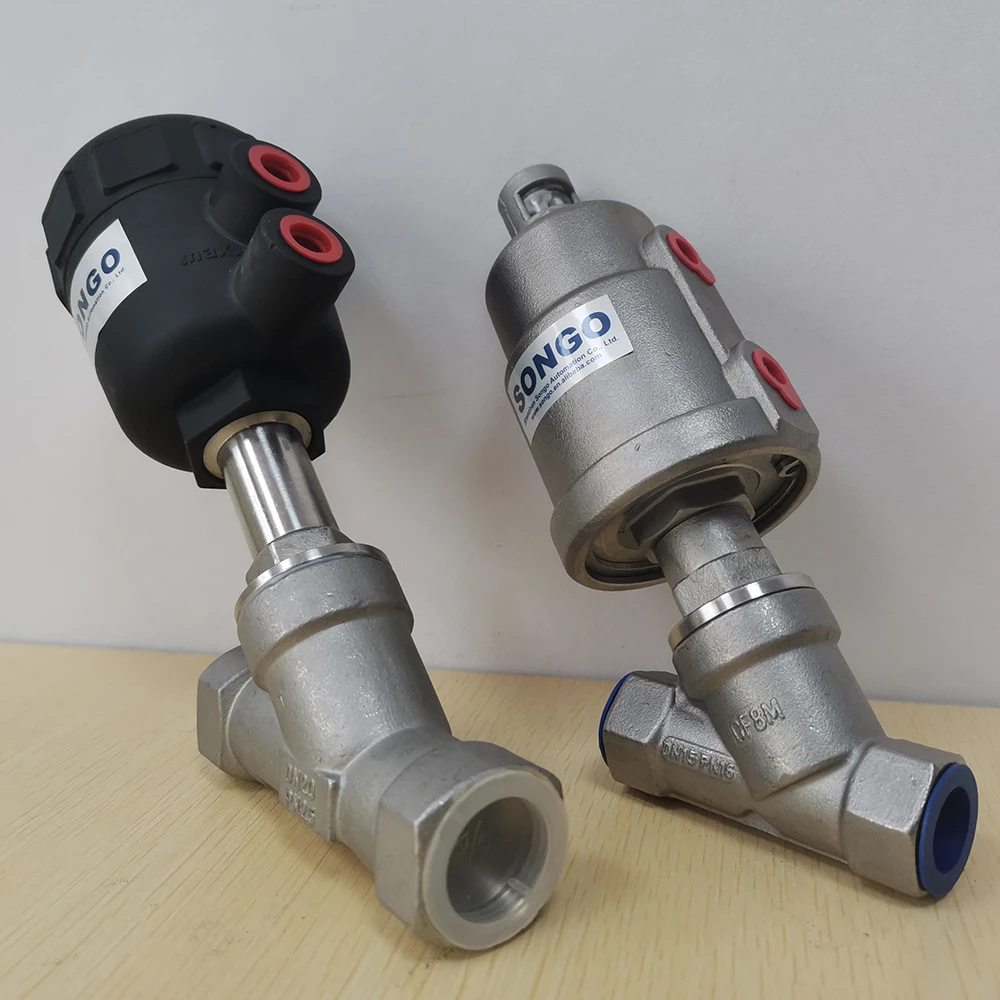

304 из нержавеющей стали, пневматический угловой клапан
13,00 $ - 15,00 $

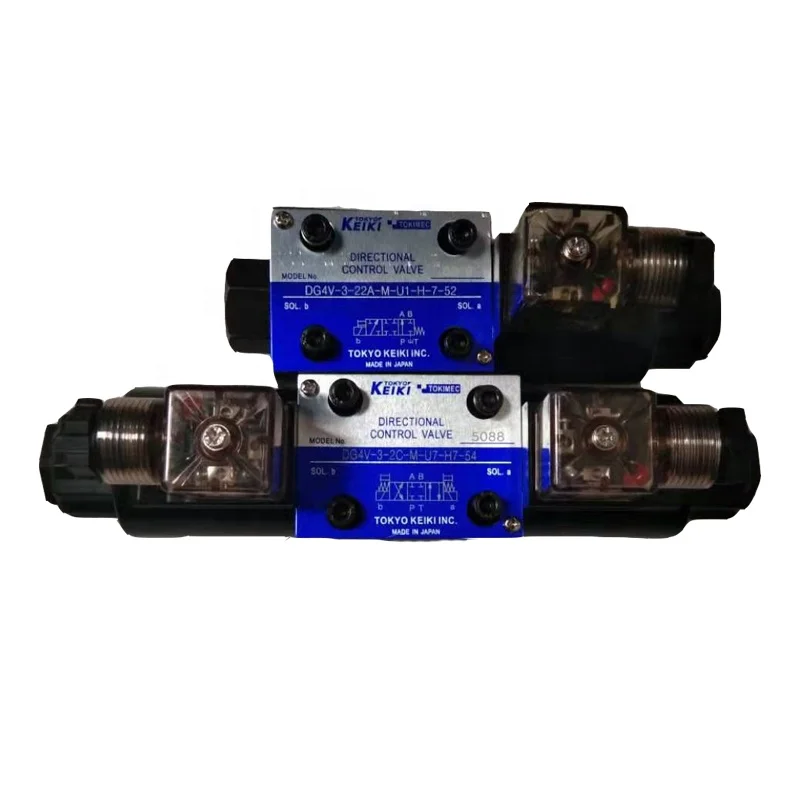

Tokimec DG4V серии DG4V-3-2A-M-P7-H7-52 Соленоид-управляемый
280,00 $ - 300,00 $
Самая продаваемая Корейская сила, требуемая приводом для перемещения из свободного положения механического клапана KCC [KVM341]
15,00 $ - 21,00 $

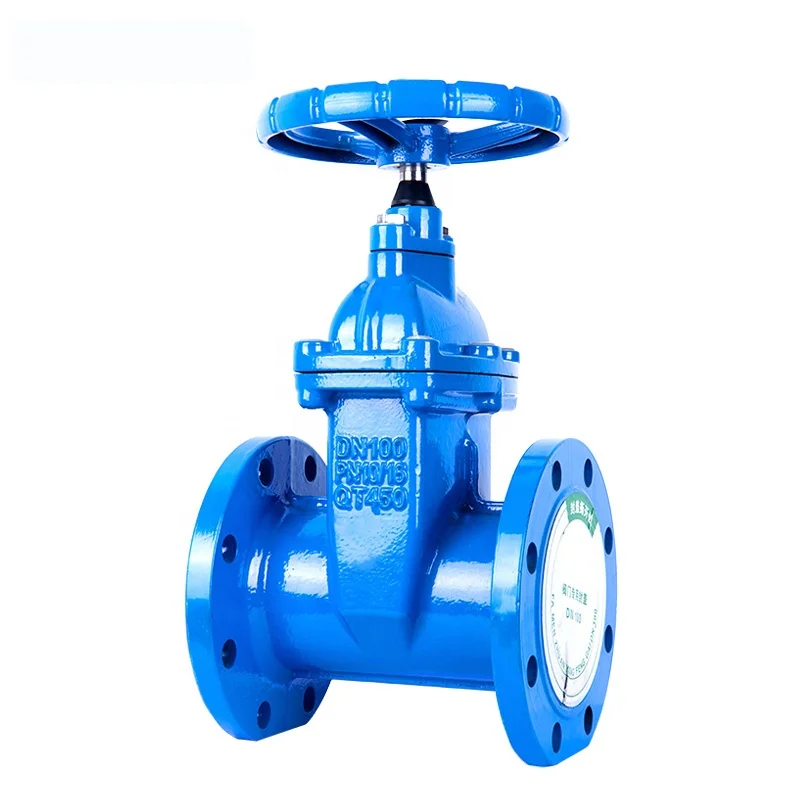

PN10 150LB водяной клапан из ковкого чугуна, фланцевый задвижной клапан

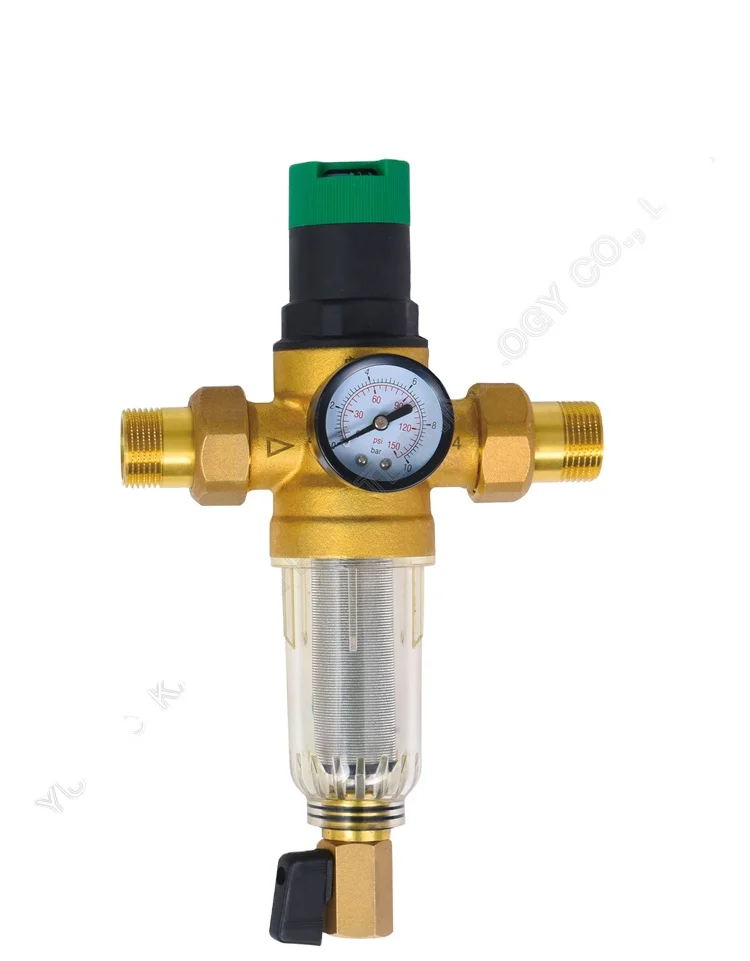

Китай хорошее качество 3-ходовой шаровой фильтр метр латунный клапан воды предварительной
