Полиэтиленовый пластиковый баллон 20 л 30 цилиндр для производства топливных бутылок машина выдувного формования экструзионные воздуходувки
- Категория: >>>
- Поставщик: Zhangjiagang Sino-Tech Machinery Co. Ltd.
Сохранить в закладки 1600465432552:
Описание и отзывы
Характеристики
Product Description

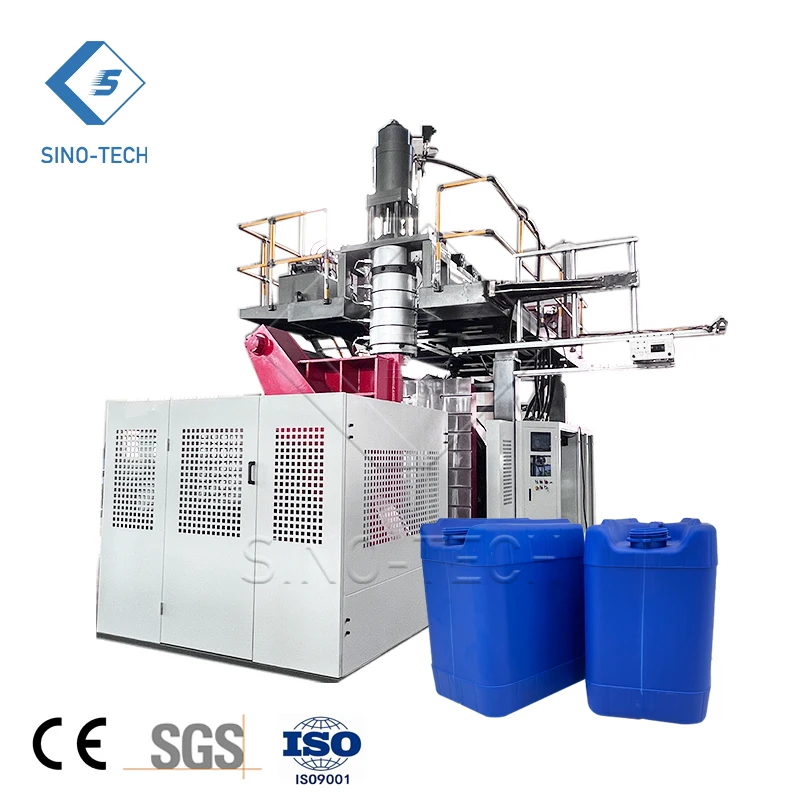

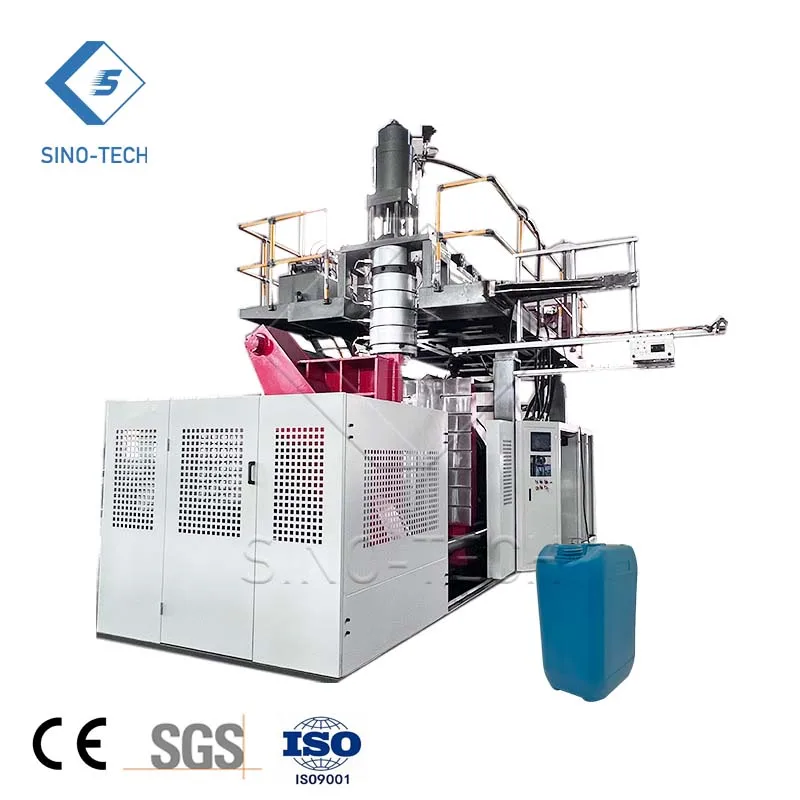

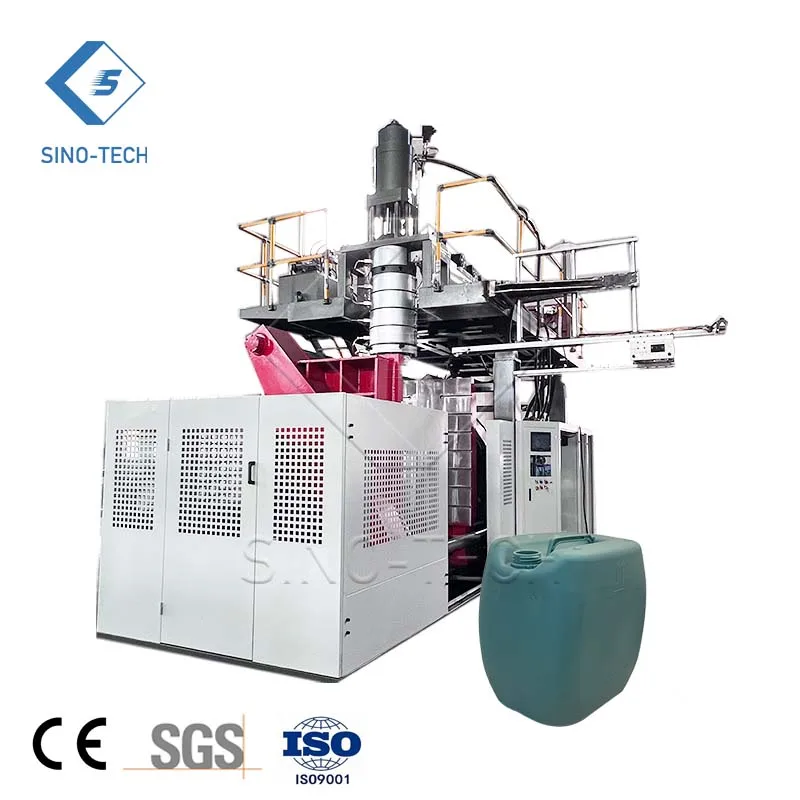

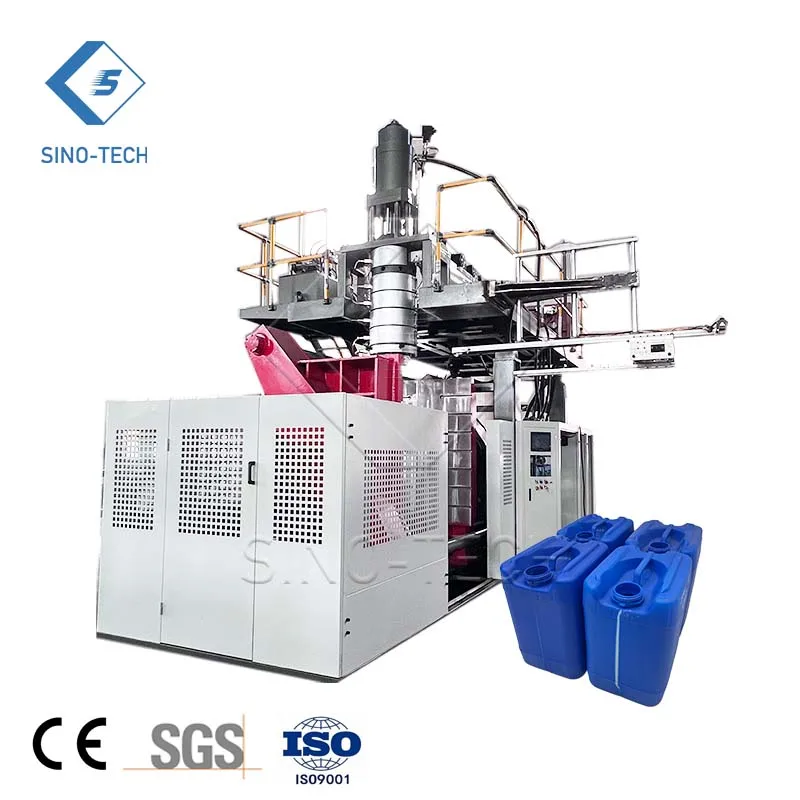

STB-30L Accumulator Extrusion Blow Molding Machine
Machine Features1. Special design for 15-30L HDPE/PE/PP stacking barrels, bottles...
2. High Speed with 50-60pcs/hr.
3. Hydraulic and electric hybrid power design, it makes the machine running more speed and more energy saving
4. Full Servo system control.
5. Simple structure in linear type, easy in installation and maintenance.
6. With robot arm take out the finished product.
7. Single die-head Single station.
Details Images
Specification
Technical Specification | STD-80/90 Accimulator Die-head Extrusion Blow Molding Machine | |||||
Specifications | STD-80 series | STD-90 series | ||||
Material | HDPE/PE/PP/ABS... | HDPE/PE/PP/ABS... | ||||
Max container capacity | L | 30 | 60 | |||
Output (dry Cycle) | pc/hr | 360 | 360 | |||
Machine Dimension(LxWxH) | M | 4.7x2.6x4 | 5.7x2.6x4 | |||
Total weight | T | 12 | 13 | |||
Clamping system | ||||||
Clamping force | KN | 200 | 300 | |||
Platen opening stroke | mm | 350-850 | 450-1050 | |||
Platen size(WxH) | mm | 750x860 | 960x980 | |||
Max mould size(WxH) | mm | 520x1000 | 700x1200 | |||
Mould thickness | mm | 360-420 | 460-600 | |||
Power | ||||||
Max drive | KW | 67 | 74 | |||
Total power | KW | 82 | 89 | |||
Fan power for screw | KW | 0.5 | 0.5 | |||
Air pressure | Mpa | 1 | 1 | |||
Air consumption | m3/min | 0.8 | 0.8 | |||
Average energy consumption | KW | 38 | 40 | |||
Extruder system | ||||||
Screw diameter | mm | 80 | 90 | |||
Screw L/D ratio | L/D | 24 | 24 | |||
Melting capacity | kg/hr | 120 | 130 | |||
Number of heating zone | zone | 4 | 4 | |||
Extruded heating power | KW | 21.4 | 21.4 | |||
Extruder driving power | KW | 30 | 37 | |||
Accumulator head | ||||||
Number of hearting zone | zone | 4 | 4 | |||
Power of die heating | KW | 21.3 | 21.3 | |||
Max die-pin diameter | mm | 250 | 350 | |||
Accumulator capacity | L | 5 | 6.6 | |||
Company Profile
Packaging & Shipping
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
Похожие товары
Беспроводной съемный домашний небольшой распылитель с литиевой батареей электрические краскопульты распылители
17,00 $ - 25,00 $
Полиэтиленовый полиэтилен высокой плотности для бассейна HDPE рыбной фермы пруда пластиковая подкладка
0,50 $ - 0,80 $

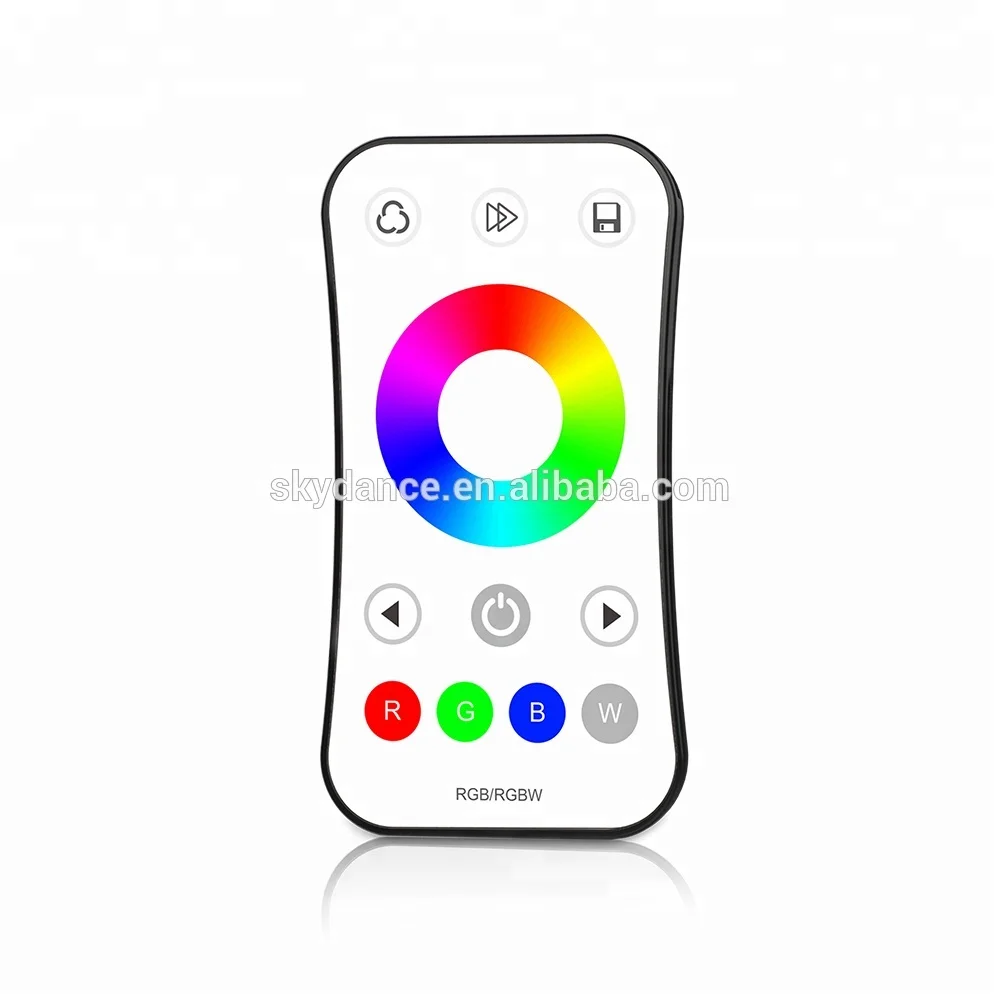

Skydance R8-1 1 zone RGB RGBW Wireless RF remote control light switch Ultrathin touch wheel remote controller for led light

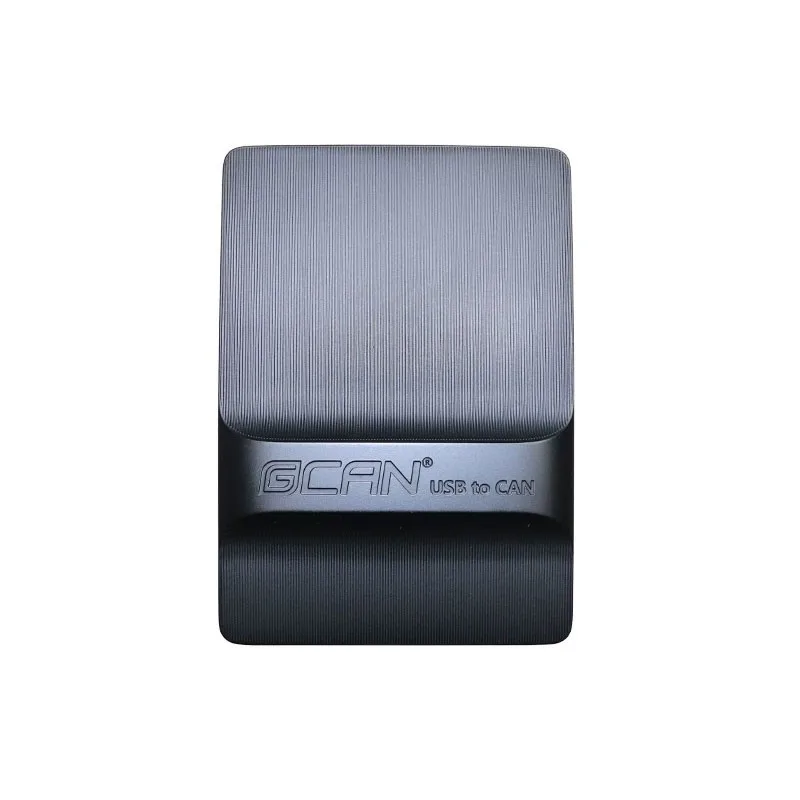

USBCAN-II C + USB к Ban Bus анализатор может автобусный интерфейсный модуль, совместимый с ZLG USBCAN-II2 картой CANOpen J1939
49,00 $ - 55,00 $

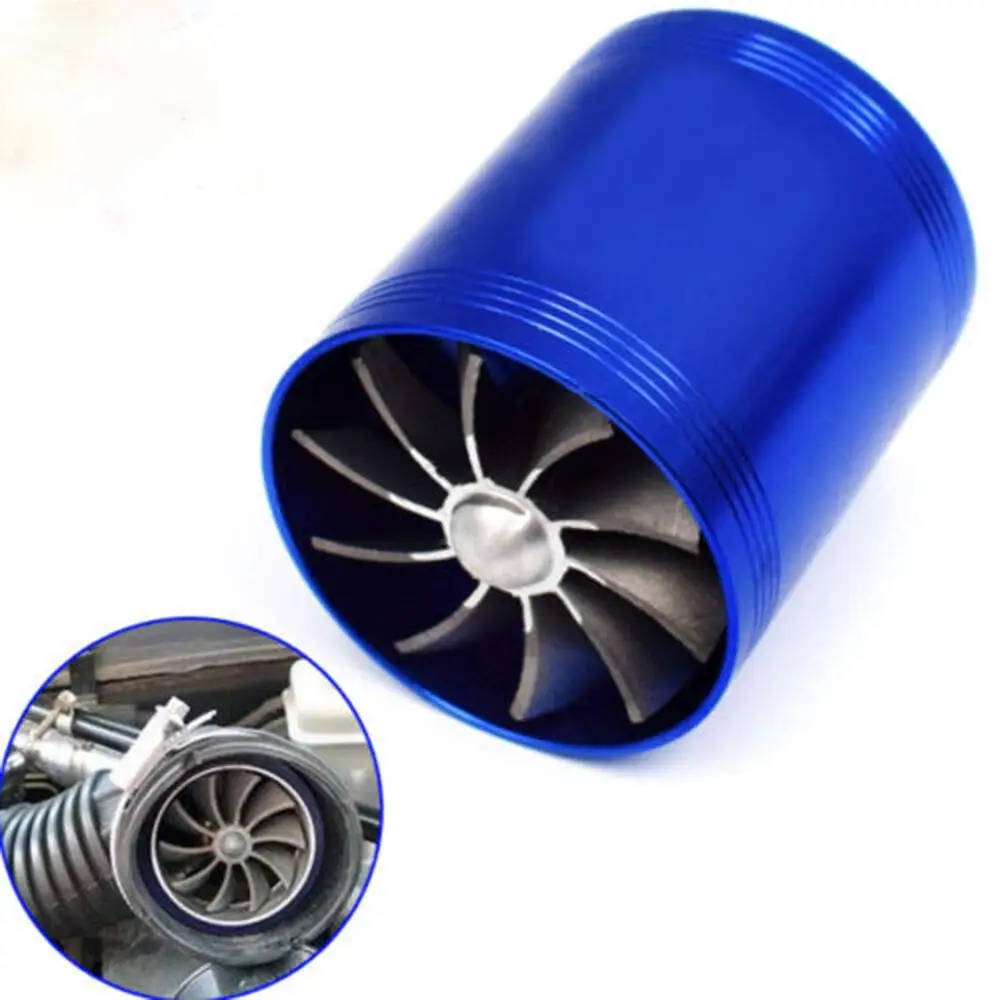

Новое двойное турбинное зарядное устройство, воздухозаборник, вентилятор для экономии топлива
4,39 $ - 13,99 $

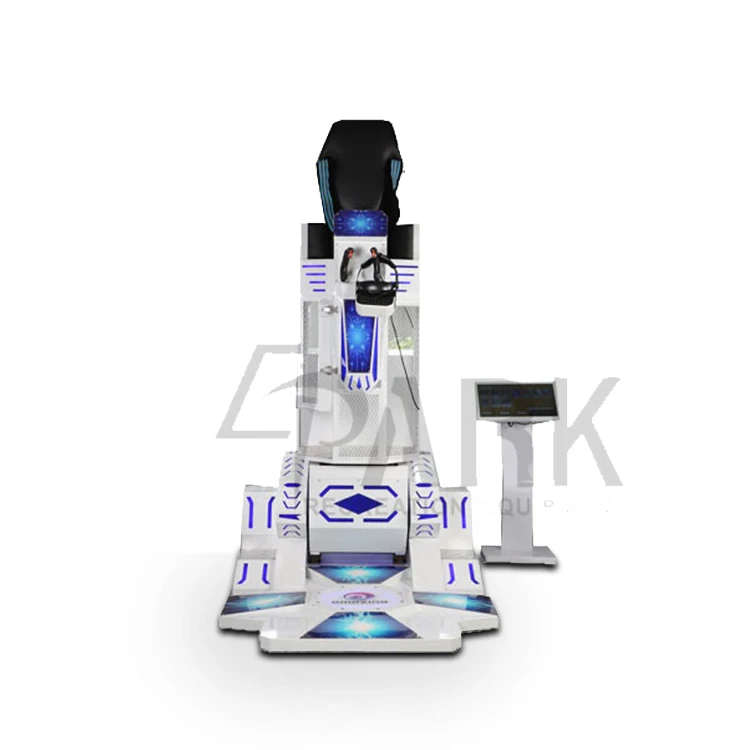

Машинная игра система летающей комнаты мультиплеерный истребитель популярный голограт Cs Арена Vr аркадная стрельба
10 950,00 $ - 11 000,00 $

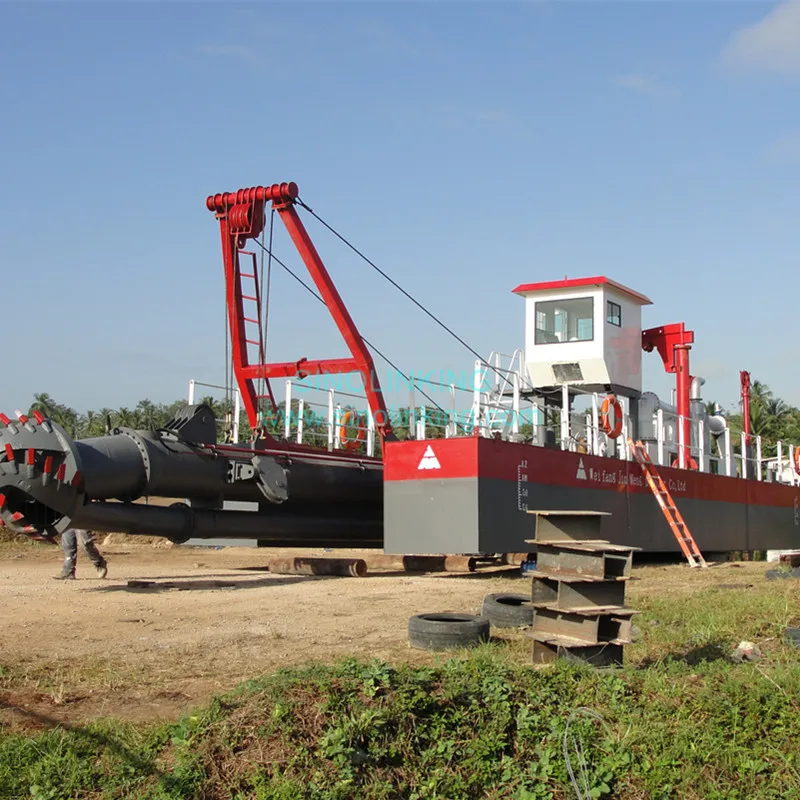

Дноуглубительный резак для морского песка, всасывающий дноуглубительный экскаватор на продажу
