Газов излучения анализатор Gasboard 3000GHG NDIR двухкамерный датчик парниковых газов
- Категория: >>>
- Поставщик: Cubic Sensor and Instrument Co. Ltd.
Сохранить в закладки 1600466996288:
Описание и отзывы
Характеристики
Product Description

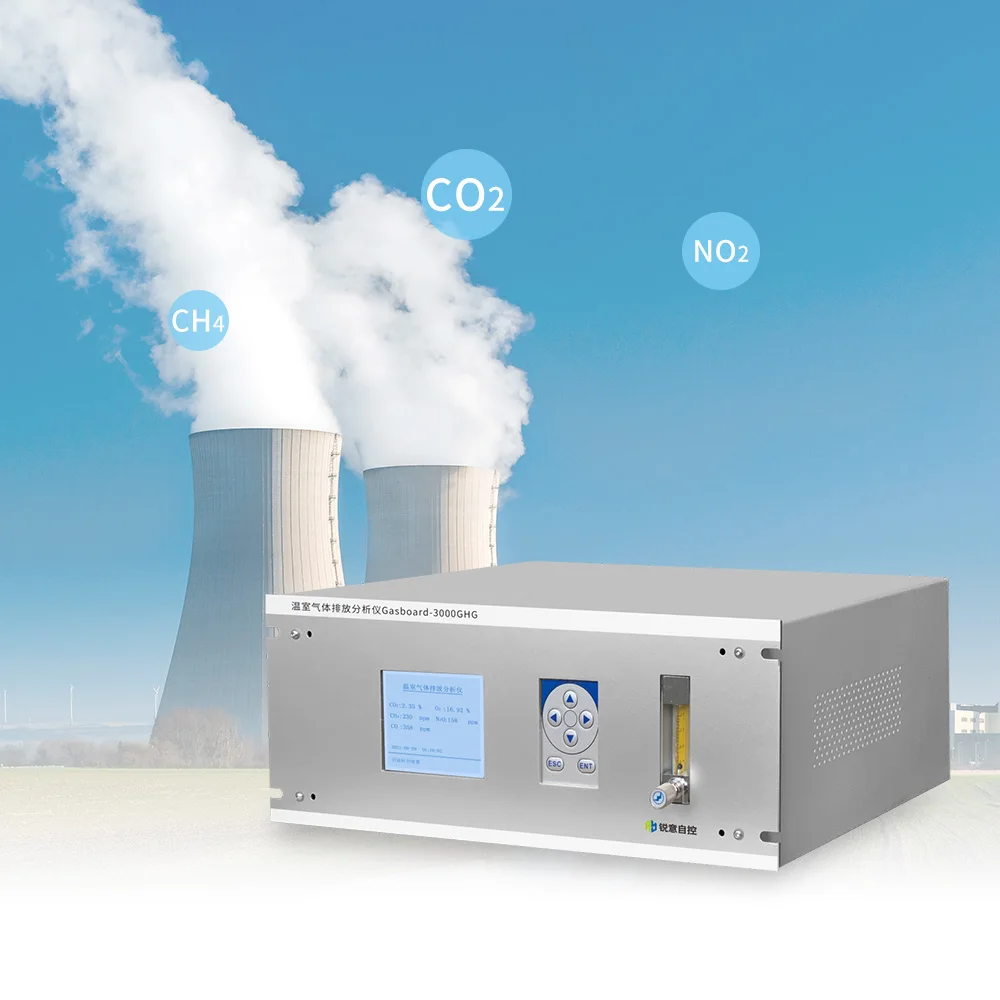

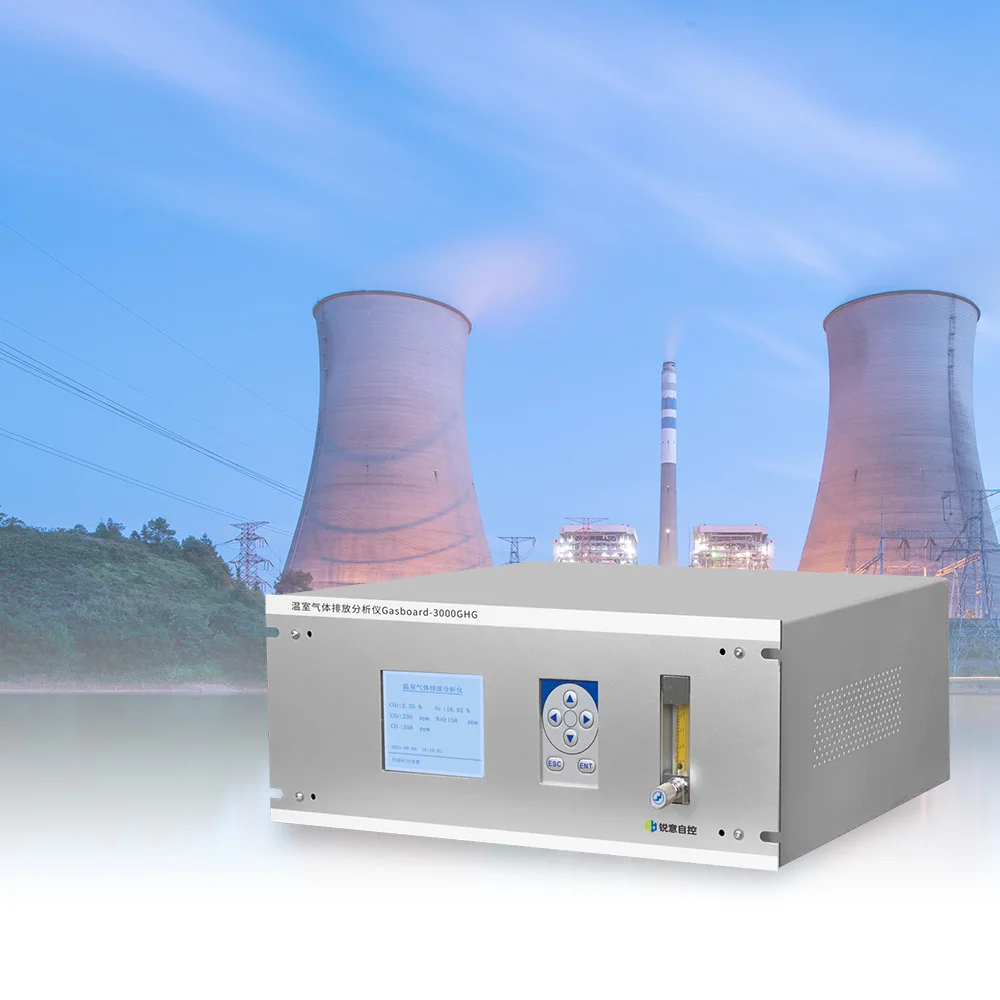

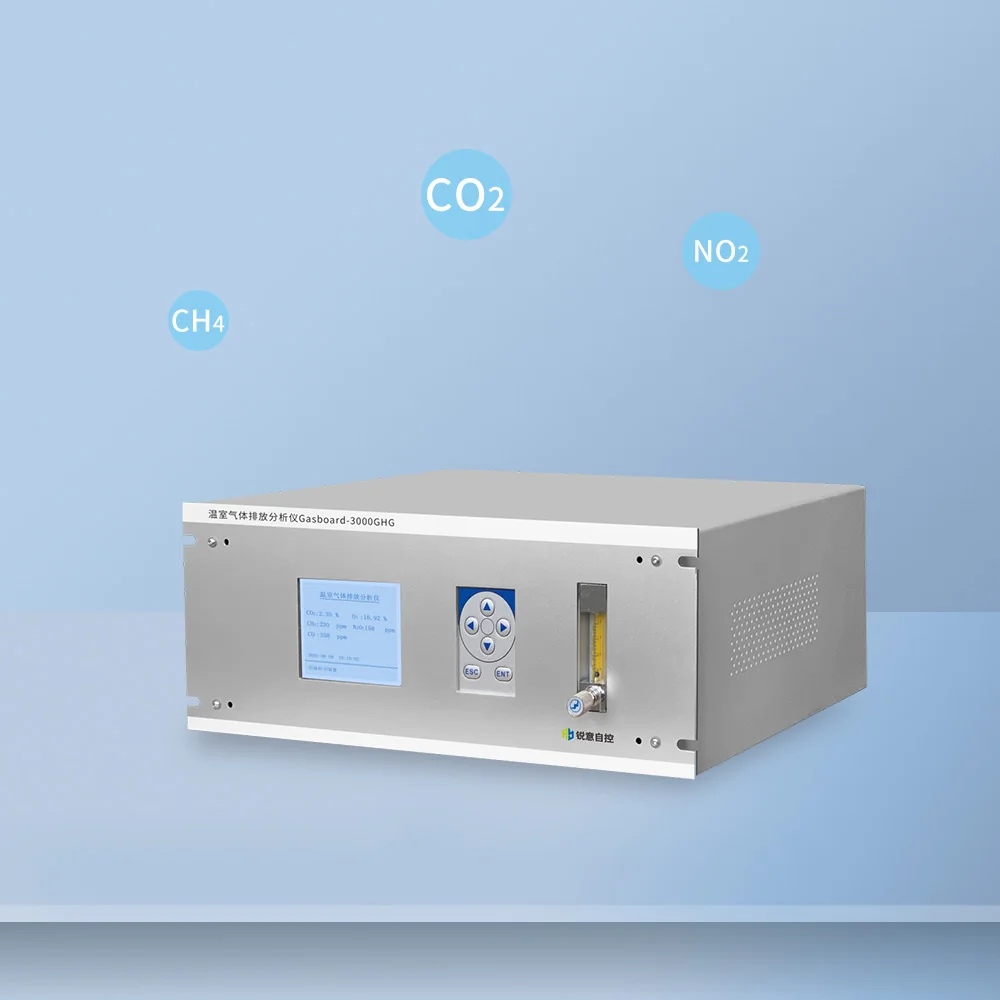

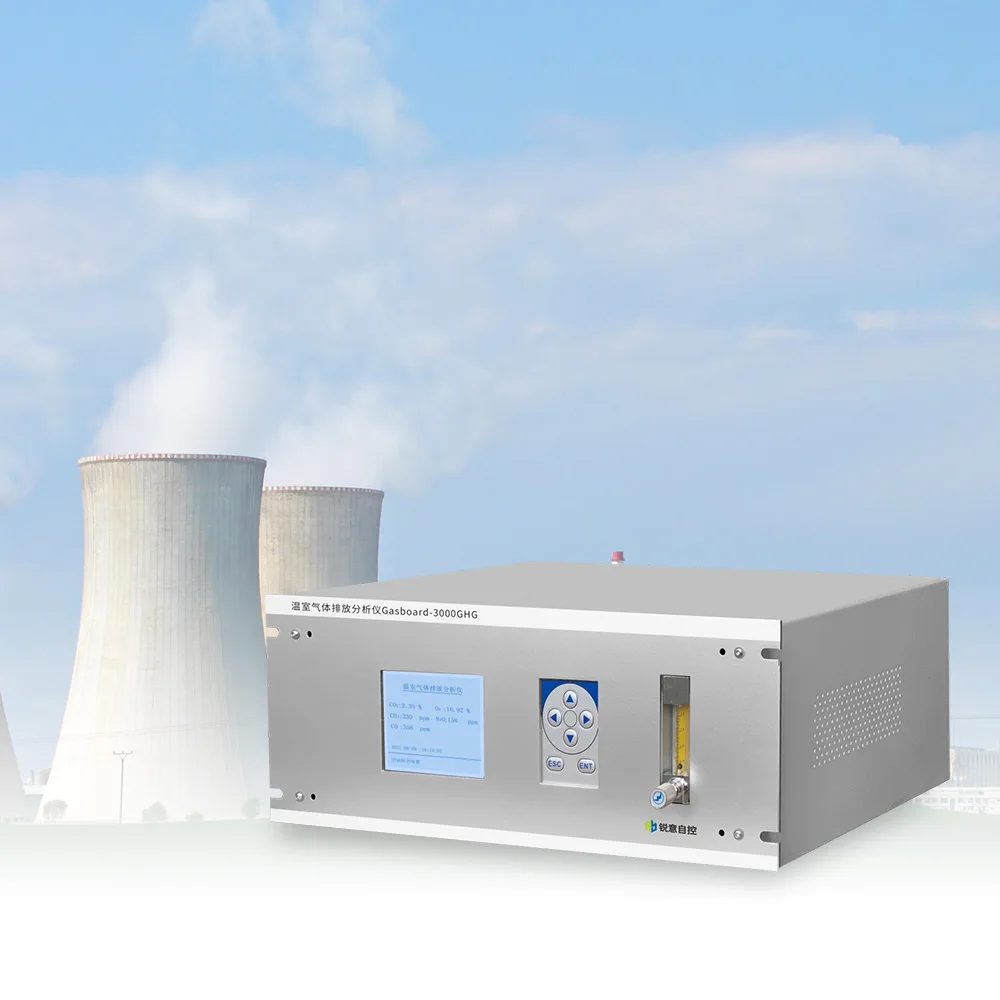

Greenhouse Gas Emission Analyzer
Cubic-Ruiyi (a wholly-owned subsidiary of Cubic sensor) independently developed Gasboard 3000GHG greenhouse gas emission analyzer.
Adoptting the independent intellectual property rights of Micro flow NDIR dual-chamber sensor technology (international PCT patent PCT/CN2018100767), Cubic-Ruiyi portable greenhouse gas emission analyzer Gasboard 3000GHG can accurately measure the greenhouse gases concentration change of CO2, CH4, N2O etc and CO gas in flue gas at the same time.
Adoptting the independent intellectual property rights of Micro flow NDIR dual-chamber sensor technology (international PCT patent PCT/CN2018100767), Cubic-Ruiyi portable greenhouse gas emission analyzer Gasboard 3000GHG can accurately measure the greenhouse gases concentration change of CO2, CH4, N2O etc and CO gas in flue gas at the same time.
Specifications | |
Measuring components | CO2, CH4, N2O, CO, O2 |
Measuring Principle | Micro-flow NDIR:CO2/CH4/N2O/CO Dual beam NDIR:CO2 (high range), CO (Middle or high range) ECD:O2 |
Measurement range | CO2: Micro-flow NDIR: Range 0-500ppm, resolution: 1ppm Micro-flow NDIR: Range 20%, resolution: 0.01% Dual beam NDIR: Range 25%-100%, resolution: 0.01% CH4: Range 1000ppm, resolution: 1ppm N2O: Range 1000ppm, resolution: 1ppm CO: Micro-flow NDIR: Range 200-500ppm, resolution: 1ppm Dual beam NDIR: Range 1-5%, resolution: 0.001% O2: Range 0-25%, resolution: 0.01% |
Measurement Precision | Micro-flow NDIR measurement CO2/CH4/N2O/CO: ±1%F.S. Dual beam NDIR measurement CO2/CO: ±2%F.S. Electrochemical measurement O2: ±2%F.S. |
Repeatability | ≤±1% |
Response Time | T90 ＜25s |
Flow rate | (0.7-1.2) L/min |
Inlet gas pressure | (2-50) kPa |
Output signal | RS485/RS232, 4-20mA |
Sample gas requirement | Water remove (non condensing), dust filter (1μm or smaller) |
Power supply | 100~240VAC, 300W (maximum heating power) / 100W (stabilized power) |
Diagnosis Function | Equipped with self-diagnosis function to check sensor status |
Product Features
1.PCT approved product based on micro-flow NDIR technology to measure low concentration gases. (US Authorization No.: US11079322).
2.One analyzer can simultaneously and continuously measure up to five gases such as CO2, CH4, N2O, CO and O2;
3.CO2, CH4, N2O, CO can choose the patented Microflow NDIR technology, the range can be as low as 200ppm, accuracy up to 1%F.S.;
4.Small drift, anti-moisture interference, good long-term stability;
5.Dual beam NDIR technology can be used to measure CO2 and CO for flexible collocation for medium and high concentration measurement requirements;
6.Both digital and analog signal output functions, simple data management;
2.One analyzer can simultaneously and continuously measure up to five gases such as CO2, CH4, N2O, CO and O2;
3.CO2, CH4, N2O, CO can choose the patented Microflow NDIR technology, the range can be as low as 200ppm, accuracy up to 1%F.S.;
4.Small drift, anti-moisture interference, good long-term stability;
5.Dual beam NDIR technology can be used to measure CO2 and CO for flexible collocation for medium and high concentration measurement requirements;
6.Both digital and analog signal output functions, simple data management;
Details Images
Related Products

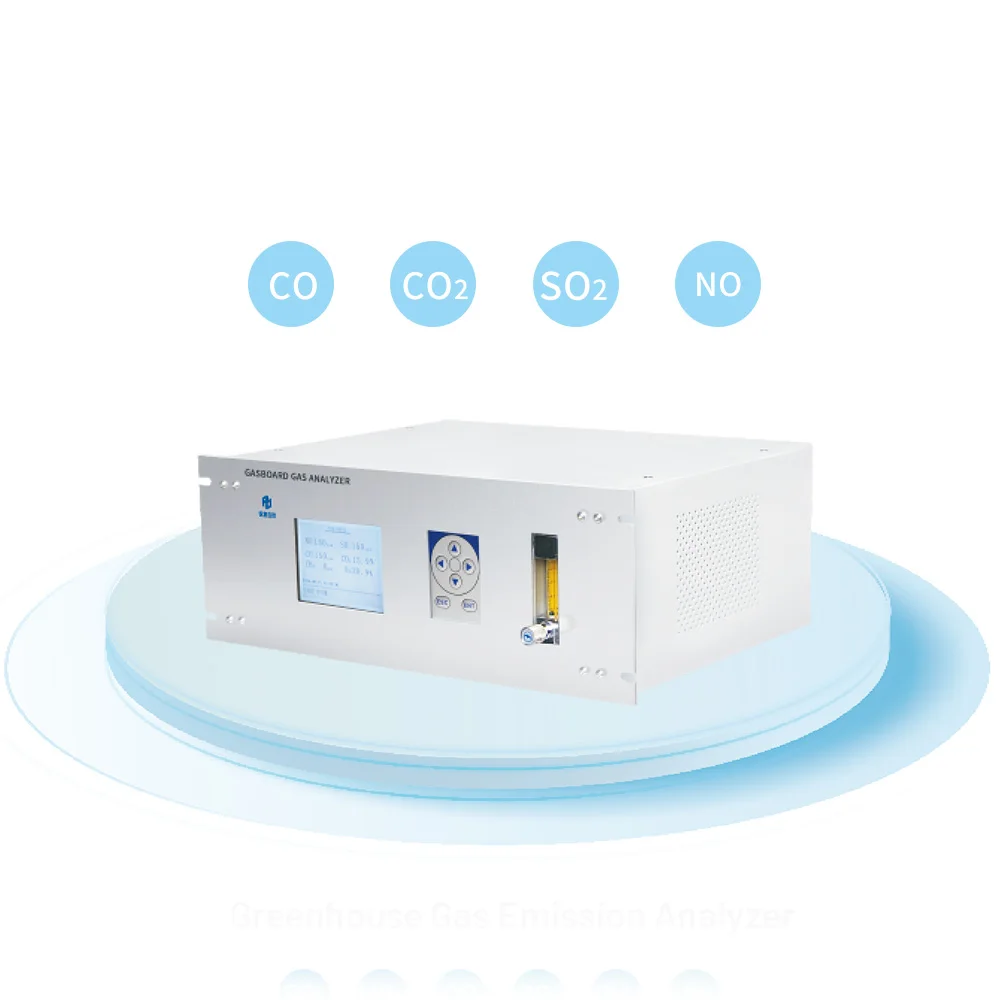

Online Infrared Flue Gas Analyzer Gasboard-3000Plus
Gasboard 3000Plus is designed with world-leading micro-flow infrared sensor, is able to measure continuously simultaneously
concentration of CO,CO2,SO2,NO,especially for lower range measurement. It is an ideal solution for monitoring in fields of boiler,
power plant, combustion efficiency monitoring for various industrial furnaces or refuse incinerator, process and security
monitoring.
concentration of CO,CO2,SO2,NO,especially for lower range measurement. It is an ideal solution for monitoring in fields of boiler,
power plant, combustion efficiency monitoring for various industrial furnaces or refuse incinerator, process and security
monitoring.
Product Applications
Packing&Shipping
Company Introduction
Hubei Cubic-Ruiyi Instrument Co., Ltd. (hereinafter referred to as ”Cubic-Ruiyi” ) is a wholly-owned subsidiary of Cubic Sensor and Instrument Co., Ltd.(stock code 688665). Established in 2010, Cubic-Ruiyi is a high-tech enterprise specializing in providing gas composition and gas flow measurement solutions in the fields of environmental monitoring, process gas monitoring, and smart metering.
Based on the advantaged of Cubic Sensor core gas sensing technology platform, Cubic-Ruiyi developed a series of gas analyzers with advanced technical principles, such as non-dispersive infrared (NDIR) technology, ultraviolet differential absorption spectroscopy (UV-DOAS) technology, laser Raman (LRD)technology, ultrasonic (Ultrasonic) technology, thermal conductivity (TCD) technology, light scattering detection (LSD) technology and etc. Widely used in environmental monitoring, metallurgy, coal chemical, biomass energy and other industries and play an important role in energy saving and emission reduction.Cubic-Ruiyi independently developed and produced portable infrared biogas analyzer, micro-flow infrared flue gas analyzer, and infrared gas analyzer have successively obtained the national key new product certificate, And the infrared gas analyzer has won the honor of the outstanding product award of the Chinese Instrument and Control Society, and its core technology Won the Hubei Province Invention Patent Gold Award. The “Research and Industrialization of Micro-flow Infrared Flue Gas Sensors” was awarded by the Ministry of Industry and Information Technology for the key “products and processes” one-stop application program demonstration project of the Ministry of Industry and Information Technology in 2019, and Cubic-Ruiyi was awarded the “one-stop” application program demonstration enterprise.
With decade-long dedications in technical innovations, strict quality control and global business strategies, Cubic-Ruiyi products have been exported to many countries and regions, besides, Cubic-Ruiyi is moving towards a higher target to be the international brand in the field of high-end value-added applications of gas analysis instruments.
Based on the advantaged of Cubic Sensor core gas sensing technology platform, Cubic-Ruiyi developed a series of gas analyzers with advanced technical principles, such as non-dispersive infrared (NDIR) technology, ultraviolet differential absorption spectroscopy (UV-DOAS) technology, laser Raman (LRD)technology, ultrasonic (Ultrasonic) technology, thermal conductivity (TCD) technology, light scattering detection (LSD) technology and etc. Widely used in environmental monitoring, metallurgy, coal chemical, biomass energy and other industries and play an important role in energy saving and emission reduction.Cubic-Ruiyi independently developed and produced portable infrared biogas analyzer, micro-flow infrared flue gas analyzer, and infrared gas analyzer have successively obtained the national key new product certificate, And the infrared gas analyzer has won the honor of the outstanding product award of the Chinese Instrument and Control Society, and its core technology Won the Hubei Province Invention Patent Gold Award. The “Research and Industrialization of Micro-flow Infrared Flue Gas Sensors” was awarded by the Ministry of Industry and Information Technology for the key “products and processes” one-stop application program demonstration project of the Ministry of Industry and Information Technology in 2019, and Cubic-Ruiyi was awarded the “one-stop” application program demonstration enterprise.
With decade-long dedications in technical innovations, strict quality control and global business strategies, Cubic-Ruiyi products have been exported to many countries and regions, besides, Cubic-Ruiyi is moving towards a higher target to be the international brand in the field of high-end value-added applications of gas analysis instruments.
Похожие товары
Новый дизайн 2021 года кардиган с вышивкой одежда в исламском стиле кимоно арабском мусульманское платье Дубая
13,95 $ - 18,72 $
Для Supermicro X11QPH + (только для суперсервера) Материнская плата Intel C621 контроллер для портов 14 SATA3 (6 Гбит/с); 0,1,5,10

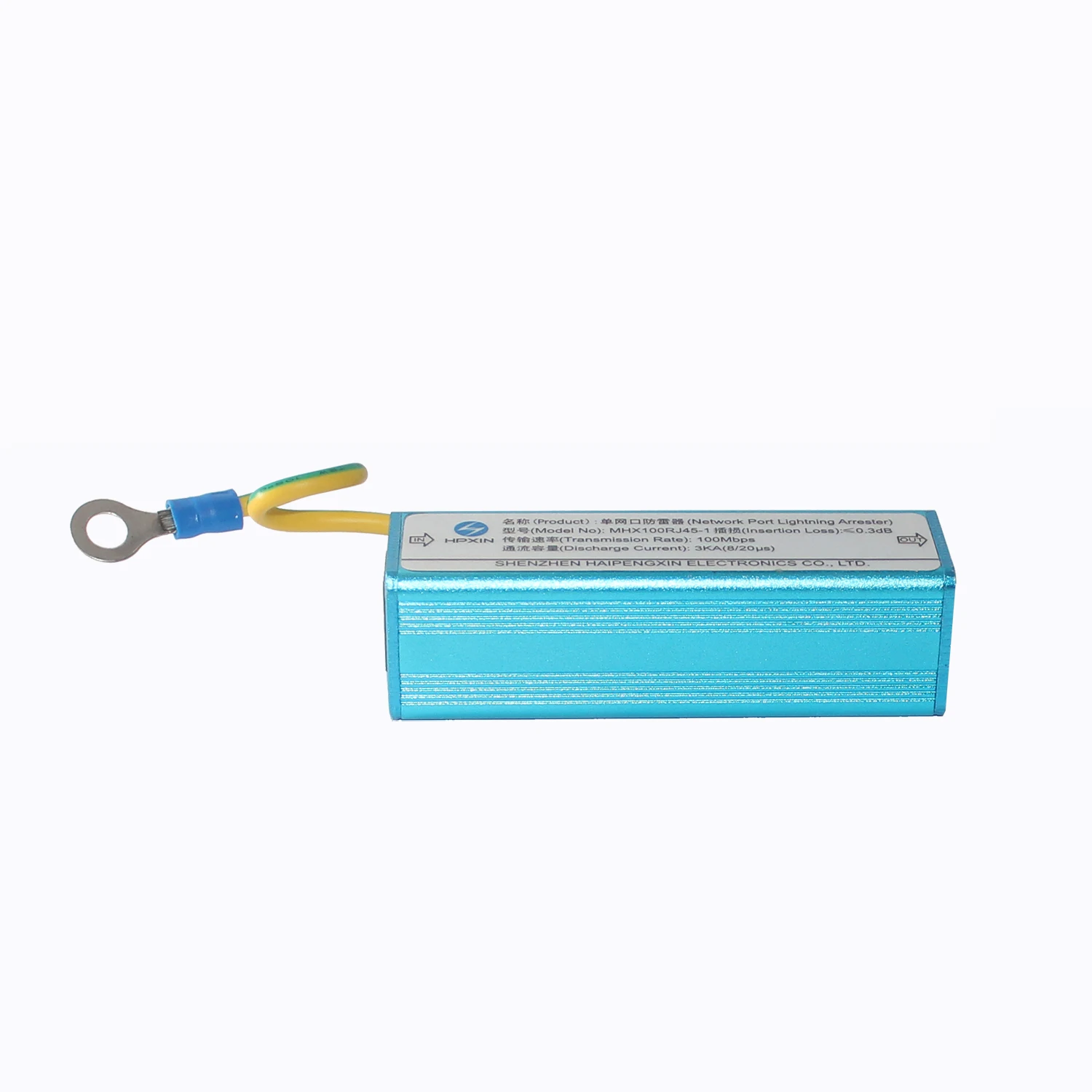

Hpxin MHX100RJ45-1Network порт для защиты от искровых перенапряжений устройство защиты от перенапряжений, защита, сетевой фильтр СПД
4,00 $ - 7,00 $

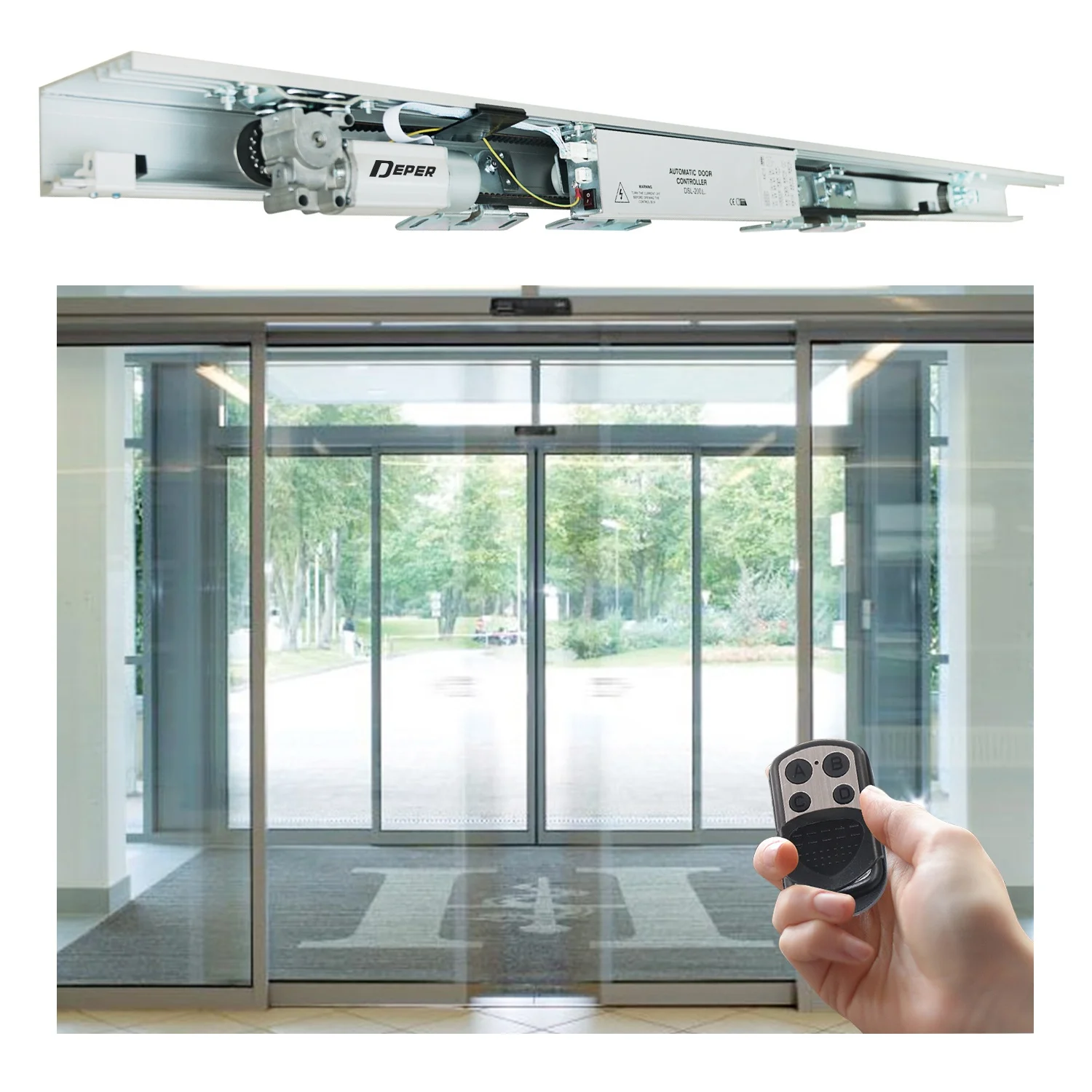

Автоматическая раздвижная дверная система DSL-200L 150 кг для коммерческих с замком двигателя
26 005,49 ₽ - 31 006,55 ₽

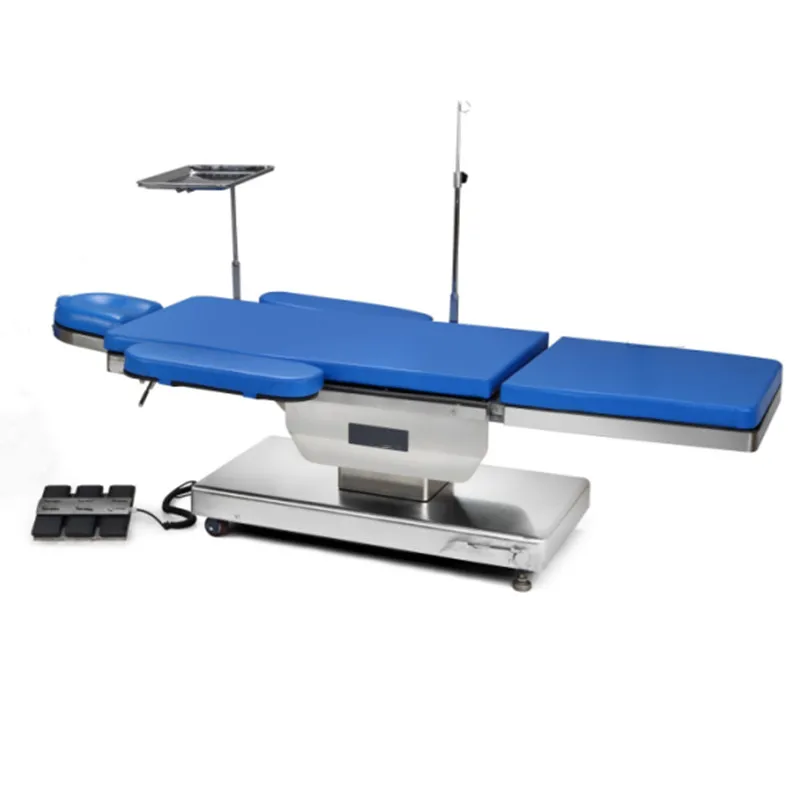

YFDT-PY02 II) Больница офтальмологический операционный стол
2 333,00 $ - 2 545,00 $

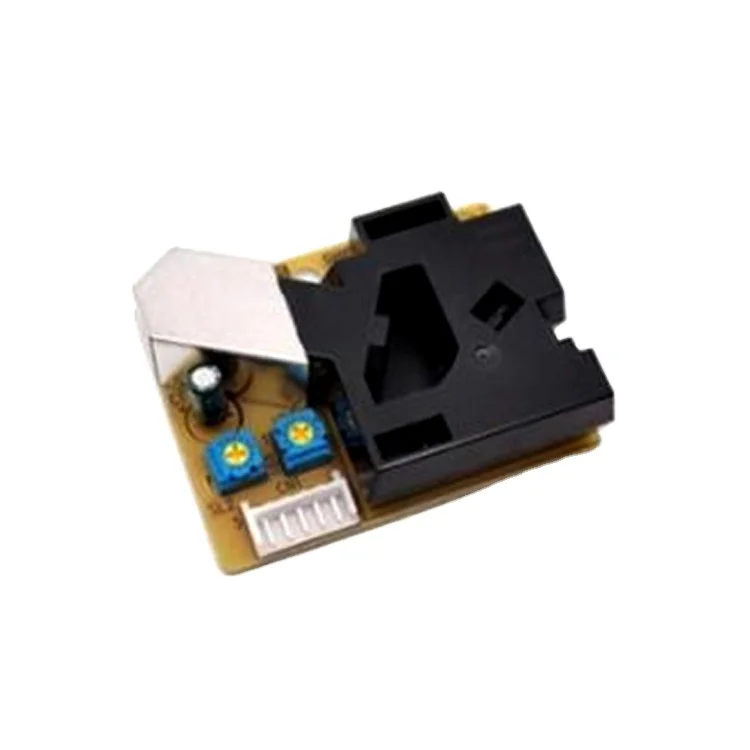

Датчик пыли Syhitech PM2.5 DSM501A по низкой цене

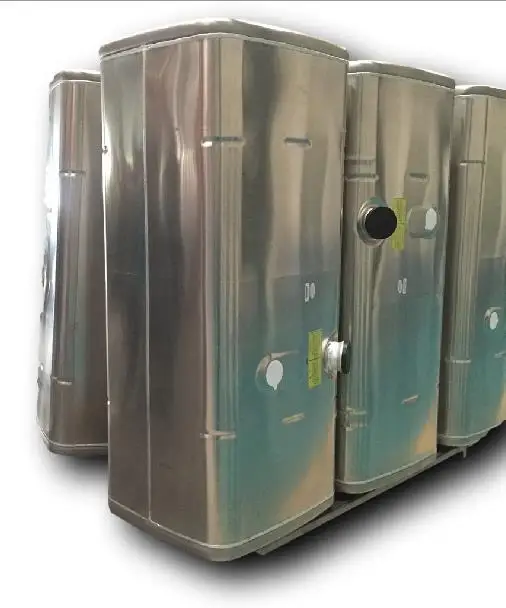

Sinotruk HOWO SITRAK A7 T7 C7H запчасти для грузовиков, алюминиевый сплав, квадратный датчик масляного/топливного бака WG9725550610 WG9925550001 WG9925550002
