Двигатель Cummins QSF 3 8 с дополнительной мощностью 99HP 2200 об/мин CM2350 CPL4787 для пневматических роликовых двигателей CP2700
- Категория: >>>
- Поставщик: Shiyan Qingbang Machinery Equipment Co. Ltd.
Сохранить в закладки 1600467011688:
Описание и отзывы
Характеристики
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support. For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
Cummins QSF3.8 (TIER 4 FINAL/STAGE IV)
74 – 130 horsepower, 55 - 97 kW, 376 - 488 N•m, 277 - 360 lb-ft, Tier 4 Final / Stage IV
Applications: Agriculture, Construction, Mining Engines, Oil and Gas Engines, Rail Engines, Well Servicing
74 – 130 horsepower, 55 - 97 kW, 376 - 488 N•m, 277 - 360 lb-ft, Tier 4 Final / Stage IV
Applications: Agriculture, Construction, Mining Engines, Oil and Gas Engines, Rail Engines, Well Servicing
From 100-130 hp, the QSF3.8 is paired with a Diesel Oxidation Catalyst and Selective Catalytic Reduction (DOC-SCR) system designed by Cummins Emission Solutions (CES). Cummins SCR enables oxides of nitrogen (NOx) conversion to take place at lower exhaust temperatures. CES has manufactured over 1 million SCR systems – and has more experience with this technology than any other company.
The Cummins SCR system features a decomposition tube designed to enable more effective mixing of the Diesel Exhaust Fluid(DEF) ahead of the catalyst. Additionally, for certain applications, the QSF3.8 can be paired with an SCR-only aftertreatment system.

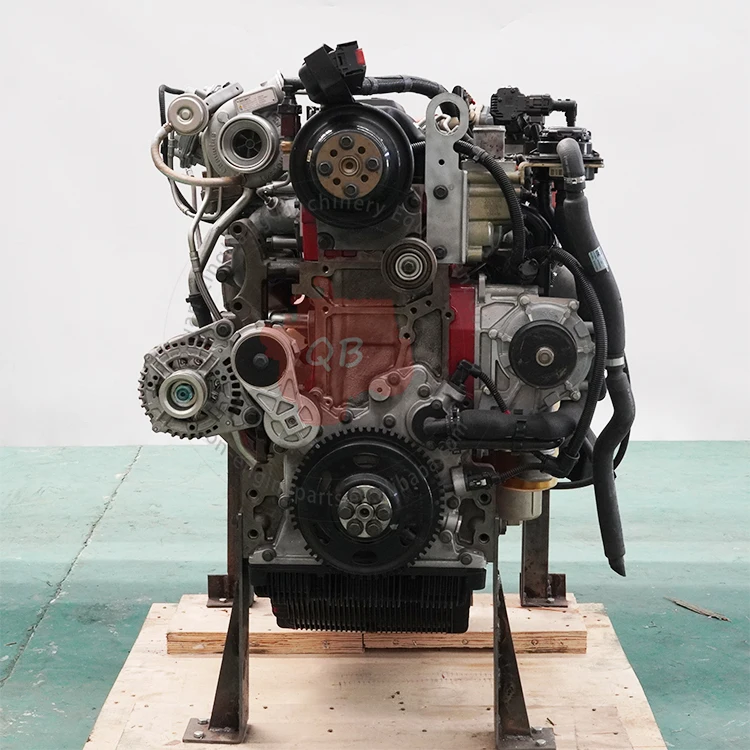

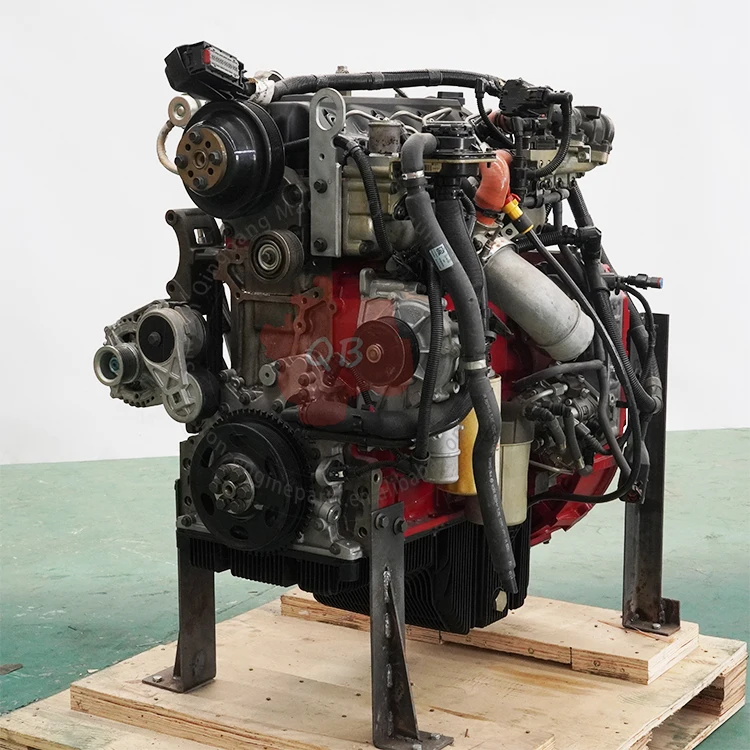

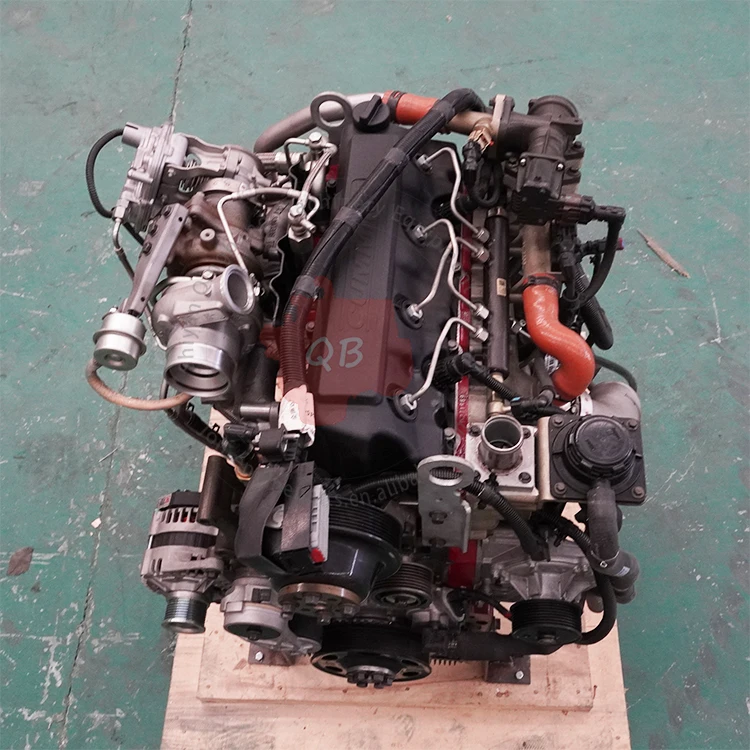

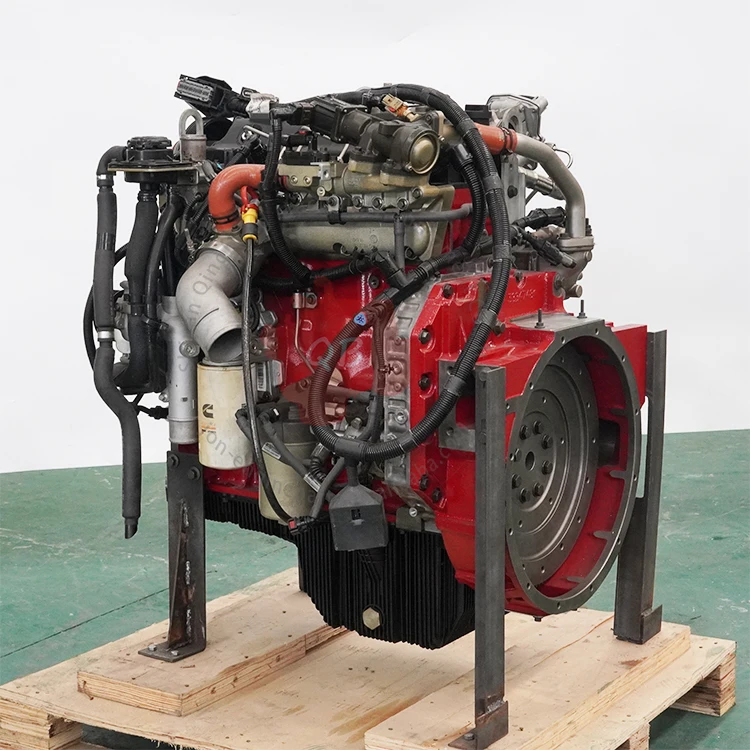

Cummins QSF 3.8 Engine Optional Horsepower 99HP 2200RPM CM2350 CPL4787 QSF3.8 Cummins engines for CP2700 PNEUMATIC ROLLER
FEATURES AT A GLANCE
Cummins QSF 3.8 Engine
Optional Horsepower 99HP 2200RPM CM2350 CPL4787
QSF3.8 Cummins engines
for CP2700 PNEUMATIC ROLLER
QSF3.8 CPL No. | Rated Powder/ Speed (HP@RPM) | Torque (LB-FT@RPM) | Usage |
CPL4142 | 74@2200 | 295@1300 | PNEUMATIC ROLLER CP2700 SINGLE DRUM ROLLER AW1120 SOIL COMPACTOR CP2100 CP2700 PL500 PLANER CA2500 SOILROLLER CA3500 LCR HX130A EXCAVATOR HX140L STH1056A RS74 RS TELEHANDLER 120 DL120 CRAWLER DOZER TD8S TD7S TD9S COMPACTOR SV530SV514 CV83U CV123U |
CPL4142 | 74@2500 | 295@1300 | |
CPL4787 | 99@2200 | 210@1320 | |
CPL4787 | 100@2200 | 306@1600 | |
CPL5341 | 100@2500 | 306@1600 | |
CPL4142 | 110@2500 | 306@1600 | |
CPL4480 | 115@2200 | 347@1320 | |
CPL4770 | 120@2200 | 360@1600 | |
CPL4770 | 120@2500 | 360@1600 | |
CPL4480 | 125@2200 | 369@1320 | |
CPL4480 | 130@2200 | 360@1600 | |
CPL4480 | 130@2500 | 360@1600 | |
CPL4480 | 140@2200 | 398@1320 |
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Engine Model | QSF3.8 CM2350 CPL4787 engine assembly |
2 | Displacement | 3.8L |
3 | Cylinder | 4 cylinders |
4 | Valve | 16 valves |
5 | Cold Style | Water- cooled |
6 | Start | Electric Start |
7 | Powder Range | 74HP - 140HP 55KW- 104KW |
8 | Torque Range | 210LB-FT - 398LB-FT |
9 | Emission Standard | Euro 2, Euro 3 |
10 | Applicance Machine | COMPACT TRACK LOADER, PNEUMATIC ROLLER, SINGLE DRUM ROLLER, SOIL COMPACTOR, PLANER, SOIL ROLLER, EXCAVATOR, TELEHANDLER, CRAWLER DOZER, COMPACTOR |
Cummins Engines Range List
ONE STOP CUMMINS SHOP
Shiyan Qingbang Machinery Equipment Co., ltd is your one-stop shop for a complete range of Cummins Engine Assemblies and Cummins parts.
No matter the size or diversity of your fleet, we have parts for Cummins diesel engines that range from the popular B series to the Big Cam and everything in between.
Keeping business moving efficiently and dependably is the name of the game and Cummins is among the best.
1 YEAR WARRANTY aftersales service, FREE SHIPPING on Cummins spare parts.
Cummins QuickServe Online Tips
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
Qingbang Profile
ONE-STOP CUMMINS SHOP
Shiyan Qingbang Machinery Equipment Co., Ltd. is specialized in the trade and service of Cummins engine assembly and Cummins spare parts, with deep study at Cummins machinery engines like 4BT, 6BT, 6CT, L8.9, M11, X15, K19 series, electronic control engines like ISB, ISD, ISC, ISL, ISM, ISX, QSB, QSC, QSL, QSM, QSK, QSX series and mining and marine engines like NT855, K19, K38, K50, QSK18, QSK38, QSK60, series.
We provide customers with professional, fast and effective services based on the service concept of “quality first and reputation
priority”.
priority”.
Cummins Packaging and Shipping
Packing and Shipping
1, International Express. Such as DHL,UPS,EMS,ARAMEX and so on. Usually you can receive the packages within 5-7 days after shipping.
2, Air Transportation. For goods above 100kg, it is a economical choice for the customers.
3,International Marine Container, FCL / LCL.
4,We will send the goods as fast as we can to save your time.
2, Air Transportation. For goods above 100kg, it is a economical choice for the customers.
3,International Marine Container, FCL / LCL.
4,We will send the goods as fast as we can to save your time.
Why Choose Us
CHOOSE US, SAVE MOST
Leave the trouble to ourselves
&
Bring the simplicity to customers.
As an honest, helpful, professional partners of our esteemed customers, we are aiming at buliding long term business relationship
by providing genuine motor diesel parts and professional service.
We declare seriously that we won't offer any FAKE, COPY, BAD QUALITY parts to cause our customers in trouble!
FAQ
Q1: What is the parts packing?
A: All the packages are genuine original packing, we can also provide neutral packing or according to your requirements.
Q2: What is your payment Terms?
A: We accept T/T, Western Union, Alibaba Trade Assurance Payment Order, and Paypal. T/T and Alibaba Trade Assurance Order Payment always need 2-3 workdays to our accounts. Western Union and Paypal will be in time to our account.
Q3: What is your transport method?
A: Courier Express, By air, By sea, By truck.
Q4: What is your delivery time?
A: We ship goods AT ONCE after receiving your payment if we have products in stock.
If we need time to order products, we will inform the approximate time and ship ASAP.
Q5: When can we receive the goods?
A: It often takes 5-7 days by courier express after receiving your payment, but the actual time depends on the shipping method you choose.
A: All the packages are genuine original packing, we can also provide neutral packing or according to your requirements.
Q2: What is your payment Terms?
A: We accept T/T, Western Union, Alibaba Trade Assurance Payment Order, and Paypal. T/T and Alibaba Trade Assurance Order Payment always need 2-3 workdays to our accounts. Western Union and Paypal will be in time to our account.
Q3: What is your transport method?
A: Courier Express, By air, By sea, By truck.
Q4: What is your delivery time?
A: We ship goods AT ONCE after receiving your payment if we have products in stock.
If we need time to order products, we will inform the approximate time and ship ASAP.
Q5: When can we receive the goods?
A: It often takes 5-7 days by courier express after receiving your payment, but the actual time depends on the shipping method you choose.
Cummins Parts Range and Customer Reviews
All Cummins Parts pictures are real-shot by QINGBANG.
Organizations and individuals shall be prohibited from illegally collecting, using, processing, transferring, trading, providing or publicizing the pictures for making profits.
Qingbang reserves all rights.
Fell free to contact Qingbang Online service for quick solution.
Похожие товары
MC-F093 стоматологический Break корона для резки металла карбида боры FG1957 FG1958
0,74 $ - 0,83 $
PN16-pn25-pn40-pn63-pn100 dn25-dn900 zshv Аксиального потока обратный клапан
Китайское производство лапша Shirataki
Ядро медицинского лазера роста волос устройства KN-8000A 424 Лазеры: низкоуровневый аппарат для лазерной терапии (НИЛИ) для выпадения волос
3 200,00 $ - 4 850,00 $
9A714568900 18539700025 Модернизированный G35-900 турбо-шариковый подшипник Гибридный турбонагнетатель для Audi S4 S5 A6 A7 A8 Q5 Panamera Macan EA839
1 300,00 $ - 1 489,00 $

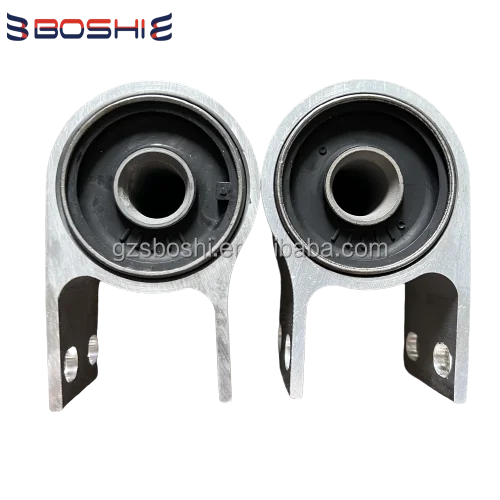

Автомобильная передняя подвеска, нижний рычаг управления, втулка для Chevrolet Malibu 16-21 84198830 84067511 84107274 84067510 84198831
5,30 $ - 7,27 $

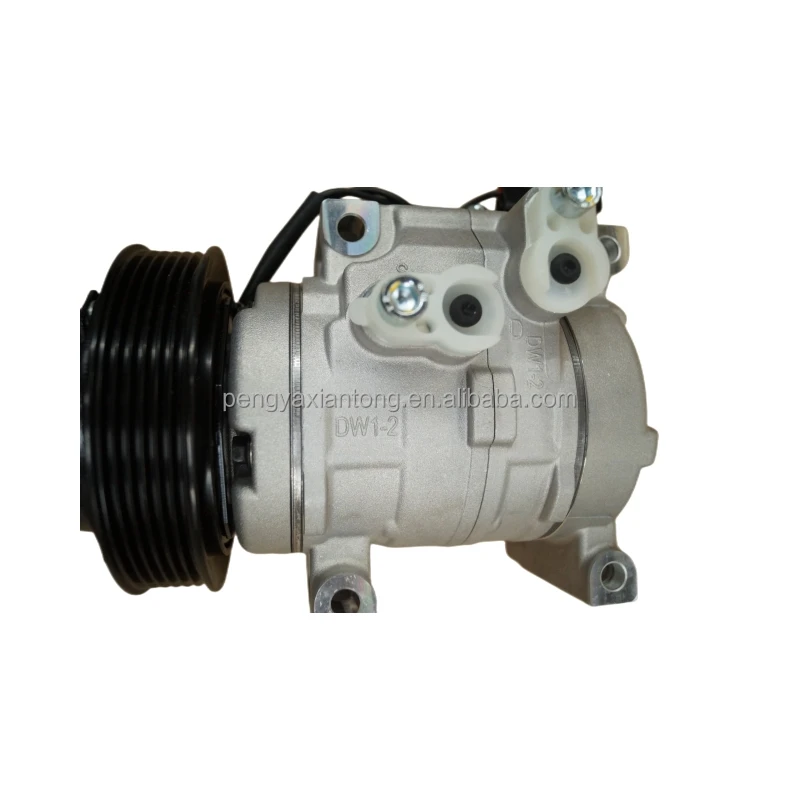

Насос компрессора кондиционера 97701-1S400 DF11 для Hyundai Accent Solaris 1,4/Kia Rio 1,4
