High Water Head Customized 1MW Pelton Turbine Hydro Generator for Hydro Plants
Product Description
A Pelton turbine or Pelton wheel is a type of turbine used frequently in hydroelectric plants. These turbines are generally used for sites with heads greater than 300 meters. This type of turbine was created during the gold rush in 1880 by Lester Pelton.
Pelton turbine is a type of turbine used frequently in hydroelectric plants. These turbines are used for sites with high head.
When used for generating electricity, there is usually a water reservoir located at some height above the Pelton turbine. The water then flows through the penstock to specialized nozzles that introduce pressurized water to the turbine. To prevent irregularities in pressure, the penstock is fitted with a surge tank that absorbs sudden fluctuations in water that could alter the pressure.
Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type.

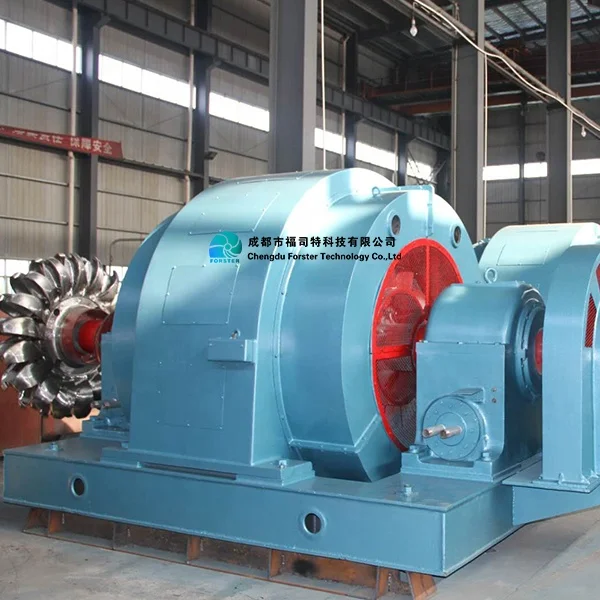

Hydro turbine and Generator
Components including stator, rotor,base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.
Application Situation
| River Dam | Mountain Foot |
 |
|
Key components or supporting equipment

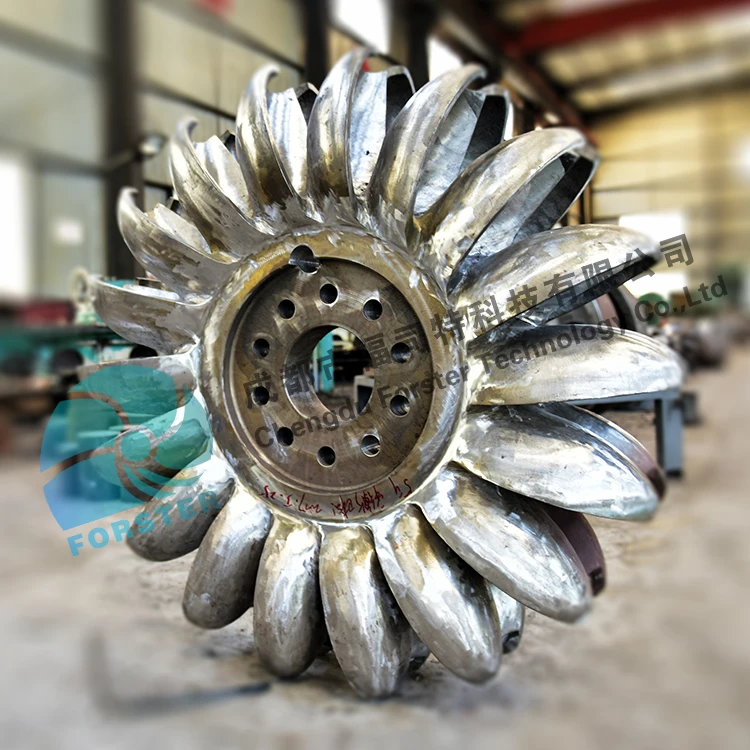

| 1.Wear-resistant Stainless Steel Runner | 2.Automatic Valve |
 |  |

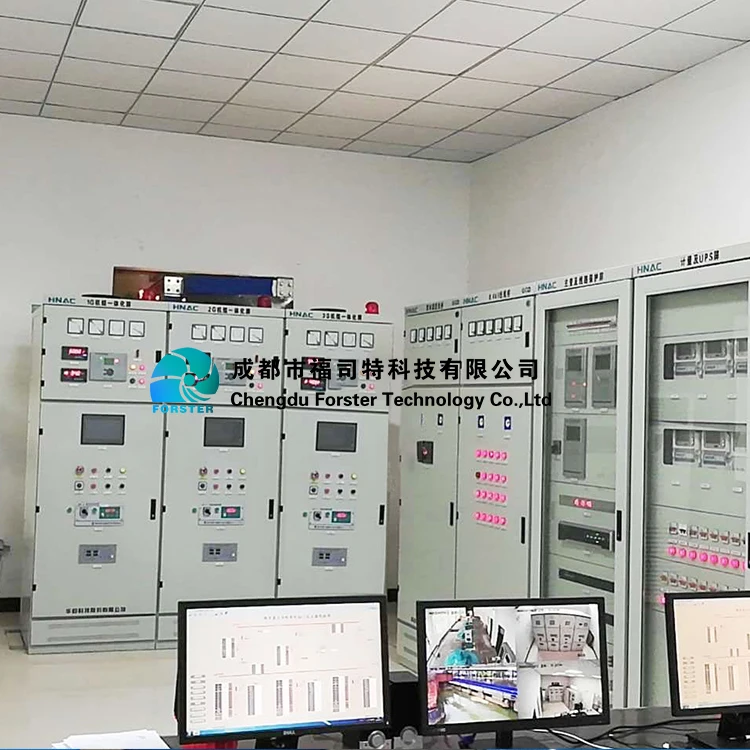

| 3. High Hydraulic Microcomputer Governor | 4. 5 in 1 integrated control panel |
 |  |
Product Parameters
Technical Specifications
Power range | 300KW-5MW |
Water head | 150m - 700m |
Water Flow | 0.1005 m3/s - 2.884 m3/s |
Material | Steel plate/Stainless steel |
Speed range | 300rpm-1000rpm |
Installation method | Horizontal installation / vertical installation |
Frequency | 50hz/60hz |
Efficiency | 90%-95% |
Application | On-grid/Off-grid |
Other Products
| Low Head High Flow Francis Turbine | High Head Low Flow Turgo Turbine |
 |  |
| Power 100KW to 5000KW | Power 100KW to 2500KW |
| Water Head 12m to 290m | Water Head 60m to 180m |
| Water Flow 0.98 m3/s - 36.26 m3/s | Water Flow 0.2 m3/s to 1.85 m3/s |
| Advantage | Advantage |
| 1. The difference in operating head can be extra simply controlled in Francis turbine than in Pelton wheel turbine. 2. Ratio of utmost and least operating head can be even be two in case of Francis Turbine. 3. Mechanical efficiency of pelton wheel decrease faster by wear than Francis turbine. 4. Francis turbine variation in operating head can be more simply controlled. 5. No head failure occurs still at low discharge of water. | Covers the boundary between Francis and Pelton. 1. Limits Over-Pressure Effect over the penstock. 2. Higher speed = weight and cost reduction. 3. Maintains efficiency over a wide flow range. 4. Superior abrasion resistance. 5. Ease of operation and maintenance. |
Company Information
Main Products
Our main products included
1, Axial flow type turbine generators series
2,Turgo turbine generators series, e.g. vertical type and horizontal type.
3,Tubular turbine generators series, e.g. Bulb type and shaft extension type
4,Francis turbine hydro generators series
5,Impulse turbine generators series and double turbine generators series and so on.
Our Workshop
FAQ
1. You are a trading company or a manufacture?
We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to our factory you will know more about us.
2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity?
Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).
3. What information shoul I provide for getting the quotation?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
4. When my turbine shut down, who can help me solve the problem?
You are free to call me day or night at my cellphone number +8613540368205. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
5.Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
6. How can I trust you?
Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.
Q7,Does your company have its own independent official website?
Of course, and we can see more information about our company and products on our official website. website address: www.fstgenerator.com
Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.
1.Flow rate ( lit/sec or m³/sec?)
2.Water head ( m?)
3.Total power you need( KW?)
4.Frequency ( 50 hz or 60 hz?)
5. Voltage( V?)
6. On grid or off grid?
7. Voltage of transmission line if it is on grid( V?)
8. Elevation(MSL)
9. Is it clean fresh water(with our sand, stone and silt ect,.)
By the way,could you tell me your whatsapp number(phone number) ?
Похожие товары

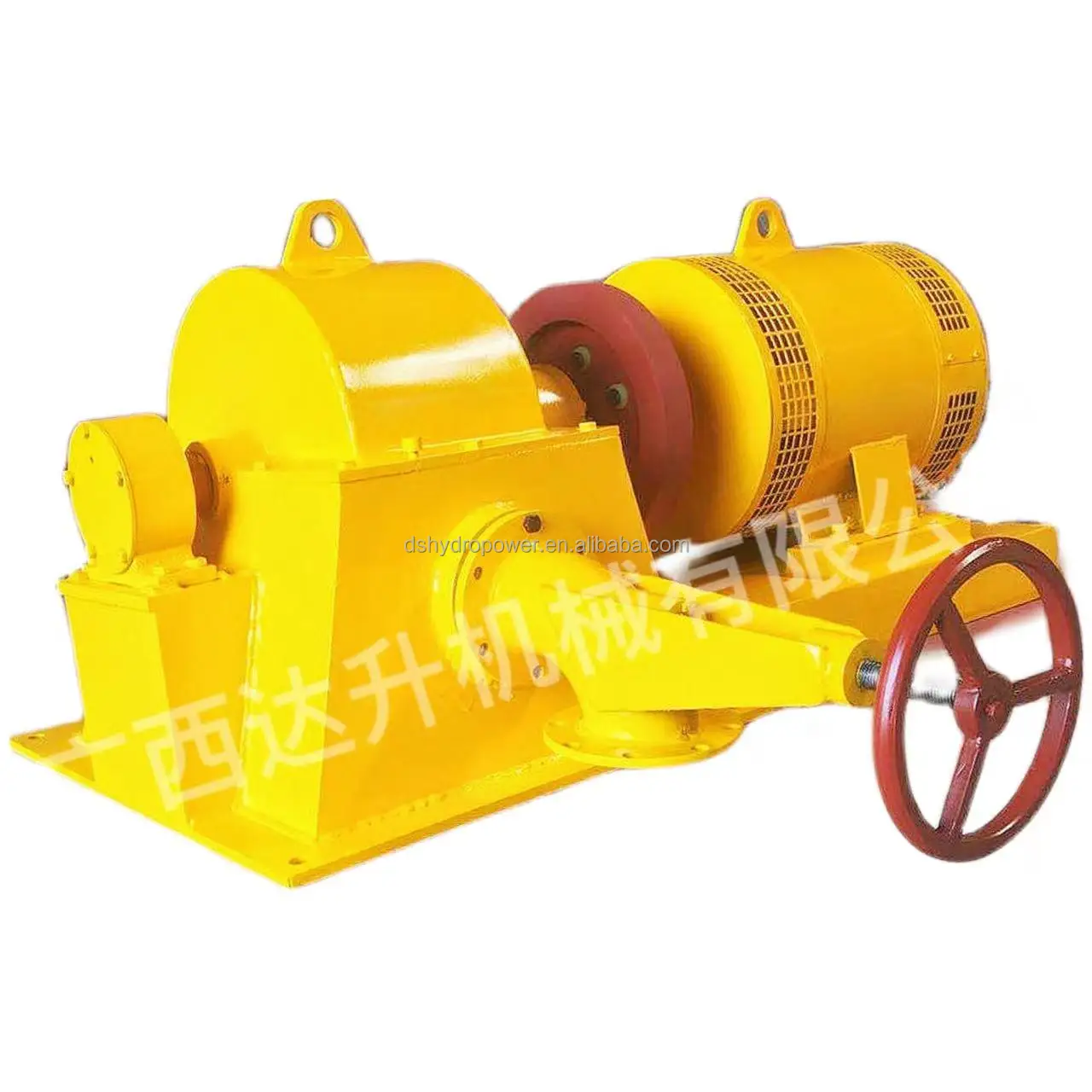

Горячая Распродажа 300 Вт, 500 Вт, 600 Вт, 1500 Вт Наклонный водяной турбинный генератор/микро-гидрогенератор
