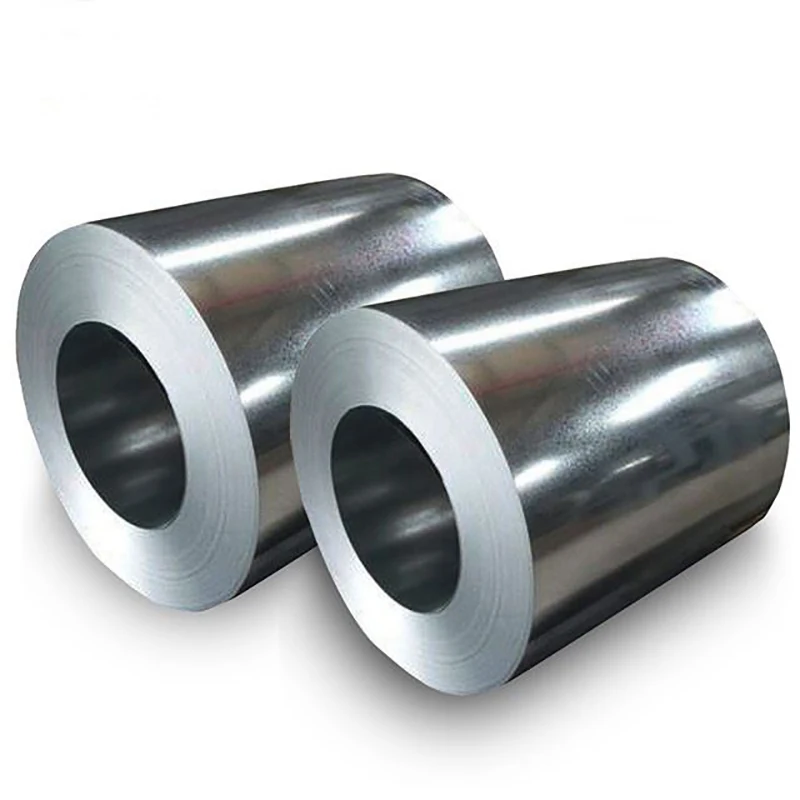

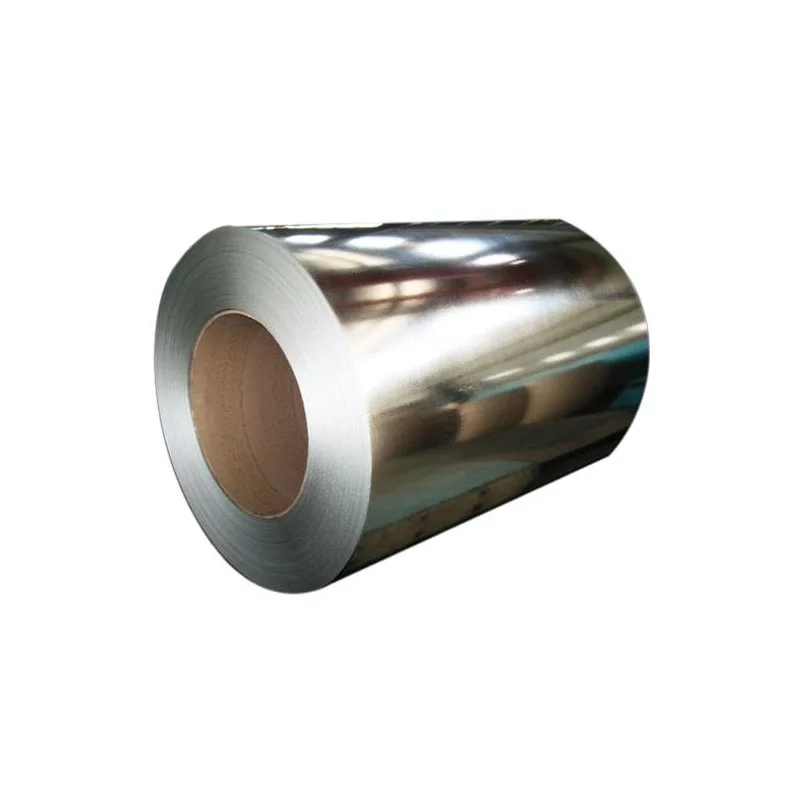

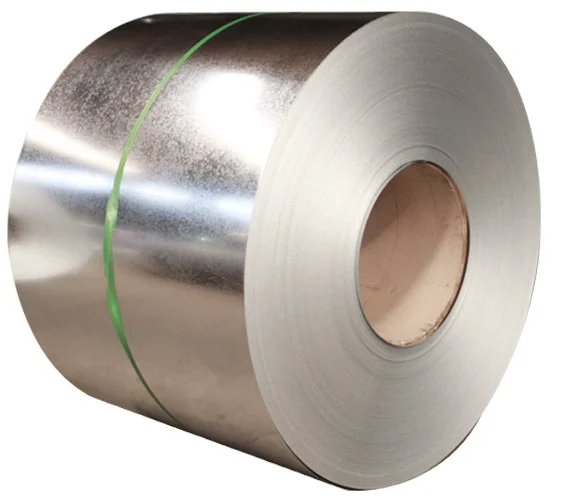

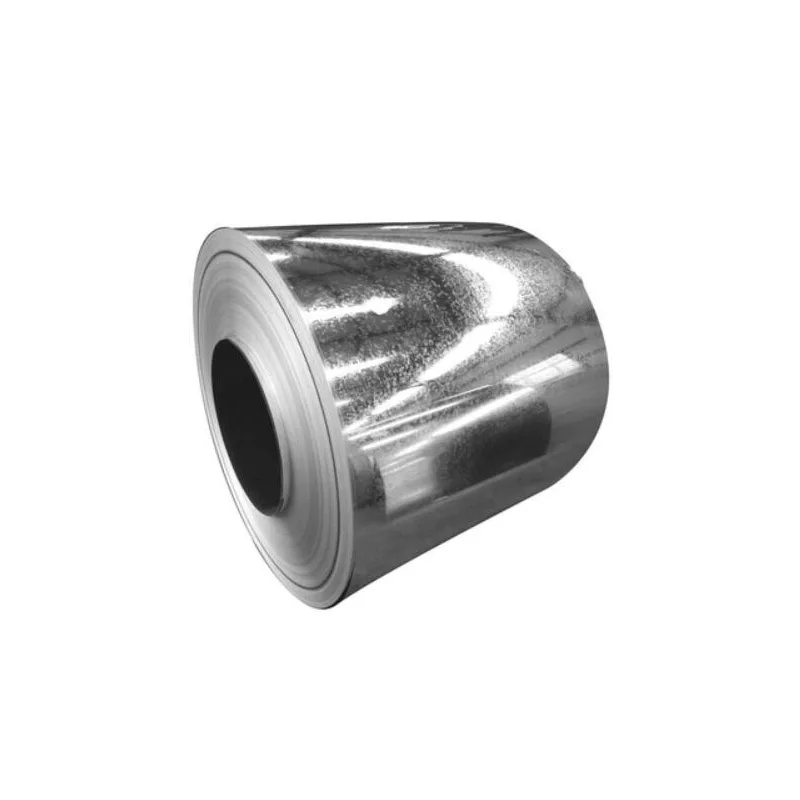

0 60 мм 1/2 оцинкованная стальная катушка цинк 275 z 40
- Категория: >>>
- Поставщик: Shandong Longcheng International Trade Co. LTD.
Сохранить в закладки 1600467641901:
Описание и отзывы
Характеристики
Product name | 0.60mm 1/2 galvanized steel coil Zinc 275 z 40 galvanized steel coil |
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
Type | Coil/Sheet/Plate/Strip |
Thickness | 0.12-6.00mm,or customer's requirement |
Width | 600mm-1500mm, according to customer's requirement |
Type of Coating | Hot Dipped Galvanized Steel |
Zinc Coating | 30-275g/m2 |
Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
Quality | Approved by ,ISO |
ID | 508mm/610mm |
Coil Weight | 3-8 metric ton per coil |
Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |

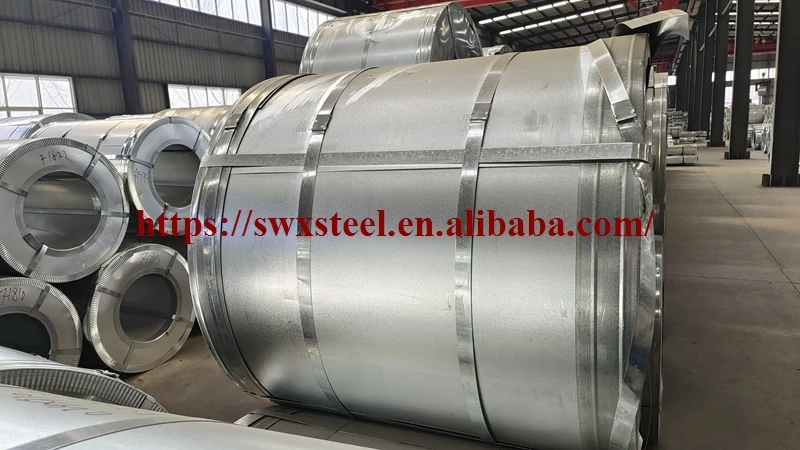

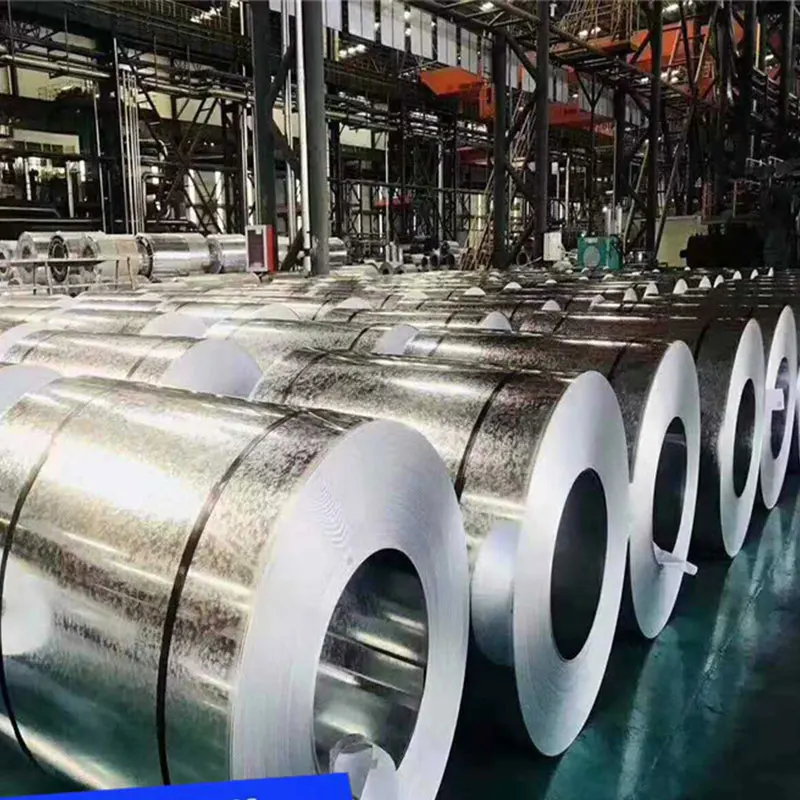

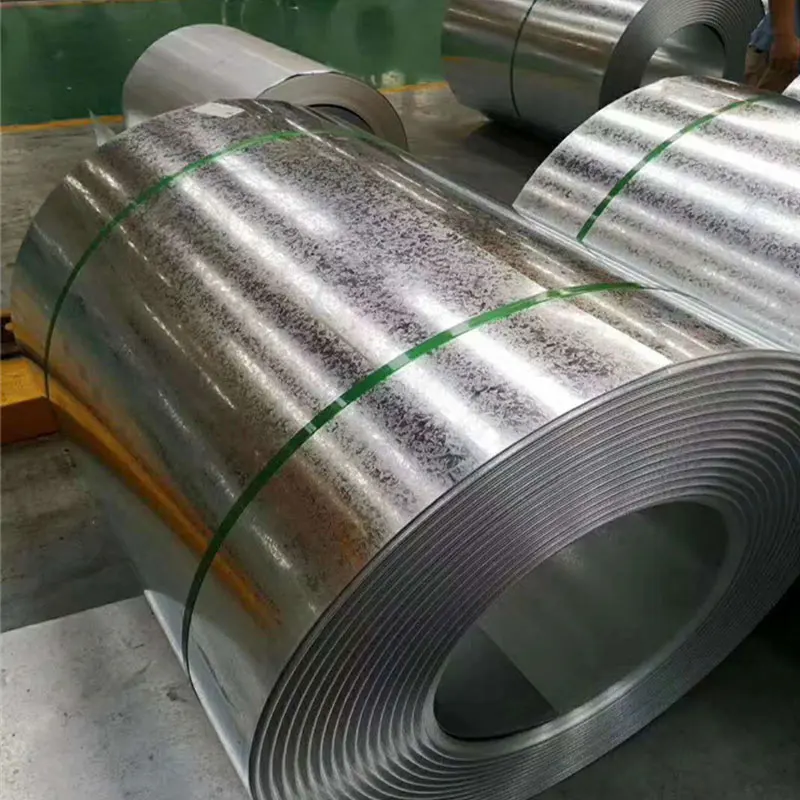

Detailed Images
Galvanized performance
Classification and code for zinc coating type and coating weight
Zinc-iron alloy coating on galvanized layer
Coating Weight /(g/㎡)(double-sided) Code Coating Weight /(g/㎡)(double-sided) Code
60 (Z60) 40 (Z40) 80 (Z80)
100 (Z100) 80 (Z80)
120 (Z120) 100 (Z100)
150 (Z150) 120 (Z120)
180 (Z180) 150 (Z150)
200 (Z200) 180 (Z180)
220 (Z220) 250 (Z250)
275 (Z275) 350 (Z350)
450 (Z450) 600 (Z600)
Note: The weight of zinc layer in brackets should be negotiated by both parties
Zinc-iron alloy coating on galvanized layer
Coating Weight /(g/㎡)(double-sided) Code Coating Weight /(g/㎡)(double-sided) Code
60 (Z60) 40 (Z40) 80 (Z80)
100 (Z100) 80 (Z80)
120 (Z120) 100 (Z100)
150 (Z150) 120 (Z120)
180 (Z180) 150 (Z150)
200 (Z200) 180 (Z180)
220 (Z220) 250 (Z250)
275 (Z275) 350 (Z350)
450 (Z450) 600 (Z600)
Note: The weight of zinc layer in brackets should be negotiated by both parties
Coating definition editing
(1) Normal zinc coating Spangle coating
In the normal solidification process of zinc layer, the zinc grain grows freely and forms the coating with obvious zinc flowermorphology.
(2) Minimized Spangle coating with small zinc flower coating
In the solidification process of zinc layer, the zinc grains are artificially limited to form as small as possible zinc flower
coating.
(3) Zinc-free flower coating Spangle-free
By adjusting the chemical composition of the bath, the coating is uniform on the surface without visible zinc flower morphology.

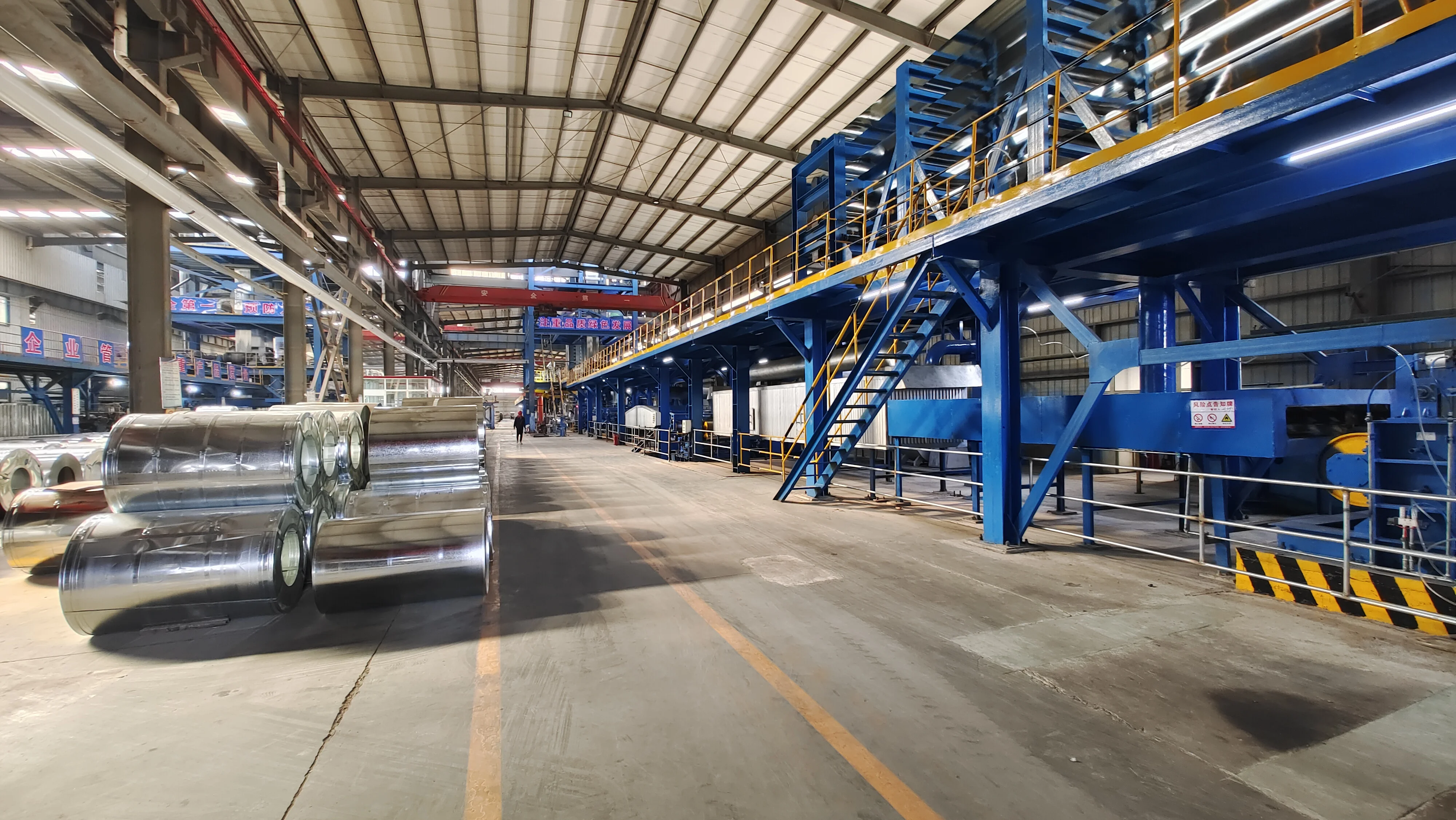

Our Company

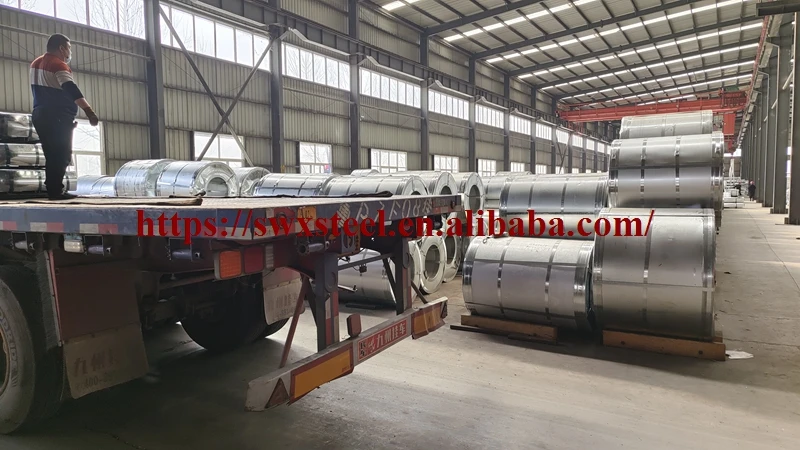

Packing&Shipping
Packaging Details: Galvanized steel, Galvanized sheet, Galvanized Steel Sheet quality zinc coating sheet galvanized steel coil
z60/z180
a.Mill's Standard Export Sea-worthy Packing
b.As customer's requirement
Delivery Detail: Shipped in 10-20 days after payment
z60/z180
a.Mill's Standard Export Sea-worthy Packing
b.As customer's requirement
Delivery Detail: Shipped in 10-20 days after payment
Hot Products
Our Services
FAQ
Q:CAN I GET SOME SAMPLES?
A:Yes. We can provide samples, you need to pay the sample fee and shipping cost in advance. We will refund the sample fee after vou place your order. Please let us know vour courier account or send us your fees and we will arrange to send you a sample
Q: Will you accept the customized and OEM product?
A: Yes, we can do the production based on your drawings and with your logo; also because we have very strong design and
development team, so the feedback is very good for customized product.
development team, so the feedback is very good for customized product.
Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have
confidence to move on second order with your esteemed company.
confidence to move on second order with your esteemed company.
Q: What are your payment terms ?
A: Commonly two payment term for new customers:
1) 30% T/T as deposit , 70% balance against B/L copy;
2) 100% Irrevocable L/C at sight;
If you need any other terms, pls feel free to contact us too, we will try our best.
1) 30% T/T as deposit , 70% balance against B/L copy;
2) 100% Irrevocable L/C at sight;
If you need any other terms, pls feel free to contact us too, we will try our best.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from
new production, delivery 20-30 days.
new production, delivery 20-30 days.
Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new
production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001 certified facility;
2) World famous origin mills as TISCO, Baosteel
3) Ex factory inspection by our own laboratory
4) SGS/BV Third party inspection before delivery
2) World famous origin mills as TISCO, Baosteel
3) Ex factory inspection by our own laboratory
4) SGS/BV Third party inspection before delivery
Q: Is there any after sales service? How long can you guarantee for your product ?
A: Yes, we will provide the after sales service; so if there is any confusion or problem during your usage process, pls feel free to contact us anytime, we will do our best support; and commonly we can guarantee for our product for 3-5 years.
contact us
Похожие товары
Оптовая продажа, масонский меч с белым золотым шлемом и красной ножной картой 35 34 | Поставщик масонского меча Регалии
Шэньчжэнь завод Сращивание Крытый P3.91 7,82 прозрачный СВЕТОДИОДНЫЙ экран для бара сцены ледяной экран фон
270,00 $ - 380,00 $

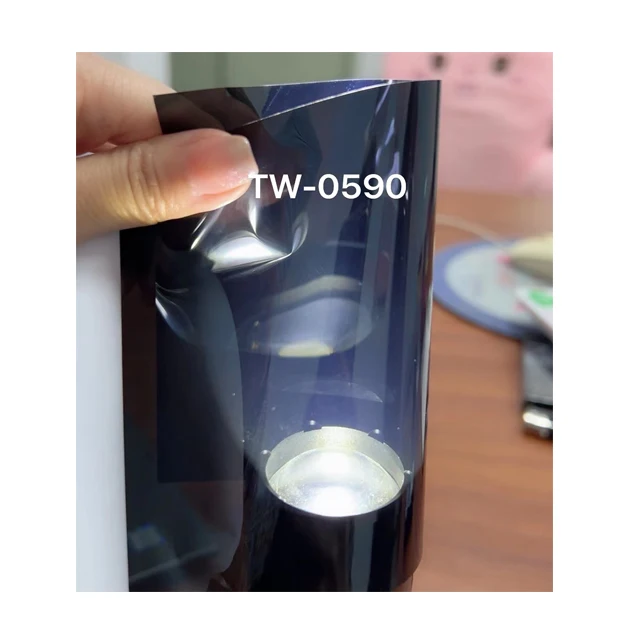

ICarNFTS, оптовая продажа, высокая теплоизоляция 1,52*30 метров HD нано-керамическая Тонировочная пленка для стекла автомобиля
68,00 $ - 102,00 $

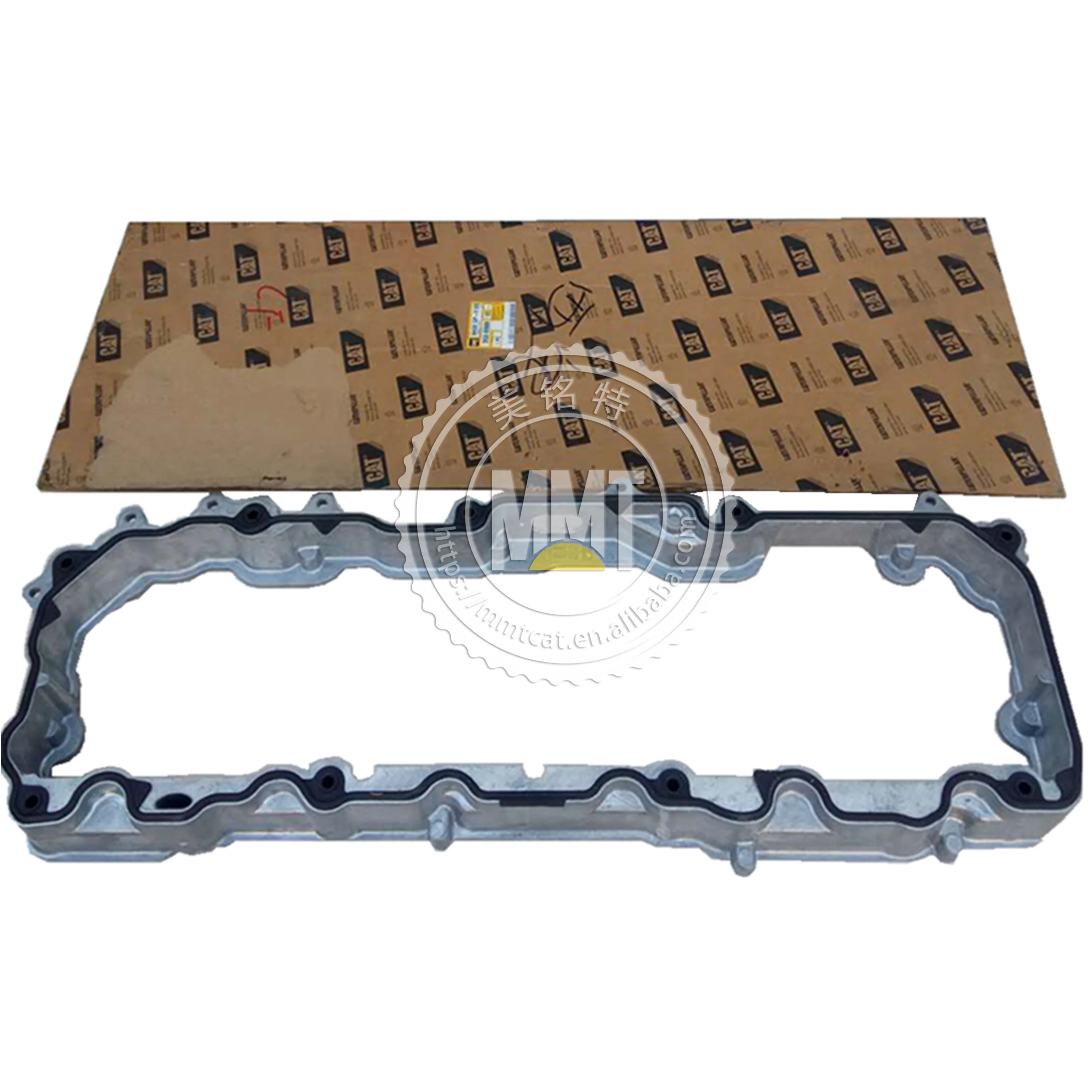

336D C9 330C C-9 353-6988 3536988 271-2418 2712418 218-0397 2180397 механизм клапанная крышка двигателя для экскаватора

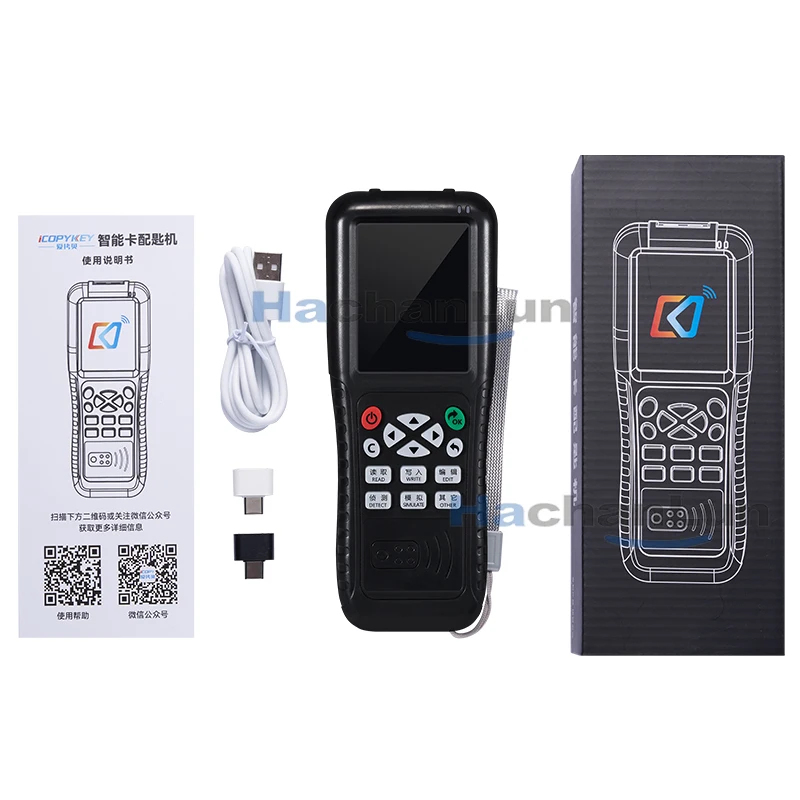

ICopy копировщик электронных ключей с полным панель расшифровки жидкокристаллического дисплея функции смарт-ключ-карта 3 для девочек от 5 до 8 лет английская версия Новые NFC IC ID Дубликатор duplo и ридер от производителя
23,99 $ - 31,99 $

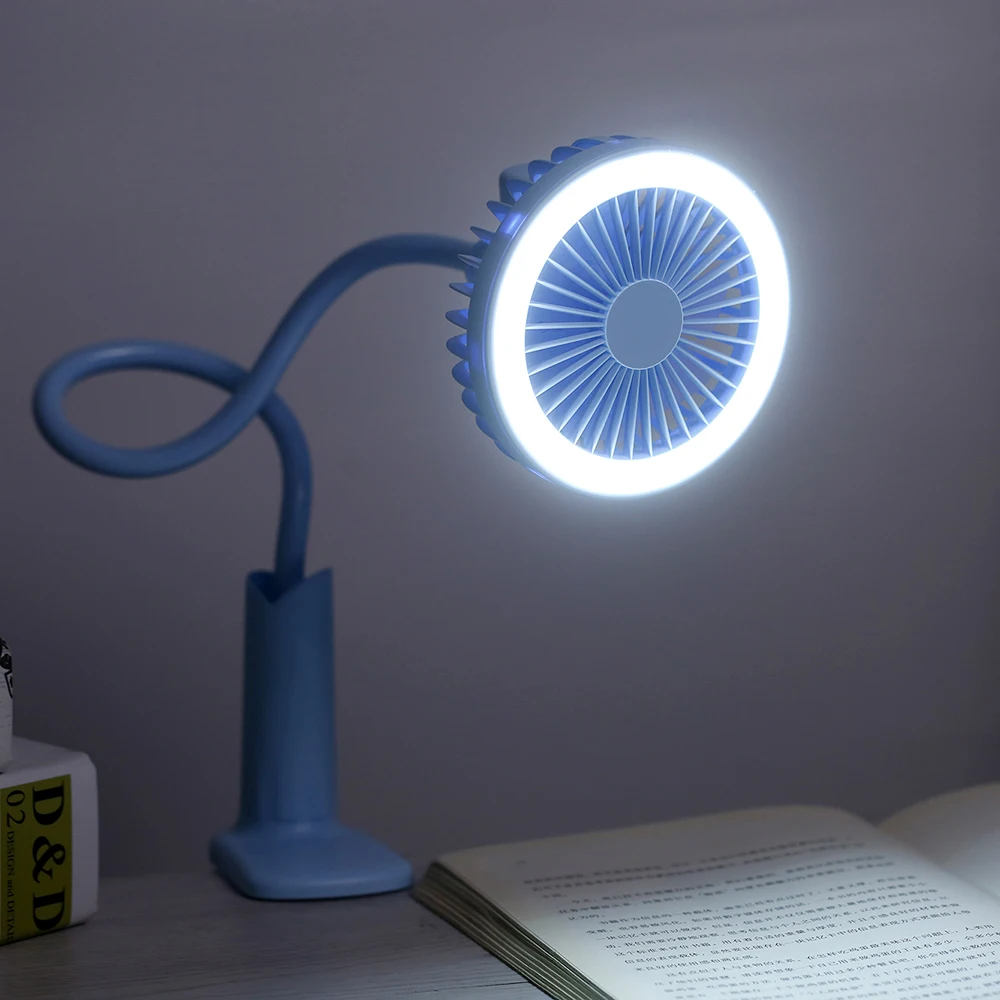

Новый перезаряжаемый портативный вентилятор с клипсой постоянного тока 5 В со светодиодной настольной лампой для лета
