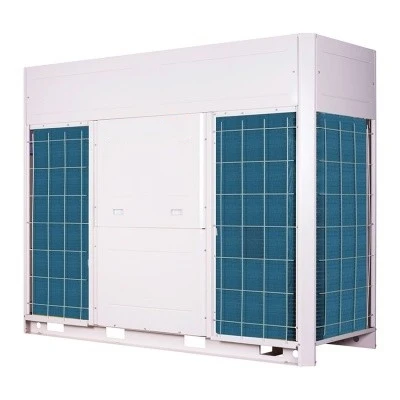

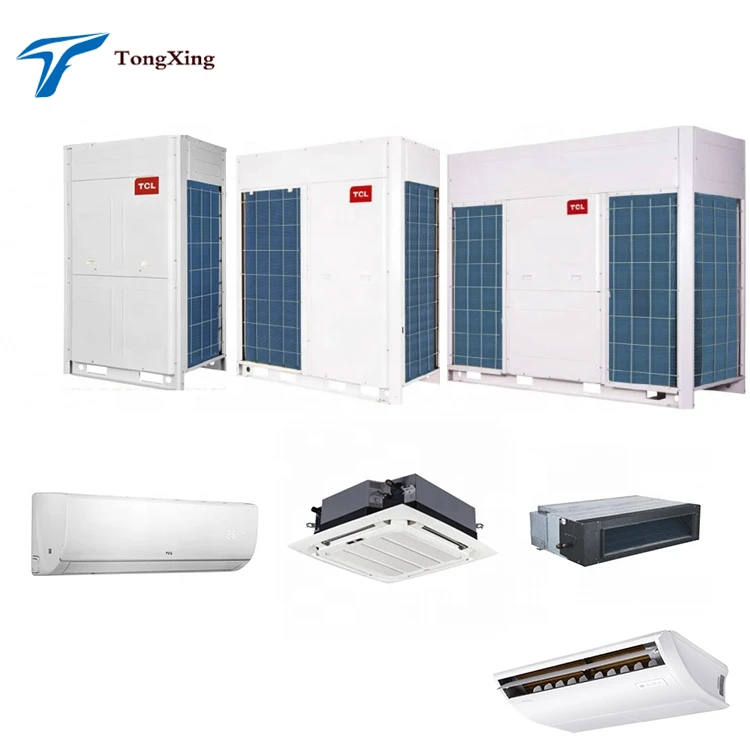

Система центрального кондиционера VRF для жилых и коммерческих помещений 45 кВт Инверторные Многослойные кондиционеры
- Категория: Air Conditioners >>>
- Поставщик: Zhengzhou Tongxing Air Conditioning Technology Co. Ltd.
Сохранить в закладки 1600467885333:
Описание и отзывы
Характеристики
Product Description
Outdoor type Display
The mini VRF Series is a range of high performance DC Inverter VRF System from 10kw to 28kw .meeting all customer requirements from small to large projects, providing various air conditioning solution.

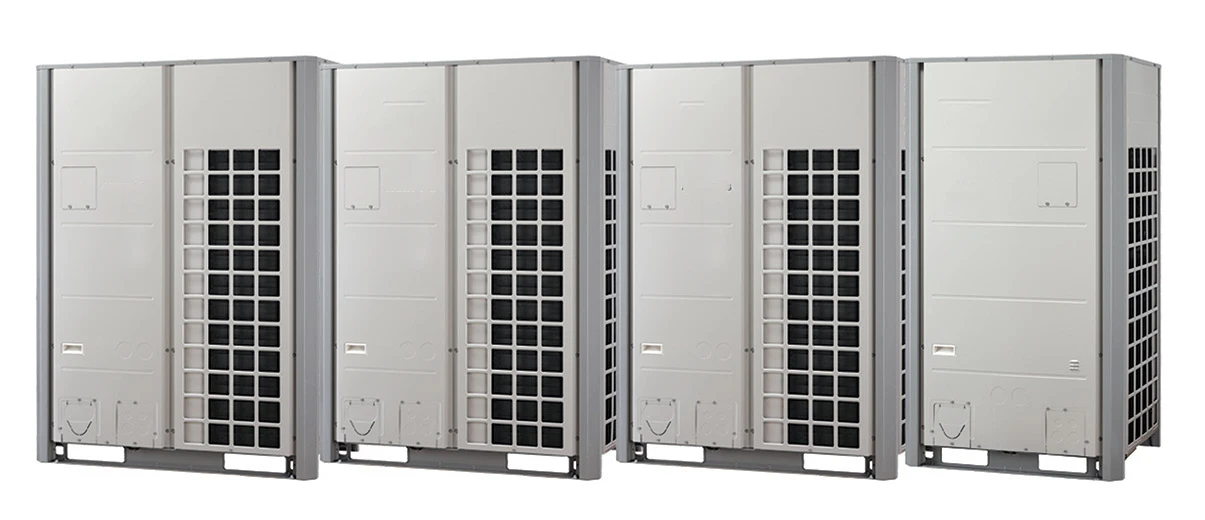

Combination of outdoor units
The Series is a range of high performance Full DC InverterVRF System from 8HPto 28HP in 2HP increments, meeting all customer requirements from small to large projects.

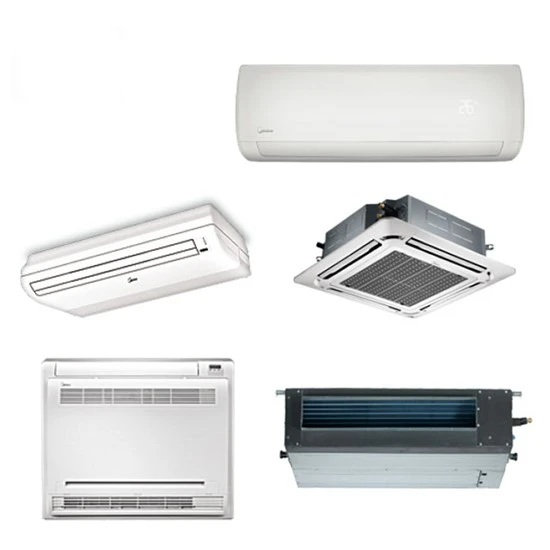

VRF INDOOR UNIT

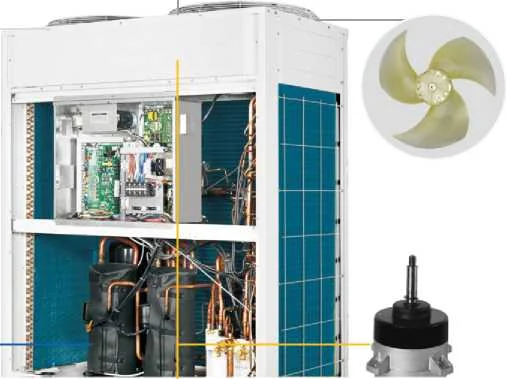

Adoption of the high-pressure chamber scroll compressor realizes high efficiency of motor, optimization of scroll plate and optimum fuel feeding, etc. and increases operation efficiency of compressor under overall operating conditions, especially, enhances intermediate performance greatly.
Efficient DC Motor
The new permanent magnet DC inverter compressor uses the concentrated winding motor, whose energy efficiency has greatly improved compared to that of distributed winding motormotor
Features:
1)Evaporating temperature can be adjusted between 2°C(35.6°F) to 16°C(60.8°F) which is the widest on the market.
2)Rapidly cooling depends on the lower evaporating temperature.
3)Preventing cold draft bases on the higher evaporating temperatures.
4)Saving energy by increasing seasonal efficiency.
Lower Noise
Noises are often a pain in the neck, especially when we're trying to put our mind into something. Working, studying even exercising and relaxing needs concentration. Hisense VRF offers indoor units with sound pressure level as low as 21dB(A). Perfectly blends into library, auditoriums and hospital rooms where requires sound levels lower than 25dB(A).
Noises are often a pain in the neck, especially when we're trying to put our mind into something. Working, studying even exercising and relaxing needs concentration. Hisense VRF offers indoor units with sound pressure level as low as 21dB(A). Perfectly blends into library, auditoriums and hospital rooms where requires sound levels lower than 25dB(A).
Features
● Comfortable and balanced airflow, up&down air outlet
Up air outlet : In cooling, cool air blows out horizontally and then gradually drops.
Down air swing: In heating, warm air blows downward and then gradually climbs up.
● Cold air prevention design
During heating in winter, cold air prevention function is enabled so that air won't be blown out until it's warm.
● Triple defenders for better purification
Mildew-proof filter, electrostatic fibre and anti-biotic fibre adopted to remove dust, smell, bacteria and mildew.
● Multiple protections
Anti-freezing protection, temperature malfunction protection, fan motor overload and humidity sensor protection
Up air outlet : In cooling, cool air blows out horizontally and then gradually drops.
Down air swing: In heating, warm air blows downward and then gradually climbs up.
● Cold air prevention design
During heating in winter, cold air prevention function is enabled so that air won't be blown out until it's warm.
● Triple defenders for better purification
Mildew-proof filter, electrostatic fibre and anti-biotic fibre adopted to remove dust, smell, bacteria and mildew.
● Multiple protections
Anti-freezing protection, temperature malfunction protection, fan motor overload and humidity sensor protection
High EER And COP
ARV 6 Series achieves the industy's top class energy efficiency in cooling and heating by utilizing all DC inverter compressors, and En-hanced vapor injection.
The cooling EER is up to 4.75 and the heating COP is up to 5.48 in the 8HP category.
Specification
Model | 252 | 450 | 560 | 615 | 785 | |||||||||
TMV-Vd+(***)W/N1S-C | ||||||||||||||
Cooling capacity | (kW) | 25.2 | 45 | 56 | 61.5 | 78.5 | ||||||||
Heating capacity | (kW) | 27 | 50 | 63 | 69 | 87.5 | ||||||||
Cooling Consumed power | (kW) | 5.4 | 12.85 | 16.2 | 18.25 | 23.4 | ||||||||
Heating Consumed power | (kW) | 5.8 | 12.25 | 15.7 | 17.5 | 21.8 | ||||||||
IPLV | (W/W) | 9.5 | 8.75 | 8.55 | 8.45 | 8.35 | ||||||||
APF | Wh/ (W-h) | 5.1 | 4.7 | 4.5 | 4.4 | 4.1 | ||||||||
Compressor Type | - | DC Inverter Scroll Compressor | ||||||||||||
Dimension (WxHxD) | (mm) | 930x1740x780 | ||||||||||||
Fan | Type | Propeller fan | ||||||||||||
Air Volume | m3/h | 11000 | 14000 | 19000 | 19000 | 26000 | ||||||||
Levels | Stepless speed regulation | |||||||||||||
Pipe | Gas side | (mm) | 25.4(Welding) | |||||||||||
Liquid side | (mm) | 12.7 (Welding) | ||||||||||||
Net Weight | kg | 225 | 270 | 350 | 350 | 400 | ||||||||
Refrigerant | Type | R410A | ||||||||||||
Control method | Electronic expansion valve | |||||||||||||
Quantity(kg) | 9 | 13 | 14 | 16 | 22 | |||||||||
Running noise | dB(A) | 58 | 61 | 63 | 63 | 65 | ||||||||
Packing & Delivery
Packaging : carton box or wooden pallet, Standard Packaging by shipping.
packed in carton, can customized different logo according to customers' requirements.
packed in carton, can customized different logo according to customers' requirements.
Company Profile
Tongxing Air Conditioning Technology Co.,ltd, we are a one-stop air-conditioning service enterprise that integrates central
air-conditioning machines sales and installation, accessory sales, central air-conditioning repair, maintenance, and cleaning. We have designed for office buildings, shopping malls, hotels, KTV, railway stations, hospitals, and factory buildings and so on to provide comprehensive solutions of central air conditioning. Our company is committed to spreading advanced international central air-conditioning system service concept to domestic and abroad, and tirelessly pursues it, and strives to build a good service brand of central air-conditioning system. Our company has engineering department, design department, administration department,finance department, foreign trade department, and domestic business department.
air-conditioning machines sales and installation, accessory sales, central air-conditioning repair, maintenance, and cleaning. We have designed for office buildings, shopping malls, hotels, KTV, railway stations, hospitals, and factory buildings and so on to provide comprehensive solutions of central air conditioning. Our company is committed to spreading advanced international central air-conditioning system service concept to domestic and abroad, and tirelessly pursues it, and strives to build a good service brand of central air-conditioning system. Our company has engineering department, design department, administration department,finance department, foreign trade department, and domestic business department.
Applications
Villa
Factory
Hospital
School
Office
shopping mall
Contact Us
VRF systerm / multi split air conditioner/ commercial air conditioner、duct type、air handing、rooftop /package unit、water chiller and any parts of air conditioner, anything you want,please contact me directly, i will give you a professional satisfactory answer, thank you.
Mail:alicewang@tongxingac.com
Похожие товары

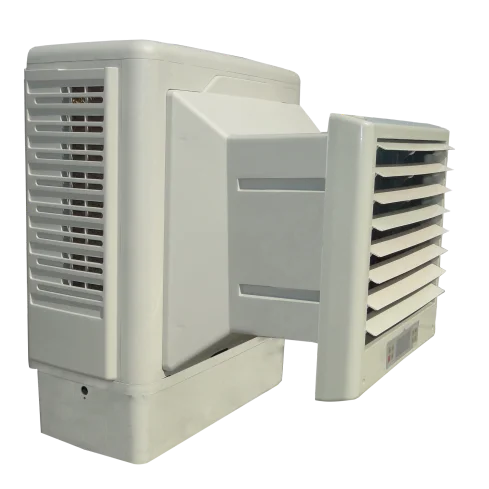

Промышленные Воздушные Охладители 18000cmh автономные переносные воздушные и комнатные охладители
200,00 $ - 240,00 $
Охладитель холодной воды 40TR 60TR 80TR винтовой охладитель с воздушным охлаждением для промышленного
Gree коммерческая система ОВКВ солнечные Центральные кондиционеры наружный блок R32/R410a многозонные разделенные воздуха VRF
2 699,00 $ - 2 899,00 $
6000m 3/h DC и AC оконный охладитель комнатный пустынный охладитель
1700BTU Охлаждающая мощность 500 Вт DC кондиционер для шкафа 48 в корпус
6800 BTU BGE Заводская поставка низкая цена кондиционер Высокое качество Мобильный кондиционер для фермы теплицы птицы
222,99 $ - 299,99 $

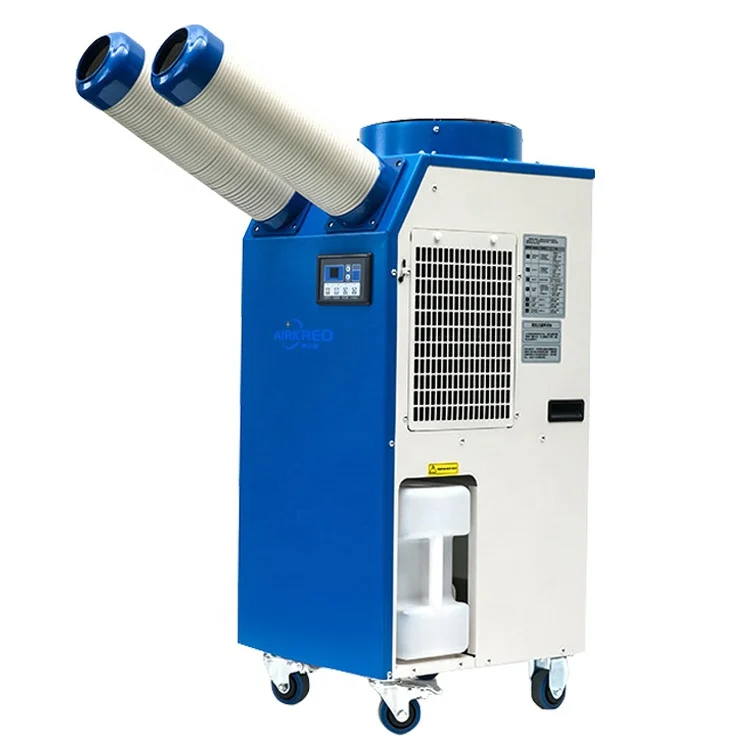

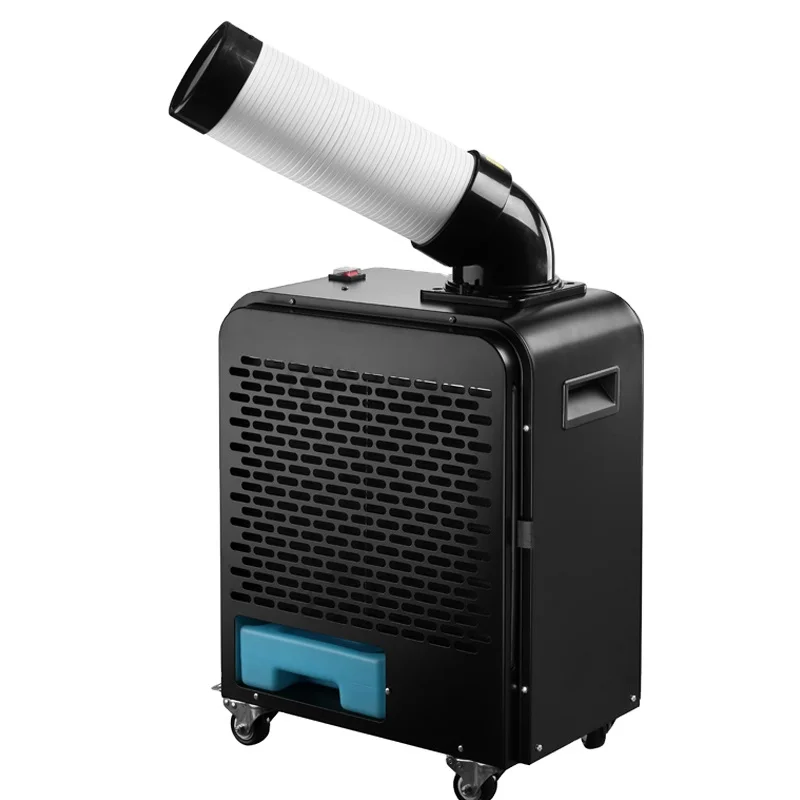

Оптовая продажа портативный промышленный точечный охладитель кондиционер
